Perfect Point S-Blaster User manual

C
S-Blaster User Guide
www.PPEDM.com
15192 Triton Lane,
Huntington Beach, CA 92649

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 2 of 33
TM
Limited Warranty Statement
Perfect Point EDM Corp. warrants to the end user that its products will be free from defects in material and
workmanship for a period of twelve (12) months from the date of delivery, but not more than eighteen (18)
months after date of shipment. This warranty extends only to the original purchaser, is expressly in lieu of all
other warranties, expressed or implied, and is further in lieu of all other liabilities or obligations for any
consequential damages or losses incurred by the buyer in connection with the purchase or use of the product.
This warranty applies to systems subjected to normal operating conditions established by PPedm for this product
and explicitly excludes equipment subjected to:
User alteration
Accident, or damage caused by the end user.
Improper handling, installation, maintenance, application, or contamination as established by PPedm equipment
operating instructions and preventative maintenance.
Use with blasting media not approved by PPedm.
Use contrary to the operation instructions, and failure to properly service and maintain this equipment per PPedm
user and maintenance instructions.
Unauthorized disassembly, repair, or alteration by anyone other than PPedm Corp. No allowances will be made
for repairs or alterations effected without specific written authorization from PPedm.
This warranty does not cover:
Normal wear and tear of soft goods (seals), Filters, Locators, Nozzles, Media or other fixtures and tools.
Credit will NOT be allowed nor shipment accepted on any machine or component thereof without Perfect Point’s
prior written consent and issuance of a PPedm Return Material Authorization (RMA).
PPedm will at its option, repair or replace any defective machine or component thereof for the specified warranty
period. PPedm reserves the right to substitute new equipment and/or improve the part(s) on any machine or part
thereof judged defective without further liability. Machines or components thereof will be repaired and the
warranty time continued.
All machines or components thereof returned for warranty consideration MUST NOT HAVE BEEN TAMPERED
WITH and be intact. Disassembled, or partially disassembled units or will be cause to VOID these warranty terms
and conditions.
All machines or components thereof returned for warranty consideration MUST NOT HAVE BEEN SUBJECTED
TO EXCESSIVE MOISTURE OR SHOP AIR SYSTEM CONTAMINANTS. Units subjected to excessive shop air
system contamination will be cause to VOID these warranty terms and conditions.
Liability Limitations: Under no circumstances shall PPedm have any liability for liquidated damages or
collateral, consequential, or special damages loss of production or progress of production resulting from delays
in delivery or performance, breach of warranty, negligent manufacture or otherwise. Purchaser agrees to
indemnify and hold harmless the PPedm from all claims by third parties in excess of these limitations.
THIS WARRANTY IS THE SOLE WARRANTY OF PPedm AND ANY OTHER WARRANTIES EXPRESSED OR
IMPLIED IN FACT, INCLUDING ANY WARRANTIES OR MERCHANTABILITY AND FITNESS FOR USE, ARE
HEREBY SPECIFICALLY EXCLUDED.

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 3 of 33
TM
CONTENTS
LIMITED WARRANTY STATEMENT .................................................................................................... 2
OPERATING ENVIRONMENT............................................................................................................... 4
PRODUCT WARNINGS......................................................................................................................... 4
1.0 PRODUCT OVERVIEW: ........................................................................................................ 7
1.1 MAJOR COMPONENTS............................................................................................................... 7
1.2 TECHNICAL SPECIFICATIONS ..................................................................................................... 7
1.3 DESCRIPTION OF OPERATION .................................................................................................... 8
1.4 S•BLASTER GENERAL FEATURES............................................................................................... 9
1.5 CHASSIS AND TANK SUBASSEMBLY......................................................................................... 10
1.6 HAND TOOL............................................................................................................................ 11
2.0 OPERATION:....................................................................................................................... 13
2.1 S•BLASTER FILLING PROCEDURE............................................................................................. 13
2.2 HAND TOOL CONFIGURATION AND ADJUSTMENT...................................................................... 14
2.3 PNEUMATIC TIMER SETTINGS .................................................................................................. 14
3.0 FASTENER CLEANING PROCEDURE .............................................................................. 15
4.0 PERIODIC MAINTENANCE ................................................................................................ 16
4.1 WASTE BOTTLE...................................................................................................................... 17
4.2 HEPA AND PRE-FILTERS ........................................................................................................ 17
4.2.1 Filter Change Recommendations:...................................................................................................17
4.3 INSPECT MEDIA TANK MESH FILTER ........................................................................................ 17
4.4 NOZZLE INSPECTION AND REPLACEMENT................................................................................. 18
4.5 MEDIA TYPE REPLACEMENT.................................................................................................... 18

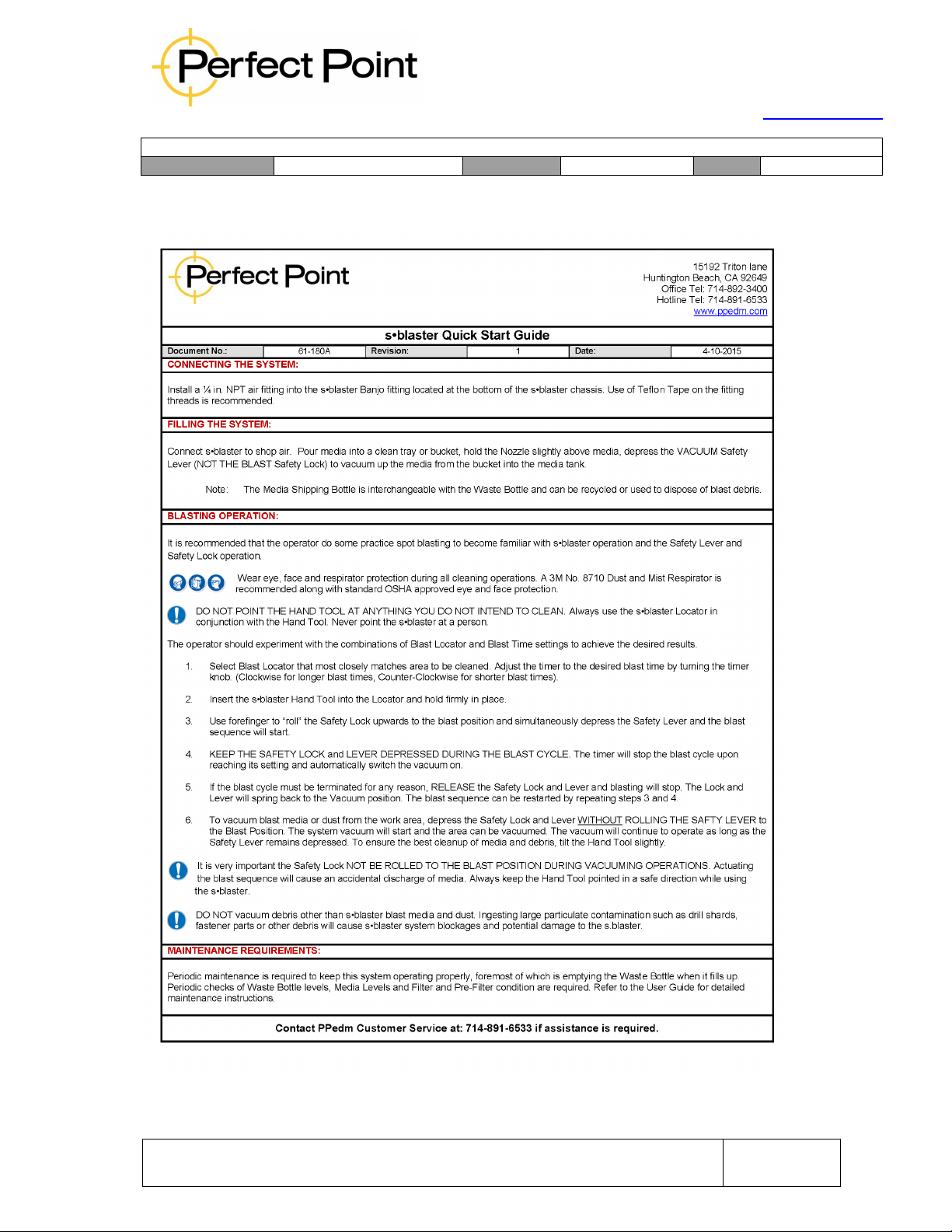

APPENDIX 1: QUICK REFERENCE GUIDE .................................................................................. 19
APPENDIX 2: TROUBLE-SHOOTING GUIDE ............................................................................... 20
APPENDIX 3: ACCESSORIES AND CONSUMABLES LISTS ...................................................... 23
APPENDIX 4A: TYPE II MATERIAL SAFETY DATA SHEET .......................................................... 24
APPENDIX 4B: TYPE V MATERIAL SAFETY DATA SHEET......................................................... 30

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 4 of 33
TM
OPERATING ENVIRONMENT
The Perfect Point s•blaster system described by this User Guide is intended to be connected to
facility shop air for use in a protected industrial environment supporting repair, manufacturing, or
similar operations. These locations are often referred to as industrial locations.
The Perfect Point s•blaster system is configured for a specific shop air input and air quality. Refer to
this User Guide for proper power shop air input specifications. Use of out-of-specification pneumatic
levels can result in component or airframe damage and will void the System Warranty. The product
described in this User Guide is intended for the support of aircraft repair operations by operators
familiar with this User Guide and the s•blaster system. It is the responsibility of the owner/operator to
ensure the system is used as intended and to comply with relevant safety agency and local code
requirements and the s•blaster is used in a safe manner.
PRODUCT WARNINGS
This surface coating removal system (s•blaster) should only be operated by personnel who have
completely reviewed this User Guide. Failure to properly operate this system can result in
airframe damage, tool damage, or personal injury. Follow all Warning and Caution statements
outlined in this User Guide and all equipment Warning placards. Proper care of equipment and
good judgment must always be observed. Do not proceed with any periodic or remedial repair
unless this User Guide has been thoroughly reviewed and understood. This unit is not field
repairable beyond the remedial actions described in the Troubleshooting section of this User
Guide. If malfunctions are encountered, please contact Perfect PointTM EDM Corporation
immediately. Contents and illustrations in this document are subject to change and may not
match the s•blaster product exactly.
1. Never attempt to operate the s•blaster in any manner not described in this manual.
2. Ensure all covers, filters, and hose connections are in place and secure before connecting
the shop air.
3. Use caution when connecting the air inlet. Only apply the air pressures, flows, and air quality
specified in this User Guide.
4. Never remove DANGER or WARNING labels from the s•blaster. Replace lost or damaged
labels immediately.
5. s•blaster servicing other than described in this User Guide, should only be performed by
PPedm factory qualified personnel.
6. Do not operate the system without providing proper environmental protection and in
accordance with all city state and federal regulations. Review OSHA Standards for PPE in 29

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 5 of 33
TM
CFR 1910 Subject I to ensure proper use of any applicable PPE. Approved respirators and
eye protection should be used at all times during s•blaster use.
7. During s•blaster operations be mindful of all hose routing and connections. Unattended air
hoses are potential trip hazards.
8. Never point the Hand Tool at anything you do not intend to clean. Inadvertent actuation of the
blast cycle may cause unwanted spills or injuries.
CAUTION
IF THE s•blaster TANK IS FILLED, AND THE SYSTEM IS CONNECTED TO AIR, THE SYSTEM IS
CAPABLE OF SHOOTING BLAST MEDIA IF THE BLAST LEVER IS ACTUATED EVEN IF THE
HAND TOOL IS NOT POSITIONED ON THE WORK.
To safely and properly handle this tool, you must understand that injury to you or others may result
from unsafe or careless use. It must be kept in mind that while the general rules of safe tool handling
always apply, circumstances or conditions may exist that require additional precautions to be taken.
•Connect the air hose only when ready to use the s•blaster.
•Do not carry the s•blaster by the tank vacuum hose.
•Always keep the Hand Tool pointed in a safe direction.
•Treat s•blaster as if it is charged when connected to shop air and the Hand Tool is not
positioned on the work.

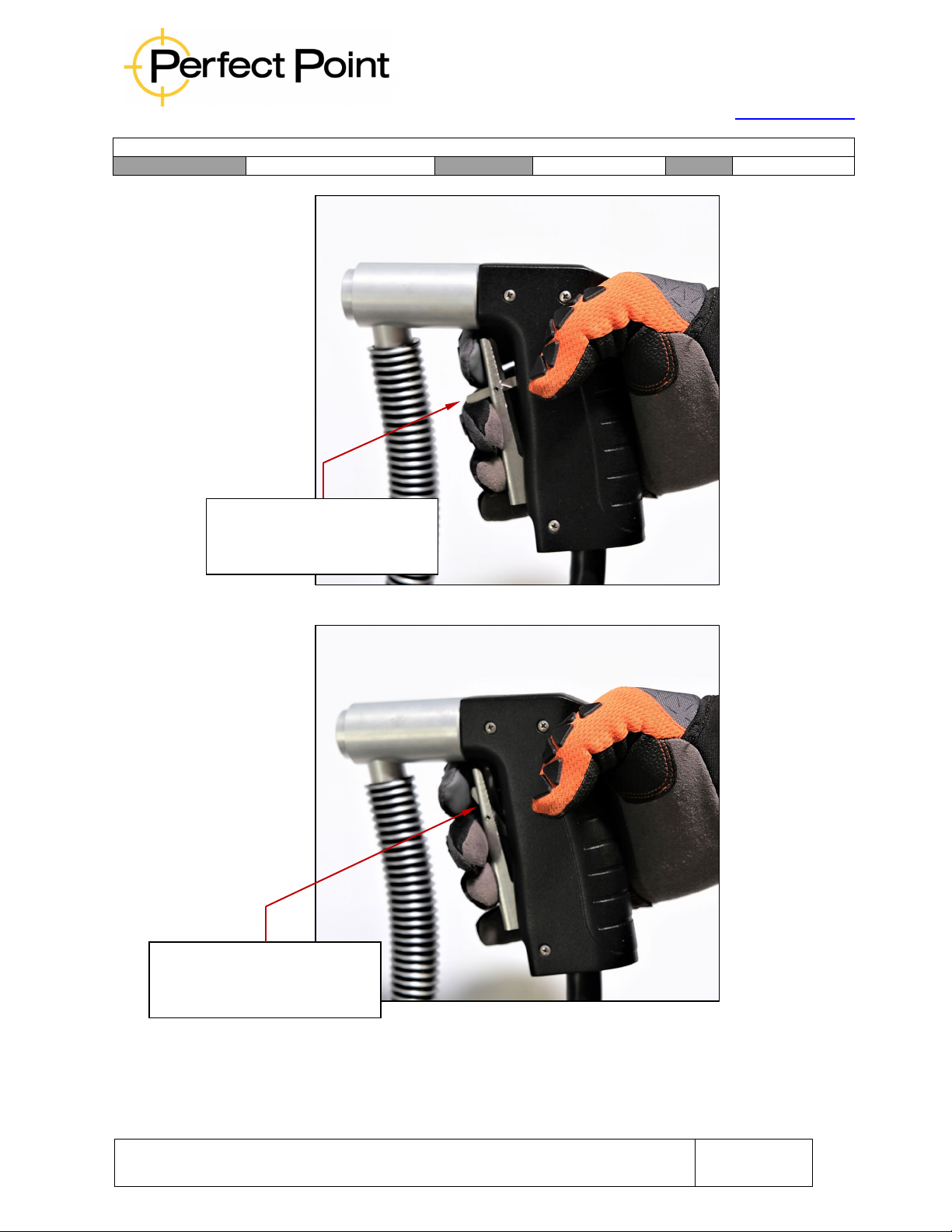

•Do not depress the Safety Lock and Lever unless the Hand Tool is inserted into the s•blaster
Locator, the Locator is placed on the area to be cleaned, and you are ready to commence
the cleaning cycle.
•Keep fingers off of and away from the Safety Lock until the Hand Tool is inserted into the
s•blaster Locator and you are ready commence the cleaning cycle.
•Move the Safety Lock and Lever to the blast position only when ready to commence a
cleaning cycle.
•Even if you have used blast media systems before; practice inserting and removing the
s•blaster Hand Tool into the Locator and actuating the Safety Lock and Safety Lever blast
and vacuuming controls to become accustomed to the s•blaster handling characteristics.
•NEVER RELY ON MECHANICAL FEATURES ALONE. Only your safe s•blaster handling
habits will ensure the safe use of your s•blaster system. This is your responsibility.
•When moving over, under, around or on any obstacles, always maintain control of the Hand Tool
direction. Disconnect the air hose if there is any chance that you might fall and or lose control of
the Hand Tool direction.
•Always disconnect the shop air when changing Hand Tool parts or servicing the system.

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 6 of 33
TM

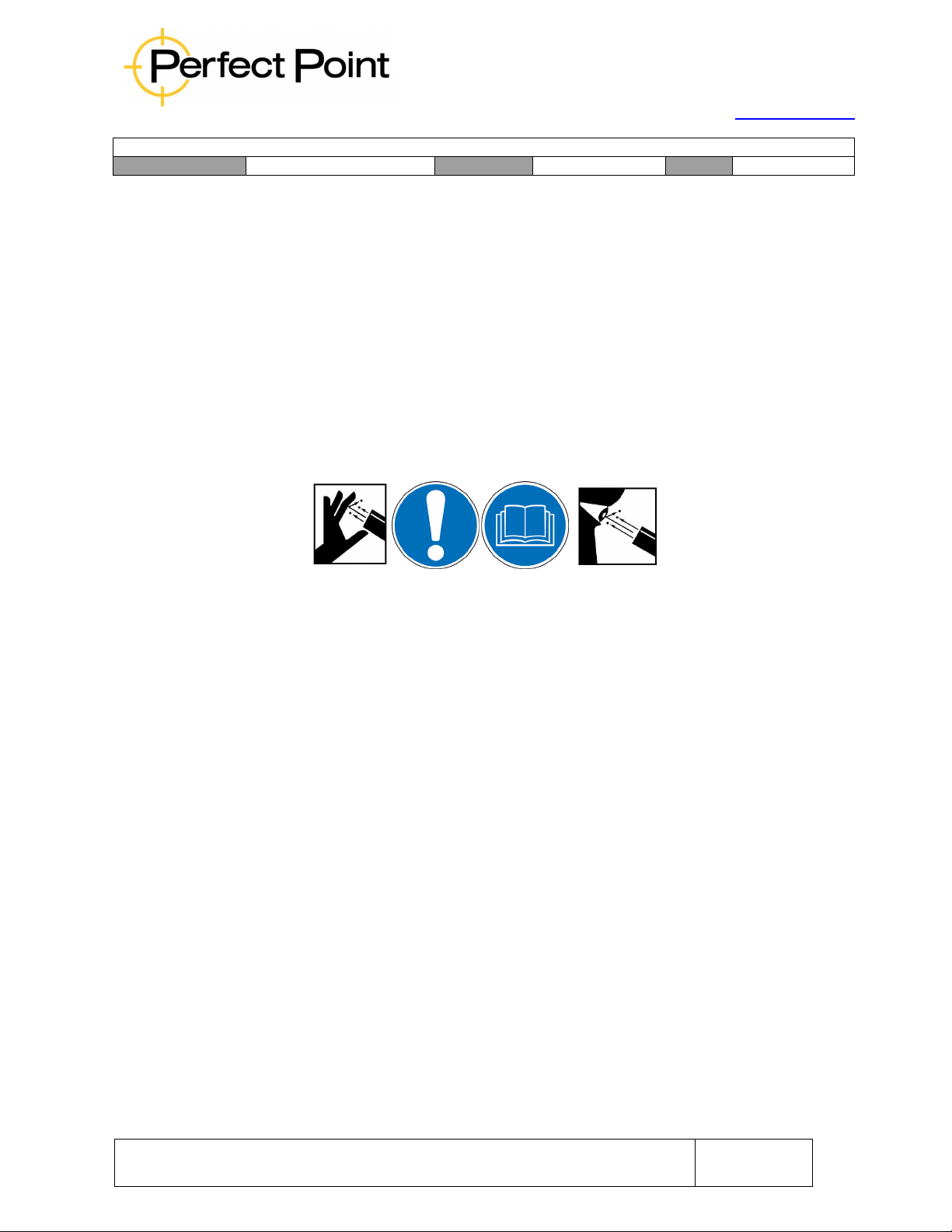

Description of Symbols Used in Product Labeling
Symbol
Publication
Description
ISO 3864-2 Attention, consult accompanying
documents
ISO 3864-2 Read and understand manual before
operation
ISO 3864-2 Use a dust mask during operation
.
ISO 3864-2 Wear eye protection during operation
ISO 3864-2 Wear face shield during operation
ANSI 7535.4 Vacuum/Pressure Force
ANSI 7535.4 Exhaust

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 7 of 33
TM
1.0 PRODUCT OVERVIEW:

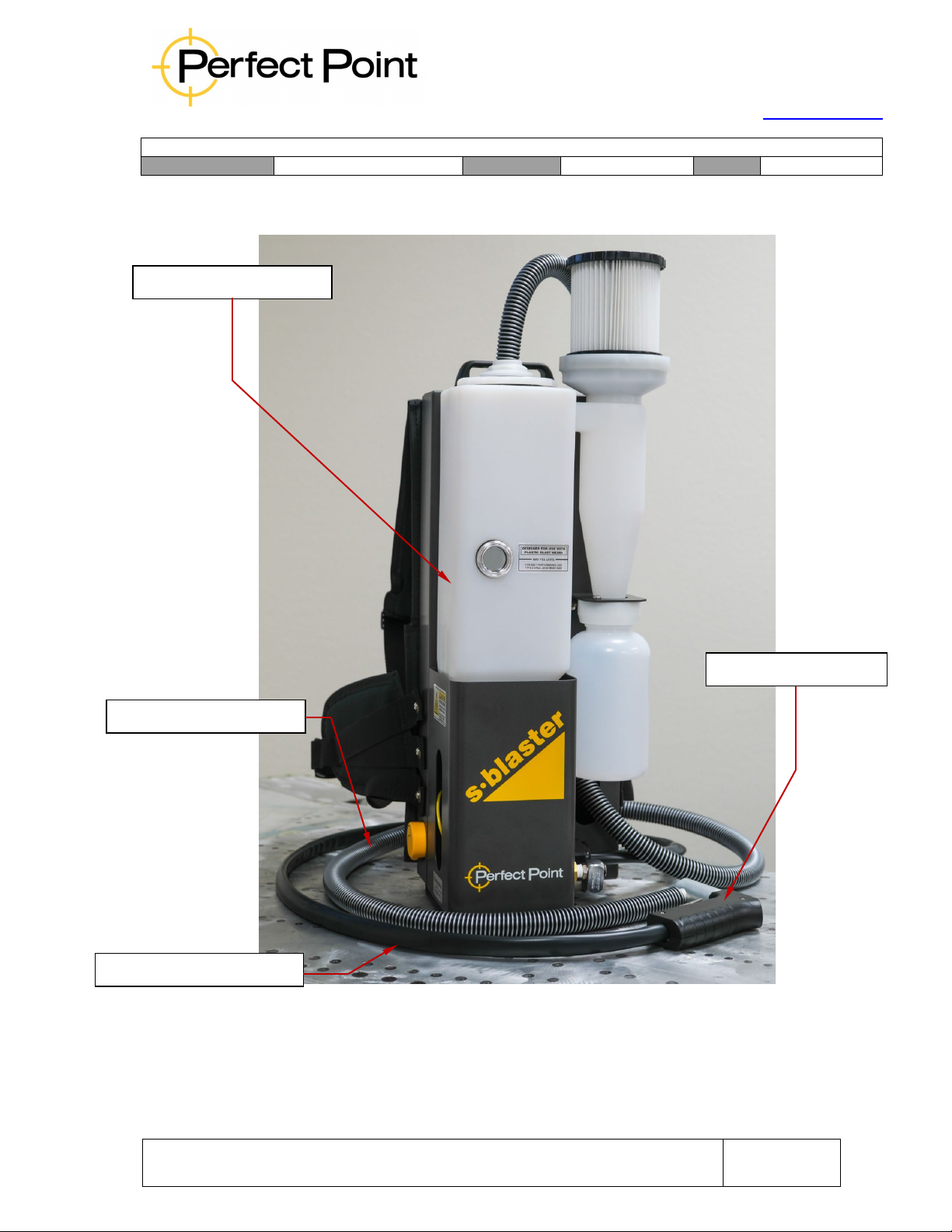

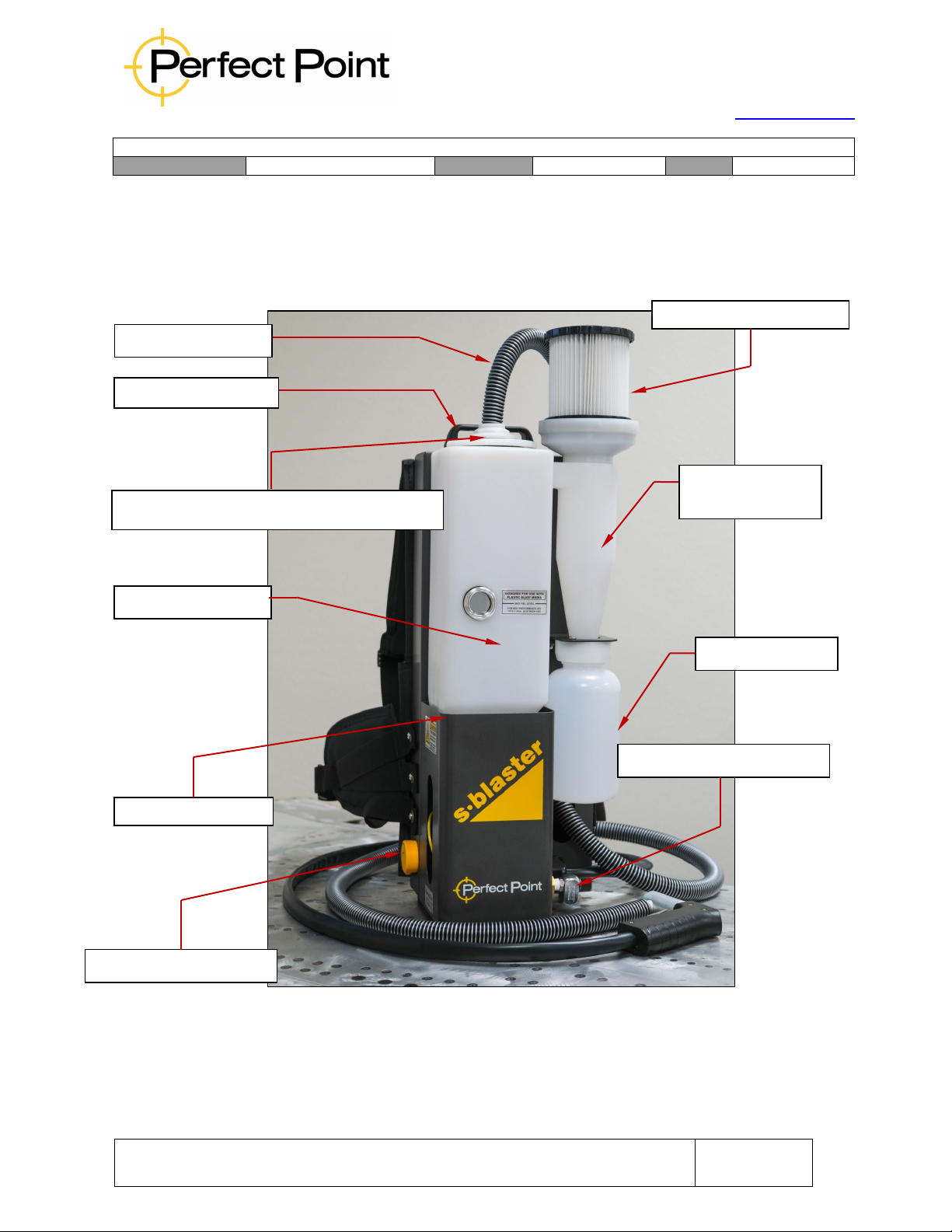

1.1 Major Components:
The s•blaster comprises 2 primary subassemblies:
Chassis and Tank Subassembly
Hand Tool and Umbilical Hose Subassembly
•Vacuum Hose Subassembly
•Umbilical Subassembly,
The system is provided with the following accessories:
•3 each s•blaster Locators
•4 each Media Bottles
o2 each Type II Plastic Blast Media (Anti-Static)
o2 each Type V Acrylic Blast Media (Anti-Static)
1.2 Technical Specifications:
s•blaster Weight (with Blast Media): 21 Lbs.
Umbilical and Vacuum Hose Lengths: 5 ft.
System Air Inlet Assembly: ¼ inch Female NPT
Facility Air Requirements: Dry, Filtered Shop Air at 150 PSI Maximum
90 PSI Minimum (Recommended at 120-150
PSI)
Air Consumption: 16 CFM at 120 PSI

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 8 of 33
TM
1.3 Description of Operation:
The Perfect Point EDM Corporation’s s•blaster is a hand held, closed loop, coating
and corrosion removal system, using regulated shop air and Plastic Blast Media
(PBM) to remove aircraft paint and fillers from the surface of airframe fasteners. .
During fastener cleaning operations the s•blaster delivers a mixture of pressurized air
and the Plastic Blast Media through an Umbilical Hose Assembly to a Hand Tool. A
Blast Locator seals the gap between the Hand Tool and the surface being blasted,
completely enclosing the blast area and capturing and recycling the media and
removed material. As the blast media removes the surface coatings, the removed
material is vacuumed away from the Hand Tool by means of a vacuum tube attached
to the Hand Tool. A cyclone separator removes blast debris and particulate
contamination and is collected by a sealed waste bottle for disposal. Exhaust air is
passed through a HEPA filter assembly removing all airborne dust and debris from
the cut cycle. The Media is returned to the s•blaster system media tank where it is
recycled. The duration of the media cleaning cycle is controlled by means of a
pneumatic timer.
Different diameter Blast Locators and variation of cleaning time settings are
controlled to affect the diameter and aggressiveness of the cleaning process.
The cleaning cycle is initiated by the operator by placing an s•blaster Blast Locator
on the fastener to be cleaned and inserting the Hand Tool into the Locator. The
function of the Blast Locator is to confine the area to be blasted to just the fastener
head, and to stop the escape of dust or debris.
The cleaning cycle begins when the operator rolls the Hand Tool Safety Lock
upwards to the blast position and depresses the Safety Lock and Safety Lever,
continuously holding them in the depressed position until the pre-set pneumatic timer
completes the cleaning cycle.
Upon completion of the timed cleaning cycle, the s•blaster automatically switches
from blast to vacuum mode removing dust and debris from the immediate blast area.
The vacuum mode will continue as long as the operator continues to depress the
Safely Lock and Lever.
When the Safety Lock and Lever is released s•blaster operation stops, and the Hand
Tool may be removed from the Locator.
The s•blaster vacuum-only feature may be used alone to clean up any surrounding
dust and debris from the immediate area by simply depressing the Safety Lever
WITHOUT rolling the Safety Lock upwards to the blast position.

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 9 of 33
TM
1.4 s•blaster General Features:
Figure 1 – s•blaster System
Hand Tool Assembly
Vacuum Hose Assembly
Umbilical Assembly
Chassis Assembly

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 10 of 33
TM
1.5 Chassis and Tank Subassembly:
The s•blaster chassis is configured to allow the operator to use it as a backpack or it
may be carried by a handle mounted at the top of the chassis. The s•blaster should
only be operated in the vertical position.
Figure 2 – s•blaster Chassis and Tank System
HEPA/Pre-Filter
Cyclone
Separator
Waste Bottle
Shop Air Hose Connector
Pneumatic Timer
Vacuum Hose
Carry Handle
Vacuum Hose/Media Tank Lid Assembly
Media Tank
Media Valve

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 11 of 33
TM
1.6 Hand Tool:

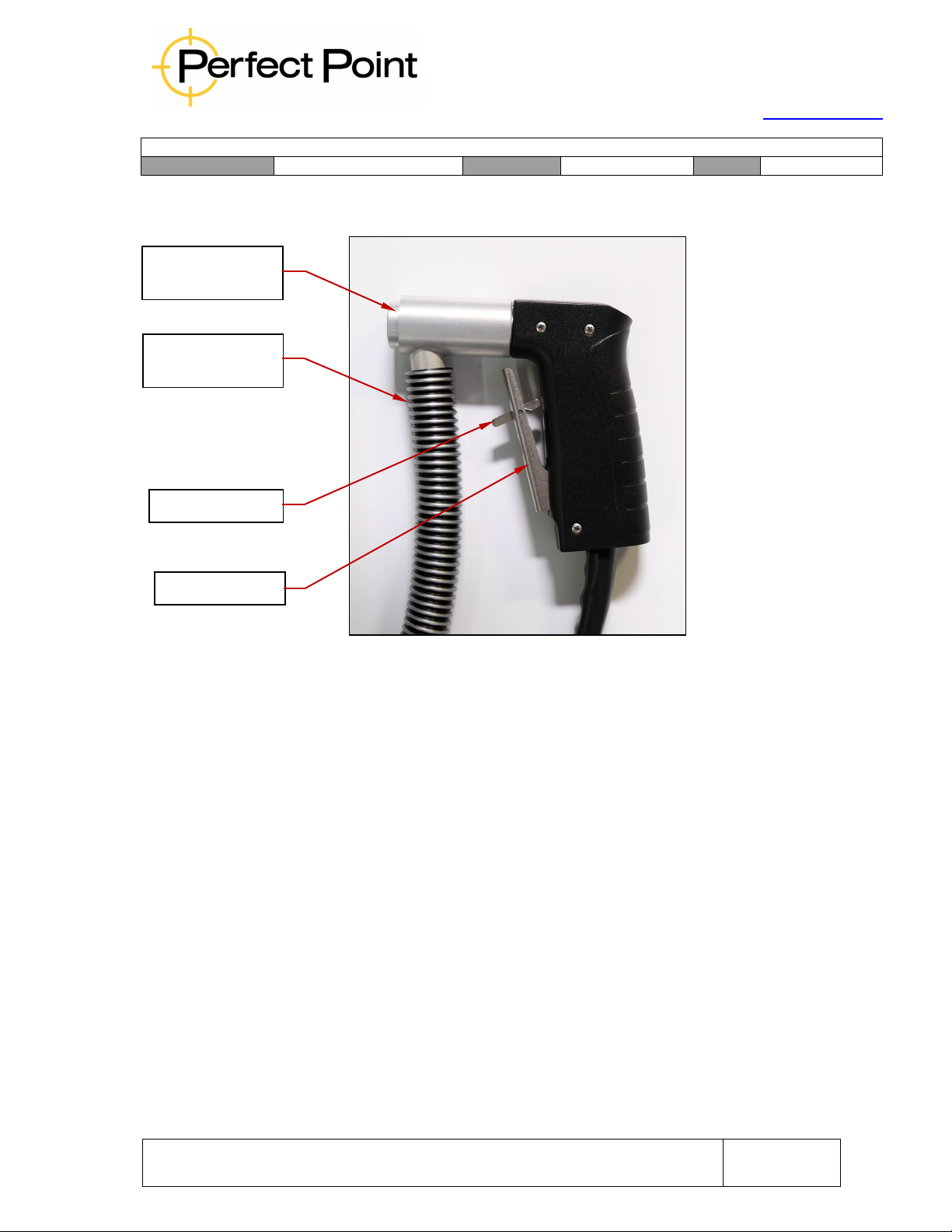

Figure 3 – s•blaster Hand Tool
(Trigger Shown in Vacuum Position)
A) Safety Lever and Safety Lock Assembly:
The s•blaster incorporates two functions into a Safety Lock and Safety Lever
assembly. These functions are:
•Vacuum
•Blast
The Safety Lock is biased in the Vacuum position. This means that if the
Safety Lock is left in position and the Safety Lever is depressed then only
Vacuum will be actuated.
When the Safety Lock is rolled upward to the flush position and the Safety
Lever depressed the system will produce blast pressure and media flow.
When the Safety Lock and Lever is released, all functions will immediately
stop, and the Safety Lock will spring back to the Vacuum position.
Figures 4 and 5 on the following page illustrate the two Safety Lock and
Lever Operating positions.
Nozzle-Vacuum
Spacer/Housing
Safety Lever
Safety Lock
Vacuum
Hose Assembly

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 12 of 33
TM
Figure 4
Figure 5
Safety Lock and Safety Lever
in
Vacuum Position
Safety Lock and Safety lever
in
Blast Position

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 13 of 33
TM
B) Hand Tool Blast Locators:

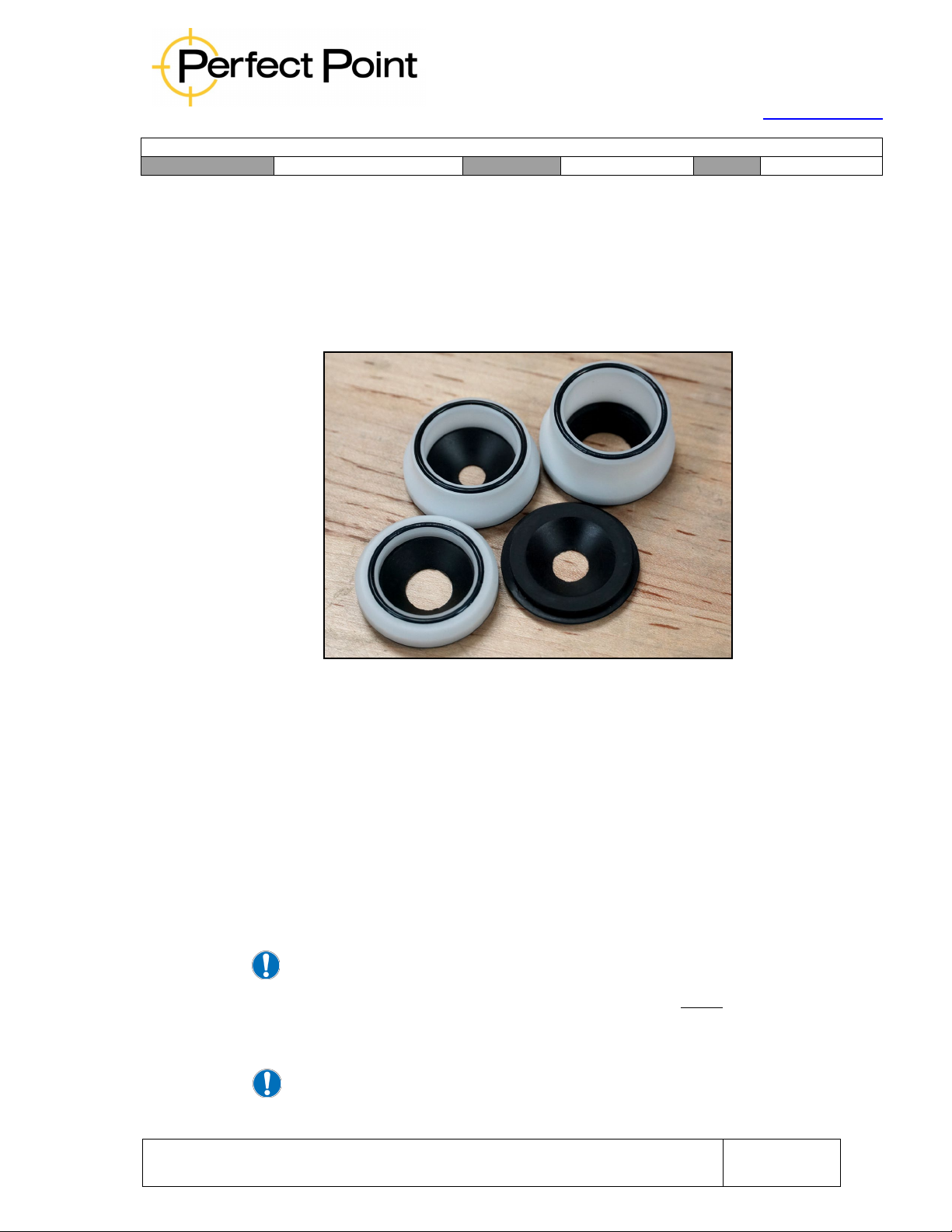

The s•blaster system includes interchangeable Blast Locators (Fig. 6). Each
Locator has a different size aperture to define the blast diameter when fitted
to the tip of the Hand Tool Nozzle/Vacuum Assembly.
Figure 6
2.0 OPERATION:
The system is shipped fully assembled and ready for use. All that is required is to install a
suitable air fitting, connect to shop air, and fill the s•blaster media tank with media.
2.1 s•blaster Filling Procedure:
Premeasured bottles of plastic blast media are supplied with the system that must be
vacuumed up into the system before operation.
Do not exceed 2 media bottles.The media level should never exceed the
sight-glass level.
Rolling the Safety Lock to the Blast position and depressing the Safety Lock
and Lever with the Hand Tool in the Media will result in air pressure
dispersing media over the immediate area. Be sure to ONLY use the
Vacuum position when filling the s•blaster. The operator should familiarize
themselves with the s•blaster controls before attempting to fill the system.

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 14 of 33
TM
Do not use any other media other than what is recommended by
PPedm. Use of unapproved media will void the system warranty and may
damage airframe or the s•blaster system.
1. Connect the system to shop air assuring it is preset to the proper pressure
settings for s•blaster operation (150 psi max. 90 psi min.).
2. Pour media into a clean tray or bucket, hold the Nozzle slightly above media,
depress the VACUUM Safety Lever (NOT THE BLAST Safety Lock) to vacuum
up the media.
Note: The Media Shipping Bottle is interchangeable with the Waste Bottle and can
be recycled or used to dispose of blast debris.
Do not operate the s•blaster until all fittings and hoses are re-connected.
2.2 Hand Tool Configuration and Adjustment:
Changing Blast Masks and Blast Timer settings will change the outcome of blast
effects. Each coating removal situation is unique, and the operator should experiment
with s•blaster blast aperture and timer settings to find the optimum cleaning results.
2.3 Pneumatic Timer Settings:
A Pneumatic Timer is located on the side of the chassis (Fig. 7A & B). Blast times
may be varied from approximately 3 seconds to 30 seconds. Adjust the timer to the
desired blast time by turning the timer knob Clockwise for longer blast times, or
Counter-Clockwise for shorter times. Once the Blast Trigger is depressed by the
operator the pneumatic timer starts and will stop upon reaching its setting and
automatically switch the system to vacuum mode.

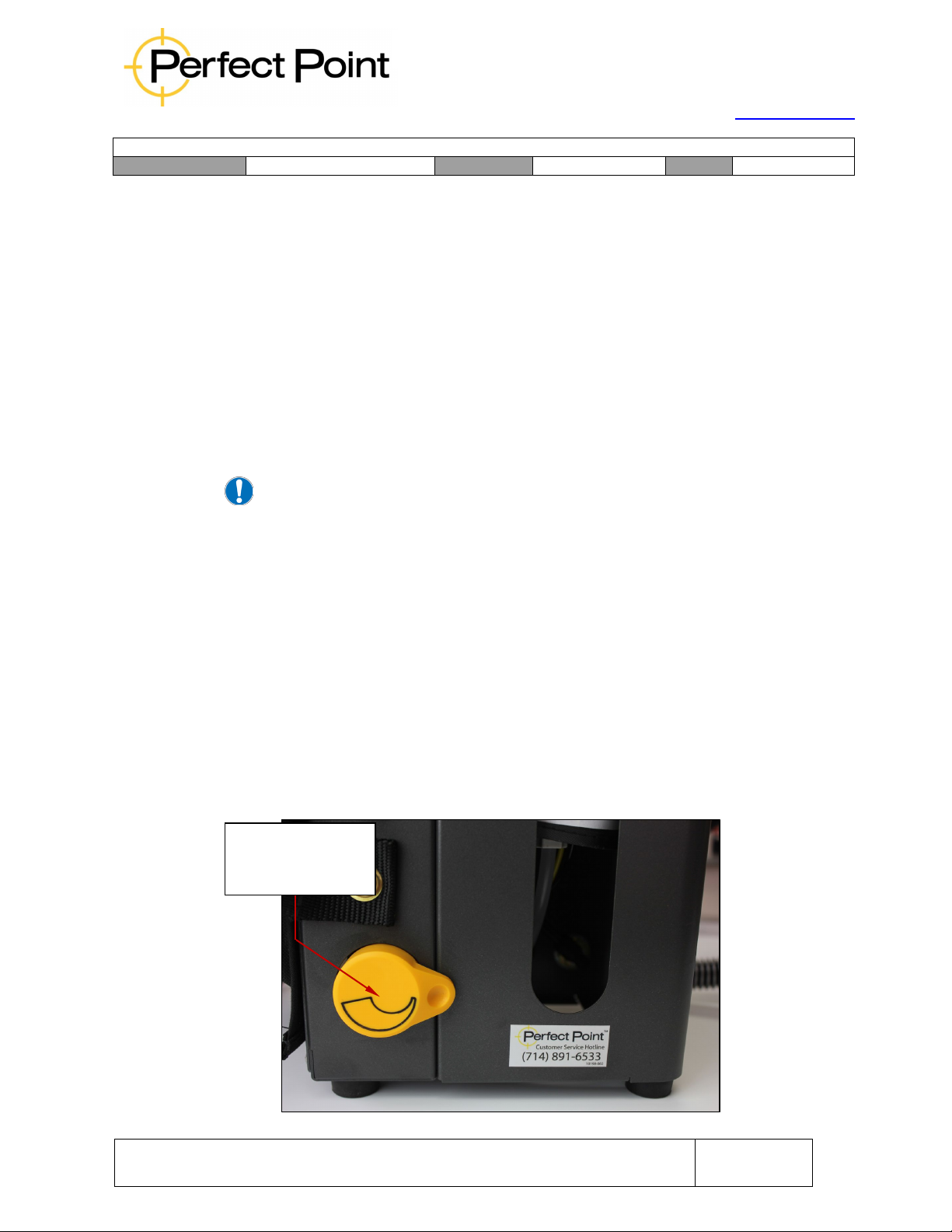

Pneumatic Timer
in 3 second blast
position (approx.)

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 15 of 33
TM

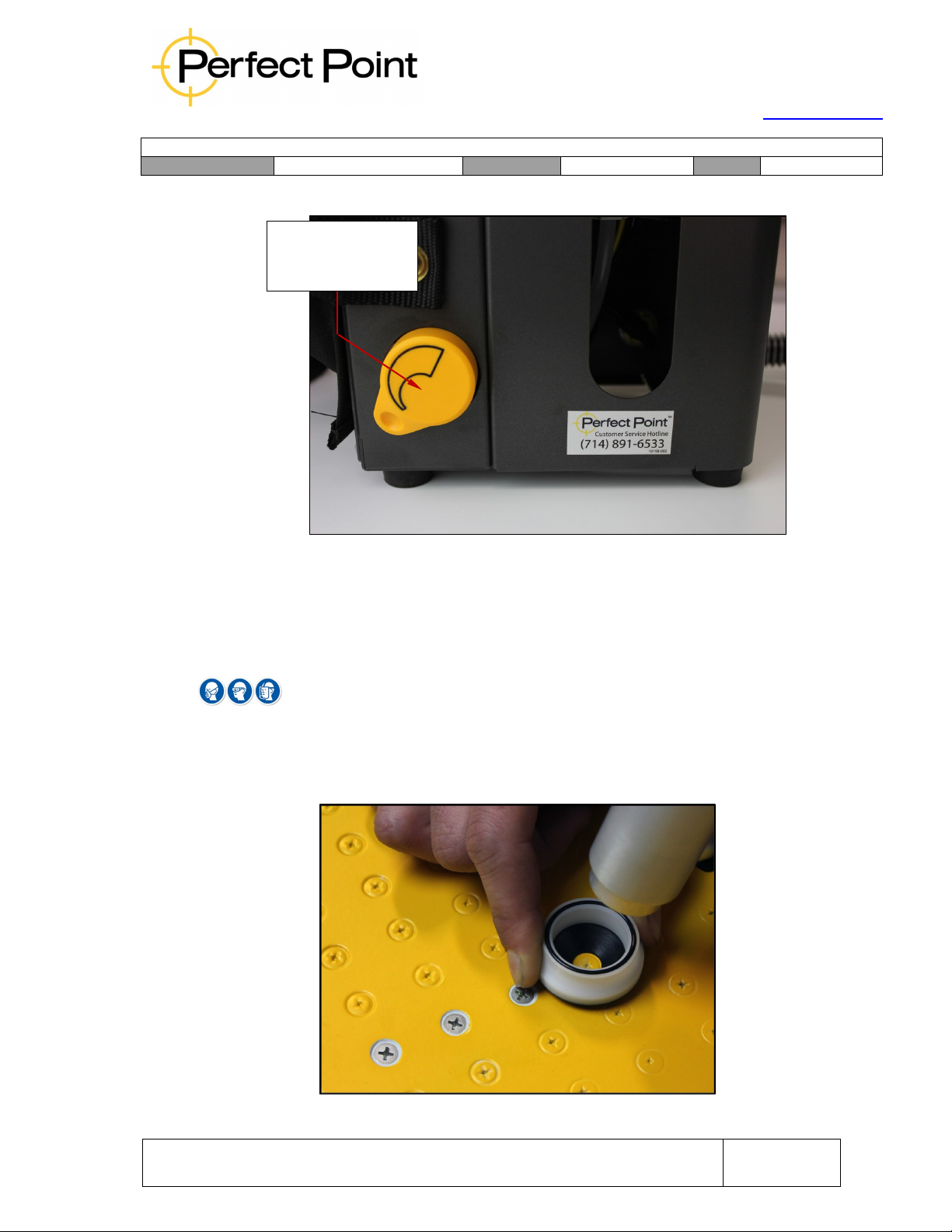

Figure 7
3.0 FASTENER CLEANING PROCEDURE:
The following procedure assumes the s•blaster is connected to shop air and a Blast Locator
has been selected which matches the diameter of the fastener head.
Wear eye, face and respirator protection during all cleaning operations. A 3M
No. 8710 Dust and Mist Respirator is recommended along with standard
OSHA approved eye and face protection.
Place the s•blaster Locator over the fastener to be cleaned centering around the fastener
head (Fig. 8), insert the s•blaster Hand Tool into the Locator and hold firmly in place.
Figure 8
Pneumatic Timer
in 30 second blast
position (approx.)

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 16 of 33
TM
Use forefinger to “roll” the Safety Lock upwards to the blast position and simultaneously
depress the Safety Lever and the blast sequence will start (See Fig. 5).
KEEP THE SAFETY LOCK and LEVER DEPRESSED DURING THE BLAST CYCLE. The
s•blaster Pneumatic Timer will automatically time and terminate the blast cycle upon reaching
its setting and automatically switch to vacuum mode removing residual blast media and
removed dust and debris.
Note: The Vacuum will continue to operate as long as the Safety Lock and Lever are held in
the depressed position.
1. Keep the trigger depressed as the s-blaster is removed from the fastener. Once satisfied
that all media and dust has been vacuumed away, release the Safety Lock and Lever, all
operation will stop, and the Hand Tool can be removed from the Blast Locator.
Note: A slight rocking motion can be induced to the Hand Tool and Locator to assist in
vacuuming up surrounding media and dust.
2. If the blast cycle must be terminated prematurely for any reason, simply RELEASE both
Safety Lock and Lever and operation will stop and the Lock and Lever will return to the
Vacuum position. The blast sequence can be restarted by repeating steps 1 and 2.
3. If at any time the operator wishes to vacuum up excess blast media or dust from the
immediate work area simply depress the Safety Lock and Lever WITHOUT ROLLING
THE SAFETY LEVER to the Blast Position. The system vacuum feature will engage, and
the area can be vacuumed. The vacuum will continue to operate as long as the Safety
Lock and Lever are depressed. Vacuum is not a timed feature.
Note: To ensure the best cleanup of media and debris, tilt the Hand Tool slightly as you
vacuum.
It is very important the Safety Lock NOT BE ROLLED TO THE BLAST POSITION
DURING VACUUM OPERATION. Actuating the blast sequence will cause an accidental
discharge of media. Always keep the Hand Tool pointed in a safe direction away from
your body while using the s•blaster.
Only vacuum up s•blaster debris and media, do not use this system as a general shop
vacuum. Ingesting drill shards or dirt and debris other than media and blast dust will
cause s•blaster system blockages, and potentially damage the s•blaster.
4.0 PERIODIC MAINTENANCE:
It is wise to regularly inspect the s•blaster system during operation. Keeping the system in
optimum operating condition will avoid system blockages, and breakdowns. Monitoring media
level, waste level and filter condition will ensure proper s•blaster operation.

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 17 of 33
TM
4.1 Waste Bottle:
During cleaning operations monitor the Waste Bottle on the bottom of the Cyclone Separator.
When the Waste Bottle becomes filled it must be replaced. Remove the Bottle from the
bottom of the Cyclone Separator, seal with a screw cap provided with a replacement bottle
and dispose of removed material in accordance with local regulations.
Note: The standard s•blaster consumables kit includes media, a replacement waste bottle
and cap, and replacement Pre-Filter.
4.2 HEPA and Pre-Filters:
Periodically inspect the HEPA and Pre-Filter assemblies and replace as necessary. Remove
the HEPA Filter from the bayonet style fitting by turning counterclockwise and lifting it free of
the Media Tank Assembly. The Pre-Filter is located directly below the HEPA Filter. Check to
see if the Pre-Filter is domed or still flat. If it is domed, then it should be replaced. Remove
the Filter Seal Ring first, then lift the Pre-Filter from its counterbore.
4.2.1 Filter Change Recommendations:
It is recommended that the Pre-Filter be replaced weekly during normal operation. More often
if a decline in vacuum performance is observed. The HEPA Filter should be replaced
quarterly.
PPedm does not recommend cleaning HEPA or Pre-Filters. If the s•blaster is
being used to remove hazardous materials it is recommended that the HEPA
and Pre-Filters be disposed of in accordance with local regulations.
It is NOT recommended that HEPA or Pre-Filters be blown out with shop air
as this will release considerable amounts of airborne dust and particles that
will disperse undesired contamination throughout the area.
4.3 Inspect Media Tank Mesh Filter:
If system blockages are encountered is advisable to inspect the Media Tank Mesh Filter.
During cleaning operations, the vacuum line is capable of ingesting larger particles from the
surface being cleaned. The Media Tank Mesh Filter is designed to catch larger particulates
that may cause system blockages. To inspect the Media Tank Mesh Filter:
1. Disconnect the top corrugated Vacuum hose from the chassis side vacuum hose
barbed fitting. Unscrew the clear plastic vacuum hose and media tank lid as a
unit.
2. The Mesh Filter Assembly is slip fit into the top of the Media Tank opening and
may be removed for cleaning by lifting it out of the Media Tank.

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 18 of 33
TM
3. Replace the Mesh Filter Assembly after cleaning and re-install the Media Tank
Lid and clear vacuum hose onto the Media Tank. Reattach the Chassis Vacuum
hose on the barbed chassis side vacuum line fitting.
Do not operate the s•blaster unless all fittings and hoses are re-connected.
If a system blockage is suspected refer to the troubleshooting section of
the User guide for remedial action.
4.4 Nozzle Inspection and Replacement:
Nozzles are very reliable and will provide hundreds of cleaning cycles, however Nozzles
need to be inspected periodically for erosion of the inner bore that could affect blast efficiency
and pattern. To inspect or replace a Nozzle do the following:
The Vacuum Tube Housing is held in position by a retaining O-Ring. To remove the Vacuum
Tube Housing simply pull it away from the Hand Tool.
Use a ½” AF wrench to unscrew the nozzle, turning it counterclockwise.
Inspect the O-Ring seal seated at the bottom of the bore in the Hand Tool body. Inspect the
nozzle for excessive wear and replace the nozzle and O-Ring if necessary. Always replace
the O-Ring whenever the Nozzle is replaced.
Reinstall the Vacuum Tube Housing and the Hand tool is ready for use.
4.5 Media Type Replacement
S-Blaster utilizes a cyclone filtering system that separates the lighter used media apart from
heavier fresh media. However cyclone efficiency can be affected by various substrates and
may require a media change.
1. Wear proper safety protection such as safety glasses and masks. Remove
supply line to unit.
2. Gently pull hose from barbed tank cap and unscrew remaining.
3. Wipe off dirt and dust from O-ring and regrease using silicon grease or similar
seal conditioner.
4. Removing screen trap by sliding straight up.
5. Use a shop vacuum to vacuum up remaining media. Please be cautious with
components inside media tank.
5. Properly dispose of media, following facility guidelines
Refer to section 2.1 Filling Procedure for proper fill instructions.

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 19 of 33
TM
APPENDIX 1: Quick Reference Guide:
Note: This Quick Reference Guide is provided as a laminated sheet with the system documentation packet for
ease of startup. This guide does not replace the requirement to completely review the User Guide.

15192 Triton Lane
Huntington Beach, CA 92649
Office Tel: 714-892-
3400
Hotline Tel: 714-891-
6533
www.ppedm.com
User Guide
Document No.
61-180
Revision:
6
Date:
08-22-2022
This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in part
or in whole without the express written permission of the company. Perfect Point logo, Perfect PointTM and S-BlasterTM are trademarks of
PPedm, Corp. US and worldwide patents pending.
Page 20 of 33
TM
APPENDIX 2: Trouble-Shooting Guide
This section of the User Guide lists common maintenance issues encountered and their solutions. It
is recommended the following basic steps be done before proceeding to a higher level of trouble
shooting.
•Check Waste Bottle level and replace if filled.
•Check HEPA and Pre-Filter for cleanliness and free air flow.
•Check supply air pressure and quality.
•Backflush the nozzle to clear any media blockage as follows:
•Insert a center punch or pencil tip in the Nozzle tip and hold firmly in place.
•While observing the media tank, apply 2 to 3 short “Blast” bursts to the
system. The media in the tank should appear to bubble as air is blasted back
through it.
In the event these basic steps do not remedy the issue, review the Troubleshooting Guide for
helpful maintenance remedies.
If a solution cannot be found in this Trouble-Shooting Guide, do not hesitate to contact the
Customer Service Hotline Phone at 714-891-6533. This number is located in multiple places
for ease of access.
•Back-side of the s•blaster chassis.
•Printed in the header and at the bottom of the Quick-Start Guide.
•Printed in the header of this User Guide.
