Personal Care Plus PM-770 User manual

Electronic Knee Stimulator
For PainRelief
User Manual
ModelPM-770

Contents
Introduction
Parts
Safety information
Instructions foruse
Therapeuticmodes
Specification
Troubleshooting
Maintenance and Cautions

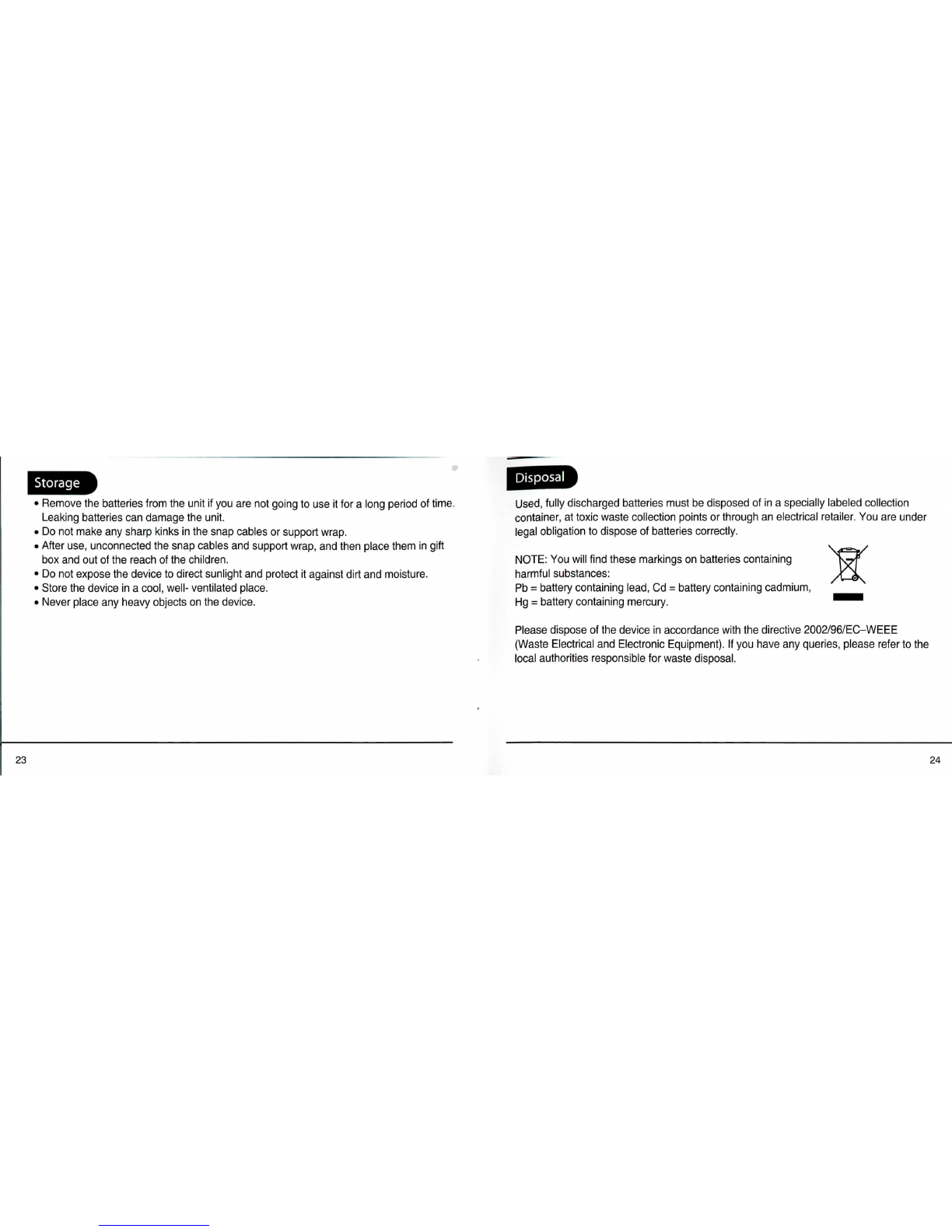

Storage
Disposal
Normalizedsymbols
Warranty
2
3
4
10
18
19
20
22
23
24
25
26
1
X
Introduction
Thank youfor purchasing the PM-770.PM-770 isa singleoutputchannelTENS
device. Itis intended for pain relief inthe knee.TENSstands for Transcutaneous
Electrical NerveStimulation is recognized asa safe and highlyeffectivemethod of
relievingpain.TENS isnow regularlyrecommended by doctors,physiotherapists and
pharmaciststhroughout the world.Before using, pleaseread allthe instructions in this
user manualcarefully and keep it safe for future.
How doesTENSwork?
PM-770works by passingharmless electrical signalsinto the bodyfrom the support
wrap. This relieves pain intwo ways:
• Firstly, it blocks the body'spainsignals which are normallytransmittedfrom the area of
damagethrough the nervefibres tothe brain - TENSinterruptsthesepainsignals.
• Secondly,TENSstimulates the body'sproduction of endorphins - itsown natural
painkillers.

Electronic KneeStimulator For Pain Relief
ON/OFF and mode
controlbutton
A mode/Low
intensity indicator
KneeWrap
Electrodes (40x40mm)LeadConnectors
Safety information
Before you start
Please carefullyread and understand the followingwarnings and cautions to ensure the
safe and correct useof thisdevice andto preventinjury.
• Makesure the batteries are installed correctly.
• Connect the cables tothe supportwrap and then connect tothe unit.
• Attach the supportwrap and place the electrodes tothe area of pain,
•Donotusethe wrap ifitis scratched or damaged inany way.
Contraindication
•Donotuse thisdevice ifyou have a cardiacpacemaker,implanteddefibrillator, or other
implantedmetallic or electronicdevice.Such use couldcauseelectricshock,burns,
electricalinterference, or death.
Warnings
•Ifyouareinthe care ofa physician, consult with yourphysicianbeforeusingthisdevice;
•Ifyou have had medical or physicaltreatment for your pain, consultwithyourphysician
before usingthisdevice;

Safety information
If yourpaindoes not improve,becomesmorethanmild, or continues for morethanfive
days,stopusing the device and consultwithyourphysician;
Do not applystimulationoveryourneckbecausethiscouldcauseseveremuscle
spasmsresulting in closure of yourairway, difficulty in breathing, or adverse effects on
heartrhythm or blood pressure;
Do not apply stimulation across your chest because the introduction of electrical current
into the chest may causerhythmdisturbances to yourheart,whichcould be lethal;
Do not applystimulationoveropenwounds or rashes, or overswollen,red,infected, or
inflamed areas or skineruptions (e.g.,phlebitis,thrombophlebitis,varicoseveins);
Donot applystimulationover, orin proximity to, cancerouslesions;
Donot applystimulation inthe presence of electronicmonitoringequipment(e.g.,
cardiac monitors, ECG alarms), which maynot operate properlywhen the electrical
stimulation device isin use;
Don'ttouch the electrode (on wrap)withfingerwhen the device isin function.
Do not applystimulationwhen inthe bath or shower;
Do not applystimulationwhilesleeping;
Do not applystimulationwhiledriving,operatingmachinery, or during any activity in
Safety information
which electrical stimulation canputyouat risk of injury;
• Stimulationshould not takeplacewhile the user is connected to high-frequencysurgical
equipment, itmay causeburninjuries onthe skinunder the electrodes, as well as
problemswith the stimulator.
1 Donotusethe stimulator inthe vicinity of shortwave or microwavetherapyequipment,
since this may affect the output power ofthe stimulator.
• Consultwithyourphysicianbeforeusingthisdevice,because the device may cause
lethalrhythmdisturbances tothe heart in susceptible individuals;
1 Applystimulationonly to normal,intact,clean,healthyskin.
1 Donot applystimulationwhiledriving,operatingmachinery, or during any activity in
whichelectricalstimulation canputyouat risk of injury; and
1 Donotusethe device on children unless under the supervision ofa doctor.
1 Consultwithyourphysicianbeforeusingthisdevice,because the device may cause
lethal rhythmdisturbances tothe heart in susceptibleindividuals; and
• Applystimulationonly to normal,intact,clean,healthyskin.

Safety information
Precautions
TENS isnot effective for pain of centralorigin, including headache;
TENS isnota substitute for painmedications and otherpainmanagementtherapies;
TENSdeviceshave no curativevalue;
TENS isa symptomatic treatment and, as such, suppresses the sensation of pain that
would otherwiseserve asa protectivemechanism;
Effectiveness is highlydependentuponpatientselection bya practitionerqualified in
the management of painpatients;
The long-term effects of electrical stimulation are unknown;
Since the effects of stimulation ofthe brain are unknown,stimulationshould notbe
applied acrossyourhead, and electrodesshould notbe placed on oppositesides of
your head;
The safety of electrical stimulationduringpregnancy hasnot beenestablished, so
pregnancy women or labourshouldconsultyourphysicianbeforeuse.
Youmay experienceskinirritation or hypersensitivity duetothe electricalstimulation or
electrical conductivemedium;
If you havesuspected or diagnosedheartdisease, you shouldfollowprecautions
Safety information
recommended by yourphysician; and
• Ifyou havesuspected or diagnosedepilepsy, you should follow precautions
recommended by yourphysician.
• The unitmust be turned off beforemoving the wrap.
• Avoid contact ofthe wrap with anything made of metal, such as chains.
• We alsorecommendthat the usermanualadviseusers of the following:
• Use caution ifyou have a tendency to bleedinternally,such as following an injury or
fracture;
• Consultwithyourphysicianprior to using the deviceafter a recentsurgicalprocedure,
becausestimulation may disrupt the healingprocess;
• Use caution if stimulation is appliedover the menstruating or pregnantuterus;
• Use caution if stimulation is appliedoverareas of skinthat lack normal sensation.
• The usermanualshouldadviseusers ofthe following:
• Keepthisdevice outofthe reach of children;
•Use thisdeviceonlywith the leads,supportwrap, and accessoriesrecommended bythe
manufacturer.

Safety information
Adverse Reactions
'Youmay experienceskinirritation and burnsbeneath the stimulationelectrodes applied
to yourskin;
'Youmay experienceheadache and otherpainfulsensationsduring or following the
application of electricalstimulationnearyoureyes andto yourhead and face; and
•You shouldstopusing the device and should consultwithyourphysician ifyou
experience adverse reactionsfrom the device.
Instructions foruse
Slept Insert 3 batteries(type: AAA 1.5 volt)intoPM-770unit
To insert the battery, you shouldpress the wrapclip up first,slide the batterycover
downwarduntil the coverpops off likeFigure I. Insert 3 batteries(typeAAA)into the
battery compartment as indicatedFigure II. Makesure youare installing the battery
properly, follow the correctpolarity (+and- pole)marked inthe batterycompartment of
the unit. Donot turn the device on yet!Finally,Close the cover onby slidingfrom the
bottom up like Figure III.
Figure I Figure II Figure III
Caution:
1. Match the positiveterminal of battery tothe positivemarkingshown.
2. Please use SxAAA batteries in this unit.
3. Remove the batteries ifthe device isnotinusefor longperiods of time.
10

Instructions foruse
4.Donotmixoldandnew batteries or different types of batteries.
5. Warning: If batteriesleak and comeintocontactwith the skin or eyes,wash
immediatelywithcopiousamounts of water.
6. Batteriesmust be handled byan adult.Keepbatteries outofthe reach of children.
7. Onlybatteries ofthe same or equivalenttype are recommended.
8. Donotuse rechargeablebatteries.
9. Removeexhaustedbatteriesfrom the unit.
10. Supplyterminals arenottobe shortcircuited.
11. Dispose of batteriessafetyaccording to batterymanufacturer'sinstructions.
Step 2 Prepare yoursupportwrap
Lay the Supportwrapopen ona flatsurface,with the
electrodesidefacing up.You will see four
conductiverubberelectrodes.
Electrode
11
Instructions foruse
Step 3 Connect the snapcables
Turn the supportwrapover,with the electrode
facingdown. The wrapshould be lying
horizontally in front of you. You will seetwo
metalsnaps.
Take one femalesnapcable and snap one
connectoronto the metalsnaps as shown
in the diagram.Repeatwith the secondcable.
Step 4 Connect the cable to device
Before proceeding to thisstep, be sure the
device is completelyturnedoff.Hold the
cableplug and insertinto the socket onthe
top ofthe unit as shown inthe diagram.
Ensure thethe cable is insertedcorrectly.
12

Instructions foruse
Instructions foruse

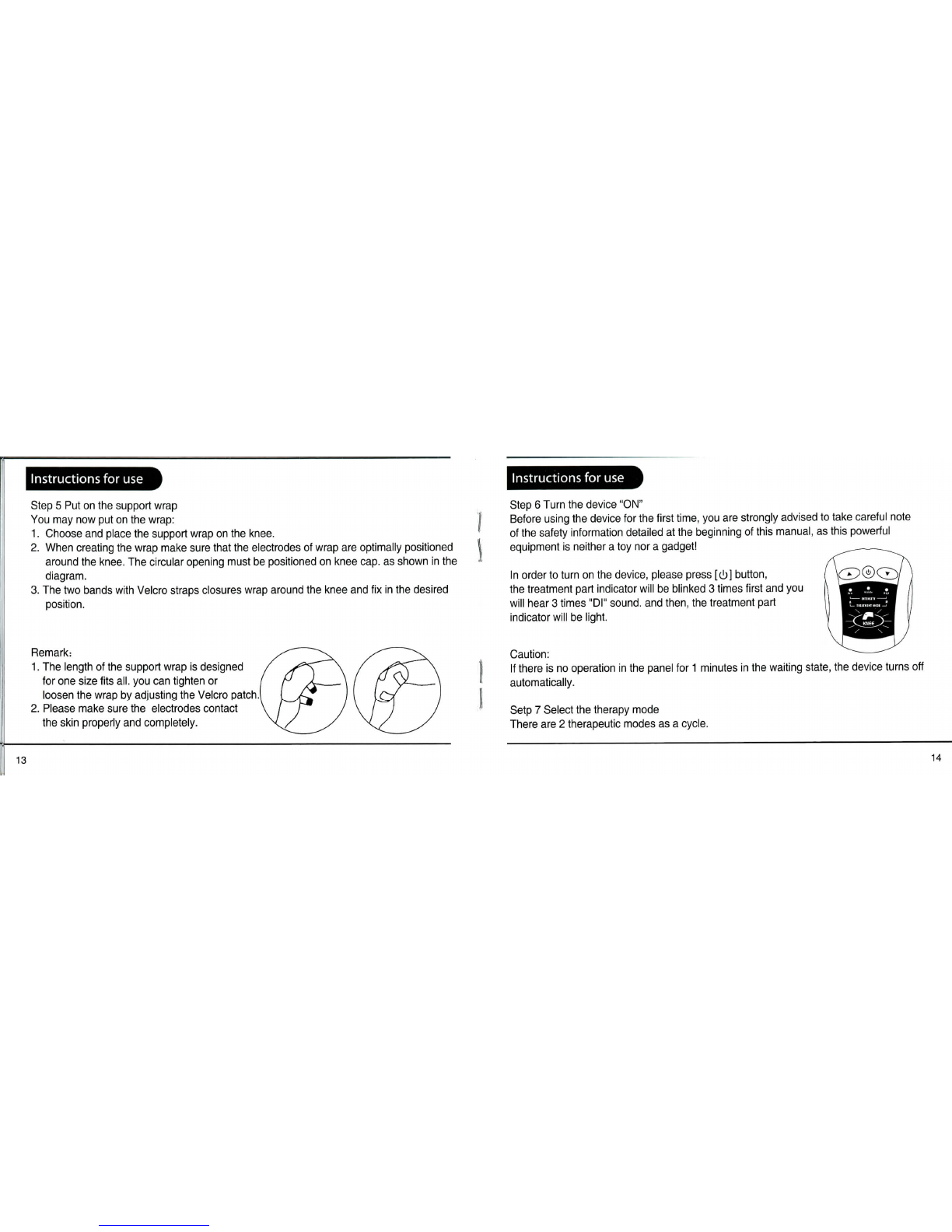

Step 5 Putonthe supportwrap
You maynowputonthe wrap:
1. Choose and place the supportwrap onthe knee.
2. Whencreating the wrapmakesurethat the electrodes of wrap are optimallypositioned
around the knee. The circularopeningmust be positioned on kneecap. as shown inthe
diagram.
3. Thetwo bandswithVelcrostrapsclosureswraparound the knee andfixinthe desired
position.
Remark:
1. The length ofthe supportwrap is designed
for one size fits all. youcan tighten or
loosen the wrap by adjusting the Velcro patch
2. Pleasemakesure the electrodescontact
the skinproperly and completely.
Step 6 Turn the device"ON"
Beforeusing the device forthe first time, youare strongly advised to takecarefulnote
of thesafetyinformationdetailedatthebeginningofthis manual, asthispowerful
equipment is neither a toynora gadget!
In order to turn onthe device, pleasepress [<i>] button,
the treatmentpartindicator will be blinked 3 times first and you
will hear 3 times "Dl" sound, and then, the treatmentpart
indicator will be light.
Caution:
If there isno operation inthe panel for1 minutes inthe waiting state, the deviceturns off
automatically.
Setp 7 Select the therapymode
There are2 therapeuticmodes asa cycle.
13 14

Instructions foruse Instructions for use
The device will be working cycle according to2 therapeutic modes alternately every
2 minutes.
If you feel the therapeuticmode is comfortable, youcan keep the currenttherapeutic
mode by press [ ci>] button. TheLEDM modeindicatorwilllight for3 secondslikefigure I
If you want to backworkingcycle at2
therapeutic modes, youcan press [cjj]
buttonagain. TheLEDA modeindicator
will light for 3 secondslikefigure II
Figure I Figure I
Caution:
In order to find the mosteffectivemode for you,please trythe2 therapeutic modes for
the firsttime.
Step 8 Adjust the output intensity
Press the intensitycontrolbutton ([A] and [T]) to adjust the intensityoutput andthe
devicestart to work. You can hear "Dl" soundwhen you pressbuttoneverytime.
Caution:
1. The device has25 stepintensitycontrol. Ifyou press the intensitycontrolfrom the1
step to 8 step, the low intensityindicatorwill be blinked and you will hear 1 times"Dl"
sound. Ifyou continuouspress the intensitycontrolfrom the9 step to 17 step, the
middleintensityindicatorwill be blinked andyou will hear 2 times"Dl"sound.
Continuouspress the intensitycontrolfrom the18 step to25 step, the highintensity
indicatorwill be blinked andyou willhear 3 times"Dl"sound.
2.The strength of stimulation maybe adjusted dependingupon the individualcondition
of user.
3.Forthe devicewithelectrodedetectionfunction, Ifthe electrodes no placedfirmly on
skin orthe device hasnot connected onthe electrodes, you cannotincrease the
stimulator's outputintensity, andyou willhear two sets of threetimes "Di" sound.
4.The maximum intensity level is25, means that you can'tincrease the intensity after
press [A] button 25 timescontinuously.
15
16

Instructions foruse
Therapeutic modes

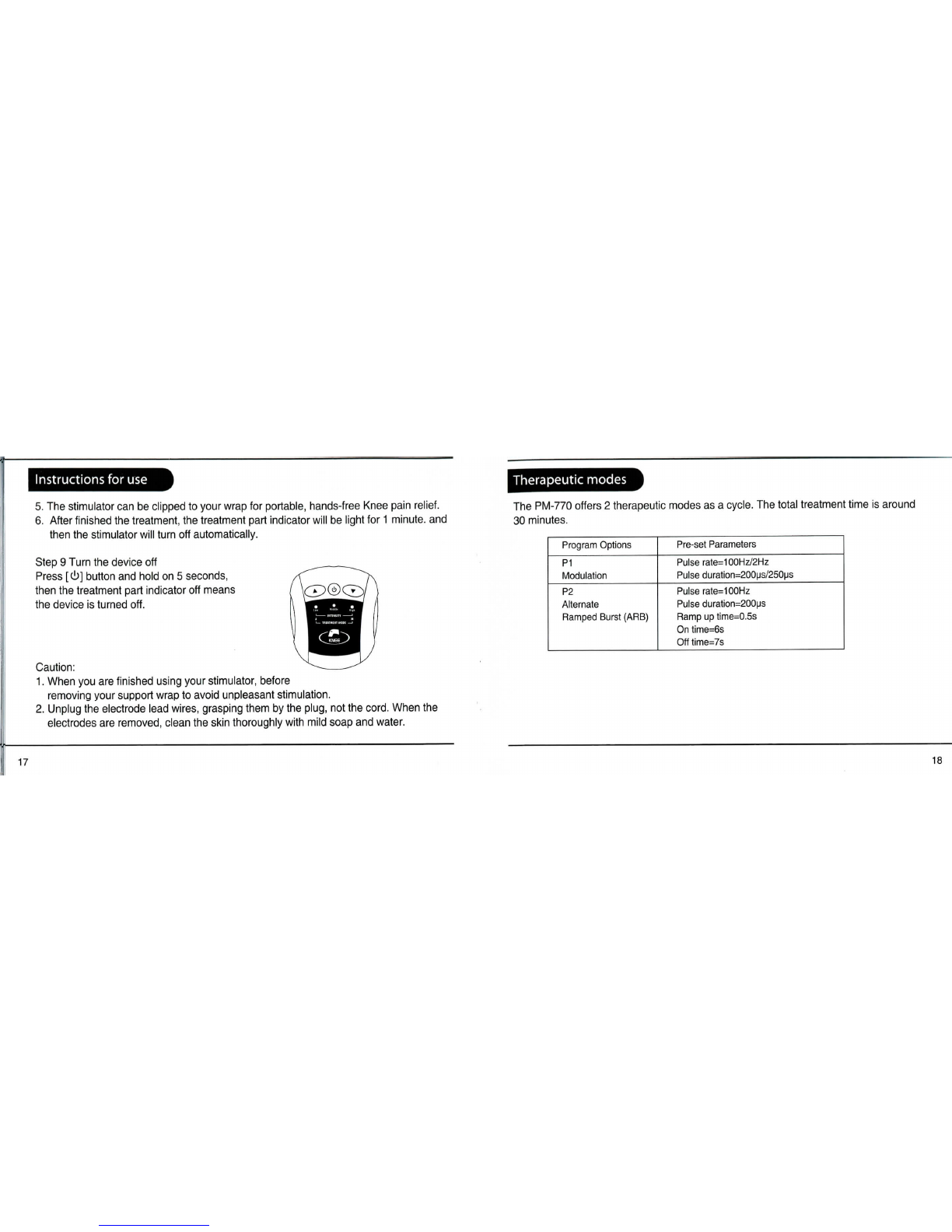

5.The stimulator canbe clipped to yourwrap for portable,hands-freeKneepainrelief.
6. After finished the treatment, the treatmentpartindicator will be light for1 minute, and
then the stimulatorwillturn off automatically.
Step 9 Turn the device off
Press [<i>] button and hold on5 seconds,
then the treatmentpartindicator off means
the device is turnedoff.
Caution:
1. When youare finishedusingyourstimulator,before
removingyoursupportwrap to avoidunpleasant stimulation.
2. Unplug the electrodeleadwires,graspingthem bythe plug, notthe cord.When the
electrodes are removed, clean the skin thoroughly with mild soap and water.
The PM-770 offers 2 therapeuticmodes asa cycle. The totaltreatmenttime is around
30 minutes.
Program Options
P1
Modulation
P2
Alternate
RampedBurst(ARB)
Pre-setParameters
Pulserate=1 OOHz/2Hz
Pulse duration=200us/250us
Pulserate=100Hz
Pulse duration=200us
Ramp up time=0.5s
On time=6s
Off time=7s
17
18

SpecificationTroubleshooting
Power Sources:4.5V DC, SxAAA batteries
Frequency: 2Hz/100Hz
PulseDuration: 200us/250ps
OutputVoltage:0~45V (at500ohm load)
OutputIntensityAdjustable: 1 -25 (25 levels)
Treatment Time:around SOminutes
OperatingConditions: 5 C to40 C; 30%RH to 75%RH
Storage Conditions: -10C to 55C; 10%RH to 90%RH
Size: 85mmx72mmx31mm
Weight: 50g (withoutbatteries)
Problem
The unitcan't
power on
No output stimulus/
sensation
Output Stimulus/
sensation is weak
Stimulation is
uncomfortable
Check points
Are the batteries exhausted?
Are the batteriesinstalledcorrectly?
Is the snapcablesproperlyConnected
with wrap?
Have you removed the wrapresult the
electrodes didn'tcontact the skinproperly?
(youwillhear 6 times "Dl"sound)
Are the snapcables dirty?
Isthe intensity too weak?
Is the electrodespositionedproperly?
Is the intensity too high?
Are you operating the deviceaccording to
the manual?
Damaged or worn the snapcables or wrap.
Possiblesolution
Replace the batteries.
Insert the batteriesobservingpolarity.
Firmlyconnect the cablewith the wrap.
Remove the protectivefilm.
Re-attach the wrap and makesure itwas
contact onthe skinproperly.
Clean the snapcableswith a damp,
lintfreecloth.
Use a higher intensitylevel.
Change the position ofthe wrap.
Reduce the output intensity.
Pleaseoperate the deviceaccording to
the manual.
Replace new snapcables or wrap.
19
20

Troubleshooting
Maintenance and Cautions
Problem
The skinbecomes red
and/or you feel a
stabbing pain
Outputcurrentstops
during therapy
Checkpoints
Are you using the electrodes ofthe
wrap onthe samesiteeverytime?
Is the wrap too dirty?
Is the surface ofthe wrapscratched?
Hasthe electrodes ofthe wrap didn't
contact the skinproperly?
Are the cablesdisconnected with
the wrap?
Have the batteriesbeenexhausted?
Possible solution
Re-position the electrode. Ifatany time you
feel pain or discomfortstop use immediately.
Please clean the wrapaccording tothe
cleaning requirements in thismanual.
Pleasereplace a new wrap.
Turn offthe power and re-attach the wrap.
Turn offthe power and connect the
cableswith the wrap.
Pleasereplacethemwith new batteries.
Donot immersedevice in water orany liquid. Donot drop the device or throw it from a
height.
After using the device, pleaseremove the output plug from the outputsocket.
Do not twist or pull the output cable.
Donotuseany chemical to clean the device or snapcables. Ifyou need to cleanthem,
pleasewipewith a damp, lint free cloth.
To clean the supportwrap,wash it gentlywithmildsoap in lukewarm, nothot water.
Rinsethoroughly in warmwater to remove all traces of soap.
Donot wring.Instead,wrap ina terrycloth towel to removeexcessmoisture.
Removefromtowel and allow toairdryat roomtemperatureawayfromheat and
sunlight.
21
22

Storage
• Remove the batteriesfrom the unit ifyouarenot going touseitfora longperiod of time.
Leakingbatteries can damage the unit.
• Donot make any sharpkinks inthe snapcables or supportwrap.
» After use,unconnected the snapcables and supportwrap, and thenplace them in gift
boxandoutofthe reach ofthe children.
• Donot expose the device to direct sunlight and protect it againstdirt and moisture.
» Store the device ina cool,well-ventilatedplace.
• Neverplace any heavyobjects onthe device.
Disposal
Used,fullydischargedbatteriesmust be disposed ofina speciallylabeledcollection
container, at toxic wastecollectionpoints or through an electrical retailer. Youare under
legalobligation to dispose of batteriescorrectly.
NOTE: You willfindthesemarkings on batteriescontaining
harmfulsubstances:
Pb = batterycontaininglead, Cd= batterycontainingcadmium,
Hg = batterycontainingmercury.
Pleasedispose ofthe device in accordancewith the directive 2002/96/EC-WEEE
(WasteElectrical and ElectronicEquipment). Ifyou have any queries,pleaserefer tothe
localauthoritiesresponsible for wastedisposal.
23 24

Normalized symbols
Equipment capable of deliveringoutputvalues in excess of
10mA r.m.s. or10V r.m.s.averagedover any period of5s.
Applied part of type BF
Warranty
Thisproduct is guaranteed fora period ofone yearfrom the date of purchaseagainst
mechanical and electricalmanufacturingdefects.There areno userserviceableparts
inside the instrument. Any attemptedrepair by unauthorizedpersonsinvalidates the
warranty. Thisdoes not affect yourstatutoryrights.
Disposal in accordance withDirective2002/96/EC(WEEE)
Refer to InstructionManual.
25
26

Manufactured for:
ProMed Specialties
1800 Byberry Rd. Unit 905
Huntingdon Valley, PA 19006
USA
