PESOLA PTS6K-MF User manual

User manual
Multifunctional bench scale
PTS6K-MF 6 kg d=0.2g
PTS15K-MF 15 kg d=0.5g

Manual_PTS6-15K-MF_E
1

Table of Contents
Instructions for Use............................................................................................................ 1
Preparing to use the Scale................................................................................................. 1
Chapter 1 Introduction ....................................................................................................... 3
1-1 Features and Specifications..................................................................................... 3
1-2 Display Description .................................................................................................. 4
1-3 Keypad Functions Description.................................................................................. 5
1-4 Power Description.................................................................................................... 5
1-5 Error Messages........................................................................................................ 6
Chapter 2 General Operation Description.......................................................................... 7
2-1 Backlight Function.................................................................................................... 7
2-2 Weighing Mode........................................................................................................ 7
2-2-1 Units Selection .................................................................................................. 7
2-2-2 Check Weighing Mode For 12key model...................................................... 7
2-2-3 Totalizing........................................................................................................... 9
2-2-4 Zero Function.................................................................................................. 10
2-2-5 Tare Function.................................................................................................. 10

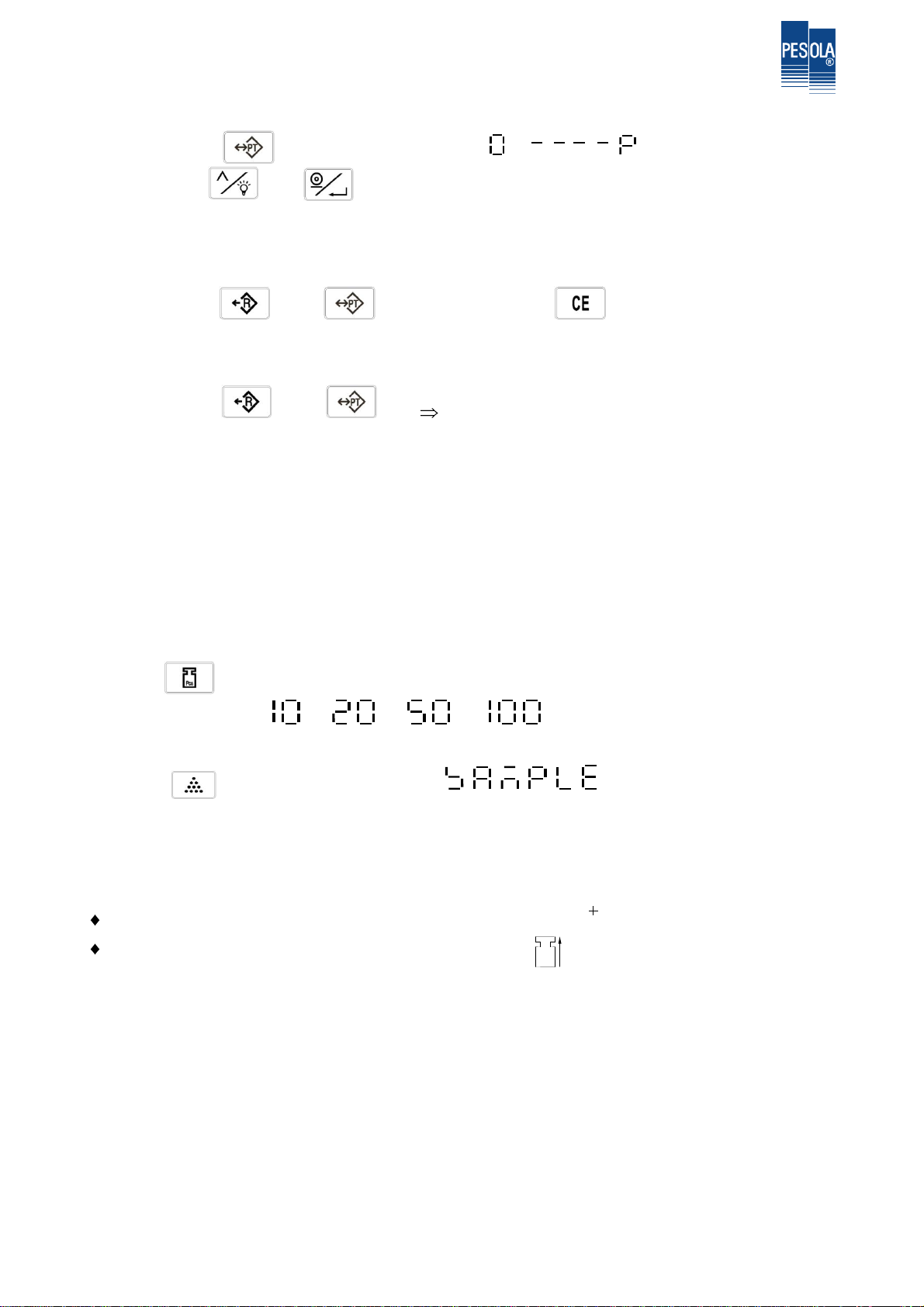

2-3 Counting Function.................................................................................................. 11

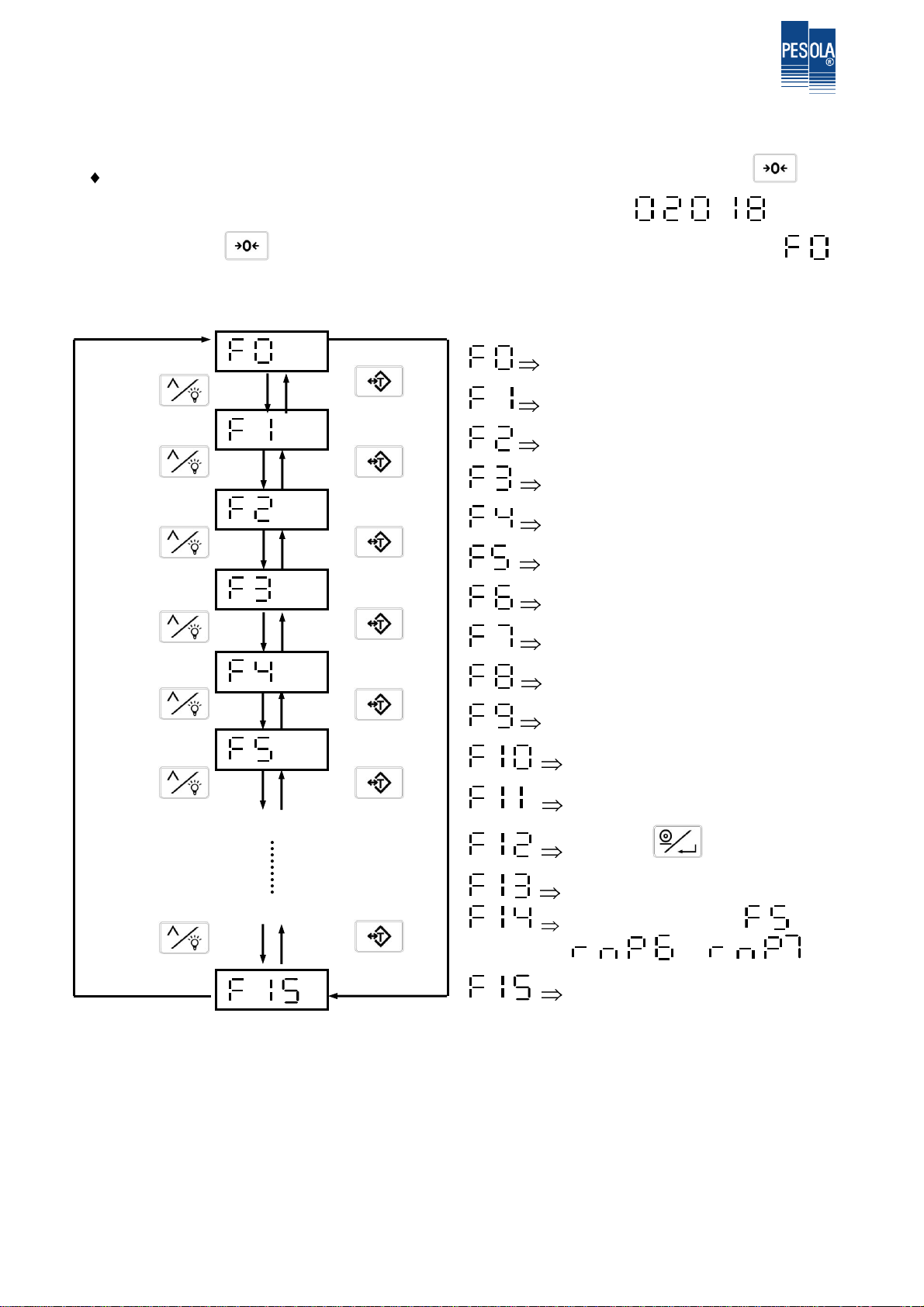

Chapter 3 General Function Setting ................................................................................ 12
Printing orders when is set as or ........... 12
3-1 Check Weighing Configurations ............................................................. 13

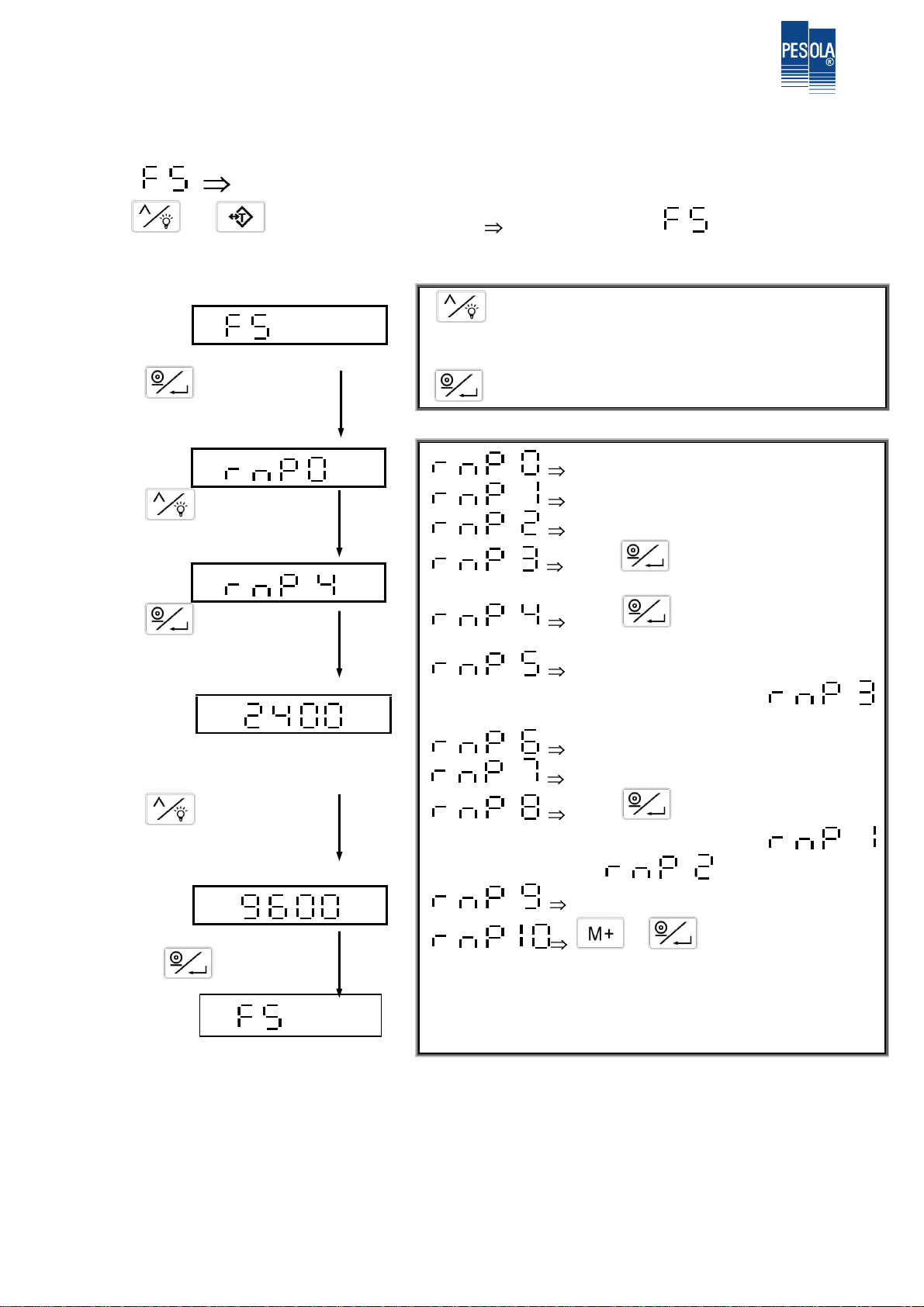

3-2 RS-232 Interface Output Setting (option) ............................................... 14
3-3 Exit Function Setting Mode..................................................................... 20
3-4 Internal Value Display Mode................................................................... 20
3-5 G value Calibration.............................................................................. 21
3-6 ID Code Setting................................................................................... 22
3-7 Print Key ( ) Function Setting...................................................... 23

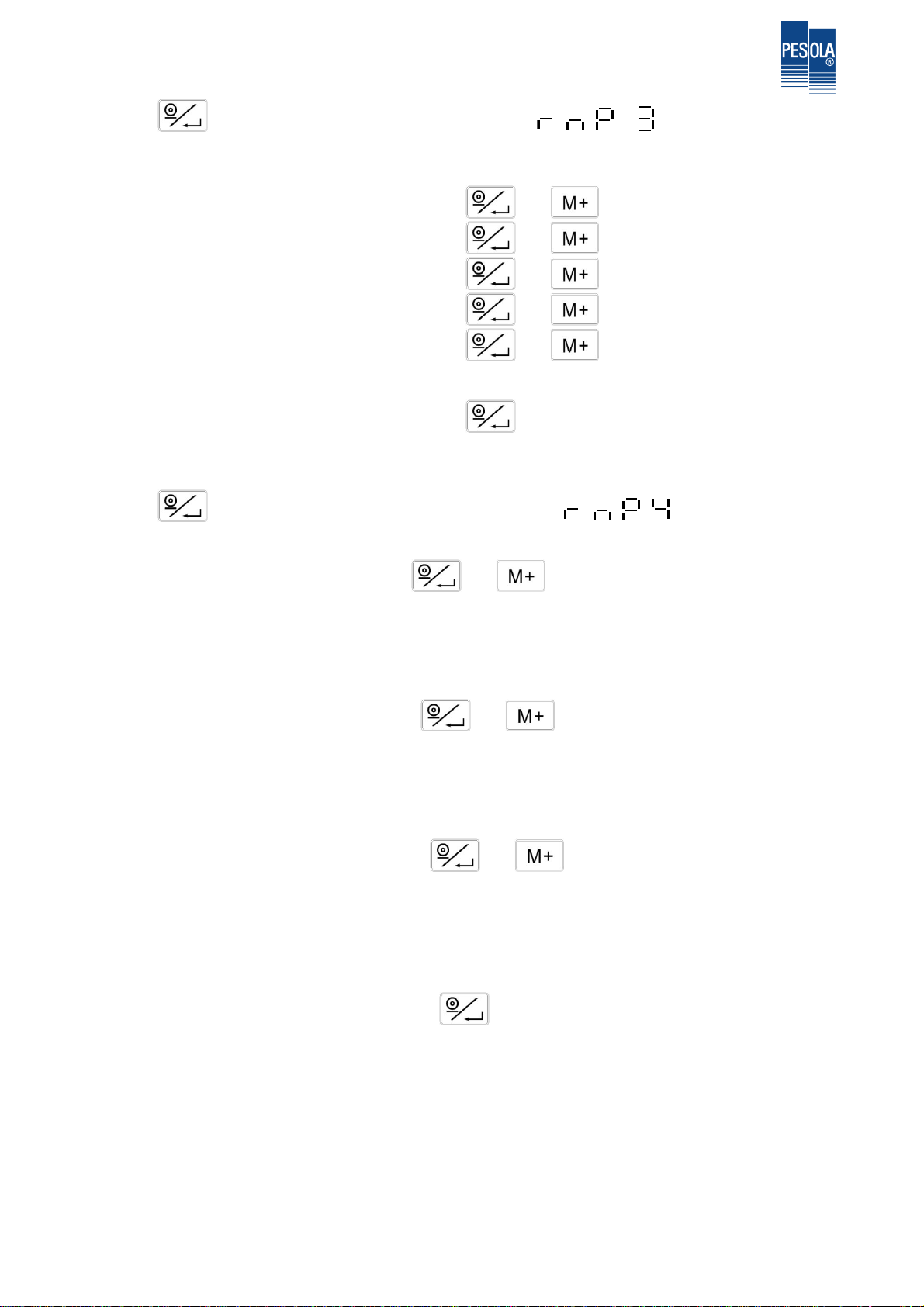

3-8 Printing orders when is set as.................................................. 24

Manual_PTS6-15K-MF_E
1
Instructions for Use
1. Please keep scale in a cool and dry place. Do not store under high temperatures.
2. Please keep the scale clean and free from insect infestation.
3. Avoid impacting with other items or overloaded with excessively heavy weights (The
load must not exceed the maximum capacity of the scale).
4. If the scale is not going to be used for some time, please clean it and store it in a plastic
bag in dry condition. A desiccant sachet may be included to prevent moisture from
building up.
5. Do not mix different types of dry battery or mix used dry batteries with new dry batteries.
6. Please operate or charge the scale in an open area. Do not squeeze the power cord to
avoid wire on fire.
7. Operating temperature: -10℃~ + 40℃
8. Any suggestion is warmly welcome.
Preparing to use the Scale
1. Locate the scale on a firm level surface free from vibrations for accurate weight readings.
Adjust the four leveling feet to centre the leveling bubble on the scale.
2. Avoid hot sunshine directly on the scale or near the exhaust port ofventilating system.
3. Please use a separate power source plug, to avoid the disturbance of other electric
appliance.
4. There should be no weight on the scale when power is turned on.
5. Commodity should be placed at the centre of platter when being weighed, and its size
should not exceed the dimension of the platter.
6. Please warm the scale 15 ~ 20 minutes before using.
7. Note that when symbol appears on the screen, the scale needs to be charged.
To guide you to use our product correctly, please read
this User Manual carefully to extend the life of scale and
to avoid error.

Manual_PTS6-15K-MF_E
2
Introduction of Storage Battery:
Due to the storage battery adopt the advanced free-maintaining technique, customers need
not to replenish electrolyte.
The scale should be recharged every 3 months to prevent failure of the internal
rechargeable battery.
1. The battery should be charged for 8~10 hours.
2. The temperature of battery should below 45℃.
Maintaining
1. Please do not discharge with over-current when using the battery. Please charge the
battery after discharging current.
2. Please take down the battery when the scale is not used for a long time or break the
connection of cathode.
3. Do not short the battery terminals to check whether there is current. Please check
whether the connection point is firm to guarantee good connection.
4. The battery should be replaced by specialized person. No reverse-battery or the
product will be damaged.
a) Anode of battery should be connected with Anode of product battery（usually red
cable）
b) Cathode of battery should be connected with Cathode of product battery (usually
brown cable or black cable)
c) See the picture following
Safety warnings
1. The electrolyte of battery is caustic which causes metal, cotton, etc to corrode.
2. The hydrogen will be resolved when using or charging the battery and it will cause
explosion when approaches fire.
Brown cable(or black cable)
connected with Anode of
battery
Red cable connected with
Cathode of battery

Manual_PTS6-15K-MF_E
3
Chapter 1 Introduction
1-1 Features and Specifications
1. High performance A/D converter
2. According to different resolution to do linearity calibration
Ordinary resolution models (below 10000)
Do specification calibration first then do weight calibration
High resolution models (10000~30000)
Do linearity calibration first specification calibration weight calibration at last
3. One group of RS232 (option)
4. 5 HOLD functions (contain animal scale HOLD function)
5. LCD display
6. Plug in and rechargeable battery
7. Blackout automatically in order to keep the system stable
(When battery voltage is lower than system voltage, the system will cut the power off
automatically to ensure its stable and accuracy.)
8. LED BACKLIGHT
0.3 uV/D high sensitivity
zero point adjustable range -2mV~ +5mV
Sampling speed 15 times/second
use range -4mV ~ +30mV
non-linear scale 0.01% full scale
load cell stimulate power source 5V DC ±2% 100mA

Manual_PTS6-15K-MF_E
4
.
..
...
....
Pcs

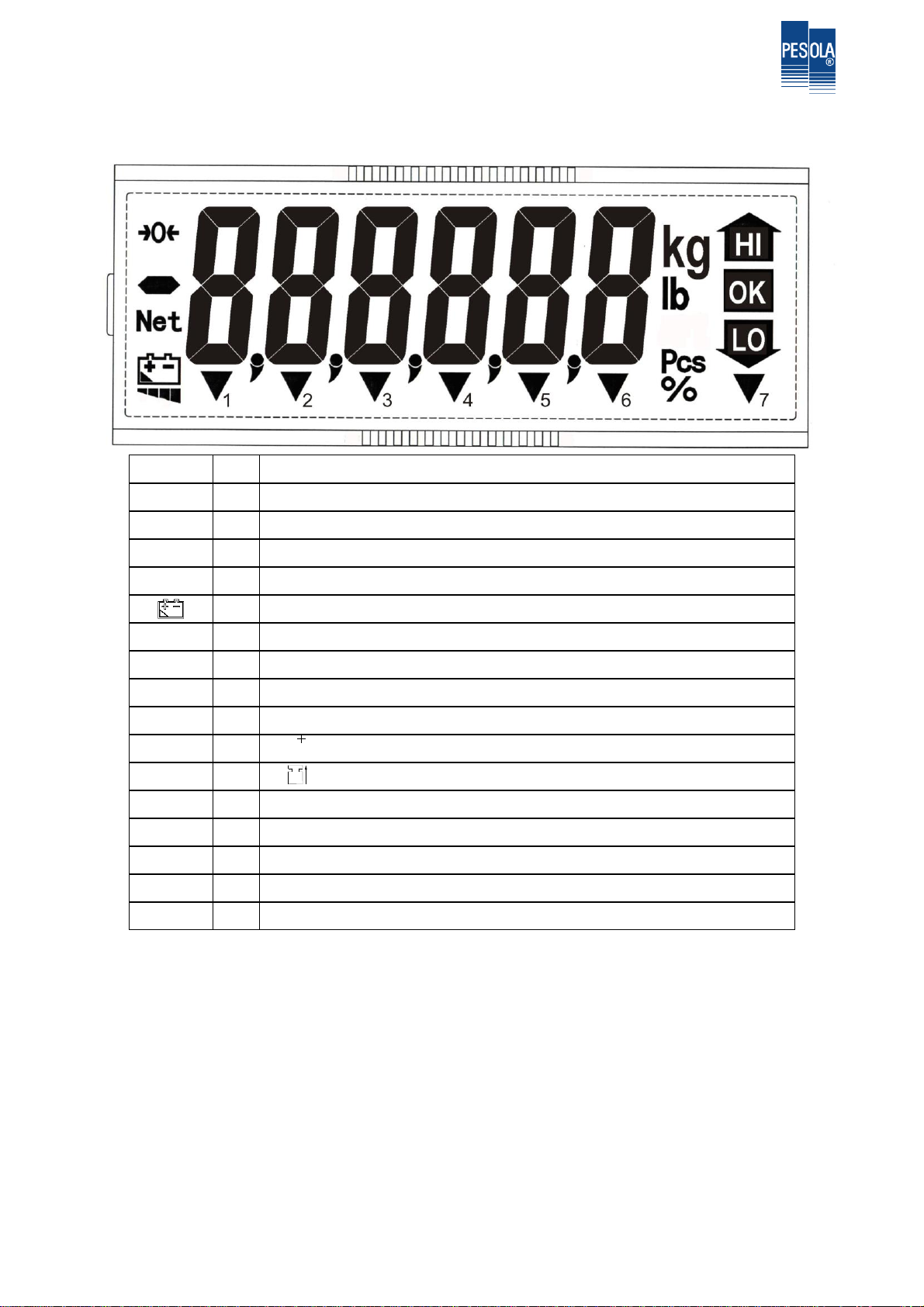

1-2 Display Description
Changes of “Range” indication mode
The indicator with 2-segment specification:
▼6 is Range 1 ▼5 is Range 2
HI
:
High limit value
OK
:
OK value (The value between HI and LO limit value)
LO
:
Low limit value
→O←
:
“Zero”indication
Net
:
“Net weight” indication
:
“Low battery power”indication
▼1
:
“Stable” indication
▼2
:
“Pre-Tare mode”indication
▼3
:
(M+) “Accumulation mode”indication
▼4
:
No function
▼5
:
Samples insufficient indication
▼6
:
Unit weight insufficient indication
▼7
:
“Viss” unit
kg
:
“kg”unit
lb
:
“lb”unit
Pcs
:
Counting mode
%
:
Percent indication

Manual_PTS6-15K-MF_E
5
1-3 Keypad Functions Description
10-key model has not key and key.
:
Press this key to select the required unit from the preset units.
:
Press this key to preset the weight and quantity.
:
Press this key to accumulate the weight value or others.
:
Press this key to tare (deduct the container weight)
:
Press this key to preset tare value.
:
Press this key to recall the totalizing value, preset value and pre-tare value.
:
Press this key to clear the totalizing value, preset value and pre-tare value.
:
Press this key to zero the scale.
:
Press this key to print the total data and to confirm.
:
Press this key to input the numbers (0 ~ 9) and to light up the backlight.
:
Press this key to go into counting mode.
:
Press this key to sample.
1-4 Power Description
Power Selection
1. 6 V / 4 Ah Rechargeable battery
2. 110 V / 220 V ±15 % AC
Recharge Voltage
1. AC 110 V +10% , -15%
2. AC 220 V +10% , -15%
Power Consumption
Indicator + L/C + no backlight
26 mA
180 hours
indicator+ L/C + front display
backlight
32 mA
140 hours
Indicator + L/C + front display
backlight + back display backlight
40 mA
110 hours
Single RS-232
20 mA

Manual_PTS6-15K-MF_E
6
Low Power Alarm
Please note when the ( ) symbol keeps flashing on the left down corner of the
display, the batteries should be recharged.
The scale will turn off automatically after a few hours when the low battery warning symbol
shows up. The scale must be fully recharged, before operating again.
Please recharge at once when the symbol shows in order to keep the weight
accuracy.
1-5 Error Messages
Weight exceeds 9d of maximum capacity. (d=division)
Zero value after power on is over +10% FS.
Zero value after power on is less than -10% FS.
Unstable zero return, unstable over 10 sec. Press to leave E4.
Zero is too high when calibrating. (above internal value 350,000)
Zero is too low when calibrating. (under internal value 80,000)
- - - - - - If the negative weight is over 20 divisions and there is no T or PT, the display
shows “- - - - - -”

Manual_PTS6-15K-MF_E
7
Chapter 2 General Operation Description
2-1 Backlight Function
Press key to select the display backlight mode:
.“Auto Backlight” mode. When the weight is over 10d or any key is
pressed, the display backlight will be switched on. When the
weight returns to zero (the weight on platform is less than 10d),
the display backlight will switch off after 10 seconds.
.Display backlight is on all the time.
.Display backlight is off.

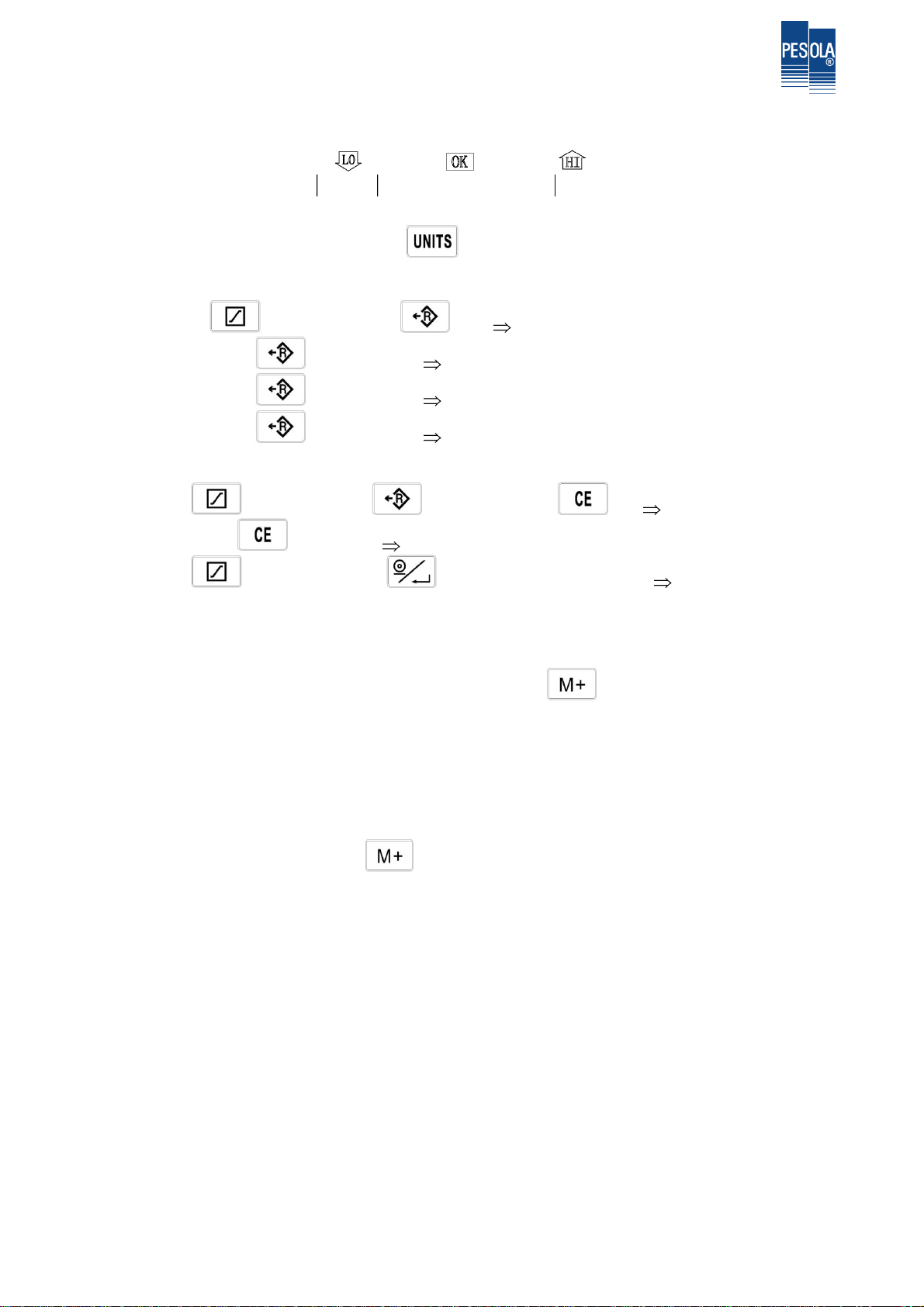

2-2 Weighing Mode
2-2-1 Units Selection
1. After indicator is turned on, use key to select a unit from kg, lb, tael or
viss, as the screen indicated.
2. The selected unit will be memorized when you turn the indicator off. And the
memorized unit will appear after you turn on the indicator next time.
2-2-2 Check Weighing Mode For 12key model
1. Preset “ High limit”, “Low limit” and “ Beeper value” operation
Use and key to preset values.
For example:
Preset “Low limit” ( Low limit 10d ) e.g. Low limit = 20 kg
Press key the display shows.
Press key 1 time the display shows .
Press key 2 times the display shows .
Press key 4 times the display shows . 
Preset “High limit” ( High limit Low limit ) e.g. High limit = 25 kg
Press key 1 time the display shows.
Press key 1 time the display shows .
Press key 2 times the display shows .
Press key 1 time the display shows .
Press key 5 times the display shows .
Press key 3 times the display shows . 

Manual_PTS6-15K-MF_E
8
Preset “Beeper value” ( Refer to Note ) e.g. Beeper value = 22
Press key 1 time the display shows 
Press key 2 times the display shows 
Press key 1 time the display shows 
Press key 2 times the display shows 
Press key 1 times the display shows .
Preset Single point (preset low limit only):
After “preset low limit” procedures is completed and the display shows.,
press key again, the display shows . . This means that the “preset
single point” procedure is completed.
NOTE
_ _ _ xx
A B
ASetting for the status that LCD is on and the beeper beep:
0 = when stable, the beeper beeps and LCD is on.
1 = when stable, the beeper beeps; whether stable or not, LCD is on.
2 = whether stable or not, the beeper beeps and LCD is on.
3 = open warning device: when the weight is higher than HI value and the
weight is stable, LCD is on and Relay Card open.
BSetting for the beep status:
0 = No beep
1 = OK (when the weight is over Low Limit & under or equal to High Limit.),
the beeper beeps.
2 = When the weight is under or equal to Low Limit & over High Limit, the
beeper beeps.
Under Status in Preset Low Limit (preset single point only)
The BEEP, LCD mode should be fixed as follows:
When over “Low Limit”, the beeper beeps and is off
Whether stable or not, the beeper beeps and LCD indication is on
Warning device setting
Set HI value and value of the beep, LCD mode should be fixed as follows:
A
When the weight equals to HI value, Relay Card open and the weight is accumulated.
Press CE key to dismiss the warning sound and the range of accumulated weight is
[000.000]~[999999].
Clear warning accumulation
Press key first and then press key to clear all accumulated data.
Accumulated data is cleared automatically under in following conditions
a. when shift among weight mode, counting mode and warning accumulation mode.
b. when shift the units

Manual_PTS6-15K-MF_E
9
c. turn off the scale
LCD indication:
    
   
10d Low Limit High Limit
◆To exit preset mode, press key.
2. Recall Check-weighing Values
Press key then press key Recall “Low limit value”
Then press key again Recall “High limit value”
Then press key again Recall “Beeper value”
Then press key again Back to the beginning
3. Clearing Check-weighing Values
Press key then press key, then press key Recall “Low limit value”
Then press key again Clear “High limit value”and “Beeper value”
Press key; then press key 6 times continuously Clear all values.
2-2-3 Totalizing
1. Weight Totalizing
Place goods on the platter, after stable and press key to save the weight value.
Then the display shows the total number of additions and the totalized weight value.
The (M+) indication “” will flash on the display. The indicator will recover to show the
weight value of the goods on the platter after 3 seconds; the (M+) indication “” is on.
The indicator allows the next totalizing operation, even when the weight value does
not return back to zero. The key is functional, when the weight value changes
by more than 10d. The indicator will save the totalized weight value after the weight is
stable.
The indicator can totalize positive or negative weight but can’t do both at the same
time. The totalized weight store must be reset to zero before it is possible to select
positive or negative totalizing mode.
The totalizing function can be used up to a maximum of 9999 times before it must be
reset. The totalizing display is limited to 6 digits maximum.
When totalizing, RS-232 will also output. ( Refer to F5 setting)

Manual_PTS6-15K-MF_E
10
2. Clear Totalized Weight Values
Press then key to clear all totalized weight values.
When changing between weighing and counting mode, or selecting weighing unit,
the indicator will automatically clear all the totalized weight values.
The indicators will automatically clear all the totalized weight values after turning
on.
3. Recall Totalized Weight Values
Press key to display the total number of additions and the totalized weight
value.
And the (M+) indication “”will flash on the display. The indicator will return to the
weighing mode after 3 seconds.
The indicator will not display the negative sign “-” for negative totalized weight values
when recalling a totalized weight value, but when printing, the negative sign “-” will be
printed out (transmitted serially) for each negative weight and negative totalized
weight.
2-2-4 Zero Function
Press key to re-zero the display with no load on the platter. When zero is set,
the (→0←) symbol will be displayed.
2-2-5 Tare Function
1. When the weight of the container is unknown.
Place the container on the platter, after stable and press key, the weight
value returns to zero and net indication (Net) is on.
Place goods into the container; the display shows the net weight of goods.
Clear tare value
When removing the container and goods, the display shows the negative weight
value of the container. Press key to clear tare value. The indicator returns
to zero and net indication (Net) is off.
Recall tare value
Press then key the display shows tare value
Multiple tare operation Users can continuously increase or decrease the tare value
by pressing the key.
The total tare value (tare value + pre-set tare value) can max. equal the full capacity of
the scale

Manual_PTS6-15K-MF_E
11
Pcs
.
..
...
....
2. When the weight of the container is known.
Press key; the display shows..
Use and keys to input weight value of the container. After finishing
the procedures, the Net indication and PreTare (PT) indication (“”) are active.
Place the goods into the container. The indicator shows the net weight of goods.
Clear PreTare value.
Press then key, and then press key to clear pretare value.
When the display returns to zero, net indication and Pretare indication “” are off.
Recall PreTare value.
Press then key the display shows Pretare value
In Tare mode, the PreTare function is disabled.
The indicators with two weighing ranges can NOT pre-set the tare value larger than the
first weighing range. For example: a 30 kg indicator is set by two weighing ranges. The
first range is 0 to 15 kg, and the second range is 15 to 30 kg. The pre-set tare value can
not be larger than 15 kg.
2-3 Counting Function
1. Press key to select sample quantity from 10, 20, 50,100
the display shows or or or accordingly.
2. Place the selected sample quantity on the platter
press key; the display shows .
After STABLE is active, the scale enters into counting mode and the display shows the
sample quantity.
3. Place the parts on the platter; the display shows the number of pieces (Pcs)
Sample quantity too small (less than 20d); indicator at
Unit weight too small (less than 0.2d); indicator at
If one or two of the symbols are active, the scale can still work, but the counting
accuracy is limited.
When using 2-segment weighing mode, the above two symbol indications change to
Range 2 and Range 1 and the two symbol indications are off.

Manual_PTS6-15K-MF_E
12
Chapter 3 General Function Setting
Switch on the scale. While the scale is counting down to zero, press and hold key
until the display shows the software program version number
Release the key, the scale enters into the configuration setting mode and
is showed on the display.
Press key
Press key
Press key
Press key
Press key
Press key
Press key
Press key
Press key
Press key
Press key
Press key
Press key
Press key
Reserved
Reserved
Reserved
Reserved
Check-weighing configurations
RS-232 Interface output Setting
Exit setting mode
Internal value display mode
Reserved
Reserved
G Value adjustment
ID code setting
Print key ( ) function setting
Reserved
Printing orders when is set as
or
Reserved

Manual_PTS6-15K-MF_E
13
Press key
Press key
Press key
Press key
3-1 Check Weighing Configurations
If is set, accessing to is denied.
Use or key to select F4 function the display shows
Preset “LO value”
(LO value 10d)
Press and
key to set “ LO value”
E.g. LO value = 2 kg
Preset “HI value”
(HI value LO value)
Press and
key to set “HI value”
E.g. LO value = 2.5 kg
Preset “Beeper value”
Press and
key to set “HI value”
E.g. Beeper value = 22
Press key for 5 times
to clear HI, OK, LO values
.kg
.kg
Press key
.kg
key = Increase the flash value by one (from 0 to 9)
key = Confirm key
.
kg
AB
A 0 = After stable, the beeper beeps and the
indications are on
1 = After stable, the beeper beeps; whether
stable or not, the indications are on.
2 = whether stable or not, the beeper beeps
and the indications are on.
3 = open warning device: when the weight is
higher than HI value and the weight is
stable, LCD is on and Relay Card open.
B 0 = No beep
1 = OK (when the weight is between Low limit
& High limit.), the beeper beeps.
2 = When the weight is under or equal to Low
limit (must be over 10d) & over or equal
to High limit, the beeper beeps.
LCD indication description:

   
10d Low limit value High limit value
.kg
kg
kg

Manual_PTS6-15K-MF_E
14
3-2 RS-232 Interface Output Setting (option)
Use or key to select F5 function the display shows
Press key
The display shows the default
setting of transmission mode
Press key
Select transmission mode
Press key
The display shows the default
setting of RS-232 baud rate
Press key
Select RS-232 baud rate
(1200, 2400, 4800,9600)
Press key
key = Increase the flash value by one (from 0
to 10) or selecting baud rate from 1200,
2400,4800 and 9600(default setting).
key = Confirm key
No transmission (RS-232 closed)
Stable transmission *
Continuous transmission *
Press key to transmit in simple
mode. *
Press key to transmit in complete
mode. *
Stable transmission in totalizing mode.
The format is as same as
*
Refer to F14 *
Refer to F14 *
Press key to transmit. *
The format is as same as
and . *
Continuous transmission，specific format *
or transmit specific format*
* : RS-232 is open
(from 0 ~ 10 )

Manual_PTS6-15K-MF_E
15
RS-232 Interface Format
I . Mode:UART Signal of EIA-RS0232 C
II . Format :
1. Baud rate : 1 200, 2 400, 4 800, 9 600 bits/second
2. Data bits :8 bits
3. Parity bit : None
4. Stop bits :1 bit
5. Code :ASCII (Exchange code of American standard)
Start bit Data bits Stop bit
RS-232 Data Format
Stable transmission ( ), Continuous transmission ( ),
Press key to transmit ( )
9. gram as weight unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
g
HEAD , HEAD , ± DATA UNIT CR LF
10. kg or lb as weight unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
kg/lb
HEAD , HEAD , ± DATA UNIT CR LF
11. lb.oz as weight unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Lb.oz
HEAD , HEAD , ± DATA UNIT CR LF
12. HK tael as weight unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
HK tael
HEAD , HEAD ,± DATA UNIT CR LF
13. viss as weight unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
viss
HEAD , HEAD , ±DATA UNIT CR LF

Manual_PTS6-15K-MF_E
16
HEAD1 ( 2 BYTES )
HEAD2 ( 2 BYTES )
OL - Overload , Under load
TR - TARE Mode
ST - Display is Stable
NT - NET Mode
US - Display is Unstable
GS - GROSS Mode
DATA ( 7 or 8 BYTE )
2B ( HEX ) = “ +” ( PLUS)
2D ( HEX ) = “ –” ( MINUS )
2E ( HEX ) = “ .” ( DECIMAL POINT )
UNIT ( 2、3 or 4 BYTE )
kg
=
6B ( HEX )
；
67 ( HEX )
lb
=
6C( HEX )
；
62 ( HEX )
tl.T
=
74 ( HEX )
；
6C ( HEX )
；
2E ( HEX )
；
54 ( HEX )
hkg
=
68 ( HEX )
；
67 ( HEX )
viss
=
76 ( HEX )
；
69 ( HEX )
；
73 ( HEX )
；
73 ( HEX )
Transmission examples:
Data format for RS-232 continuous transmission are as below:
1. The gross weight (+0.876 kg) shows as below, after stable: (no tare or pre-tare mode)
S
T
,
G
S
,
+
0
.
8
7
6
k
g
0D
0A
HEAD1 , HEAD2 , DATA UNIT C LF
2. The net weight (-1.568 lb) shows as below without weight stability: (tare or pre-tare mode)
U
S
,
N
T
,
-
1
.
5
6
8
l
b
0D
0A
HEAD1 , HEAD2 , DATA UNIT C LF
3. The net weight (+15.0624 HK tael) shows as below, after stable: (tare or pre-tare mode)
S
T
,
N
T
,
+
1
5
.
0
6
.
2
4
h
k
g
0D
0A
HEAD1 , HEAD2 , DATA UNIT C LF
4. The net weight (+1.245 viss) shows as below, after stable: (tare or pre-tare mode)
S
T
,
T
R
,
+
1
.
2
4
5
v
i
s
s
0D
0A
HEAD1 , HEAD2 , DATA UNIT C LF

Manual_PTS6-15K-MF_E
17
Press or key
Press key to transmit (simple mode)
S/N WT/UNIT ( kg / lb )
- - - - - - - - - - - - - -
0001 1.0000 Press or key
0002 1.0000 Press or key
0003 1.0000 Press or key
0004 1.0000 Press or key
0005 1.0000 Press or key
- - - - - - - - - - - - - -
0005 5.0000 Press twice to print TOTAL
Press key to transmit (complete mode)
G = GROSS T = TARE PT = PRE-TARE N = NET
Press or key
Press or key
Press twice to print TOTAL
TICKET NO. 0001
G 1.000kg
T 0.000kg
N 1.000kg
(3 blank lines)
TICKET NO. 0002
G 1.000kg
T 0.000kg
N 1.000kg
(3 blank lines)
TICKET NO. 0003
G 1.000kg
T 0.000kg
N 1.000kg
(3 blank lines)
TOTAL NUMBER
OF TICKETS 0003
TOTAL
NET 3.000kg
(3 blank lines)
