PETDIARY B601 User manual

Please Read This Entire User Manual Before Beginning

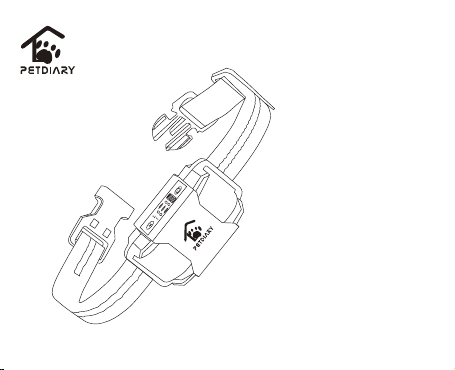

B601
Bark Control Collar
User Manual

PRECAUAUTIONS
CONTENTS
MAIN FEATURES
Turn on/Turn off
Two different dog size selection
This Bark Control Collar has two different anti bark mode
Loop pattern and xed mode switching
RELEVANT DESCRIPTION
HOW TO USE IT
Note
CHARGING
Charging instruction
Charging device
WEARING METHOD
SUMMARY OF FREQUENTLY ASKED QUESTIONS
FCC COMPLIANCE
01-04
05
06
07
07
07
08
09
09
10
10
10
11-13
13-14
14-15

DECLARATION OF CONFORMITY
REFERENCE SIZE FOR DIFFERENT DOGS
ABOUT AFTER-SALES
Thank you for choosing our products. The B601 Bark Control
Collar is a new type of effective pet training aid that can correct
the dog's bad behavior, promote training and protect your pet.
Hope our products can make you and your pet have more
beautiful memories.
16-17
18
19
PACKAGE CONTENTS
1 × Receiver 1 × Nylon Strap
1 × USB Charging Cable
1 × User Manual
1 × Warning Tag

IMPORTANT SAFETY INFORMATION
Explanation of Attention Words and Symbols used in this User Manual
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION, used with the safety alert symbol, indicates a
hazardous situation which, if not avoided, could result in
minor or moderate injury.
CAUTION, used without the safety alert symbol, indicates
a hazardous situation which, if not avoided, could result
in harm to your pet.
WARNING
CAUTION
CAUTION
1

Not for use with aggressive dogs. Do not use this product if your dog
is aggressive, or if your dog is prone to aggressive behavior.
Aggressive dogs can cause severe injury and even death to their
owner and others. If you are unsure whether this product is
appropriate for your dog, please consult your veterinarian or certied
trainer.Do not puncture or incinerate the collar or the rell cannister.
Do not expose to extreme heat or store at temperatures above 113 °F
or 45 °C.
Lithium Rechargeable Batteries.This device contains Lithium-Polymer
(Li-Polymer) batteries; never incinerate, puncture, deform,
short-circuit, or charge with an inappropriate charger. Fire, explosion,
property damage, or bodily harm may occur if this warning is not
followed.
WARNING
Do not expose the device to freezing temperatures (32 °F or 0 °C) or
to conditions warmer than 113 °F or 45°C. Do not leave the collar in
direct sunlight. Never leave the collar in a car where the device can
heat up to high temperatures (113 °F or 45 °C).
2

CAUTION
This product is not a toy. Keep it away from the reach of children.
•When using a separate collar for a leash, don’t put pressure on the
electronic collar.
•Avoid leaving the collar on the dog for more than 12 hours per day.
•When possible, reposition the collar on the pet’s neck every 1 to 2
hours.
•Check the t to prevent excessive pressure; follow the instructions in
this manual.
•Never connect a leash to the electronic collar.
CAUTION
Risk of skin damage. Please read and follow the instructions in this
manual. Proper t of the collar is important. A collar worn for too long
or made too tight on the pet’s neck may cause skin damage.
Ranging from redness to pressure ulcers; this condition is commonly
known as bed sores.
3

•Wash the dog’s neck area and the contact area of the collar
weekly with a damp cloth.
•Examine the contact area daily for signs of a rash or a sore.
•If a rash or sore is found, discontinue use of the collar until the skin
has healed.
•If the condition persists beyond 48 hours, see your veterinarian.
These steps will help keep your pet safe and comfortable.Millions of
pets are comfortable while they wear smooth contacts. Some pets
are sensitive to contact pressure.You may nd after some time that
your pet is very tolerant of the collar.If so,you may relax some of these
precautions.It is important to continue daily checks of the contact
area.If redness or sores are found,discontinue use until the skin has
fully healed.
This Bark Control be used only on healthy dogs. We recommend
that you take your dog to a veterinarian before using the collar if he
is not in good health.
4

1.Main Features
IC "Power Max" IPX6 waterproof
500mAh large
compacity battery
Unique and accurate
anti-trigger control
detection
L/S Different Dog Size
Selection
LS
500MAH
Voice + vibration
intelligent dual
trigger recognition
system
Two vibration
motor-more powerful
Double button
setting
IC
M
5

2.Relevant Description
Microphone Sensor
Charging Port
(with cover)
Power
Button
Battery
Status
Level Display
Suitable for medium/large size dogs
Suitable for small
size dogs
Dog size selection
and level setting
ML
S
6

3.How to Use It
❶Turn on/Turn off
Turn on:Press the power button one time to turn on, the green
light will on and with two beep.
Turn off:Press and hold the power button 1.5S, it will be turned off
and with one beep.
Standby:will enter Standby mode after 1 minute of inactivity
This bark control collar suitable for different sizes of dogs, it has two
selection: L and S. And you could switch via press M button.
①L: suitable for medium and large dogs, the corresponding Green
L icon is displayed.(3B)
3A 3B
❷Two different dogs sizes'selections
ML
SML S
7

3C 3D
②S: suitable for small dogs, the corresponding Red S icon is
displayed.(3D)
ML
SML
S
❸This Bark Control Collar has two different bark control modes: loop
pattern and xed.
A: Defaults mode is loop pattern mode.Under loop mode, rst
triggering is level 1 warning, If the dog continues to bark,then
increase to level 2 warning, until the level 6 warning
B: Fixed mode (The LCD display will show the current corresponding
level)：You can adjust the level by pressing and holding the M
button. The level changes from 1 to 6. And please release the
button when you got the level you want.
8

ML
SML S
❹Loop pattern and xed mode switching
Defaults mode is loop pattern mode
Press and hold the M button, then it switchs to xed mode. If press
the power button three times continuously and quickly,then back to
loop pattern mode, and LCD display shows 0
Loop pattern mode display
Press three times
continuously and quickly
Press and hold the M button and
switch to a xed mode
Fixed mode display
Note:
1. With 1~6 different levels. Under both modes, when it is triggered, it
will display and ash the current corresponding levels. For example,
under level 6, it will display the number 6 and ash 3S until the bark
stops and quit ashing.
2. Under both modes, after the 6th triggering, it will enter 'Protection
Mode', will stop working for 1minute and ashing '0'.
9

ML
SML S
4A 4B
4.Charging ( please charge before use!)
❶Charging instruction
❷Charging device:The charging cable is a DC interface with 5V
output voltage.
Low battery: the battery indicator shows red and show one bar only
(4A) . The battery indicator will scroll during charging and it will
become solid green 4 bars when fully charged（4B).
(Attention:please use our original charging cable to charge. If you
use others, the output voltage must be 5V, otherwise it may cause
charging failure)
10

Important note: The correct wearing and positioning of the bark
control collar is important for effective operation.
To ensure proper wearing, please follow the steps below:

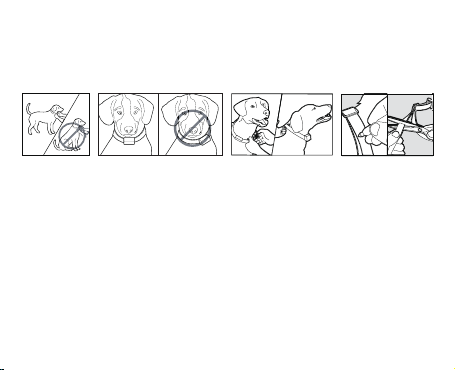

5.Wearing Method:
❶Make sure the bark control collar is closed
❷Keep your dog in a comfortable standing position.
(As shown below A)
❸Place the bark control collar on the dog's neck, place the bark
control collar control ring in the center, and the “on/off” switch on
the operating surface of the collar faces upward.
(As shown below B)
❹Check the tightness of the bark control collar by inserting a nger
between the dog's collar and the back neck. The proper position
should be comfortable rather than tightened.(As shown below C)
❺Let your dog wear a collar for a few minutes, then recheck the t
of a box. Properly adjust the collar to make the dog more
comfortable using the "bark control collar".(As shown below D)
❻Trim the collar as follows
A. Mark the required collar length with a pen.
11

B. Remove the bark control collar from the dog and cut off the
excessive length, and use a ame to seal the neckline along the
worn edge.
C. Then put the bark control collar on your dog
Please read and follow the instructions in this manual. Proper t of
the collar is important. A collar worn for too long or made too tight
on the pet's neck may cause skin damage.
1. Avoid leaving the collar on the dog for more than 12 hours per day.
2. When possible reposition the collar on the pet's neck every 1 to 2
hours.
3. Check the t to prevent excessive pressure; follow the instructions
in this manual.
4. When using a separate collar for a lead, don't put pressure on the
electronic collar.
5. Wash the dog's neck area and the contacts of the collar weekly
with a damp cloth.
A B C D
12

6. Examine the contact area daily for signs of a rash or a sore.
7. Never connect a lead to the electronic collar; it will cause
excessive pressure on the contacts.
6.Summary Of Frequently Asked Questions
Q:Why doesn't the bark control work when the dog is barking?
A:There are many possible reasons, users can make some
judgments and analysis based on the following:
Q:Is the Vibration safe for my pet?
A:Although Vibration is unpleasant, it is harmless to your
pet. Electronic training devices require interaction and training
from the owner to achieve desired results.
Q:Once my pet has been trained and not have bad barking, will he
have to continue to wear the collar?
1. Make sure the product is powered. And wear it correctly, need to
wear the product under the dog's throat.
2. Not all barking will trigger, sometimes the dog barking is to
welcome owner. We distinguished it via identication chip.The
product is mainly for bad barking, continuous barking.
13

A:Probably not, but you also can turn off the collar and left it on
dogs to strengthen training.
Q:Is the product waterproof?
A:Yes. But please make sure that the rubber cover for charging is
placed in the correct position and that dogs are not allowed to
swim with it.
Q:How about the after-sales service?
A:If it is quality problem, not caused by man-made damage or
misoperation, we guaranteed 1 year.
7.FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and,
14

if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on,
the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
-Caution: Any changes or modications to this unit not
expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
15

8.Declaration of Conformity:
Declaration of conformity (see chapter „Declaration of
conformity“): Products designated with this symbol fulll all
applicable community provisions of the European
Economic Area.
This symbol certies that the device’s electromagnetic
interference is below the limit approved by the United
States Federal Communications Commission.
Disposal:Disposing of packaging Dispose of the packaging
according to type:
• Cardboard and carton to waste paper
• Foils in the recycling collection
Disposing of the device Applicable in the European Union
and other European countries with systems for separate
collection of recyclable materials.
16

Old devices must not be disposed of in household waste! If
the Modular Remote Trainer can no longer be used, all
consumers are required by law to hand over the old
devices separate from household waste, for example, at a
collection point of their local community/district. This
ensures that the old appliances are properly recycled and
that negative effects on the environment are avoided.
That is why electrical devices are marked with the symbol
shown here.
Reference Weight for Dogs
Large Dog (Body height above 24 inch, Weight above 88 lbs)
Medium Dog (Height 16-24 inch,Weight 24.2-66 Ibs)
Small Dog (Height 10-16 inch,Weight 8.8-22 Ibs)
Mini Dog (Height under 10 inch,Weight under 8.8 Ibs)
17
