PETTADORE Nutri Turn PF006 User manual

Please read this manual carefully before using. Keep
the manual in a safe place for future reference.
For other languages see
pettadore.com/pages/manuals
User Manual
Nutri Turn

01 / Meet your Nutri Turn
2
NEXT
Lid
VA Display
Next Key
Setting Key
USB Type-C
Power Port
Base Unit
Non-slip
nubs
Previous Key
Tray Carousel
Battery
Compartment
4 LR14 batteries can be
used as backup in case of
power outage

02 / Contents of the box
03 / Operations
Nutri Turn
* The power supply is not included;
please prepare yourself
USB-C Cable
(1.2 m)
Manual
Pleaseread this manual carefully before using. Keep the
manualin a safe place for future reference.
For other languages see
pettadore.com/pages/manuals
User Manual
Nutri Turn

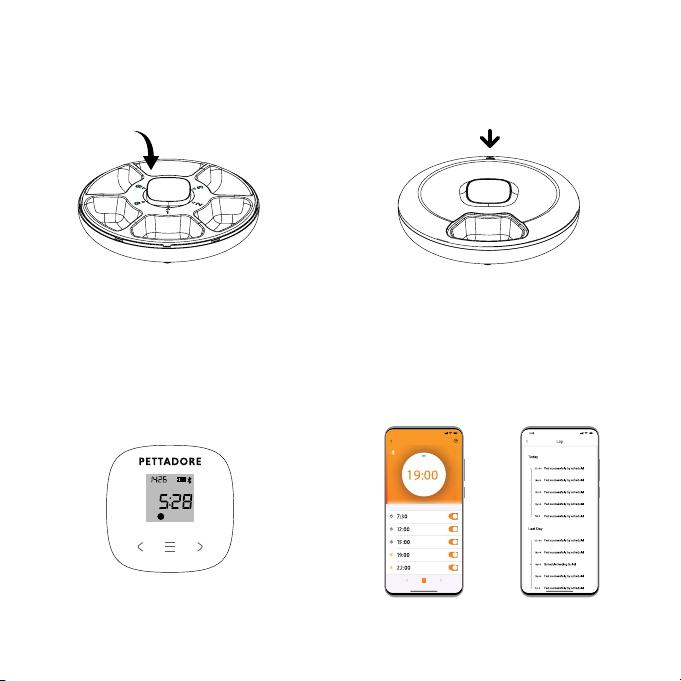

1) Power on the feeder
Unpack and connect the USB-C Cable
to the power socket at the bottom.
The LCD will light up.
2) Open the lid
Slide the button to ‘OPEN’ to open the lid.

2
NEXT
9:41
NutriTurn
Next Feed
Setting
Log
3) Fill with food
Fill each compartment with food.
4) Close lid
Align the lid with the base at the sprung
clip and press down.
5) Manual feeding
Short press the ‘<’ or ‘>’ button to feed
instantly.
6) Connect feeder with your phone
and schedule your feeding.
Pour food
Note: Please hold down the ‘<’ and ‘>’
keys at the same time to unlock.

Backup Battery Installation
Use a screwdriver to open the battery compart-
ment cover at the bottom. Put four LR14 batteries
inside (consider the positive and negative poles),
Put the cover back on and tighten the screws.
Note: You need to buy the batteries separately, and only
alkaline dry batteries are supported. Before installing, make
sure that there is nothing in the food compartment. Install
batteries for emergency backup in case of power failure. If
the batteries are not used for a long time, please remove
them.
1) Scan the QR code or download the Pettadore App
from App Store and Google Play. Sign up and sign in
to the app.
2) Click the ‘+’ button and be guided through the
SET-UP steps.
04 / Quick Setup
Due to the upgrade and update of the Pettadore App, the actual operation may be slightly dierent from the above
description. Please follow the instructions in the current Pettadore app!
Notice:
C/LR14
x4

05 / Manual Setting Explained
Unlock
When locked, please hold down the “ < ” and “ > ” keys at the same time
to unlock.
Setting the system time
When unlocked, double-click the “ ” key until the HOUR digits flash,
press the “ < ” and “ > ” key to set the hour, short press the “ ” key
when finished. When the MINUTE digits flash, press “ < ” and “ > ” keys
to set the minute, press the “ ” key to save.
Feeding Plan Setting
When unlocked, short-press the “ ” button until you see the number 1
flashing. Short-press the “ ” button to see the HOUR digits of time flash.
Set the first feeding time the same way you set the system time.
After that, press the “ ” key to save and press “ > ” to set Number 2.
Set the timer for all five meals in the same way. If you want to plan only
three meals a day, after you set the 3rd feeding time, just press and hold
to save and exit.
* It is recommended to set up a feeding plan in the mobile APP, which is simpler and more comfortable to operate.
1
1
NEXT
2

05 / Keys & Bluetooth Status
Bluetooth
Keys
Flashing Disconnected
Press briefly on the main menu; the tray rotates
clockwise by one compartment. Press long to check
the feeding schedule.
Setting Key
Next Key
Power O Connected
Press briefly on the feeding schedule setting
interface to change and set the meal number of the
feeding schedule, reduce hours and minutes.
Press briefly to review feeding plans, switch
between feeding plans.
Double-click on the panel to set the device’s time,
short-press to set feeding plans, and press long for
5 seconds to restore the factory settings.
Press briefly on the feeding plan setting interface to
switch between hours and minutes, long-press to
return to the main interface.
Press briefly on the main menu; the tray will rotate
counter-clockwise by one compartment.
Long-press to review the feeding plans.
Press briefly to switch between feeding plans,
increase hours and minutes when setting time.
Press briefly to review feeding plans, switch bet-
ween feeding plans.
Previous Key

06 / Specications
Model: PF006
Power Input: 5V 1A
Communication: Bluetooth
Capacity Per Compartment: 170ml (about 120g)
Suitable Pets: Cats and Small Sized Dogs
Size: 320x320x83mm
Net Weight: About 1134g
Material: ABS
Quality Directive: Q/TK 0022019
Warranty: 1 Year
Pettadore
Vasteland 78 unit A2.14, 3011 BN
Rotterdam, The Netherlands

07 / Precautions
1. If the feeder is powered o and then powered on, the time setting needs to be reset.
Method 1: Connect the feeder to the App. After the connection is established, the feeder
will automatically synchronize the phone’s time .
Method 2: If the App is not connected, the time can be set in the setting menu of the feeder.
2. Never place other objects on the top of the feeder.
3. This feeder is is suitable for both dry and wet food.
4. The base of the feeder must never be immersed in liquid.
5. If the feeder is not used for 5 minutes, it will automatically turn o the screen to save power.
6. Never fill food beyond the edge of the tray compartment to avoid malfunction.
7. When the feeder alerts on low battery, please replace the battery in time. If you are not
going to use the device for a while, we recommend you to remove the batteries.
8. Please get the power cable covered or well-organized to make sure it cannot be chewed by
pets.
9. This feeder is suitable for cats and small sized dogs.

08 / Warranty Terms
Within the period of warranty, if the product fails with no fault of the user, it will be repaired at
Pettadore’s expense. The warranty does not cover product failure as described in the following
examples:
1. Intentional damage to the product by the user or third party.
2. Failure to operate or maintain the product following the (QIG) Quick Installation Guide
instructions.
3. Failure due to natural wear and tear including but not limited to scratching, corrosion,
oxidation and rusting.
4. Failure due to non-authorized repair of the product including but not limited to user’s own
or third-party repairing attempts or modifications.
All Pictures shown in this manual are for illustration purpose only. Actual product may vary due to product improvements.
For other languages see pettadore.com/pages/manuals
! !
