FAMILIARISATION
C. Locking/unlocking the vehicle
from the inside (driver's side).
1. Stop position.
2. Accessories position (1st notch).
3. Running position (2nd notch).
4. Starting position.
A. Locking the vehicle.
B. Unlocking the vehicle.
 46
Remote control key Manual central control Starting

5
When this segment fl ashes, ac-
companied by an audible signal,
you have enough fuel left to drive
approximately 30 miles (50 km).
1. Interior control.
2. Exterior control.
3. Bonnet strut.
 64
51
Low fuel level
Remove the key and unscrew the cap.
After fi lling the fuel tank, screw the
cap back on fully to the right until it
clicks and close the fl ap.
Fuel tank capacity: approximately
35 litres.
After opening the fl ap, insert the key,
turn it slightly to the left then return to
the right. The key returns to its initial
position and the cap is unlocked.
OPEN
Fuel tank Bonnet

6
FAMILIARISATION
Manual air conditioning
This air conditioning system opti-
mises the distribution of the air and
its temperature inside the passenger
compartment.
33
2 Tronic gearbox
This fi ve-speed robotised manual
gearbox offers a choice between
the comfort of fully automatic opera-
tion or the pleasure of manual gear
changing.
62
Auxiliary socket for portable
equipment
Compatible with many MP3 players,
this socket allows you to listen to
your favourite tracks while travelling.
Refer to the conditions of use in the
"Audio" section.
23
INTERIOR

7

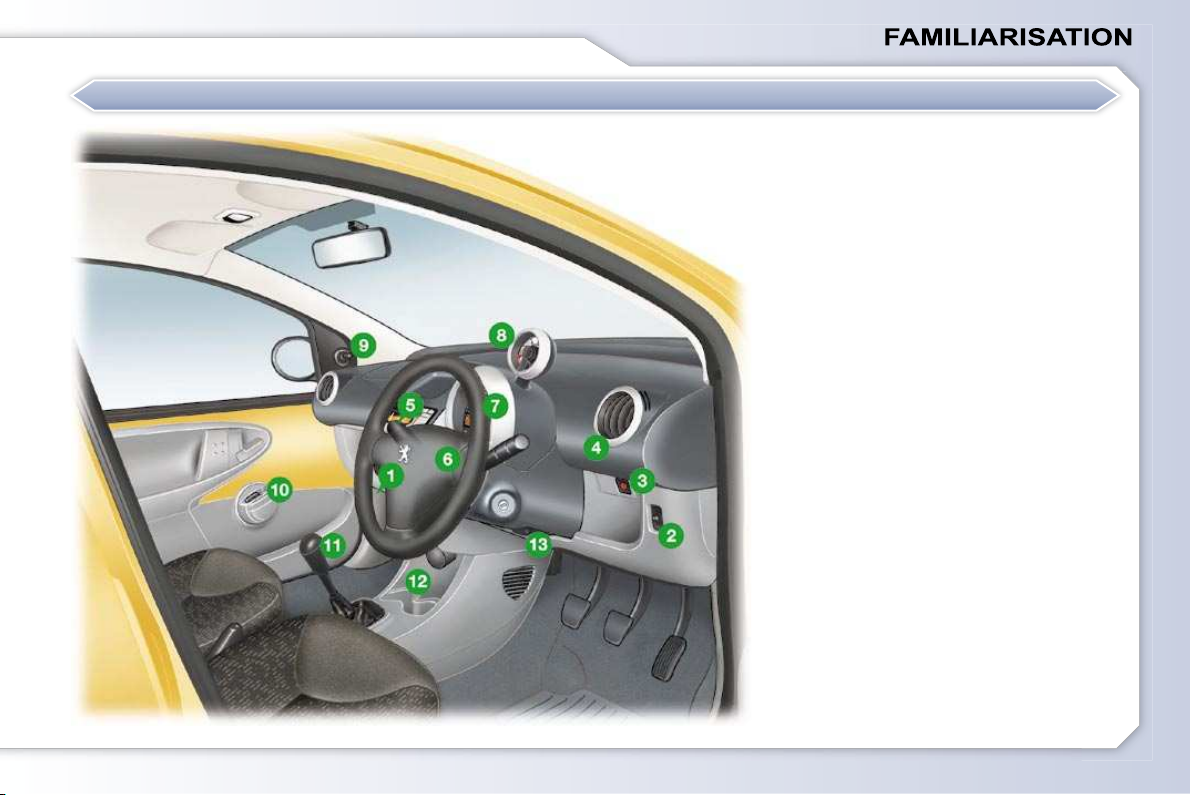

1. Bonnet release
2. Headlamp adjustment
3. Passenger air bag deactivation
4. Adjustable and closing side vent
5. Lighting and direction indicators
stalk
6. Driver's front airbag
Horn
7. Dashboard fuse box (under
the instrument panel trim, on
the right and on the left)
8. Rev counter
9. Passenger exterior mirror control
10. Passenger electric window
control
11. Gear lever
12. Cup holder
13. Steering wheel height
adjustment
INSTRUMENTS AND CONTROLS

8
FAMILIARISATION
1. Driver's exterior mirror control
2. Instrument panel
3. Wiper stalk
4. Steering lock and ignition
5. Hazard warning lamps
6. Storage compartments
7. Diffusion grille
8. Windscreen demisting and
defrosting vent
9. Passenger's front airbag
10. Adjustable and closing side vent
11. Storage box
12. Audio equipment
13. Ventilation, heating or air
conditioning controls
14. Storage compartments
15. 12 V socket (120 W max)
16. Parking brake
17. Driver's electric window control
INSTRUMENTS AND CONTROLS

9
1. Forwards-backwards adjustment. 2. Seat back angle adjustment. 3. Access to rear seats.
36
Front seats

10
FAMILIARISATION
A. Opening and closing control.
Push or pull control A .
 48
B. Exterior mirrors adjustment
control.
When the vehicle is parked, the
mirrors can be folded and unfolded
manually.
35
C. Steering wheel height
adjustment locking and
unlocking control.
1. Control unlocked.
2. Control locked.
35
SIT COMFORTABLY
Front electric windows Mirrors Steering wheel adjustment
(with power steering)

11
Lighting stalk
Front and rear lamps
Ring A
Lamps off.
Sidelamps.
Dipped headlamps/Main
beam headlamps.
Rear foglamp
Ring B
52
Wiper stalk
Windscreen wipers
MIST Single wipe.
OFF Off.
INT Intermittent wipe.
LO Normal wipe
(moderate rain).
HI Rapid wipe
(heavy rain).
Rear wiper and wash-wipe
Ring C 53

12
FAMILIARISATION
Temperature
adjustment
Air fl ow adjustment
Air distribution
adjustment
Rear screen
demisting
32
Air conditioning
Temperature
adjustment
Air recirculation/Air
intake
Air distribution
adjustment
Air conditioning
On/Off
33
Air fl ow adjustment
Rear screen
demisting
Heating

13
I require...
Heating or Manual air conditioning
Air distribution Air fl ow Air recirculation/Intake
of exterior air Temperature Manual AC
HOT
COLD
DEMISTING
DEFROSTING
Recommended interior settings
