EXTERIOR
1 Welcome lighting
This additional exterior and
interior lighting, controlled
remotely, makes your approach to
the vehicle easier when the light
is poor.
2 Directional lighting
This lighting automatically
provides additional visibility when
cornering.
82
98
110
5 Temporary tyre repair kit
This kit is a complete system,
consisting of a compressor and
an integrated sealant product, for
the temporary repair of a tyre.
156
3 Active spoiler
This system improves the
aerodynamics of the vehicle.
4 Front and rear parking
sensors
This system warns you of any
obstacles detected in front of or
behind the vehicle when parking.
142
Aluminium arches
For maintenance of these
arches, do not use a dry
cloth with an abrasive
product. Use a sponge
and soapy water.
APp-RCZ_01_2010_anglais_cag_pdf_4 4
APp-RCZ_01_2010_anglais_cag_pdf_4 4
03/11/2010 18:25:22
03/11/2010 18:25:22

FAMILIARISATION
OPEN

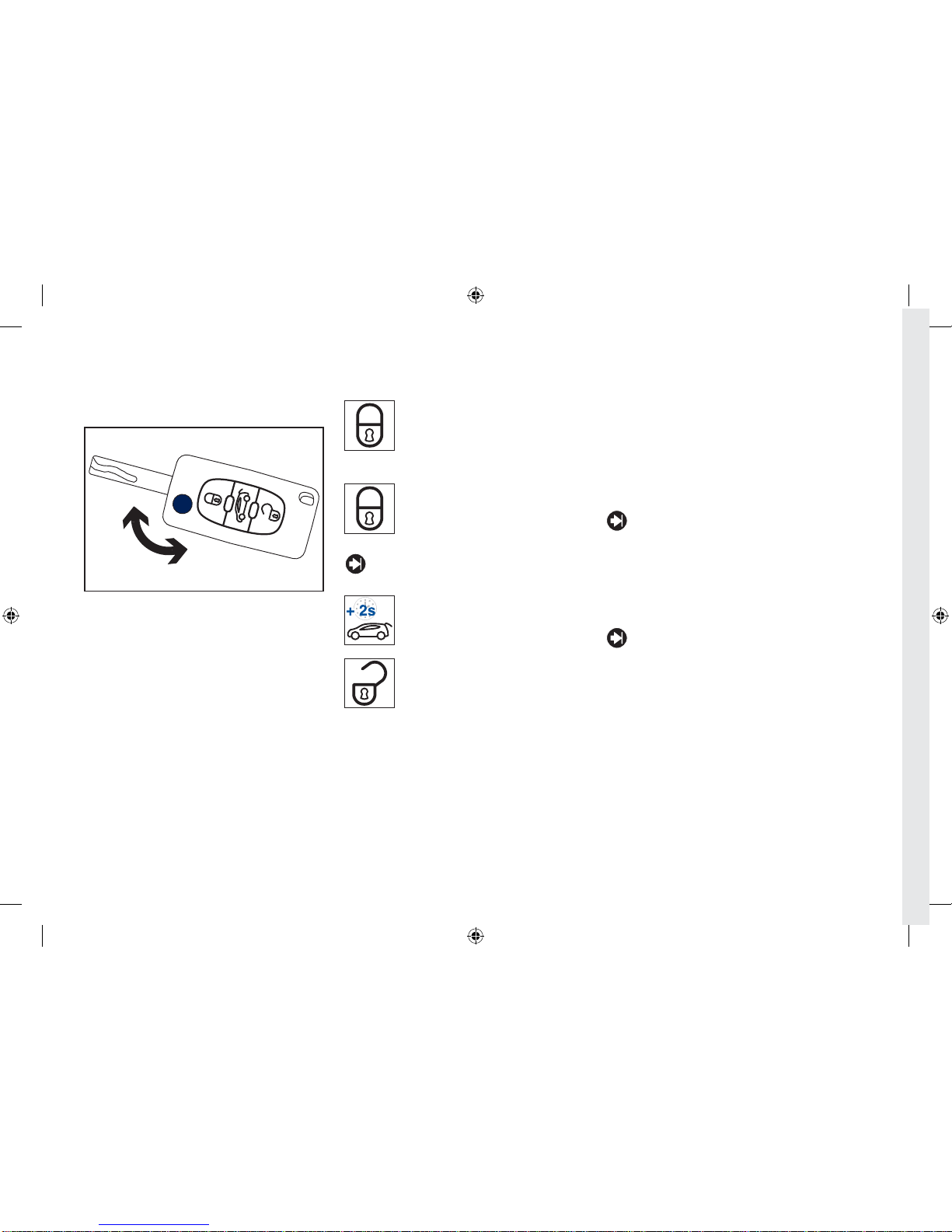

REMOTE CONTROL KEY
Unfolding/Folding of the key
(press ¿rst before unfolding or folding the key).
Normal locking
(press once; ¿xed lighting of the
direction indicators).
or
Deadlocking the vehicle
(press twice in succession; ¿xed
lighting of the direction indicators).
54
Unlocking and partial opening of
the boot lid
(press for more than two seconds).
Complete or selective unlocking of
the vehicle
(rapid Àashing of the direction
indicators).
WELCOME LIGHTING
83
When poor light is detected by a sensor,
the remote switching on of the dipped beam
headlamps and sidelamps makes your
approach to the vehicle easier.
82
In the same way, the passenger compartment
lighting, such as the courtesy lamps, the door
sill lamps and the footwell lamps, comes on.
APp-RCZ_01_2010_anglais_cag_pdf_5 5
APp-RCZ_01_2010_anglais_cag_pdf_5 5
03/11/2010 18:25:41
03/11/2010 18:25:41

6
66

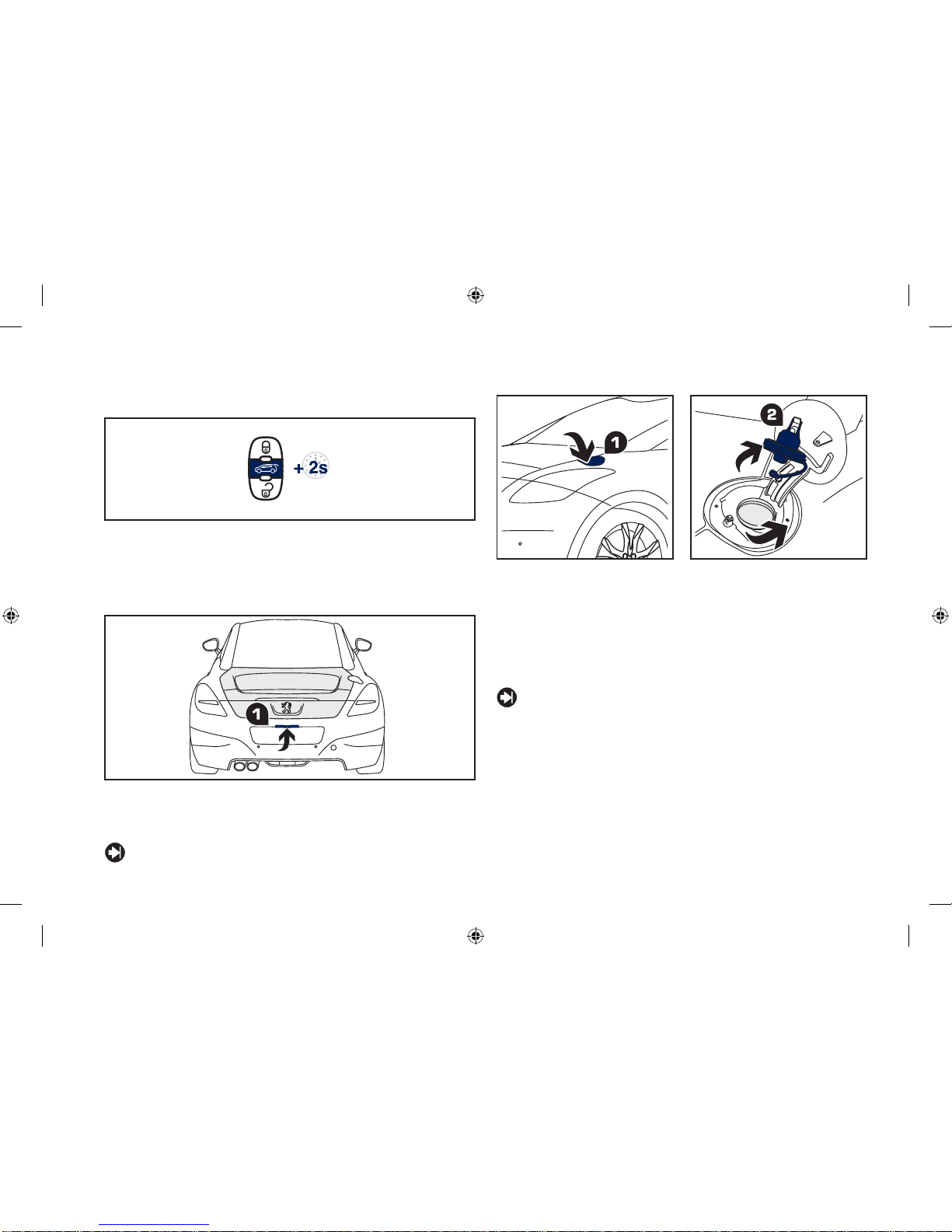

1. Unlocking and partial opening of the boot lid.
2. Opening of the boot lid.
For access to the fuel ¿ller cap, the vehicle must be unlocked.
1. Open the fuel ¿ller Àap by pressing at its rear edge.
2. Remove the fuel ¿ller cap by unscrewing it and hook it on to the
back of the ¿ller Àap.
Capacity of the tank: approximately 55 litres.
146
FUEL TANKBOOT
1. Partial opening of the boot lid.
2. Opening of the boot lid.
Vehicle locked
Vehicle unlocked
APp-RCZ_01_2010_anglais_cag_pdf_6 6
APp-RCZ_01_2010_anglais_cag_pdf_6 6
03/11/2010 18:25:55
03/11/2010 18:25:55

AIRBAGPASS.
OFF
OFF
ON
ON
ON
OFF
AIRBAGPASS
FAMILIARISATION
INTERIOR
1 Interior mood lighting
This dimmed lighting of the passenger
compartment facilitates visibility inside the
vehicle when the light is poor.
82
2 Audio and telematics systems
This equipment bene¿ts from the latest
technology: MP3 compatible Peugeot Connect
Sound, Bluetooth, Peugeot Connect Media
with 16/9 retractable colour screen, JBL audio
system, auxiliary sockets.
Peugeot Connect Media
Peugeot Connect Sound/Bluetooth
199
239
4 Active spoiler
This automatic system can be controlled
manually by means of this control on the
centre console.
110
3 Dual-zone digital air conditioning
This systems allows different levels of comfort
to be set for the driver and front passenger.
It then controls these levels automatically
according to the ambient conditions.
78
PEUGEOT Techno PVC
For maintenance of this covering, do
not use solvent or detergent with a dry
cloth. Remove dust ¿rst, then use a
soft cloth and soapy water. Dry using
another soft cloth.
APp-RCZ_01_2010_anglais_cag_pdf_7 7
APp-RCZ_01_2010_anglais_cag_pdf_7 7
03/11/2010 18:26:02
03/11/2010 18:26:02

50
90
130
0
1/2
1
CHECK/000
8

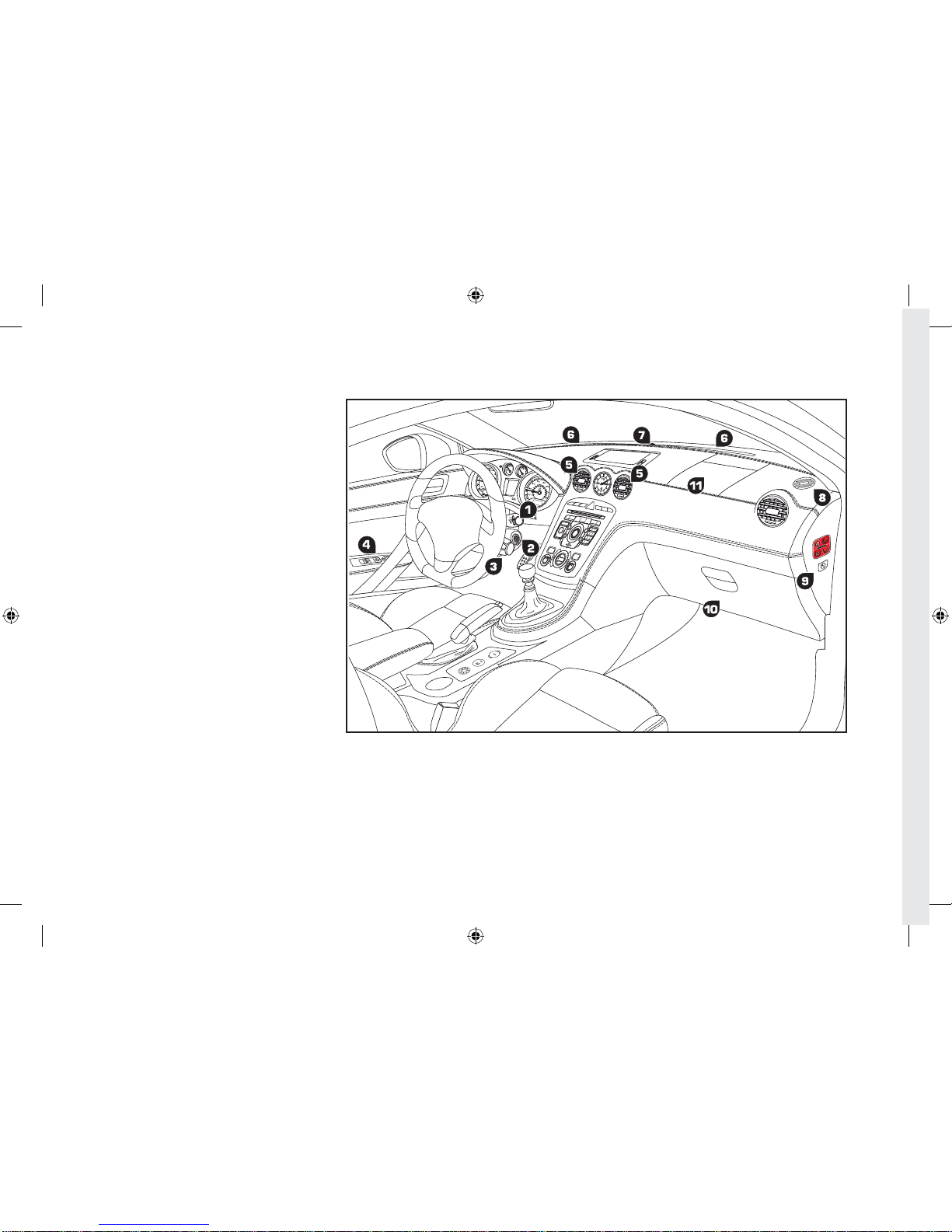

INSTRUMENTS AND CONTROLS

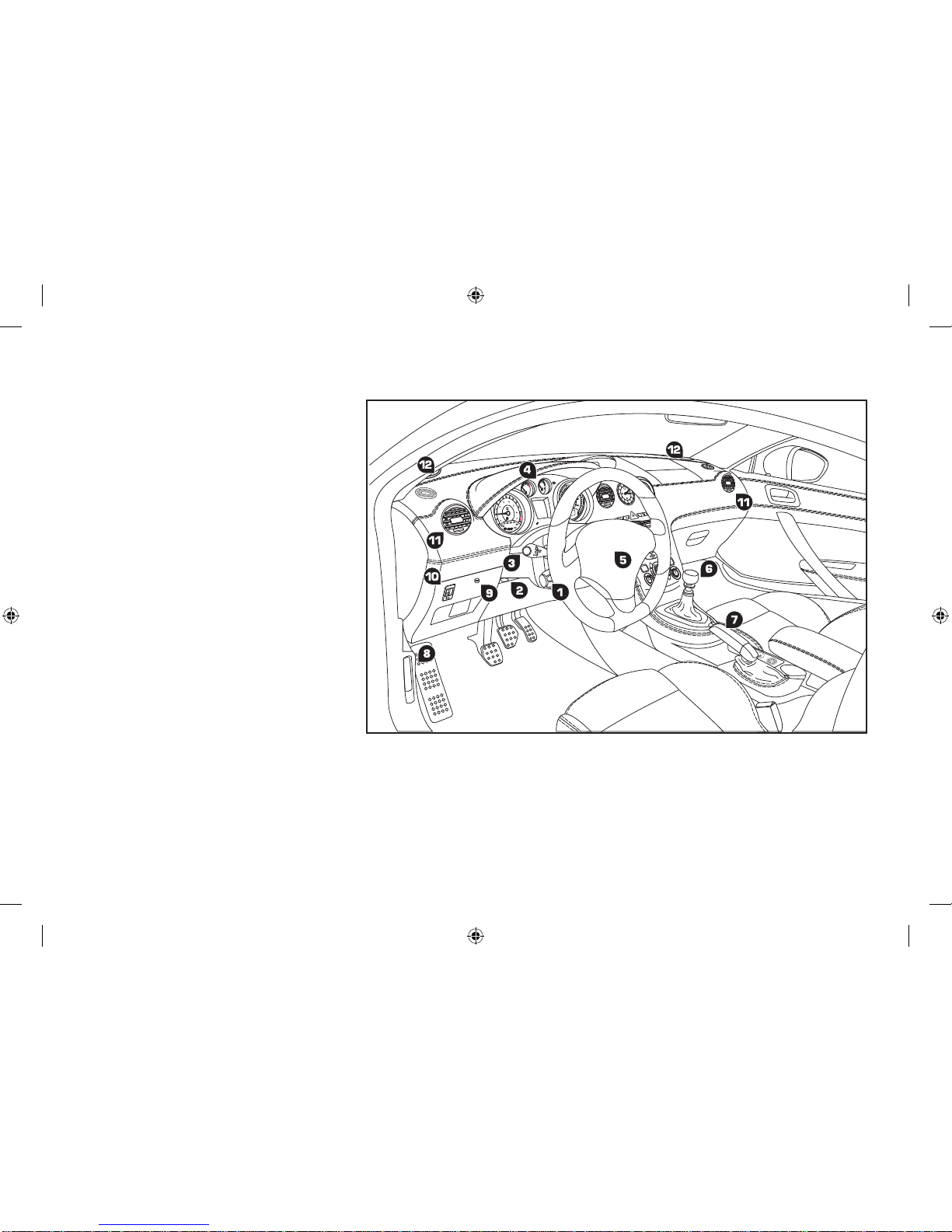

1. Cruise control/speed limiter switches.
2. Steering wheel adjustment control.
3. Lighting and direction indicators control
stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. Bonnet release.
9. Fusebox.
10. Manual headlamp height adjustment.
11. Side adjustable air vent.
12. Speaker (tweeter).
APp-RCZ_01_2010_anglais_cag_pdf_8 8
APp-RCZ_01_2010_anglais_cag_pdf_8 8
03/11/2010 18:26:03
03/11/2010 18:26:03

AIRBAGPASS.
OFF
OFF
ON
ON
ON
OFF
AIRBAGPASS
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Wipers/screenwash/trip computer control
stalk.
2. Steering lock and ignition.
3. Audio and telematics system steering
wheel control stalk.
4. Door mirror controls.
Electric window controls.
5. Central adjustable air vents.
6. Windscreen demisting vent.
7. Sunshine sensor.
8. Front side window demisting vent.
9. Passenger's airbag deactivation switch.
10. Glove box/Audio/video sockets.
11. Passenger's airbag.
APp-RCZ_01_2010_anglais_cag_pdf_9 9
APp-RCZ_01_2010_anglais_cag_pdf_9 9
03/11/2010 18:26:03
03/11/2010 18:26:03

10
30
50
70 90
110
130
130
150
1
70
1
90
210
230
250
1
10
90
70
50
30
10
150
km/h
mph
/
2
1
60
6
12
93
55
50
45
40
35
30
25
20
15
10
5
AUTO A/C
2
ABC
3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
*#
1
RADIO MEDIA NAV ESC TRAFFIC SETUP
ADDR
BOOK
10
30
50
70 90
110
130
130
150
1
70
1
90
210
230
250
1
10
90
70
50
30
10
150
km/h
mph
/
2
1
60
6
12
93
55
50
45
40
35
30
25
20
15
10
5
AUTO A/C
R1
2
3
4
5
6
10

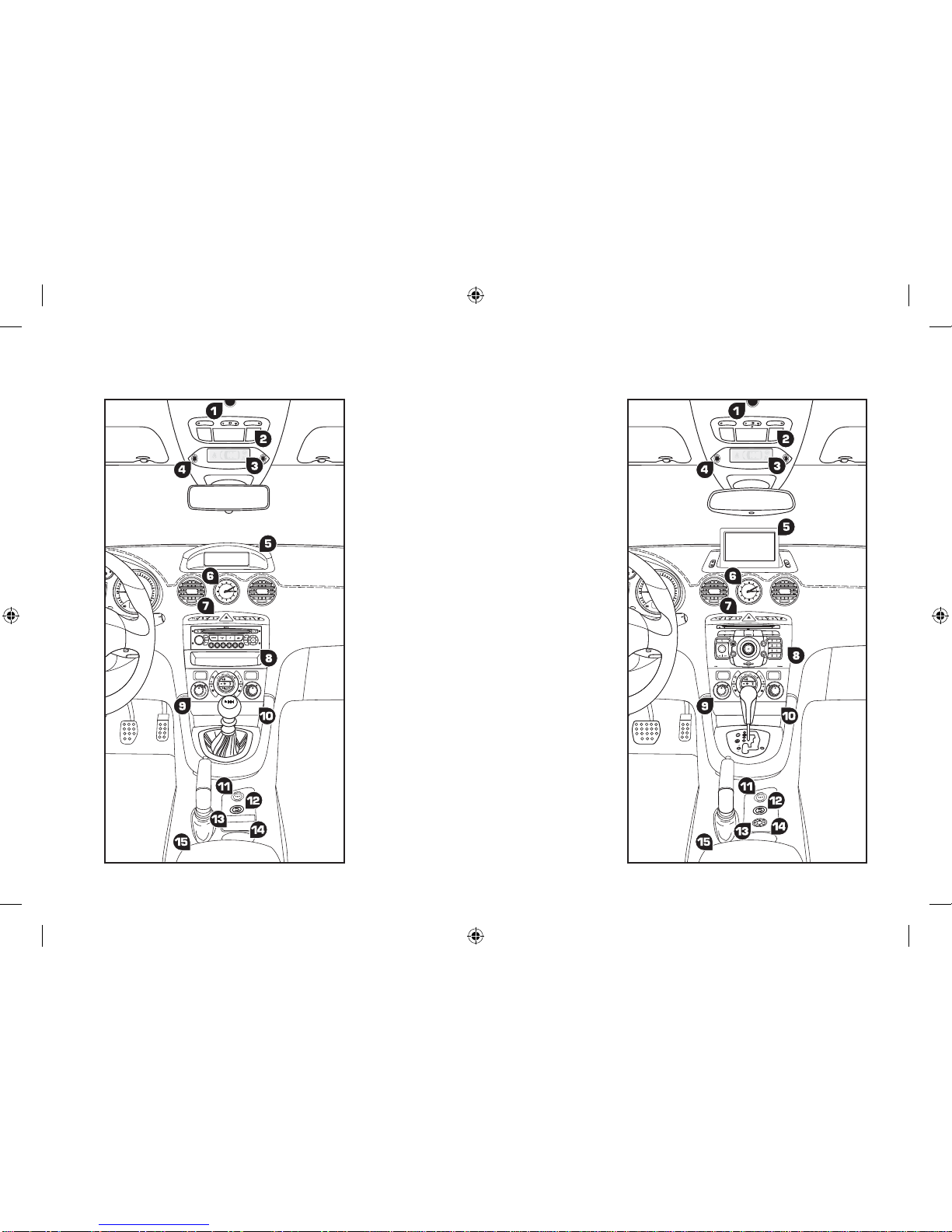

CENTRE CONSOLES
1. Audio and telematics system microphone.
2. Courtesy lamp/Map reading lamps/Interior
mood lighting.
3. Seat belt and front passenger's airbag
warning lamps display.
4. Interior volumetric sensors (alarm).
5. Multifunction screen.
6. Clock.
7. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control (ESP/ASR/EBA)
button.
Parking sensors button.
PEUGEOT services button.
8. Peugeot Connect Sound and storage
compartment or Peugeot Connect Media.
9. Heating/air conditioning controls.
10. Front ashtray.
11. 12 V accessories socket.
12. Active spoiler control.
13. Storage compartment or instrument panel
navigator associated with the Peugeot
Connect Media.
14. Cup holder.
15. Front armrest/USB/auxiliary socket.
APp-RCZ_01_2010_anglais_cag_pdf_10 10
APp-RCZ_01_2010_anglais_cag_pdf_10 10
03/11/2010 18:26:03
03/11/2010 18:26:03

FAMILIARISATION
SITTING COMFORTABLY

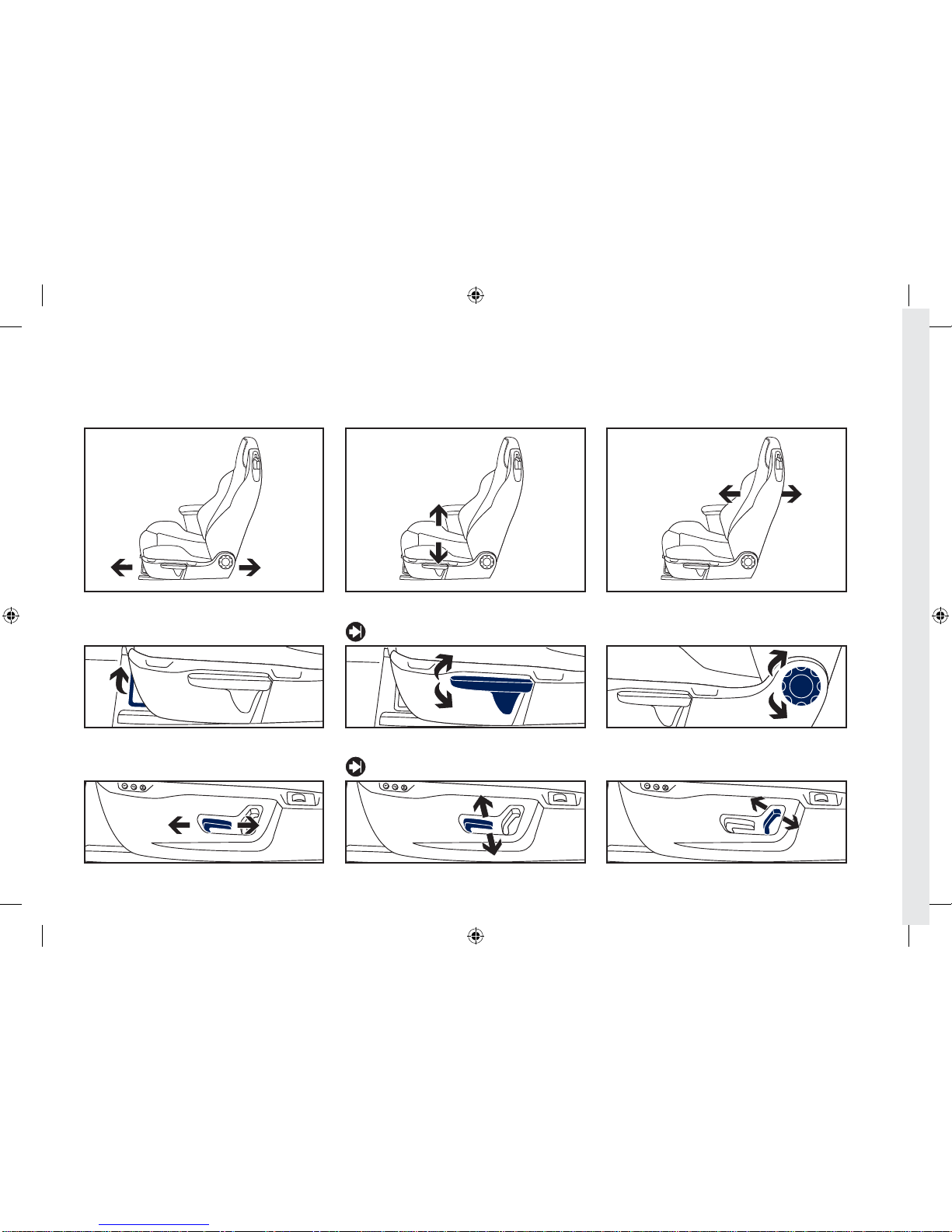

FRONT SEATS
Forwards-backwards Height
MANUAL ADJUSTMENTS
67
68
ELECTRIC ADJUSTMENTS
Seat back angle
APp-RCZ_01_2010_anglais_cag_pdf_11 11
APp-RCZ_01_2010_anglais_cag_pdf_11 11
03/11/2010 18:26:04
03/11/2010 18:26:04

12
SITTING COMFORTABLY
FRONT SEATS
87
Other functions available...
Lumbar adjustment.
As a safety precaution, these
operations must only be carried out
when stationary.
Heated seats.
69
69

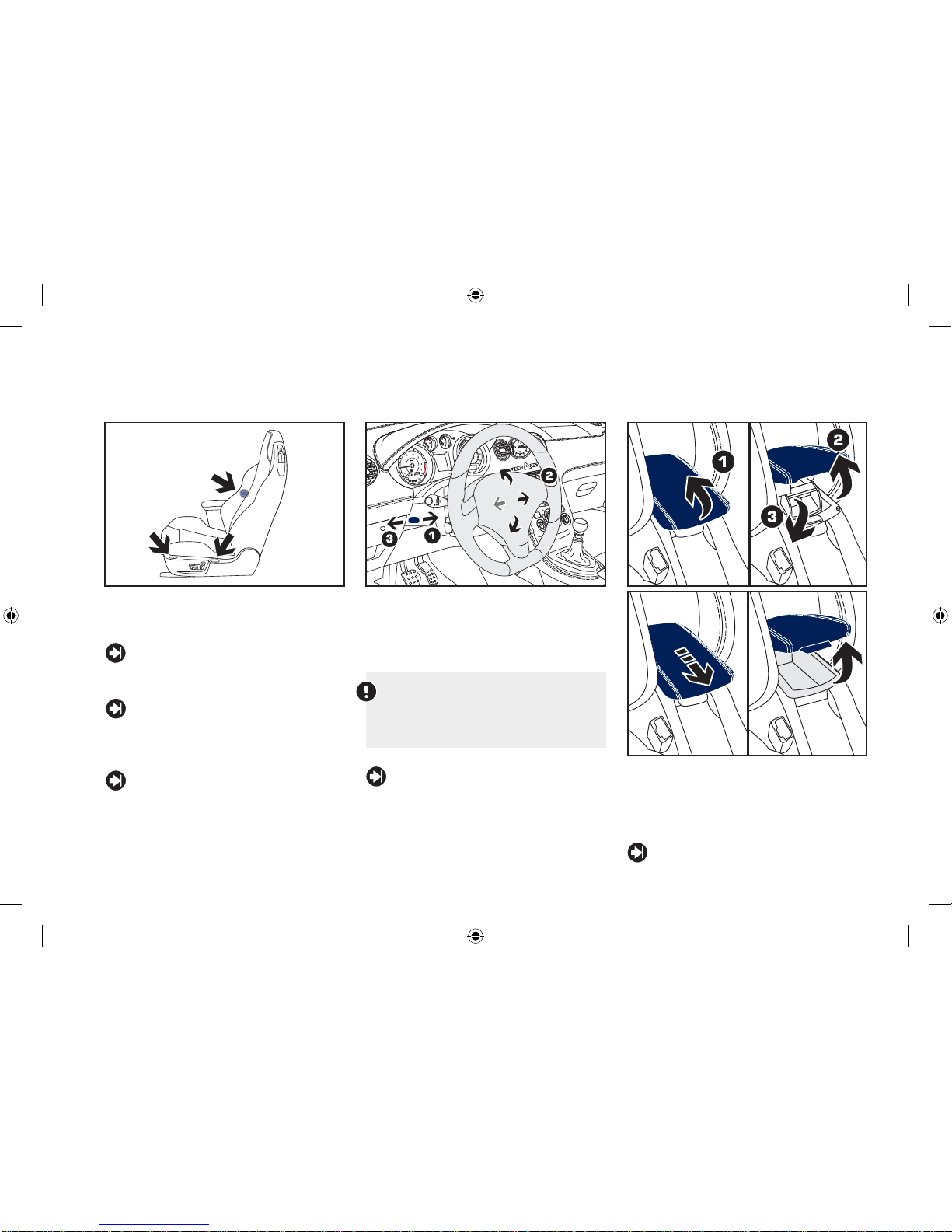

STEERING WHEEL ADJUSTMENT
1. Unlock the control.
2. Adjust for height and reach.
3. Lock the control.
71
FRONT ARMREST
For your comfort, the height and the
longitudinal position of the front armrest can
be adjusted.
It also offers a storage compartment.
Storing of driving positions (driver's electric
seat).
70
APp-RCZ_01_2010_anglais_cag_pdf_12 12
APp-RCZ_01_2010_anglais_cag_pdf_12 12
03/11/2010 18:26:05
03/11/2010 18:26:05
