PEUGEOT 3008 2015 User manual

PEUGEOT 3008
HANDBOOK

Access to the Handbook online
The Handbook is available on the PEUGEOT website, in
the "Personal space" section or at the following address:
http://public.servicebox.peugeot.com/ddb/
This symbol indicates the latest information
available.
Direct access to the Handbook.
Select:
- the language,
- the vehicle, its body style,
- the print edition of your handbook appropriate for the date of 1st
registration of your vehicle.

Welcome
Key
Safety warning
Additional information
Contributes to the protection of the environment
Left-hand drive vehicle
Right-hand drive vehicle
This document presents the information and recommendations required
for you to be able to explore your vehicle in complete safety.
Your vehicle will be fitted with only some of the equipment described in
this document, depending on its trim level, version and the specification
for the country in which it was sold.
The descriptions and illustrations are given without any obligation.
Automobiles PEUGEOT reserves the right to modify the technical
specifications, equipment and accessories without having to update this
edition of the handbook.
In it you will find all of the instructions and recommendations on use
that will allow you to enjoy your vehicle to the fullest. It is strongly
recommended that you familiarise yourself with it as well as the
warranty manual which will provide you with information about
warranties, servicing and roadside assistance associated with your
vehicle.
Thank you for choosing a 3008.
If ownership of your vehicle is transferred, please ensure this Complete
Handbook is passed on to the new owner.

2
.
.
Contents
Digital instrument panel 8
Indicator and warning lamps 12
Indicators 28
Manual test 34
Distance recorders 34
Lighting dimmer 35
Trip computer 36
Monochrome screen C 38
Touch screen 40
Remote control 49
Keyless Entry and Starting 52
Back-up procedures 57
Central locking 60
Alarm 61
Doors 63
Boot 64
Hands-free tailgate 65
Electric windows 69
Panoramic opening sunroof 71
Driving position 74
Front seats 76
Steering wheel adjustment 82
Mirrors 82
Rear seats 84
Function i-Cockpit Amplify 86
Heating and Ventilation 88
Manual air conditioning 90
Semi-automatic mono-zone air
conditioning 91
Automatic dual-zone conditioning 93
Front demist - defrost 96
Heated windscreen 97
Rear screen demist - defrost 98
Programmable heating 98
Front ttings 104
Courtesy lamps 110
Interior mood lighting 111
Rear ttings 112
Boot ttings 114
Exterior lighting control stalk 119
Direction indicators 122
Headlamp adjustment 122
Automatic illumination of headlamps 123
Automatic headlamp dipping 125
Cornering lighting 127
Wiper control stalk 128
Automatic rain sensitive wipers 130
General safety recommendations 132
Hazard warning lamps 133
Horn 133
Emergency or assistance 134
Electronic stability control (ESC) 136
Advanced Grip Control 139
Hill Assist Descent Control 141
Seat belts 142
Airbags 146
Child seats 150
Deactivating the passenger front airbag 152
ISOFIX child seats 158
i-Size child seats 162
Child lock 165
Eco-driving
Dashboard instruments
Access
Overview Ease of use and comfort Lighting and visibility
Safety

3
.
.
.
Contents
Driving recommendations 167
Starting / Switching off the engine
with the key 169
Starting / Switching off the engine
with Keyless Entry and Starting 171
Electric parking brake 173
Manual gearbox 177
Automatic gearbox 177
Hill start assist 182
Dynamic pack 183
Gear shift indicator 183
Stop & Start 184
Under-ination detection 187
Memorising speeds 189
Recognition of speed limit and advice
signs 190
Speed limiter 194
Cruise control 196
Dynamic cruise control with Stop function 199
Distance alert and Active Safety Brake 208
Fatigue detection system 212
Lane Departure Warning System 214
Active Lane Departure Warning System 215
Blind Spot Monitoring System 219
Parking sensors 222
Visiopark 1 - Visiopark 2 224
Park Assist 230
Refuelling 238
Compatibility of fuels 240
Towing a trailer 241
Towbar with quickly detachable towball 242
Energy economy mode 246
Very cold climate screen 247
Snow chains 248
Fitting roof bars 249
Bonnet 250
Engine compartment 251
Checking levels 252
Checks 255
AdBlue®(BlueHDi engines) 257
Warning triangle 260
Running out of fuel (Diesel) 260
Tool kit 261
Temporary puncture repair kit 263
Spare wheel 267
Changing a bulb 271
Changing a wiper blade 276
Changing a fuse 277
12 V battery 278
Towing the vehicle 282
General points 284
Petrol engines 285
Diesel engines 286
Dimensions 288
Identication markings 289
Driving Practical information
In the event of a breakdown
Technical data
Alphabetical index
Audio equipment and telematics

4
Overview

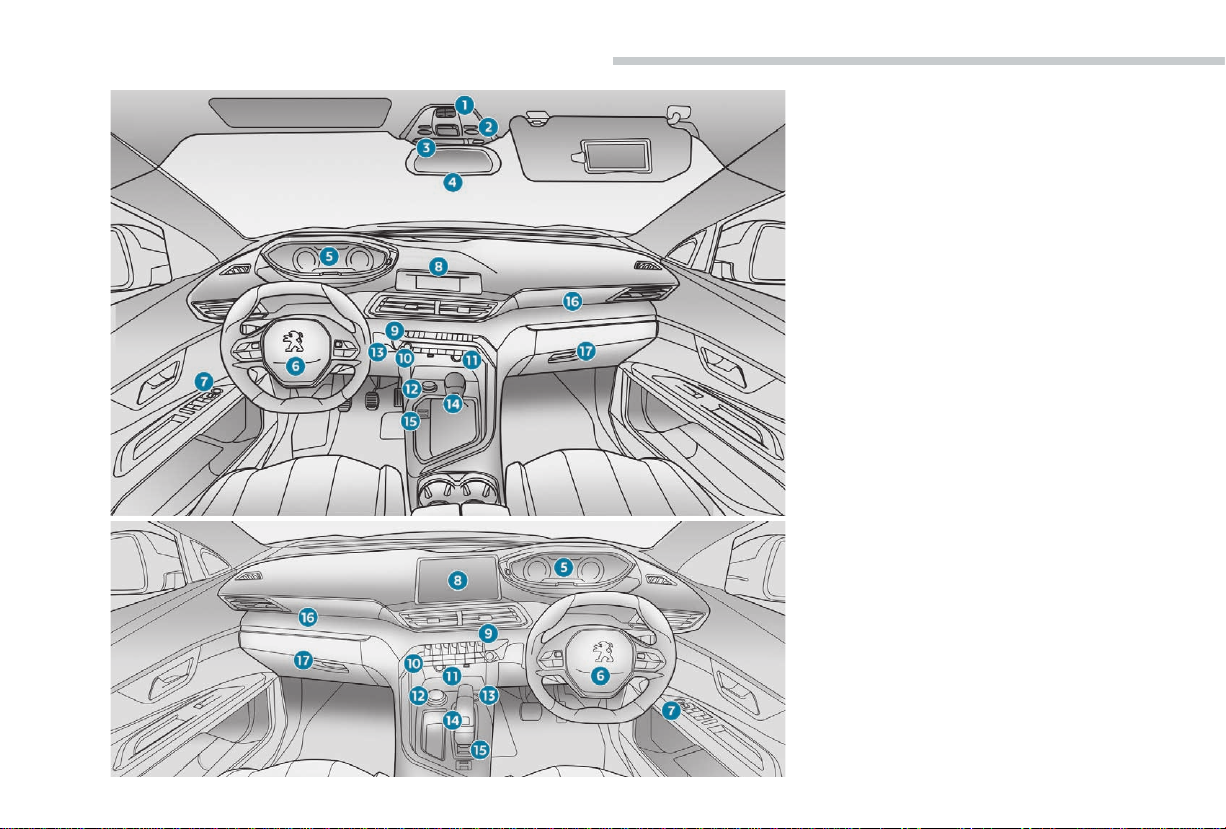

Instruments and controls
1. Sunroof and blind controls
2. Front courtesy / map reading lights
3. Warning lamp display for the seat belts
and passenger front airbag
Emergency and assistance call buttons
4. Rear view mirror
5. Head-up digital screen
6. Audible warning to alert other road users
to an imminent danger
Driver front airbag
7. Door mirror and electric window control
panel
8. Monochrome screen with audio system
Bluetooth
or
Touch screen with PEUGEOT Connect
Radio or PEUGEOT Connect Nav
9. Hazard warning lamps
10. Air conditioning system controls
11. 12V socket / USB socket
Wireless charger
12. Advanced Grip Control
Hill Assist Descent Control
13. Ignition switch
or
"START/STOP" button
14. Gearbox control
"SPORT" button
15. Electric parking brake
16. Passenger's front airbag
17. Glove box
Deactivating the passenger front airbag

5
.Overview

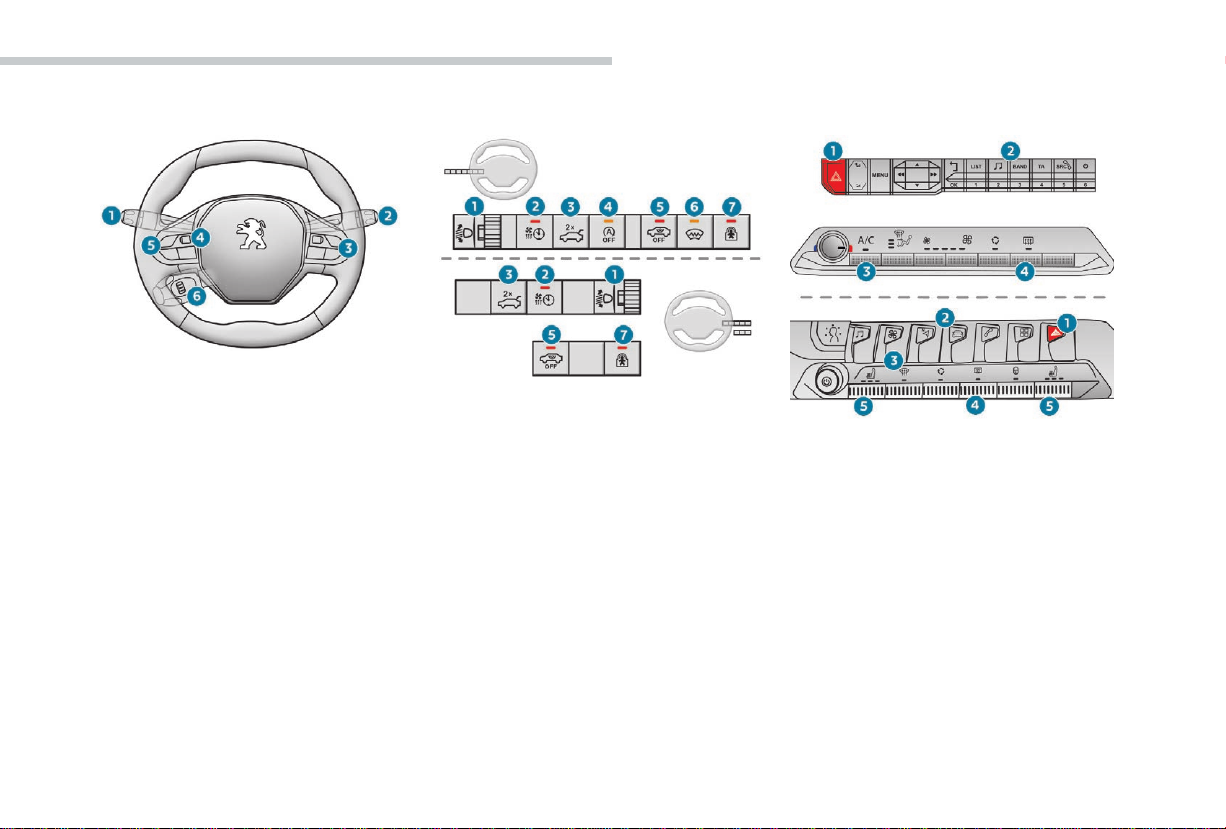

Steering mounted controls Side switch panel Central switch panel
1. External lighting / direction indicator
control stalk
2. Wiper / screenwash / trip computer
control stalk
3. Audio system adjustment controls
4. Instrument panel display mode selection
wheel
5. Voice synthesis control
Volume adjustment
6. Speed limiter controls / cruise control
Dynamic cruise control with Stop function
1. Headlamp beam height adjustment wheel
2. Programmable heating operating
indicator lamp
3. Hands-free tailgate opening / closing
4. Deactivation of Stop & Start
5. Deactivation of the interior volumetric and
anti-tilt monitoring
6. Heated windscreen
7. Electric child lock
1. Hazard warning lamps switch
2. Audio system controls Bluetooth
or
Touch screen controls with PEUGEOT
Connect Radio or PEUGEOT Connect
Nav
i-Cockpit Amplify function
3. Manual air conditioning system controls
or
Semi-automatic or automatic air
conditioning controls
4. Rear screen defrost control
5. Heated seat controls

6
Eco-driving
As a passenger, if you avoid connecting your
multimedia devices (film, music, video game
etc.), you will contribute towards limiting the
consumption of electrical energy, and so of
fuel.
Disconnect your portable devices before
leaving the vehicle.
Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently and
change up without waiting. While accelerating
changing up early.
With an automatic gearbox, give preference
to automatic mode and avoid pressing the
accelerator pedal heavily or suddenly.
The gear efficiency indicator invites you to
engage the most suitable gear: as soon as the
indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an automatic gearbox,
this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption and
CO2emissions and also help to reduce the
background traffic noise.
If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.
Control the use of your electrical
equipment
Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Consider using equipment that can help
keep the temperature in the passenger
compartment down (sunroof and window
blinds...).
Switch off the headlamps and front foglamps
when the ambient light level does not require
their use.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm up
much faster while driving.
Unless it has automatic regulation, switch off
the air conditioning as soon as the desired
temperature has been reached.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

.
7
Eco-driving
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place
the heaviest items in the bottom of the boot,
as close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer...). Preferably use a roof
box.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and
refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when cold,
referring to the label in the door aperture,
driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on
any trailer or caravan.
Have your vehicle serviced regularly
(engine oil, oil filter, air filter, passenger
compartment filter...) and observe the
schedule of operations recommended in the
manufacturer's service schedule.
When filling the tank, do not continue after the
3rd cut-off of the nozzle to avoid overflow.
At the wheel of your new vehicle, it is only
after the first 1,800 miles (3,000 kilometres)
that you will see the fuel consumption settle
down to a consistent average.
With a BlueHDi diesel engine, if the SCR
system is faulty, your vehicle becomes
polluting. Visit as soon as possible a
PEUGEOT or a qualified workshop to
make your vehicle’s level of nitrogen oxide
emissions compliant to the standard.

8
Instruments
Head-up digital screen
Custom digital instrument panel.
Depending on the selected display method, some information may be hidden or shown differently.

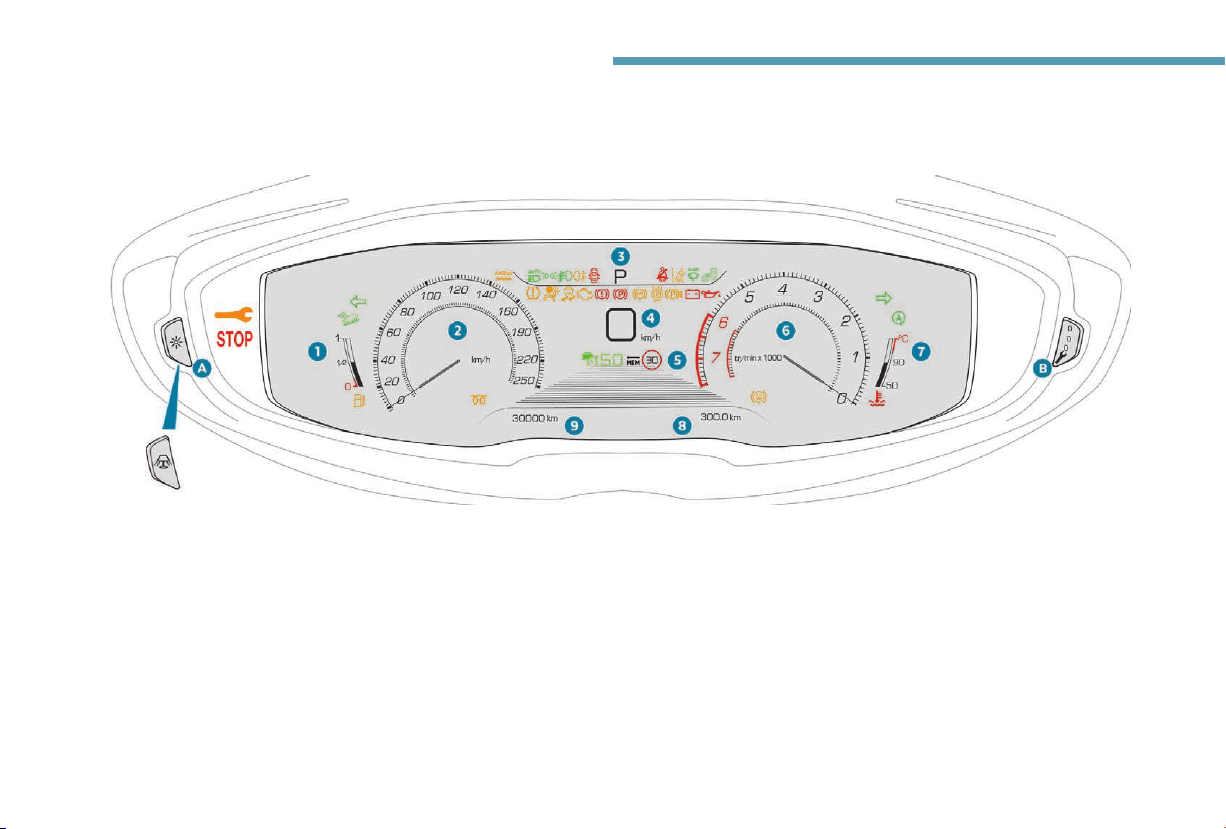

Digital screen
The representation below shows the "DIALS" display mode.
1. Fuel gauge.
2. Analogue speedometer (mph or km/h).
3. Gear shift indicator, selector mode and
the gear with an automatic gearbox.
4. Digital speedometer (mph or km/h).
5. Cruise control or speed limiter setting,
display of speed limit signs.
6. Rev counter (x 1,000 rpm or tr/min).
7. Engine coolant temperature indicator
(°Celsius).
8. Trip distance recorder (miles or km).
9. Total distance recorder (miles or km).

9
1
Instruments
Control buttons
A. Lighting dimmer for the instruments and
controls* (available in night mode).
or
Instrument panel mood lighting**.
Displays
Most warning and indicator lamps do not have
a fixed position.
The warning and indicator lamps in the second
line are displayed from right to left in order of
priority.
For certain functions that have indicator lamps
for both operation and for deactivation, there is
only one dedicated location.
Permanent information
B. Short press: start a manual test.
Long press: reset the service indicator or
trip recorder (depending on the context).
Whatever the display mode selected, the
instrument panel displays:
- in fixed locations:
• gearbox and gear shift indicator
information,
• the fuel gauge,
• the engine coolant temperature indicator,
• the distance recorders.
- in variable locations:
• the digital speedometer,
• status or alert messages displayed
temporarily.
Optional information
Depending on the display mode selected and
active features, the following information may
be displayed:
- the rev counter,
- the trip computer,
- driving aids,
- the speed limiter or cruise control,
- the media currently playing,
- navigation instructions,
- engine information from the Dynamic Pack.
Personalisation of the
instrument panel
You can modify the appearance of the
instrument panel, by choosing:
- the instrument panel display colour**,
- a display mode.
Display language and units
They depend on the configuration of the
multifunction screen (configuration menu).
When travelling abroad, the speed
must be shown in the official units of
the country you are driving in (km/h, km
or mph, miles).
As a safety measure, these adjustments
must be carried out with the vehicle
stationary.
Choosing a display colour
This depends on the ambience activated by the
i-Cockpit Amplify function.
The possible choices are:
F"Relax": grey,
F"Boost": red,
F"Normal" (no colour scheme activated):
blue.
For more information on the i-Cockpit Amplify
function, refer to the corresponding section.
* Versions with monochrome screen.
** Versions with touch screen.

10
Instruments
Each mode corresponds to the type of
information displayed in the instrument panel.
- "DIALS": standard display of the analogue
and digital speedometers, the rev counter,
the fuel gauge, the engine coolant
temperature indicator and the distance
recorders.
- "NAVIGATION": standard display with, in
addition, the current navigation information
(mapping database and navigation
instructions).
- "DRIVING": standard display with, in
addition, the current driving assistance
system information.
- "MINIMAL": minimal display with digital
speedometer and the distance recorders
and, in the event of a warning only, the
fuel gauge and the coolant temperature
indicator.
- "TRIP COMPUTER"*: minimal display with,
in addition, the rev counter, instantaneous
information and the trip recorder selected
(1 or 2).
or
- "PERSONAL"**: minimal display with, in
addition, the selection made in the touch
screen of the type of information displayed
in the customisable areas on the left and
right.
Choice of display mode
* Versions with monochrome screen.
** Versions with touch screen.
To modify the display mode of the instrument
panel:
FTurn the knob located to the left of the
steering wheel to display and scroll through
the different modes on the right hand-side
of the instrument panel.
FOnce the selected display mode appears,
press on the knob to validate.
The new display mode is applied instantly.
To enter settings for the "PERSONAL"
display mode and select the information to
be displayed in the customisable areas of the
instrument panel:
FSelect "Settings".
FPress the "Driver screen
configuration" button.
or
FSelect the Settings menu in the
upper bar of the touch screen.

11
1
Instruments
As a safety measure, these adjustments
must be carried out with the vehicle
stationary.
If the current display mode is "PERSONAL", the
new selection is displayed immediately.
FFor each personalised displayed area, left
and right, select a type of information using
the corresponding scroll arrows in the touch
screen:
• "Driving aids",
• "Default" (empty),
• "Engine info" (Dynamic pack),
• "G-metres" (Dynamic pack),
• "Temperatures" (engine oil),
• "Media",
• "Navigation",
• "Trip computer",
• "Rev counter".
FConfirm to save and quit.

12
Instruments
Indicator and warning lamps
When the ignition is
switched on
Certain warning lamps come on in the
instrument panel for a few seconds when the
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
Most indicator lamps in the instrument panel
are accompanied by the display of a message
and an audible signal.
Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it be
determined whether the situation is normal
or a fault has occurred.
For more information, refer to the
corresponding tables of warning and
indicator lamps.
Warning lamps
When the engine is running or the vehicle is
being driven, illumination of one or more of the
following warning lamps indicates a fault which
requires action on the part of the driver.
Any fault resulting in the illumination of a
warning lamp must be investigated further
using the associated alert message.
If you encounter any problems, contact a
PEUGEOT dealer or a qualified workshop.
Operation indicator lights
If one or more of the following indicator lamps
come on, this confirms that the corresponding
system has been switched on.
Deactivation indicator
lamps
If one of the following indicator lamps comes
on, this confirms that the corresponding system
has been switched off intentionally.
This may be accompanied by the display of a
message and an audible signal.

13
1
Instruments
Warning / indicator lamp State Cause Action / Observations
STOP Fixed, associated
with another warning
lamp, accompanied
by the display of a
message and an
audible signal.
Illumination of this warning lamp
is related to a serious fault with
the engine, braking system,
power steering, automatic
gearbox or a major electrical
fault.
You must stop the vehicle as soon as traffic and
safety conditions permit.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop.
+
Maximum
coolant
temperature
Fixed, accompanied
by the STOP warning
lamp.
The temperature of the cooling
system is too high. You must stop as soon as it is safe to do so. Wait until the engine has cooled down before topping-
up the level, if necessary.
If the problem persists, contact a PEUGEOT dealer or
qualified workshop.
Engine oil
pressure Fixed. There is a fault with the engine lubrication system. You must stop as soon as it is safe to do so. Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.
Battery charge*Fixed. The battery charging circuit has
a fault (dirty or loose terminals,
slack or cut alternator belt, ...).
The warning lamp should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
The battery charging level requires the vehicle to be
stopped immediately, as soon as road and safety
conditions permit.
If the electric parking brake does not work, stop the
vehicle:
FWith a manual transmission: engage a gear.
FWith an automatic gearbox, put the chocks against
one of the wheels.
* Depending on the country of sale.

14
Instruments
Warning / indicator lamp State Cause Action / Observations
Electric parking
brake Fixed. The electric parking brake is applied. Release the parking brake to switch off the warning lamp: with your foot on the brake pedal, briefly push
the parking brake control lever.
Observe the safety recommendations.
For more information on the Electric parking brake,
refer to the corresponding section.
Deactivation of
the automatic
functions of the
electric parking
brake
Fixed. The "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated.
Activate the functions again.
For more information on the Electric parking brake,
refer to the corresponding section.
Door(s) open Fixed and associated
with a message
identifying the door.
Speed below 6 mph (10 km/h), a
door or the boot is not properly
closed.
Close the door or boot.
Fixed, associated with
a message identifying
the door, together with
an audible signal.
Speed above 6 mph (10 km/h), a
door or the boot is not properly
closed.
Non-fastening /
unfastening of
the seat belts
Fixed. The driver and/or the front/rear
passenger has not fastened or
has unfastened their seat belt.
Pull the strap then insert the tongue in the buckle.
The illuminated dots represent the passengers that
have not fastened / unfastened their seat belt.
They come on:
- fixed for 30 about seconds on starting the vehicle,
- fixed from 0 to 12 mph (0 to 20 km/h) when driving,
- flashing above 12 mph (20 km/h), accompanied by
an audible signal for around 120 seconds.

15
1
Instruments
Warning / indicator lamp State Cause Action / Observations
Brakes Fixed. A minor fault with the braking
system. Drive carefully. Have the system checked by a PEUGEOT dealer or a
qualified workshop as soon as possible.
Fixed. The brake fluid level has
dropped significantly. You must stop as soon as it is safe to do so. Top-up with brake fluid listed by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.
+Fixed, associated
with the ABS warning
lamp.
The electronic brake force
distribution (EBFD) system has
a fault.
You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Anti-lock
Braking System
(ABS)
Fixed. The anti-lock braking system
has a fault. The vehicle retains conventional braking. Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
delay.
Dynamic
stability control
(DSC/ASR)
Flashing. The DSC/ASR regulation is
operating. The system optimises traction and improves the directional stability of the vehicle in the event of loss
of grip or trajectory.
Fixed. The DSC/ASR system has a
fault. Have the system checked by a PEUGEOT dealer or a qualified workshop.

16
Instruments
Warning / indicator lamp State Cause Action / Observations
Service Temporarily on, with a
message displayed. One or more minor faults for which there is no specific
warning lamp have been
detected.
Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with some problems yourself, such
as a door open or the start of saturation of the
particle filter (as soon as the traffic conditions allow,
regenerate the filter by driving at a speed of at least
40 mph (60 km/h), until the warning lamp goes off).
For any other problems, such as a fault with the tyre
under inflation detection system, contact a PEUGEOT
dealer or a qualified workshop.
Fixed, accompanied
by the display of a
message.
One or more major faults have
been detected for which there is
no specific warning lamp.
Identify the cause of the fault using the message
displayed in the instrument panel; you must then
contact a PEUGEOT dealer or a qualified workshop.
Fixed, associated with
the flashing and then
fixed display of the
service indicator spanner.
The servicing interval has been
exceeded. Only on BlueHDi Diesel versions. Your vehicle must be serviced as soon as possible.
Distance alert
/ Active Safety
Brake
Flashing. The system is operating. The system brakes briefly so as to reduce the speed
of collision with the vehicle ahead.
Fixed, accompanied
by a message and an
audible signal.
The system has a fault. Have the system checked by a PEUGEOT dealer or a
qualified workshop.

17
1
Instruments
Warning / indicator lamp State Cause Action / Observations
Distance alert
/ Active Safety
Brake
Fixed, accompanied
by a message. The system has been deactivated, via the vehicle
configuration menu.
For more information on the Distance alert / Active
Safety Brake system, refer to the corresponding
section.
Lane Departure
Warning System Flashing, accompanied by an
audible signal.
A lane marking has been
crossed on the left or right. Turn the steering wheel in the opposite direction to return to the correct trajectory.
For more information on the Lane Departure
Warning System, refer to the corresponding section.
Fixed, accompanied
by the display of a
message.
The system has a fault. Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
Active Lane
Departure
Warning System
Fixed. The system has been
automatically deactivated or
placed on standby.
For more information on the Active Lane Departure
Warning System, refer to the corresponding section.
Flashing. You are about to cross a broken
lane marking without operating
the direction indicators.
The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+Fixed, accompanied
by the display of
a message, an
audible signal and
the Service warning
lamp.
The system has a fault. Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
For more information on the Active Lane Departure
Warning System, refer to the corresponding section.

18
Instruments
Warning / indicator lamp State Cause Action / Observations
Under-inflation Fixed. One or more wheels has
insufficient pressure. Check the pressure of the tyres as soon as possible. This check should preferably be carried out when the
tyres are cold.
+Flashing then fixed,
accompanied by
the Service warning
lamp.
The tyre pressure monitoring
system is faulty. Under-inflation detection is no longer assured. Have the system checked by a PEUGEOT dealer or a
qualified workshop.
Airbags Temporarily on. This warning lamp comes on for
a few seconds when you turn on
the ignition, then goes off.
This warning lamp should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
Fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a PEUGEOT dealer or a qualified workshop.
Passenger's
front airbag Fixed, in the seat belt and passenger's front
airbag warning lamps
display.
The control switch, located in
the glove box, is set to the "OFF"
position.
The passenger's front airbag is
deactivated.
You can install a rearward facing
child seat, unless there is a fault
with the airbags (airbag warning
lamp on).
Set the control to the "ON" position to activate the
passenger front airbag. In this case, do not install a
rearward facing child seat on this seat.
