PEUGEOT 807 User manual

YOUR 807 AT A GLANCE
1
Each model may only be fitted with some of the equipment shown, according to its specification and the technical
requirements in the country of first registration of the vehicle.
Pages
Seats 89 - 1 4
Steering wheel controls 114 - 117
Instrument panel, dials 26 - 27
Ventilation, air conditioning 82 - 88
Mirrors 122 - 123
Pages
Checks 139 - 143
Access 1 5 - 113
Changing a wheel 145 - 146
Changing a bulb 147 - 148
Fuel filler flap 113
6-1 -2 3

6-1 -2 3
YOUR 807 AT A GLANCE
2

12 -Instrument panel/
Multi-function display.
13 -Brightness sensor.
14 -Passenger's upper glove
box.
15 -Windscreen demisting vents.
16 -Speaker (tweeter).
17 -Side window demisting
vents.
18 -Passenger air bag disarming
switch*.
19 -Side vent.
20 -Battery/Fuse box.
21 -Passenger air bag.
22 -Lower passenger glove box/
CD changer/Fuse box.
23 -Pasenger compartment
temperature sensor.
24 -Air conditioning controls.
25 -Lighter/12 V accessories
socket.
26 -Hazard warning lights switch.
27 -Storage compartment or
additional telematics control.
28 -Cooled compartment.
29 -Ash tray/Cup holder.
30 -Gear lever.
31 -Heated seats switch.
32 -Storage.
33 -Steering lock and ignition
switch.
34 -Headlamp height
adjustment.
35 -Electronic stability
programme (ESP/ASR) but-
ton.
36 -Steering wheel adjustment
switch.
37 -Handbrake.
38 -Bonnet opening.
* According to country.
YOUR 807 AT A GLANCE
3
1 - Electric mirror controls.
Electric window controls.
Disarming of rear electric
controls.
2 - Volumetric alarm disarming
button.
3 - Cruise control.
4 - Lights and direction
indicators stalk.
5 - Driver's air bag.
Horn.
6 - Instrument panel dials.
7 - Audio remote control
stalk.
8 - Windscreen wash-wipe stalk/
Trip computer stalk.
9 - Driver's upper glove
box.
10 -Central vents.
11 - RD3 or RT3 audio
equipment with flap.
6-1 -2 3

6-1 -2 3
105
THE KEYS
The keys allow you to switch on
the ignition and to independently
operate the lock on the driver's
door, the passenger door, the fuel
filler cap, the glove box, the pas-
senger air bag disarming switch
and the child safety lock.
Ce tral locki g
From the driver's or passenger
door, the keys allow you to lock,
deadlock or unlock the doors and
the tailgate and to fold back the
exterior mirrors.
If one of the doors or the tailgate
is open, it is impossible to operate
the central locking.
The remote co trol performs
the same fu ctio s at a
dista ce.
The remote co trol key
Locki g
Press button Ato lock the vehi-
cle.
Button Aalso enables you to
locate the vehicle and re-pro-
gramme the remote control.
Deadlocki g
O e press on button Alocks the
vehicle and closes the windows
automatically.
A seco d press on button A
within five seconds of locking,
changes locking to dealocking.
Deadlocking renders the
internal and external door
locking controls inopera-
tive.
Never leave anyone inside the
vehicle when it is deadlocked.
U locki g
Pressing button Bunlocks the
vehicle.
Ope i g/Closi g of the
electric slidi g side doors
Press button C or Dto unlock the
vehicle. This permits opening or
closing of the corresponding rear
door.
Foldi g/u foldi g the key
Press button Eto unfold the key
from or fold it into its holder.
STARTING
1 - STOP positio :
the ignition is off.
2 - 1st otch, Accessories
positio :
the ignition is off but the
accessories can be used.
3 - 2 d otch, Ru i g
positio :
the ignition is on.
4 - Starti g positio :
operates the starter.
4
YOUR 807 AT A GLANCE

121
122
YOUR 807 AT A GLANCE
5
STEERING WHEEL
ADJUSTMENT
☞With the vehicle stationary,
lower handle Ato unlock the
steering wheel.
☞Adjust the height and depth of
the steering wheel.
☞Lock it by pushing handle A
fully upwards.
CHILD MONITORING
MIRROR
Fitted on a swivel joint and
retractable from its housing, this
mirror allows the driver or front
passenger to see all the rear
seats.
ELECTRIC WINDOWS
1 - Driver's electric wi dow.
2 - Passe ger's electric wi dow.
3 - Rear right electric wi dow.
4 - Rear left electric wi dow.
5 - Disarmi g the rear electric wi dow switches.
☞Press or pull the switch lightly. The window stops as soon as the
switch is released.
Automatic mode:
☞Press or pull the switch firmly. One touch completely opens or
closes the window. Operating the switch again stops the
window.
Safety auto-reverse: When the window is closing and meets an
obstacle, it stops and lowers again.
ELECTRIC MIRRORS
Adjustme t
☞Move switch 6to the right or left to select the corresponding mirror.
☞Press the arrows of button 7in all four directions to adjust.
☞Return switch 6 to the centre position.
Foldi g back
When parking the vehicle, the mirrors can be folded back manu-
ally or electrically by pulling switch 6rearwards or automatically on
locking the vehicle.
6-1 -2 3

6-1 -2 3
89
90
YOUR 807 AT A GLANCE
6
SEATS
Ma ually adjusted fro t seats
1 - Forwards/backwards adjustment.
2 - Seat back angle adjustment.
3 - Driver's seat height adjustment.
4 - Driver's seat lumbar adjustment.
5 - Head restraint height and angle adjustment.
6 - Rotating the seat.
7 - Heated seat.
Electrically adjusted
fro t seats
A- Forwards/backwards adjust-
ment.
B - Driver's seat height adjust-
ment.
C - Seat back angle adjustment.
M - Memorising the settings.
☞Switch on the ignition, then
adjust the seat.
☞Press button "M" then "1"
or "2" within 4 seconds.
1 - Recalls the first position.
2 - Recalls the second
position.

6-1 -2 3
93
YOUR 807 AT A GLANCE
7
REAR SEATS
Operati g a side seat:
– forwards/backwards adjust-
ment (1),
– adjustment of seat back
angle, folding down, position-
ing the tray, access to the 3rd
row of seats (2),
– folding down, exiting the vehi-
cle from the 3rd row (3),
– head restraint height adjust-
ment (4).
Operati g the ce tre seat:
– forwards/backwards adjust-
ment (1),
– adjustment of seat back
angle (2),
–positioning the tray (3),
– folding down (4),
– head restraint height adjust-
ment (5).
Operati g the rear seat:
– forwards/backwards adjust-
ment (1),
– positioning the tray (2),
– folding down (3),
– head restraint height adjust-
ment (4).

6-1 -2 3
103
YOUR 807 AT A GLANCE
8
6 seats "Pullma " 5 seats with 'pic ic' positio
7 seats with access to the 3rd row "Cargo" co figuratio
5 seats 8 seats with be ch seat
SEAT CONFIGURATION

6-1 -2 3
84
YOUR 807 AT A GLANCE
9
AIR CONDITIONING
N° Fu ctio
1 Air conditioning
on/off.
2Air distribution
adjustment.
3 Air flow
adjustment.
4Recirculation of air.
5Temperature
adjustment.
6Demisting the
rear screen and
mirrors.
7Visibility
programme.

6-1 -2 3
86
N° Fu ctio
1Air conditioning
on/off.
2Driver's side adjustment.
3Passenger side adjustment.
4Air distribution
adjustment.
5Rear ventilation
adjustment.
6Air flow adjustment.
7Recirculation of air.
8Demisting the rear
screen and mirrors.
9 Comfort programme.
10 Visibility programme.
AIdentical adjustment of
settings 2and 3.
BSwitching on/off of
setting 5.
YOUR 807 AT A GLANCE
10
AUTOMATIC AIR
CONDITIONING WITH
SEPARATE ADJUSTMENT

6-1 -2 3
114
116
YOUR 807 AT A GLANCE
11
STEERING WHEEL STALKS
LIGHTS
Fro t a d rear lights (ri g A)
Lights off
Side lights
Dipped/Main
beam headlamps
Automatic
switching on of
lights.
To switch the function on or off,
turn the key to the accessories
position, with the lights stalk in
position 0and press the end of the
stalk for more than two seconds.
Fro t fog lamps a d rear fog
lamp (ri g B)
Front fog lamps (1st rota-
tion of the ring forwards).
Front and rear fog
lamps (2nd rota-
tion of the ring for-
wards).
Switching off: rotation of ring B
backwards.
WINDSCREEN WIPERS
Fro t
2Rapid wipe.
1Normal wipe.
IIntermittent wipe.
or
AUTO Automatic wipe.
0Off.
Single wipe.
Wash/wipe: pull the stalk
towards you.
Automatic wipe
In the AUTO position, a
rain sensor controls the
automatic operation of
the wiper. The wiper
adjusts its speed to the
i te sity of the rai fall.
Rear
Off Intermittent Wash/
wipe wipe

6-1 -2 3
113
YOUR 807 AT A GLANCE
13
I side the vehicle: Lift the han-
dle on the left-hand side at the
foot of the driver's seat and pull it
upwards.
FILLING WITH FUEL
This operation must be carried out with the e gi e switched off.
☞Open the fuel filler cap.
☞Insert the key then turn it to the left.
☞Remove the cap and hook it onto the clip on the inside of the flap.
A label on the inside of the flap shows which type of fuel to use.
When you fill your tank, do not continue after the third cut-off of the pump.
This could cause a malfunction.
The capacity of the ta k is approximately 80 litres.
☞After filling the tank, lock the cap and close the flap.
Low fuel level war i g light
From the time this light comes on, accompanied by the
message "Fuel level low", there is enough fuel remain-
ing to drive approximately 30 miles (50 km).
OPENING THE BONNET
Outside the vehicle: Lift the
catch, raise the bonnet and
secure the strut to keep the bon-
net open.

6-1 -2 3
133 144
YOUR 807 AT A GLANCE
14
REAR PARKING
ASSISTANCE
This system, located in the rear
bumper, detects any obstacle
(person, vehicle, tree, gate...)
behind the vehicle.
Activatio
With the engine switched on, the
system is activated as soon as
reverse gear is engaged; a bleep
signals that it is active.
Proximity information is given by
a warning signal, which consists
of bleeps which become more
and more rapid the nearer the
vehicle gets to the obstacle.
When the distance between the
rear of the vehicle and the obsta-
cle is less than approximately
25 centimetres, the warning sig-
nal becomes continuous.
☞Change to neutral to
de-activate the sys-
tem.
TYRE UNDER-INFLATION
DETECTION
ensors check the pressure dur-
ing driving and trigger a warning
in the event of malfunction
(speed greater than 15 mph
(25 km/h)).
Flat tyre(s)
When this message appears on
the multi-function display, accom-
panied by an audible signal, have
the tyre pressure checked as
soon as possible.
Pu cture
Appearance of this message,
accompanied by an audible sig-
nal, is followed by illumination of
the STOP warning light.
Stop immediately, avoiding any
sudden movement of the steering
wheel and the brakes.
Change the damaged (punctured
or very deflated) tyre and have
the tyre pressure checked as
soon as possible.
Note: if the damaged tyre is tem-
porarily stored in the boot, it will
again emit this message to
remind you of the necessity of
having it repaired. This will pre-
vent another warning of the same
type being displayed.
The spare wheel has no sensor.
X tyre pressure se sor(s)
missi g
This message, accompanied by
an audible signal, indicates that
under-inflation detection is
absent from one (or several)
tyre(s).
Contact a PEUGEOT dealer to
replace the faulty sensor(s).
This message is also dis-
played when one of the
tyres is away from the
vehicle (being repaired)
or when a wheel without a sensor
is fitted (Winter tyre).
This system does ot elimi ate
the eed to have the tyre pres-
sures checked regularly.

06-10-2003
PEUGEOT SE VICING
The maintenance cycle for your vehicle is based on level A (drain/refill engine oil, checks and top up levels) and level C
operations (level A operations + workshop operations carried out every 36,000/40,000 miles (60 000 km)) in accordance
with the tables shown on the following pages.
Whatever the conditions of use of your vehicle, the interval between two services must not exceed:
• 20,000 miles (30 000 km) or 2 years for petrol engines,
• 12,000 miles (20 000 km) or 2 years for Turbo Diesel HDI engines.
The service indicator informs you when the services are due; the point at which each service is due is calculated from the
last indicator zero reset (see corresponding section).
This point is determined by two parameters:
– the distance travelled,
– the time elapsed since the last service.
Note: the distance remaining may be weighted by the time factor, in accordance with the driver's style of driving.
In all cases, the extension of the service intervals means that the engine oil level must be checked regularly:
topping up of the oil between oil changes is normal.
This is why the PEUGEOT network is offering you an intermediate visit between regular services. The date of this
visit is not shown by the service indicator.
It is to be carried out between two services.
APEUGE T dealer will carry out a quick check and top up the levels if necessary (oil, coolant and screen wash up to 2 litres).
If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every
3,000 miles (5 000 km).
This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL T NLY USE LUBRICANTS THATARE SUITED T Y UR ENGINE AND REC MMENDED BY
THE MANUFACTURER (see pages on "Lubricants").
PEUGEOT SE VICING
18

06-10-2003
PEUGEOT SE VICING 19
: All driving conditions. o: Arduous conditions. * According to destination.
A AND C SE VICE LEVELS AND THE INTE MEDIATE VISIT Level
Operations Description of operation
1st service
A C Intermediate
– il filter 
– Fuel filter* (petrol) 
– Fuel filter element (diesel) 
– Air filter element 
– Spark plugs (petrol) 
– Engine oil 
– Bleed fuel filter (diesel) 
– Engine oil (check + top-up) 
– Battery (check + top-up) if cap is removable 
– Screen wash (check + top-up) 
– Coolant (check + top-up) 
– Brake fluid (check + top-up) 
–
Power steering fluid (check + top up according to specification) 
– peration of lights and indicators 
– Condition of glass, headlamp and light lenses and mirrors 
– Horn 
– Windscreen washer jets 
– Condition of wiper blades 
– Condition and tension of the ancillary drive belts 
– Handbrake 
– Condition of hydraulic circuits (hoses and covers) 
– Condition of rubber boots and gaiters 
– Brake pads  o
– Play in hubs, link rods, ball joints, flexible mountings 
– Shock absorbers 
– Rear drum brake lining wear 
– Condition and pressure of tyres (including spare wheel) 
– Emission control check as per current legislation (petrol) 
– Smoke opacity (diesel) 
– Passenger compartment filter (according to specification)  o
– Visual check of the whole vehicle 
– Courtesy vehicle 

D AIN/ EFILL
EPLACE
LEVEL
SE VICE*
OAD TEST
CHECK

06-10-2003
PEUGEOT SE VICING
20
THE SE VICE LEVELS
Each vehicle has its own servicing cycle, defined by the manufacturer in terms of its engine type.
This cycle consists of alternating 2 types of service, A and C, intermediate visits and a few additional operations specific to
your vehicle; these correspond to key stages in the life of your 807.
At the first and each subsequent service, your dealer will advise you of the type and content of the next service due.
MAINTENANCE CYCLE FO YOU PET OL ENGINE 807
2 litre and 2.2 litre petrol engine: service every 2 years or 20,000 miles (30 000 km) maximum
1st service at 6,000 (10 000 km) or 6 months*.
This is necessary in order to benefit
from the warranty.
These services are to be carried out with at least synthetically based oil but may also be carried out with synthetic oil or
fuel economy oil (except for the 2.2 litre petrol engine).
Arduous conditions of use (see corresponding section).
* Whichever comes first.
3 litre V6 24V Petrol Injection Engine: service every 2 years or 20,000 miles (30 000 km) maximum.
1st service at 6,000 miles (10 000 km) or 6 months*.
This is necessary in order to benefit
from the warranty.
MILES (KM) 20,000 (30 000) 40,000 (60 000) 60,000 (90 000)
80,000 (120 000) 100,000 (150 000) 120,000 (180 000) 140,000 (210 000) 160,000 (240 000)
MILES (KM) 20,000 (30 000) 40,000 (60 000) 60,000 (90 000)
80,000 (120 000) 100,000 (150 000) 120,000 (180 000) 140,000 (210 000) 160,000 (240 000)
+ air filter replacement
+fuel filter replacement
+ air filter replacement
+fuel filter replacement
Intermediate top-up visit included in
the fixed services.

06-10-2003
PEUGEOT SE VICING 21
Intermediate top-up visit included in
the fixed services.
MAINTENANCE CYCLE FO YOU 807 TU BO DIESEL HDI
2 litre and 2.2 litre turbo diesel HDI: service every 2 years or 12,000 miles (20 000 km) maximum
These services are to be carried out with synthetically based oil.Fuel Economy oil or synthetic oil may also be used.
Warning: use only 5W40 oil for the 2.2 litre HDI engine.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
1st service at 10 000 km or
6 months*.
This is necessary in order
to benefit from the warranty.
MILES (KM) 12,000 (20 000) 24,000 (40 000) 36,000 (60 000) 48,000 (80 000) 60,000 (100 000)
72,000 (120 000) 84,000 (140 000) 96,000 (160 000) 108,000 (180 000) 120,000 (200 000) 132,000 (220 000) 144,000 (240 000)
+ maintenance of the
particulate emission filter
+ maintenance of the
particulate emission filter

06-10-2003
PEUGEOT SE VICING
22
A few seconds after the ignition is
switched on, the oil level is dis-
played, then the total distance
recorder resumes normal operation
showing the total and trip distances.
The distance remaining before the
next service is less than 1 000 km
Each time the ignition is switched on
and for a few seconds, the spanner
flashes and the number of kilometres
remaining is displayed:
A few seconds after the ignition is
switched on, the oil level is dis-
played, then the total distance
recorder resumes normal operation
and the spanner remains lit. This
indicates that a service should be
carried out shortly.
SE VICE INDICATO
Located in the instrument panel with
the total distance recorder (total and
trip distances), this programmes ser-
vice intervals according to the use of
the vehicle.
Operation
A few moments after the ignition has
been switched on, the spanner indi-
cating a service operation lights up;
the display for the total distance
recorder tells you (in round figures)
the distance remaining before the
next service.
Example: 4 800 km remain before
the next service is due. When the
ignition is switched on and for a few
seconds, the display shows:
The service is overdue
Each time the ignition is switched on
and for a few seconds, the spanner
flashes and the excess distance is
displayed.
Notes:
With the engine running the spanner
remains lit until the service has been
carried out.
The spanner may also light up if the
two-year interval has elapsed (see
section "PEUGE T services").

06-10-2003
PEUGEOT SE VICING 23
Zero re-set
Your PEUGE T dealer carries out
this operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
☞Switch off the ignition,
☞
Press and hold the trip recorder
re-set button,
☞Switch on the ignition.
The display begins a countdown.
When the display shows "= 0",
release the button; the spanner
disappears.
Note: after this operation, if you wish
to disconnect the battery, lock the
vehicle and wait for at least five
minutes, otherwise the zero re-set
will not be registered.
MAINTENANCE OF PA TS SUBJECT TO WEA and a check of consum-
ables
Some of your vehicle's vital components have specific servicing schedules.
• The brake fluid is to be replaced every 36,000/40,000 miles (60 000 km) or
every two years maximum;
• The passenger compartment filter must be checked at each visit to a
PEUGE T dealer (services and intermediate visits) or more often, depending
on the environment (dust, pollution, etc.);
• For HDI turbo diesel engines with particulate emission filter, maintenance
of the filter and topping up of the additive reservoir must be carried out every
72,000 miles (120 000 km) maximum by a PEUGE T dealer;
• Replacement of the timing belt: contact a PEUGE T dealer.
•Tyre pressure sensors are to be replaced every 10 years.
• The check on tyre inflation pressure must be carried out cold at least once
a month.
A DUOUS CONDITIONS OF USE
In the case of use in certain particularly difficult conditions, such as continuous
door to door, town use (e.g. taxi), repeated short journeys, with the engine
cold at low temperatures or prolonged stays in hot countries with tempera-
tures often above +30 °C, cold countries with temperatures often below –15 °C,
countries with a dusty atmosphere and countries whose lubricants or fuels do
not conform to our recommendations,
it is necessary to follow an "Arduous Conditions" servicing schedule which has spe-
cial operations and shorter service intervals:
• Every 12,000 miles (20 000 km) or every year for petrol vehicles.
• Every 10,000 miles (15 000 km) or every year for HDI Turbo Diesel vehicles.

DIESELDIESELPETR L PETR L
24
(1) Minimum quality standard: Petrol engines ACEAA3 and API SH/SJ; Diesel engines: ACEA B3 and API CF/CD
ACEA = Association des Constructeurs Européens Automobiles (Association of European Automobile Manufacturers) -
API = American Petroleum Institute.
If oil is used which does not conform to the ACEAA3-B3 standards, this requires the "Arduous Conditions" servicing
schedule to be followed, which involves shorter intervals between services.
Use only 5W40 synthetic oil for the HDI Turbo Diesel engines with particulate emissions filter.
* Fuel Economy il cannot be used for the 2.2 litre 16V petrol engine and the HDI Turbo Diesel engines with particulate
emissions filter.

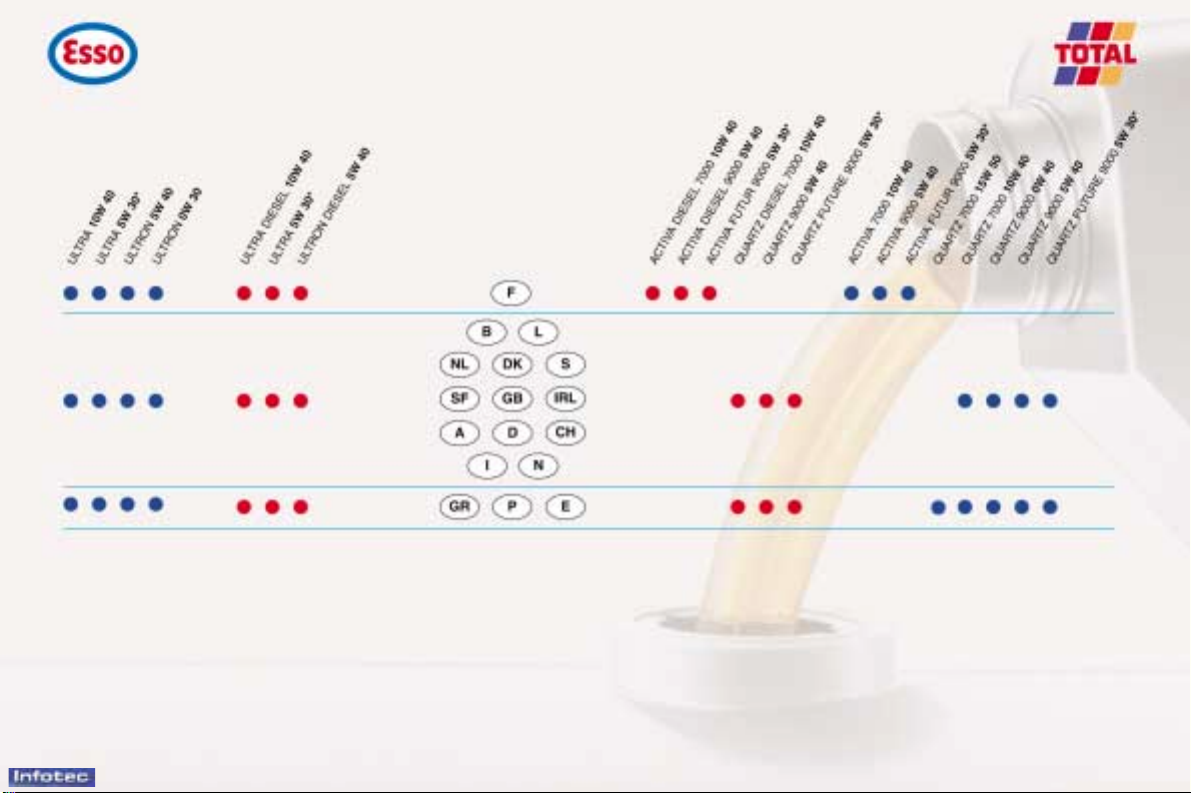

T ADE NAMES OF ECOMMENDED LUB ICANTS IN EU OPE(1)
06-10-2003
