PEUGEOT ION User manual

Handbook

!
Please note the following point:
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's
electronic system. Please note this specific warning. It is advisable to contact a PEUGEOT dealer to be shown the recommended
equipment and accessories.
PEUGEOT's SERVICE BOX Internet site permits easy and free
consultation of your vehicle documentation on line.
Your vehicle lives on the Internet!
Access the latest information available.
Connect to http://public.servicebox.peugeot.com:
Simple and user friendly, SERVICE BOX allows you access:
●to your Handbook,
●to previous Vehicle documentation.
select your language,
click on the link in the "Private customer access" zone to
consult the Vehicle documentation,
A window opens giving access to all of the handbooks...
select your vehicle,
choose its body type then the date of publication of the handbook,
finally, click on the item which is of interest to you.

i
!
WELCOME
Key
Warning:
this symbol marks warnings which it
is essential to observe for your own
safety, for the safety of others or to
avoid any risk of damaging your vehicle.
Information:
this symbol draws your attention to
additional information for better use of
your vehicle.
Protection of
the environment:
this symbol accompanies advice
relating to protection of the environment.
Page reference:
this symbol invites you to refer to
the pages which provide details of
the function.
Thank you for choosing an ION, a symbol of
confidence, passion and inspiration.
ION is the first 100% electric vehicle for
PEUGEOT, 0% pollutant emissions when
driving and particularly quiet.
This handbook has been designed to enable
you to make the most of your ION in all
circumstances.
On the first few pages, you will find a detailed
summary, followed by a quick reference guide
intended to make it easier for you to become
familiar with your electric vehicle.
All of the details specific to your ION, comfort,
safety, driving, are then presented in this
handbook to increase your appreciation of the
vehicle and allow you to make full use of its
abilities.
Your vehicle is fitted with only some of the
equipment described in this document,
depending on its trim level, version and the
specification for the country in which it was sold.
Find out more from the PEUGEOT dealer network.

.
Contents
Instrument panel 18
Indicator and warning lamps 19
Main battery state of charge indicator 26
Energy consumption/generation indicator 27
Distance recorder 28
Trip distance recorder 28
Lighting dimmer 29
Service indicator 29
Range indicator 30
Instruments and controls
Familiarisation
Remote control key 31
Electric windows 34
Doors 35
Boot 36
Charging flaps 37
Access
Front seats 38
Rear seats 40
Mirrors 42
Interior fittings 44
Heating and Ventilation 47
Air conditioning 49
Rear screen demist - defrost 51
Comfort
Starting - stopping the vehicle 52
Manual parking brake 53
Drive selector 54
Driving
Lighting stalk 56
Automatic illumination of headlamps 58
Headlamp adjustment 58
Wiper controls 59
Courtesy lamp 60
Visibility

.
.
Contents
Child seats 61
ISOFIX child seats 65
Child lock 68
Child safety
Direction indicators 69
Hazard warning lamps 69
Horn 69
Emergency or assistance call 70
Braking assistance systems 70
Trajectory control systems 72
Front seat belts 73
Airbags 76
Safety
Charging the main battery 80
Ancillaries battery 86
Temporary puncture repair kit 90
Changing a wheel 94
Changing a bulb 97
Changing a fuse 105
Changing a wiper blade 110
Towing the vehicle 110
Precautions for washing 111
Accessories 111
Practical information
Bonnet 114
Front compartment 115
Rear compartment 116
Checking levels 117
Checks 119
Checks
Electric motor 120
Weights 121
Dimensions 122
Identification markings 123
Technical data
Emergency or assistance 125
Audio system 127
Audio equipment and telematics
Visual search
Alphabetical index

Familiarisation
4

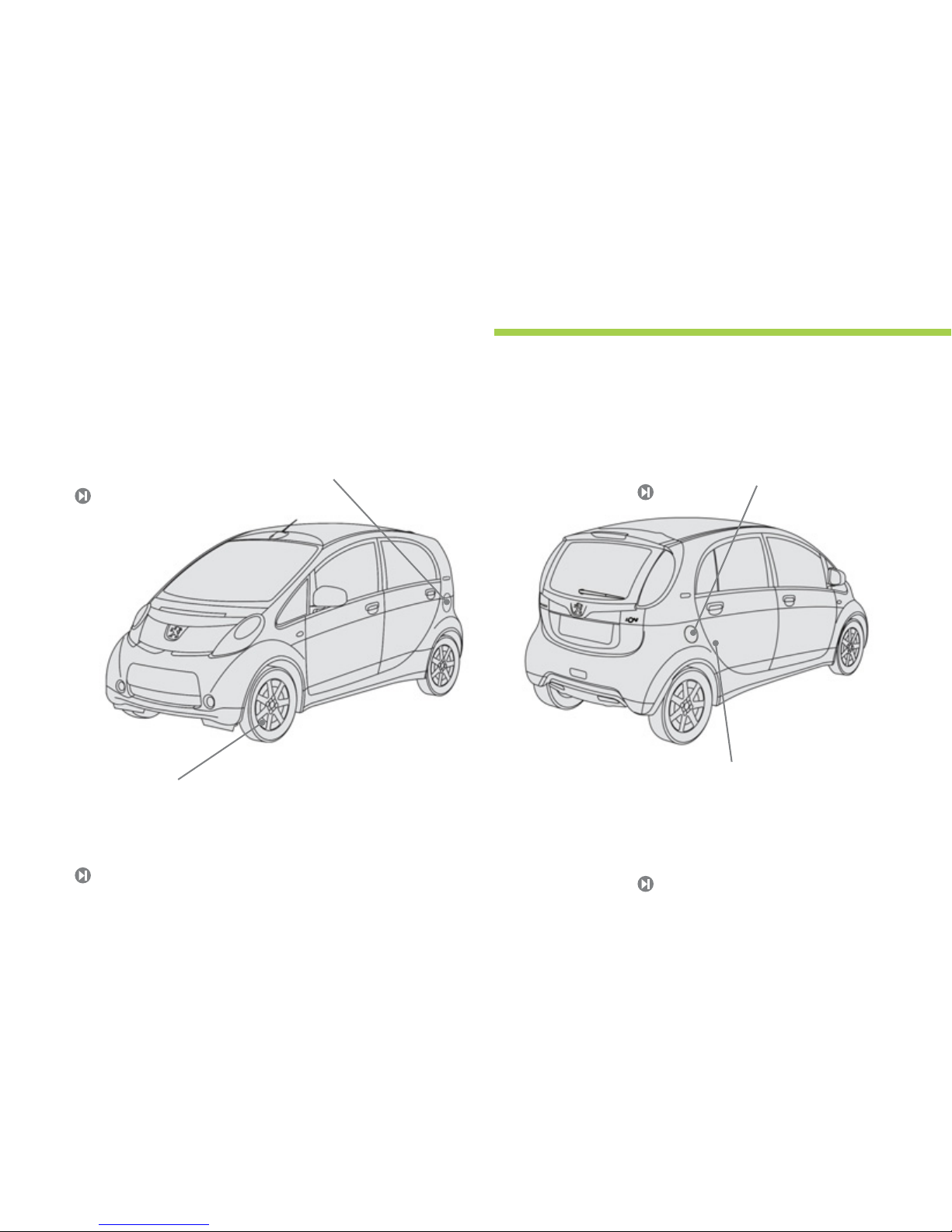

Normal charging flap
This flap should be used to recharge your
vehicle from a domestic power point.
Fast charging flap
This flap should be used to recharge your
vehicle from a special fast charging station.
80
84
Temporary puncture repair kit
This kit is a complete system consisting of a
compressor and a sealant cartridge, to allow
the temporary repair of a tyre.
90
Exterior
ASR and ESP systems
These are associated systems that assure
the directional stability of the vehicle, within
the limits of the laws of physics.
72

.Familiarisation
5
31
Access

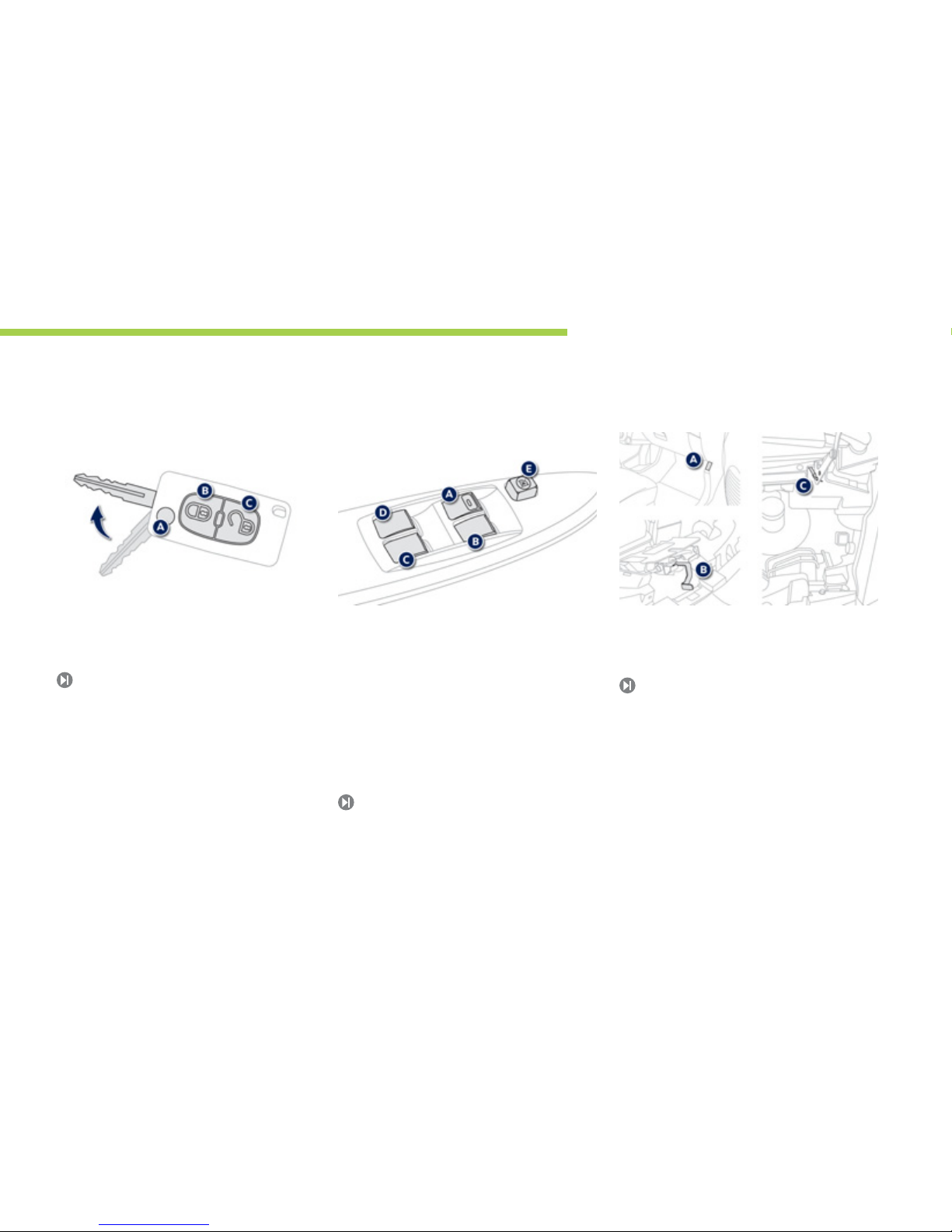

A. Unfolding/Folding the key.
B. Locking the vehicle.
C. Unlocking the vehicle.
Remote control key Bonnet
114
Electric windows
A. Release lever.
B. Safety catch.
C. Bonnet stay.
A. Driver's electric window switch.
B. Passenger's electric window switch.
C. Right hand rear electric window switch.
D. Left hand rear electric window switch.
E. Deactivating the passenger and rear
electric window switches.
34

Familiarisation
6
Interior
Drive selector
Four-position drive selector: P, R, Nand D.
Charging flap interior opening
controls

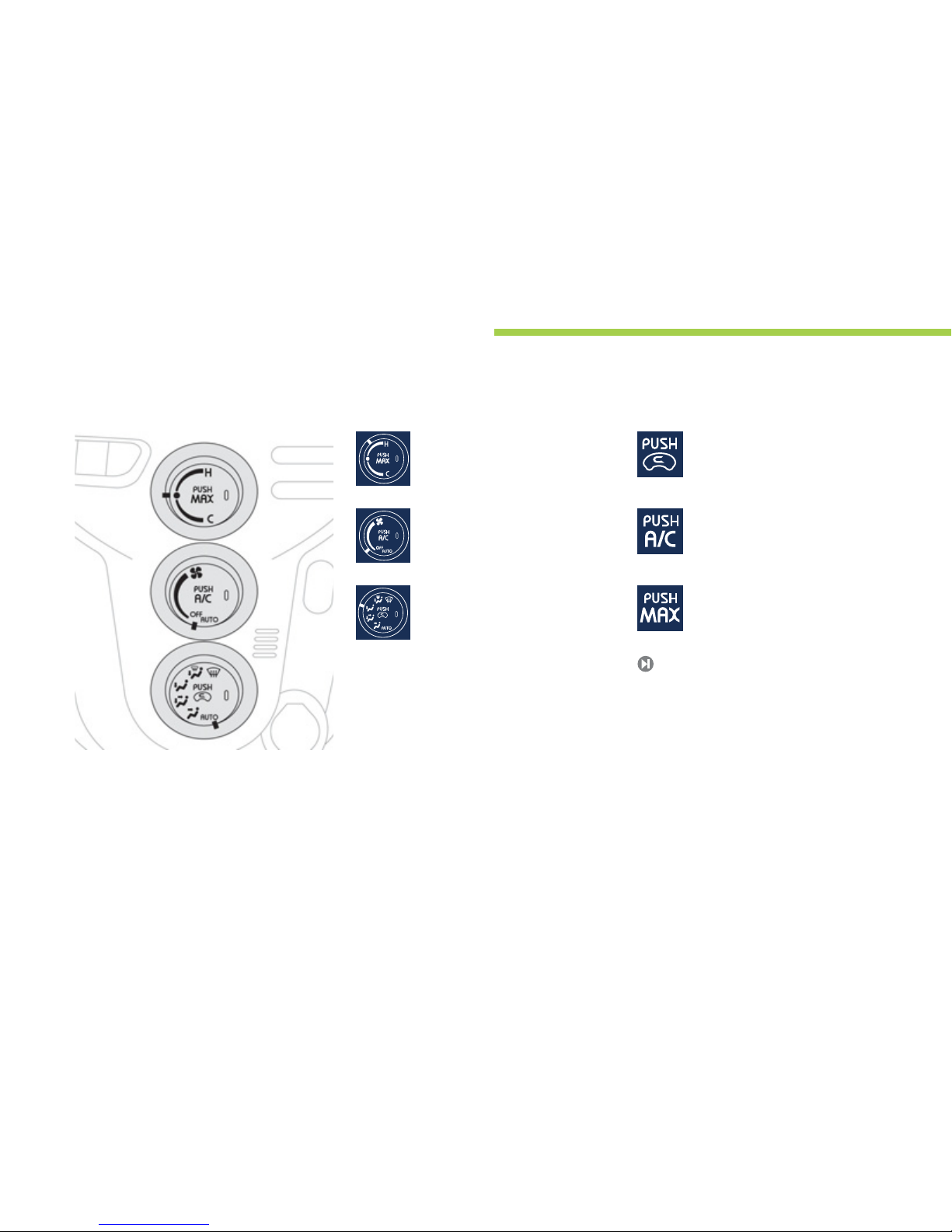

Air conditioning
After setting the desired level of comfort,
the system controls this level according
to the exterior climatic conditions.
Audio system
This system benefits from the latest
technology: MP3 compatible audio system,
USB player, Bluetooth hands-free system, ...
54
37
49
127
Normal charging flap.
Fast charging flap.

.Familiarisation
7
Instruments and controls

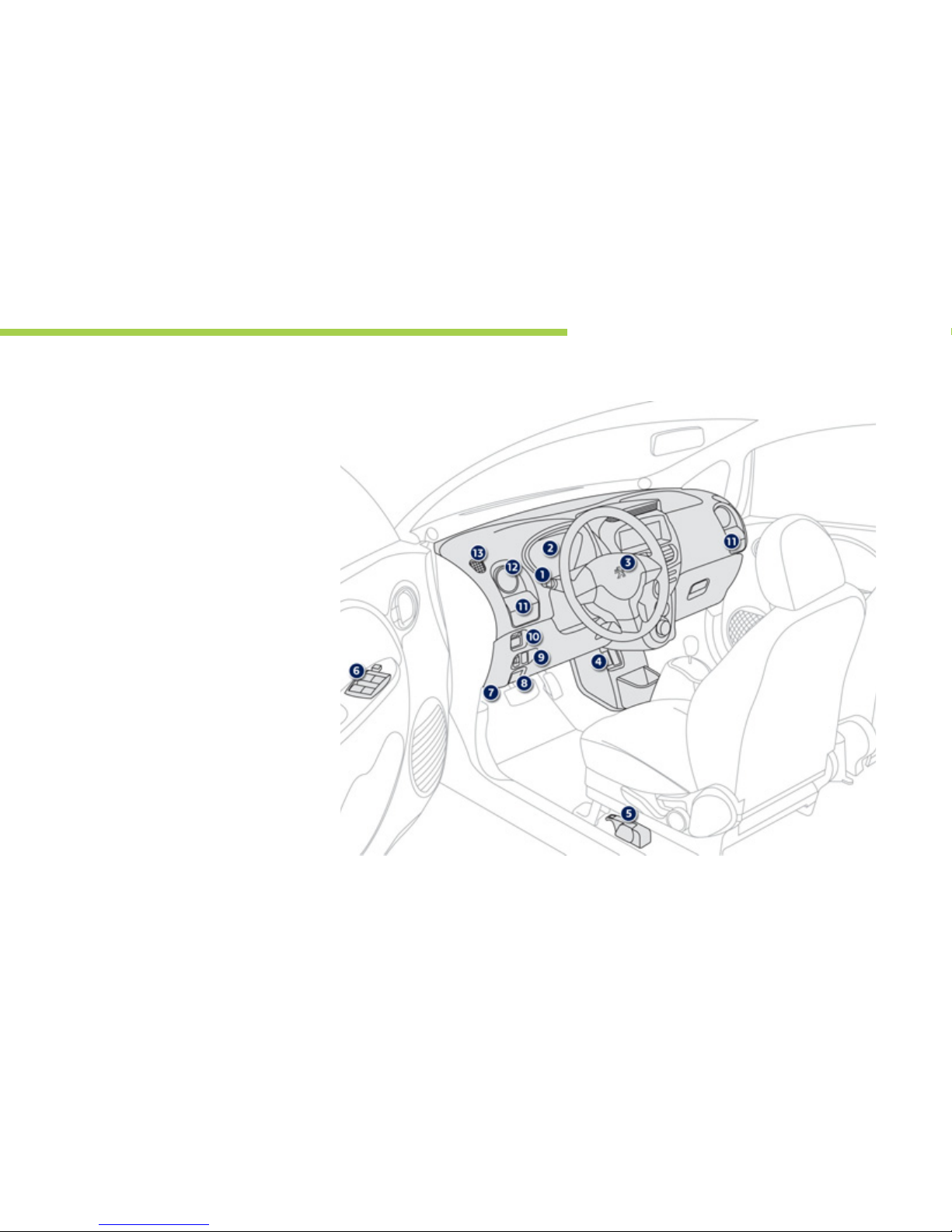

1. Lighting and direction indicator stalk
2. Instrument panel.
3. Driver's airbag.
Horn.
4. USB port.
5. Opening control for the fast charging flap
(vehicle left hand side).
6. Electric window switches and switch
for deactivating the the front and rear
passenger electric window controls.
7. Fusebox.
8. Opening control for the normal charging
flap (vehicle right hand side).
9. Headlamp height adjustment.
ASR/ESP deactivation switch.
10. Door mirror controls.
11. Cup holder.
12. Side vents.
13. Window demisting vent.

Familiarisation
8
Instruments and controls
1. Steering lock and ignition switch.
2. Wiper stalk.
3. Windscreen demisting vents.
4. Glove box.
Passenger's airbag deactivation.
5. Bonnet release lever.
6. Parking brake.
7. Drive selector.
8. 12 V accessory socket.
9. Heating/air conditioning controls.
10. Emergency or assistance call.
11. Hazard warning switch.
12. Centre vents.
13. Audio system.
