PEUGEOT 407 User manual

1 -
Audio equipment steering
wheel stalk.
2 -
Steering lock and ignition.
3 -
Steering wheel height and depth
adjustment.
4 -
Cruise control/speed limiter
switch.
5 -
Lights/Direction indicator stalk.
6 -
Air conditioned glove box/Fuse
box.
7 -
Bonnet release.
8 -
Passenger-operated electric
window control.
9 -
Speakers (tweeters).
10 -
Air diffuser vent grille.
11 -
Instrument panel.
12 -
Wiper/Wash-wipe/Trip computer
stalk.
13 -
Headlamp height adjustment.
14 -
Storage compartment
(driver’s side).

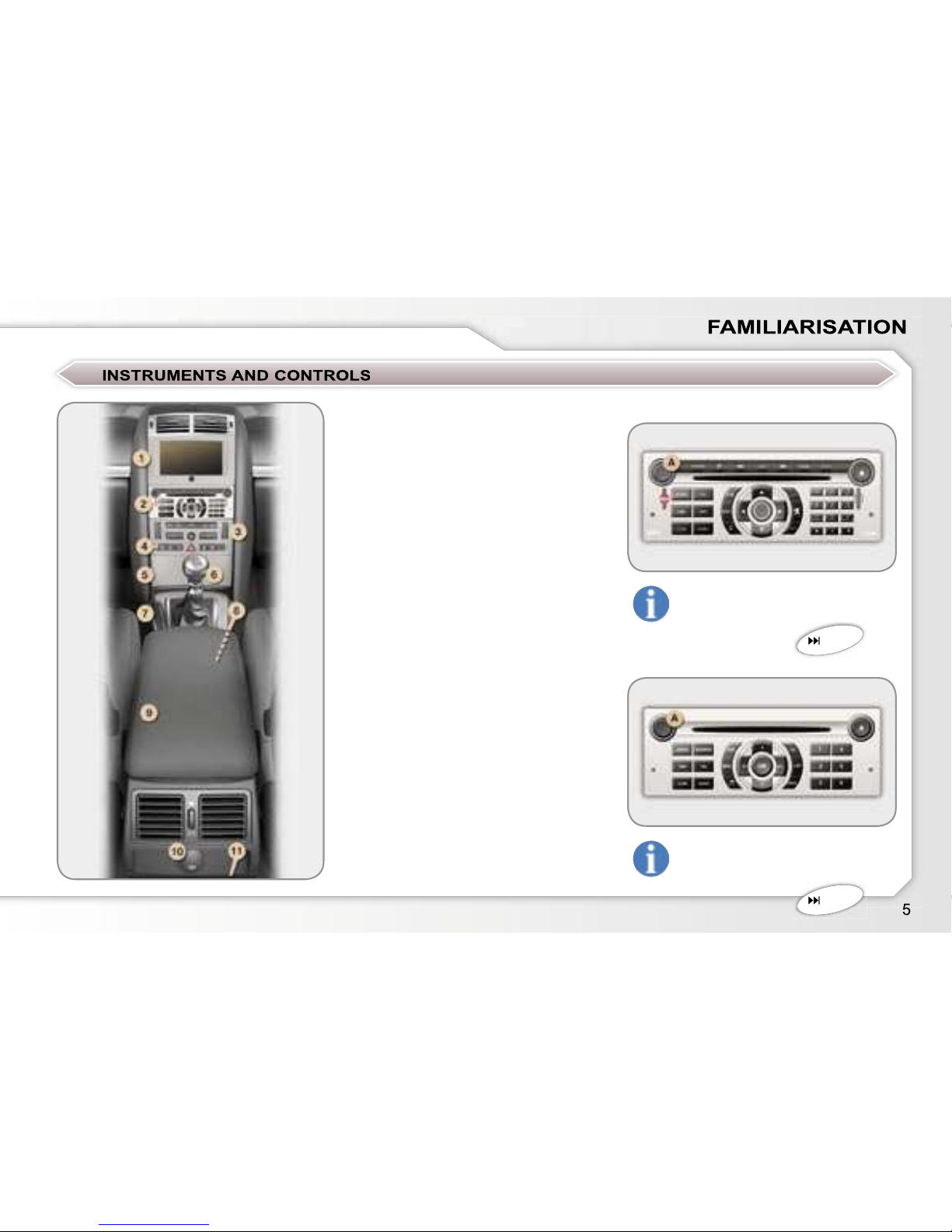

1 -
Multifunction display.
2 -
Audio RD4/RT4 GPS audio/
telephone.
3 -
Automatic air conditioning controls.
4 -
Audible parking assistance
deactivation.
Central locking from the inside.
Alarm switch.
Hazard warning lights.
SPORT suspension switch.
ESP deactivation.
Child lock.
5 -
Front ashtray/Lighter
(100 W max).
6 -
Gear lever.
7 -
Handbrake.
8 -
Retractable cup/can holder.
9 -
Armrest with storage compartment.
10 -
12 volt accessories socket
(100 W max).
11 -
Rear ashtray.

144
RT4 GPS audio/telephone

173
Audio RD4
The equipment can be switched
on (button
A
) with the ignition
off.
The equipment can be
switched on (button
A
) with the
ignition off.

Remote control key
A.
Unfolding/folding the key.
B.
Unlocking of the vehicle
(brief press).
C.
Unlocking and partial opening of
the boot (saloon) or of the rear
screen (407 SW)
(long press).
Also...
D.
Normal locking
(a single press)
or
deadlocking of the vehicle
(two presses in
succession).
Fuel tank
1.
Opening of the fuel filler flap.
2.
Opening and hooking of the fuel
tank cap.
Fuel tank capacity:
approximately 67 litres.
Bonnet
A.
Interior control.
B.
Exterior control.

64

76

108


51

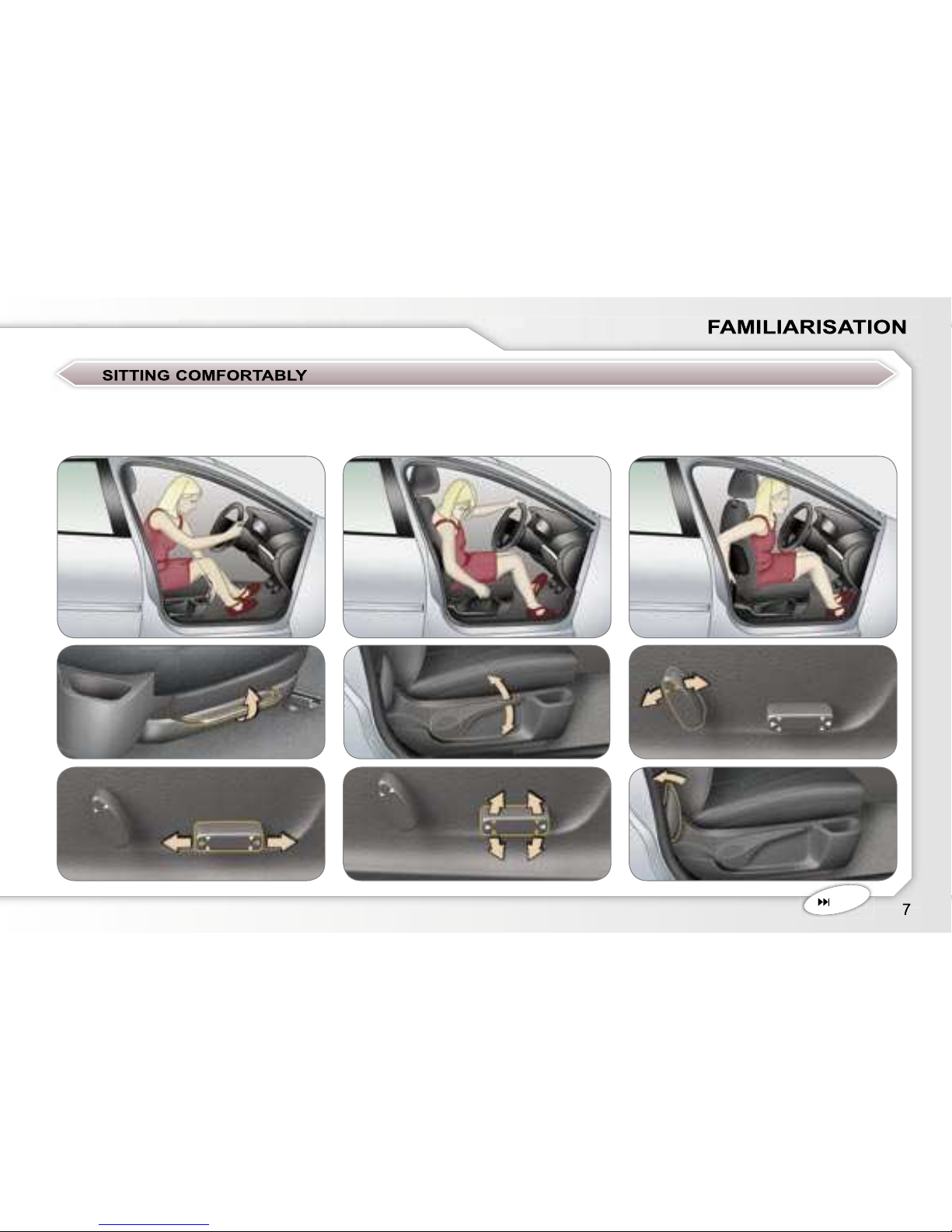

Front seat adjustment
Forwards-backwards
Height and angle of the driver’s
seat cushion
Seat back angle

Automatic day/night interior
mirror adjustment
Switch on the ignition and press switch 1:
- indicator light
2
on (switch pressed):
automatic operation.
- indicator light
2
off: automatic system
off. The mirror remains in its clearest
state.
SITTING COMFORTABLY
Manual
When stationary, unlock the steering
wheel by pushing the control forwards
then lock by pulling the control fully.
Steering wheel adjustment

48

49
Exterior mirror adjustment
A.
Selection of the mirror.
B.
Adjustment of the position
of the mirror.
Also...
C.
Folding/Unfolding.

50
Also...
To provide optimum visibility
during manoeuvres, the mirror
lightens automatically when re-
verse gear is engaged.

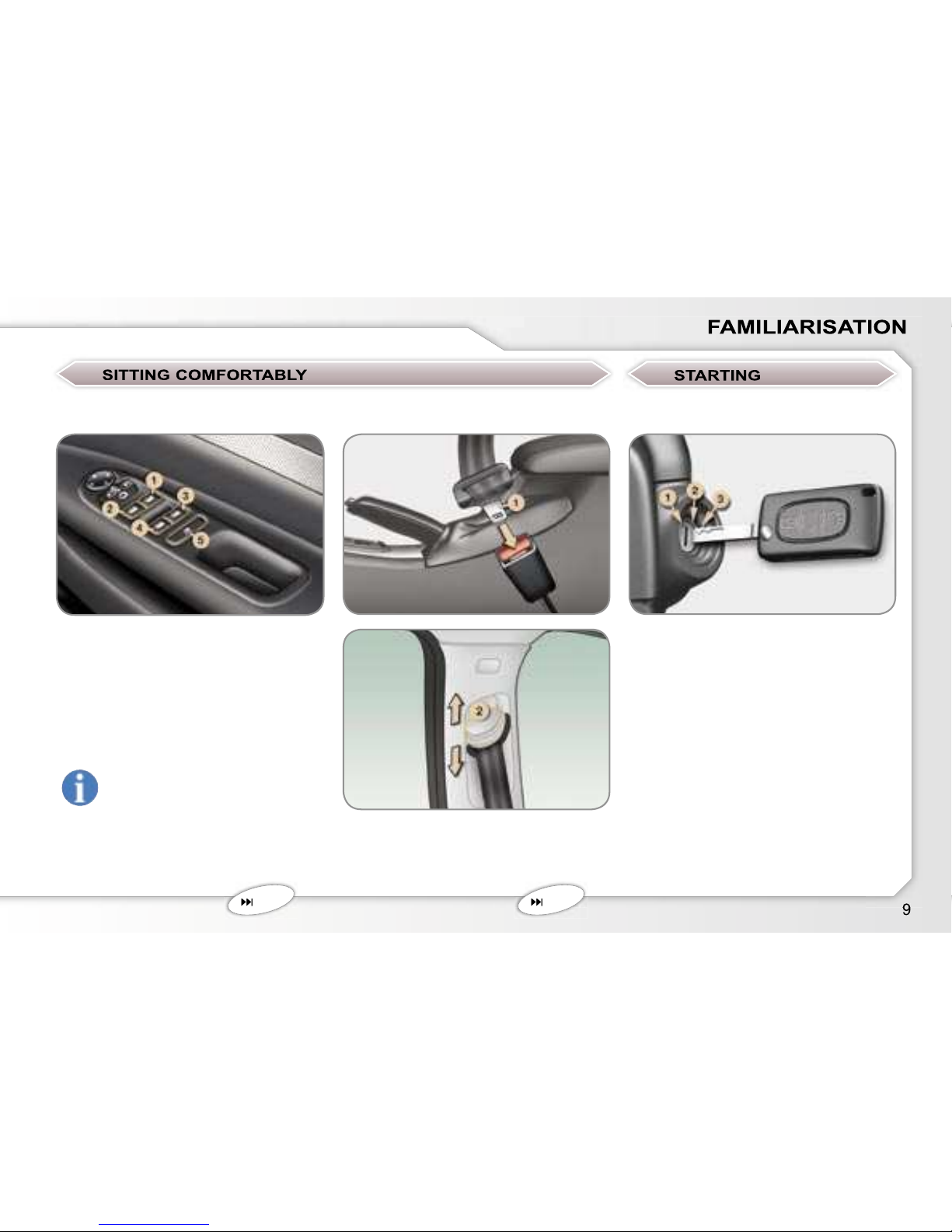

Front seat belt
1.
Fastening.
2.
Height adjustment.

71
Electric window controls
1.
Driver’s electric window switch.
2.
Passenger electric window switch.
3.
Rear right electric window switch.
4.
Rear left electric window switch.
Also...
5.
Disarming of the electric
window switches located in
the rear (child safety).

91
Ignition switch
1.
Stop
position.
2.
Ignition
position.
3.
Starting
position.

Lights
Ring A
Ring B
Windscreen wipers
with intermittent wipe
2
Fast wipe.
1
Normal wipe.
I
Intermittent wipe.
0
Park.

Single wipe.
Wipers
Rear wiper (407 SW)
Lights off.
Side lights.
Dipped/Main beam headlamps.
Front fog lamps (one press).
Rear fog lamps (two presses).
Park.
Intermittent wipe.
Wash-wipe.

77

80

81
Windscreen wipers
with automatic wipe
2
Fast wipe.
1
Normal wipe.
AUTO
Automatic wipe.
0
Park.

Single wipe.
Also...
When the windscreen wipers
control is activated and you
engage reverse gear, the rear
wiper operates in intermittent
mode.

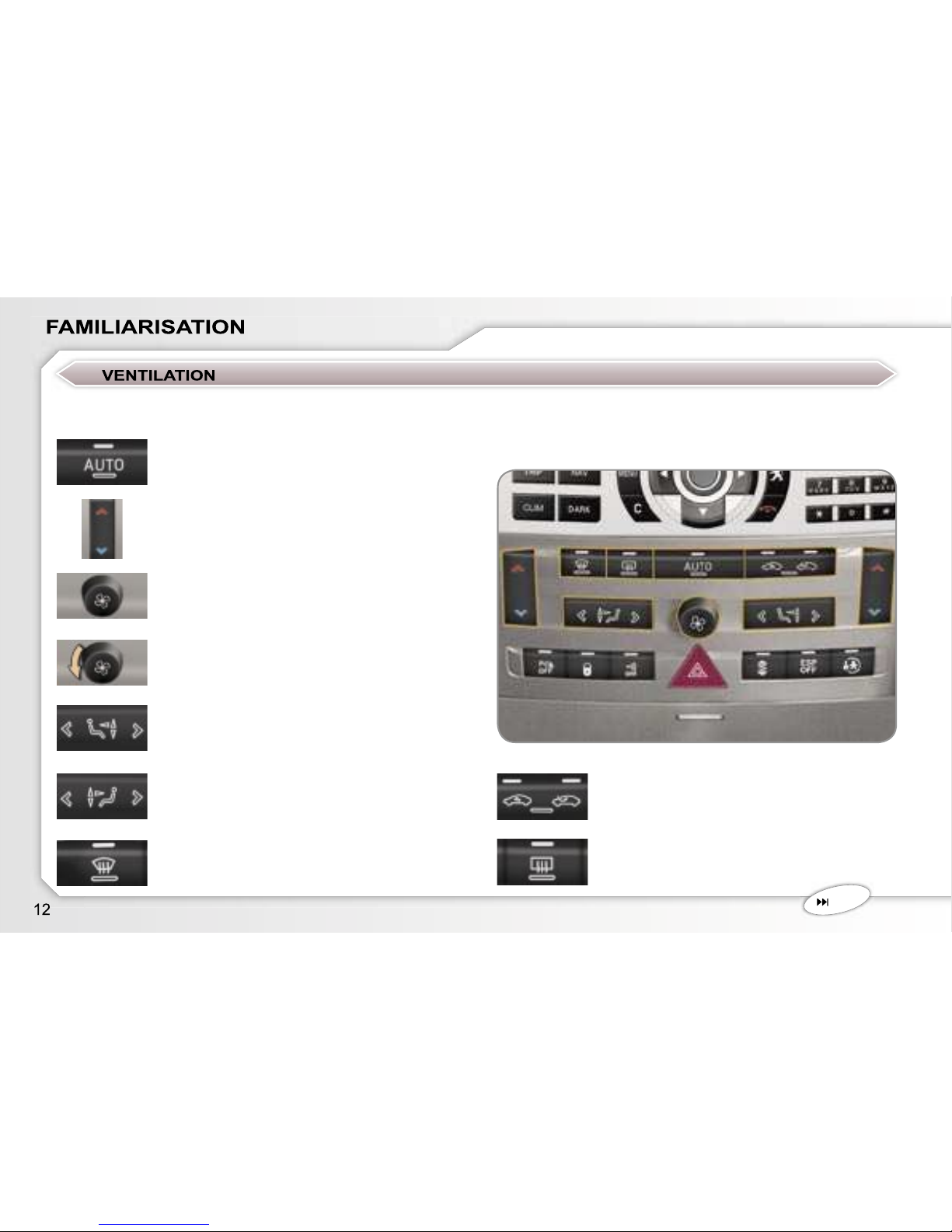

Automatic air conditioning (mono zone)
Automatic programme (comfort).
Temperature adjustment.
Air flow adjustment.
Air conditioning off.
Air distribution adjustment.
Front visibility control.
Intake of exterior air.
Recirculation of interior air.
Rear screen demisting.

40

Automatic air conditioning (dual zone)
Driver and passenger automatic
programme (comfort).
Temperature adjustment, driver’s side.
Temperature adjustment, passenger side.
Air flow adjustment.
Air conditioning off.
Driver’s air distribution adjustment.
Passenger’s air distribution adjustment.
Front visibility control.
Intake of exterior air.
Recirculation of interior air.
Rear screen demisting.

44

Instrument panel
Controls bar
A.
When the ignition is on, the fuel
gauge needle should rise.
B.
When the engine is running, its
associated low level warning light
should switch off.
C.
When the ignition is on, the oil
level indicator should display "OIL
OK" for a few seconds.
If the levels are not correct, top up the
level which is low.
Lighting of the indicator light indicates the
status of the corresponding function.
When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If a warning light remains on, refer to
the page concerned.
Warning lights

16

20

105
A.
Audible rear parking
assistance off.
B.
Central locking.
C.
Interior protection alarm
off.
D.
Hazard warning lights.
E.
Selection of the
electronically controlled
suspension.
F.
Electronic stability
programme ESP off.

64

70

89

100
100

89

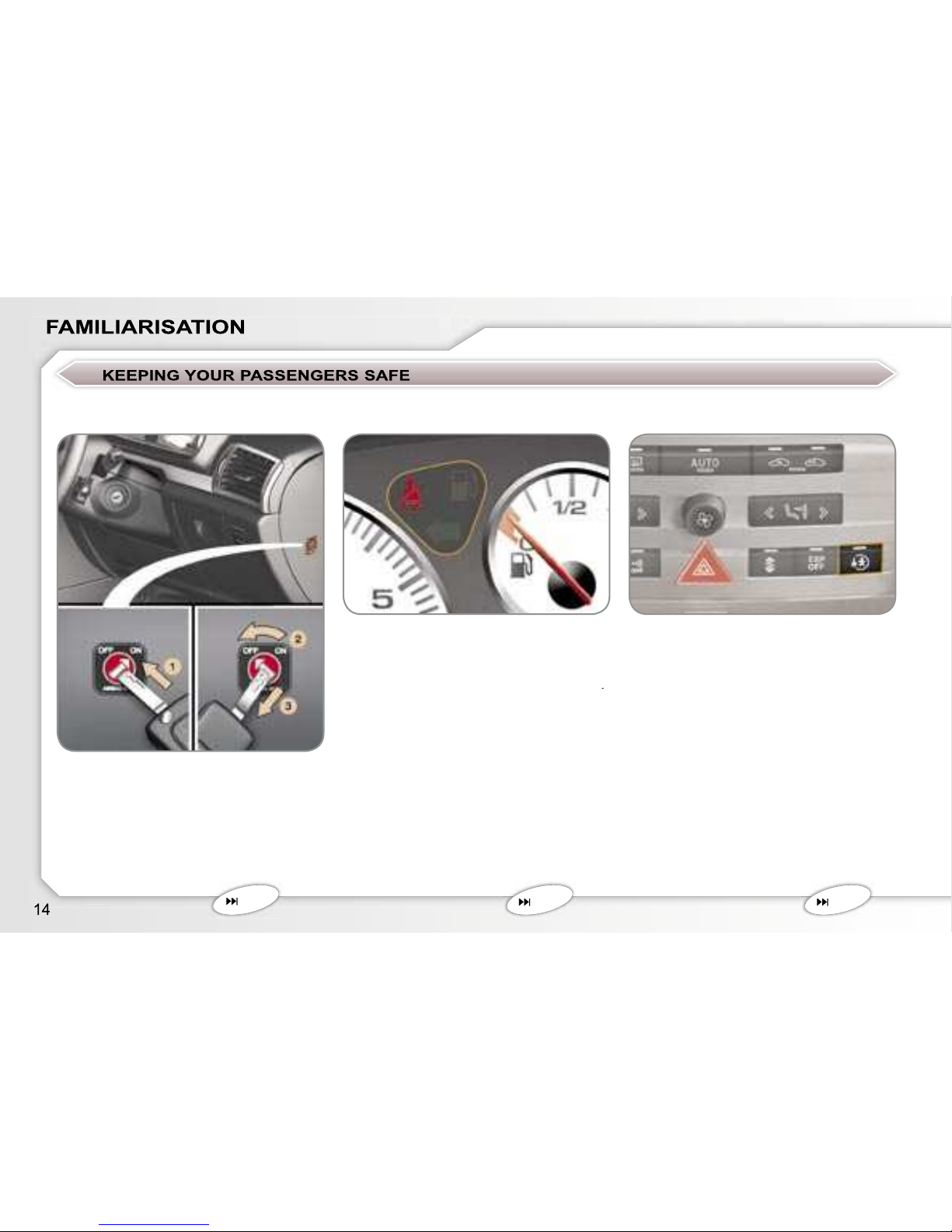

Front passenger air bag
Electric child lock
1.
Insertion of the key.
2.
Selection of the
"OFF"
position.
3.
Removal of the key keeping the
switch in this position.
This prevents opening of the two rear
doors from the inside.
With the ignition on, press the button.
A message appears on the multifunction
display.
You are advised to check the activation
of the child lock each time the ignition is
switched on.
When the
ignition is switched on
, if a
front occupant has not fastened his seat
belt and if the vehicle speed is
below
12 mph (20 km/h)
, you are warned by
lighting of the
seat belt warning light
.
The warning light switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is
above 12 mph
(20 km/h)
, you are warned by flashing
of the
seat belt warning light
, an audi-
ble signal and a message on the multi-
function display locating the unfastened
seat belt(s).
Detection of fastening of the
front seat belts

94

91

69

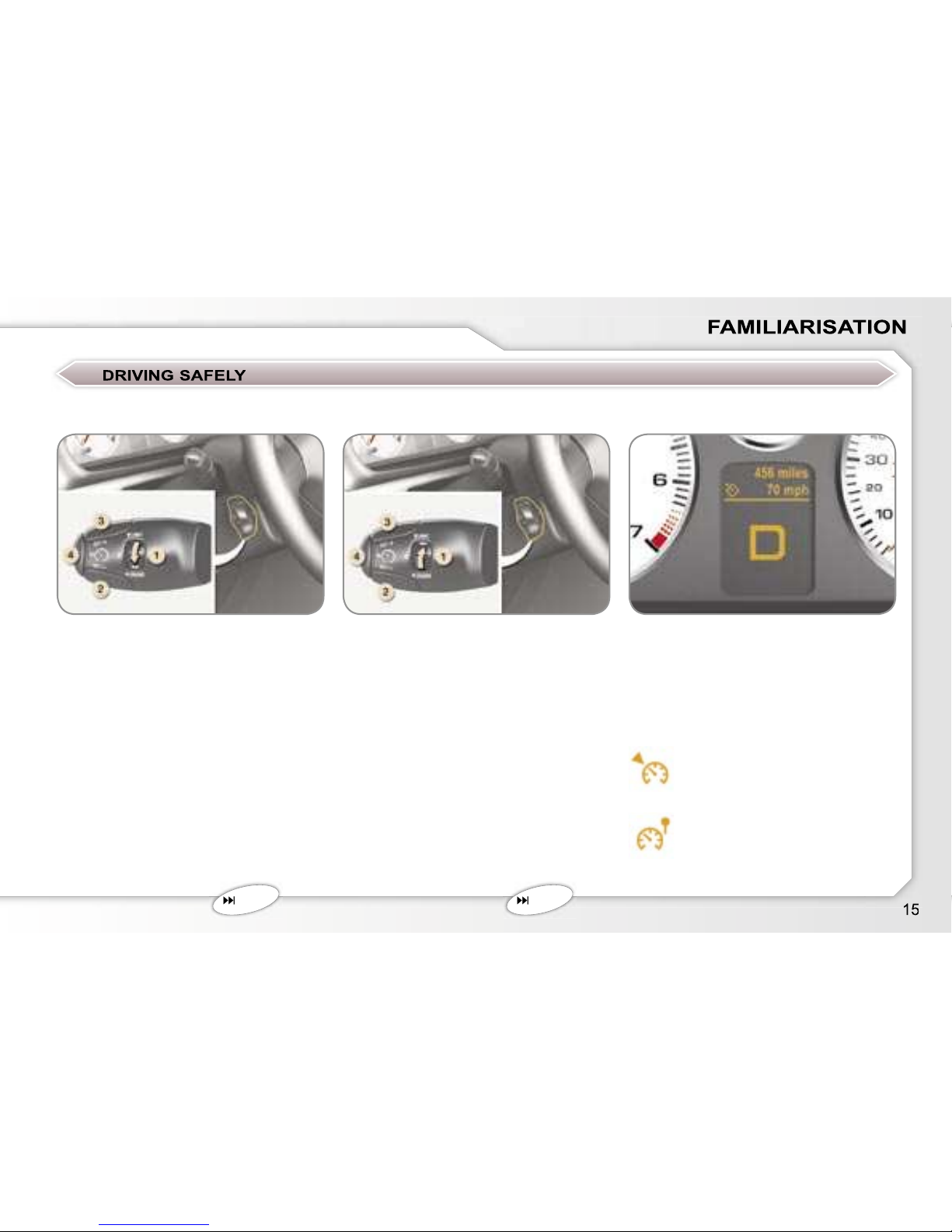

Cruise control
Instrument panel display
This enables the vehicle to maintain
a constant speed programmed by the
driver.
1.
Cruise control mode Selection/Off.
2.
Decrease of the programmed
value.
3.
Increase of the programmed value.
4.
Cruise control On/Off.
In order to be programmed or activated,
the vehicle speed must be above
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox.
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
This prevents the vehicle from exceed-
ing the speed programmed by the driver
(minimum speed 20 mph (30 km/h)).
1.
Speed limiter mode Selection/Off.
2.
Decrease of the programmed
value.
3.
Increase of the programmed value.
4.
Speed limiter On/Off.
The values must be set with the engine
running.
Speed limiter
Cruise control
Speed limiter

101

103

1
16

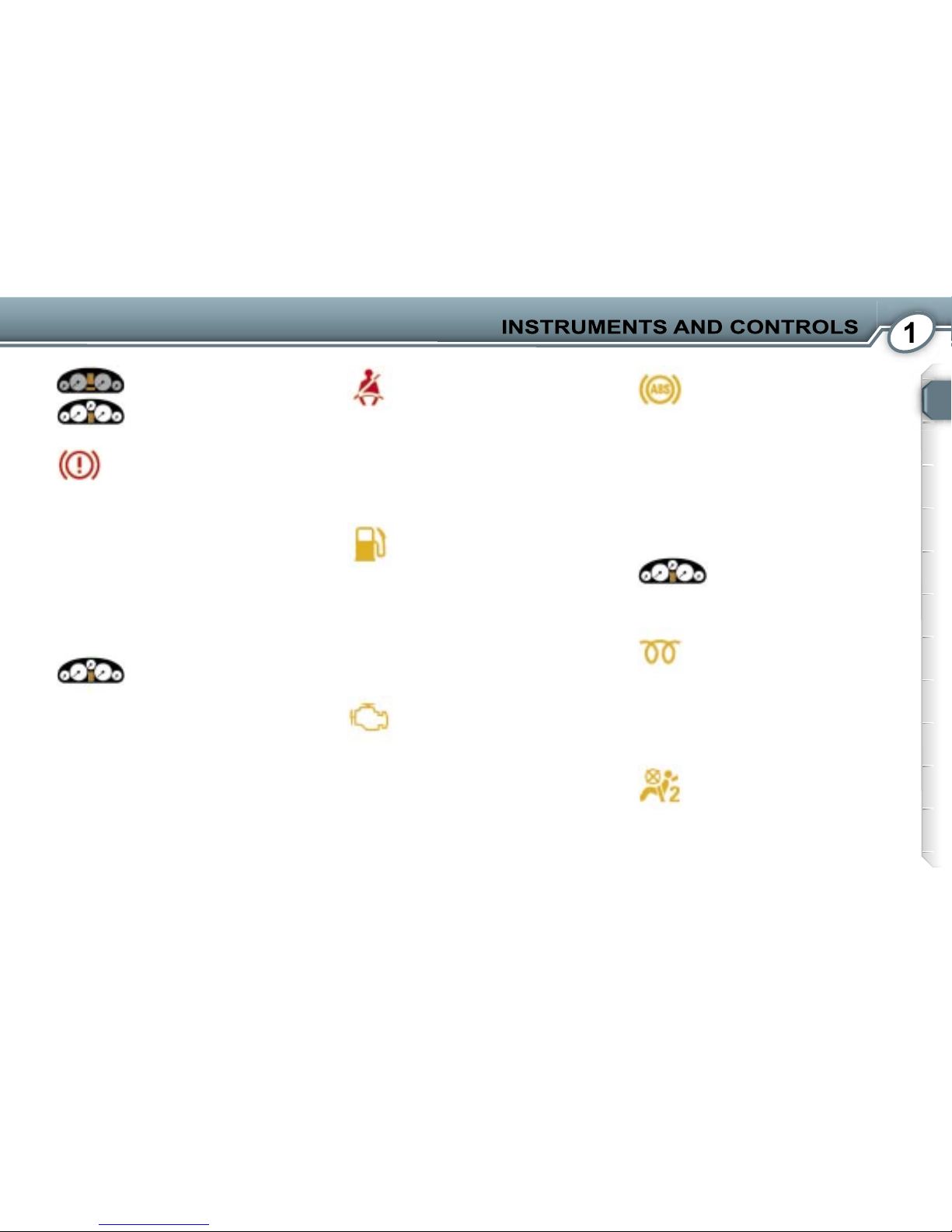

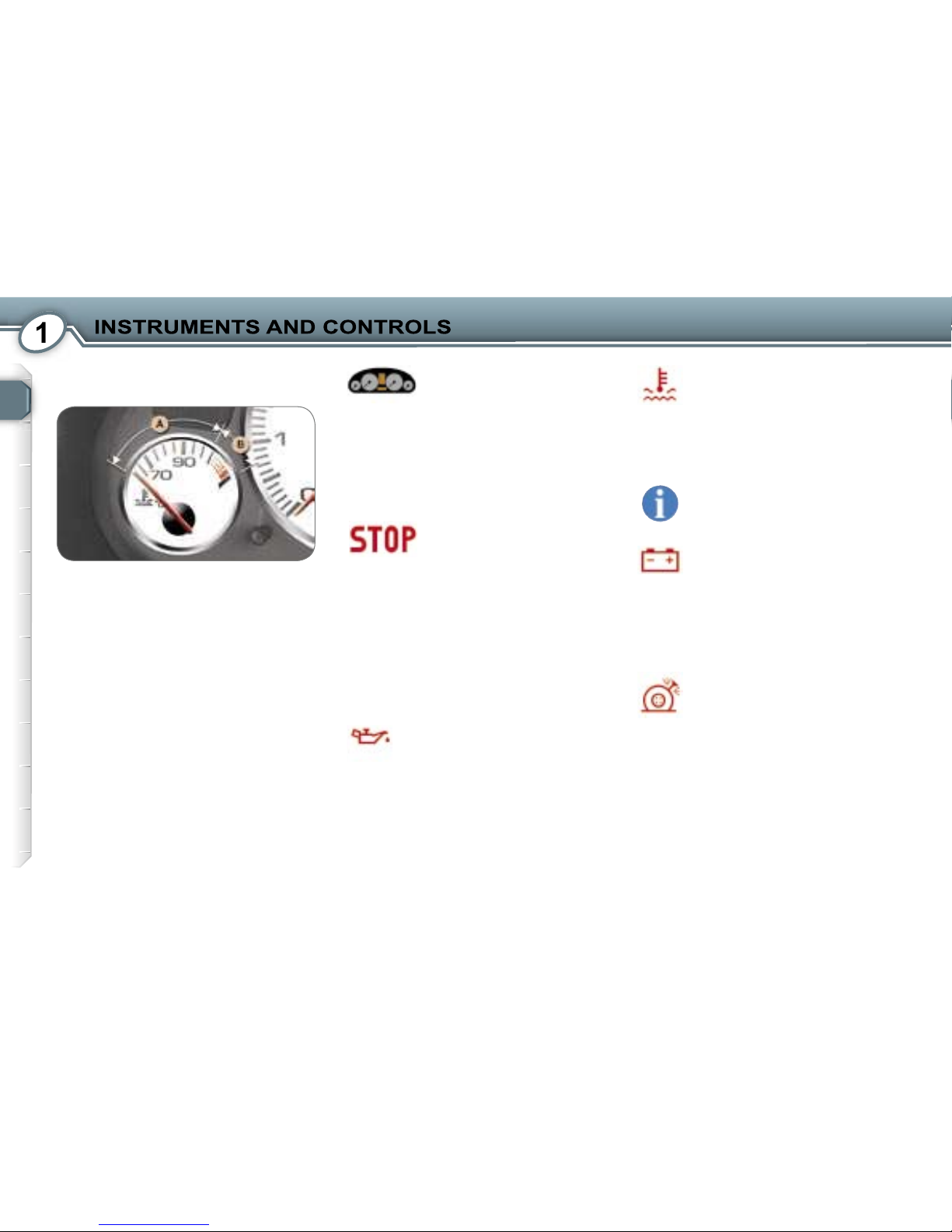

1 -
Coolant temperature indicator
dial.
2 -
Lights on indicator lights:
dipped headlamps.
main beam headlamps.
front fog lamps.
rear fog lamps.
3 -
Rev counter dial.
4 -
Warning lights:
STOP warning.
handbrake applied or brake fluid
level or electronic brake force
distribution fault.
engine oil pressure.
battery charge.
seat belts not fastened in the
front.
punctured tyre.
high coolant temperature.
4-DIAL PETROL-DIESEL MANUAL GEARBOX INSTRUMENT PANEL
9
-
Fuel level indicator dial.
10 -
Trip recorder zero reset and
service display button.
Note:
this also permits displaying
of the trip recorder if the cruise
control/speed limiter is activated.
11 -
Display:
Total distance recorder.
Trip recorder.
Cruise control/speed limiter
indicator light.
Service indicator.
Oil level indicator.
12
-
Instrument panel lighting
rheostat.
4 -
Warning lights (cont.):
emission control system.
air bags.
anti-lock braking system (ABS).
service.
electronic stability control (ESP).
water in diesel filter (diesel).
5 -
Left-hand direction indicator.
6 -
Right-hand direction indicator.
7
-
Speedometer dial.
8
-
Warning lights:
pre-heat (diesel engine starting).
fuel level.
passenger air bag disarmed.

1
17

1
18
1 -
Coolant temperature indicator
dial.
2 -
Lights on indicators:
dipped headlamps.
main beam headlamps.
front fog lamps.
rear fog lamps.
3 -
Rev counter dial.
4 -
Warning lights:
seat belts not fastened in the
front.
fuel level.
left direction indicator.
5 -
Fuel level indicator dial.

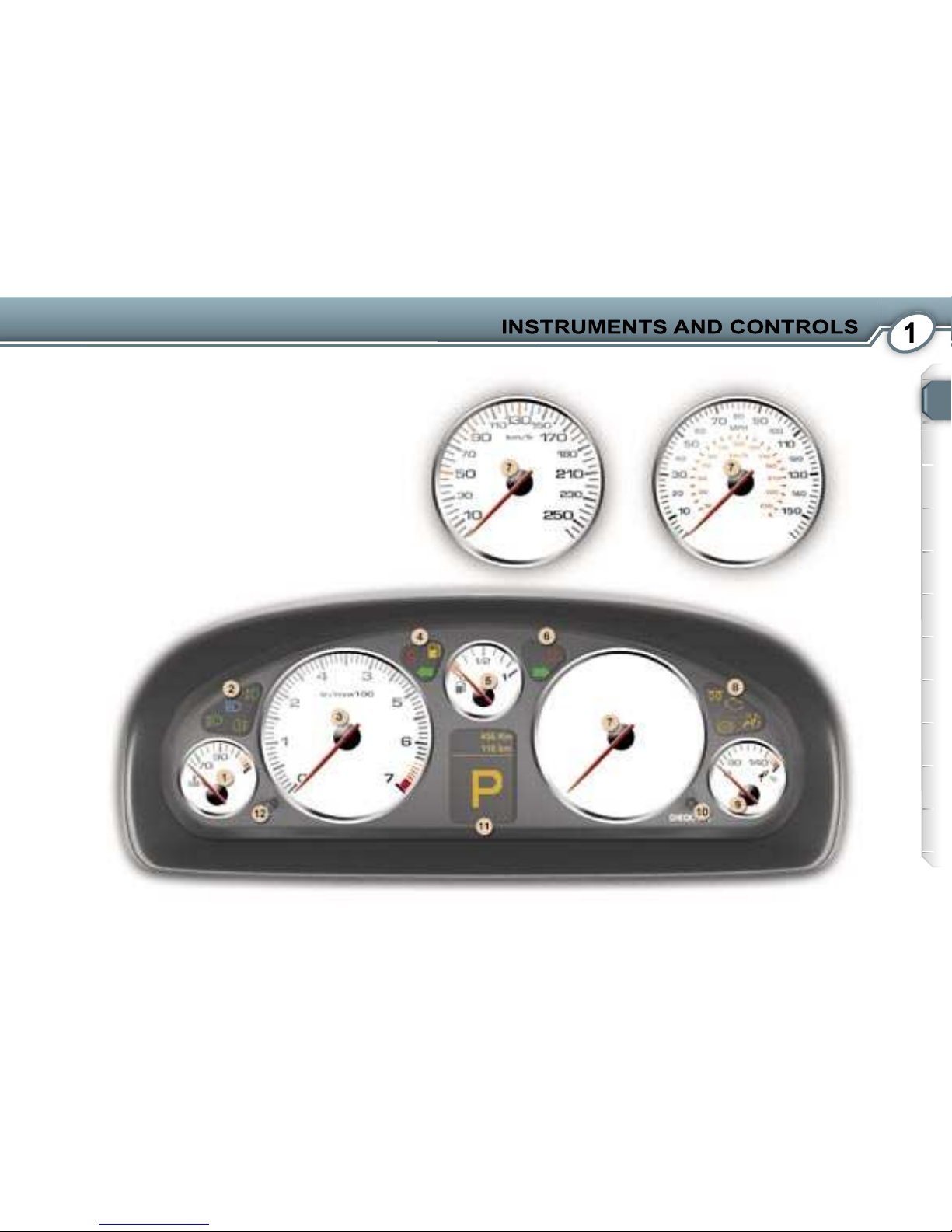

5-DIAL PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS
10 -
CHECK and trip recorder zero
reset and service display button.
11 -
Instrument panel display:
Total distance recorder.
Trip recorder.
Automatic gearbox lever position
indicator.
Cruise control/speed limiter
reference value.
Service indicator.
Direction advice (navigation)
CHECK (vehicle autotest).
Trip computer information
displays.
Warning and status displays.
12 -
Instrument panel lighting
rheostat.
6 -
Warning lights:
handbrake applied or brake fluid
level or electronic brake force
distribution fault.
right direction indicator.
7 -
Speedometer dial.
8 -
Warning lights:
emission control system.
anti-lock braking system (ABS).
passenger air bag disarmed.
pre-heat (diesel engine starting).
9 -
Engine oil temperature indicator
dial.

1
19

1
20

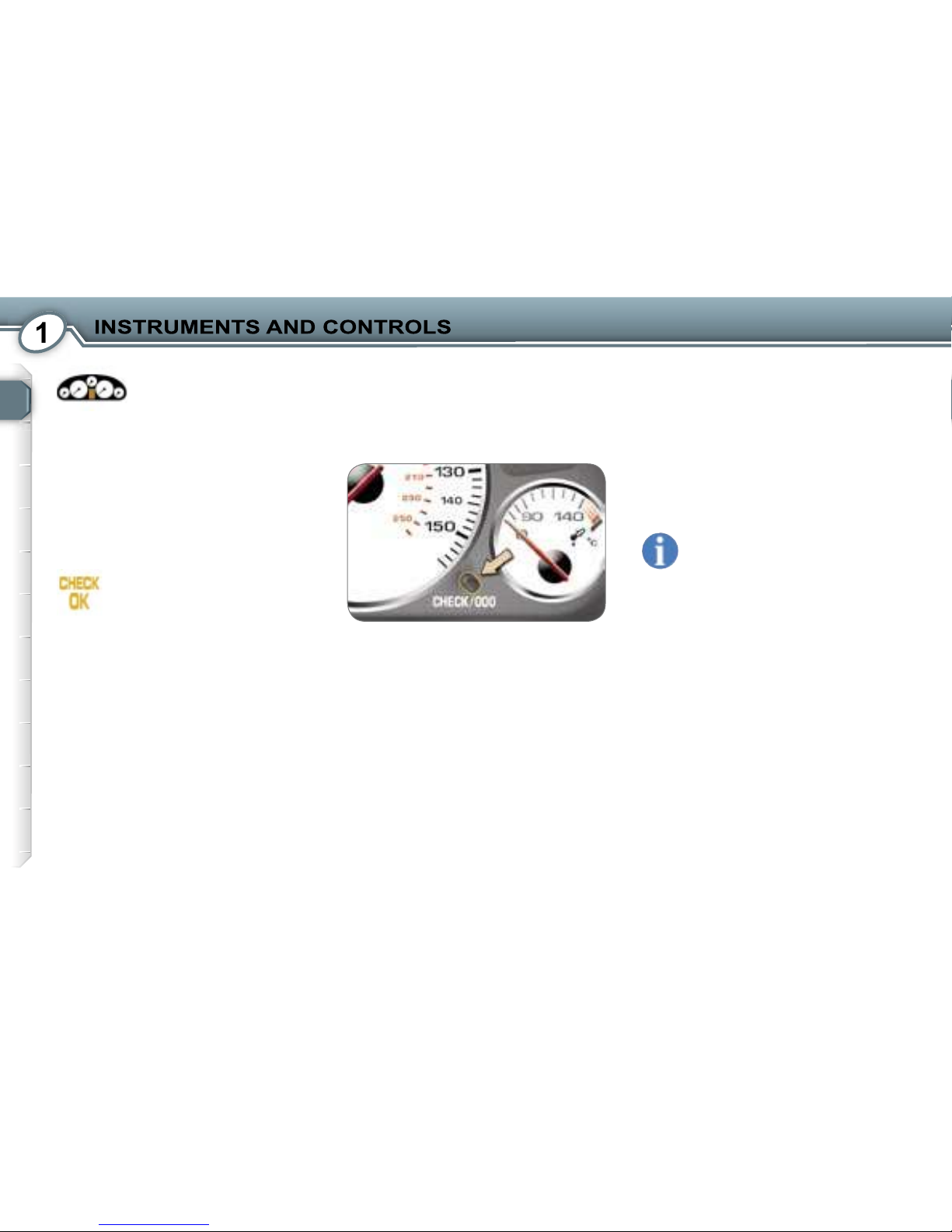

CHECK
(vehicle autotest)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator light
has been displayed, the warning
light(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected: the
CHECK OK indicator light does not
appear and the warning light(s) is(are)
displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without de-
lay.
* According to country.
Automatic CHECK
With the key in the ignition on position,
all of the warning lights of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been de-
tected:
the CHECK OK indica-
tor light is displayed after two
seconds.
You can start your vehicle.
Pressing the
"CHECK/000"
button on
the instrument panel starts the manual
CHECK (vehicle autotest).
This function enables you to find out, at
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated
or deactivated (wipers, automatic
switching on of the lights).
Manual CHECK
The passenger air bag dis-
armed indicator light* remains
on while the air bag is dis-
armed.
With the engine running and the ve-
hicle moving, the instrument panel
screen displays
the warning lights (in
the event of a fault).

1
21
Braking system warning
light
WARNING LIGHTS
COMMON TO THE
4-DIAL AND 5-DIAL
INSTRUMENT PANELS
This indicates:
- handbrake applied or incorrectly re-
leased,
- an excessive drop in the brake flu-
id level, in this case linked with the
STOP
warning light,
- an electronic brake force distribution
malfunction, linked with the
STOP
warning light.
Seat belt warning light
When the ignition is switched on, the
warning light comes on if a front occu-
pant has not fastened his seat belt or
if he unfastens it.
Fuel warning light
In certain driving conditions and de-
pending on the engine, the distance
which you will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning light
This should switch off a few seconds
after the engine is switched on.
When the engine is running, if the
warning light flashes or comes on con-
tinuously, this indicates an emission
control system malfunction.
Contact a PEUGEOT dealer as soon
as possible.
Diesel engine pre-heat
warning light
Wait for the warning light to switch off
before starting. The duration of the
display is determined by the exterior
climatic conditions.
Passenger air bag disarmed
warning light*
If the warning light remains on, this in-
dicates that the passenger air bag has
been disarmed intentionally.
The warning light is repeat-
ed on the instrument panel
screen in the case of the
last 2 faults.
Stop immediately
in the two latter
cases. Contact a PEUGEOT dealer.
If it comes on continuously above
6 mph (10 km/h), it indicates an ABS
fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Contact a PEUGEOT dealer.
Anti-lock braking system
(ABS) warning light
* According to country.
The warning light is re-
peated on the instrument
panel screen.

1
22
STOP warning light
If this is the only warning light which is
on, it indicates a power steering fault.
It comes on linked with the engine oil
pressure, coolant temperature, brak-
ing system or punctured tyre warning
lights.
Stop immediately.
Contact a PEUGEOT dealer.
WARNING LIGHTS
SPECIFIC TO THE
4-DIAL INSTRUMENT
PANEL
Engine oil pressure
warning light
This indicates that the engine oil pres-
sure is too low.
It is linked with the
STOP
warning
light.
Stop immediately
if it is displayed
while the engine is running.
In the case of a lack of oil in the lubri-
cation circuit, top up the oil.
Contact a PEUGEOT dealer as soon
as possible.
Coolant temperature
warning light
This indicates that the engine temper-
ature is high.
It is linked with the
STOP
warning light.
Stop immediately.
Wait for the engine to cool
down before topping up the
level, if necessary.
Battery charge warning
light
When the engine is running, this indi-
cates a charging circuit fault (battery
terminals, alternator belt).
Contact a PEUGEOT dealer.
Punctured tyre warning
light
This indicates that one or more punc-
tured tyres have been detected.
A message on the multifunction display
indicates the wheel(s) concerned. It is
linked with the
STOP
warning light.
Stop immediately.
Change the damaged wheel.
Have it repaired by a PEUGEOT dealer.
The warning light remains on when
a steel wheel which does not have a
sensor is fitted.
Coolant temperature indicator
Automatic CHECK
With the key in the ignition on position,
all of the warning lights tested come
on. They are switched off after a few
seconds.
When the needle is in zone
A
, the
temperature is correct.
When the needle is in zone
B
, the
temperature is too high.
If the coolant temperature warning
light comes on (linked with the
STOP
warning light), stop immediately.
Wait for the engine to cool down before
topping up the level, if necessary.
As the cooling circuit is pressurised, in
order to prevent any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Contact a PEUGEOT dealer.

1
22
STOP warning light
If this is the only warning light which is
on, it indicates a power steering fault.
It comes on linked with the engine oil
pressure, coolant temperature, brak-
ing system or punctured tyre warning
lights.
Stop immediately.
Contact a PEUGEOT dealer.
WARNING LIGHTS
SPECIFIC TO THE
4-DIAL INSTRUMENT
PANEL
Engine oil pressure
warning light
This indicates that the engine oil pres-
sure is too low.
It is linked with the
STOP
warning
light.
Stop immediately
if it is displayed
while the engine is running.
In the case of a lack of oil in the lubri-
cation circuit, top up the oil.
Contact a PEUGEOT dealer as soon
as possible.
Coolant temperature
warning light
This indicates that the engine temper-
ature is high.
It is linked with the
STOP
warning light.
Stop immediately.
Wait for the engine to cool
down before topping up the
level, if necessary.
Battery charge warning
light
When the engine is running, this indi-
cates a charging circuit fault (battery
terminals, alternator belt).
Contact a PEUGEOT dealer.
Punctured tyre warning
light
This indicates that one or more punc-
tured tyres have been detected.
A message on the multifunction display
indicates the wheel(s) concerned. It is
linked with the
STOP
warning light.
Stop immediately.
Change the damaged wheel.
Have it repaired by a PEUGEOT dealer.
The warning light remains on when
a steel wheel which does not have a
sensor is fitted.
Coolant temperature indicator
Automatic CHECK
With the key in the ignition on position,
all of the warning lights tested come
on. They are switched off after a few
seconds.
When the needle is in zone
A
, the
temperature is correct.
When the needle is in zone
B
, the
temperature is too high.
If the coolant temperature warning
light comes on (linked with the
STOP
warning light), stop immediately.
Wait for the engine to cool down before
topping up the level, if necessary.
As the cooling circuit is pressurised, in
order to prevent any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Contact a PEUGEOT dealer.
