Pevino PM248S-HHB-1 User manual

Instructional Manual
Pevino wine cooler
PM248S-HHB-1 / PMW248S-HHB-1
THANK YOU FOR PURCHASING A PEVINO WINE COOLER.
Before use, please read and follow the safety rules and operating instructions in this manual.
This appliance is intended exclusively for the storage of wine.

1. GENERAL SAFETY INSTRUCTIONS
For your own safety and for the proper utilization of the appliance, read this manual
carefully, including the warnings and recommendations, before installing the
appliance and using it for the first time. In order to avoid damage to the appliance
and/or personal injury, persons using the appliance should be fully familiar with its
operation and safety functions. Keep these recommendations close to the appliance,
for future reference, and ensure that the document is transferred with the appliance,
if it is sold or in the case of moving. This will ensure optimum operation of the
appliance.
Safety of children and other vulnerable persons
-This appliance may be used by children aged 8 years and above, and by persons
who are physically, sensorially or mentally handicapped, or who have not learned to
use the appliance, providing they are supervised by a person familiar with the
appliance and who is aware of the risks involved. Children should not be allowed to
play with the appliance. User cleaning and servicing operations should not be carried
out by children, unless they are more than 8 years old and are supervised.
- Keep all packaging out of the reach of children, as there is a risk
of suffocation.
- If you decide to scrap the appliance, disconnect it from the wall socket,
cut the connection cable (as close to the appliance as possible) and
remove the door, in order to prevent children playing with it and to
avoid risk of electric shock or being trapped inside.
- If an appliance with a magnetic door seal is being replaced by
another appliance with a latch on the door or on the seal, ensure that
the latch is disabled before selling or scrapping the old appliance.
This will prevent the appliance from being transformed into a trap for
children.
- Keep the appliance and its power cable out of reach of children less
than 8 years old.

General safety
WARNING —This appliance is designed for home use.
WARNING —Never store inflammable substances, such as aerosols,
inside the appliance, as they could leak or release fluids.
WARNING —A damaged power cable should be immediately replaced
by the manufacturer or by a qualified retailer, in order to avoid any risk
of electric shock.
WARNING —Keep the ventilation openings well open and ensure that
air can circulate, especially if the appliance is recessed into a wall.
WARNING—Do not damage the refrigerating circuit.
WARNING —Do not use electrical appliances inside the compartment,
unless they are tolerated by the manufacturer.
WARNING —The refrigerating and insulating systems contain
inflammable gases. When the appliance is scrapped, it should be
deposited at an accredited collection centre. Do not expose the
appliance to fire.
WARNING: When positioning the appliance, ensure the supply cord is
not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance
Refrigeratingfluid
The refrigerating circuit in the appliance uses refrigerating isobutane
(R600a), which is a highly inflammable natural gas and is therefore
dangerous for the environment. When transporting or installing the
appliance, ensure that no element of the refrigerating circuit is
damaged. The refrigerating fluid (R600a) is inflammable.
Caution: Fire rise

If the refrigerating circuit is damaged:
-Avoid open flames or any source of combustion.
-Ensure that the room in which the appliance is installed is well
ventilated. It is dangerous to change the specification of the appliance
in any way whatsoever.
Damage to the power cable may cause a short circuit and/or electric
shock.
Electricalsafety
- We decline any liability in respect of incidents caused by poor
electrical installation.
- Do not extend the power cable. Do not use an extension cable, or
adapter, or multi-way socket.
- Check that the wall socket is not damaged. A wall socket in poor
condition may cause the appliance to overheat and explode.
- Check that the wall socket used for the appliance is properly
accessible.
- Never pull on the main power cable.
- Ensure that the appliance is always electrically earthed.
- If the wall socket is loose, do not connect the cable, as there is a risk
of electric shock or fire.
- Do not use the appliance if the interior lighting cover is not installed.
- Disconnect the appliance before replacing the lighting bulb.
- The appliance operates on a single phase 220~240 V / 50 Hz power
supply.
The appliance must be connected to an earthed wall socket, in
accordance with applicable recommendations.
- Do not attempt to replace a damaged power cable, contact your
after-sales service.

- The power socket must be easily accessible but out of reach of
children.
In case of doubt, contact your installation technician.
Dailyutilisation
- Do not store inflammable substances or fluids inside the appliance.
This would create a risk of explosion.
- Do not operate other electrical equipment inside the appliance
(mixers, whirling rotor for ice cream, etc.).
- When disconnecting the appliance, grip the plug firmly and do
not pull on the cable.
- Do not expose the appliance to direct sunlight.
- Keep the appliance away from candles, luminaries and open flames,in
order to avoid fire risk.
- This refrigerating appliance is not intended to be used as a built-in
appliance; it is designed for free-standing only.
- This refrigerating appliance is not suitable for the freezing foodstuffs.
- The recommended setting of temperatures of the appliance is 12°C.
- The appliance is heavy. Be careful when moving it.
- If your appliance is equipped with castors, remember that these are
only designed to facilitate minor movements. Do not move the
appliance over long distances.
- Do not lean or climb on the appliance or its elements.
- In order to avoid falling objects and to prevent damage to the
appliance,
do not overload the compartments of the appliance.
This appliance is intended exclusively for the storage of wine.
This refrigerating appliance is not intended to be used as a built-in
appliance.

Caution! Cleaning and servicing
- Before carrying out servicing, switch off the power supply and
disconnect the appliance.
- When cleaning the appliance, do not use metal objects, steam
systems, volatile fluids, organic solvents or abrasive substances.
- Do not use sharp or pointed objects to remove ice. Use a plastic
Scraper.
Importantinformationconcerninginstallation!
- To ensure proper electrical connection, follow the recommendations
given in the present manual.
- Unpack the appliance and visually check that it is not damaged. Do
not connect a damaged appliance. Inform your retailer or point of sale
of any damage. In such a case, keep the packaging.
- It is recommended that the appliance be allowed to settle for at least 4
hours before connecting the electrical power supply, so that the
compressor fluid feed is correct.
- Proper air circulation is necessary to avoid overheating. To ensure
sufficient ventilation, observe the installation recommendations
Provided.
- In order to avoid fire risk, wherever possible, ensure that the appliance
is not in contact with walls or with any hot element (compressor,
condenser). Observe the installation recommendations.
- The appliance should not be placed close to radiators or cooking hot
plates or gas rings.
- Check that electrical sockets remain accessible when the appliance is
Installed.

Power saving
To limit the electricity consumption of your appliance:
- Install it in an appropriate place (see “Installing your appliance”).
- Leave the doors open as little time as possible.
- To ensure that the appliance operates properly, clean the
condenser regularly (see “Routine servicing of your appliance”).
- Regularly inspect the door seals and ensure that they are still
closing properly. If this is not the case, contact your
after-sales service.
- The shelves placed in manufacturer mode is the most efficient
use of energy for this refrigerating appliance. Use the shelves
provided by manufacturer, never block the holes on the shelves
or use other type of shelves not authorized by manufacturer
which may cause poor cooling or increase the energy
consumption.
Designed temperature of wine cooler is 12°C, it is recommended to set
the temperature at 12°C for optimized preservation of wines.
When the ambient temperature is 25°C and the wine cooler has no
bottle loaded; it will take around 1 hour to increase the wine cooler’s
temperature from 5°C to 12°C. Under the same circumstance,it will take
around 3 hours to decrease the wine cooler’s temperature from 12°C to
5°C. The less the temperature span is, the less time it will take.
The wine cooler is recommended to be set at 12°C. If the setting
temperature is higher than 12°C, the energy consumption will be lower.
If the setting temperature is lower than 12°C, the energy consumption
will be higher.

Troubleshooting
- Any electrical work should be carried out by a qualified and skilled
technician.
- The appliance should be repaired by an accredited repair centre, using
only manufacturer’s original spare parts.
R600a
Safetyinstructions
The appliance is designed for home use only. The manufacturer declines any liability whatsoever in
cathe case of other utilisations
Caution: Do not obstruct the ventilation grills on the
appliance.
Caution: Do not store explosive substances, such as
aerosol cans containing an inflammable propellant,
in the appliance.
Caution: Do not damage the refrigerating circuit in
the appliance.
Caution: The refrigerating units use isobutane
(R600a), and should not be placed close to ignition
sources (for example, electrical contacts that are
exposed or open contacts that could be closed by
the refrigerating fluid in the event of a leak). The
refrigerating fluid type is specified on the power
cabinet identification plate.
Caution: Do not use electrical equipment in the
compartments of the appliance, unless they are of
the type recommended by the manufacturer.

2. DESCRIPTION OF THE APPLIANCE
PM248S-HHB-1 / PMW248S-HHB-1
4.INSTALLATION INSTRUCTIONS
Before using your wine cooler:
•Remove inner and outer packaging.
•Before connecting the appliance to the electrical socket, leave it in position for 24 hours. This will
reduce the possibility of malfunction of the refrigeration circuit due to transport.
•Clean the inside using a soft cloth and lukewarm water.
1
Upper hinge
2
Control panel
3
Carbon filter
4
Fan
5
Sliding rails
6
Shelf
7
Strip side light
8
Door support
9
Feet
10
Lock catch
11
Lower door hinge
12
Lower door support feet
13
Door
14
Lock

Using your wine cooler:
This appliance is designed to operate in ambient temperatures specified by its temperature class
marked on the rating plate.
The ambient temperature affects the interior temperature and humidity for your wine cooler. For
optimal operation, the settings of your wine cooler are carried out for ambient temperature of
23°C to 25°C.
Designed temperature range for PM248S-HHB-1 / PMW248S-HHB-1: 5-20°C
t’s recommended that you install your wine cooler in a place where the ambient temperature is between
10-38°C. If the ambient temperature is above or below recommended temperatures, the performance
of the wine cooler will be affected and it may not be possible to obtain temperature between 5-20°C
Climate class
Symbol
Ambient temperature range
Extended
temperate
SN
From +10°C to +32°C
Temperate
N
From +16°C to +32°C
Subtropical
ST
From +16°C to +38°C
Tropical
T
From +16°C to +43°C

Installing your wine cooler:
•This wine cellar is designed for free-standing installation.
•Position it in a place with sufficient strength to support its weight when loaded. To ensure that it is
level,adjust the height of the feet underneath.
•To get the best from your appliance with the lowest energy consumption, do not place the appliance
close to a heat source (heater, cooker, etc.), do not expose it to direct sunlight, and do not place it in a
room which is too cold.
•Good ventilation is required around the appliance, in order to dissipate the heat properly and to
guarantee efficient cooling operation at low power consumption. Sufficient clearance is necessary.
- Gap to the back and to the side walls each approx. 10 cm;
-Place the appliance so that the appliance door can open without being impeded.
•Only install at a location with an ambient temperature suitable for the climate class of the
appliance. This will prevent any movement due to instability, generating noise and vibration, and
will ensure that the door seals perfectly
Control panel:
Important note: After selecting the desired temperature, the display will continue to
show the real temperature inside the equipment, which will vary gradually until it
reaches the selected temperature
Model # PM248S-HHB-1 / PMW248S-HHB-1
LCD screen display description:

Control description:
For PM248S-HHB-1 / PMW248S-HHB-1, temperature range is 5-20°C
Pictogram
Control button
Operation instruction
ON/OFF button
Press and hold for 2 seconds to turn on or turn off the appliance
Temperature select key
Press this button first to enter temperature control, then press temperature
UP and DOWN to adjust temperature
Temperature UP key
Press to increase the temperature after pressing temperature select key
Temperature DOWN key
Press to decrease the temperature after pressing temperature select key
Celsius/Fahrenheit display
change
Press to change temperature display from Celsius to Fahrenheit
Lighting mode
Press and hold for 3 seconds to select lighting modes, there are two
lighting modes to select. These two models equip with top light and two
strip side lights. All lights will be controlled in the same time under each
light mode.
Light strength can be adjusted in 5 levels, when in ligting on model, press
light button to adjust the light strength,each press will change 1 level of the
light strength.
Lighting on mode
When LCD screen displays this pictogram, the lights will be permanently
turned on.
Lighting on/off model
When LCD screen displays this pictogram, the lights will be controlled by
door open and close, when door is open, the light will be turned on, when
door is closed, the light will be turned off. This is the default setting of
lighting mode.

Alarm system:
Pictogram
Alarm type
Details
Door open alarm
When door has been opened for over 5 minutes, door open alarm
will be on and LCD screen display this pictogram and beep 3 times
every 5 seconds, press any keys to stop the alarm sound. Alarm will
stop when door is closed.
Low temperature alarm
When inside temperature is below 2°C for over 3 hours, it will beep
to alarm and screen will flash display, press any key to stop alarm
sound
High temperature alarm
When inside temperature is above 25°C for over 6 hours, it will
beep to alarm and screen will flash display, press any key to stop
the alarm sound.
Low humidity alarm
When humidity inside cabinet is below 40% for over 3 hours, screen
will flash display, alarm will stop when humidity returns to normal
level.
High humidity alarm
When humidity inside cabinet is below 80% for over 1 hour, screen
will flash display, alarm will stop when humidity returns to normal
level.
Carbon filter expiry
alarm
When carbon filter has been used for over 365 days, the alarm will
activate and LCD screen will flash display with a beeping sound.
Press any key to stop the beeping sound. When alarm activates,
carbon filter has expired and new carbon filter replacement is
needed.
Carbon filter expiry time check and reset:
Press and together for 3 seconds to check the expiry time of carbon filter, the expiry.
time will display on the LCD screen for 10 seconds.
When carbon filter has been used for over 365 days, the alarm will be on and LCD screen will display
After replacing a new carbon filter, press and together for 3 seconds to reset the validity
period to 365 days.
Replace carbon filter
This wine cooler is equipped with a carbon filter to purify air continuously. It is installed

at top left of inside cabinet which should be replaced annually.
To remove it, turn the charcoal filter to set free pins and pull it directly from the inside of the cellar
towards you.
Bottle loading plan
PM248S-HHB-1 / PMW248S-HHB-1 equips with 16 lateral sliding shelves,maximum load capacity is 161
standard Bordeaux wine bottles. Bottle loading plan as below:
Bottom space can stack 3 layers of wine bottle.
First and third layer can load 6 bottles, second layer can
load 5 bottles
Each sliding shelf can laterally load 9 bottles

Door reversibility
The door cannot be reversible as there is security lock on the door.
Installing handle:
These two models are without handle.

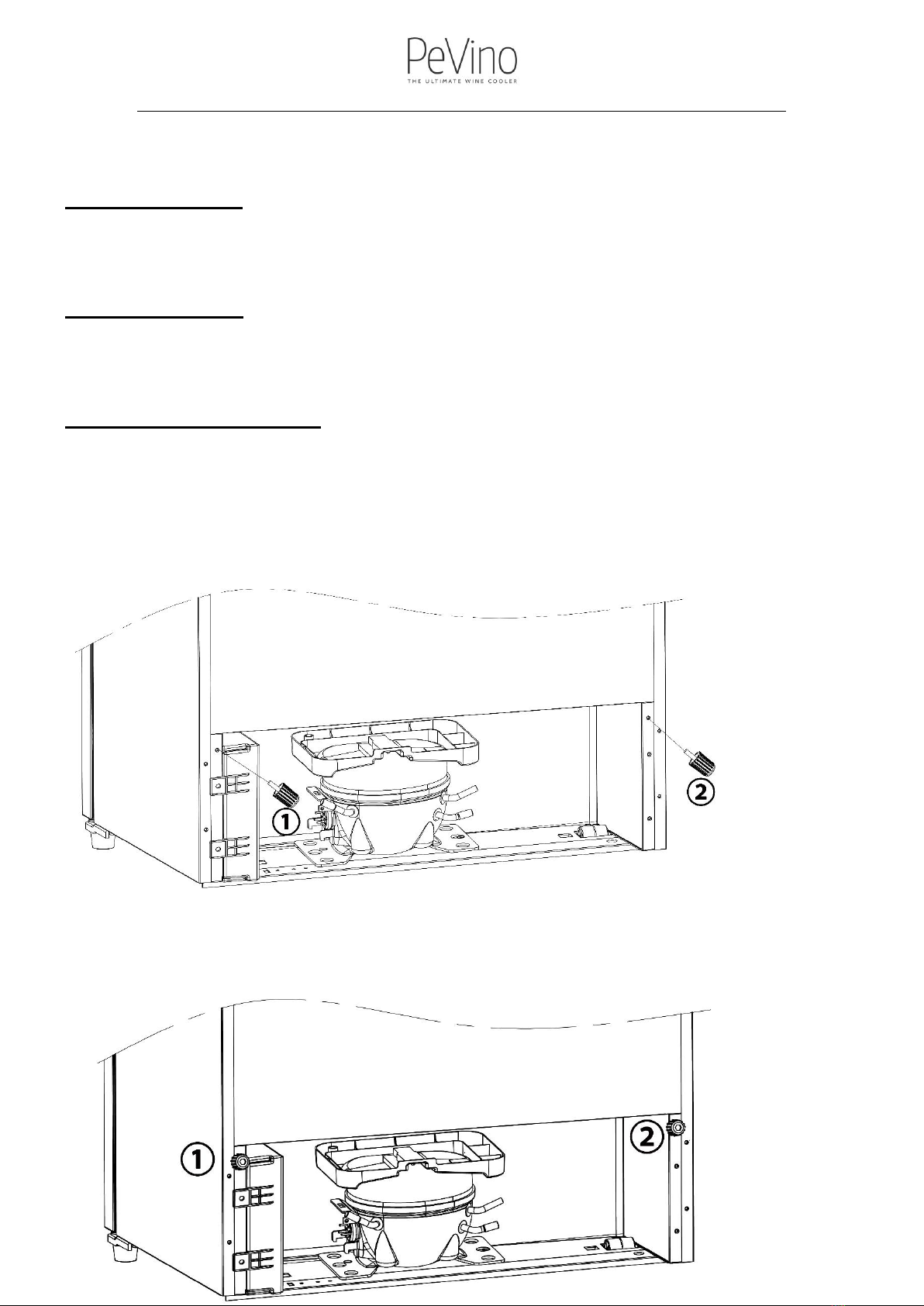

Wall stopper installation:
For model PM248S-HHB-1/ PMW248S-HHB-1, 2 wall stoppers are included in the IM bag, before using
your wine cooler, please follow below photo to install wall stoppers onto the back of the wine cooler, they
will keep the space between wall and wine cooler to secure enough ventilation and protect the wine
cooler.
Below is photo after wall stopper being installed:

4. EQUIPMENT
The climate control system
According to advice from specialists, the ideal temperature for storing wine is around 12°C, within a
bracket of 10 to 14°C. Do not confuse this with service temperature, which varies between 5 and 20°C,
depending on the specific nature of the wine.
It is especially important to avoid sudden changes in temperature. Designed by specialists for oenophiles,
this appliance, unlike a simple refrigerator, takes into account the sensitivity of grand cru wines to sudden
variations in temperature by ensuring the close control of a constant average temperature.
The anti-vibration system:
The refrigeration compressor is equipped with special dampers (silent-blocks) and the inner space is
insulated from the body by a thick layer of polyurethane foam. These characteristics prevent the
transmission of vibration to your wines.
Defrosting:
Your appliance is equipped with an automatic defrost cycle. When a cooling cycle finishes, the
appliance’s refrigerated surfaces are defrosted automatically. The defrost water is channeled into a
condensates evaporation tray which is located in the back of the appliance near the compressor. The
heat produced by the compressor then evaporates the condensates collected in the tray.
Replacing light:
This appliance consists of light-emitting diodes(LEDs). This type of diode cannot be changed by the
consumer. The lifetime of these LEDs is normally sufficient for no change to be made. If however, and
despite all the care taken during the manufacture of your wine cellar, the LEDs were defective, please
contact your after-sales service for any intervention.

5. LOADING
The maximum recommended loading quantities for bottles are given as guidelines and are indicative only;
they provide a quick estimate of the size of the appliance (similar to the capacity of a refrigerator
expressed in litres).
They correspond to tests conducted with a standard bottle: the standard “75 cl light Bordeaux” bottle -
standards apply the geographical origin of each bottle shape (Bordeaux, Burgundy, Provence, etc.) and a
type (traditional, heavy, light, flute, etc.), each with its own diameter and height.
In reality and in extreme cases, you could store more bottles by stacking the same type of bottle without
using shelves, but a varied cellar comprises a wide variety of bottles and the practical aspect of everyday
cellar management limits its capacity. You will therefore probably load the appliance a little less than the
recommended maximum.
6. MAINTENANCE
Before cleaning your appliance (something to be done regularly), disconnect it by removing the plug or by
pulling the fuse on the circuit.
Before using your appliance for the first time and regularly after that, we recommend that you clean the
inside and outside (front, sides and top) with warm water mixed with a gentle cleaning product. Rinse with
clean water and allow to dry before reconnecting. Do not use solvents or abrasives.
Wash the plastic coating on the steel shelves with a mild detergent solution and then dry with a soft cloth.
Wooden shelves require no particular maintenance.
When the appliance is switched on for the first time, there may be a residual odour. In that case, run the
appliance empty for a few hours at the coldest possible temperature. The cold will kills any odours.
7. STORING YOUR WINE COOLER
If you will not be using your appliance for short periods, leave the control panel with its usual settings.

During an extended shutdown:
•Remove all bottles from the appliance
•Unplug the appliance
•Thoroughly clean the inside and outside of the appliance
•Leave the door open to prevent condensation, unpleasant odours and mould.
8. WHAT TO DO IN THE EVENT OF A POWER CUT
Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the
temperature in your cellar. To protect your wines during a power cut, avoid opening the door as much as
possible. During very long power cuts, take the necessary measures to protect your wine.
-If the appliance is disconnected or if there is a power cut, you must wait three to five minutes before re-
starting. If you try to re-start before this time, the compressor will only re-start after 3 to 5 minutes (if the
temperature requires).
-When switching on for the first time or following a prolonged shutdown, it is possible that when re-
starting, the temperatures selected and those displayed are not the same. This is normal. It will take a few
hours before they stabilise.
9. IF YOU NEED TO MOVE YOUR WINE COOLER
First, disconnect your appliance.
Remove all bottles and secure any loose parts.
To avoid damaging the levelling screws on the feet, screw them tightly into the base.
Move the appliance in an upright position (preferably) or note the direction in which the appliance may be
laid down by looking at its packaging.

10. IN THE EVENT OF A BREAKDOWN
Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting
your retailer’s after-sales department, please check that:
1.the appliance is properly plugged in;
2.there is not a power cut in progress;
3.the breakdown is not one of those described in the table at the end of this manual.
IMPORTANT:
If the mains cable supplied is damaged, it must be replaced by the manufacturer, a centre approved by
the brand or by the retailer. In all cases, it must be replaced by qualified personnel, so as to avoid any risk
of injury.
IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER’S AFTER-SALES
DEPARTMENT.
CAUTION!
Unplug the appliance before carrying out any maintenance or repair work.

11. PROBLEMS AND SOLUTIONS
You can solve many simple problems with your wine cooler yourself, thus avoiding having to contact your
after- sales department. Try the following suggestions.
PROBLEM
POSSIBLE CAUSES
Appliance is not working
Appliance is not plugged in
Appliance is not turned on
Check if voltage of the installation
Check the circuit breaker or if fuse has blown
Appliance is not cold
enough
Check the temperature control setting
Check if ambient temperature is beyond appliance operating
temperature
The door is opened too frequently
The door is not closed properly
The door is not sealing properly
Insufficient free space around the appliance
The compressor starts and
stops frequently
The external temperature is high.
A large quantity of bottles has been put into the cellar.
The appliance is opened frequently. The door is
not properly closed.
The cellar has not been correctly set.
LED lights do not operate
The appliance is not plugged in
The fuse has blown
LED lights are not broken
The light switch is off
Vibration
Check and ensure that the appliance is level
The appliance makes a lot
of noise
A noise resembling circulating water is produced by the coolant gas
and this is normal.
At the end of a cooling cycle, you can hear the noise of water
circulating.
Expansion and contraction of the internal walls may cause a
