1. Introduction
VINOTEMP assumes no responsibility for any repairs made on
products by anyone other than authorized service technician
This manual has been prepared to provide the information on installing,
servicing, troubleshooting and repairing procedures for the WINEMATE
1500HZD & 2500 HZD cooling unit.
I. Goals and Objectives
The goal of this manual is to provide detailed information that will enable the
service personnel to properly install and repair the cooling unit, and troubleshoot
and diagnose malfunctions.
The objectives of this manual are that the service personnel will
•Fully understand the proper safety precautions
•Successfully install the cooling unit
•Successfully troubleshoot and diagnose malfunctions
•Successfully perform necessary repairs
•Successfully return the cooling unit to proper operational status
II. R134a Refrigerant Service Information
This cooling unit uses R134a refrigerant. This refrigerant requires synthetic ester
oil in the compressor. This cooling system does not tolerate contamination from
any of the following:
•Other refrigerants
•Moisture
•Petroleum-based lubricants
•Silicone lubricants
•Cleaning components
•Rust inhibitors
•Leak detection dyes
•Any other types of additive
As a result, the following precautions should be observed:
•Use equipment dedicated to R134a sealed system only.
•Use R134a refrigerant for back-flushing.

- 4 -
•Use dry nitrogen to purge the system.
•Do not overcharge the refrigeration system.
•Do not leave replacement compressor open to the atmosphere for more
than 10 minutes.
•Do not operate the compressor without refrigerant charge in the system.
•Do not use the compressor if the rubber plugs on the replacement
compressor appear to have been tampered or removed.
•Always replace the filter-drier when performing any repairs on the sealed
system.
•The filter-drier must be cut from the sealed system. Never unbraze the
filter-drier from system tubing. Applying heat will drive moisture back into
sealed system.
Table 1-1 Health and Safety Handling of R134a
Allowable Overall Exposure Limit 1,000 ppm
Vapor Exposure to Skin No Effect
Liquid Exposure to Skin Can cause frostbite
Vapor Exposure to Eyes Can cause very slight irritation
Liquid Exposure to Eyes Can cause frostbite
Above Minimum Exposure Limit Can cause asphyxiation, tachycardia
and cardiac arrhythmia's. Wear
appropriate skin and eye care.
Spill Management Combustible sources. Evacuate or
ventilate area.
May decompose if in contact.
Fire and Explosion Hazards Made with flames and heating
elements. Container may explode if
heated due to pressure rise.
Combustion products are toxic.
Storage Conditions The procedures/rules for R12 also
apply to R134a.
Reclaim

- 5 -
2. Component Information and Access
This section provides you the component information and access inside the
cooling unit. The components and their locations are shown Figures 2-1 through
2-11 below.
I. Model Number & Serial Label and Component Locations

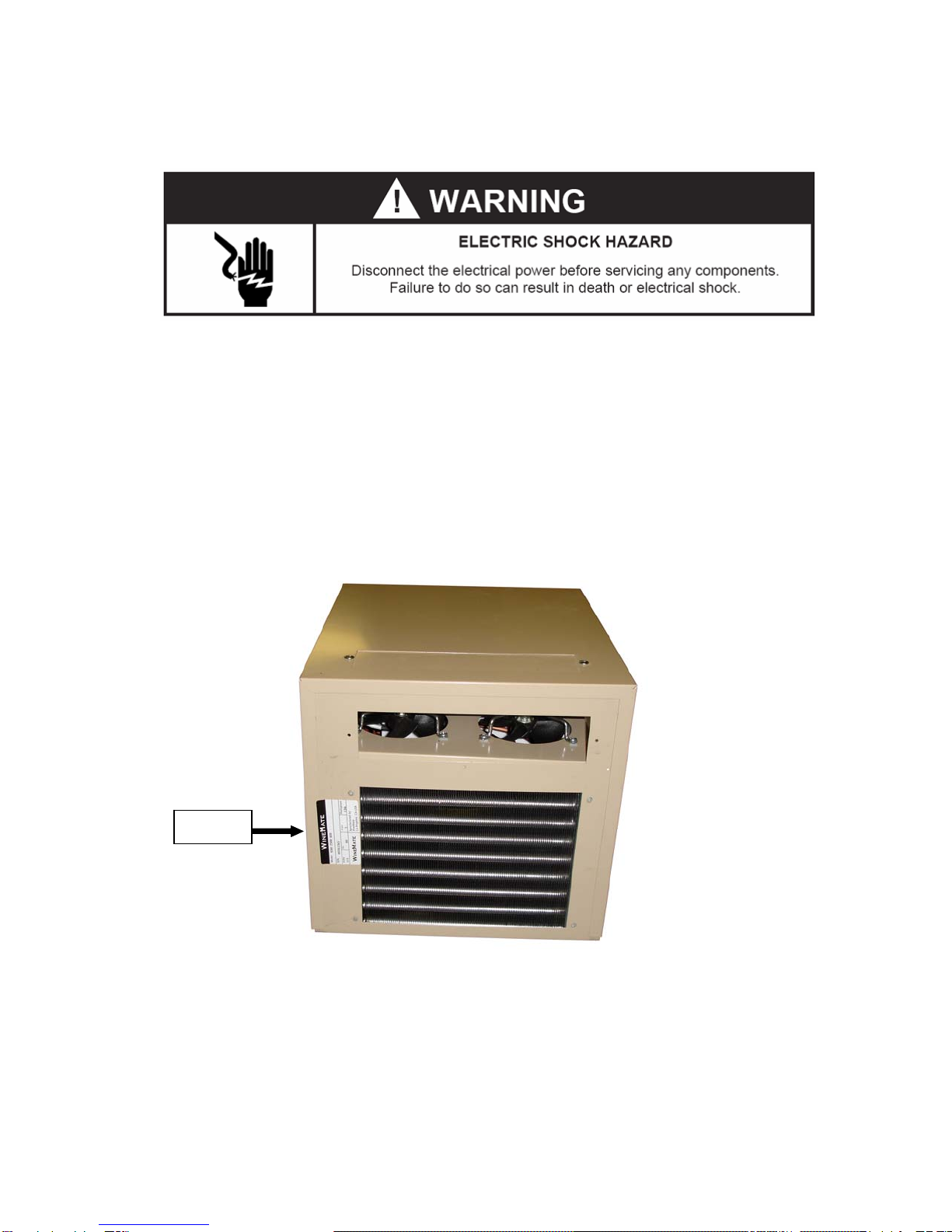

Figure 2-1
Label

- 6 -
II. Component Access
1) Removing the Outer Cover
1. Unplug the WINEMATE cooling unit or disconnect power.
2. Remove the WINEMATE cooling unit from the enclosure.
3. To remove the outer cover, remove all screws from each side and on the
top.

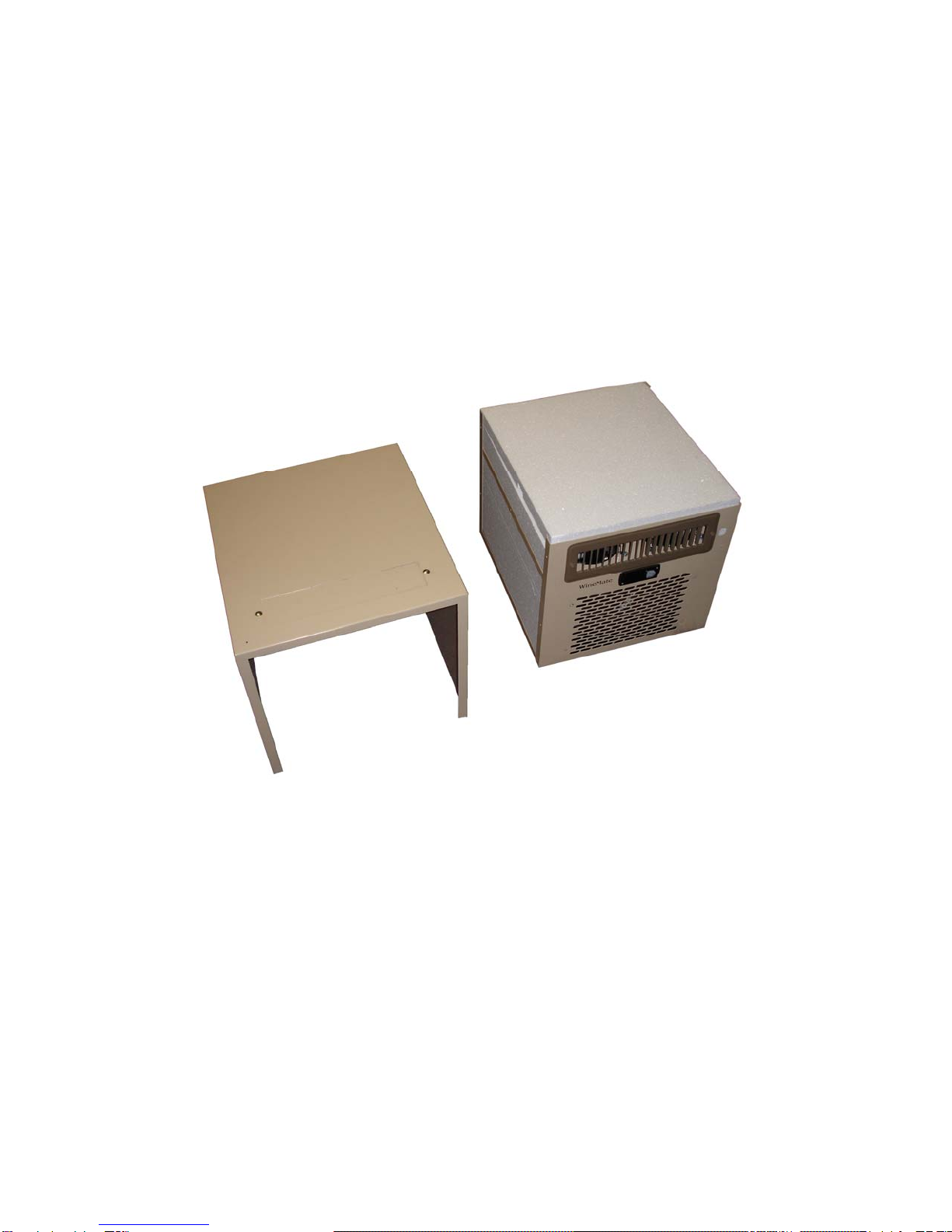

Figure 2-2
2) Removing the Inner Styrofoam Covers
Once the outer cover is removed, this will expose the inner styrofams. The top
large Styrofoam cover seals off the condenser and evaporator fan compartments.
To gain access to the other components, the styrofoam covers will need to be
removed. To separate the top styrofoam covers, a knife can be used to cut along
the seam and through the seal. Take care as not to damage any wiring or the
styrofoam pieces.

- 7 -

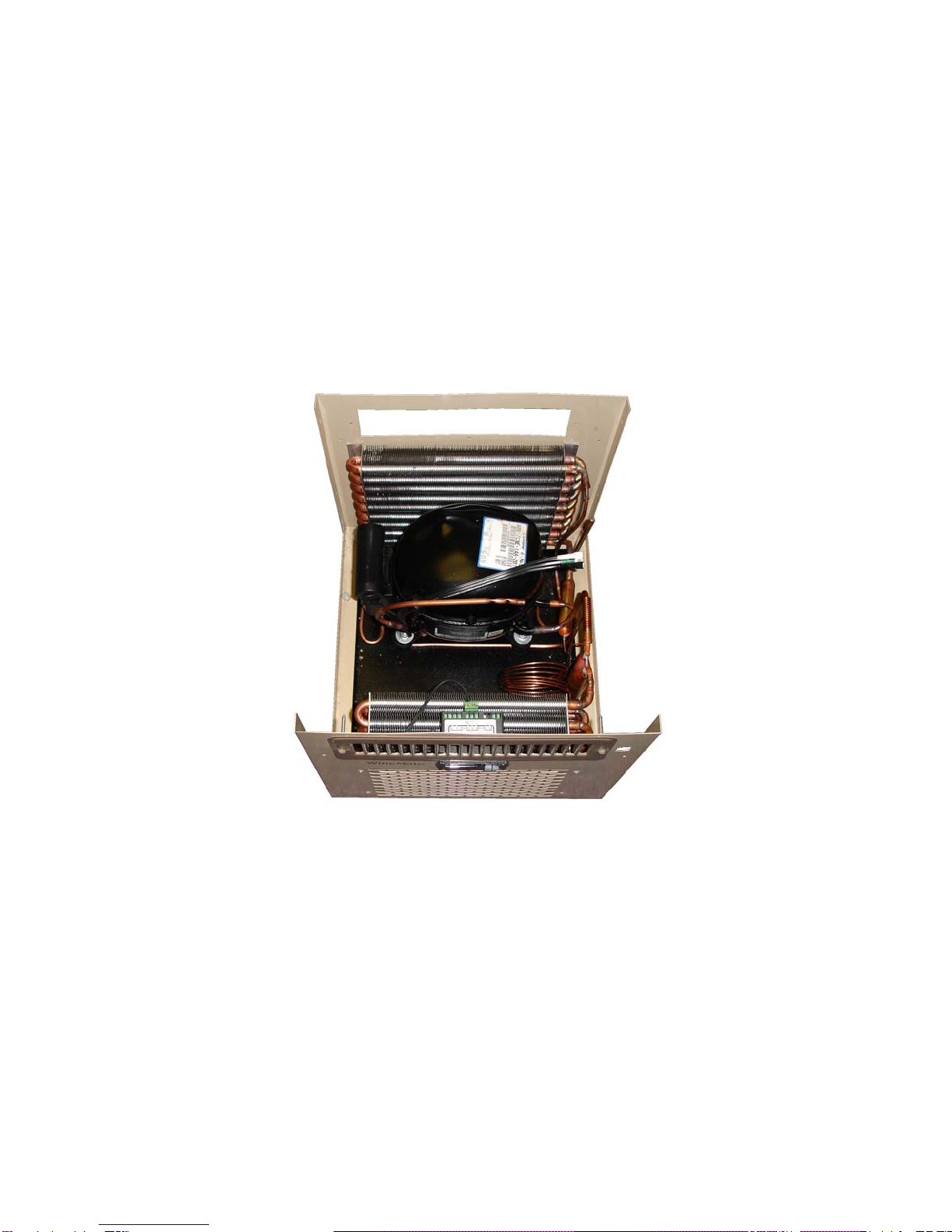

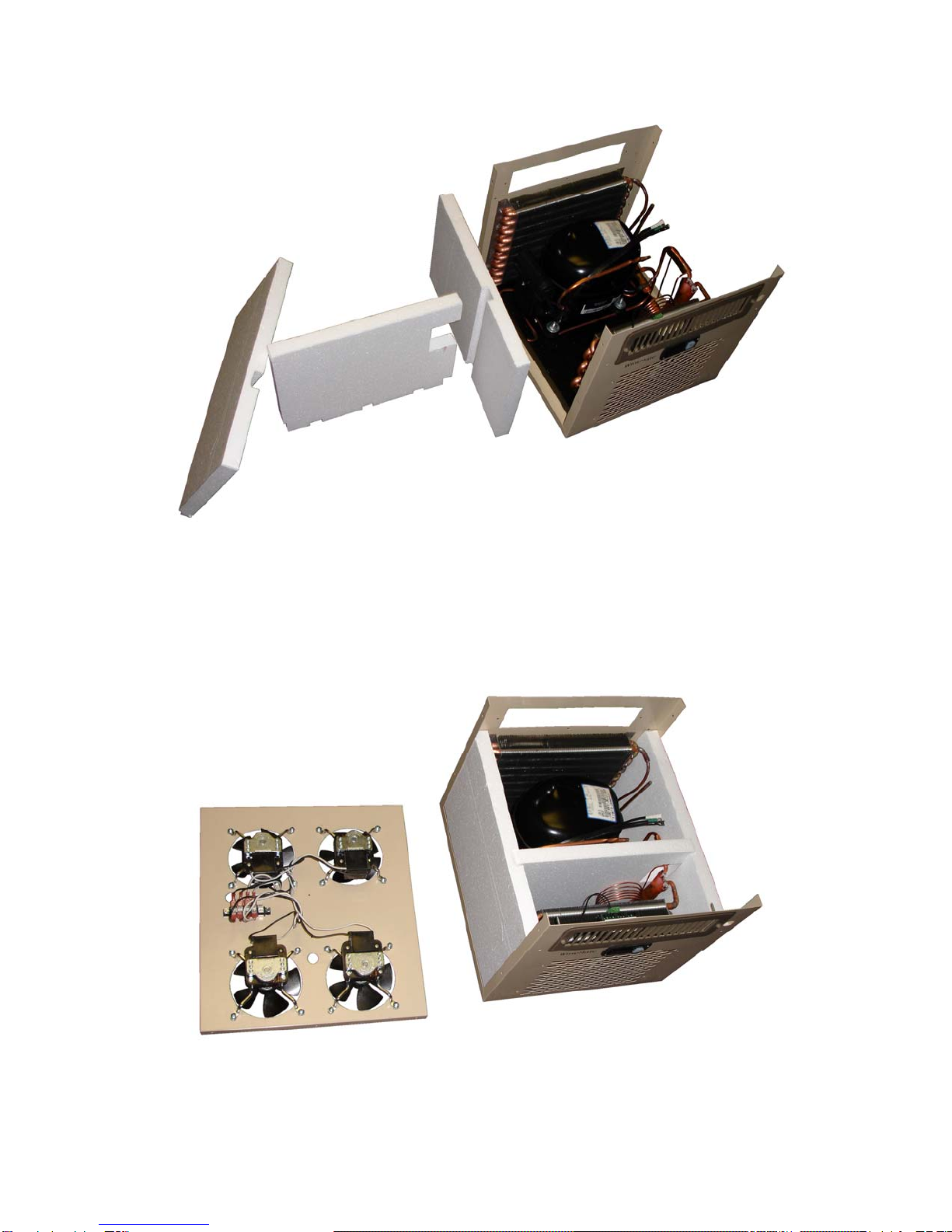

Figure 2-3
Figure 2-4

- 8 -
Figure 2-5
3) Removing the Fan Shroud
Remove the 4 rivets to remove the fan shroud.
Figure 2-6

- 9 -
4) Removing the Electronic Controller
Figure 2-7
Figure 2-8
1. Unplug the WINEMATE cooling unit or disconnect power.
2. Remove WINEMATE cooling unit from the enclosure opening
3. Remove the top large styrofoam cover.
4. Disconnect all three connectors for the electronic controller.
5. Unsnap the thin plastic cover off the front of the electronic controller.
6. Remove the two screws from the front of the electronic controller.
7. Locate the retainer just inside the front panel going around the outside of
the electronic controller. While squeezing both tabs of the retainer, push
the electronic controller out of the opening.
5) Removing the Thermistor
1. Unplug the WINEMATE cooling unit or disconnect power.
2. Remove the WINEMATE cooling unit from the enclosure opening.
3. Remover the outer cover.
4. Remove the top large styrofoam cover.
5. Disconnect the thermistor with connector from the electronic controller.

- 10 -
6. Remove the thermistor from the mounting clip on the front of the
evaporator.
6) Removing Fan Motors
Figure 2-9
The 4 fan motors are attached to the horizontal fan shroud. The 4 fan motors are
the same and are all powered up at the same time.
1. Unplug the WINEMATE cooling unit or disconnect power.
2. Remove the WINEMATE cooling unit from the enclosure opening.
3. Remover the outer cover.
4. Remove the large styrofoam cover.
5. Disconnect the two wires going to the electrical junction block.
6. Remove the four screws holding the fan to the shroud.
7) Removing the
Start Relay
and Overload
Protector
Figure 2-10

- 11 -
1. Unplug the WINEMATE cooling unit or disconnect power.
2. Remove the WINEMATE cooling unit from the enclosure opening.
3. Remover the outer cover.
4. Remove the top large styrofoam cover.
5. Remove the terminal cover from the compressor.
6. Remove the start relay by pulling straight out away from the compressor
terminal.
7. Remove the overload protector by pulling straight out away from the
compressor terminal.
8) Removing the Compressor
Figure 2-11
1. Unplug the WINEMATE cooling unit or disconnect power.
2. Remove the WINEMATE cooling unit from the enclosure opening.
3. Remover the outer cover.
4. Remove the top and bottom styrofoam covers and the fan shroud.
5. Place piercing valves onto the process tubes and discharge the refrigerant
into an approved R134a recovery system.
6. Use a tubing cutter to remove the suction line and discharge line from the
compressor.
7. Remove 4 nuts (11mm) from the feet of the compressor.
8. Remove the compressor

- 12 -
Note: Any time the sealed system is accessed the filter-drier must be
replaced. It is best to cut the drier out of the system, then braze on a new
one.
9) Removing the Condenser
1. Unplug the WINEMATE cooling unit or disconnect power.
2. Remove the WINEMATE cooling unit from the enclosure opening.
3. Remover the outer cover.
4. Remove the top large styrofoam cover and the inner divider.
5. Place piercing valves onto the process tubes and discharge the refrigerant
into an approved R134a recovery system.
6. Use a tubing cutter to remove the hot gas line and liquid line from the
condenser.
7. Remove 4 rivets from the condenser.
8. Remove the condenser
10) Removing the Evaporator
1. Unplug the WINEMATE cooling unit or disconnect power.
2. Remove the WINEMATE cooling unit from the enclosure opening.
3. Remover the outer cover.
4. Remove the top large styrofoam cover and the inner divider.
5. Place piercing valves onto the process tubes and discharge the refrigerant
into an approved R134a recovery system.
6. Cut the capillary line and suction line from the evaporator.
7. Remove 4 rivets from the evaporator.
8. Remove the evaporator.

- 13 -
3. Servicing and Diagnosis
This section instructs you how to service each component inside the cooling unit.
I. Component Checking
1) Compressor
The compressor acts as a pump, forcing refrigerant through the sealed system.
A. Resistance

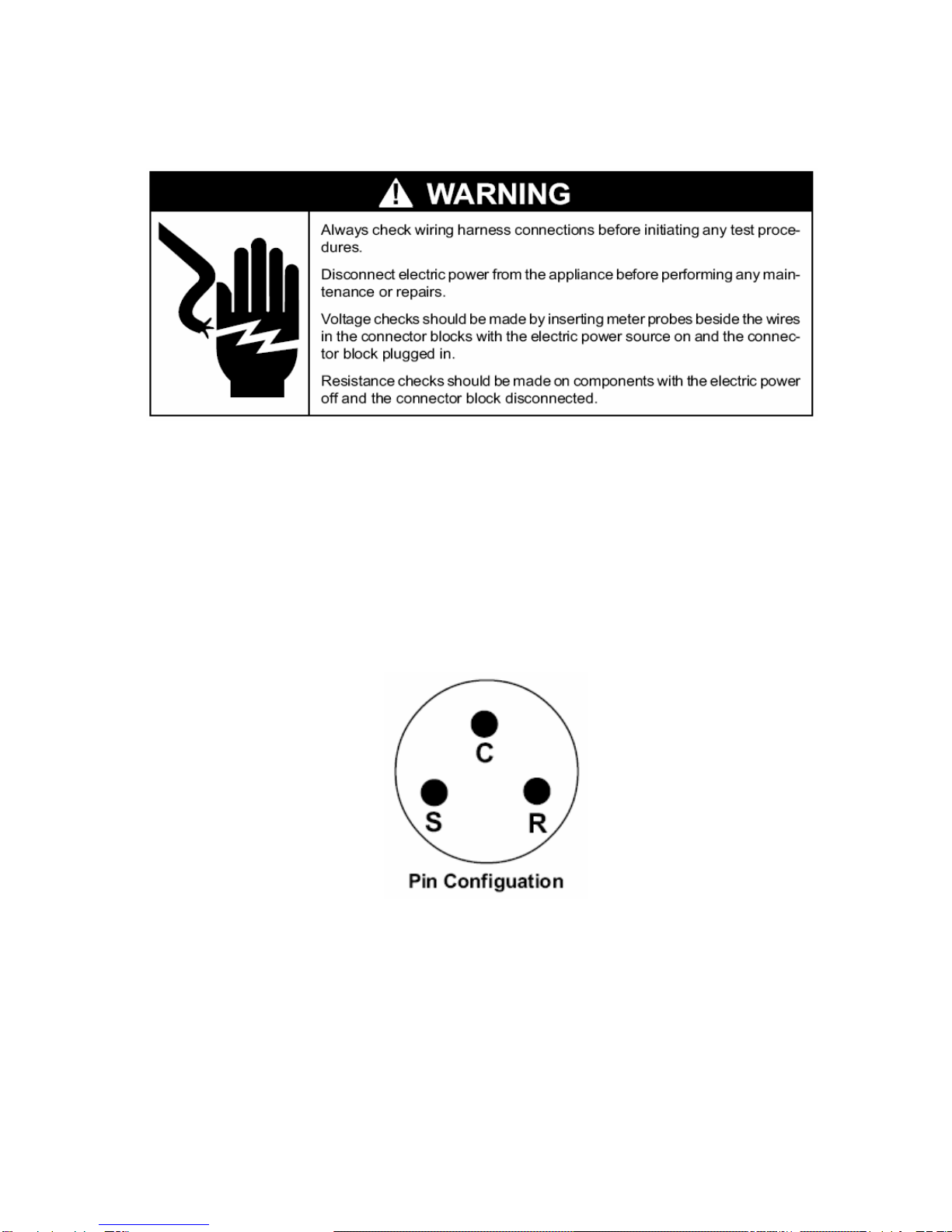

Figure 3-1
1. Unplug WINEMATE cooling unit or disconnect power.
2. Remove the terminal cover from the compressor.
3. Remove the start relay and overload protector from the compressor. If
wiring is removed from the start relay and/or overload protector, carefully
label each wire according to its proper location.
4. Set the ohmmeter scale to the lowest setting.

- 14 -
5. Touch and hold one ohmmeter probe to the C (common) terminal, then
touch and hold the other probe to the R (Run) terminal. The ohmmeter
should show a reading of 3Ω±10%. If not, the compressor is bad.
6. Touch and hold one ohmmeter probe to the C terminal, then touch and
hold the other probe to the S (Start) terminal. The ohmmeter should show
a reading of 11Ω±10%. If not, the compressor is bad.
7. Touch and hold one ohmmeter probe to the R terminal, then touch and
hold the other probe to the S terminal. The ohmmeter should show a
reading of 14Ω±10%. If not, the compressor is bad.
8. Touch and hold one ohmmeter probe to the C, or R or S terminal, then
touch and hold the other probe to the ground on the compressor. The
ohmmeter should read infinity. Any resistance indicates a shorted
compressor.
9. If the compressor tests ok, but does not start, check start relay, overload
protector and live voltage.
B. Live Voltage
1. Unplug WINEMATE cooling unit or disconnect power.
2. Remove the terminal cover from the compressor
3. The WINEMATE unit needs to be plugged in and turned on.
4. Locate the terminals on the start relay and the overload protector.
5. Set the voltmeter to the AC 200 scale.
6. Touch and hold one voltmeter probe to the terminal on the start relay, then
touch and hold the other probe to the terminal on the overload protector.
7. The voltmeter should show a reading of 115 volts.
8. If the test is good and the compressor does not start, check the start relay,
overload protector, and measure the resistance.
Figure 3-2
2) Start Relay
A start relay’s function is to energize and de-energize the compressor’s start
winding. The coil of the current type relay is connected in series with the run

- 15 -
winding. When current flows through the coil, a magnetic force is produced,
pulling the relay plunger up. With the relay plunger up, it connect the start
winding and the run winding at the same time and the compressor starts. As the
compressor reaches its running speed, there is not enough current flowing
through the relay coil to keep the plunger up (because of gravity), the start
winding is disconnected.
1. Unplug the WINEMATE cooling unit or disconnect power.
2. Remove the terminal cover from the compressor.
3. Disconnect and remove the relay.
4. Set the ohmmeter scale to the lowest setting.
5. Make sure the relay with the letters “TOP” facing up.
6. Place and hold one ohmmeter probe in one terminal, then place the other
ohmmeter probe into the other terminal. The ohmmeter should show an
open circuit. If not, the start relay is bad and needs replacing.
7. Turn the relay upside down.
8. Place and hold the ohmmeter probe in one terminal, and place the other
ohmmeter probe in the other terminal. The ohmmeter should show zero
resistance. If not, the start relay is bad and needs replacing.
9. If the start relay is good, reinstall and reconnect the relay with the letters
“TOP” facing up.
3) Overload Protector
The overload protector is a bi-metal that protects the compressor. If the
compressor gets too hot the overload protector opens and stops the compressor.
Once it has cooled the overload protector contacts close.
1. Unplug WINEMATE cooling unit or disconnect power.
2. Remove the terminal cover from the compressor.
3. Disconnect and remove the overload protector
4. Set the ohmmeter scale to the lowest setting.
5. Touch and hold one ohmmeter probe to one terminal on the overload
protector, then touch and hold the other probe to the other terminal.
6. The ohmmeter should show a reading of zero resistance. If not, the
overload protector needs replacing.
7. Reinstall and reconnect the overload protector.
4) Electronic Controller
The electronic controller allows the customer to select a temperature form 45 °F
to 75 °F. When the thermistor senses a temperature above the setting value, the

- 16 -
electronic controller will turn on the compressor and fan motors. Once the
selected temperature is sensed, the electronic will turn off the cooling unit.
A. Resistance
1. Unplug WINEMATE cooling unit or disconnect power.
2. Disconnect the connector with the red and white wires connected to the
input of the electronic controller.
3. Touch and hold one ohmmeter probe to one terminal on the electronic
controller, then touch and hold the other probe to the other terminal.
4. The ohmmeter should show a reading of 825Ω±10%.
5. Reconnect the wire connector to the electronic controller.
B. Input Live Voltage

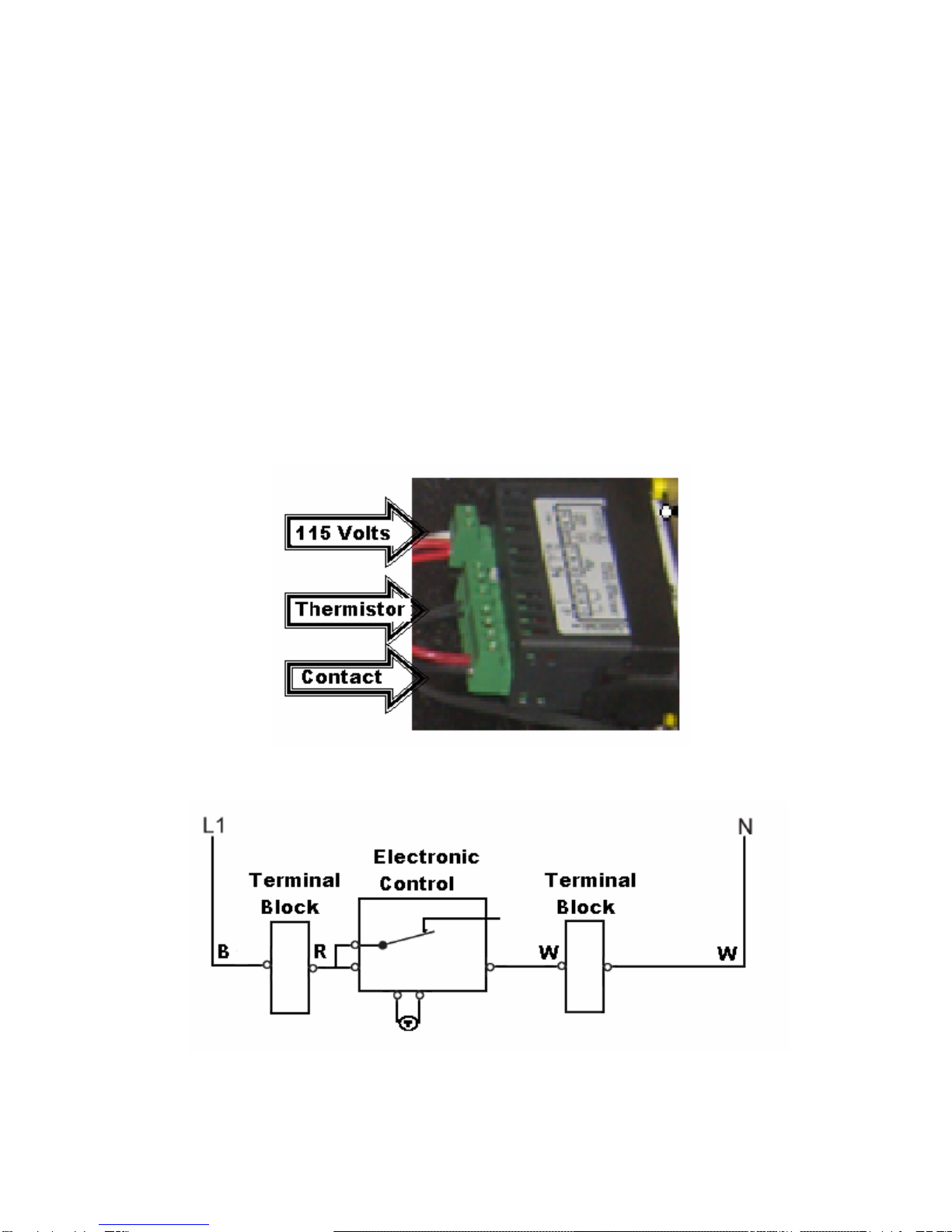

Figure 3-3
Figure 3-4
1. The WINEMATE unit needs to be plugged in.

- 17 -
2. Locate the red and white wires going to the electronic controller.
3. Set the voltmeter to the AC 200 scale.
4. Touch and hold one voltmeter probe to one of the wire terminals, then
touch and hold the other probe to the other wire terminal
5. The voltmeter should show a reading of 115 volts.
C. Output Live Voltage
1. In order to test the output of the electronic controller, the WINEMATE
cooling unit must be plugged in and powered up.
2. The input voltage must read at least 110 volts.
3. Set the temperature 5°F above the ambient temperature.
4. Set the voltmeter to the AC 200 scale, and the voltmeter should read 0
volts.
5. Now warm the thermistor by hands for a while.
6. Locate the red and black wires leaving from the electronic controller.
7. Touch and hold one voltmeter probe to the red wire, then touch the other
probe to the black wire.
8. Now the voltmeter should read 115 volts.
9. If the readings are both correct the electronic controller is good.
5) Thermistor
1. Disconnect the thermistor connector from the electronic controller.
2. Set ohmmeter to the R x 10K scale.
3. Immerse the tip of the thermistor into ice water for five minutes
4. Touch the ohmmeter probes to the wire terminals on the connector. The
meter should indicate 27.3 below ±10%.
5. Reconnect the thermistor.
6) Fan Motors
The WINEMATE 1500 & 2500 uses four fan motors to pull air across the
condenser and evaporator coils. The safest way to check one of the motors is
doing a resistance check. An alternate method is checking with live voltage.
A. Resistance
1. Unplug WINEMATE cooling unit or disconnect power.
2. Disconnect the fan motor wiring from the terminal block, remove one wire
at a time, and carefully label each wire.
3. Set the ohmmeter scale to the lowest setting. Touch and hold one
ohmmeter probe to one of the wire terminals, then touch and hold the
other probe to the other wire.

- 18 -
4. The ohmmeter should show a reading of 50 ohms ±10%.
5. Reconnect the wires to the proper terminals as previously marked.
B. Live voltage
1. The WINEMATE unit needs to be plugged in and turned on.
2. Locate the black and white wires from the fan motor being tested and
follow them back to the terminal block.
3. Set the voltmeter to the AC 200 scale.
4. Touch and hold one voltmeter probe to one of the wire terminals, then
touch and hold the other probe to the other wire.
5. The voltmeter should show a reading of 115 volts.

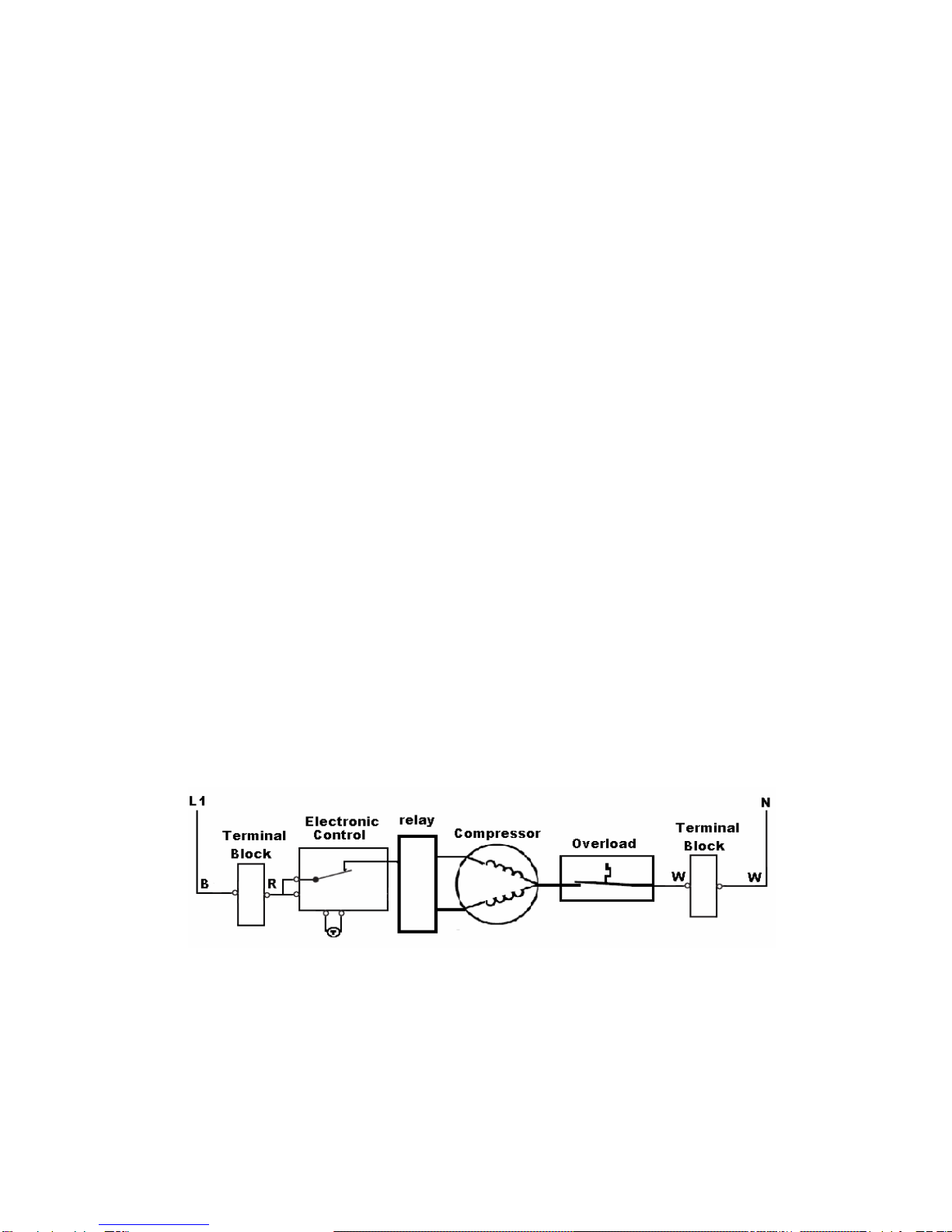

II. Wiring Diagram
Figure 3-5

- 19 -
III. Troubleshooting Chart
This Troubleshooting Chart is not prepared to replace the training required for a
professional refrigeration service person, not is it comprehensive.
Table 3-1 Troubleshooting Chart
Complaint Possible Causes Response
1. Unit not running
a. Power cord unplugged
b. No power to unit.
c. Incorrect Temperature setting
d. Low voltage
e. Incorrect or loose wirings
f. Failed components.
a. Check for power cord plug
b. Check power at receptacle& fuses
c. Check for temperature setting
d. Contact an authorized electrician
e. Check all wirings and connections
f. Check start relay, start capacitor,
overload protector, compressor. Fans.
2. Compressor stopping and starting but short running time
a. Incorrect temperature setting
b. Incorrect voltage
c. Failed thermistor
d. Failed components
e. Improper condenser airflow
f. Dirty condenser
g. Overcharge of refrigerant
h. Discharge or suction pressure too
high
a. Set 55 to 60 °F
b. Check for voltage
c. Check thermistor by placing it in ice
water and measuring resistance
d. Check compressor windings, start relay
and overload protector.
e. Check for condenser fan
f. Clean condenser
g. Remove refrigerant
h. Refer to OEM service information
3. Fan motor running but compressor not running
a. Incorrect power supply
b. Incorrect or loose wirings
c. Failed components
d. Liquid refrigerant in the
compressor
a. Check for proper voltage
b. Check all wirings and connections
c. Check start relay, start capacitor,
overload protector, compressor.
d. Refer to OEM service information.
4. Compressor running but fan not running
a. Fan blade bond
b. Incorrect or loose wirings
c. Failed motors
a. Check for proper clearance
b. Check all wirings
c. Check for open or shorted windings
5. No cooling but compressor and fan running
a. Evaporator airflow restriction
b. Refrigerant leakage
c. Refrigeration system restriction
a. Check for airflow through evaporator
b. Check for loss of refrigerant
c. Check for restrictions
6. Insufficient cooling or unit running too long
a. Improper evaporator or condenser
airflow
b. Dirty Condenser
c. Iced evaporator
d. Malfunctioning fans
e. Improper seals
f. Improper area to be cooled
a. Check for air restrictions
b. Clean condenser
c. Defrost and reset temperature
d. Check for both fans
e. Check for gasket and door opening
f. Check for excessive load incorrect
