OPERATING INSTRUCTIONS
EN
Translation of the Original
OPS 70 | OPS 100
Integrated power supply pack

Dear Customer,
Thank you for choosing a Pfeiffer Vacuum product. Your new power supply pack is designed
to support you in your individual application with full performance and without malfunctions.
The name Pfeiffer Vacuum stands for high-quality vacuum technology, a comprehensive and
complete range of top-quality products and first-class service. From this extensive, practical
experience we have gained a large volume of information that can contribute to efficient
deployment and to your personal safety.
In the knowledge that our product must avoid consuming work output, we trust that our
product can offer you a solution that supports you in the effective and trouble-free
implementation of your individual application.
Please read these operating instructions before putting your product into operation for the
first time. If you have any questions or suggestions, please feel free to contact info@pfeiffer-
vacuum.de.
Further operating instructions from Pfeiffer Vacuum can be found in the Download Center on
our website.
Disclaimer of liability
These operating instructions describe all models and variants of your product. Note that your
product may not be equipped with all features described in this document. Pfeiffer Vacuum
constantly adapts its products to the latest state of the art without prior notice. Please take
into account that online operating instructions can deviate from the printed operating
instructions supplied with your product.
Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from
the use of the product that contradicts its proper use or is explicitly defined as foreseeable
misuse.
Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/30

Table of contents
1 About this manual 7
1.1 Validity 7
1.1.1 Applicable documents 7
1.1.2 Variants 7
1.2 Target group 7
1.3 Conventions 7
1.3.1 Instructions in the text 7
1.3.2 Pictographs 7
1.3.3 Stickers on the product 8
1.3.4 Abbreviations 8
2 Safety 9
2.1 General safety information 9
2.2 Safety instructions 9
2.3 Safety precautions 11
2.4 Limits of use of the product 11
2.5 Proper use 12
2.6 Foreseeable improper use 12
2.7 Personnel qualification 12
2.7.1 Ensuring personnel qualification 12
2.7.2 Personnel qualification for maintenance and repair 13
2.7.3 Advanced training with Pfeiffer Vacuum 13
3 Product description 14
3.1 Function 14
3.2 Identifying the product 14
3.3 Connections 14
3.4 Scope of delivery 14
4 Installation 15
4.1 Preparing for installation 15
4.2 Connection diagram 15
4.3 Establishing the electric connection 16
5 Operation 17
5.1 Switching on 17
5.2 Switching off 17
6 Maintenance 18
6.1 Disassembling the power supply pack 18
6.2 Mounting the power supply pack 19
6.3 Cleaning 19
7 Recycling and disposal 20
7.1 General disposal information 20
7.2 Disposing of the power supply pack 20
8 Malfunctions 21
9 Service solutions by Pfeiffer Vacuum 22
10 Spare parts 24
11 Accessories 25
12 Technical data and dimensions 26
12.1 Technical data 26
Table of contents
3/30

12.2 Dimensions 27
Declaration of conformity 29
Table of contents
4/30

List of tables
Tbl. 1: Stickers on the product 8
Tbl. 2: Abbreviations used in this document 8
Tbl. 3: Permissible ambient conditions 11
Tbl. 4: Connection description for OPS 70 | OPS 100 14
Tbl. 5: Available spare parts 24
Tbl. 6: OPS 70 | OPS 100 - accessories 25
Tbl. 7: OPS 70 26
Tbl. 8: OPS 100 26
List of tables
5/30

List of figures
Fig. 1: Position of the stickers on the product 8

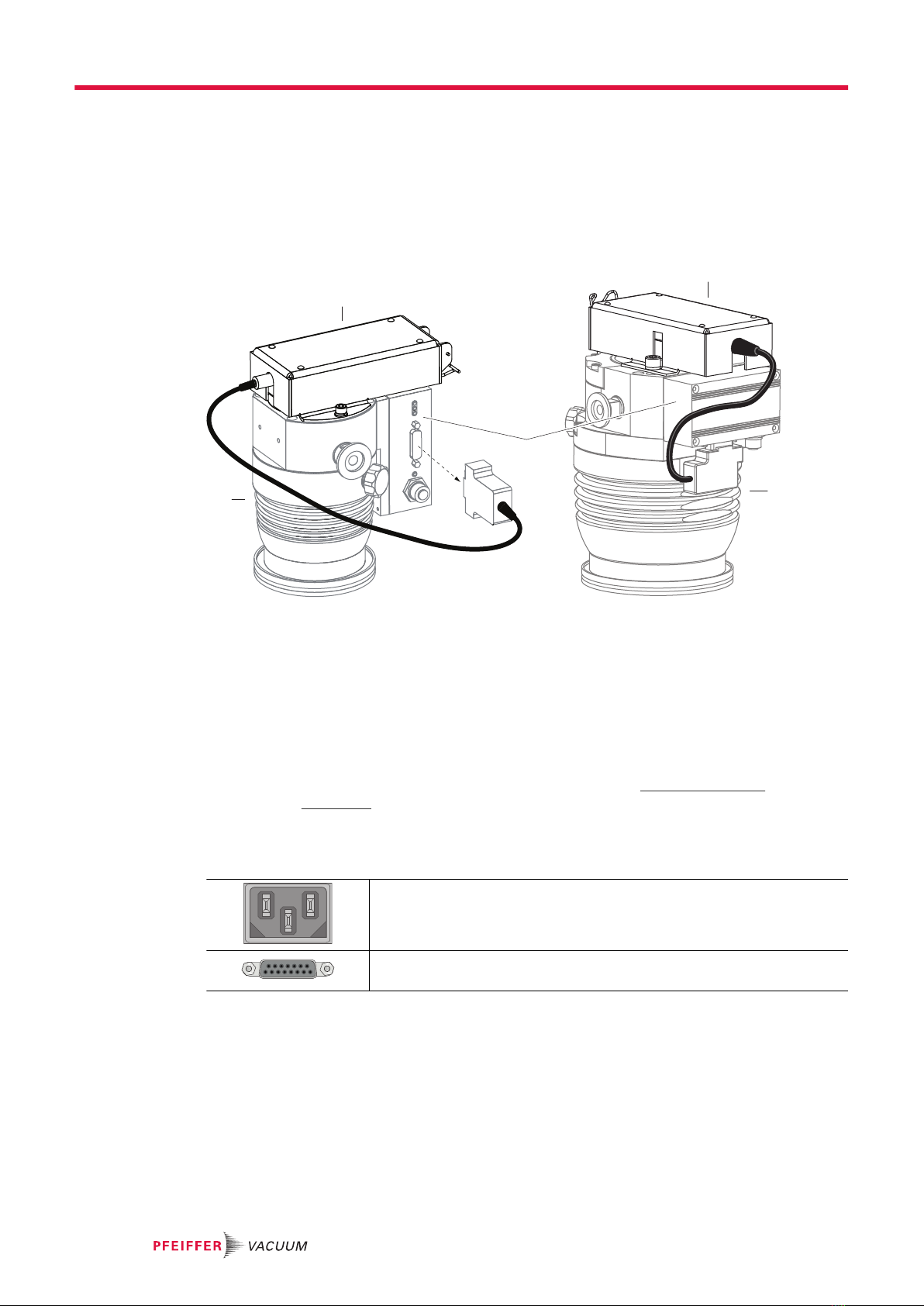

Fig. 2: Example design of OPS 70 | OPS 100 14

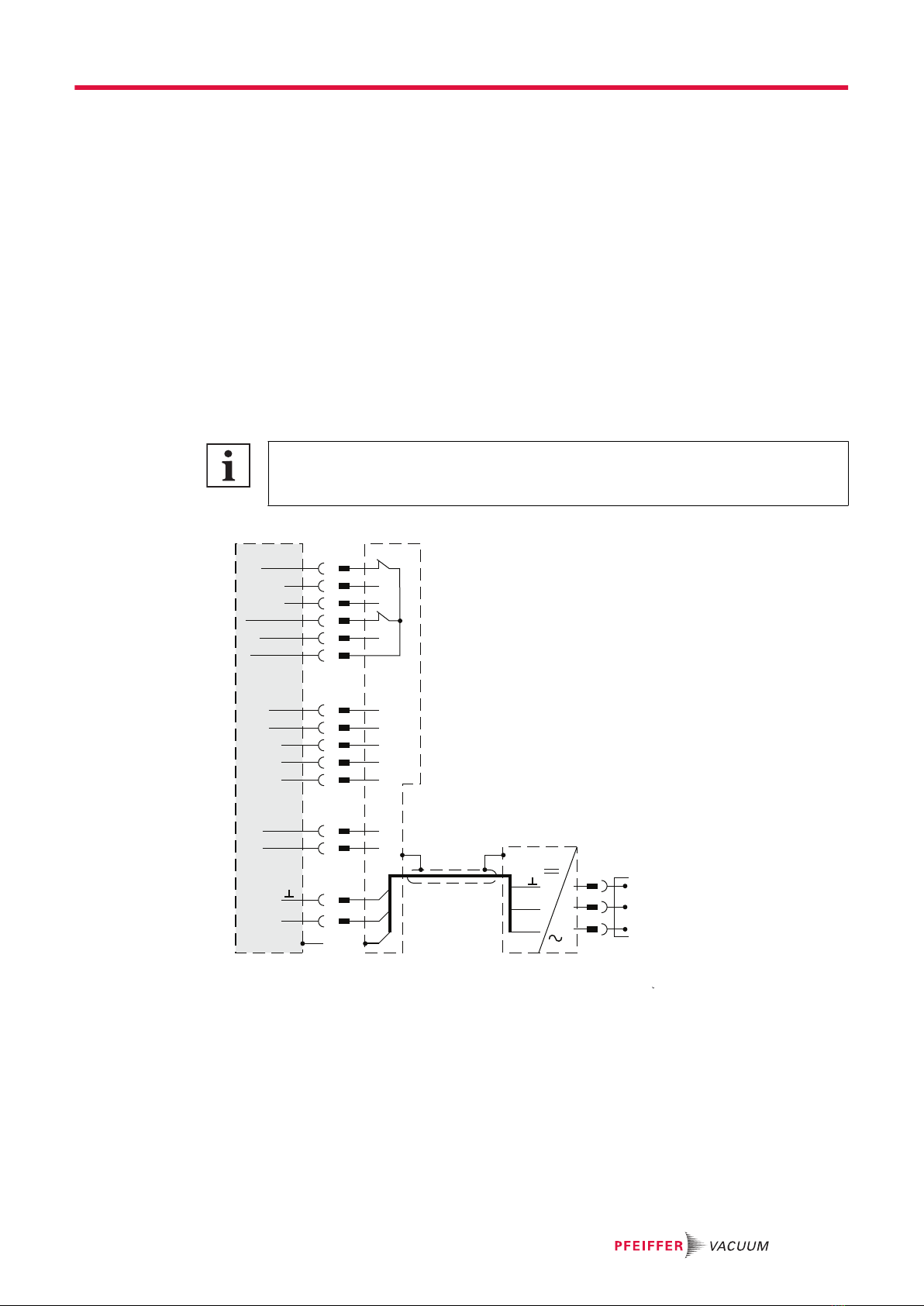

Fig. 3: Connection diagram for HiPace 300 with TC 110 and OPS 70 | OPS 100 15
Fig. 4: Example connection to the mains power supply 16

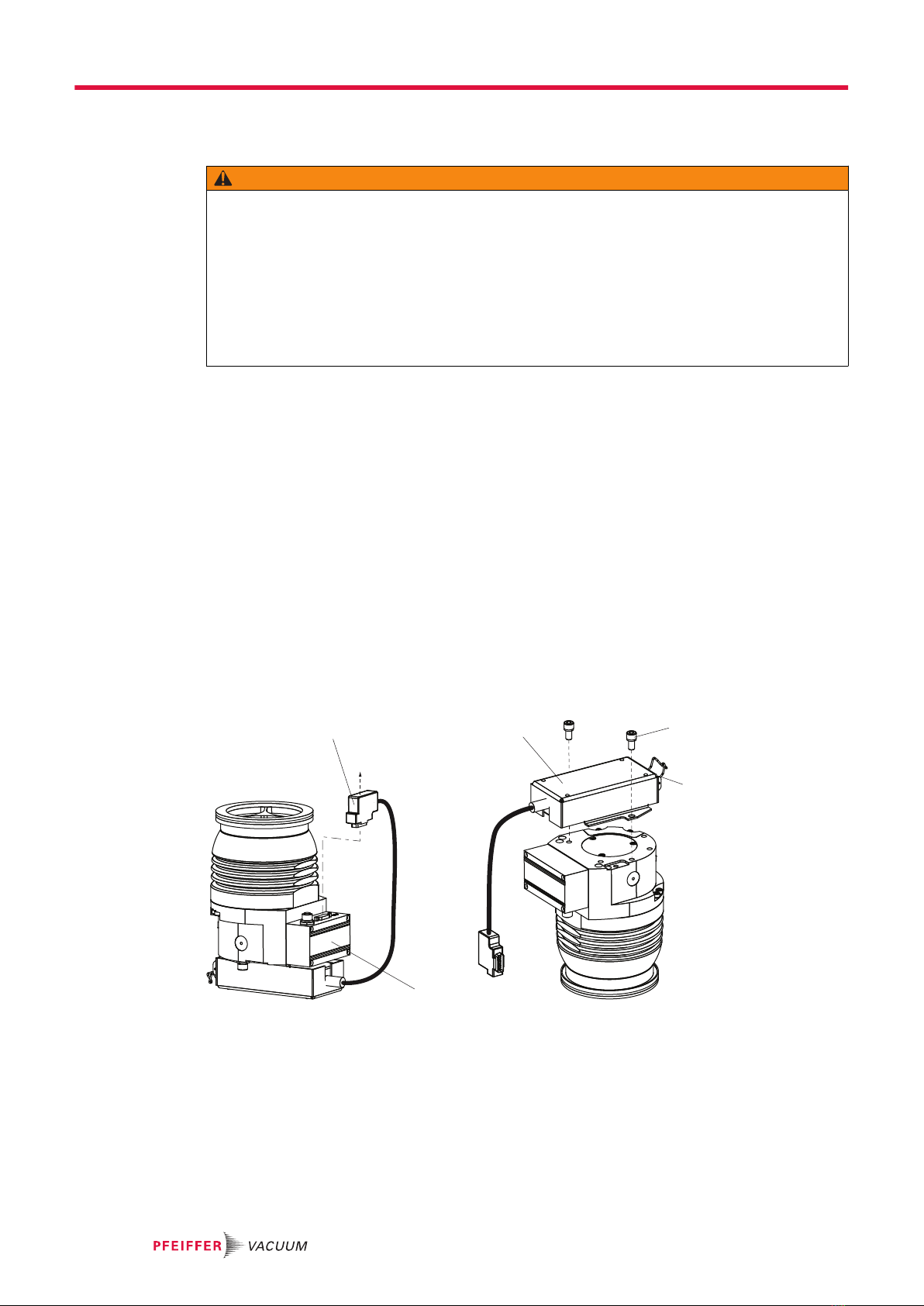

Fig. 5: Example disassembly of OPS 100 from HiPace 300 18
Fig. 6: Example mounting the OPS 100 onto HiPace 300 19
Fig. 7: Spare part for OPS 70 | OPS 100 24
Fig. 8: Dimensions OPS 70 27
Fig. 9: Dimensions OPS 100 28
List of figures
6/30

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
This operating instructions is a customer document of Pfeiffer Vacuum. The operating instructions de-
scribe the functions of the named product and provide the most important information for the safe use of
the device. The description is written in accordance with the valid directives. The information in this op-
erating instructions refers to the product's current development status. The document shall remain valid
provided that the customer does not make any changes to the product.
1.1.1 Applicable documents
Designation Number
Declaration of conformity A component of these instructions
1.1.2 Variants
●OPS 70
●OPS 100
1.2 Target group
These operating instructions are aimed at all persons performing the following activities on the product:
●Transportation
●Setup (Installation)
●Usage and operation
●Decommissioning
●Maintenance and cleaning
●Storage or disposal
The work described in this document is only permitted to be performed by persons with the appropriate
technical qualifications (expert personnel) or who have received the relevant training from Pfeiffer Vac-
uum.
1.3 Conventions
1.3.1 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
1.3.2 Pictographs
Pictographs used in the document indicate useful information.
About this manual
7/30

Note
Tip
1.3.3 Stickers on the product
This section describes all the stickers on the product along with their meaning.
Mod.:
Mod.-No.:
Input:
Output:
Ser. -No.:
Made in Germany
OPS 100
PM 061 680 -X
Weight:
115-230 V 50/60 Hz 120 VA
D-35614 Asslar
24 V 4.16 A
1.0 kg 2020
75017003
Rating plate (example)
Rating plates of the devices are affixed to the housing where
they can be clearly seen
CUS
Safety approved
USA CAN
TÜV Rheinland
Test seal:
The test seal provides information regarding additional certifi-
cations
Tbl. 1: Stickers on the product
2
1

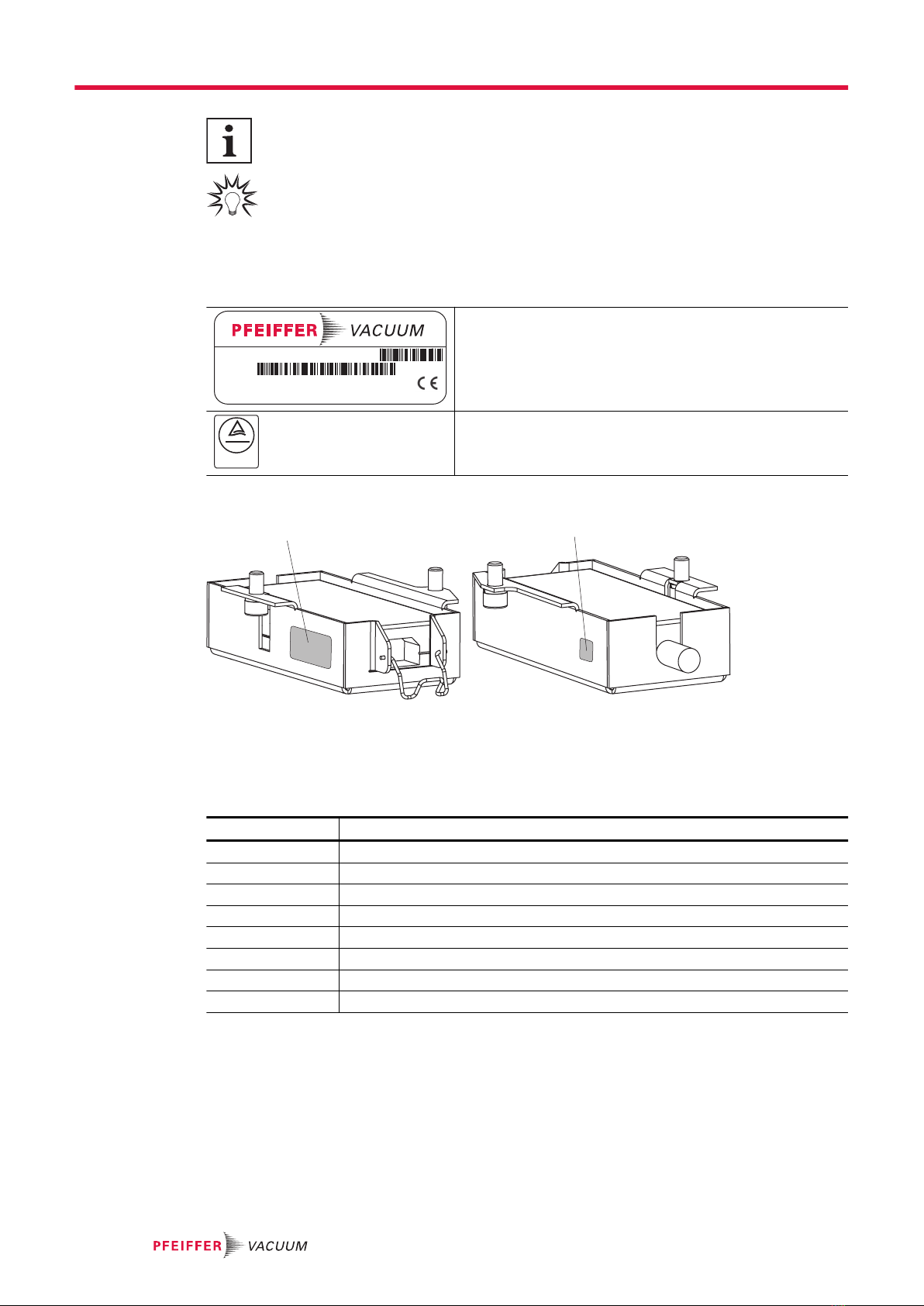

Fig. 1: Position of the stickers on the product
1 Rating plate 2 CAN/USA test seal
1.3.4 Abbreviations
Abbreviation Meaning in this document
AC Alternating Current voltage
DC Direct Current voltage
FKM Fluorinated rubber
OPS On-board power supply pack
PE Protective earth (earthed conductor)
TC Electronic drive unit (turbo controller)
WAF Width across flats
X3 15-pole D-Sub connecting socket on the electronic drive unit
Tbl. 2: Abbreviations used in this document
About this manual
8/30

2 Safety
2.1 General safety information
The following 4 risk levels and 1 information level are taken into account in this document.
DANGER
Immediately pending danger
Indicates an immediately pending danger that will result in death or serious injury if not observed.
►Instructions to avoid the danger situation
WARNING
Potential pending danger
Indicates a pending danger that could result in death or serious injury if not observed.
►Instructions to avoid the danger situation
CAUTION
Potential pending danger
Indicates a pending danger that could result in minor injuries if not observed.
►Instructions to avoid the danger situation
NOTICE
Danger of damage to property
Is used to highlight actions that are not associated with personal injury.
►Instructions to avoid damage to property
Notes, tips or examples indicate important information about the product or about this docu-
ment.
2.2 Safety instructions
All safety instructions in this document are based on the results of the risk assessment carried out in
accordance with Low Voltage Directive 2014/35/EU. Where applicable, all life cycle phases of the prod-
uct were taken into account.
Risks during installation
WARNING
Risk of fatal injury due to electric shock on account of incorrect installation
The device's power supply uses life-threatening voltages. Unsafe or improper installation can lead to
life-threatening situations from electric shocks obtained from working with or on the unit.
►Ensure safe integration into an emergency off safety circuit.
►Do not carry out your own conversions or modifications on the unit.
WARNING
Danger of cut injuries from unexpected start up.
The use of mating plugs of the electronic drive unit (accessories) enables the automatic run-up of the
vacuum pump as soon the power is turned on. Attaching mating plugs before or during the installa-
tion leads to the movement of parts hence the risk of cut injuries by sharp-edged in the exposed high
vacuum flange.
►Only connect mating plugs after the mechanical installation.
►Only switch on the vacuum pump immediately prior to operation.
Safety
9/30

WARNING
Risk of danger to life through missing mains disconnection device
The vacuum pump and electronic drive unit are not equipped with a mains disconnection device
(mains switch).
►Install a mains disconnection device according to SEMI-S2.
►Install a circuit breaker with an interruption rating of at least 10,000 A.
Risks during operation
WARNING
Danger of cut injuries from unexpected start up.
The use of mating plugs of the electronic drive unit (accessories) enables the automatic run-up of the
vacuum pump as soon the power is turned on. Attaching mating plugs before or during the installa-
tion leads to the movement of parts hence the risk of cut injuries by sharp-edged in the exposed high
vacuum flange.
►Only connect mating plugs after the mechanical installation.
►Only switch on the vacuum pump immediately prior to operation.
WARNING
Risk of burns in case of contact with hot surfaces
For the operator's safety, the products are designed to avoid thermal risk. Depending on the applica-
tion, the conditions of use generate high temperatures which require extra caution from users (surfa-
ces > 65 °C).
►Pay attention to the marking of hot surfaces indicated by safety labels.
►Wait for the part to cool completely before working on the product.
►If necessary, wear protective gloves in accordance with standard EN 420.
Risks during maintenance
WARNING
Danger to life from electric shock during maintenance and service work
The device is only completely de-energized when the mains plug has been disconnected and the
vacuum pump is at a standstill. There is a danger to life from electric shock when making contact with
live components.
►Before performing all work, switch off the main switch.
►Wait until the vacuum pump comes to a standstill (rotation speed =0).
►Disconnect all connection cables.
►Remove the mains plug from the device.
►Secure the device against unintentional restarting.
Recycling and disposal
WARNING
Health hazard through poisoning from toxic contaminated components or devices
Toxic process media result in contamination of devices or parts of them. During maintenance work,
there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub-
stances causes environmental damage.
►Take suitable safety precautions and prevent health hazards or environmental pollution by toxic
process media.
►Decontaminate affected parts before carrying out maintenance work.
►Wear protective equipment.
Safety
10/30
