Pfeiffer Vacuum A 100 L User manual

OPERATING INSTRUCTIONS
EN
Translation of the Original
A 100 L - A 100 L ES
Multi-stage Roots pump, compact, for light duty applications

Disclaimer of liability
These operating instructions describe all models and variants of your product. Note that your
product may not be equipped with all features described in this document. Pfeiffer Vacuum
constantly adapts its products to the latest state of the art without prior notice. Please take
into account that online operating instructions can deviate from the printed operating
instructions supplied with your product.
Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from
the use of the product that contradicts its proper use or is explicitly defined as foreseeable
misuse.
Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/62

Table of contents
1 About this manual 7
1.1 Validity 7
1.1.1 Applicable documents 7
1.1.2 Products concerned 7
1.2 Target group 7
1.3 Conventions 7
1.3.1 Instructions in the text 7
1.3.2 Pictographs 8
1.3.3 Etiquettes 8
1.3.4 Abbreviations 9
2 Safety 10
2.1 General safety information 10
2.1.1 Safety instructions 10
2.1.2 Precautions 12
2.2 Intended use 12
2.3 Foreseeable misuse 13
3 Transportation and Storage 14
3.1 Receipt of the product 14
3.2 Handling 14
3.3 Storage 15
4 Product description 17
4.1 Product identification 17
4.1.1 Scope of delivery 17
4.1.2 Fonction 17
4.2 The Human/Machine Interface 17
5 Installation 18
5.1 Pump set-up 18
5.1.1 Stacking of pumps 18
5.1.2 Installing the pump in a seismic environment 19
5.1.3 Connecting the water circuit 20
5.1.4 Connecting the nitrogen circuit 21
5.1.5 Connecting to the pumping line 22
5.2 Check that the installation is leak tight 22
5.3 Remote control via the 16-pin connector 23
5.4 Remote control via the 19-pin connector 24
5.5 Electrical connection 25
5.5.1 Customer electrical installation protection measures 25
5.5.2 Mains connection 26
6 Operation 28
6.1 Preliminary precautions for use 28
6.2 The control modes 28
6.3 Specific features of the A 100 L ES model's operation 29
6.4 Local mode operation 29
6.5 Remote mode operation 29
6.6 Operation monitoring 30
7 Maintenance 32
7.1 Maintenance safety instructions 32
7.2 Maintenance frequency 33
7.3 On-site maintenance 33
7.4 Exchange procedure for replacement products 33
7.4.1 Disconnecting the pump from the installation 33
Table of contents
3/62

7.4.2 Draining the water circuit 34
7.4.3 Preparing the pump for shipping 34
8 Decommissioning 35
8.1 Shutting down for longer periods 35
8.2 Recommissioning 35
8.3 Disposal 35
9 Malfunctions 36
9.1 Malfunction and fault indication 36
9.2 The pump does not start 36
9.3 The pump is running, an indicator light is on 36
9.4 The pump stops running 37
10 Service solutions by Pfeiffer Vacuum 38
11 Accessories 40
12 Technical data and dimensions 41
12.1 General 41
12.2 Technical characteristics 41
12.2.1Environmental conditions 42
12.2.2Cooling water characteristics 43
12.2.3Nitrogen characteristics 43
12.2.4Compressed dry air characteristics (CDA) 43
12.2.5Electrical characteristics 44
12.3 Dimensions 44
13 Appendix 49
13.1 Installation of serial link RS-232/RS-485 49
13.2 Connections 49
13.3 Configuration of communication protocol RS-232 51
13.4 Command list of communication protocol RS-232 51
13.5 Configuration of communication protocol RS-485 54
13.6 Command list of communication protocol RS-485 55
ETL Mark 58
SEMI Certificate 59
UK Declaration of Conformity 60
Declaration of incorporation of partly completed machinery 61
Table of contents
4/62

List of tables
Tbl. 1: Conversion table: Pressure units 42
Tbl. 2: Conversion table: Units for gas throughput 42
Tbl. 3: Environmental characteristics 42
Tbl. 4: Cooling water characteristics 43
Tbl. 5: Nitrogen characteristics 43
Tbl. 6: Compressed dry air characteristics (CDA) 43
Tbl. 7: Electrical network protection 44
Tbl. 8: Main circuit breaker rating and cable cross-section size 44
Tbl. 9: Load distribution by foot: case of a single pump 45
Tbl. 10: Load distribution by foot: 2 pump stacked 46
Tbl. 11: Load distribution on seismic brackets 48
List of tables
5/62

List of figures
Fig. 1: Safety label locations 9
Fig. 2: Fitting the lifting strap 14
Fig. 3: Installation of the removable handle 15
Fig. 4: The Human/Machine Interface 17
Fig. 5: Operating position 18
Fig. 6: Stacking of two pumps 19
Fig. 7: 16-pin remote control connector wiring 23
Fig. 8: 19-pin remote control connector wiring 24
Fig. 9: Electrical connection 26
Fig. 10: Dimensions of the pump 44
Fig. 11: Dimensions of the pump equipped with seismic brackets 47
List of figures
6/62

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
These operating instructions are a customer document of Pfeiffer Vacuum. The operating instructions
describe the functions of the named product and provide the most important information for the safe use
of the device. The description is written in accordance with the valid directives. The information in these
operating instructions refers to the product's current development status. The document shall remain
valid provided that the customer does not make any changes to the product.
1.1.1 Applicable documents
Document Part number
Serial link operating instructions included with these operating instructions
UL/CSA compliance (ETL mark) included with these operating instructions
Certificate of conformity to SEMI included with these operating instructions
Declaration of incorporation of partly completed machi-
nery
included with these operating instructions
UK Declaration of conformity included with these operating instructions
1.1.2 Products concerned
This document applies to products with the following part numbers:
Part Number Description
A100L3XXXX and
A100L4XXXX
Model for load-lock or transfer chamber pumping
A100L5XXXX Model for load-lock or transfer chamber pumping (A 100 L ES model)
1.2 Target group
This user manual is intended for all persons in charge of transport, installation, commissioning/decom-
missioning, use, maintenance or storage of the product.
The work described in this document must only be carried out by persons with suitable technical training
(specialized staff) or persons who have undergone Pfeiffer Vacuum training.
1.3 Conventions
1.3.1 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
About this manual
7/62

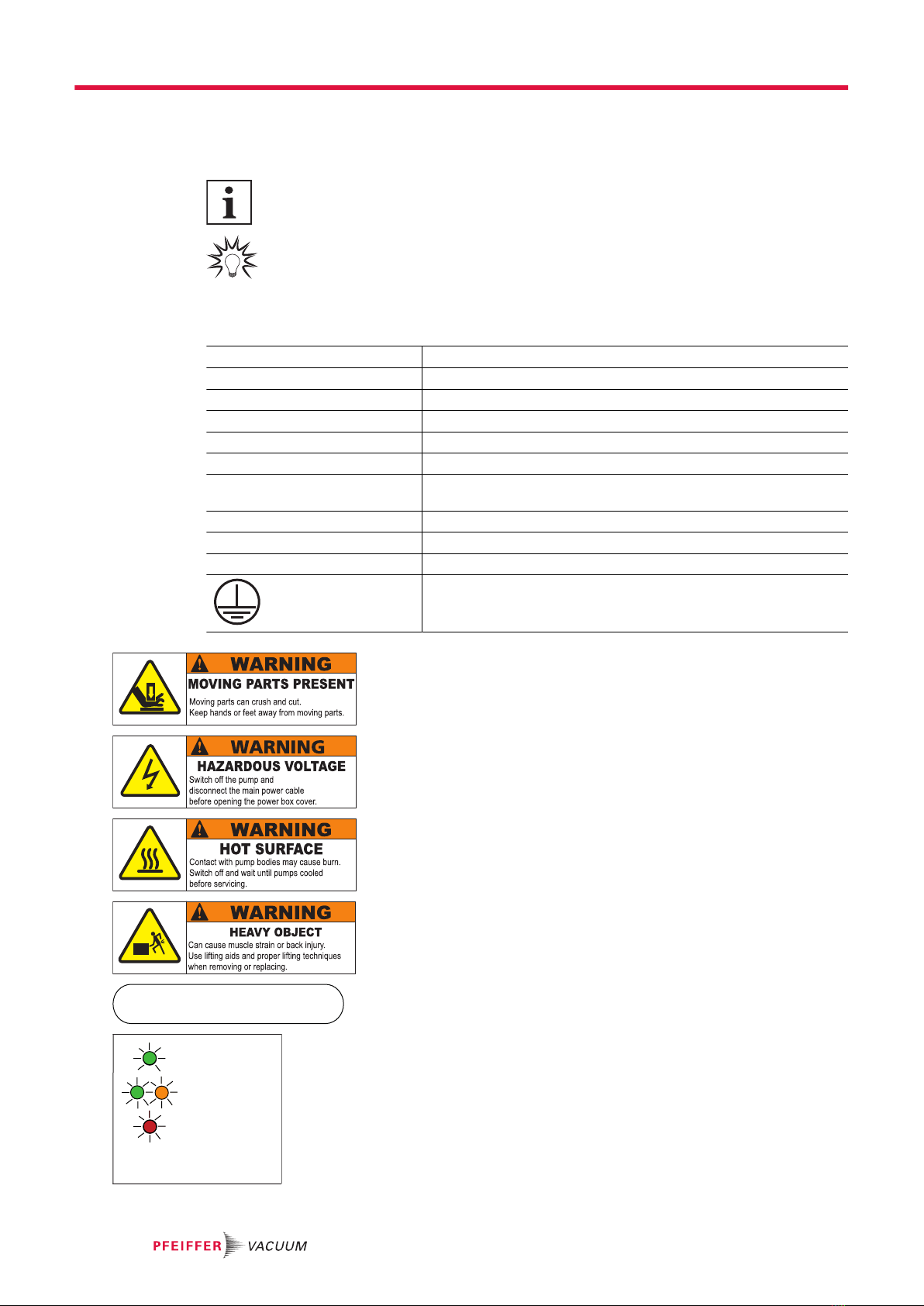

1.3.2 Pictographs
Pictographs used in the document indicate useful information.
Note
Tip
1.3.3 Etiquettes
ON/OFF Pump Start/Stop
INLET Pump inlet connection
PUMP EXHAUST Pump exhaust
MAIN POWER Mains power supply
SPI Remote control connection (SPI Smart Pump Interface)
WATER IN Water circuit connection: inlet
PRESSURE MAX 101 PSI
(7 bars)
Maximum water circuit pressure
WATER OUT Water circuit connection: outlet
Loc/Rem Control mode switch (local or remote control)
N2 IN Connecting the nitrogen or compressed dry air circuit (A 100 L ES)
CPC Earth connection
1 This label warns users about the risk of crushing or cutting due to moving
parts: keep a safe distance and/or keep your hands away from the moving
parts.
2 This label indicates that certain internal components carry an electric
charge and can cause electric shock if touched: before working on the
pump, always either disconnect it, or lock out/tag out the installation breaker
in the appropriate manner.
3 This label warns users that they risk being injured if their hands come into
contact with a hot surface: wear protective gloves before any intervention.
4 This label indicates that the product should not be handled manually due to
its weight and that appropriate handling devices should always be used.
5
SEISMIC TIE DOWN
A 329 962 - 5
This label indicates the location of the holes for seismic bracket installation.
6
PUMP RUNNING
PUMP ALARM
TURN OFF POWER SWITCH
TO RESET ALARM/HAZARD
TEMP WARNING
This label indicates the pump’s operating status via the indicator lights.
About this manual
8/62

7
The main power supply must be
switched off before connecting
and/or disconnecting the pump.
This label indicates that the power supply must be switched off before con-
necting and/or disconnecting the pump.
8 This label indicates that the product has been certified in accordance with
quality control when leaving the factory.
9
200-230 V Δ 50/60 Hz
THREE PHASES
FOUR WIRES
Full-Load current
12 Amp.
This label indicates the full load current at the motor output in relation to the
mains voltage (illustrative value).
10
100 kg 200-230V 50/60 Hz
A100L31424 4 - 2016
XYZXYSYSS A100L
A100L31424
98 avenue de Brogny F-74000 ANNECY
Product rating plate (example).
6
1
3
2
4
5
7
3
5
5
Fig. 1: Safety label locations
1 Moving parts 5 Seismic brackets anchor point
2 Electric shock hazard 6 Pump operating status
3 Hot surface 7 Electrical safety
4 Heavy object
1.3.4 Abbreviations
CDA Compressed Dry Air
Exh. Exhaust
EMS Emergency Stop
IN Inlet flange
About this manual
9/62

2 Safety
2.1 General safety information
The following 4 risk levels and 1 information level are taken into account in this document.
DANGER
Immediately pending danger
Indicates an immediately pending danger that will result in death or serious injury if not observed.
►Instructions to avoid the danger situation
WARNING
Potential pending danger
Indicates a pending danger that could result in death or serious injury if not observed.
►Instructions to avoid the danger situation
CAUTION
Potential pending danger
Indicates a pending danger that could result in minor injuries if not observed.
►Instructions to avoid the danger situation
NOTICE
Danger of damage to property
Is used to highlight actions that are not associated with personal injury.
►Instructions to avoid damage to property
Notes, tips or examples indicate important information about the product or about this docu-
ment.
2.1.1 Safety instructions
All safety instructions in this document are based on the results of the risk assessment carried out in
accordance with Machinery Directive 2006/42/EC Annex I and EN ISO 12100 Section 5. Where applica-
ble, all life cycle phases of the product were taken into account.
WARNING
Risk of crushing when the product is slung
Given the heaviness of the product, there is a risk of crushing during handling operations involving
lifting devices. Under no circumstances shall the manufacturer be liable if the following instructions
are not followed:
►Only qualified staff trained in handling heavy objects are authorized to handle the product.
►The lifting devices provided must be used and the procedures set out in this document must be
followed.
DANGER
Risk of crushing due to the rupture of lifting devices
The brackets are not designed to lift two stacked pumps; they may break or be torn loose by the
weight of the two pumps.
►Never lift two stacked pumps using the lifting brackets.
Safety
10/62

WARNING
Risk of electric shock due to non-compliant electrical installations
This product uses mains voltage for its power supply. Non-compliant electrical installations or installa-
tions not done to professional standards may endanger the user’s life.
►Only qualified technicians trained in the relevant electrical safety and EMC regulations are au-
thorized to work on the electrical installation.
►This product must not be modified or converted arbitrarily.
►Check that the product is properly connected to the equipment’s or pumping installation’s emer-
gency stop circuit.
WARNING
Danger of electrocution by contact during maintenance or overhaul
There is an electric shock hazard in case of contact with a product powered on and not electrically
isolated.
►Before carrying out any work, set the main switch to O.
►Disconnect the power cable from the mains.
►Secure the installation correctly by tagging and locking (LO/TO) the system to prevent uninten-
tional re-engagement.
WARNING
Risk of injury in case of contact with pressurized water
The product uses pressurized water as a cooling fluid. Non-compliant installations or installations not
done to professional standards may endanger the user’s life.
►Install a manual valve on the circuit at a distance of 3 m from the product, so that the water sup-
ply can be locked out.
►Observe the recommended pressure and pressure differences.
►Always lock out and disconnect the water circuit before working on the product.
►When carrying out maintenance, secure the installation properly by locating and locking out the
pressurized water circuit to prevent it from being re-engaged by accident (LO/TO Lock Out/Tag
Out procedure).
►Regularly check the condition of the pipework and supply circuit connections.
WARNING
Risk of injury in case of contact with pressurized nitrogen
The product uses pressurized nitrogen as a flushing gas. Non-compliant installations or installations
not done to professional standards may endanger the user’s life.
►Install a manual valve on the circuit at a distance of 3 m from the product, so that the nitrogen
supply can be locked out.
►Observe the recommended supply pressure.
►Always lock out and disconnect the nitrogen circuit before working on the product.
►When carrying out maintenance, secure the installation properly by locating and locking out the
pressurized nitrogen circuit to prevent it from being re-engaged by accident (LO/TO Lock
Out/Tag Out procedure).
►Regularly check the condition of the pipework and supply circuit connections.
WARNING
Risk of poisoning when process gases are present in the atmosphere
The manufacturer has no control over the types of gases used with the pump. Process gases are of-
ten toxic, flammable, corrosive, explosive and/or otherwise reactive. There is a risk of serious or fatal
injury if these gases are allowed to escape freely into the atmosphere.
►Apply the relevant safety instructions in accordance with local regulation. This information is
available from the operator’s safety department.
►The pump exhaust must be connected to the installation’s dangerous gases extraction sys-
tem.
►Regularly check that there are no leaks where the pump connects to the exhaust pipework.
Safety
11/62

WARNING
Risk of burns in case of contact with hot surfaces
Component temperature remains high, even after the pump has stopped. There is a risk of burns
through contact with hot surfaces, especially at the pump exhaust.
►Wait for the product to fully cool down before working on it.
►Protective gloves must be worn in accordance with standard EN ISO 21420.
WARNING
Risk of crushing and/or cutting in case of contact with moving parts
The pump inlet flange is large enough for body part (finger or hand) to be inserted into it, presenting a
risk of crushing due to contact with moving parts. The inlet and exhaust ports should be sealed with
blanking plates before connection.
►Wait for the pumping line to be connected before removing the blanking plates.
►Wait for the pump to be connected before powering on.
2.1.2 Precautions
Duty to provide information on potential dangers
The product holder or user is obliged to make all operating personnel aware of dangers
posed by this product.
Every person who is involved in the installation, operation or maintenance of the product
must read, understand and adhere to the safety-related parts of this document.
Infringement of conformity due to modifications to the product
The Declaration of Conformity from the manufacturer is no longer valid if the operator
changes the original product or installs additional equipment.
●Following the installation into a system, the operator is required to check and re-evalu-
ate the conformity of the overall system in the context of the relevant European Direc-
tives, before commissioning that system.
Only qualified personnel trained in safety regulations (EMC, electrical safety, chemical pollution) are au-
thorized to carry out the installation and maintenance described in this manual. Our service centers can
provide the necessary training.
The potential risks to a dry pumping system intended for load-lock pumping relate to electricity, hot sur-
faces, pressurized water and nitrogen circuits.
►Do not expose any part of the human body to the vacuum.
►Comply with all safety and risk prevention instructions in accordance with local safety standards.
►Regularly check compliance with all precautionary measures.
►Do not remove the blanking plates sealing the inlet and exhaust ports if the product is not con-
nected to the pumping line.
►Do not operate the product unless the inlet and exhaust are connected to a vacuum and exhaust
pumping line.
►Do not turn on the product if the covers are not in place.
►Never move the product while in use.
2.2 Intended use
●The vacuum pump should only be used to generate a vacuum while pumping gases.
●The vacuum pump is designed to operate in industrial environments.
●The pump must run on light-duty, non-corrosive applications, essentially for load-lock pumping, or
the roughing of turbomolecular pumps.
Safety
12/62

2.3 Foreseeable misuse
Misuse of the product will render the warranty and any claims void. Any use, whether intended or not,
that diverges from the uses already mentioned will be treated as non-compliant; this includes but is not
limited to:
●Pumping liquids
●Pumping dust particles
●Pumping of gases other than argon, helium, nitrogen and air
●Pumping of corrosive or explosive media
●Pumping reactive fluids
●Pumping of condensable vapors
●Using the vacuum pump to generate pressure
●Using the pump in potentially explosive areas
●Using accessories or spare parts not mentioned in these operating instructions
The product is not designed to carry people or loads and should not be used as a seat, stepladder or
similar.
Safety
13/62

3 Transportation and Storage
3.1 Receipt of the product
Condition of the delivery
●Check that the product has not been damaged during transport.
●If the product is damaged, take the necessary measures with the carrier and notify the
manufacturer.
►Keep the product in its original packaging so it stays as clean as it was when dispatched by us.
Only unpack the product once it has arrived at the location where it will be used.
►Keep the blanking plates in place on the inlet, exhaust and purge ports while the product is not
connected to the pumping line.
Keep the packaging (recyclable materials) in case the product needs to be transported or
stored.
3.2 Handling
WARNING
Risk of crushing when the product is slung
Given the heaviness of the product, there is a risk of crushing during handling operations involving
lifting devices. Under no circumstances shall the manufacturer be liable if the following instructions
are not followed:
►Only qualified staff trained in handling heavy objects are authorized to handle the product.
►The lifting devices provided must be used and the procedures set out in this document must be
followed.
WARNING
Risk of crushing related to product tilting
Although the product fully complies with the EU safety regulations, there is a risk of tilting when it is
moved over the floor or is not properly secured.
►Do not place the product on a slope: because of its weight, it will drag the operator with it.
►Only use the casters for moving the equipment over short distances.
►Place it on a flat, hard floor.
►Do not push the product sideways.
►To use the product, place it on its feet so that it no longer rests on its casters.
2
3
1
2c
2a
2b
3

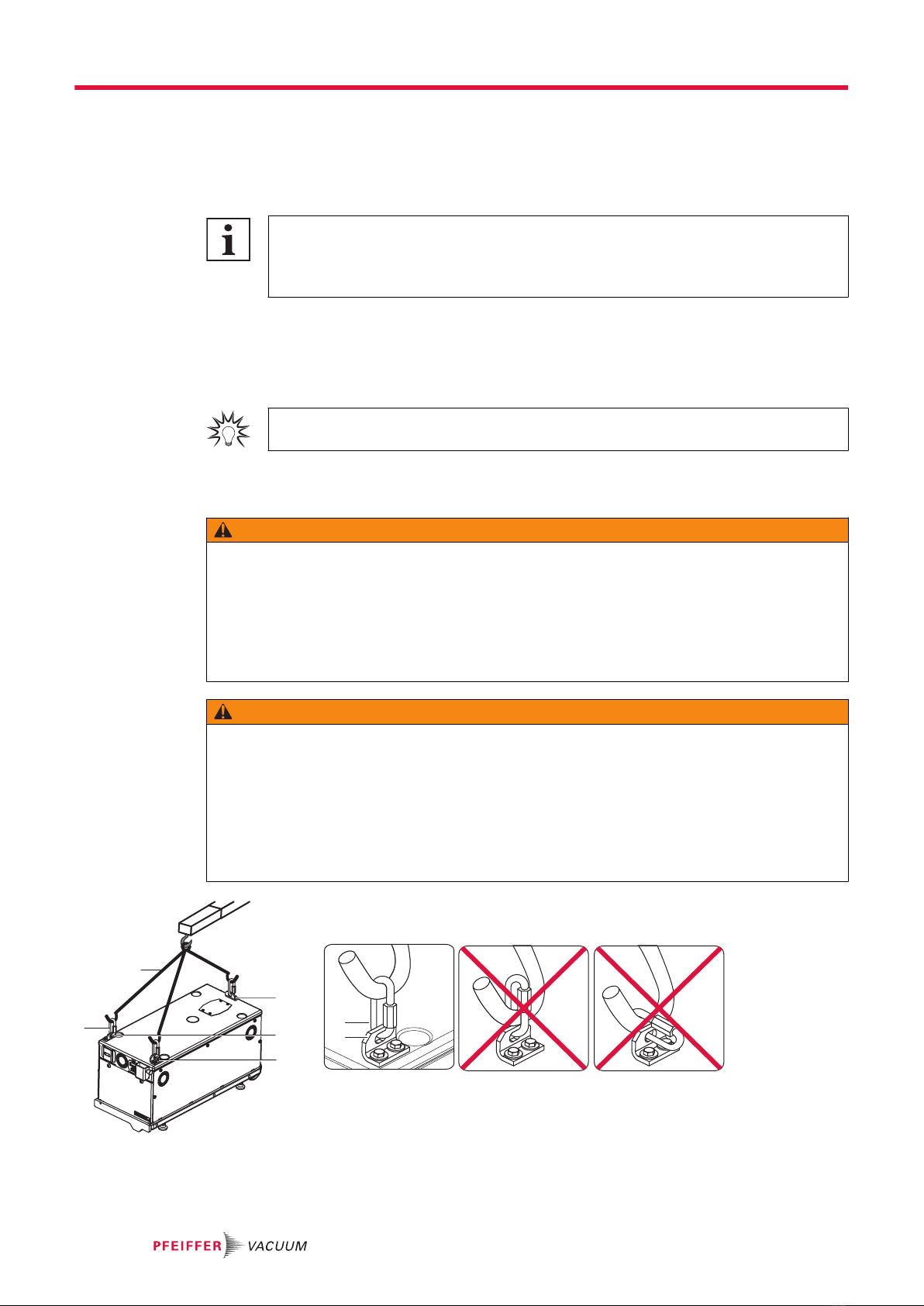

Fig. 2: Fitting the lifting strap
1 Strap 3 Safety hook (Qty: 3)
2 Bracket (Qty: 3)
Transportation and Storage
14/62

Handling the pump using a hoist
When handling the pump, a lifting device appropriate for the weight of the product must be used.
The weight and center of gravity vary according to the model .
1. Remove the pump from its packaging
2. Use a 3-section strap with the following characteristics:
–length of each section: 1 m
–load per section:
–bracket (2a): 261 N
–bracket (2b): 236 N
–bracket (2c): 570 N
3. Use the safety hooks attached to the lifting brackets.
4. Check the position of the safety hooks in the brackets.
5. Hoist the pump using a 3-section strap.
6. Reassemble the leveling pads of the frame and lower the pump on the casters to move it over
short distances.
2
1
3
1

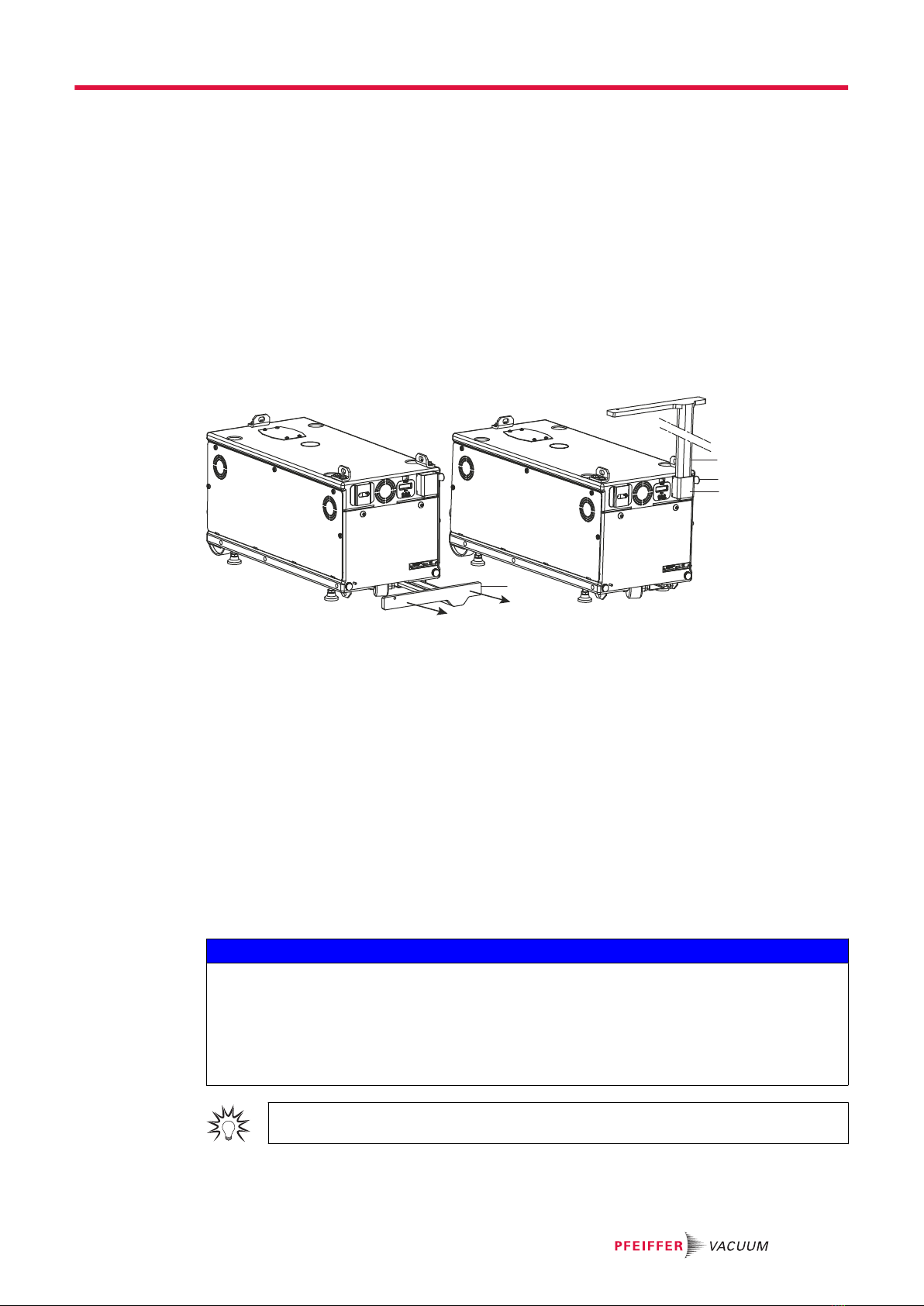

Fig. 3: Installation of the removable handle
1 Handle 3 Handle holder
2 Lock
Moving the pump with the handle
The pump is equipped with a removable handle stored under the product.
1. Check that the locking screw jacks are not in contact with the ground before moving the
pump.
2. Pull the handle along the rail to remove it.
3. Unlock the lock.
4. Install the handle in its holder.
5. Check that the handle is properly locked before moving the pump.
6. Store the handle underneath the product when the pump is in place.
3.3 Storage
NOTICE
Damage to internal parts in a humid atmosphere
The internal parts may be damaged if moisture is allowed to enter the pump. Pumps are supplied
pressurized with nitrogen and sealed with blanking plates.
►The pump inlet, exhaust and purge blanking plates must be kept in place until the pump is instal-
led.
►Only remove the blanking plates when the pump is connected to the pumping line.
Pfeiffer Vacuum recommends storing the products in their original transport packaging.
Transportation and Storage
15/62

Storing a new pump
►Keep the pump wrapped in its protective envelope.
►The inlet and exhaust blanking plates must always be left in place because the pump is pressur-
ized with nitrogen.
►Store the pump for up to 1 year, according to the permitted storage temperatures (see chapter
“Environmental conditions”).
If the inlet and exhaust blanking plates have been removed, the internal parts may be at risk of corro-
sion. In such cases:
1. Pressurize the pump with nitrogen in accordance with the following procedure.
2. Store the pump for up to 1 year in a clean and dry area, at ambient temperature (see chapter “En-
vironmental Conditions”).
When a new pump has been stored for more than 1 year, contact our service center before
starting the pump.
Pressurizing with nitrogen
To pressurize the pump, you will need a nitrogen supply with the required characteristics (see chapter
“Nitrogen characteristics”) and the blanking plates provided with the product or obtainable as accesso-
ries.
1. Seal the pump inlet with the airtight accessories.
2. Connect the nitrogen supply to the gas connector located on the inlet blanking plate.
3. Pressurize the pump with nitrogen to a relative pressure of 200 hPa.
4. When nitrogen starts flowing from the exhaust, seal it with the accessories provided.
5. Disconnect the nitrogen supply from the connector.
Never store a pump that has been used! Return it to the service center (see chapter “Service solu-
tions by Pfeiffer Vacuum”, page 38).
Transportation and Storage
16/62

4 Product description
4.1 Product identification
To correctly identify the product when communicating with our service center, always have the informa-
tion from the product rating plate available (see chapter "Labels").
4.1.1 Scope of delivery
●1 vacuum pump
●2 water connectors
●1 power cable equipped with a female electrical connector
●1 mains socket mounting flange
●3 CHc M8x16 screws and 3 washers
●1 lifting hooks safety and usage guide
●1 set of operating instructions
4.1.2 Fonction
The manufacturer has developed a pump dedicated to light-duty, non-corrosive applications such as
load-lock or transfer chamber pumping for the semiconductor or photovoltaic industry, the roughing of
turbomolecular pumps.
The A100 L multi-stage dry pump is a compact model, which is easily integrated into equipment, re-
quires no preventive maintenance and is highly reliable.
The A100 L ES model is equipped with the 'Energy Saving' option which reduces energy consumption
by 50%. This 'Energy Saving' option is automatically activated when pumping conditions are required.
4.2 The Human/Machine Interface
8
1
2
3
6
7
5
4
11
1213
9
10
14
Fig. 4: The Human/Machine Interface
1 Operating indicator lights 8 Remote control connector
2 Time counter 9 Mains power supply
3 Loc-Rem operating mode switch 10 Nitrogen circuit input
4 ON/OFF circuit breaker 11 Water input/output
5 Handle holder 12 Pump inlet
6 Lifting bracket 13 Pump exhaust
7 Removable handle 14 RS-232/RS-485 serial link connector
The pump includes an electronic monitoring system guaranteeing automatic operation and the manage-
ment of safety features: temperature alarm and warning. It is used to:
●display the pump’s operating status via indicator lights,
●display the pump’s operating time on the time counter,
●interface the pump with the equipment via a remote control connector or RS-232/RS-485 serial
link.
Product description
17/62

5 Installation
5.1 Pump set-up
1
IN Exh.
IN
Exh.
1
1
Fig. 5: Operating position
1 Holes for attaching the pump to a frame Exh. Pump Exhaust
IN Inlet
The product must be used in horizontal position, standing on its feet.
1. Déterminer l'emplacement de la pompe.
2. Use the recommended lifting devices when handling the pump (hoist and safety hooks) (see
chapter "Handling").
3. Move the pump into position and adjust the height of the 4 feet.
4. Use a spirit level to check that the pump is perfectly horizontal.
The pump can be secured to the frame of the equipment in which it is installed, using the tapped holes
provided for this purpose.
►Tighten at least 4 M 10x25 grade 8-8 screws (supplied by the customer) in the holes of the frame.
–tightening torque: 40 N·m.
CAUTION
Risk of falling due to poorly-secured cables or pipework
The space around the pump must be kept clear of obstacles to prevent falls from potentially occur-
ring.
►Route and secure electric cables and pipework in the appropriate pathways.
5.1.1 Stacking of pumps
DANGER
Risk of crushing due to the rupture of lifting devices
The brackets are not designed to lift two stacked pumps; they may break or be torn loose by the
weight of the two pumps.
►Never lift two stacked pumps using the lifting brackets.
Installation
18/62

IN
IN
4
3
5
1
A
B
A
B
2
2
A
B
Fig. 6: Stacking of two pumps
1 Locking foot (pump A) 5 Locking foot (pump B)
2 Upper bracket (pump B) A Upper pump
3 Screw B Lower pump
4 Lower bracket (pump A)
Procedure for stacking two pumps
The product is fitted with brackets to facilitate the stacking of two pumps.
1. Check that the brackets are correctly screwed in:
–3 lifting brackets on the upper cover of pump A and pump B
–3 brackets under the frame of pump A
2. Adjust the locking feet of lower pump B:
–they must be in contact with the ground; under no circumstances can the casters be in
contact with the ground.
3. Use a spirit level to check that the pump is perfectly horizontal.
4. Adjust the locking feet of upper pump A:
–the casters must not be in contact with the ground.
5. Hoist pump A using a lifting device (see chapter "Handling").
6. Position pump A on the cover of pump B:
–the locking feet must be positioned in the imprints provided on the cover of pump B.
7. Lock the locking feet of pump A:
–they must be locked correctly.
8. Use a spirit level to check that the pump is perfectly horizontal.
9. Assemble the pumps using the brackets.
10. Tighten the 3 CHc M8x16 screws and the washers to secure stacking.
–Tightening torque: 22 N·m
5.1.2 Installing the pump in a seismic environment
To install the pump in a seismic environment, it must be anchored to the floor with seismic brackets
(see chapter "Accessories"). It is up to the customer to provide the appropriate bolts for fixing the pump
to the floor such that the loads are evenly distributed through the feet and the type of floor is properly
accommodated .
When two pumps are stacked, only the lower pump is anchored to the floor with seismic brackets.
Installation
19/62

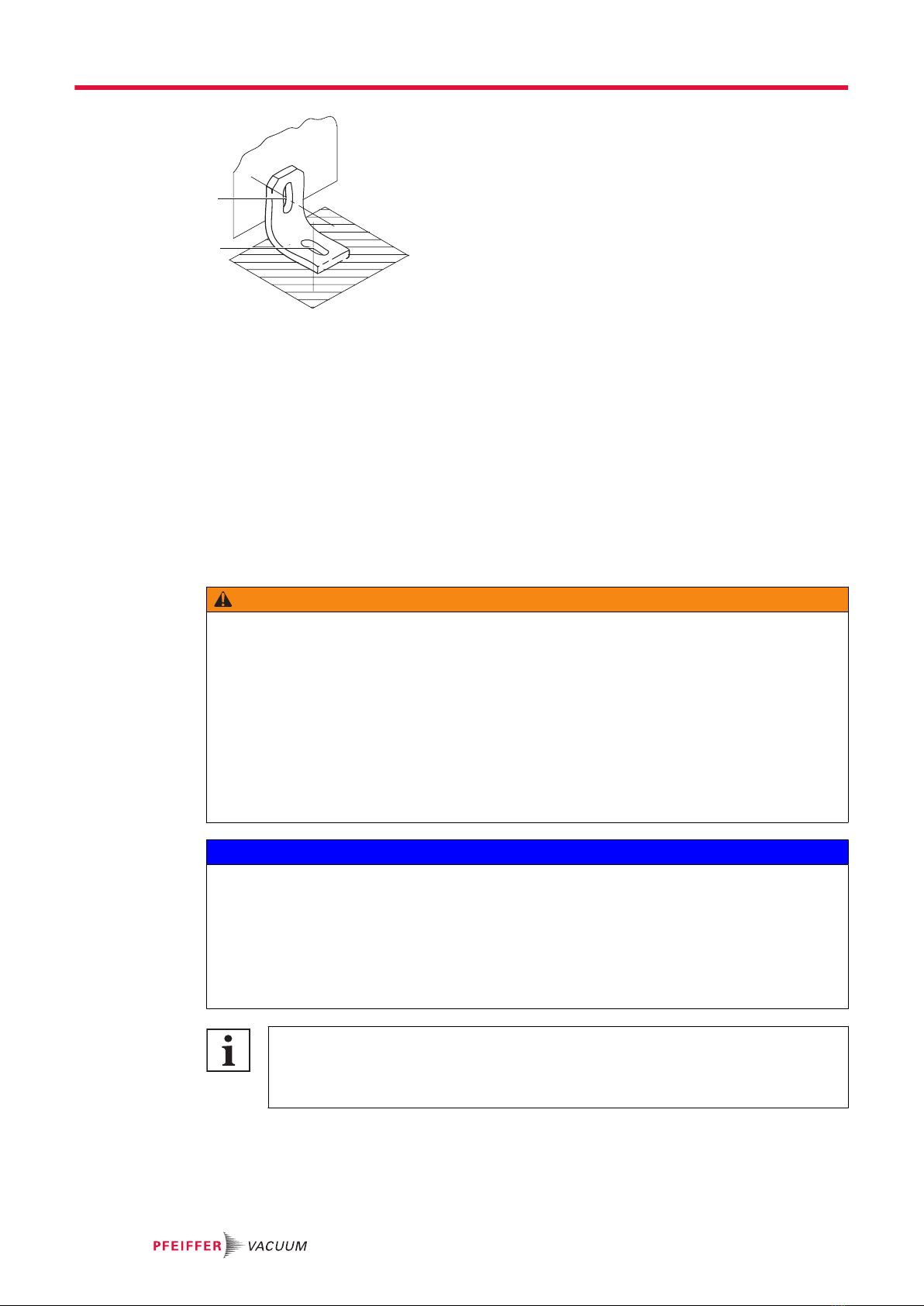

SEISMIC TIE DOWN
1
2
1 Location of fixing screws (supplied) 2 Location of the fixing accessories (supplied by the custom-
er)
Installing the brackets
Move the pump into its operating position.
1. Install the 4 brackets opposite the holes provided for this purpose, identified by a "Seismic tie
down" label.
2. Use a spirit level to check that the pump is perfectly horizontal.
3. Position the brackets and anchor them using the fixing screws supplied:
–tightening torque 40 N·m.
4. Secure the fixing brackets to the floor.
5.1.3 Connecting the water circuit
WARNING
Risk of injury in case of contact with pressurized water
The product uses pressurized water as a cooling fluid. Non-compliant installations or installations not
done to professional standards may endanger the user’s life.
►Install a manual valve on the circuit at a distance of 3 m from the product, so that the water sup-
ply can be locked out.
►Observe the recommended pressure and pressure differences.
►Always lock out and disconnect the water circuit before working on the product.
►When carrying out maintenance, secure the installation properly by locating and locking out the
pressurized water circuit to prevent it from being re-engaged by accident (LO/TO Lock Out/Tag
Out procedure).
►Regularly check the condition of the pipework and supply circuit connections.
NOTICE
The water cooling circuit may be damaged if an unregulated mains supply is used
Using unregulated mains water can lead to water circuit clogging due to limescale deposition. This
may necessitate complete cleaning and overhaul of the water cooling circuit.
Furthermore, the presence of micro-organisms such as algae and biological substances such
as bacteria can lead to problems in the cooling circuit.
►Connect the water cooling circuit to a regulated water supply.
►Take appropriate measures to prevent the growth of such micro-organisms.
The effect of cooling continuity on the process
If an interruption to the water circuit represents a serious risk for the process, it is advisable
to control the pump cooling with an external system capable of taking over if the water cir-
cuit fails.
To limit corrosion and clogging of the water circuit, we recommend using softened or non-aggres-
sive water with the required characteristics. If the solid pollution characteristics cannot be met, install a
filter on the water inlet.
Installation
20/62
