1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
This operating instructions is a customer document of Pfeiffer Vacuum. The operating instructions de-
scribe the functions of the named product and provide the most important information for the safe use of
the device. The description is written in accordance with the valid directives. The information in this op-
erating instructions refers to the product's current development status. The document shall remain valid
provided that the customer does not make any changes to the product.
1.1.1 Applicable documents
Designation Document
Declaration of conformity A component of these operating instructions
1.1.2 Variants
These instructions apply to diaphragm pumps of the AC series:
●MVP 040-2 as standard version
●MVP 070-3 as standard version
●MVP 070-3 C as corrosive gas version
1.2 Target group
These operating instructions are aimed at all persons performing the following activities on the product:
●Transportation
●Setup (Installation)
●Usage and operation
●Decommissioning
●Maintenance and cleaning
●Storage or disposal
The work described in this document is only permitted to be performed by persons with the appropriate
technical qualifications (expert personnel) or who have received the relevant training from Pfeiffer Vac-
uum.
1.3 Conventions
1.3.1 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
About this manual
7/58

1.3.2 Pictographs
Pictographs used in the document indicate useful information.
Note
Tip
1.3.3 Stickers on the product
This section describes all the stickers on the product along with their meanings.
Pfeiffer Vacuum
Berliner Straße 43
D - 35614 Asslar
Germany
Mod.
P/N
S/N
n
Mass
Pw
IP 40 / Type 1
S(N ) max. 2.3/2.5 m /h
100-115 V, 50/60 Hz, 3.4 A
120 V, 60 Hz, 2.9 A
200-230 V, 50/60 Hz, 1.8 A
MVP 040-2 2021/07
PK T01 210
xxxxxxxxxx
max. 1800 1/min
11.4 kg
180 W
3
2
UL/CSA 61010-1
40
Rating plate
Rating plate for diaphragm pump MVP 040-2
Pfeiffer Vacuum
Berliner Straße 43
D - 35614 Asslar
Germany
Mod.
P/N
S/N
n
Mass
Pw
IP 40 / Type 1
S(N ) max. 3.8/4.3 m /h
100-115 V, 50/60 Hz, 5.7 A
120 V, 60 Hz, 4.0 A
200-230 V, 50/60 Hz, 3.0 A
MVP 070-3 2021/07
PK T01 310
xxxxxxxxxx
max. 1800 1/min
16.4 kg
250W
3
2
UL/CSA 61010-1
40
Rating plate
Rating plate for diaphragm pump MVP 070-3 and MVP 070-3 C
Warning of hot surfaces
The sticker warns of hot surfaces during operation or immediately
after switching off the vacuum pump.
General warning signs
The sticker provides a general warning of possible dangers.
warranty seal
Warranty seal
The diaphragm heads are sealed at the factory. Damaging or re-
moving a warranty seal results in loss of the warranty.
Warning against voltage range being set incorrectly
This sticker warns against damage to the motor due to incorrectly
set voltage range.
Tbl. 1: Stickers on the product
About this manual
8/58

1
3
4
2

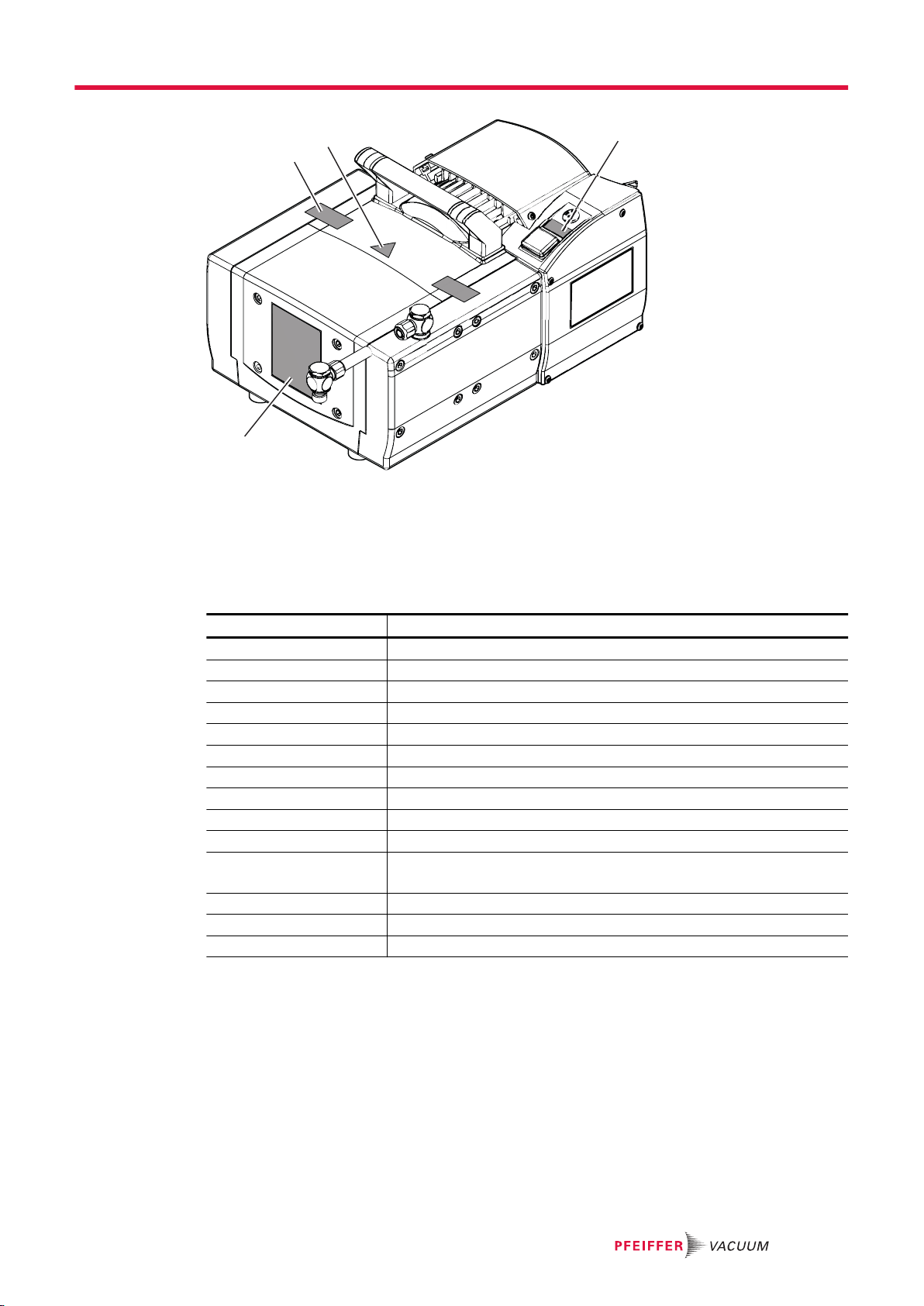

Fig. 1: Position of the stickers on the product
1 Warranty seal (2×) 3 Voltage range warning sign
2 “Hot surface” warning sign 4 Rating plate of the diaphragm pump
Incl. the 2 warning signs
1.3.4 Abbreviations
Abbreviation Meaning in this document
AC Alternating current
CCorrosive gas version
DN Nominal diameter (diamètre nominal)
ECTFE Ethylene chlortrifluorethylene
ETFE Ethylene tetrafluoroethylene copolymer
FFKM Perfluoroelastomer
FPM Fluoropolymer rubber
MVP Diaphragm vacuum pump
MSL Mean sea level
PA Polyamide
PE Polyethylene
Protective earth (earthed conductor)
PTFE Polytetrafluoroethylene
PVC Polyvinyl chloride (PVC)
WAF Wrench size
Tbl. 2: Abbreviations used in this document
1.4 Trademark proof
●LOCTITE® is a brand of Henkel AG & Co. KGaA.
●Torx® is a brand of Acument Intellectual Properties, LLC.
About this manual
9/58

2 Safety
2.1 General safety information
The following 4 risk levels and 1 information level are taken into account in this document.
DANGER
Immediately pending danger
Indicates an immediately pending danger that will result in death or serious injury if not observed.
►Instructions to avoid the danger situation
WARNING
Potential pending danger
Indicates a pending danger that could result in death or serious injury if not observed.
►Instructions to avoid the danger situation
CAUTION
Potential pending danger
Indicates a pending danger that could result in minor injuries if not observed.
►Instructions to avoid the danger situation
NOTICE
Danger of damage to property
Is used to highlight actions that are not associated with personal injury.
►Instructions to avoid damage to property
Notes, tips or examples indicate important information about the product or about this docu-
ment.
2.2 Safety instructions
All safety instructions in this document are based on the results of the risk assessment carried out in
accordance with Machinery Directive 2006/42/EC Annex I and EN ISO 12100 Section 5. As far as appli-
cable, all unit life cycle phases have been considered.
Risks during transport
WARNING
Danger of serious injury due to falling objects
Due to falling objects there is a risk of injuries to limbs through to broken bones.
►Take particular care and pay special attention when transporting products manually.
►Do not stack the products.
►Wear protective equipment, e.g. safety shoes.
Safety
10/58

Risks during installation
DANGER
Danger to life from electric shock
Touching exposed and voltage-bearing elements causes an electric shock. Improper connection of
the mains supply leads to the risk of touchable live housing parts. There is a risk to life.
►Before the installation, check that the connection leads are voltage-free.
►Make sure that electrical installations are only carried out by qualified electricians.
►Provide adequate grounding for the device.
►After connection work, carry out an earthed conductor check.
CAUTION
Danger of injury from bursting as a result of high pressure in the exhaust line
Faulty or inadequate exhaust pipes lead to dangerous situations, e.g. increased exhaust pressure.
There is a danger of bursting. Injuries caused by flying fragments, the escaping of high pressure, and
damage to the unit cannot be excluded.
►Route the exhaust line without shut-off units.
►Observe the permissible pressures and pressure differentials for the product.
►Check the function of the exhaust line on a regular basis.
CAUTION
Danger of burns on hot surfaces
Depending on the operating and ambient conditions, the surface temperature of the vacuum pump
can increase to above 70 °C. If access to the vacuum pump is unrestricted, there is a danger of burns
due to contact with hot surfaces.
►Install suitable touch protection if the vacuum pump is unrestrictedly accessible.
►Allow the vacuum pump to cool down before carrying out any work.
►Contact Pfeiffer Vacuum for suitable touch protection in system solutions.
CAUTION
Health hazard from increased noise emission
Operation without silencer leads to higher noise emissions. Remaining in the close proximity of the
vacuum pump for a sustained period of time may cause hearing damage.
►Install a suitable exhaust line.
►Wear hearing protection.
Risks during operation
WARNING
Health hazard through poisoning from toxic contaminated components or devices
Toxic process media result in contamination of devices or parts of them. During maintenance work,
there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub-
stances causes environmental damage.
►Take suitable safety precautions and prevent health hazards or environmental pollution by toxic
process media.
►Decontaminate affected parts before carrying out maintenance work.
►Wear protective equipment.
Safety
11/58

WARNING
Danger of poisoning due to toxic process media escaping from the exhaust pipe
During operation with no exhaust line, the vacuum pump allows exhaust gases and vapors to escape
freely into the air. There is a risk of injury and fatality due to poisoning in processes with toxic process
media.
►Observe the pertinent regulations for handling toxic process media.
►Safely purge toxic process media via an exhaust line.
►Use appropriate filter equipment to separate toxic process media.
WARNING
Explosion hazard from reactive, potentially explosive or other hazardous gas/air mixtures
Uncontrolled inlet of gas at the gas ballast valve leads to sparks generated mechanically following
diaphragm rupture, hot surfaces or to potentially explosive gas/air mixtures in the vacuum system
caused by static electricity.
►If necessary, use inert gas for supplying the flushing gas in order to avoid a potential ignition.
WARNING
Risk of poisoning due to toxic process gases escaping
For intake pressures > 500 hPa, process gas may escape from the open gas ballast valve. There is a
risk of injury and fatality due to poisoning in processes with toxic process media.
►If necessary, use inert gas to avoid potential contamination.
►If necessary, use an extraction line.
CAUTION
Danger of burns on hot surfaces
Depending on the operating and ambient conditions, the surface temperature of the vacuum pump
can increase to above 70 °C. If access to the vacuum pump is unrestricted, there is a danger of burns
due to contact with hot surfaces.
►Install suitable touch protection if the vacuum pump is unrestrictedly accessible.
►Allow the vacuum pump to cool down before carrying out any work.
►Contact Pfeiffer Vacuum for suitable touch protection in system solutions.
CAUTION
Danger of injury from moving parts
After a power failure or a standstill as a result of overheating, the motor restarts automatically. There
is a risk of injury to fingers and hands if they enter the operating range of rotating parts.
►Safely disconnect motor from the mains.
►Secure the motor against reactivation.
►Dismantle the vacuum pump for inspection, away from the system if necessary.
CAUTION
Danger of burns on hot surfaces
In the event of a fault, the surface temperature of the vacuum pump can increase to above 105 °C.
►Allow the vacuum pump to cool down before carrying out any work.
►Wear personal protective equipment if necessary.
Safety
12/58

Risks during maintenance, decommissioning and in the event of malfunctions
WARNING
Danger to life from electric shock during maintenance and service work
The vacuum pump is only completely de-energized when the mains plug has been disconnected.
There is a danger to life from electric shock when making contact with live components.
►Before performing all work, switch off the mains switch.
►Disconnect mains cable from mains plug.
►Wait 2 minutes until the capacitors have discharged.
►Secure the vacuum pump against unintentional re-start.
WARNING
Health hazard through poisoning from toxic contaminated components or devices
Toxic process media result in contamination of devices or parts of them. During maintenance work,
there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub-
stances causes environmental damage.
►Take suitable safety precautions and prevent health hazards or environmental pollution by toxic
process media.
►Decontaminate affected parts before carrying out maintenance work.
►Wear protective equipment.
CAUTION
Danger of burns on hot surfaces
In the event of a fault, the surface temperature of the vacuum pump can increase to above 105 °C.
►Allow the vacuum pump to cool down before carrying out any work.
►Wear personal protective equipment if necessary.
Risks during disposal
WARNING
Health hazard through poisoning from toxic contaminated components or devices
Toxic process media result in contamination of devices or parts of them. During maintenance work,
there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub-
stances causes environmental damage.
►Take suitable safety precautions and prevent health hazards or environmental pollution by toxic
process media.
►Decontaminate affected parts before carrying out maintenance work.
►Wear protective equipment.
2.3 Safety precautions
Duty to provide information on potential dangers
The product holder or user is obliged to make all operating personnel aware of dangers
posed by this product.
Every person who is involved in the installation, operation or maintenance of the product
must read, understand and adhere to the safety-related parts of this document.
Infringement of conformity due to modifications to the product
The Declaration of Conformity from the manufacturer is no longer valid if the operator
changes the original product or installs additional equipment.
●Following the installation into a system, the operator is required to check and re-evalu-
ate the conformity of the overall system in the context of the relevant European Direc-
tives, before commissioning that system.
Safety
13/58

General safety precautions
►Prevent process gases and their reaction and ancillary products that are harmful to health and the
environmental from escaping, or dispose of these according to the applicable regulations.
►Avoid contact with process gases that are harmful to health and if required, wear personal protec-
tive clothing.
►Check the media compatibility of parts carrying media.
►Observe all applicable safety and accident prevention regulations.
►Check that all safety measures are observed at regular intervals.
►Do not expose body parts to the vacuum.
►Never disconnect plug connections during operation.
►Never fill or operate the unit with cleaning agents or cleaning agent residues.
►Do not carry out your own conversions or modifications on the unit.
►Observe the unit protection degree prior to installation or operation in other environments.
►Provide suitable touch protection, if the surface temperature exceeds 70°C.
►Keep lines and cables away from hot surfaces.
►Before returning the vacuum pump, observe the notes in the chapter Service solutions.
2.4 Limits of use of the product
Installation location Interiors, protected against the accumulation of dust and weather in-
fluences, in a non-explosive, dry environment
Protection degree IEC 60529 IP 40
Protection degree UL 50E NEMA type 1
Installation altitude max. 2000 m above sea level 1)
Ambient temperature +10 ℃ to +40 ℃
Relative humidity of air 85% at T ≤ 31 °C, to max. 50% at T ≤ 40 °C
Degree of pollution 2
Overvoltage category II
Tbl. 3: Limits of use of the product
2.5 Proper use
►Use the vacuum pump for vacuum generation only.
►Adhere to the installation, commissioning, operating, and maintenance instructions.
►Do not use any accessory parts other than those recommended by Pfeiffer Vacuum.
2.6 Foreseeable improper use
Improper use of the product invalidates all warranty and liability claims. Any use that is counter to the
purpose of the product, whether intentional or unintentional, is regarded as improper use; in particular:
●Pumping of corrosive media with vacuum pumps in standard version
●Pumping of explosive media
●Pumping radioactive or volatile media
●Pumping of gases that contain impurities such as particles, dust, or condensate
●Pumping of fluids
●Pumping FPM-solubilizing media
●Pumping vapors from combustible liquids
●Pumping pressurized media (> atmospheric pressure)
●Pumping media that can condense or cause adhering deposits to form in the suction chamber
●Use of the vacuum pump outside the specified area of application
●Using the vacuum pump below ground
●Using the vacuum pump to generate pressure
1) at an installation location higher than 1000 meters above sea level, there is a risk of insufficient cooling. If nec-
essary, take measures according to Directive DIN EN 61010.
Safety
14/58

●Using the vacuum pump in systems in which sporadic loads and vibrations or periodic forces act
on the unit
●Using the vacuum pump in strong electrical, magnetic, or electromagnetic fields
●Connection to vacuum pumps or equipment which are not suitable for this purpose according to
their operating instructions
●Connection to devices with exposed live parts
●Connecting to sockets without earthing contact
●Using pipes to lift the vacuum pump
●Use of accessories or spare parts that are not listed in these instructions
●Using the vacuum pump as a climbing aid
●Using the connection lines between the diaphragm heads as carrying handles
●Using the pump in ambient conditions that do not meet the specified IP protection degree limits
2.7 Personnel qualification
The work described in this document may only be carried out by persons who have appropriate profes-
sional qualifications and the necessary experience or who have completed the necessary training as
provided by Pfeiffer Vacuum.
Training people
1. Train the technical personnel on the product.
2. Only let personnel to be trained work with and on the product when under the supervision of
trained personnel.
3. Only allow trained technical personnel to work with the product.
4. Before starting work, make sure that the commissioned personnel have read and understood
these operating instructions and all applicable documents, in particular the safety, maintenance
and repair information.
2.7.1 Ensuring personnel qualification
Specialist for mechanical work
Only a trained specialist may carry out mechanical work. Within the meaning of this document, special-
ists are people responsible for construction, mechanical installation, troubleshooting and maintenance
of the product, and who have the following qualifications:
●Qualification in the mechanical field in accordance with nationally applicable regulations
●Knowledge of this documentation
Specialist for electrotechnical work
Only a trained electrician may carry out electrical engineering work. Within the meaning of this docu-
ment, electricians are people responsible for electrical installation, commissioning, troubleshooting, and
maintenance of the product, and who have the following qualifications:
●Qualification in the electrical engineering field in accordance with nationally applicable regulations
●Knowledge of this documentation
In addition, these individuals must be familiar with applicable safety regulations and laws, as well as the
other standards, guidelines, and laws referred to in this documentation. The above individuals must
have an explicitly granted operational authorization to commission, program, configure, mark, and earth
devices, systems, and circuits in accordance with safety technology standards.
Trained individuals
Only adequately trained individuals may carry out all works in other transport, storage, operation and
disposal fields. Such training must ensure that individuals are capable of carrying out the required activi-
ties and work steps safely and properly.
2.7.2 Personnel qualification for maintenance and repair
Advanced training courses
Pfeiffer Vacuum offers advanced training courses to maintenance levels 2 and 3.
Adequately trained individuals are:
Safety
15/58

●Maintenance level 1
─Customer (trained specialist)
●Maintenance level 2
─Customer with technical education
─Pfeiffer Vacuum service technician
●Maintenance level 3
─Customer with Pfeiffer Vacuum service training
─Pfeiffer Vacuum service technician
2.7.3 Advanced training with Pfeiffer Vacuum
For optimal and trouble-free use of this product, Pfeiffer Vacuum offers a comprehensive range of
courses and technical trainings.
For more information, please contact Pfeiffer Vacuum technical training.
Safety
16/58

3 Product description
3.1 Function
Diaphragm pumps are dry compressing displacement pumps. The movement of diaphragms generates
a periodic change of the suction chamber volume. The gas flow causes the valves to open and close
automatically. The pump unit is directly connected to the drive motor.
4
10 11
2 3
5
7
8
9
1
6
Fig. 2: Design of vacuum pump MVP 040-2
1 Handle 7 Vacuum connection
2 Exhaust with silencer 8 Diaphragm head 1
3 Gas ballast valve 9 Mains switch
4 Interhead connection 10 Voltage selector switch
5 Diaphragm head 2 11 Cold-device socket with locking clip
6 Rubber feet
7
1
3
4
6
5
2
Fig. 3: Design of vacuum pump MVP 070-3
1 Handle 5 Vacuum connection
2 Mains switch 6 Rubber feet
3 Voltage selector switch 7 Exhaust with silencer
4 Cold-device socket with locking clip
Product description
17/58

3
14
2
5
6
7
8
Fig. 4: Design of vacuum pump MVP 070-3 C
1 Handle 5 Vacuum connection
2 Mains switch 6 Rubber feet
3 Voltage selector switch 7 Gas ballast valve
4 Cold-device socket with locking clip 8 Exhaust
3.1.1 Drive
The drive motor is an alternating current motor with
●reversible voltage range on the voltage selector switch,
●thermal protection switch,
●mains switch and
●rubber connector
In event of excess temperature (> 95 °C), the thermic protection switch interrupts the motor current, but
does not offer a permanent shut-down of the motor. Once the motor has cooled down, the vacuum
pump restarts automatically.
3.1.2 Pumping system
Diaphragm pump MVP 040-2 has 2 pumping stages.
Diaphragm pump MVP 070-3 (C) has 4 pumping stages.
3.1.3 Cooling
The diaphragm pump is convection-cooled. The drive motor has its own fan.
3.1.4 Gas ballast
An integrated gas ballast system serves the controlled supply of ambient air or inert gas into the suction
chamber. Gas ballast supports the reduction of condensate accumulating in the pumping system.
Product description
18/58

3.2 Connections
Connection Description
Mains connection
Power socket and mains switch for voltage supply
Tbl. 4: Connection description of the diaphragm pump
3.3 Identifying the product
►To ensure clear identification of the product when communicating with Pfeiffer Vacuum, always
keep all of the information on the rating plate to hand.
►Learn about certifications through test seals on the product or at www.certipedia.com with compa-
ny ID no. 000021320.
3.4 Scope of delivery
●Vacuum pump with drive
●Silencer (MVP 040-2 and MVP 070-3 only)
●Operating instructions
●Blind plug on the vacuum connection
Product description
19/58

4 Transportation and Storage
4.1 Transporting the vacuum pump
WARNING
Danger of serious injury due to falling objects
Due to falling objects there is a risk of injuries to limbs through to broken bones.
►Take particular care and pay special attention when transporting products manually.
►Do not stack the products.
►Wear protective equipment, e.g. safety shoes.
Packing
We recommend keeping the transport packaging and original protective cover.
General information regarding safe transport
1. Observe the weight specified on packaging.
2. Use a transport aid if necessary (trolley, lift truck).
3. Transport the product in its original packaging.
4. Always place the product on an adequately sized, level surface.
Transporting the vacuum pump without its packaging
1. Unpack the vacuum pump.
2. To protect the inside of the pump, leave both protective caps on the connections during transport.
3. For lifting, use the handle provided for this purpose, located on the top of the pump.
4. Lift the vacuum pump out of the transport packaging.
5. Make sure that no forces are acting on the piping system.
6. Always place the vacuum pump on an adequately sized, level surface.
4.2 Storing the vacuum pump
Packing
We recommend storing the product in its original packaging.
Procedure
1. Seal the vacuum connection with the blind plug.
2. Store the vacuum pump only in dry, dust-free rooms, within the specified ambient conditions.
3. In rooms with humid or aggressive atmospheres: Hermetically seal the vacuum pump together
with a drying agent in a plastic bag.
Transportation and Storage
20/58
