Pfeiffer Vacuum ACP 40 Series User manual

OPERATING INSTRUCTIONS
EN
Translation of the Original
ACP 28 - 40
Multi-stage Roots pump, air cooled

Disclaimer of liability
These operating instructions describe all models and variants of your product. Note that your
product may not be equipped with all features described in this document. Pfeiffer Vacuum
constantly adapts its products to the latest state of the art without prior notice. Please take
into account that online operating instructions can deviate from the printed operating
instructions supplied with your product.
Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from
the use of the product that contradicts its proper use or is explicitly defined as foreseeable
misuse.
Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/56

Table of contents
1 About this manual 7
1.1 Validity 7
1.1.1 Products concerned 7
1.1.2 Applicable documents 7
1.2 Conventions 7
1.2.1 Pictographs 7
1.2.2 Target group 8
1.2.3 Instructions in the text 8
1.2.4 Labels 8
2 Safety 11
2.1 General safety instructions 11
2.1.1 Safety instructions 11
2.1.2 Precautions 13
2.2 Intended use 13
2.3 Foreseeable misuse 13
3 Transportation and Storage 14
3.1 Receipt of the product 14
3.2 Handling 14
3.3 Storage 15
4 Product description 16
4.1 Product identification 16
4.1.1 Scope of delivery 16
4.1.2 Differences between pump versions 16
4.2 Human/Machine Interface 17
5 Installation 19
5.1 Installation 19
5.2 Connecting to the pumping line 19
5.2.1 Connection on the pump inlet side 20
5.2.2 Connection on the pump exhaust side 20
5.2.3 Connecting CP version pumps 21
5.2.4 Connecting the purge circuit 21
5.3 Check that the installation is leaktight 22
5.4 Electrical connection 22
5.4.1 Customer electrical installation protection 23
5.4.2 Mains connection 23
5.5 Remote connector wiring 23
5.5.1 Digital input wiring 24
5.5.2 Setting of the rotation speed 24
5.5.3 Digital output wiring 24
5.6 Wiring the RS-485 serial link 25
5.6.1 Connections 25
5.6.2 Setting 26
5.6.3 Command list 27
6 Operation 29
6.1 Preliminary precautions for use 29
6.2 Matrix gas/applications 30
6.3 Different control modes 31
6.3.1 Local mode operation 31
6.3.2 Remote control mode operation 32
6.3.3 Operation in RS-485 link mode 33
6.4 Operation monitoring 33
6.5 Gas ballast operation 34
Table of contents
3/56

6.6 Purge operation 35
6.7 Gas ballast and purge operation on CV version 35
7 Maintenance 36
7.1 Maintenance safety instructions 36
7.2 Maintenance frequency 37
7.3 On-site maintenance 37
7.4 Exchange procedure for replacement products 38
7.4.1 Disconnecting the pump from the installation 39
7.4.2 Preparing the pump for shipping 39
8 Decommissioning 40
8.1 Shutting down for longer periods 40
8.2 Recommissioning 40
8.3 Disposal 40
9 Malfunctions 41
9.1 Trouble at pump start-up 41
9.2 The pump runs incorrectly 41
10 Service solutions from Pfeiffer Vacuum 43
11 Accessories 45
12 Technical data and dimensions 47
12.1 General 47
12.2 Technical characteristics 47
12.2.1Environmental conditions 48
12.2.2Nitrogen characteristics 49
12.2.3Electrical characteristics 49
12.3 Dimensions 49
12.4 Weight distribution and center of gravity 52
12.5 Load on foot with fastening kit 53
ETL Mark 54
Declaration of conformity 55
Table of contents
4/56

List of tables
Tbl. 1: Rotation speed......................................................................................................... 24
Tbl. 2: S2 output wiring procedure: example.......................................................................25
Tbl. 3: Default serial link configuration.................................................................................26
Tbl. 4: LED meaning on a pump equipped with a three-phase frequency converter...........34
Tbl. 5: The various gas ballast models................................................................................34
Tbl. 6: Technical characteristics.......................................................................................... 48
Tbl. 7: Conversion table: Pressure units..............................................................................48
Tbl. 8: Conversion table: Units for gas throughput.............................................................. 48
Tbl. 9: Nitrogen characteristics............................................................................................49
Tbl. 10: Electrical network protection.....................................................................................49
List of tables
5/56

List of figures
Fig. 1: Safety label locations..................................................................................................9
Fig. 2: ACP 28 - 40 - CV version with single-phase frequency converter............................17
Fig. 3: ACP 28 - 40 - Versions SD - SH - G - CP - LG with single-phase frequency convert-
er.............................................................................................................................. 17
Fig. 4: Remote control connector wiring..............................................................................24
Fig. 5: Male 15-pin RS-485 connector.................................................................................26
Fig. 6: Cover plug with strap for operation in local mode.................................................... 31
Fig. 7: Dimensions ACP 28 - 40 versions SD - SH - LG - G................................................50
Fig. 8: Dimensions ACP 28 - 40 versions CV......................................................................50
Fig. 9: Dimensions ACP 28 - 40 versions CP......................................................................51
Fig. 10: Wheel kit dimensions................................................................................................52
Fig. 11: Fastening kit dimensions..........................................................................................52
List of figures
6/56

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
These operating instructions are for customers of Pfeiffer Vacuum. They describe the function of the
designated product and provide the most important information for safe usage of the product. The de-
scriptions comply with applicable directives. All information provided in these operating instructions refer
to the current development status of the product. The documentation remains valid as long as the cus-
tomer does not modify the product in any way.
1.1.1 Products concerned
This document applies to products with the following part numbers:
Part Number Model Description
V6SAXXXXXX ACP 28 SD Models for standard applications
V8SAXXXXXX ACP 40 SD
V6GAXXXXXX ACP 28 G Models for applications with traces of corrosive gases
V8GAXXXXXX ACP 40 G
V6GVXXXXXX ACP 28 CV Models for pumping condensable vapors
V8GVXXXXXX ACP 40 CV
V6SHXXXXXX ACP 28 SH Models for gas pumping applications with N.E.G. pumps (Non-Evapo-
rable Getter)
V8SHXXXXXX ACP 40 SH
V6SLXXXXXX ACP 28 LG Models for light gas pumping applications
V8SLXXXXXX ACP 40 LG
V6SCXXXXXX ACP 28 CP Models for applications with chemically inert gas recirculation or re-
covery
V8SCXXXXXX ACP 40 CP
The part numbers such as VXSXXXXXXX, VXGXXXXXXX concern products that feature the client’s
specifications: these are documented in another document. Nevertheless, these products are still used
for a similar purpose, and it is the operator’s responsibility to use this manual in conjunction with the
additional document.
1.1.2 Applicable documents
Document Reference
Declaration of conformity included with these operating instructions
UL/CSA compliance (ETL mark) included with these operating instructions
1.2 Conventions
1.2.1 Pictographs
Pictographs used in the document indicate useful information.
About this manual
7/56

Note
Tip
1.2.2 Target group
This user manual is intended for all persons in charge of transport, installation, commissioning/decom-
missioning, use, maintenance or storage of the product.
The work described in this document must only be carried out by persons with suitable technical training
(specialized staff) or persons who have undergone Pfeiffer Vacuum training.
1.2.3 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...

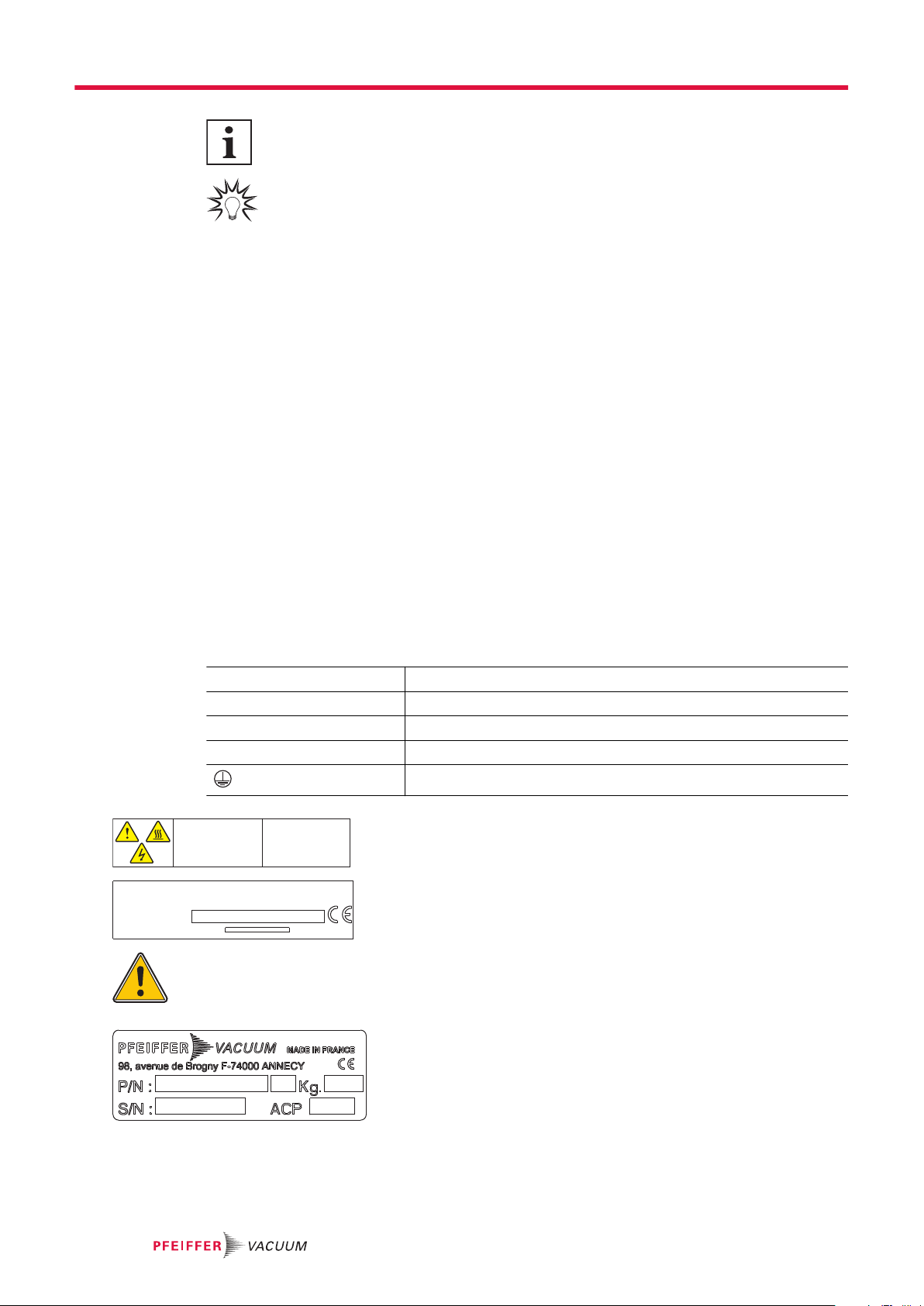

1.2.4 Labels
CP PORT Connecting the housing pump (CP version)
I/O Pump Start/Stop
INLET Pump inlet connection
PUMP EXHAUST Pump exhaust
CPC ground connection
1
CAUTION
Use suitable power supply cord
for required voltage
Hot surface
Do not touch
See user’s manual
ATTENTION
Utiliser le câble d’alimentation
adapté pour la tension requise
Surface chaude
Ne pas toucher
Consulter les documents joints
This label warns the user against potential risks associated with the use of
this product. Any person responsible for installation or operation of the
product must first refer to the operating manual.
2
P0385E4
AC Rating 110-230V 50/60Hz 15-10A
Frequency inverter serial n°
Reference
This label indicates the voltage of the equipment to which the pump is to
be connected.
3 This label indicates that the power supply must be switched off before
connecting and/or disconnecting the pump. Any person responsible for in-
stallation or operation of the product must first refer to the operating man-
ual.
4 Product identification label (example).
About this manual
8/56

5 This label indicates that the pump is compliant with UL/CSA tests.
6 This label indicates that the product should not be handled manually due
to its weight and that appropriate handling devices should always be
used.
7 This label warns users that they risk being injured if their hands come into
contact with a hot surface: protective gloves must be worn at all times
when working on the pump.
8 This label indicates that certain internal components carry an electric
charge and can cause electric shock if touched: before working on the
pump, always either disconnect it, or lock out/tag out the installation
breaker in the appropriate manner.
9 This label warns users about the risk of crushing or cutting due to moving
parts: keep a safe distance and/or keep your hands away from the moving
parts.
10
DRAINABLE SILENCER MUST BE
INSTALLED HORIZONTALLY
This label indicates the installation position of the accessory (CV version).
11
SEISMIC TIE DOWN
A 329 962 - 5
This label indicates the location of the holes for seismic bracket installa-
tion.
The product comes with a sheet of labels including other language
versions. The installer must stick these labels to the most appropri-
ate and visible place on the pump to warn the operator about poten-
tial hazards:

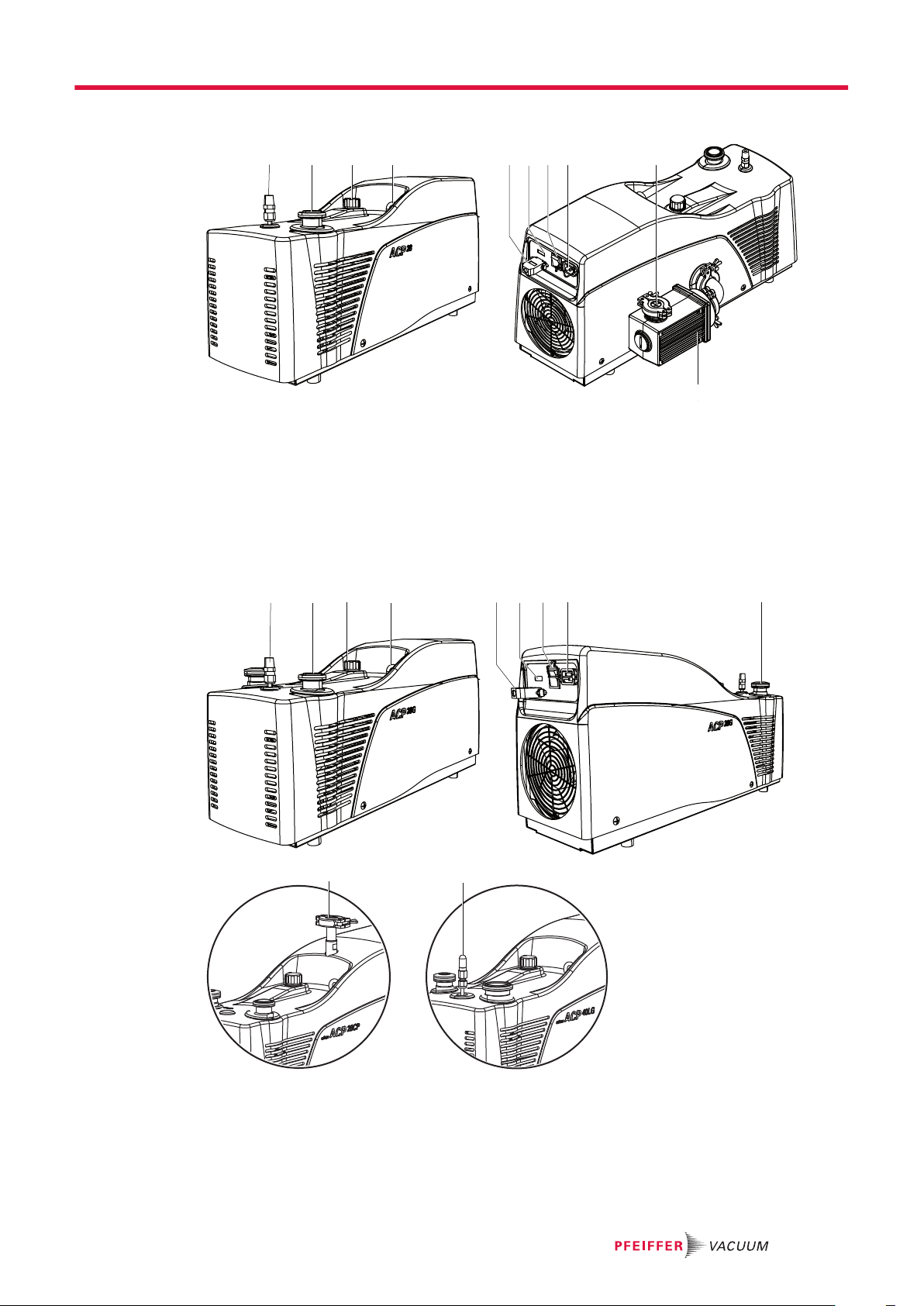

1
2
3
4
5
6
78
9
11
10
Fig. 1: Safety label locations
About this manual
9/56

2 Mains voltage 8 Electric shock hazard
4 Identification plate for the product, weight, model, P/N,
S/N
9 Moving parts
5 UL/CSA compliant 10 External silencer position (CV version)
6 Heavy object 11 Seismic brackets anchor point
7 Hot surface
About this manual
10/56

2 Safety
2.1 General safety instructions
This document includes the following four risk levels and one information level.
DANGER
Imminent danger
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
►Instructions on avoiding the hazardous situation
WARNING
Possibly imminent danger
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
►Instructions on avoiding the hazardous situation
CAUTION
Possibly imminent danger
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
►Instructions on avoiding the hazardous situation
NOTICE
Danger of property damage
Notice is used to address practices not related to physical injury.
►Instructions on avoiding property damage
Notes, tips or examples indicate important information on the product or on this
document.
2.1.1 Safety instructions
All safety instructions in this document are based on the results of the risk assessment carried out in
accordance with Machinery Directive 2006/42/EC Annex I and EN ISO 12100 Section 5. Where applica-
ble, all life cycle phases of the product were taken into account.
WARNING
Risk of crushing when the product is suspended
Given the heaviness of the product, there is a risk of crushing during handling operations involving
lifting devices. Under no circumstances shall the manufacturer be liable if the following instructions
are not followed:
►Only qualified staff trained in handling heavy objects are authorized to handle the product.
►The lifting devices provided must be used and the procedures set out in this document must be
followed.
WARNING
Risk of electric shock due to non-compliant electrical installations
This product uses mains voltage for its electrical supply. Non-compliant electrical installations or in-
stallations not done to professional standards may endanger the user’s life.
►Only qualified technicians trained in the relevant electrical safety and EMC regulations are au-
thorized to work on the electrical installation.
►This product must not be modified or converted arbitrarily.
Safety
11/56

WARNING
Danger of electrocution by contact during maintenance or overhaul
There is an electric shock hazard in case of contact with a product powered on and not electrically
isolated.
►Before carrying out any work, set the main switch to O.
►Disconnect the power cable from the mains.
►Secure the installation correctly by tagging and locking (LO/TO) the system to prevent uninten-
tional re-engagement.
WARNING
Risk of poisoning when process gases are present in the atmosphere
The manufacturer has no control over the types of gases used with the pump. Process gases are of-
ten toxic, flammable, corrosive, explosive and/or otherwise reactive. There is a risk of serious or fatal
injury if these gases are allowed to escape freely into the atmosphere.
►Apply the relevant safety instructions in accordance with local regulation. This information is
available from the operator’s safety department.
►The pump exhaust must be connected to the installation’s dangerous gases extraction sys-
tem.
►Regularly check that there are no leaks where the pump connects to the exhaust pipework.
WARNING
Risk of injury in case of contact with pressurized nitrogen
This product uses pressurized nitrogen as a flushing gas. Non-compliant installations or installations
not done to professional standards may endanger the user’s life.
►Install a manual valve on the circuit at a distance of 3 m from the product, so that the nitrogen
supply can be locked out.
►Observe the recommended supply pressure and adjust the flow according to the application.
►Always lock out and disconnect the nitrogen circuit before working on the product.
►When carrying out maintenance, secure the installation properly by locating and locking out the
pressurized nitrogen circuit to prevent it from being re-engaged by accident (LO/TO Lock
Out/Tag Out procedure).
►Regularly check the state of the pipework and supply circuit connections.
WARNING
Risk of burns in case of contact with hot surfaces
Component temperature remains high, even after the pump has stopped. There is a risk of burns
through contact with hot surfaces, especially at the pump exhaust.
►Wait for the product to fully cool down before working on it.
►Protective gloves must be worn in accordance with standard EN420.
WARNING
Risk of crushing or cutting in case of contact with moving parts
The pump inlet flange is large enough for body parts (fingers or hands) to the inserted into it, present-
ing a risk of crushing due to contact with moving parts. The inlet and exhaust ports should be sealed
with blanking plates before connection.
►Wait for the pumping line to be connected before removing the blanking plates.
►Wait for the pump to be connected before powering on.
Safety
12/56

2.1.2 Precautions
Duty to provide information on potential dangers
The product holder or user is obliged to make all operating personnel aware of dan-
gers posed by this product.
Every person who is involved in the installation, operation or maintenance of the
product must read, understand, and adhere to the safety-related parts of this docu-
ment.
Infringement of conformity due to modifications to the product
The Declaration of Conformity from the manufacturer is no longer valid if the opera-
tor changes the original product or installs additional equipment.
●Following installation into a system, the operator is required to check and re-
evaluate as necessary the conformity of the overall system in the context of the
relevant european Directives before commissioning that system.
Only qualified personnel trained in safety regulations (EMC, electrical safety, chemical pollution) are au-
thorized to carry out the installation and maintenance described in this manual. Our service centers can
provide the necessary training.
►Do not expose any part of the human body to the vacuum.
►Comply with all safety and risk prevention instructions in accordance with local safety standards.
►Regularly check compliance with all precautionary measures.
►Do not remove the blanking plates sealing the inlet and exhaust ports if the product is not con-
nected to the pumping line.
►Do not operate the product unless the inlet and exhaust are connected to a vacuum and exhaust
pumping line.
2.2 Intended use
●The vacuum pump should only be used to generate a vacuum while pumping gases.
●The vacuum pump is designed to operate in industrial environments.
●The product may be used in a laboratory environment.
●The G version is used to pump traces of corrosive gases.
2.3 Foreseeable misuse
Misuse of the product will render the warranty and any claims void. Any use, whether intended or not,
that diverges from the uses already mentioned will be treated as non-compliant; this includes but is not
limited to:
●Pumping of flammable and explosive mixtures
●Pumping of corrosive gases (exception: pumps in G version for traces of corrosive gases)
●Pumping liquids
●Pumping dust particles
●Using the vacuum pump to generate pressure
●Using the pump in potentially explosive areas
●Using accessories or spare parts not mentioned in these operating instructions
The product is not designed to carry people or loads and should not be used as a seat, stepladder or
similar.
Safety
13/56

3 Transportation and Storage
3.1 Receipt of the product
Condition of the delivery
●Check that the product has not been damaged during transport.
●If the product is damaged, take the necessary measures with the carrier and
notify the manufacturer.
►Keeping the product in its original packaging so it stays as clean as it was when dispatched by us.
Only unpack the product once it has arrived at the location where it will be used.
►Keeping the blanking plates in place on the inlet, exhaust and purge ports while the product is not
connected to the pumping line.
Keeping the packaging (recyclable materials) in case the product needs to be
transported or stored.
3.2 Handling
WARNING
Risk of crushing when the product is suspended
Given the heaviness of the product, there is a risk of crushing during handling operations involving
lifting devices. Under no circumstances shall the manufacturer be liable if the following instructions
are not followed:
►Only qualified staff trained in handling heavy objects are authorized to handle the product.
►The lifting devices provided must be used and the procedures set out in this document must be
followed.
WARNING
Risk of crushing related to product tilting
Although the product fully complies with the EEC safety regulations, there is a risk of tilting when it is
moved over the floor or is not properly secured.
►Do not place the product on an inclined plane.
►Place it on a flat, hard floor.
►Do not push the product sideways.
Handling the pump using a hoist
1. Use a lifting device suitable for the product’s weight.
2. Use a 2-strap sling with the following characteristics:
Transportation and Storage
14/56

–length of each strap > 605 mm
–load per strap > 16 kg
3. With the sling, lift the pump using the hoisting ring.
A wheel kit is available as accessory: fitted over the frame, it facilitates the movement of the pump over
short distances (see chapter “Accessories”, page 45) and (see chapter “Dimensions”, page 49).
3.3 Storage
Storing a new pump
Pfeiffer Vacuum recommends storing the products in their original transport pack-
aging.
1. Keep the pump wrapped in its protective envelope.
2. Always leave the inlet, the exhaust blanking plates in place.
3. Store the pump in line with the permitted storage temperatures for a maximum period of 1 year .
Storing a new pump for longer than 1 year
Run the pump regularly at least once a year: factors such as temperature, degree of humidity, salt air,
etc. may cause the deterioration of the pump components.
1. Let the pump run:
●for 30 minutes with gas ballast opened or while injecting a dry neutral gas into the pump (G
version).
●then for 30 minutes at ultimate pressure (inlet, gas ballast and purge ports closed).
2. Stop the pump.
3. Seal the pump inlet, exhaust and purge ports with included accessories.
4. Repeat this at least once a year.
Beyond 4 years, the pump must be reviewed at our service centers before commissioning (see chap-
ter “Service solutions from Pfeiffer Vacuum”, page 43).
Storage after use
1. Stop the pump according to the pump shut-down procedure.
2. Disconnect the pump from the installation.
3. Seal the pump inlet, exhaust and purge ports with included accessories.
4. Store the pump in a clean, dry, non-polluted area for a maximum of 6 months according to the
storage temperatures.
Extended storage beyond 6 months after use
Run the pump regularly because factors such as temperature, degree of humidity, salt air, etc. may
cause the deterioration of the pump components.
1. Let the pump run:
●for 30 minutes with gas ballast opened or while injecting a dry neutral gas into the pump (G
version).
●then for 30 minutes at ultimate pressure (inlet, gas ballast and purge ports closed).
2. Stop the pump.
3. Seal the pump inlet, exhaust and purge ports with included accessories.
4. Repeat this at least every 6 months.
Beyond 2 years, the pump must be revised before commissioning.
Never store a pump that has been used! Return the pump to the service center (see chapter “Service
solutions from Pfeiffer Vacuum”, page 43).
Transportation and Storage
15/56

4 Product description
4.1 Product identification
To correctly identify the product when communicating with our service center, always have the informa-
tion from the product identification label available (see chapter "Labels").
4.1.1 Scope of delivery
●1 vacuum pump
●1 remote cover plug for remote connector (connected to the pump)
●1 operating instruction manual
●1 sheet of multilingual labels
According to the ordering configuration:
●1 mains supply cable
4.1.2 Differences between pump versions
The multi-stage Roots pump technology in the ACP series meets the requirements of applications
where a clean and dry vacuum is needed.
SD standard version
The pump is designed for clean (dust-free) and non-corrosive gas pumping applications. Standard
pumps are equipped with a gas ballast device to improve pumping of light gases and avoid vapor con-
densation inside the pump.
G version
The pump is compatible with traces of corrosive gases. A purge gas stream protects low- and high-
pressure ball bearings and dilutes trace amounts of corrosive gases.
CV version
The pump is specially designed to prevent vapor condensation inside the pumping module with:
●A high gas ballast flow to warm up the pump and dilute condensable gases.
●An external drainable silencer to remove liquid from the pump exhaust.
●A gas purge to protect lip seals and ball bearings from condensable vapors.
CV versions extend the pure water vapor pumping capacity.
CP version
The pump design is based on a standard pump. It is specially made to recirculate gas or to recover
chemically inert gas. This refers to helium isotopes or rare gases, which are costly. The pump has a
pumping device on the housing but does not have a gas ballast or purge to prevent incorrect use.
LG version
The pump design is based on a standard pump. It is designed for pumping light gases (for example: He,
H) for ultimate pressures < 10 hPa. It has an ON/OFF manual gas ballast and a permanent air injection
line with a reduced flow. It can be used for fore pumping a turbomolecular pump used in high-vacuum
processes.
SH version
The pump design is based on a standard pump. It is used in applications where the backstreaming of
fluorine is critical, in particular those installations that use NEG (Non-Evaporable Getter pump) ion
pumps. The lubricants and seals used do not contain fluorine compounds.
Please contact Pfeiffer Vacuum for more detailed information on specific applications.
Product description
16/56

4.2 Human/Machine Interface
1 2 3 5
478 9
10
6
Fig. 2: ACP 28 - 40 - CV version with single-phase frequency converter
1 Inert gas purge connection 6 Time counter
2 Pump inlet 7 I/O main switch
3 Gas ballast 8 Mains power supply
4 Hoisting ring 9 Pump exhaust
5 Remote connector and RS-485 connector 10 External silencer (CV version)
1 2 3 4 5 644 7 8 9
11
12
Fig. 3: ACP 28 - 40 - Versions SD - SH - G - CP - LG with single-phase frequency converter
1 Inert gas purge connection (G version) 7 I/O main switch
2 Pump inlet 8 Mains power supply
3 Gas ballast (SD - LG version) 9 Pump exhaust
4 Hoisting ring 11 Air injection (LG version)
Product description
17/56

5 Remote connector and RS-485 connector 12 Housing pumping (CP version) labeled ‘CP PORT’
6 Time counter
Product description
18/56

5 Installation
5.1 Installation
The pump needs to operate in a horizontal position resting on its feet, the pumping axis must be verti-
cal, and the pump inlet must be on top.
1. Determine where the pump will be located.
2. Handle the pump using a hoist.
3. Install the pump so that the I/O main switch can be accessed by the operator.
80 mm
mini
80 mm
mini
80 mm
mini
80 mm
mini
80 mm
mini
Ventilation
To guarantee the characteristics and performances of the pump within the boundaries of the operating
conditions:
●Do not obstruct the air vents.
●Keep the pump away from fixed walls, at a minimum using the value indicated on the diagram be-
low.
5.2 Connecting to the pumping line
The user and/or product integrator is ultimately responsible for the equipment and must apply the spe-
cific safety instructions, in accordance with local regulations.
WARNING
Risk of crushing or cutting in case of contact with moving parts
The pump inlet flange is large enough for body parts (fingers or hands) to the inserted into it, present-
ing a risk of crushing due to contact with moving parts. The inlet and exhaust ports should be sealed
with blanking plates before connection.
►Wait for the pumping line to be connected before removing the blanking plates.
►Wait for the pump to be connected before powering on.
General instructions for installing the pump in the pumping line in accordance with industry
best practices
The inlet and exhaust connections must not put undue strain on the pumping line that could cause leak-
age.
1. Only use accessories on the inlet and exhaust lines with materials and sealing properties that are
compatible with the gases being pumped. Refer to the connection accessories catalog available at
the Pfeiffer-Vacuum website.
2. When assembling the pumping line, include accessories for isolating the pump from the pumping
line and making maintenance easier to carry out (pump inlet and exhaust isolation valves, purge
valves, etc.).
3. The O-rings located under the blanking plates are not compatible with all applications. Product
users or integrators are responsible for installing O-rings that are compatible with their ap-
plications.
Installation
19/56

4. Remove the blanking plates used to seal the inlet and exhaust ports.
5. Keep the blanking plates, screws and washers for reuse when transporting the pump.
6. Ensure that no screws, washers or other objects are dropped into the pump inlet.
7. Fit flexible tubes in the pumping line to reduce the transmission of vibration.
8. Perform a leak test on the entire pumping line after installation.
5.2.1 Connection on the pump inlet side
Make sure that the parts or chambers connected to the inlet of our products can
withstand a negative pressure of 1·10-3 hPa relative to atmospheric pressure.
To achieve the optimum pumping speed, make the pumping line as short and straight as possible
and ensure that its inside diameter is not narrower than the pump inlet flange inside diameter.
The product is not designed to withstand loads on its inlet flange which may compromise stability.
●Mechanically attach the vacuum chamber separately from the pump.
●Use only dry parts and clean, grease-free, dust-free pipelines.
●It may be necessary to install an inlet filter (particle filter or condensable filter).
●If necessary, install an isolation valve on the inlet which closes when the pump stops.
5.2.2 Connection on the pump exhaust side
DANGER
Risk of poisoning in case of contact with toxic substances and by-products generated by the
process
The vacuum pump, pumping line components and operating fluids may potentially be contaminat-
ed with toxic, corrosive, reactive and/or radioactive substances related to the process and harmful to
health.
►Always connect the pump exhaust to an exhaust extraction system.
Ensure that all components in the exhaust line have a maximum pressure rating
that exceeds the highest pressure the pump can generate.

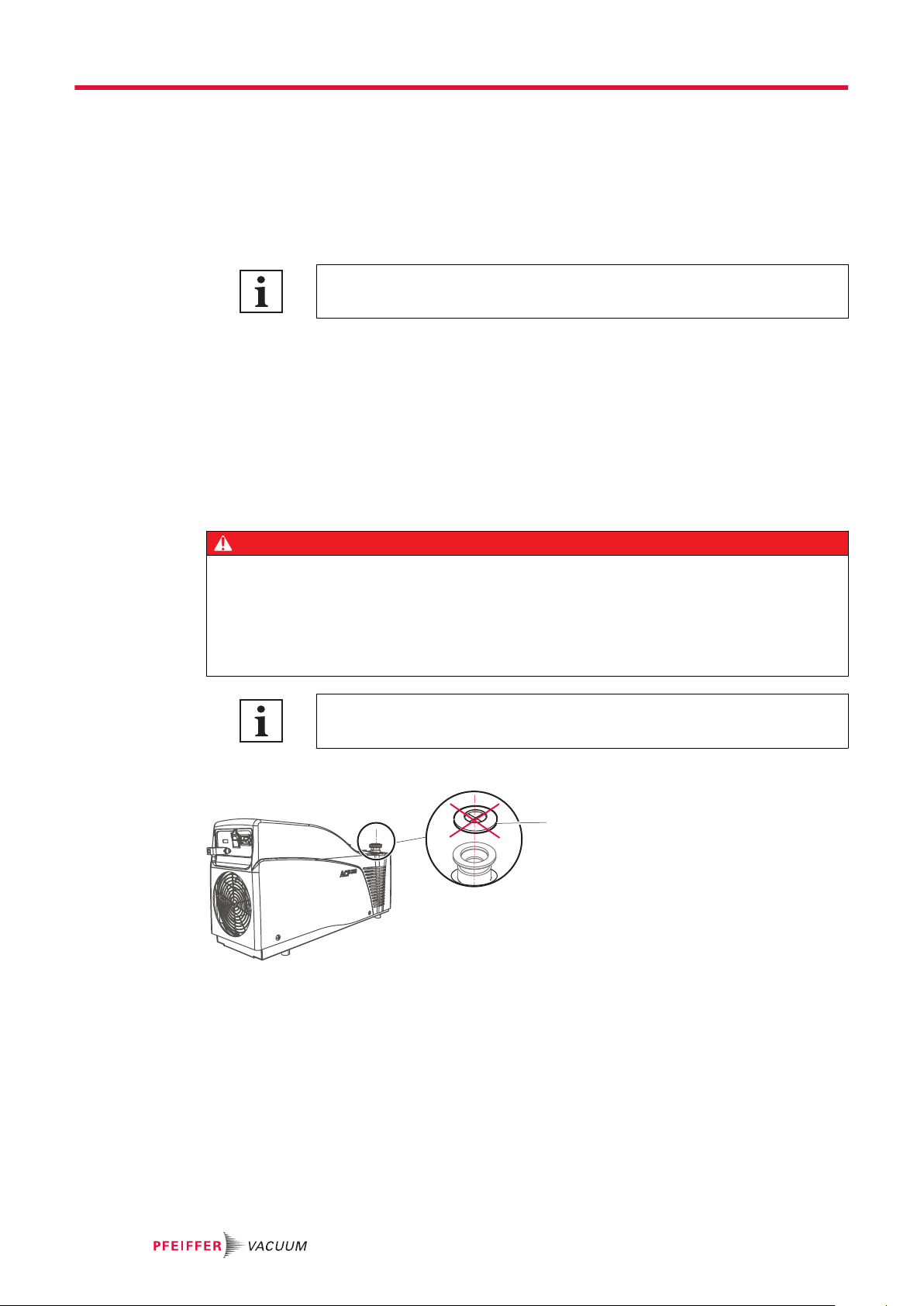

Pump exhaust is equipped with an anti-noise device.
1
1 Anti-noise device
In case of connection to an exhaust pipe:
►Remove the anti-noise device on the exhaust port.
CV version
Installation
20/56
