Pfeiffer Vacuum HICUBE ECO User manual

OPERATING INSTRUCTIONS
EN
Translation of the Original
HICUBE ECO
Turbo pumping stations

PT0553BEN_C PT0553 2017-08-03

Table of contents
1 About this manual 5
1.1 Validity 5
1.1.1 Related documents 5
1.1.2 Variants 5
1.2 Target group 5
1.3 Conventions 5
1.3.1 Abbreviations 5
1.3.2 Pictographs 6
1.3.3 Stickers on the product 6
1.3.4 Instructions in the text 7
2 Safety 8
2.1 General safety instructions 8
2.2 Safety instructions 8
2.3 Safety precautions 11
2.4 Limits of use of the product 12
2.5 Proper use 12
2.6 Foreseeable misuse 12
3 Transportation and Storage 14

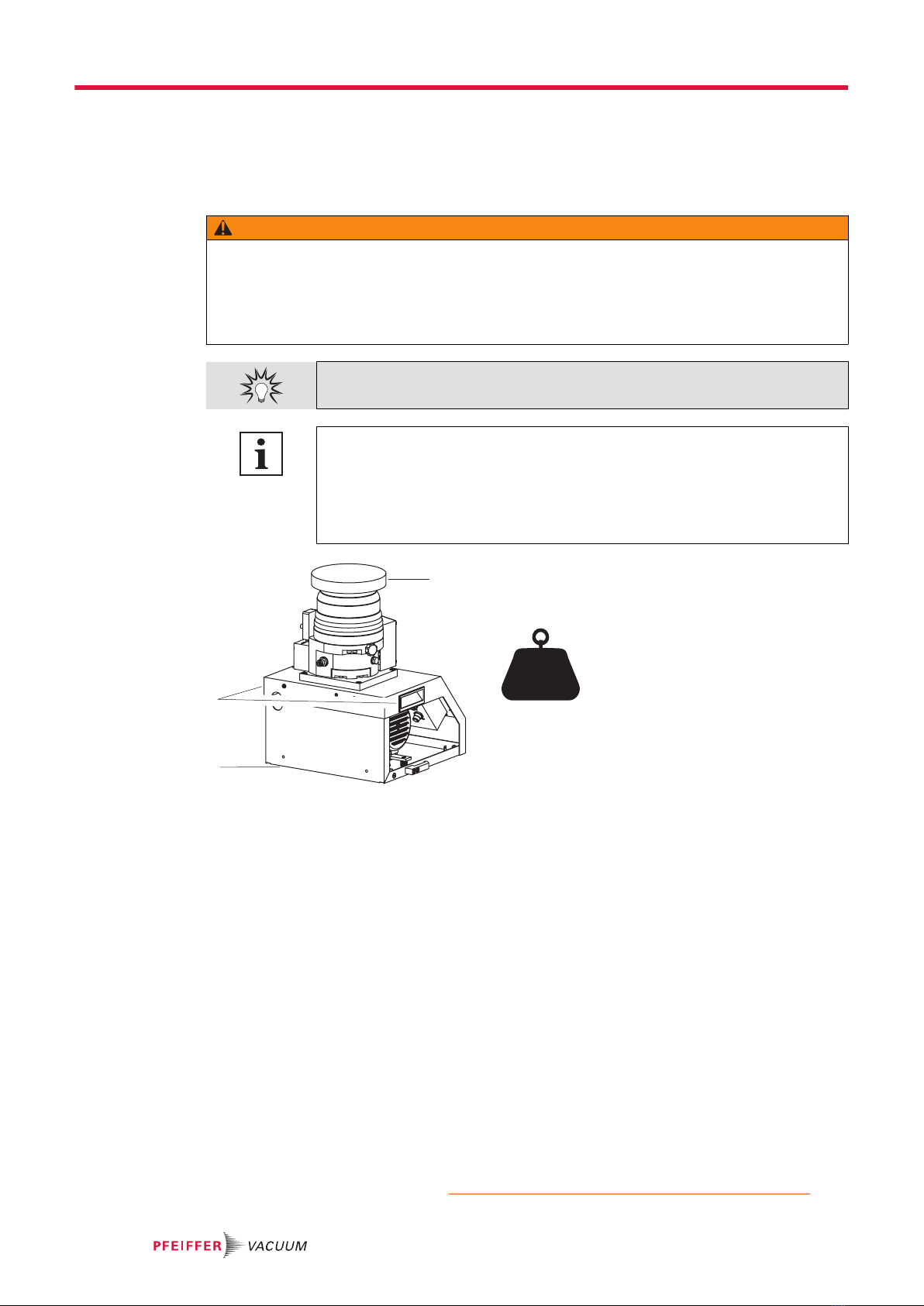

3.1 Transport 14
3.2 Transport protection 14
3.3 Storage 15
4 Product description 16
4.1 Product identification 16
4.2 Function 17
4.2.1 Control interface 17
4.2.2 Drive 18
4.2.3 Cooling 18
4.3 Scope of delivery 18
5 Installation 19
5.1 Preparatory work 19
5.2 Setting up the pumping station 19

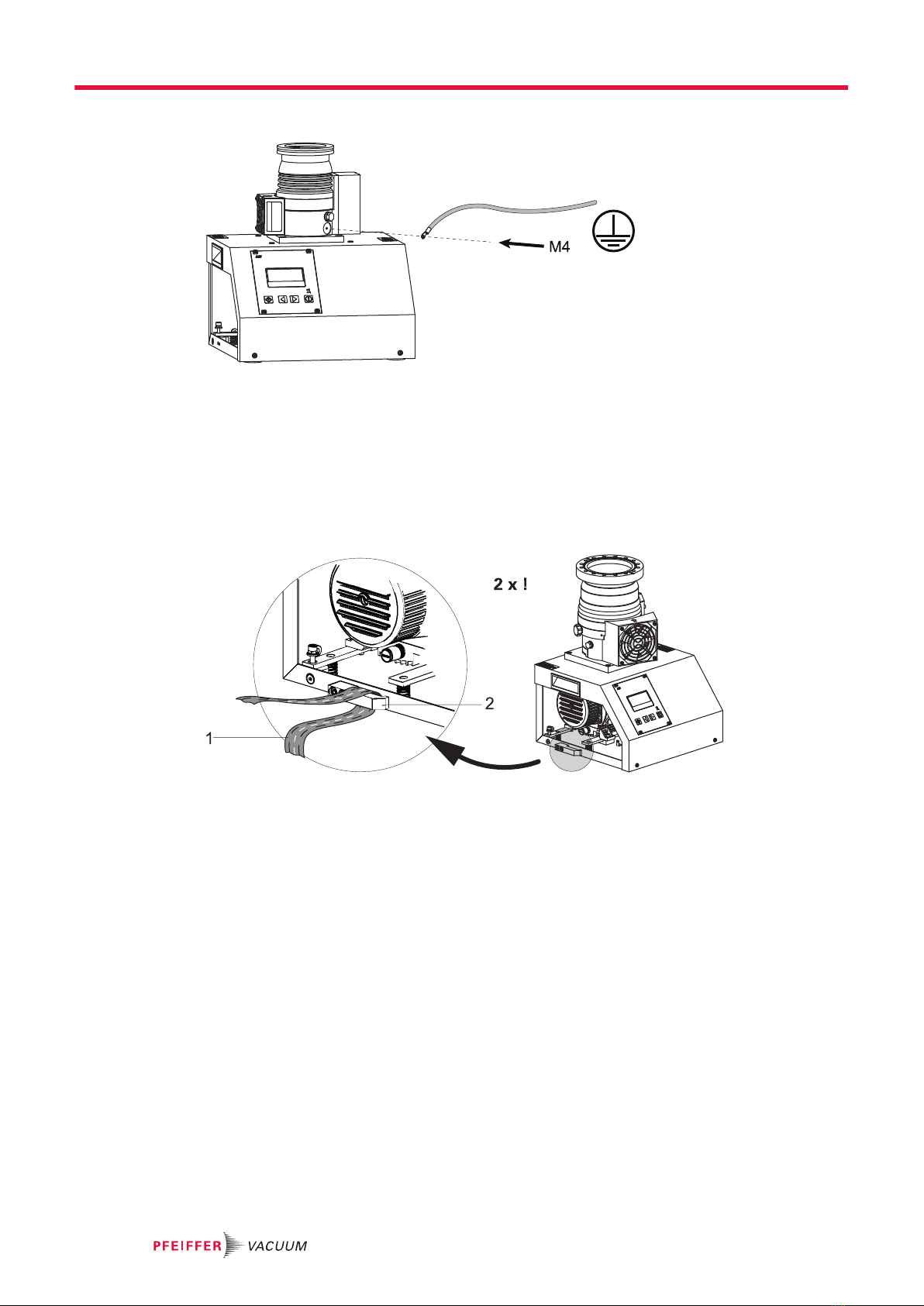

5.2.1 Grounding the pumping station 20
5.2.2 Anchor the pumping station (only applies to HiCube 300 Eco) 20
5.3 Connecting the high vacuum side 21
5.3.1 Requirements for the design of the counterflange 21
5.3.2 Using accessories for the high vacuum connection 21
5.3.3 Connecting an external turbopump 22
5.3.4 Installation of ISO-KF flange 22
5.3.5 Installation of ISO-K flange onto ISO-K 23
5.3.6 Installation of ISO-K flange onto ISO-F 23
5.3.7 Installation of CF flanges 25
5.4 Connecting the exhaust side 26
5.5 Use of the DCU as a remote control 27
5.6 Connecting accessories for the pumping station 28
5.7 Unfastening the transport retainer 29
5.8 Connecting to the mains power supply 29
6 Operation 31
6.1 Commissioning 31
6.2 Switching on the turbo pumping station 32
6.3 Operating mode of the turbo pumping station 32
6.4 Operation with gas ballast 32
6.5 Monitoring the operating status 33
Table of contents
3/56

6.5.1 Operating mode display via LED 33
6.5.2 Temperature monitoring 34
6.6 Switching off and venting 34
6.6.1 Switching off the turbo pumping station 34
6.6.2 Venting 34
7 Maintenance 36
7.1 General maintenance information 36
7.2 Maintenance intervals and responsibilities 36
7.3 Removal of components for their maintenance 36
7.3.1 Dismantling connections 37
7.3.2 Removing the turbopump 37
8 Decommissioning 39
8.1 Shutting down for longer periods 39
8.2 Recommissioning 39
8.3 Disposal 39
9 Malfunctions 40
9.1 General 40
9.2 Troubleshooting 40
9.3 Error codes 40
10 Service solutions from Pfeiffer Vacuum 44
11 Accessories 46
12 Technical data and dimensions 47
12.1 General 47
12.2 Technical Data 47
12.3 Dimensioned drawings 52
Declaration of Conformity 55
Table of contents
4/56

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
These operating instructions are for customers of Pfeiffer Vacuum. They describe the function of the
designated product and provide the most important information for a safe usage of the product. The de-
scriptions comply with applicable directives. All information provided in these operating instructions refer
to the current development status of the product. The documentation remains valid as long as the cus-
tomer does not modify the product in any way.
1.1.1 Related documents
HiCube Eco Operating manual
Declaration of Conformity A component of this manual
Operating manuals for the individual components see product description1)
1.1.2 Variants
These instructions apply to HiCube Eco with the pumping speed classes:
●HiCube 30 Eco
●HiCube 80 Eco
●HiCube 300 Eco
1.2 Target group
These operating instructions are aimed at all persons performing the following activities on the product:
●transport,
●setup (installation),
●usage and operation,
●decommissioning,
●maintenance and cleaning,
●storage or disposal.
The work described in this document is only permitted to be carried out by persons with appropriate
technical training (specialist staff) or with corresponding training from Pfeiffer Vacuum.
1.3 Conventions
1.3.1 Abbreviations
Abbreviation Meaning in the document
CF Flange: Metal-sealed connector conforming to ISO 3669
dMeasurement of the diameter (in mm)
DCU Display Control Unit (display and control unit from Pfeiffer Vacuum).
DN Nominal diameter as size description
fMeasurement of the speed of a vacuum pump (frequency, in rpm or Hz)
HV High vacuum flange, high vacuum side
ISO Flange: Connector conforming to ISO 1609 and ISO 2861
1) also available from the Pfeiffer Vacuum Download Center
About this manual
5/56

Abbreviation Meaning in the document
LC Display: Liquid crystal (LCD)
LED Illuminating diode
DVP Diaphragm vacuum pump
PE Protective earth
[P:xxx] Control parameters of the electronic drive unit Printed in bold as a three-digit number
in square brackets. Frequently displayed in combination with a short designation.
Example: [P:312] Software version
TTemperature (in °C)
TC Electronic drive unit of the turbopump (turbo controller)
TPS Power supply (turbo power supply)
X3 15-pole D-Sub connection socket on the electronic drive unit of the turbopump
Tbl. 1: Abbreviations used in the document
1.3.2 Pictographs
Pictographs used in the document indicate useful information.
Note
Tip
Example
1.3.3 Stickers on the product
This section describes all existing stickers on the product, and their meanings.
CUS
T V Rheinland
Fuse
S/N
Mod.
HiCube 80 Eco
PM S74 100 00
- - - - - - - -
P/N
Input
Mass Made in Germany 2016/10
2 A
100-240 V ±10 % 50/60 Hz
12.5 kg
D-35614 Asslar
Rating plate
The rating plate is located on the rear of the
pumping station housing.
warranty seal
Warranty seal
The product is factory-sealed. Damaging or re-
moving a warranty seal results in the warranty
being voided.
Protection class
The sticker describes protection class 1 for the
product. The positioning shows the position for
the grounding connection.
About this manual
6/56

Warning of electrical voltage
The sticker warns of the risk of electric shock
when working with the housing open.
Imperative: Disconnect the mains plug
The sticker instructs the disconnection of the
mains plug from the equipment before installa-
tion, servicing and maintenance work.
1.3.4 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual or by multiple action steps.
Individual action step
A horizontal, solid triangle indicates the individual action step of an action.
►This is an individual action step.
Sequence of multiple action steps
The numbering indicates an action with multiple action steps required.
1. Action step 1
2. Action step 2
3. ...
About this manual
7/56

2 Safety
2.1 General safety instructions
This document includes the following four risk levels and one information level.
DANGER
Imminent danger
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
►Instructions on avoiding the hazardous situation
WARNING
Possibly imminent danger
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
►Instructions on avoiding the hazardous situation
CAUTION
Possibly imminent danger
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
►Instructions on avoiding the hazardous situation
NOTICE
Danger of property damage
Notice is used to address practices not related to physical inrury.
►Instructions on avoiding property damage
Notes, tips or examples identify important information on the product or on this
document.
2.2 Safety instructions
All safety instructions in this document are based on results from the risk assessment in accordance
with Machine Directive 2006/42/EC AG Appendix I and EN ISO 12100 chapter 5. Where applicable, all
service life phases of the product have been taken into account.
Risks during transport
WARNING
Danger of serious injury due to falling objects
Due to falling objects there is a risk of injuries to limbs through to broken bones.
►Take particular care and pay special attention when transporting products manually.
►Do not stack the products.
►Wear protective equipment, e.g. safety shoes.
Risks during installation
WARNING
Danger of death from electric shock due to improper installation
The device uses voltage that is dangerous on contact as the electrical power supply. Potentially fatal
situations arise due to unsafe or incorrectly installation when reaching into the device.
►Ensure that the system is safely integrated into an emergency off safety circuit.
►Do not carry out any unauthorized modifications or changes on the device.
Safety
8/56

CAUTION
Cutting injuries on sharp and rotating parts with the high vacuum flange open during installa
tion
With the high vacuum flange open, access to sharp-edged parts is possible. There is a risk of cutting
injuries. Objects falling inside destroy the pump during subsequent operation.
►Only remove the original protective cover immediately before connecting the high vacuum flange.
►Do not reach into the high vacuum flange.
►Wear protective gloves during the installation process.
►Do not put the pump into operation with the vacuum flanges open.
►Ensure that the mechanical installation is completed before the electrics are connected.
NOTICE
Danger of property damage due to an incorrect counter flange design
Unevennesses of the customers counter flange result in distortion in the pump housing even when
correctly affixed. The result is leaks or negative changes in the running properties.
►Observe the shape tolerances for the counter flange.
►Observe the maximum deviations in evenness across the entire surface.
Risks during operation
WARNING
Danger of death from poisoning due to toxic gases being expelled without an exhaust line
Exhaust gases and vapors are released from the turbo pumping station unhindered during normal us-
age. In the case of processes with toxic media, there is a risk of injury and danger of death due to
poisoning.
►Note the corresponding regulations for handling toxic substances.
►Toxic process gases should be safely conveyed away via an exhaust line.
CAUTION
Risk of injury from bursting due to high pressure in the exhaust line
Faulty or insufficient exhaust lines cause hazardous situations, e.g. increase in exhaust pressure.
There is a risk of bursting. It is not possible to rule out the risk of injuries due to broken pieces flying
around, high escaping pressure and damage to the equipment.
►Lay the exhaust line without shut-off units.
►Observe the permissible pressures and pressure differentials of the product.
►Check the exhaust line regularly for correct function.
NOTICE
Leaks may occur due to the incorrect installation of CF flanges
Inadequate cleanliness when handling CF flanges and copper seals results in leaks and may cause
process damage.
►Always wear suitable gloves before touching or fitting any components.
►Fit seals only if dry and free of grease.
►Note any damaged surfaces and cutting edges.
►Replace the damaged components.
NOTICE
Destruction of the pump due to gases with excessively high molecule masses
When conveying gases with non-permissibly high molecule masses, there is a risk of the turbopump
being destroyed.
►Make sure the gas mode is set correctly [P:027] on the electronic drive unit.
►Consult Pfeiffer Vacuum before using gases with larger molecule gases (> 80).
Safety
9/56

NOTICE
Damage to the turbopump due to nonpermissibly fast pressure rise during venting
Non-permissibly high pressure rise rates place a significant load on the rotor and the magnetic bear-
ing of the turbopump. During venting very small volumes in the vacuum chamber or the turbopump,
there is a risk of uncontrollable pressure rises. This causes mechanical damage to the turbopump,
including potential failure.
►Observe the prescribed maximum pressure rise speed of 15 hPa/s.
►Avoid manual and uncontrolled venting of very low volumes.
►Where necessary, use a venting valve from the Pfeiffer Vacuum range of accessories.
Risks during maintenance
WARNING
Danger of death from electric shock during servicing and maintenance work
The device is only free of voltage with the mains plug disconnected and the turbopump at a standstill.
►Switch off the main switch prior to starting any work.
►Wait for the turbopump to come to a standstill (speed = 0)
►Disconnect the mains plug from the device.
►Secure the device against accidental restart.
WARNING
Health risk and potential environmental damage due to toxic contaminated parts or devices
Toxic process media result in contamination of the devices or parts thereof. During maintenance work
there is a health risk due to contact with these poisonous substances. The non-permitted disposal of
toxic substances results in environmental damage.
►Take appropriate safety precautions and avoid health risks or environmental hazards due to toxic
process media.
►Decontaminate the affected parts before carrying out maintenance work.
►Wear protective equipment.
NOTICE
Malfunction due to changing the connection configuration
The pumping station connections are pre-configured at the factory. If the control lines on the connec-
tor are mixed up, this causes the pumping station to malfunction or fail.
►When removing components, note their original layout for subsequent re-assembly.
►Make a note of the accessories configuration and important setting values from the DCU before
disassembly of the pumping station or components.
Risks during recommissioning
NOTICE
Damage to the turbopump due to excessive aging of the operating fluid after recommission
ing
The storage capacity of the operating fluid in the turbopump is limited. Excessive aging of the operat-
ing fluid can result in the ball bearings failing and cause damage to the turbopump.
►Observe the usable service life of the operating fluid:
●Without operation, maximum of 2 years,
●Following operating and standstill times, 4 years in total.
►Observe the maintenance instructions and inform Pfeiffer Vacuum Service.
Safety
10/56

Risks in the event of faults
WARNING
Danger of death due to the turbopump tearing off in the event of a fault
Sudden blocking of the rotor generates high destructive torques in accordance with ISO 27892. If it is
not fastened correctly, the turbopump will tear off. The energy released in this way can propel the
entire pump or broken pieces from the inside of the pump through the room. Potentially dangerous
gases may escape. There is a risk of serious injury, potentially even fatal, and significant equipment
damage.
►Follow the installation instructions from the manufacturer.
►Observe the requirements for stability and the design of the counter flange.
►Only use approved original accessories or mounting elements approved by Pfeiffer Vacuum for
the installation process.
WARNING
Danger of death due to the turbopump with vibration damper is tearing off in the event of a
fault
Sudden blocking of the rotor generates high destructive torques in accordance with ISO 27892.
These result in the turbopump tearing off when using a vibration damper. The energy released in this
way can throw the entire pump or broken pieces from the inside of the pump through the space. Po-
tentially dangerous gases may escape. There is a risk of serious injury, potentially even fatal, and
significant property damage.
►Provide suitable safety measures on customer's side to compensate the torques arising.
►Please contact Pfeiffer Vacuum before installing a vibration damper.
2.3 Safety precautions
Information requirement on possible hazards
The owner or operator of the product is required to make all operating personnel
aware of hazards arising from the use of this product.
Every person who is involved in the installation, operation or maintenance of the
product must have read and understood the safety-relevant parts of this documen-
tation.
Infringement of EU conformity due to modifications to the product
The Declaration of Conformity from the manufacturer is no longer valid if the opera-
tor changes the original product or installs additional equipment.
●Following installation into a system, the operator is required to check and re-
evaluate as necessary the conformity of the overall system in the context of the
relevant EU Directives before commissioning that system.
General safety measures when handling the product
►Observe all applicable safety and accident prevention regulations.
►Check that all safety measures are observed at regular intervals.
►Do not expose any body parts to the vacuum.
►Always ensure a safe connection to the protective conductor (PE).
►Do not unplug any plug connectors during operation.
►Observe the specified shutdown procedures.
►Wait for the rotor to come to a complete standstill (speed f = 0) before working on the high vac-
uum connection.
►Do not put the device into operation with an open high vacuum flange.
►Keep lines and cables away from hot surfaces (> 70 °C).
►Never fill or operate the device with cleaning agents or cleaning agent residue.
►Do not carry out any unauthorized modifications or changes to the device.
►Observe the protection rating of the device being installation or operation in different environ-
ments.
Safety
11/56

2.4 Limits of use of the product
Parameters Limit values
Installation location Weather-protected (interior spaces)
Air pressure 750 hPa to 1060 hPa
Installation altitude max. 2000 m
Relative humidity max. 80 %, at T < 31 °C
max. 50 % at T < 40 °C
Protection class I
Overvoltage category II
Protection rating (IP code) IP20
Contamination level 2
Ambient temperature 5 °C to 35 °C with air cooling
5 °C to 40 °C with water cooling
Permissible surrounding magnetic field Depends on the turbopump used
Maximum irradiated thermal output Depends on the turbopump used
Maximum permissible rotor temperature of the turbo pump 90 °C
Tbl. 2: Permissible ambient conditions
Notes on ambient conditions
The specified permissible ambient temperatures apply to operation of the turbo-
pump at maximum permissible backing pressure or at maximum gas throughput,
depending on the cooling type. The turbopump is intrinsically safe thanks to redun-
dant temperature monitoring.
●The reduction in backing pressure or gas throughput permits operation of the
turbopump at higher ambient temperatures as well.
●If the maximum permissible operating temperature of the turbopump is excee-
ded, the electronic drive unit first reduces the drive output and switches it off
where necessary.
2.5 Proper use
●The turbo pumping station is only used to generate the vacuum.
●The turbo pumping station is only used to extract dry and inert gases.
●The turbo pumping station is only intended for use in enclosed interior spaces.
●The turbo pumping station is intended for use as a table-top unit.
2.6 Foreseeable misuse
Misuse of the product automatically invalidates all warranty and liability claims. Any use that is counter
to the purpose of the product, whether intentional or unintentional, is regarded as misuse, in particular:
●Pumping corrosive or explosive media
●Pumping condensing vapors
●Pumping liquids
●Pumping dusts
●Operation with non-permissibly high gas throughput
●Operation with non-permissibly high fore-vacuum pressure
●Operation with excessively high radiated heat output
●Operation in non-permissibly high magnetic fields
●Operation in the incorrect gas mode
●Venting with non-permissibly high venting rates
●Use for pressure generation
Safety
12/56

●Use in areas with ionizing radiation
●Operation in explosion-hazard areas
●Use in systems in which impact loads and vibrations or periodic forces are exerted on the equip-
ment
●Use of accessories or spare parts that are not described in this manual
Safety
13/56

3 Transportation and Storage
3.1 Transport
WARNING
Danger of serious injury due to falling objects
Due to falling objects there is a risk of injuries to limbs through to broken bones.
►Take particular care and pay special attention when transporting products manually.
►Do not stack the products.
►Wear protective equipment, e.g. safety shoes.
Pfeiffer Vacuum recommends retaining the transport packaging and original protec-
tive cover.
Notes on safe transportation
1. Transport the pumping station in the original packaging.
2. Always transport the pumping station upright and in as level a position as pos-
sible.
3. Always position the pumping station securely on a sufficiently large, level sur-
face.
1
3
2
< 20 kg
Fig. 1: HiCube Eco transport
1 Recessed handle 3 Protective cover
2 Installation base
Notes on safe transportation without packaging
For transport without packaging, the HiCube Eco turbo pumping stations are equipped with recessed
handles on the side of the housing frame.
1. Observe the weight specified on the rating plate.
2. Lift the turbo pumping station with both hands at the recessed handles.
3. Always transport the turbo pumping station upright with the base downward.
4. Always position the pumping station securely on a sufficiently large, level surface.
3.2 Transport protection
The fore-vacuum pumps in HiPace turbo pumping stations are secured against damage during trans-
port.
Using the transport retainers
1. Do not unfasten the transport retainer on the backing pump until immediately before commission-
ing at the installation location.
2. Observe the notes on installation (see chapter “Unfastening the transport retainer”, page 29).
Transportation and Storage
14/56

3.3 Storage
Pfeiffer Vacuum recommends storing the products in their original transport pack-
aging.
Storing the pumping station
1. Seal the flange openings using the original protective covers.
2. Seal other connections (e.g. exhaust) with appropriate protective covers.
3. Only store the turbo pumping station in indoor areas at temperatures between -10 °C and +40 °C.
4. In rooms with a humid or caustic atmosphere: Seal the turbo pumping station airtight in a plastic
bag together with a drying agent.
Transportation and Storage
15/56

4 Product description
4.1 Product identification
To ensure reliable identification of the product, always keep all of the information on the rating plate to
hand, and use it when communicating with Pfeiffer .
Information on certifications can be found on the test seal on the product, as applicable, or from:
●www.tuvdotcom.com
●with the company ID no. 000021320
Fig. 2: HiCube Eco pump configuration
Characteristics HiCube Eco Operating manual
HV flange DN 40 / DN 63 DN 100
Turbopump HiPace 30 HiPace 80 HiPace 300
HiPace 300 H
PT 0510 BN
PT 0208 BN
PT 0202 BN
PT 0509 BN
Electronic drive unit TC 110 TC 110 TC 110 PT 0204 BN
Backing pump: Dia-
phragm pump
MVP 015-2
MVP 015-4
MVP 030-3
MVP 015-2
MVP 015-4
MVP 030-3
(MVP 015-2)
MVP 015-4
MVP 030-3
PU 0070 BN
PU 0070 BN
PU 0065 BN
Power supply TPS onboard,
24 V DC
TPS onboard,
24 V DC
TPS onboard, 24 V DC
Product description
16/56

Characteristics HiCube Eco Operating manual
Display and control unit DCU 002 DCU 002 DCU 002 PT 0250 BN
Air cooling yes yes yes PT 0500 BN
Venting valve optional optional optional PT 0228 BN
Housing heater (water
cooling required)
Not available optional, only with CF
flange
optional, only with CF
flange
PT 0233 BN
Tbl. 3: HiCube Eco configuration of vacuum pumps and accessories
4.2 Function
Turbo pumping stations are fully automatic pump units supplied ready for connection. A turbo pumping
station consists of a portable or mobile vacuum pumping unit with a turbo pump and a specially match-
ed backing pump.
Fig. 3: HiCube Eco construction
1 Display and control unit DCU 002 8 Turbopump HiPace 80, DN 63 ISO-K
2 Retaining hook (only with HiCube 300 Eco) 9 Electronic drive unit TC 110
3 Transport protection 10 Connecting cable
4 Backing pump diaphragm pump MVP 030-3 11 Ground terminal
5 Recessed handle 12 Backing pump diaphragm pump MVP 015-2
6 Turbopump HiPace 300, DN 100 CF-F 13 Master switch
7 Air cooling 14 Mains power supply
4.2.1 Control interface
The integrated DCU 002 display and control unit serves to control and monitor the turbo pumping sta-
tion. The DCU is optionally used as a remote control when removing the housing and using an exten-
sion cable.
Product description
17/56

DCU
1
2
3
4

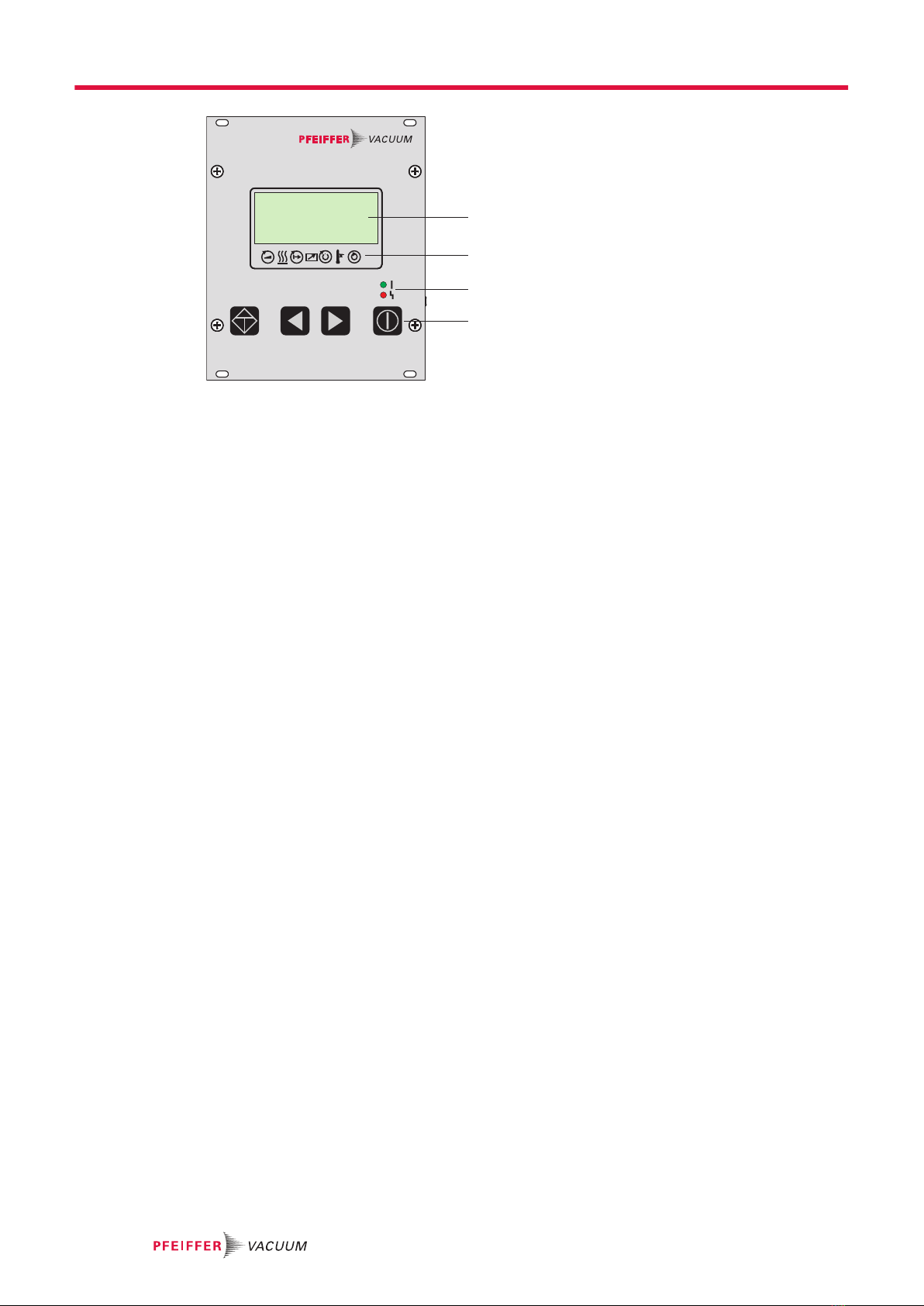

Fig. 4: DCU control panel
1 LC display, illuminated 3 LED operating display
2 Status icons 4 Control keys
4.2.2 Drive
●Electronic drive unit of the turbopump
●Electronic drive unit of the backing pump
4.2.3 Cooling
●Air cooling
●Water cooling (optional)
At excessively high temperatures, the electronic drive unit automatically reduces the drive power.
4.3 Scope of delivery
●HiCube Eco
●Protective cover for high vacuum flange
●Extension cable M12 on M12, 3 m
●Power supply cable, country-specific
●Operating instructions for pumping station and individual components
Product description
18/56

5 Installation
The rotor of the turbopump revolves at very high speed. In practice it is not possible to exclude the risk
of the rotor touching the stator (e.g. due to the penetration of foreign bodies into the high vacuum con-
nection). The kinetic energy released acts on the housing and on the anchoring of the turbopump within
fractions of a second. This makes the stability of the turbopump and its fastenings extremely important.
Comprehensive tests and calculations conforming to ISO 27892 confirm the safety of the turbopump
both against crashes (destruction of the rotor blade) and against bursting (breakage of the rotor shaft).
The experimental and theoretical results are expressed in safety measures and recommendations for
the correct and safe fastening of the turbopump.
5.1 Preparatory work
Preliminary note
►Choose an installation location that permits access to the pumping station and to supply lines at
all times.
Prerequisites
●The given ambient conditions
●level, vibration-free surface
●Distance to side walls or adjacent devices: at least 50 cm
●Distance to free table edges min. 10 cm
●when using a housing heater and water cooling, the temperature on the connection flange on the
vacuum chamber is not permitted to exceed 120 °C
Choosing the installation location
1. Ensure adequate cooling options for the pumping station.
2. Install suitable protective shielding if ambient magnetic fields occur that are higher than the maxi-
mum permitted.
3. Install suitable protective shielding to prevent the radiated heat output exceeding the permissible
values when high temperatures arise due to the processes involved.
5.2 Setting up the pumping station
CAUTION
Cutting injuries on sharp and rotating parts with the high vacuum flange open during installa
tion
With the high vacuum flange open, access to sharp-edged parts is possible. There is a risk of cutting
injuries. Objects falling inside destroy the pump during subsequent operation.
►Only remove the original protective cover immediately before connecting the high vacuum flange.
►Do not reach into the high vacuum flange.
►Wear protective gloves during the installation process.
►Do not put the pump into operation with the vacuum flanges open.
►Ensure that the mechanical installation is completed before the electrics are connected.
General notes for the installation of vacuum components
►Choose an installation location that permits access to the product and to supply lines at all times.
►Observe the ambient conditions named for the area of use.
►Provide the highest possible level of cleanliness during assembly.
►Ensure that flange components during installation are grease-free, dust-free and dry.
Installation
19/56

5.2.1 Grounding the pumping station
Fig. 5: Example grounding terminal for a HiCube 80 Eco
Connecting the grounding
Pfeiffer Vacuum recommends connecting an appropriate grounding cable to divert applicative interfer-
ence forces.
1. Use the grounding terminal of the turbopump (M4 internal thread).
2. Perform the connection in accordance with applicable local regulations.
5.2.2 Anchor the pumping station (only applies to HiCube 300 Eco)
Fig. 6: Fasten the HiCube 300 Eco pumping station using securing straps
1 Securing strap 2 Securing hooks
Secure the HiCube 300 Eco against twisting
In the case of a sudden blocking of the turbopump rotor, the resulting torque must be taken up via the
pumping station frame by the fixture provided by customer. Anchoring the pumping station is mandatory
in order to secure the pumping station and the vacuum system. For this purpose there are 2 securing
hooks at the sides of the pumping station frame.
1. Always fasten the HiCube 300 Eco pumping station using securing straps to both securing hooks.
2. Fix the securing straps against the securing hook openings and thus against the direction of rota-
tion of the turbopump.
3. Fasten the securing straps at the customer's site such that they are able to withstand loads of up
to 2000 N per fixing point.
4. Ensure that the straps are correctly positioned and tensioned. The loop of each strap must be in
the hollow of the hook.
Installation
20/56
