View
Instra

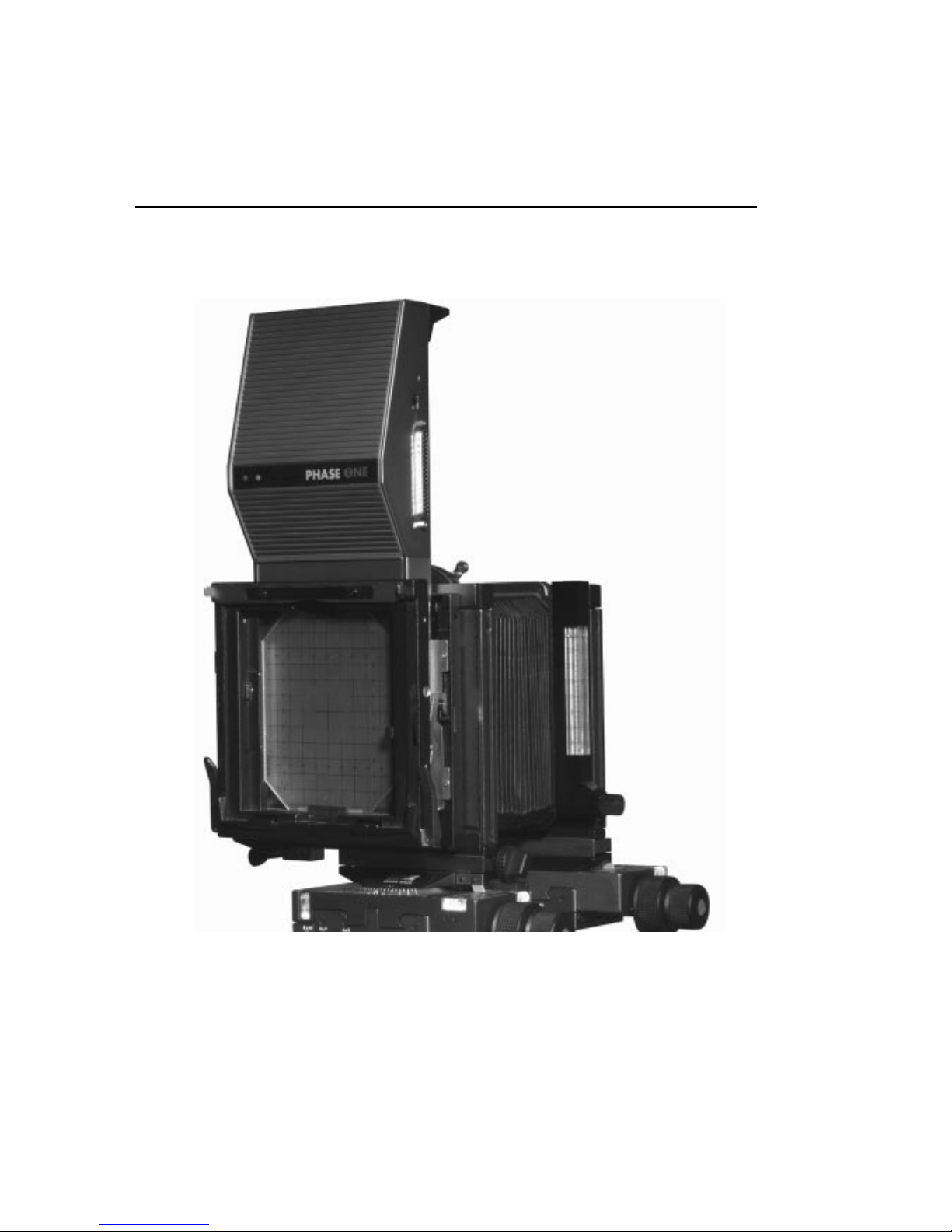

Digital Camera Back for
4"x5" Large Format
Cameras
User’s Guide
DIGITAL STUDIO CAMERA SYSTEM
Edition 3.0
85280002
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table of Contents
For Your Safety..................................................................................................................2
Section 1: Introduction......................................................................................................3
Section 1.1: How it Works............................................................................................3
Section 2: Back Panel Description.....................................................................................5
Section 3: Mounting and Unmounting the Camera Back..................................................7
Section 3.1: Mounting the Camera Back ......................................................................7
Section 3.2: Unmounting the Camera Back..................................................................7
Section 4: Care and Cleaning............................................................................................8
Section 4.1: Storage and Handling................................................................................8
Section 4.2: Cleaning the Camera Back Case................................................................8
Section 4.3: Cleaning the CCD Sensor.........................................................................9
Section 5: Camera Back Specifications.............................................................................10
PhotoPhase Digital Camera Back for Large Format Cameras – User's Guide
1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

PhotoPhase Digital Camera Back for Large Format Cameras – User's Guide
2
For Your Safety:
Read this manual carefully before turning on your system.
•If any component of your system becomes wet or damaged, remove
power by unplugging the power unit from the wall socket.
•Keep these instructions handy for reference by you or others.
•If you receive a shock while using this equipment, remove power and con-
tact a licensed electrician immediately.
•Follow all instructions and warnings dealing with your system.
•Never try to open any of your PhotoPhase units; electrical shock may result.
If your units require service, contact your licensed PhotoPhase dealer.
Warning: Electrical equipment may be hazardous if misused. Always super-
vise children when electrical equipment is present.
!
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
