PheeNet WAS-105R User manual

802.11n Wireless
Hotspot Gateway
Quick Installation Guide Ver 0.0.1 WAS-105R

Copyright
This document is the property of PheeNet Technology Corp. You may not copy, reproduce,
distribute, publish, display, perform, or modify any part of this publication in any form or by any
means without prior written permission from PheeNet Technology Corp. You may not alter or
remove any copyright or other notice from copies of the content. All other brand and product
names are claimed or registered marks of their respective companies or organizations.
All rights reserved.

Table of Contents
1. Before Your Start ..................................................................................................... 1
2. Hardware Installation................................................................................................. 4
3. Getting Started ........................................................................................................ 5
4. Quick Configuration .................................................................................................. 7
5. User Login ............................................................................................................ 11
1. Before Your Start
It is highly recommended to use all the supplies in the package instead of substituting
any components by other suppliers to guarantee best performance.
9Web Browser : Internet Explorer (8.0 or above), Firefox, Safari
9A Computer with a network adapter properly installed.
91 X RJ-45 Ethernet cable.

The WAS-105R is the most economical yet feature-rich Wireless Hotspot Gateway, targeting mini-size
stores who want to provide small, single-point wireless Internet access service. WAS-105R is a perfect
choice for beginners to run hotspot businesses. It does not cost a fortune to buy a pile of equipment,
nor does it take the skills of an expert to glue multiple applications out of multiple freeware. Feature-
packed for hotspot operation, WAS-105R comes with built-in 802.11n/b/g access point, web server
and web pages for clients to login, easy logo-loading for branding a hotspot store, simple
user/visitor account management tool, payment plans, PayPal credit card gateway, traffic logs,
IP sharing and etc.
This Quick Installation Guide provides instructions and reference material s for getting started with WAS-
105R.
Pr
e
f
ace

WAS-105R IEEE802.11n Wireless Hotspot Gateway
Quick Installation Guide
5
Front Panel
1. Power SOCKET (12V DC) : Attach the power socket here.
2. Reset : Press the Reset button once to restart the system, The LED except Power indicator will be off
before restarting.
3. LAN(POE) : Clients devices connect to WAS-105R via LAN ports
4. WAN1/WAN2 : Two WAN ports are available on the system.
5. Console : The serial RS-232 DB9 cable attaches here.
6. Scan Button :
ÎPress and hold the Reset button for 3seconds and release to Scan New AP's Channel. The
STATUS LED will be FLASH.
ÎPress and hold the Reset button for more than 10 seconds to reset the system to default
configurations. The SYSTEM LED will be ON.
7. USB : For 3G adapter (option)
Rear Panel
1. WAS-105R supports 1 RF interface with 2 SMA connectors for Antenna connection.
P
a
n
e
l F
u
n
ct
i
o
n D
esc
ri
pt
i
o
n

WAS-105R IEEE802.11n Wireless Hotspot Gateway
Quick Installation Guide
6
LED Panel
1. Power : LED ON indicates power on, OFF indicates power off.
2. WAN1/WAN2/LAN : LED ON indicates connection, OFF indicates disconnection, FLASH indicates packets
transmitting.
3. WLAN : LED ON indicates Wireless ready.
4. PRINT : LED ON indicates PSS-120 ready.
5. SYSTEM : LED ON indicates Flash busy, OFF indicates Flash Idle
6. STATUS : LED ON indicates System up, OFF indicates down, FLASH indicates Scan button activated.

WAS-105R IEEE802.11n Wireless Hotspot Gateway
Quick Installation Guide
7
2. Hardware Installation
Please follow the steps mentioned below to install the hardware of WAS-105R
1. Place the WAS-105R at a best location.
The best location for WAS-105R is usually at the center of your wireless network.
2. Connect WAS-105R to your outbound network device.
Connect one end of the Ethernet cable to the WAN1/WAN2 port of WAS-105R on the front panel. On your
environment, connect the other end of the cable to the external Internet. The WAN1/WAN2 LED indicator
should be ON to indicate a proper connection.
3. Connect WAS-105R to your network device.
Connect one end of the Ethernet cable to LAN port of WAS-105R on the front panel. Connect the other end of
cable to a PC for configuring the system. The LAN LED indicator should be ON to indicate a proper
connection.
4. There are two ways to supply power over to WAS-105R
ÎConnect the DC power adapter to the WAS-105R power socket on the front panel.
Please only use the power adapter supplied with the WAS-105R package. Using a
different power adapter may damage this system
ÎWAS-105R is capable of transmitting DC current via its LAN(PoE) port. Connect an IEEE 802.3af-
compliant PSE device, e.g. A PoE Switch, to the LAN(PoE) port of WAS-105R with the Ethernet
cable.
Now, the hardware installation is completed.
To double verify the wired connection between WAS-105R and your switch/router/hub,
please check the LED status indication of these network devices.

WAS-105R IEEE802.11n Wireless Hotspot Gateway
Quick Installation Guide
8
3. Getting Started
Step :
1. Once the hardware installation is done, set DHCP in TCP/IP of the administrator's PC to get an IP
address automatically. Connect the PC to the LAN(PoE) port of WAS-105R. An IP address will be
assigned to the PC automatically via the WAS-105R.
2. Launch a web browser to access the web GUI of WAS-105R by entering “http://192.168.2.254” in the
address field.
3. The following Administrator Login Page will appear. Enter “root” in the Username field, and “default”
in the Password field.
4. After a successful login, the “Home Page” will appear on the screen.
If you can't get the login screen, you may have incorrectly set your PC to obtain an IP address
automatically from LAN port or the IP address used does not have the same subnet as the URL.
Please use default IP address such as 192.168.2.xx in your network and then try it again.

WAS-105R IEEE802.11n Wireless Hotspot Gateway
Quick Installation Guide
9

WAS-105R IEEE802.11n Wireless Hotspot Gateway
Quick Installation Guide
10
4. Quick Configuration
WAS-105R provides wireless and wired network service with authentication required for clients in Service
Domain. Clients in the each Service Domain are isolated with each other. WAS-105R supports 8 Service
Domains, Domain-0 to Domain-7. Administrator can select authentication type on each Service Domain. If
Authentication Required is enabled, the clients are required to get authenticated successfully before access
the Internet.
Configuration Steps :
Step 1 : Change Root's Password
ÎClick System -> Management, the Management Setup page will appear.
ÎEnter a New Root Password for the Root account and retype in the Check Root Password field. (4-
30 alphanumeric and specific characters; not support Space)
ÎClick Save button.
For security concern, it is strongly recommended to change the Root password.
Step 2 : Choose System's Time Zone
ÎClick System -> Time Server, the Time Server Setup page will appear.
ÎSelect the appropriate NTP Server, Time Zone from drop-down list.
ÎClick Save button.

WAS-105R IEEE802.11n Wireless Hotspot Gateway
Quick Installation Guide
11
Before Hotspot service active, make sure the Local Time is correctly.

WAS-105R IEEE802.11n Wireless Hotspot Gateway
Quick Installation Guide
12
Step 3 : Select Connection Type for WAN1 Port and Set DNS Server
ÎClick System -> WAN, the WAN Setup page will appear.
ÎSelect the appropriate Connection Type for WAN1 port, there are four types of WAN1 connections to be
selected from: Static IP, Dynamic IP, PPPoE Client and PPTP Client.
ÎEnter the IP Address of a DNS Server provided by your ISP(Internet Service Provider). Contact the ISP if the
DNS IP Address is unknown.
ÎClick Save button.
Step 4 : Configure Wireless General Settings
ÎClick Wireless -> General Setup, the Wireless General Setup page will appear.
ÎSelect desired wireless Band, Channel.
ÎClick Save button
Step 5 : Set Virtual AP and Select Authentication Type for Service Domain
ÎClick Service Domain, the Service Domain Setup page will appear.

WAS-105R IEEE802.11n Wireless Hotspot Gateway
Quick Installation Guide
13
ÎMove AP0 Icon to Domain 1 window and click, the VAP0 Setup page will appear.
ÎSelect desired wireless ESSID and related settings.
ÎClick Tool Icon on Domain 1 window, the Service Domain1 Setup page will appear. For each Service
Domain(by default, authentication is None), authentication type can be selected in None, Pregenerated
Ticket, On-Demand, Local Radius, Remote Radius Server and LDAP Server. Clients shall log in the
system before using network server if Auth Type is not None. Below depicts an example for Local Radius.
ÎSelect Local Radius for Domain0's Authentication Type.
ÎEnter the Redirect URL that users should be initially directed to when successfully authenticated to the
network.
ÎConfigure related settings for the selected Auth Type.

WAS-105R IEEE802.11n Wireless Hotspot Gateway
Quick Installation Guide
14
ÎClick Save button.

WAS-105R IEEE802.11n Wireless Hotspot Gateway
Quick Installation Guide
15

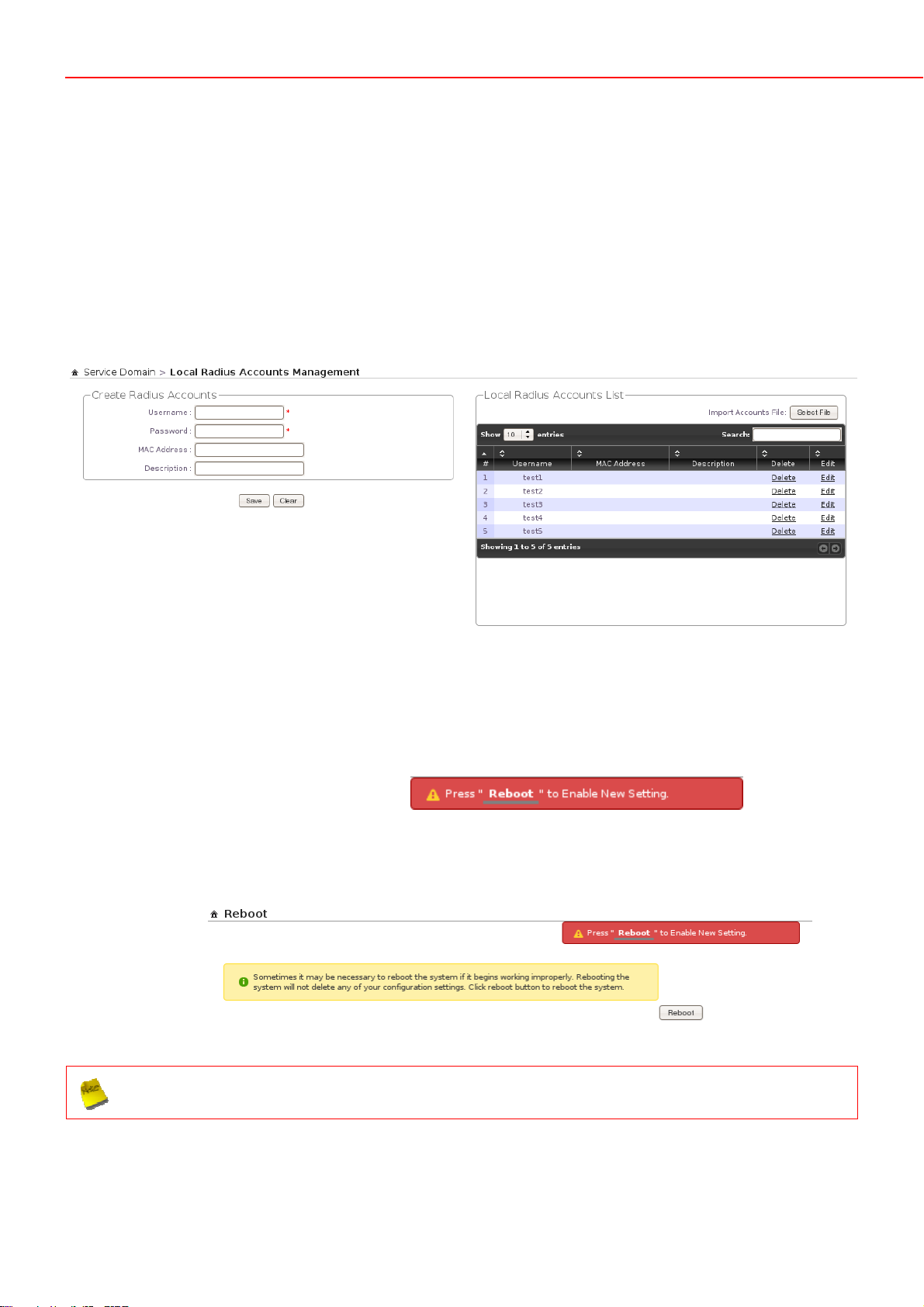

Step 6 : Add Local Radius Accounts
ÎClick Service Domain -> Authentication -> Local Radius Accounts, the Local Radius Accounts
Management page will appear.
ÎA new account can be added into the Local Radius Database. To add a account here, enter the
Username(e.g. test1), Password(e.g. 11111), MAC Address(optional, to specify the valid MAC address of
this account) and Description.
ÎMore accounts can be added by clicking the Save button.
Step 7 : Restart WAS-105R
ÎClick Reboot, the Reboot page will appear
ÎClick Reboot button to start the restarting process.
Plese don't interrupt the system during the restarting process.
ÎWhen the “Home Page” appears, it means the restart process is now completed.

WAS-105R IEEE802.11n Wireless Hotspot Gateway
Quick Installation Guide
16
5. User Login
To verify whether the configuration of the new Local Radius accounts created via the Quick Configuration has
been completed successfully :
Step :
1. Connect a client device (e.g. Notebook) with wireless interface to scan the configured ESSID of WAS-
105R (e.g. AP00) and get associated with this ESSID.
2. The client device will obtain an IP address automatically via DHCP from WAS-105R. Open a web
browser on a client device, access any URL, and then the Domain1 User Login Page will appear.
3. Enter the Username and Password of a Local Radius account previously generated via Quick
Configuration (e.g. “test1” as the Username and “11111” as the Password); then Click Login button.
Congratulation !
The Timer page will appear after a client has successfully logged into WAS-105R and has been authenticated
by the system. Now, you are connected the network and Internet!
