Philco PLWDSI 86 KING User manual

Wash and Dryer Machine
OWNER’S MANUAL
PLWDSI 86 KING
PLWD 107 B KING

Dear customer,
Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all
the instructions in this user’s manual.
Copyright © 2020, Fast ČR, a. s. Revision 01/2021

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 1
CONTENTS
SAFETY INSTRUCTIONS....................................................................................................................................2
INŠTALÁCIA SPOTREBIČA.................................................................................................................................................................6
Safety Instructions ............................................................................................................................................................................. 7
INSTALLATION...................................................................................................................................................9
Product Description .......................................................................................................................................................................... 9
Installation..........................................................................................................................................................................................10
OPERATIONS ...................................................................................................................................................13

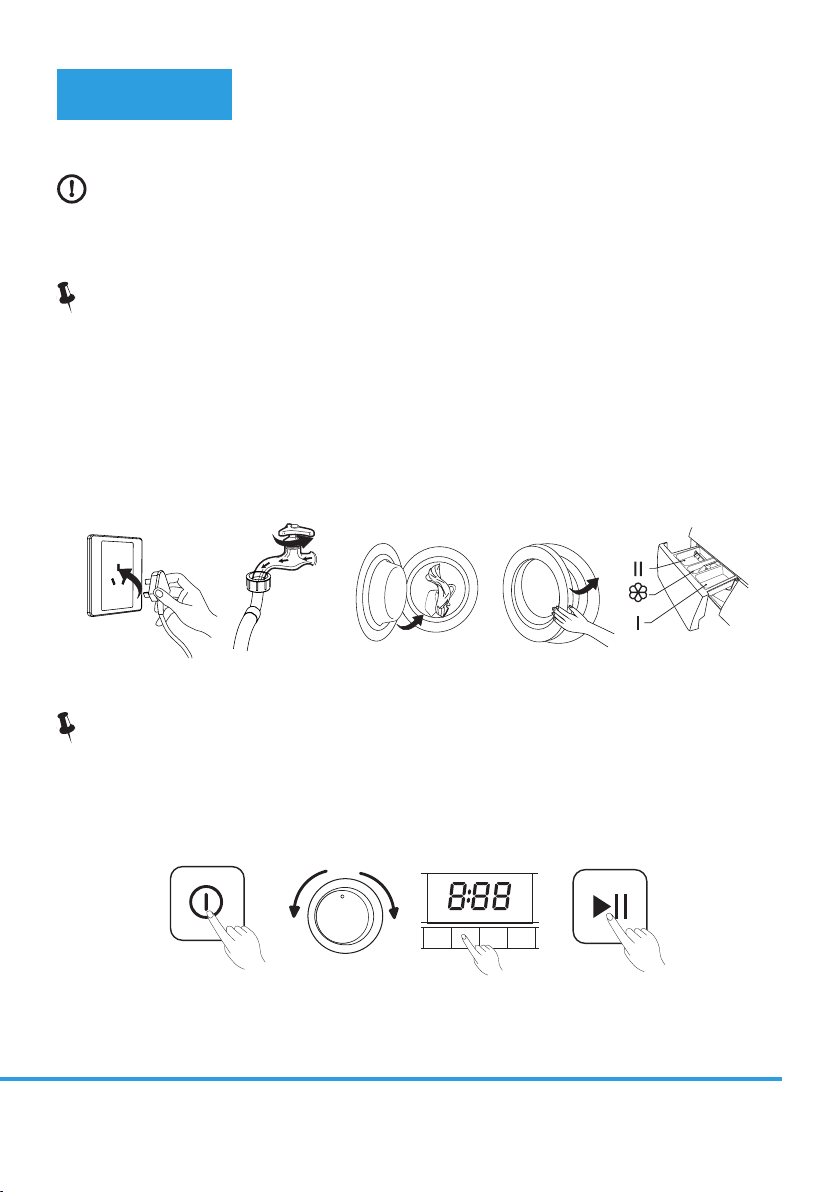

Quick Start ..........................................................................................................................................................................................13
Before Each Washing.......................................................................................................................................................................14
Detergent Dispenser.......................................................................................................................................................................15
Control Panel ....................................................................................................................................................................................16
Option ..................................................................................................................................................................................................17
Other functions.................................................................................................................................................................................19
Programmes.......................................................................................................................................................................................21
Washing Programmes Table.........................................................................................................................................................22
PLWDSI 86 KING , PLWD 107 B KING..........................................................................................................................................22
MAINTENANCE................................................................................................................................................23
Cleaning And Care...........................................................................................................................................................................23
Cleaning The Inlet Filter.................................................................................................................................................................24
Cleaning The Drain Pump Filter ..................................................................................................................................................25
Trouble Shooting..............................................................................................................................................................................26
Technical Specications.................................................................................................................................................................27
Product Information Sheet............................................................................................................................28
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 2
SAFETY INSTRUCTIONS
THIS APPLIANCE CAN BE USED BYCHILDREN AGED FROM 8
YEARS AND ABOVE AND BYPERSONS WITH REDUCED PHYSICAL,
SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE
AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR
INSTRUCTIONS CONCERNING USE OF THE APPLIANCE IN A SAFE
WAYAND IF THEY UNDERSTAND THE HAZARDS INVOLVED.
CHILDREN MUST NOTPLAYWITH THE APPLIANCE.
CHILDREN YOUNGER THAN 3YEARS OF AGE SHOULD BE
PREVENTED FROM ACCESSING UNLESS THEY ARE UNDER
PERMANENT SUPERVISION.
CLEANING AND USER MAINTENANCE CANNOT BE PERFORMED
BY CHILDREN WITHOUT SUPERVISION.
IF THE SUPPLYCABLE GETS DAMAGED, HAVE IT REPLACED BYA
SPECIALIZED SERVICE CENTRE IN ORDER TO AVOID DANGEROUS
SITUATIONS. IT IS PROHIBITED TO USE AN APPLIANCE WITH THE
SUPPLYCABLE DAMAGED.
THIS APPLIANCE IS INTENDED TO BE USED ONLY IN
HOUSEHOLDS AND NOT IN SIMILAR PREMISES, SUCH AS:
 KITCHENETTES IN SHOPS, OFFICES AND OTHER WORKPLACES;
 AGRICULTURAL FACILITIES;
 HOTELS, MOTELS, AND OTHER ACCOMMODATION FACILITIES
WHERE APPLIANCES ARE USED BY GUESTS;
 BED AND BREAKFAST FACILITIES;
 COMMON USE FACILITIES IN BLOCKS OF FLATS.

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 3
 THE APPLIANCE MUST NOT BE USED WITH MORE DRY
LAUNDRY THAN STATED IN THE MACHINE SPECIFICATIONS.
 THE DRYER MUST NOT BE USED IF INDUSTRIAL CHEMICALS
WERE INVOLVED IN CLEANING.
 MAKE SURE THAT FLUFF DOES NOT ACCUMULATE AROUND
THE MACHINE.
 DO NOT DRY UNWASHED PIECES OF CLOTHING IN THE DRUM
DRYER.
 PIECES OF CLOTHING STAINED WITH SUCH SUBSTANCES
AS EDIBLE OIL, ACETONE, ALCOHOL, PETROL, PARAFFIN,
STAIN REMOVERS, TURPENTINE, WAXES OR WAX REMOVERS
SHOULD BE WASHED IN HOT WATER WITH AN EXTRA DOSE OF
DETERGENT BEFORE THEY ARE DRIED IN A DRUM DRYER.
 PIECES OF CLOTHING SUCH AS FOAM RUBBER FOAM LATEX,
BATHING CAPS, WATERPROOF TEXTILES, RUBBERCOATED
ELEMENTS AND CLOTHING OR PILLOWS FILLED WITH FOAM
RUBBER SHOULD NOT BE DRIED IN A DRUM DRYER.
 SOFTENERS AND SIMILAR PRODUCTS SHOULD BE USED
ACCORDING TO THEIR INSTRUCTIONS FOR USE.
 THE FINAL PHASE OF THE DRUM DRYER CYCLE WILL BE
PERFORMED WITHOUT HEATING COOLING CYCLE TO
ENSURE THAT THE CLOTHING PIECES WILL ACHIEVE SUCH
TEMPERATURE THAT WILL PREVENT THEM FROM GETTING
DAMAGED.
 REMOVE ALL ITEMS SUCH AS LIGHTERS AND MATCHES FROM
POCKETS.
！
NEVER TURN THE DRUM DRYER OFF BEFORE THE
DRYING CYCLE IS COMPLETED UNLESS ALL ITEMS ARE
REMOVED AND SPREAD OUT QUICKLY AFTERWARDS SO
THAT THE HEAT CAN DISSIPATE.

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 4
THE APPLIANCE MUST NOT BE INSTALLED BEHIND LOCKABLE
DOOR, SLIDING DOOR OR DOOR WITH HINGES AT THE
OPPOSITE SIDE FROM THE DRUM DRYER IF SUCH INSTALLATION
WOULD PREVENT THE DRUM DRYER DOOR FROM OPENING
FULLY.
！
THE APPLIANCE MUST NOT BE POWERED FROM AN
EXTERNAL SWITCHING DEVICE SUCH AS TIMER SWITCH
OR BE CONNECTED TO A CIRCUIT THAT IS REGULARLY
SWITCHED ON AND OFF.
THIS APPLIANCE IS INTENDED FOR WASHING AND DRYING
FABRICS FOR WHICH THE MANUFACTURER HAS RECOMMENDED
SUCH TREATMENT.
ALWAYS USE PROGRAMMES ACCORDING TO THE FABRIC TYPE.
THE WASHING MACHINE COULD GET DAMAGED WHEN WASHING
OR DRYING SHOES.
DO NOT USE TO WASH CARPETS.
USE ONLY DETERGENTS THAT ARE INTENDED FOR WASHING OR
DRYING CLOTHES IN AN AUTOMATIC DRUM WASHING MACHINE.

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 5
！
 IF THE SUPPLY CORD GETS DAMAGED, IT MUST BE REPLACED
BY THE MANUFACTURER, ITS SERVICE AGENT OR A SIMILARLY
QUALIFIED PERSON.
 THE APPLIANCE SHOULD BE CONNECTED TO THE WATER
SUPPLY AND DRAIN USING NEW HOSES, NOT USING HOSES
THAT HAVE ALREADY BEEN USED.
 ALWAYS DISCONNECT THE APPLIANCE FROM THE MAINS
BEFORE PERFORMING ANY MAINTENANCE.
 THE POWER CORD PLUG MUST BE CONNECTED TO A
GROUNDED THREEPOLE ELECTRIC OUTLET.
 NEVER USE A POWER OUTLET WITH A RATED VOLTAGE THAT IS
DIFFERENT FROM THE APPLIANCE’S VOLTAGE.
 DO NOT USE EXTENSION CORD TO CONNECT THE MACHINE TO
THE POWER OUTLET.
 THE APPLIANCE, THE POWER CORD OR THE ELECTRIC OUTLET
MUST NOT LIE IN, TOUGH OR BE SUBMERGED IN WATER OR ANY
OTHER LIQUID TO AVOID ELECTRICAL HAZARDS.
 THE APPLIANCE MUST NOT STAND ON THE POWER CORD.
 THE POWER CORD MUST NOT BE EXCESSIVELY OR
DANGEROUSLY BENT OR COMPRESSED DURING INSTALLATION
OR OPERATION.
 THE CONTROLS AND DOOR OF THE APPLIANCE ARE NOT TO BE
PLAYED WITH.
 THE GLASS DOOR OF THE APPLIANCE CAN GET HOT DURING
OPERATION.
 DO NOT DRY UNWASHED PIECES OF CLOTHING IN THE DRYER.

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 6
APPLIANCE INSTALLATION
 THIS APPLIANCE IS INTENDED FOR INTERIOR USE ONLY.
 THIS APPLIANCE IS INTENDED TO BE BUILTIN.
 THE ELECTRIC OUTLET THAT THE POWER CORD IS CONNECTED
TO MUST BE EASILY ACCESSIBLE AFTER THE APPLIANCE HAS
BEEN INSTALLED.
 REMOVE ALL PACKAGING MATERIALS AND SAFETY TRANSPORT
BOLTS BEFORE USING THE APPLIANCE. OTHERWISE THE
APPLIANCE OR ITS SURROUNDINGS MIGHT GET SERIOUSLY
DAMAGED.
 THE APPLIANCE, THE POWER CORD OR THE ELECTRIC OUTLET
MUST NOT LIE IN, TOUGH OR BE SUBMERGED IN WATER OR ANY
OTHER LIQUID TO AVOID ELECTRICAL HAZARDS.
 THE PACKAGING MATERIALS MUST BE DISPOSED OF IN A
PROPER MANNER.
 DO NOT LIFT OR HANDLE THE APPLIANCE WHEN HOLDING
ITS DOOR, CONTROLS, THE UPPER BOARD, HOSES OR POWER
CORD.
 THE APPLIANCE MUST BE INSTALLED ONTO A FIRM AND EVEN
SURFACE.
 AFTER YOU PLACE THE APPLIANCE, MAKE SURE IT IS LEVEL IN
ALL DIRECTIONS USING A SPIRIT LEVEL.
 THE APPLIANCE MUST NOT BE INSTALLED BEHIND LOCKABLE
DOOR, SLIDING DOOR OR DOOR WITH HINGES AT THE
OPPOSITE SIDE FROM THE DRUM DRYER IF SUCH INSTALLATION
WOULD PREVENT THE DRUM DRYER DOOR FROM OPENING
FULLY.
！
THE APPLIANCE MUST NOT BE POWERED FROM AN
EXTERNAL SWITCHING DEVICE SUCH AS TIMER SWITCH
OR BE CONNECTED TO A CIRCUIT THAT IS REGULARLY
SWITCHED ON AND OFF.

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 7
PLEASE READ THOSE SAFETY PRECAUTIONS CAREFULLY AND
STORE THEM FOR FUTURE REFERENCE.
pSafety Instructions
For your safety,the information in this manual must be followed to
minimize the risk of re or explosion, electric shock, or to prevent
property damage, personal injury or loss of life.
Explanation of the symbols:
！
Warning!
This combination of symbol and signal word indicates a potentially
dangerous situation which may result in death or serious injuries
unless it’s avoided.
Caution!
This combination of symbol and signal word indicates a potentially
dangerous situation which may result in slight or minor injuries or
damage to property and the environment.
Note!
This combination of symbol and signal word indicates a potentially
dangerous situation which may result in slight or minor injuries.

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 8
Packaging/Old appliance
This marking indicates that this product should not be
disposed with other household wastes throughout the EU.
To prevent possible harm to the environment or human
health from uncontrolled waste disposal,recycle it
responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the
collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 9
INSTALLATION
pProduct Description
Water supply hose
Top cover
Control panel
Power supply cord
Drum
Service lter
Drain hose
Detergent dispenser
Door
Note!
• Theproductlinechartisforreferenceonly,pleaserefertorealproductasstandard.
Accessories
Transport hole
plug
Supply hose cold
water
Supply hose hot
water (optional)
Drain hose
support
(optional)
Owner’s manual

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 10
pInstallation

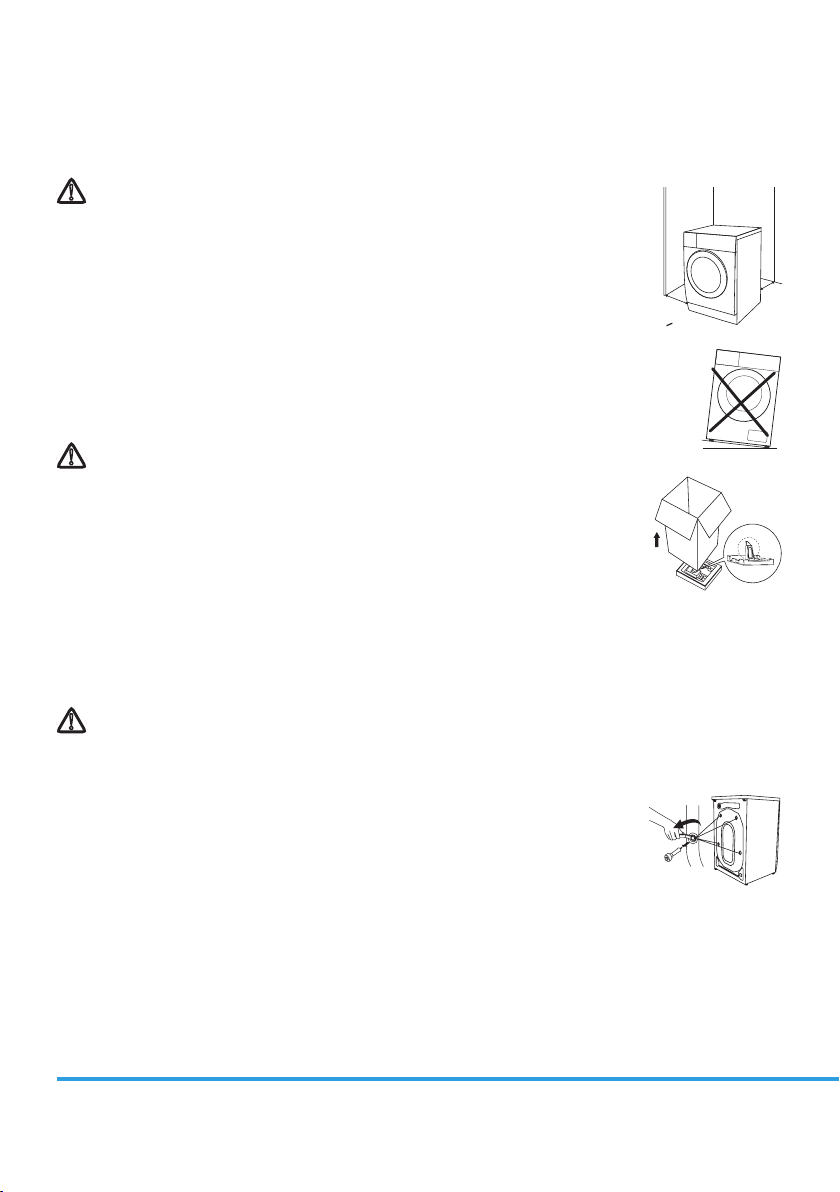

Installation area
！
Warning!
• Stabilityisimportanttopreventtheproductfromwandering!
• Makesurethattheproductshouldnotstandonthepowercord.
Before installing the machine, the location characterized follows shall be selected:
1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sucient ventilation
4. Room temperature is above 0 °C
5. Keep far away from the heat resources such as coal or gas.
Unpacking the washing machine
！
Warning!
• Packagingmaterial(e.g.Films,Styrofoam)canbedangerousforchildren.
• Thereisariskofsuocation!Keepallpackagingwellawayfromchildren.
1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packing. Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Remove transport bolts
！
Warning!
• Youmustremovethetransportboltsfromthebacksidebeforeusingtheproduct.
• You’llneedthetransportboltsagainifyoumovetheproduct,somakesureyoukeeptheminasafeplace.
Please take the following steps to remove the bolts:
1. Loosen 4 bolts with spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.
w
w
W> 20mm

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 11
Levelling the washer dryer
！
Warning!
• Thelocknutsonallfourfeetmustbescrewedtightlyagainstthehousing.
1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions
tighten the nuts.
2. Loosen the lock nut turn the feet until it closely contacts with the oor.
3. Adjust the legs and lock them with a spanner, make sure the machine is steady.
Raise
1 2 3 4
Lower
Lock nut
foot
Connect Water Supply Hose
！
Warning!
• Topreventleakageorwaterdamage,followtheinstructionsinthischapter!
• Donotkink,crush,modifyorseverwaterinlethose.
• Forthemodelequipshotvalve,connectittohotwatertapwithhotwatersupplyhose.Energyconsumption
will decrease automatically for some program.
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1. Connection between ordinary tap and inlet hose.
clamp nut
Loosen clamp nut and
four bolts
Tighten clamp nut Connection
nished
Press slide bushing,
insert inlet hose into
connecting base
slide bushing
1 2 3 4

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 12
2. Connection between screw tap and inlet hose.
slide bushing
Tap with threads and inlet hose Special tap for washer dryer
Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly
clockwise.
water Inlet valve water supply hose
Drain Hose
！
Warning!
• Donotkinkorprotractthedrainhose.
• Positiondrainhoseproperly,otherwisedamagemightresultofwaterleakage.
There are two ways to place the end of drain hose:
Water
trough
Min.60cm
10 0cm
Max.
1. Put it into the water trough. 2. Connect it to the branch
drain pipe of the trough.
Note!
• Ifthemachinehasdrainhosesupport,pleaseinstallitlikethefollowing.

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 13
OPERATIONS
pQuick Start
Caution!
• Beforewashing,pleasemakesureit’sinstalledproperly.
• Beforewashingatfirsttime,thewashingmachineshallbeoperatedinoneroundofthewholeprocedures
without clothes in as follows.
1. Before Washing
1 2 3 4 5
Plug in Open tap Load Close door Add detergent
Main
wash
Softener
Prewash
Note!
• Afterprewashisselectedinappliancesequippedwiththisfunction,detergentmustbeaddedtothe“I”
drawer.
2. Washing
Select
Programme
Power On Select function or
default
Start up
2
13 4

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 14
Note!
• Ifdefaultisselected,step3canbeskipped.
• Thefunctionbuttonlinechartisforreferenceonly,pleaserefertorealproductasstandard.
3. After Washing
Buzzer beep or“End” on display.
pBefore Each Washing
• Theworkingconditionofthewashershouldbe(0-40)°C.Ifusedunder0°C,theinletvalveanddraining
system may be damaged. If the machine is placed under condition of 0 °C or less, then it should be
transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen
before use.

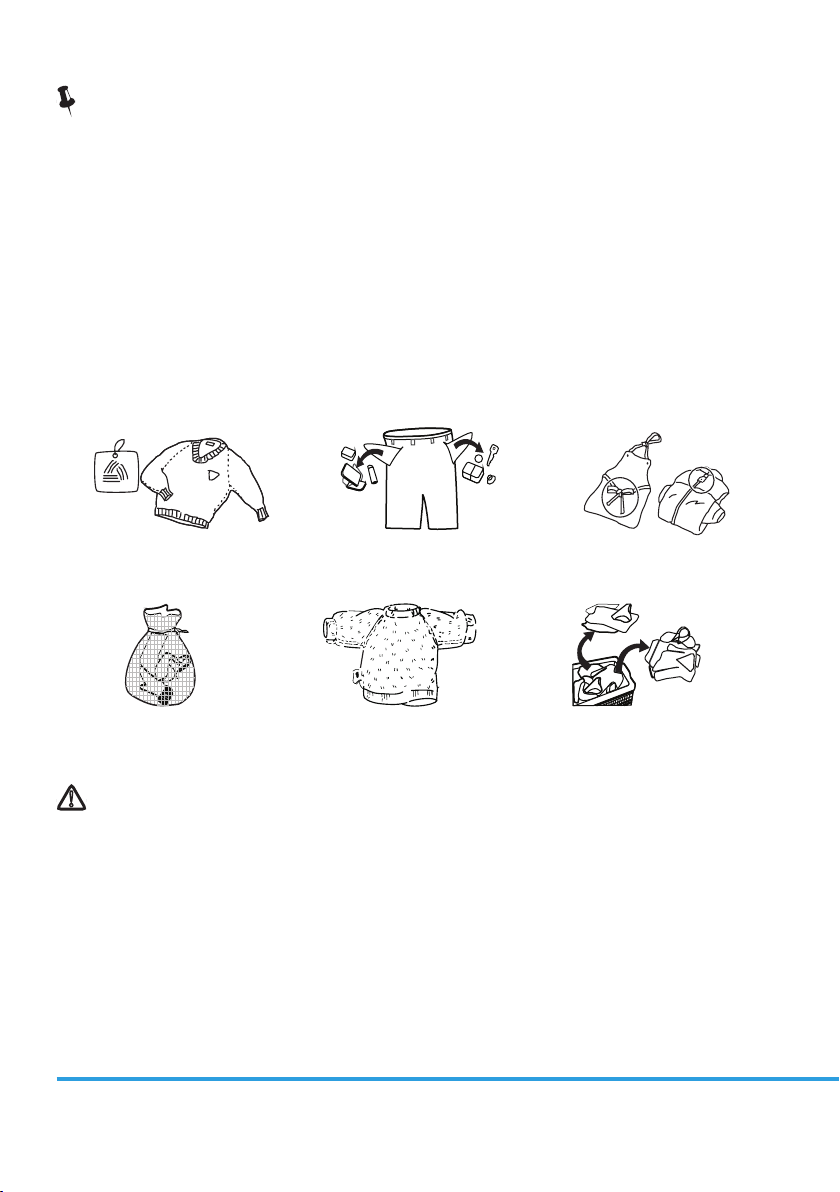

• Pleasecheckthe labels and theexplanationofusingdetergentbeforewash. Usenon-foamingor less-
foaming detergent suitable for machine washing properly.
Check the label
Put small clothes into the
pillow slip
Take out the items out of
the pockets
Turneasy-pillingand
long-pilefabricinsideout
Knot the long strips, zip
or button
Separate clothes with
dierenttextures
！
Warning!
• Whenwashingasinglepieceofclothingthedrummightbeinsucientlybalancedwhichmighttriggera
warning signal and the washing machine might stop working. In this case add other pieces of clothing that
can be washed together to make the load in the drum sucient and to ensure its correct balance.

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 15
pDetergent Dispenser
Pull out the dispenser
Caution!
• Detergentonlyneedtobeaddedin„caseI“afterselectingpre-washingformachineswiththisfunction.
Programme I II / Programme I II /
Cotton rRinse & Spin 
Synthetic rWool r 
Mix rECO40-60 r 
Bed Linen rIntensive r 
Baby Care rQuick 15’ r 
20 °C r  Dry only
Drum Clean 1h P/S r 
Spin Only Wash and Dry r 
rMeans must Means optional
Note!
• Ifan extrathickdetergent,additiveor fabricconditionerisused,wesuggestthatyoudiluteit using a
small amount of water before pouring it to the detergent or fabric conditioner drawer. This will prevent the
drawer from overowing during water pumping.
• Chooseasuitabledetergenttypefordierentwashingtemperaturesinordertoachievethebestwashing
performance with lower water and energy consumption.
IPre wash detergent
II Main wash detergent
Softener

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 16

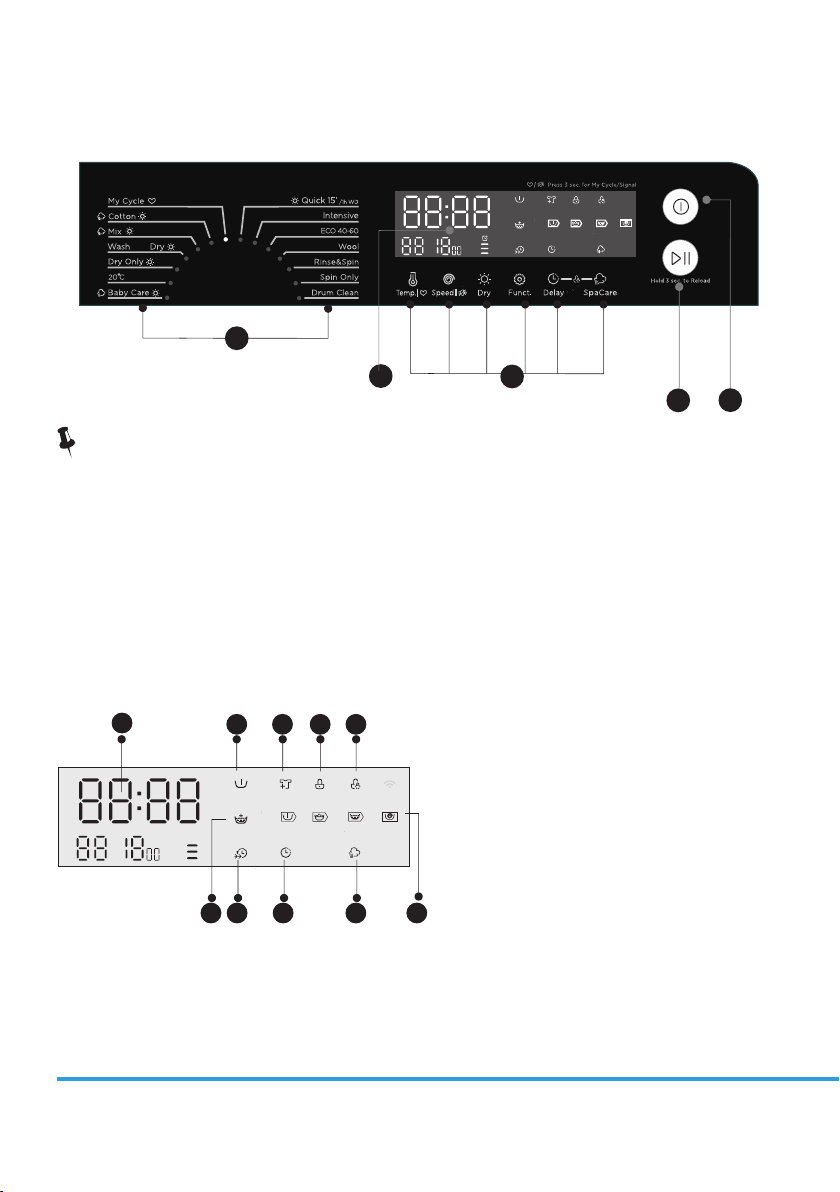

pControl Panel
PLWDSI 86 KING, PLWD 107 B KING
and
53
21
1
4
Note!
• Thechartisforreferenceonly,Pleaserefertorealproductasstandard.
1On/O
Productisswitchedonoro.
3Option
This allows you to select an additional function
and will light when selected.
2Start/Pause
Press the button to start or pause the washing
cycle.
4Programmes
Available according to the laundry type.
5Display
The display shows the settings, estimated time remaining, options, and status messages for your washer.
The display will remain on through the cycle.
AB C
G
D E
H IF J
AWash Time Delay Time
1:25 2h
Speed Error
400 E30
End Temp.
End 30
BPre Wash
CReload
DDoor Lock
EChild Lock
FExtra Rinse
GSpeed Wash
HDelay
ISpaCare
JPre Wash-Wash-Rinse-Spin

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 17
pOption
Delay Delay
Set the Delay function:
1. Select a programme.
2. PresstheDelaybuttontochoosethetime(thedelayingtimeis0-24H/3H-6H-9H).
3. Press [Start/Pause] to commence the delay operation.
Delay
Choose the Programme Setting time Start
Cancel the Delay function:
Press the [Delay] button until the display be 0H. It should be pressed before starting the
programme.Iftheprogrammealreadystarted,shouldswitchoprogrammetoresetanew
one.
Drying Level
Drying
The drying time will increase or decrease after you select it. Before starting the drying
program, the revolution speed must be switched off on the device – The revolution speed
must be set to "0" .
Caution!
• Ifthereisanybreakinthepowersupplywhilethemachineisoperating,aspecialmemorystoresthe
selected programme and when the power is restarted, the program will continue.
Pre Wash Pre Wash
The Prewash function can get an extra wash before main wash,it is suitable for washing the
dust rises to surface of the clothes; You need to put detergent into the Case (I) when select it.
Extra Rinse Extra Rinse
The laundry will undergo extra rinse once after you select it.
Speed wash Speed Wash
The function can decrease the washing time.
My Cycle
Tomemorythefrequentlyusedprogramme.
After choosing the programme and setting the options, press [Temp.] 3 sec. before start to
wash. The default setting course is Cotton.

Copyright © 2020, Fast ČR, a. s. Revision 01/2021
EN - 18
Start / Pause
Hold 3 sec. to Reload
Reload
This operation can be performed during washing.
The door cannot be opened by force that would be dangerous.
To add laundry during a programme, please do the following:
1. Press the [Start/Pause] button for 3 seconds.
2. Wait until the drum has stopped turning.
2. The door lock will unlock.
3. After you add the laundry, close the door and press the [Start/Pause] button.
Clothes
Press[Start/Pause]3sec. Reload the clothes Start
SpaCare SpaCare
SpaCare function can be selected by choose“Cotton”,“Mix“”Bed Linen”and “Baby Care”.
The customers can see the steam in the drum when operate SpaCare function. The SpaCare
cannot be used simultaneously With Pre Wash and Speed Wash.
Caution!
• Don‘tusetheReloadfunctionwhenthewaterlevelovertheedgeoftheinnertuborthetemperatureis
higher.
