CONTENTS
CUSTOMER CARE AND SERVICE
IMPORTANT INFORMATION THAT MAY IMPACT YOUR MANUFACTURER’S
WARRANTY
Adherence to the directions for use in this manual is extremely important for health
and safety. Failure to strictly adhere to the requirements in this manual may result in
personal injury, property damage and affect your ability to make a claim under the
Philco manufacturer’s warranty provided with your product. Products must be used,
installed and operated in accordance with this manual. You may not be able to claim on
the Philco manufacturer’s warranty in the event that your product fault is due to failure
to adhere to this manual.
We recommend the use of original spare parts. When contacting Service, ensure that you
have the following data available. The information can be found on the rating plate. Model,
PNC, Serial Number.
Subject to change without notice.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
IMPORTANT SAFETY INSTRUCTIONS 3
PRODUCT DESCRIPTION 7
CONTROL PANEL 7
USE 10
HINTS 11
TROUBLESHOOTING & ACCESSORIES 12
TECHNICAL DATA 13
INSTALLATION INSTRUCTIONS 14

ENGLISH 3
WARNING! The appliance must not be supplied
through an external switching device, such as timer, or
connected to a circuit that is regularly switched on and
off by utility.
In the interest of your safety and to ensure the correct
use, before installing and rst using the appliance,
read this user manual carefully, including its hints and
warnings.
To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety
features.
Save these instructions and make sure that they remain
with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on
appliance use and safety.
1.
1.1 Conditions Of Use
1.2 Child Safety
This appliance is intended to be used in household and
similar applications such as:
• staff kitchen areas in shops, ofces and other working
environment;
• farm houses;
• by clients in hotels, motels, and other residential type
environment;
• bed and breakfast type environtments;
• areas for communal use in blocks of ats or in
launderettes.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
IMPORTANT SAFETY INSTRUCTIONS

4
• Children should be supervised to ensure that they do
not play with the appliance.
• The packaging components (e.g. plastic lm,
polystyrene) can be dangerous to children - danger of
suffocation! Keep them out of children’s reach.
• Make sure that children or pets do not climb into the
drum.
1.3 Dryer Safety
1.4 Fire Hazards
Failure to follow these safety instructions
could damage the dryer or your clothes.
You may then not be covered by
warranty for this damage.

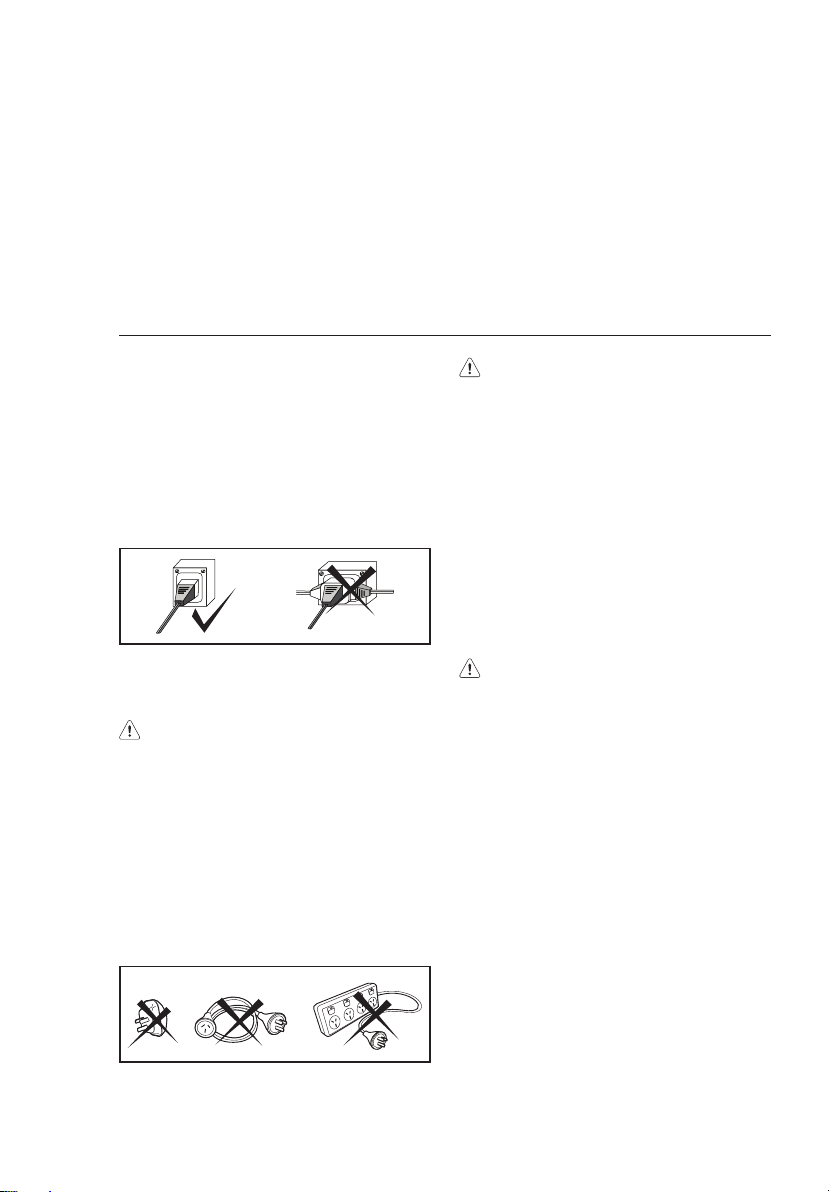

Only plug this appliance directly into an
AC power supply, which is properly
earthed and has the correct voltage.
Some fabrics are not suitable for tumble
drying. The following MUST NOT be
placed in your dryer due to the risk of a
re or an explosion:
• Items that have been spotted or
soaked with vegetable oil, cooking oil,
suntan oil, linseed oil, salad oil,
lubrication oil or grease. Oil affected
items can ignite spontaneously,
especially when exposed to heat
sources such as in a tumble dryer.The
items becomce warm, causing as
oxidation reaction in the oil.
See the serial number sticker located on
the bottom of the door opening for
voltage information.
For Safety reasons we strongly advise
against the use of double adaptor,
extension cords or power boards.
if this appliance is supplied form a
cord extension set or electrical
portable outlet device, the cord
extension set or electrical portable
outlet device must be positioned or
that it is not subject to splashing or
ingress of moisture.
• If the electrical cord of this
appliance is damaged, it must be
replaced by the Manufacturer,
Authorised Service Agent in order
to avoid a hazard.
• These dryers are for drying clothes,
towels and linen at home. Do not
use them for any other purpose.
• Lint must not be allowed to
accumulate around the tumble
dryer.
• Do not dry unwashed items in the
tumble dryer.
Never stop a tumble dryer before the
end of the drying cycle unless all
items are quickly removed and spread
out so that the heat is dissipated.
CAUTION
IMPORTANT
WARNING

ENGLISH 5
Oxidation creates heat. If heat cannot
escape, the items can become hot
enough to ignite. Pilling, stacking or
storing oil-affected items can prevent
heat from escaping and create a re
hazard. If it is unavoidable that fabrics
that contain vegetable or cooking oil,
or have been contaminated by hair
care products be placed in a tumble
dryer, they should rst be washed is
hot water with extra detergent - this
will reduce, but not eliminate the
hazard.
The nal part of tumble dryer cycle
occurs without heat (Cooling cycle) to
ensure that the items are left at the
temperature that ensures that the
items will not be damage.
For your safety, and to reduce the
risk of re or an explosion, DO NOT
store or use petrol or other
inammable vapours and liquids
near your dryer.
• Item that have previously been
cleaned in, washed in, or spotted with
petrol/gasoline, industrial chemicals
used only for cleaning, dry-cleaning
solvents or other ammable or
explosive substances are highly
ammable. Highly ammable or
explosive commonly found around the
house include acetone, (nail polish
remover) denatured alcohol, petrol/
gasoline, kerosene, some spot
removers, turpentine, waxes and wax
removers should not be put in the
dryer. Items containing foam rubber
(also known as latex foam) or similarly
textured rubber-like materials. Foam
rubber materials can produce re by
spontaneous combustion when
heated.
• Rubber-backed articles, clothes tted
with foam rubber pads, pillows, rubber
boots and rubber-coated sports
shoes.

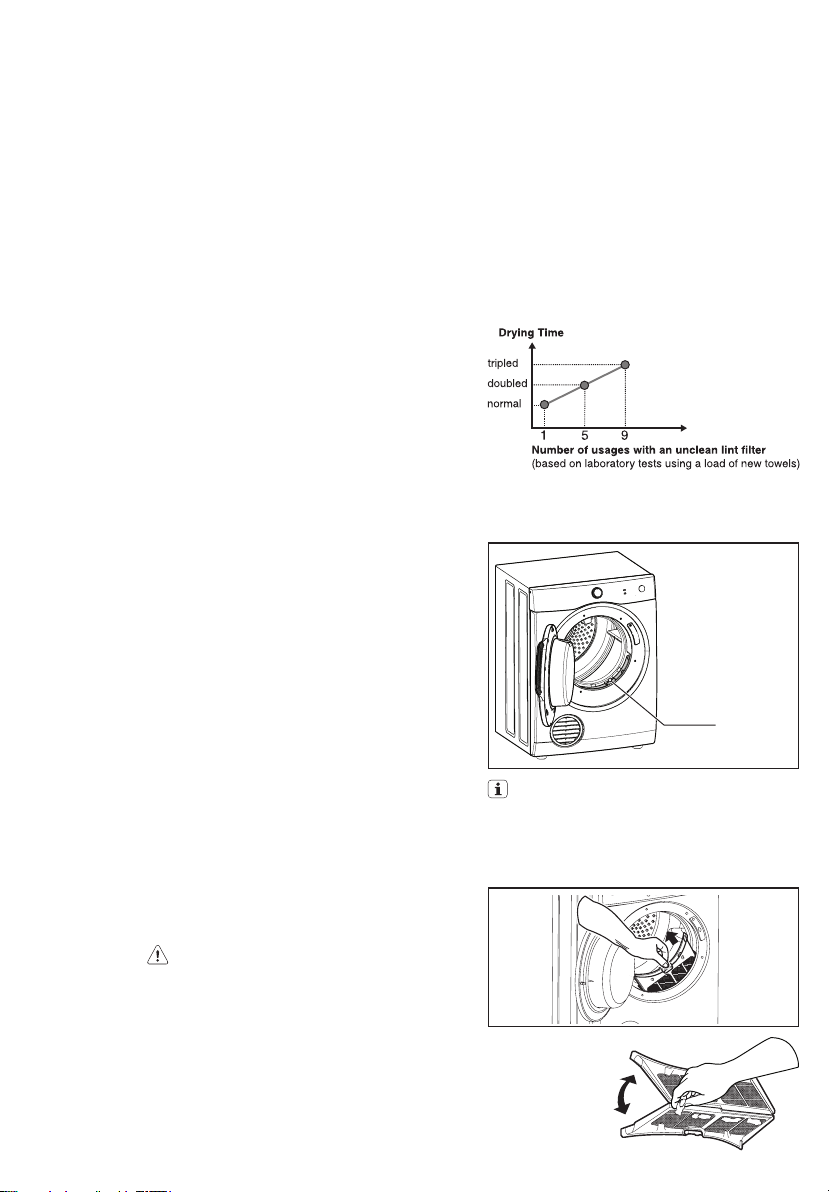

1.5 Cleaning The Lint Filter
LINT BUILD-UP IS A FIRE HAZARD
A clean lint lter reduces drying times,
saves energy and avoids overheating.
Overheating may also damage your
clothes.
What happens If I forget to clean the lint
lter?
The lint lter is located at the front of your
dryer at the bottom of the door opening.
To remove the lint lter open the door
and press the two pads together. Pull the
lint lter out of the pocket.
Open apart the
lint lter and
wipe or peel off
the lint.
You must clean this lint lter after
every load.
Lint Filter

6
1.6 Drying Guide
Your load, when dry must not exceed the
rated capacity
Always check your labels for the drying
symbol which this international Care
Labelling Code now uses.
• Permanent press and synthetics
take out as soon as the dryer stops to
reduce wrinkles.
• Woollen articles
not recommended. Pull them to their
original shape, then dry them at.
• Woven and loop knit materials
may shrink, by varying amount,
depending on their quality. Do not use
the “Extra” setting for these fabrics,
Always stretch them out immediately
after drying.
• Fibre or leather materials
always check the manufacturer’s
instructions.
• Baby clothes and night gowns
acrylic clothing or sleepwear use only
on the “Iron” setting.
• Rubber and plastics
Do not dry any items made from or
containing rubber or plastics, such as
aprons, bibs, babies’ water proof
napkins, curtains, tablecloths, shower
caps, clothes tted with foam rubber
pads, pillows, galoshes, or rubber
coated tennis shoes.
• Fibreglass
not recommended, glass particles left
in the dryer could be picked up by
your clothes the next time you use the
dryer and irritate your skin.
Fabric softeners or similar products
should not be used in a tumble dryer
to eliminate the effects of static
electricity unless this practice is
specically recommended by the
manufacturer of the fabric softener or
product.
May be
tumble dried
Do not tumble
dry
Do not tumble
dry
Normal drying
(high temp.)
(See page 12 for a table of average
weights of laundry items)
• 5.5 kg
Lint lter can only be inserted one
way.
We strongly advise against the use
of fabric conditioners of the sheet
type that are added to the clothes
in the drum. These products may
lead to rapid blockage of the lint
lter and inefcient operation of
your dryer.
Ensure the lint lter “Clicks” when
replacing.
• Never operate your dryer without
the lint lter.
• Do not allow lint to build around
your dryer.
• A torn or damaged lint lter must
be replaced immediately.
• Overloading can increase lint
build-up because the airow is
reduced.
To avoid potential re hazards, we
recommend that you pay with
authorized service agent periodically
clean your dryer. You must do this
also when you change your mounting
from upright to inverted, or vice versa.

ENGLISH 7
2.
3.
PRODUCT DESCRIPTION
CONTROL PANEL
Parts
Control Panel Mains Cable
Door

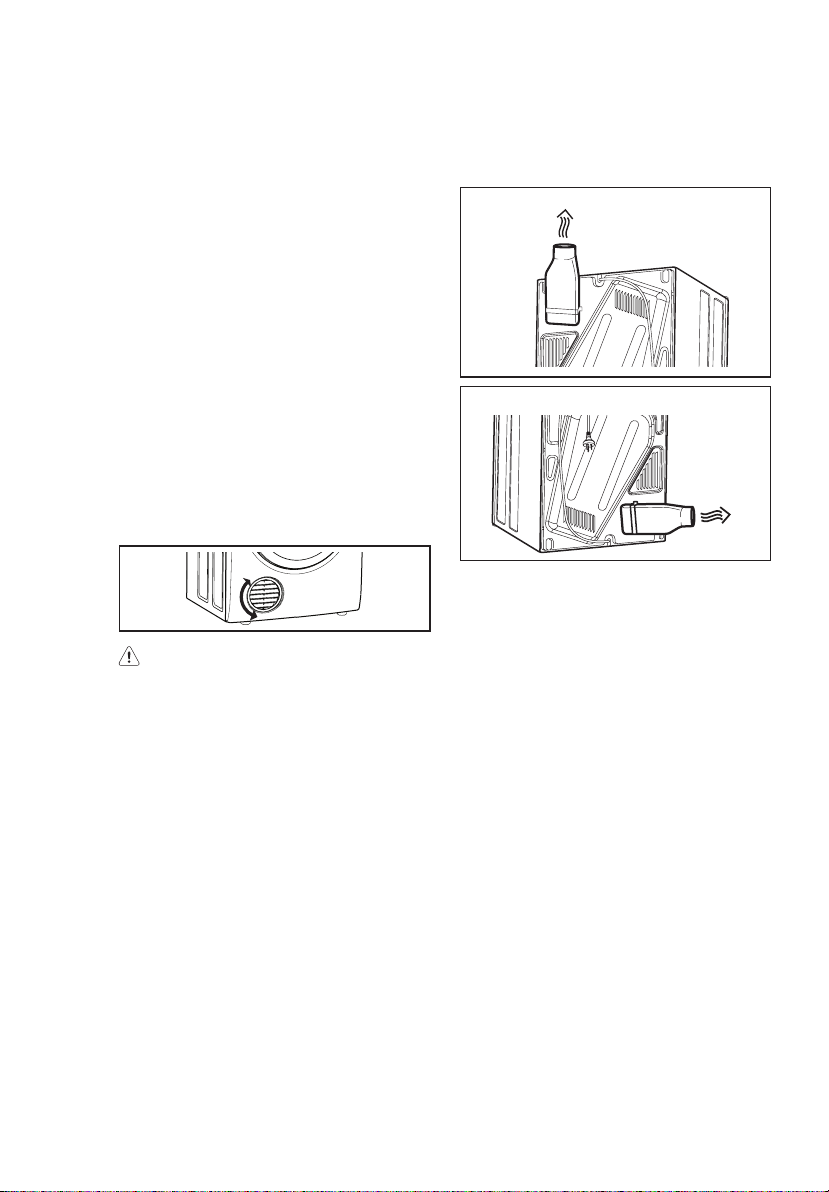

Exhaust Grille
(removable) Outlet Cover
1
1
2 3
Air Inlet
Duct
Program Selector Knob
Turn the Program Selector knob to
choose a drying program. The table
“Program Guide” shown on page 9 will
help you in selecting the right program.
The Program Selector knob is not a
timer. Once you select a drying program,
the Program Selector knob will stay at
that position for the whole drying cycle.
NOTES
3.1 Control Panel Description

8
32 Start/Pause Button
Enable/Disable Buzzer
Indicators
This button allows you to start or pause
the dryer to check the contents or
perhaps add more clothes.
If selector knob is turned while dryer is
running or paused mid cycle 3 beeps is
heard to indicate operation is not
allowed. Cycle will not continue if
selector knob is not returned to original
selected program.

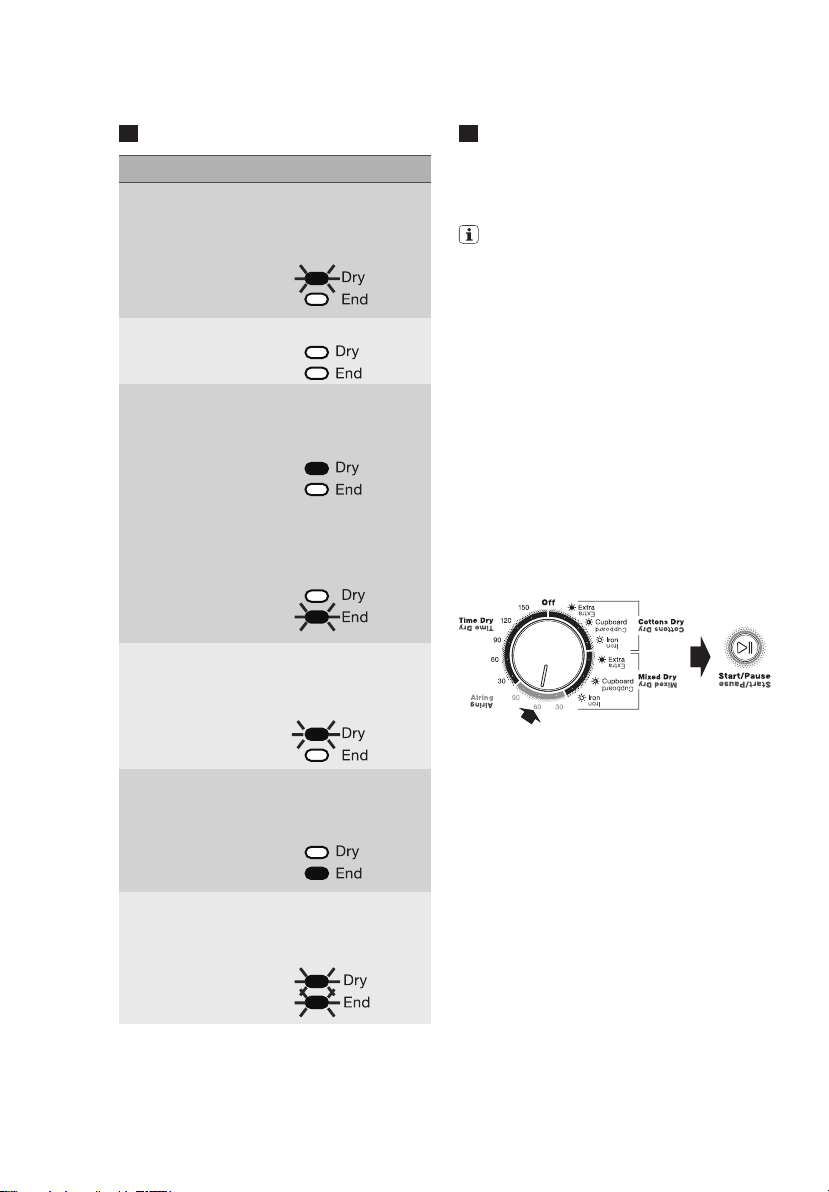

To Enable/Disable the Buzzer select
“Airing 60” then press and hold Start/
Pause button for 3 seconds (buzzer is
enabled by default).
Select program
“Airing 60”
Press and hold
“Start/Pause” 3
Seconds
The dryer will not start unless the door is
closed. (If door is not closed you will hear
6 beeps followed by DRY LED blinking 4
times.)
States
Initial Power on.
Drying Phase
Paused
End State
Alarm/Error
Drying & Cooling
Anti Crease
Machine
Switched Off
• After appliance
is powered on.
• Allows user to
select a drying
program
• Drying cycle
starts.
• Buzzer will
sound after
main drying and
cooling phases
ends, at the
start of anti
crease.
• Anti crease in
progress
• Drying cycle
paused
• Cannot change
drying program
• Drying cycle and
Anti crease
completed
• See description
on page 13
Status Indicator
• Dry LED blinks
• End LED Off
• Dry LED On
• End LED Off
• Dry LED blinks
• End LED Off
• Dry LED Off
• End LED Off
• Dry LED blinks
• End LED blinks
• Dry LED Off
• End LED blinks
• All LED Off
NOTES

ENGLISH 9
3.2 Program Guide
Program
Extra Cottons Dry
Cupboard Cottons
Dry
Iron Cottons Dry
Extra Mixed Dry
Cupboard Mixed
Dry
Iron Mixed Dry
Airing 30
Airing 60
Airing 90
Time dry 30
Time dry 60
Time dry 120
Time dry 90
Time dry 150
Load Size info Textile type info
5.5 kg
5.5 kg
5.5 kg
3.0 kg
3.0 kg
3.0 kg
1 kg - 1.5 kg
3.0 kg
4.0 kg
1 kg - 1.5 kg
3.0 kg
5.0 kg
4.0 kg
5.5 kg
• Cotton Towel, Jeans
• For thick fabrics
• Bath towels, Cotton underwear.
• For fabric that do not need to be ironed
• Cotton Polo shirt, Cotton T-Shirt
• For fabric that do need ironed
• Mixed load consisting of cotton and
synthetic.
• For thick fabrics.
• Mixed load consisting of cotton and
synthetic.
• For fabrics that do need to be ironed
• Mixed load consisting of cotton and
synthetic.
• For fabrics that do need to be ironed
Cotton fabric.
• This setting does not heat. ONLY circulate
the air in the dryer to shake out dust and
refresh Clothes 30 minute.
• This setting does not heat. ONLY circulate
the air in the dryer to shake out dust and
refresh Clothes 60 minute.
• This setting does not heat. ONLY circulate
the air in the dryer to shake out dust and
refresh Clothes 90 minute.
• Cotton fabric
• For user selectable 30 minutes drying
times.
• Cotton fabric
• For user selectable 60 minutes drying
times.
• Cotton fabric
• For user selectable 120 minutes drying
times.
• Cotton fabric
• For user selectable 90 minutes drying
times.
• Cotton fabric
• For user selectable 150 minutes drying
times.

10
For best results we recommend to sort
out your laundry
Load your dryer loosely until it is no
more than TWO THIRD FULL.
Clothes must tumble freely in a dryer.
Don’t cram them in. Wet clothes uff
up when dry.
The dryer will
not operate
unless the door
is completely
close.
Turn the Program Selector knob to
choose the drying program you want.
Turn the Program Selector knob to
“OFF” When you have nished using
the dryer to turn off the power, then
switch off at the power point. It is
recommended to power off the
appliance when not in use.
To check the dryness or add clothes
during the cycle, simply open the
door. The dryer will beep several
times indicating the door is open. If
further drying is required, close the
door and then press the Start/Pause
button to continue.
For the best drying performance,
only add or remove clothes at the
beginning of the drying cycle.
After every load clean the lint lter
to reduce drying time and avoid
overheating.
Clean Lint Filter
Checking the Load
To start a program, press the Start/
Pause button.
• Reduce efciency
• Increase drying time
• Increases the risk of creasing
Overloading will:
• Do not select the “Extra Dry” option
for delicate fabrics such polyester as
shrinking may occur.
• To obtain the best drying results with
small loads it is recommended to use
“Time drying” program.
NOTES
4. USE
Operating Sequence
• Step 1
• Step 2
• Step 3
• Step 4
• Step 5
Do not load clothes or other
articles which are dripping wet or
have sand and grit on them into
your dryer.
Never stop a tumble dryer before
the end of the drying cycle unless
all items are quickly removed and
spread out so that the heat is
dissipated.
Switch On
CAUTION
WARNING
