Philco PF 1602-5 User manual

UPRIGHT FREEZER
USER’S MANUAL
PF 1602-5

Dear customer,
Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read
all the instructions in this user's manual.

EN - 1
10/2014Copyright © 2014, Fast ČR, a. s.
CONTENTS
PART 1: BEFORE PUTTING INTO OPERATION................................................................................................. 2
PART 2: DESCRIPTION OF THE APPLIANCE .................................................................................................... 8
PART 3: INSTALLATION.................................................................................................................................... 9
• Transport and unpacking ............................................................................................................................................................9
• Operating conditions....................................................................................................................................................................9
• Installation location .................................................................................................................................................................... 10
• Levelling the appliance ............................................................................................................................................................. 10
• Cleaning before use....................................................................................................................................................................11
• Electrical connection.................................................................................................................................................................. 11
• Procedure for switching the door opening direction.....................................................................................................11
PART 4: CONTROLS ........................................................................................................................................ 15
PART 5: CLEANING AND MAINTENANCE...................................................................................................... 17
PART 6: TROUBLESHOOTING ........................................................................................................................ 19
PART 7: INFORMATION SHEET ...................................................................................................................... 21

EN - 2
10/2014Copyright © 2014, Fast ČR, a. s.
PART 1: BEFORE PUTTING INTO OPERATION
This appliance is in accordance with the following EU guidelines:
2006/95/EC and 2004/108/EC and 2009/125/EC and EC.643/2009
and 2002/96/EC
Safety and warning information
For your safety and correct usage, before installing and rst using
the appliance, read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents, it is important
to make sure that all people using the appliance are thoroughly familiar
with its operation and safety features. Save these instructions and be
sure that they remain with the appliance if it is moved or sold, so that
a using it throughout its life will be properly informed on its correct
appliance usage and safety notices. For the safety of life and property,
keep the precautions of these user's instructions as the manufacturer is
not responsible for damages caused by omission.
Safety for children and others who are vulnerable people
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• Keep all packaging away from children as there is risk of suocation.
• If you are discarding the appliance, pull the plug out of the socket, cut
the connection cable (as close to the appliance as you can) and remove
the door to prevent children playing from suering an electric shock or
from closing themselves inside it.

EN - 3
10/2014Copyright © 2014, Fast ČR, a. s.
• If this appliance, featuring a magnetic door seals, is to replace an older
appliance having a spring lock (latch) on the door or lid, be sure to
make the spring lock unusable before you discard the old appliance.
This will prevent it from becoming a death trap for a child.
General safety
• WARNING — This appliance is intended to be used in household and
similar applications such as
– sta kitchen areas in shops, oces and other working environments;
– farm houses and by clients in hotels, motels and other residential
type environments; -bed and breakfast type environments;
– catering and similar nonretail applications
• WARNING — Do not store explosive substances such as aerosol cans
with a ammable propellant in this appliance.
• WARNING — If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in order
to avoid a hazard.
• WARNING — Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
• WARNING — Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by
the manufacturer.
• WARNING — Do not damage the refrigerant circuit.
• WARNING — Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• WARNING—Therefrigerantand insulationblowinggas areammable.
When disposing of the appliance, do so only at an authorized waste
disposal centre. Do not expose to ame.

EN - 4
10/2014Copyright © 2014, Fast ČR, a. s.
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of environmental
compatibility, which is nevertheless ammable. During transportation
and installation of the appliance, ensure that none of the components
of the refrigerant circuit becomes damaged. The refrigerant (R600a) is
ammable.
First aid
Inhalation
Take the aected person from the contaminated area to a warm, well
ventilated location. Staying in a contaminated location for a long time
may cause suocation, or potentially lead to a loss of consciousness. If
necessary, provide mouth-to-mouth resuscitation and in exceptionally
serious situations, under expert medical supervision, give oxygen.
Contact with the skin
Random contact with the skin will not endanger health, it is better to
thoroughly wash the aected area. The liquid spray or dispersed liquid
may cause frost bite, rinse the aected area with large amounts of water
and contact a medical doctor.
Contact with the eyes
If eyes have been aected, wash out with large amounts of water, while
trying to keep the eyes open and call a specialised doctor as soon as
possible. If contact or inhalation of the R600a gas occurs, contact your
medical doctor.

EN - 5
10/2014Copyright © 2014, Fast ČR, a. s.
Caution: risk of re
If the refrigerant circuit should be damaged:
- Avoid opening ames and sources of ignition.
- Thoroughly ventilate the room in which the appliance is situated.
It is dangerous to alter the specications or modify this product in any
way.
Any damage to the cord may cause a shortcircuit, re, and/or electric
shock.
Electrical safety
1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged. A crushed
or damaged power plug may overheat and cause a re.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power plug. There is
a risk of electric shock or re.
6. You must not operate the appliance without the interior lighting lamp
cover.
7. The fridge is only applied with power supply of single phase alternating
current of 220~240V/50Hz. If uctuation of voltage in the district of
user is so large that the voltage exceeds the above scope, for safety
sake, be sure to apply A.C. Automatic voltage regulator of more than
350W to the fridge. The fridge must employ a special power socket
instead of common one with other electric appliances. Its plug must
match the socket with ground wire.

EN - 6
10/2014Copyright © 2014, Fast ČR, a. s.
Daily use
• Do not store ammable gass or liquids in the appliance, There is a risk
of an explosion.
• Do not operate any electrical appliances in the appliance (e.g. electric
ice cream makers, mixers etc.).
• When unplugging always pull the plug from the mains socket, do not
pull on the cable.
• Do not place hot items near the plastic components of this appliance.
• Store pre-packed frozen food in accordance with the frozen food
manufacture's instructions.
• The appliances manufactures storage recommendations should be
strictly adhered to. Refer to relrelevant instructions for storage.
• Do not place carbonated or zzy drinks in the freeze compartment as
it creates pressure on the container, which may cause it to explode,
resulting in damage to the appliance.
• Frozen food can cause frost burns if consumed straight from the freezer
compartment.
• Do not place the appliance in direct sunlight.
• Keep buring candles, lamps and other items with naked ames away
from the appliance so that do not set the appliance on re.
• The appliance is intended for keeping food stu and/or beverages
in normal household as explained in this instruction booklet The
appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your
hands are damp/wet, as this could cause skin abrasions or frost/freezer
burns.
• Never use the base, drawers, doors etc. to stand on or as supports.
• Frozen food must not be refrozen once it has been thawed out.
• Do not consume ice popsicles or ice cubes straight from the freezer as
this can cause freezer burn to the mouth and lips.

EN - 7
10/2014Copyright © 2014, Fast ČR, a. s.
Care and cleaning
• Before maintenance, switch o the appliance and disconnect the
mains plug from the mains socket.
• Do not clean the appliance with metal objects, steam cleaner, ethereal
oils, organic solvents or abrasive cleansers.
• Do not use sharp objects to remove frost from the appliance. Use
a plastic scraper.
Installation Important!
• For electrical connection carefully, follow the instructions given in this
manual.
• Unpack the appliance and check if there are damages on it. Do not
connect the appliance if it is damaged. Report possible damages
immediately to the place you bought it. In this case retain packing.
• Itisadvisable towaitatleastfourhoursbeforeconnectingtheappliance
to allow the oil to ow back in the compressor.
• Adequate air circulation should be around the appliance, lacking
this leads to overheating. To achieve sucient ventilation, follow the
instructions relevant to installation.
• Wherever possible the back of the product should be against a wall
to avoid touching or catching warm parts (compressor, condenser) to
prevent the risk of a re, follow the instructions relevant to installation.
• The appliance must not be locate close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the
appliance.
Service
Any electrical work required to do the servicing of the appliance should
be carried out by qualied electrician or competent person.
This product must be serviced by an authorized Service Center, and only
genuine spare parts must be used.
1) lf the appliance is Frost Free.
2) lf the appliance contains freezer compartment.

EN - 8
10/2014Copyright © 2014, Fast ČR, a. s.
PART 2: DESCRIPTION OF THE APPLIANCE
Description of the appliance
1.
2.
4.
3.
5.
6.
7.
1. Control panel
2. Upper drawer
3. Drawers
4. Ice tray (inside)
5. Lower drawer
6. Adjustable feet
7. Door
Control panel
1. 2. 3. 4. 5. 6.
1. Temperature control
2. Disable the sound signal
3. High temperature indicator
4. Power On indicator
5. Super freeze indicator
6. Super freeze button
NOTE:
Due to unceasing modication of our products your refrigerator may be slightly dierent from this
Instruction Manual, but its functions and using methods remain the same.

EN - 9
10/2014Copyright © 2014, Fast ČR, a. s.
PART 3: INSTALLATION
Transport and unpacking
If the appliance is transported in a horizontal position the oil from the compressor may leak into the cooling
circuit. For this reason, allow the appliance to rest in a vertical position for 12 hours before turning it on, so that
the oil ows back into the compressor.
Remove the external packaging, remove the protective plastic lm from the surface of the appliance (if used)
and clean the external parts of the appliance with an agent designed for this purpose. Do not use steel wool or
any coarse agents, which could irreparably damage the surface of the appliance. Carefully remove all papers
and adhesive tape from the appliance, doors and other parts packed in polystyrene foam. Remove documents
and accessories from inside the appliance.
The packaging material is recyclable and is marked with a recycling symbol. For disposal follow the local
regulations. Packaging materials (plastic bags, polystyrene parts, etc.) must be kept out of the reach of children,
because they present a possible source of danger.
Carefully inspect the appliance. If you discover any defects, stop the installation and contact the vendor.
Operating conditions
The proper operation of the appliance, the freezing temperatures are guaranteed only when the following
conditions are met:
• The temperature in the room where the appliance is located conforms to the climate class stated on the
appliance's rating label.
• Maximum ambient relative humidity: 90%.
• The appliance must be placed at a sucient distance from heat sources (e.g. baking ovens, central heating,
direct sunlight, etc.).
• The appliance must be located in such a place that it is protected against weather eects.
• Regular maintenance is performed according to the instructions in this user's manual.
• The ventilation openings in the cover of the appliance must not be covered by anything.
• Correct installation (e.g. levelling, the capacity of the system corresponds to the specications on the
rating label of the appliance.)
Climate class Ambient temperature
SN +10 °C až +32 °C
N +16 °C až +32 °C
ST +16 °C až +38 °C
T +16 °C až +43 °C

EN - 10
10/2014Copyright © 2014, Fast ČR, a. s.
Installation location
Ventilation of appliance

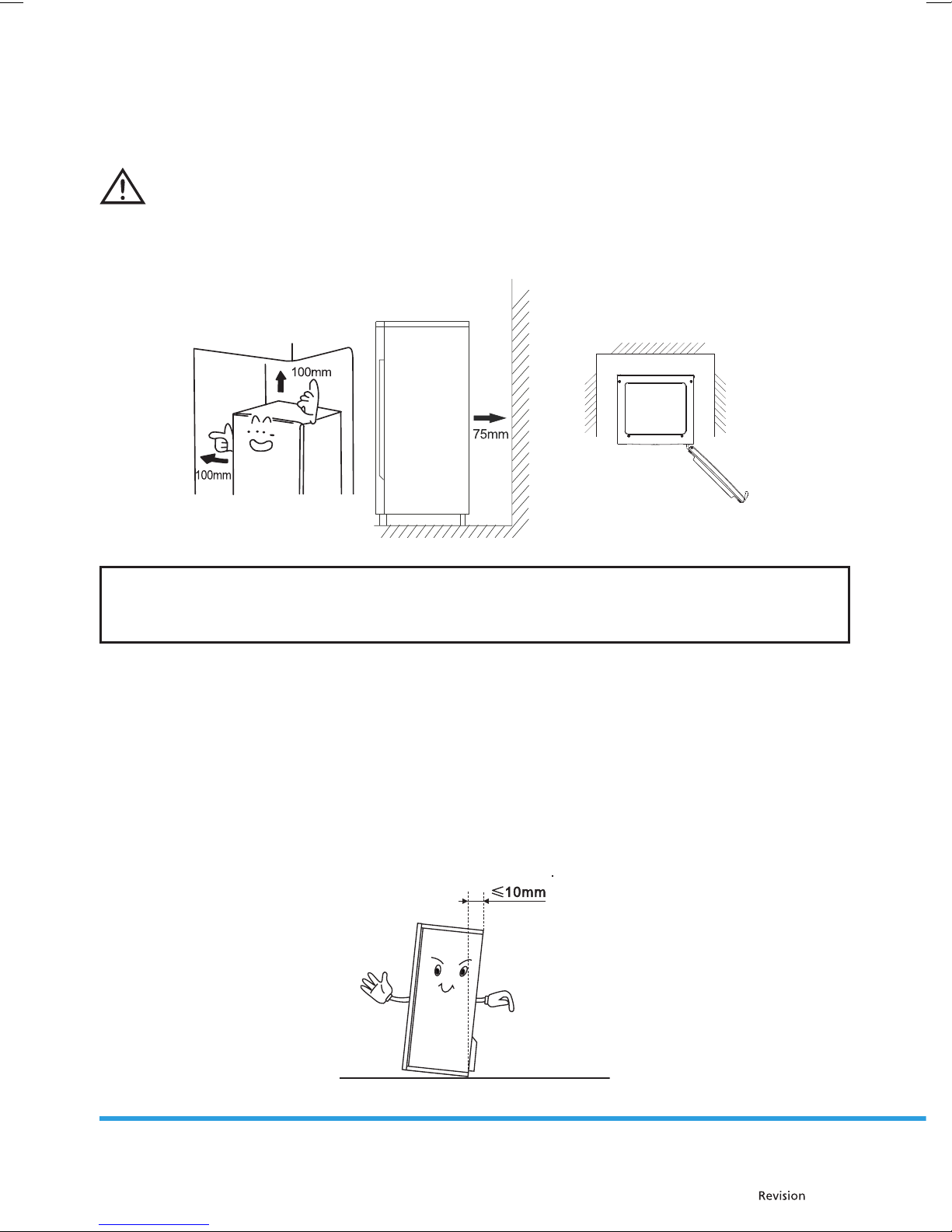

Alt is necessary to have good ventilation around the freezer to allow for the dissipation of heat,
high eciency, and low power consumption. For this reason, suciently cleared space should be
available around the freezer. It is advisable for there to be 75mm separating the back of the freezer
to the wall at least 100mm of space on its two sides, a height of over 100mm from its top and a clear
space in front to allow the doors to open 160°.
NOTE:
This appliance performs well in the below climate class. It may not work properly if being left at
a temperature above or below the indicated range for a long period.
Stand your appliance in a dry place to avoid high moisture.
Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as
stoves, res or heaters.
Leveling of appliance
For sucient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need
to be adjusted. You can adjust them by your ngers or a suitable spanner.
To allow the doors to self-close, tilt back the top backwards for about 10mm or 0.5°by turning the adjustable
feet.

EN - 11
10/2014Copyright © 2014, Fast ČR, a. s.
Whenever you want to move the appliance, remember to turn the feet back up so that the appliance can roll
freely. Reinstall the appliance when relocating.
CAUTION!
The rollers, which are not castors, should be only used for forward or backward movement.
Moving the refrigerator sideways may damage your oor and the rollers.
Cleaning before use
Check that you have removed from the appliance all adhesive tape used to hold accessories . Then clean all the
inside parts using lukewarm water with a neutral cleaning agent, vinegar or sodium carbonate – in this way
you will remove the characteristic odour of new parts – then dry carefully. Do not use detergents or aggressive
agents, which could damage the surfaces.
Electrical connection
Before connecting the power plug to the power socket, check that:
• Your hands are completely dry.
• The voltage and frequency shown on the rating label of the appliance corresponds to that in the home
power grid (permitted tolerance from -6 % to +6 % for nominal voltage, for use with dierent voltages, use
a voltage converter with the corresponding parameters).
• The power cord and the plug are not damaged or caught under heavy objects.
• The power cord is not excessively tensioned; it is not permitted to use an extension cord.
Do not connect the appliance to a voltage rectier (e.g. solar power plant) or use an extension cord.
The appliance must be connected to a working grounding lead. If the power socket of the home system
is not grounded in accordance with the current legal regulations, only connect the appliance after consulting
with a specialised technician about the grounding lead itself. The manufacturer takes no responsibility for
injuries caused as a result of not following these instructions. If you do not correctly level the freezer during
the installation, the doors may not close shut and seal properly, which may cause problems with the cooling,
ice build up or moisture. Levelling the freezer is very important.
Reverse the door
The side in which the door opens can be changed from the right side (as supplied) to the left side, if the
installation site allows for it.
Tools you will need:
1. 8mm socket driver
2. Cross-shaped screwdriver
3. Putty knife or thin-blade screwdriver

EN - 12
10/2014Copyright © 2014, Fast ČR, a. s.
1. Stand the freezer, use a at bladed screw driver to remove the 4 screw covers at the rear of the freezer lid.
2. Unscrew and lift the lid from the rear and remove it, then lift the upper door and place it on a padded
surface to prevent it scratched.
3. Use a at bladed screw driver to remove the front ornament of top cover plate.
4. Replace the front ornament of top cover plate in the other side.
5. Remove the upper hinge core, transfer it to left side and tighten securely, then put it in a safe place.
6. Remove both adjustable feet and the bottom hinge bracket by unscrewing the bolts.

EN - 13
10/2014Copyright © 2014, Fast ČR, a. s.
7. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. Ret the bracket tting
the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position.
Secure the door's level, make the bottom hinge pin into the lower hole of the door, then tight the bolts.
8. Replace the lid by tting the upper hinge core into the upper door's hole, securing it with the 4 screws.
Replace the screw covers.
WARNING!
When changing the side at which the door opens, the appliance must not be connected to the
mains. Remove plug from the mains beforehand.

EN - 14
10/2014Copyright © 2014, Fast ČR, a. s.
When you reverse the door, Please do:
1. Move the accessory B from the upper cover of the upper door and t the accessory A that is a small
detachable part from a small bag.
After you reverse the door, please do this:
Move the handle from the left side of upper door to the right side.

EN - 15
10/2014Copyright © 2014, Fast ČR, a. s.
PART 4: CONTROLS
The control panel that controls the temperature inside the freezer compartment is located inside the freezer.
SUPER FREEZE (Button)
If you need the temperature inside the freezer to drop quickly, please press this button and indicator of super
will be on. The unit runs in Super Freezer.
If you need the appliance to quit the mode of Super Freeze, please repress the Super Freeze (button), the
indicator of super shuts o.
ATTENTION!
The freezer will automatically quit the super freeze mode after 48 hours and the "super" indicator will
shut o simultaneously.
ALARM FOR FREEZER
If the power of appliance has been cut for a long time or stopped for any reason ,and the inside temperature
has reached the higher degree (≥-10°C)then it in working.
When temperature ≥-10°C,The indicator light begins to ash, and at the same time, the alarm sounds 3 times
per 10 seconds. After 2 minutes, the alarm will automatically stop, and the Excessive temperature indicator will
be on but will stop ashing. When temperature < -10°C, Excessive temperature indicator shuts o.
(button)
During the alarm of freezer, press to stop the alarm sound, and the excessive temperature indicator is on
but not ashing.
Temperature regulation
Setting Cold means:
Highest temperature, warmest setting.
Setting Colder means:
Lowest temperature, coldest setting.
Caution for turning!
Please avoid turning the knob exeeding the position from "Cold" to "Colder".
IMPORTANT!
Normally we advise you select setting of Mid, if you want the temperature warmer or colder please turn
the knob to lower or higher setting accordingly. When you turn the knob to lower which can lead to the
more energy-saving. Otherwise, it would result the high energy-consuming.
IMPORTANT!
High ambient temperatures (e.g. on hot summer days) and a cold setting on the temperature regulator
(position Colder) can cause the compressor to run continuously or even non-stop!
Reason: when the ambient temperature is high, the compressor must run continuously to maintain the
low temperature in the appliance.

EN - 16
10/2014Copyright © 2014, Fast ČR, a. s.
Accessories (depending on the model)
Shelves
The shelves are suitable for storing food.
To remove the shelf: lift up at the front and pull out.
To put the shelf back: simply push in as far as it will go.
Freezer Drawer
The drawer is suitable for storing frozen food.
If the appliance contains related accessories and function.
Ice cube tray
It is used to make ice cubes. To make ice cubes, please ll water into the ice cube trays and the water lever shall
not exceed the top line (ideally eighty percent of the ice tray volume). Place the tray into the lower freezer
drawer and wait at least two hours for the ice cubes to be formed. After the cubes are formed, gently twist the
tray to separate the cubes and trays.
Hints for freezing
When rst starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings
before putting food in the compartment.
Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to
subsequently thaw only the quantity required.
Wrap up the food in aluminum foil or polyethylene food wraps which are airtight.
Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid temperature rise of the
latter.
Iced products, if consumed immediately after removal from the freezer compartment, will probably cause frost
bums to the skin.
It is recommended to label and date each frozen package in order to keep track of the storage time.

EN - 17
10/2014Copyright © 2014, Fast ČR, a. s.
PART 5: CLEANING AND MAINTENANCE
For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly at
least every two months.
CAUTION!
The appliance must not be connected to the mains during cleaning. Danger of electrical shock!
Before cleaning switch the appliance o and remove the plug from the mains socket.
Exterior cleaning
To maintain good appearance of your appliance, you should clean it regularly.
- Wipe the digital panel and display panel with a clean, soft cloth.
- Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps
ensure an even distribution of moisture to the surface.
- Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.
CAUTION!
- Do not use sharp objects as they are likely to scratch the surface.
- Do not use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or organic solvent
such as Benzene for cleaning. They may damage the surface of the appliance and may cause
re.
Interior cleaning
You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe
the inside of the freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using
a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry
all surfaces and removable parts.
As the appliance does not automatically defrost, frost will occur in certain areas in the freezer compartment
after a period of use. This frost can be scraped away by using a plastic scraper. NEVER use a metal or sharp
instrument.
However, complete defrosting will become necessary approximately four times per year, or if the frost layer
exceeds 4mm (1/4") aecting the system eciency. Complete defrosting should be earned out if the frost
cannot be scraped away, or if it begins to interfere with the food storage. Choose a time when the supply of
food is low and proceed as follows:
1. Remove existing food and accessories. unplug the appliance from the mains power and leave the doors
open. Ventilate the room thoroughly to accelerate the thawing process.
2. Scrape away as much frost as possible using the plastic scraper (scraper not included).
3. If necessary, place a cloth soaked with warm water on the frost layer's surface to accelerate the thawing
process.
4. When defrosting is completed, clean your freezer as described - see interior cleaning. Caution! Do not
use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry
should the appliance be switched back on and plugged back into the mains socket.

EN - 18
10/2014Copyright © 2014, Fast ČR, a. s.
Door seals cleaning
Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear
when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after
cleaning.
CAUTION!
Only after the door seals are completely dry should the appliance be powered on.
Defrosting
Defrosting in the frozen food storage compartment
Defrosting in the freezer chamber is operated manually. Before defrosting, take the food out.
Take the ice tray and drawers out or put them into the fresh food compartment temporarily.
Leave the door of the refrigerator open until ice and frost dissolve thoroughly and accumulate at the bottom
of the freezer chamber. Wipe out the water with the soft cloth.
In order to speed up the process of defrosting, you may put a bowl of warm water (about 50°C) Into the freezer
chamber and scrape away the Ice and frost with a defrosting spatula. After doing so, be sure to set the knob of
the temperature regulator to the original position.
It is not advisable to heat the freezer chamber directly with hot water or a hair dryer while defrosting to avoid
deformation of the inner case.
It is also not advisable to scrape o ice and frost or separate foods from the containers which have been
congealed together with the food with sharp tools or wooden bars, so as not to damage the inner casing or
the surface of the evaporator.
NOTICE:
The appliance should be defrosted at least once a month. During its usage, if the door has been opened
frequently the appliance has been used in extreme humidity, we advise the user to defrost every two
weeks.
