Thank you for choosing this product.
We are proud to offer the ideal product for
you and the best complete range of home
appliances for your daily routine.
Carefully read this manual for correct and
safe appliance use and for helpful tips on
efficient maintenance.
Only use the washing machine after
carefully reading these instructions. We
recommend you always keep this manual
on hand and in good condition for any
future owners.
Each product is identified by a unique
character code, also called the “serial
number”, printed on the sticker. This can be
found inside the door opening. This code is
a unique code for your product that you will
need to register the product warranty, or if
you need to contact the Customer Service
Centre.
This appliance is marked according to
the European directive 2012/19/EU
on Waste Electrical and Electronic
Equipment (WEEE).
WEEE contains both polluting substances (which
can cause negative consequences for the
environment) and basic components (which can
be re-used). It is important to have WEEE
subjected to specific treatments, in order to
remove and dispose properly all pollutants, and
recover and recycle all materials. Individuals can
play an important role in ensuring that WEEE
does not become an environmental issue; it is
essential to follow some basic rules:
lWEEE should not be treated as household
waste;
lWEEE should be handed over to the relevant
collection points managed by the municipality or
by registered companies. In many countries, for
large WEEE, home collection could be present.
1. GENERAL SAFETY RULES
2. INSTALLATION
3. PRACTICAL HINTS
4. CLEANING AND MAINTENANCE
5. QUICK USER GUIDE
6. CONTROLS AND PROGRAMS
7. DRYING CYCLE
8. AUTOMATIC WASHING/DRYING CYCLE
9.
TROUBLESHOOTING AND WARRANTY
Environmental conditions
Contents

!
EN
3
1. GENERAL SAFETY
RULES
lThis appliance is intended to
be used in household.
A different use of this
appliance from household
environment or from typical
housekeeping functions, as
commercial use by expert or
trained users, is excluded even
in the above applications. If the
appliance is used in a manner
inconsistent with this it may
reduce the life of the appliance
and may void the manufacturer’s
warranty. Any damage to the
appliance or other damage or
loss arising through use that is
not consistent with domestic or
household use (even if located
in a domestic or household
environment) shall not be
accepted by the manufacturer
to the fullest extent permitted
by law.
lThis appliance can be used by
children aged from 8 years and
above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given supervision
or instruction concerning use of
the appliance in a safe way
and understand the hazards
involved. Children shall not
operate with the appliance
inappropriate. Cleaning and
user maintenance shall not be
made by children without
supervision.
lChildren of less than 3 years
should be kept away unless
continuously supervised.
lIf the supply cord is damaged, it
must be replaced by a special
cord or assembly available from
the manufacturer or its service
agent.
lWater pressure must be between
0.05 MPa and 0.8 MPa.
lMake sure carpets or rugs do
not obstruct the base or any of
the ventilation openings.
lThe final part of a washer dryer
cycle occurs without heat (cool
down cycle) to ensure that the
items are left at a temperature
that ensures that the items will
not be damaged.
lAfter installation, the appliance
must be positioned so that the
plug is accessible.
WARNING:
never stop a washer dryer before
the end of the drying cycle
unless all items are quickly
removed and spread out so that
the heat is dissipated.

!
4
lThe appliance must not be
installed behind a lockable
door, a sliding door or a door
with a hinge on the opposite
side to that of the washer
dryer, in such way that a full
opening of the washer dryer
door is restricted.
lThe maximum load capacity of
dry clothes depends on the
model used (see control panel).
lThe appliance is not to be used
if industrial chemicals have
been used for cleaning.
lDo not dry unwashed items in
the washer dryer.
lItems that have been soiled with
substances such as cooking oil,
acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes
and wax removers should be
washed in hot water with an extra
amount of detergent before being
dried in the washer dryer.
lItems such as foam rubber
(latex foam), shower caps,
waterproof textiles, rubber
backed articles and clothes or
pillows fitted with foam rubber
pads should not be dried in the
washer dryer.
lFabric softeners, or similar
products, should be used as
specified by the fabric softener
instructions.
lOil-affected items can ignite
spontaneously, especially when
exposed to heat sources such
as a washer dryer. The items
become warm, causing an
oxidation reaction in the oil,
Oxidation creates heat. If the
heat cannot escape, items can
become hot enough to catch
fire. Piling, stacking or storing
oil-effected items can prevent
heat from escaping and so
create a fire hazard.
lIf it is unavoidable that fabrics
contain vegetable or cooking
oil or have been contaminated
by hair care products be
placed in a washer dryer they
should first be washed in hot
water with extra detergent -
this will reduce, but not
eliminate, the hazard.
lRemove all objects from pockets
such as lighters and matches.
l To consult the product
technical specification please
refer to the website.
lThe technical details (supply
voltage and power input) are
indicated on the product rating
label.
Electrical connections and
safety instructions

!
EN
5
lMake sure that the electrical
system is earthed, complies
with all applicable law and that
the (electricity) socket is
compatible with the plug of the
appliance. Otherwise, seek
qualified professional assistance.
lThe use of converters, multiple
sockets or extension cords
might cause hazard.
lBefore cleaning or maintaining
the washing machine, unplug
the appliance and turn off the
water tap.
lDo not pull on the power cord
or appliance to unplug the
machine.
lMake sure there is no water in
the drum before opening the
door.
lDo not expose the washing
machine to rain, direct sunlight
or other weather elements.
Protect from possible freezing.
lWhen moving, do not lift the
washing machine by the knobs
or detergent drawer; during
transport, never rest the door on
the trolley. We recommend two
people lift the washing machine.
lIn the event of fault and/or
malfunction, turn off the
washing machine, close the
water tap and do not tamper
with the appliance.
Immediately contact the
Customer Service Centre and
only use original spare parts.
Failure to observe these
instruction may jeopardise
appliance safety.
WARNING:
the appliance must not be
supplied through an external
switching device, such as a
timer, or connected to a circuit
that is regularly switched on
and off by a utility.
WARNING:
water may reach very high
temperatures during the
wash cycle.

!
6
2. INSTALLATION

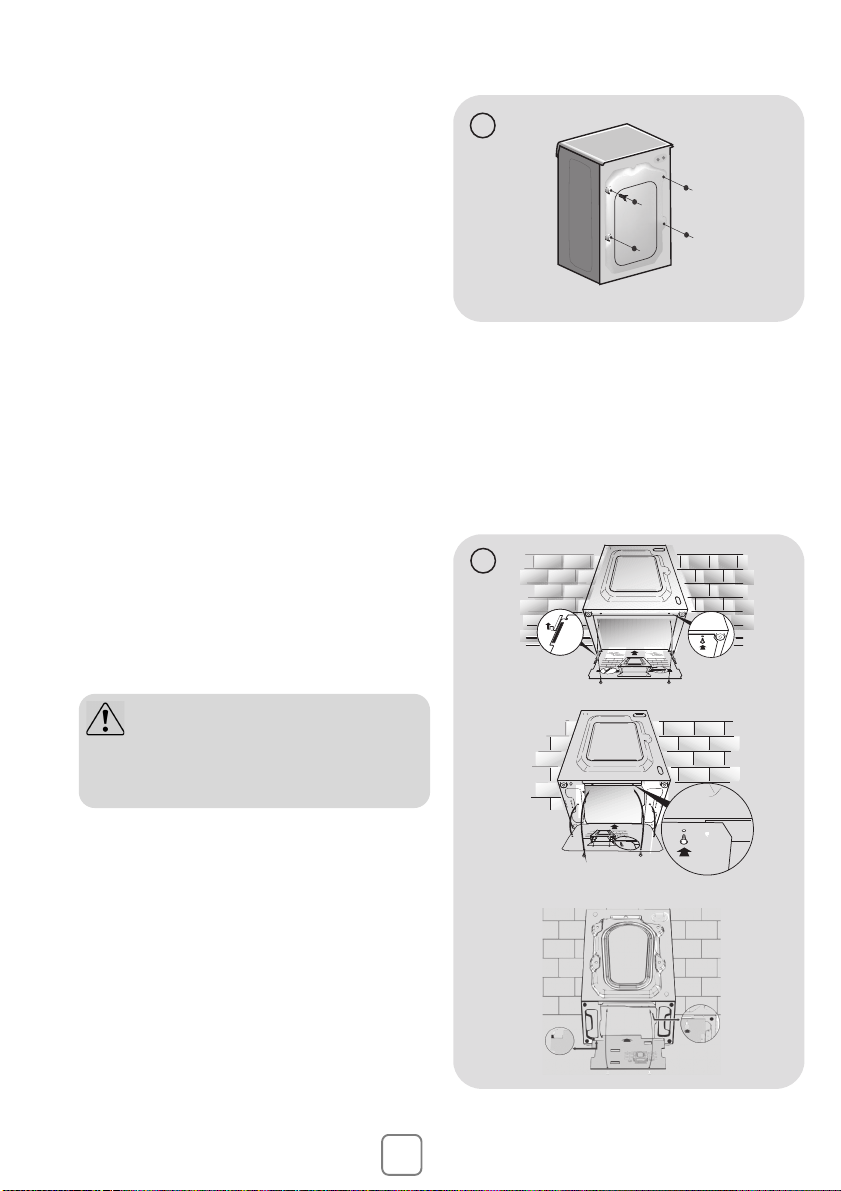

lRemove the 2or 4transportation
screws (A) on the back and
remove the 2or 4flat washers,
rubber bungs and plastic spacer
tubes (B) as illustrated in figure 1.
lIf the washing machine is built-
in, unscrew the 3or 4
transportation screws (A) and
remove the 3or 4flat washers,
rubber bungs and plastic spacer
tubes (B).
l During the removal of the screws
occasionally spacer tubes fall
inside the product, these can be
remove by tilting the product forward
and recovering them from the floor
or inside the base of the machine.
lCover the open transportation screw
holes with the 2or 4plastic caps
included in the instruction bag.
l Place the corrugated plastic
sheet, found on top of the
appliance during the unpacking
process*, into the base of the
appliance as shown in figure 2
(according to the model,
consider version A, B or C).
* In some models, the corrugated
plastic sheet is not provided.
A
A
A
A
B
B
B
B
1
3
2
1
3
1
2
A
C
B
2
WARNING:
keep packaging materials
away from children.

!
EN
7

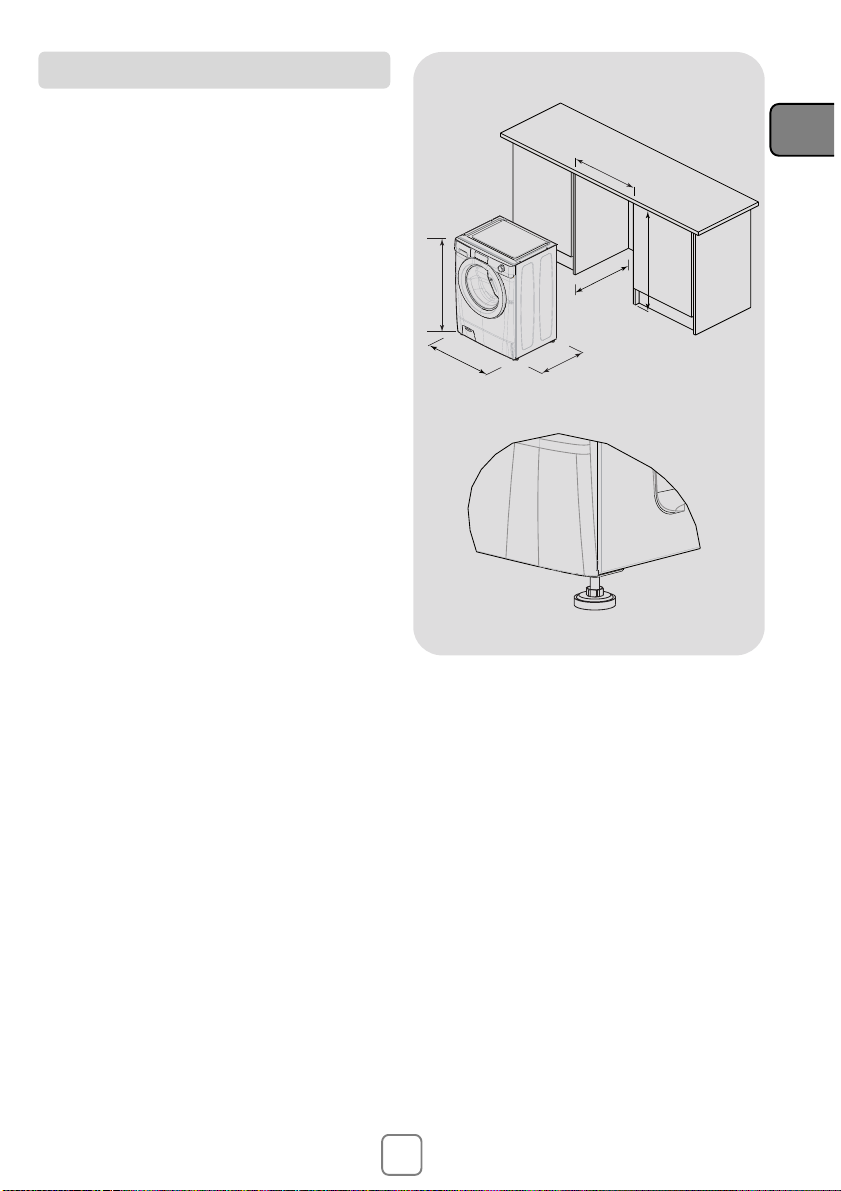

lSlide the appliance into an
opening of the size indicated in
the diagram.
l The 4 adjustable feet allow the
height of the washer to be
adjusted from 820 mm to a
maximum of 840 mm. To adjust
the height, you should remove
the nuts fitted to each foot and
replace these with the 5 mm
nuts supplied. Raise the feet to
your desired height and then
fully tighten the lock nut to the
base of the washer.
550
596
600 min.
600
820 min.
825 min.
Fitting under worktop

!
8

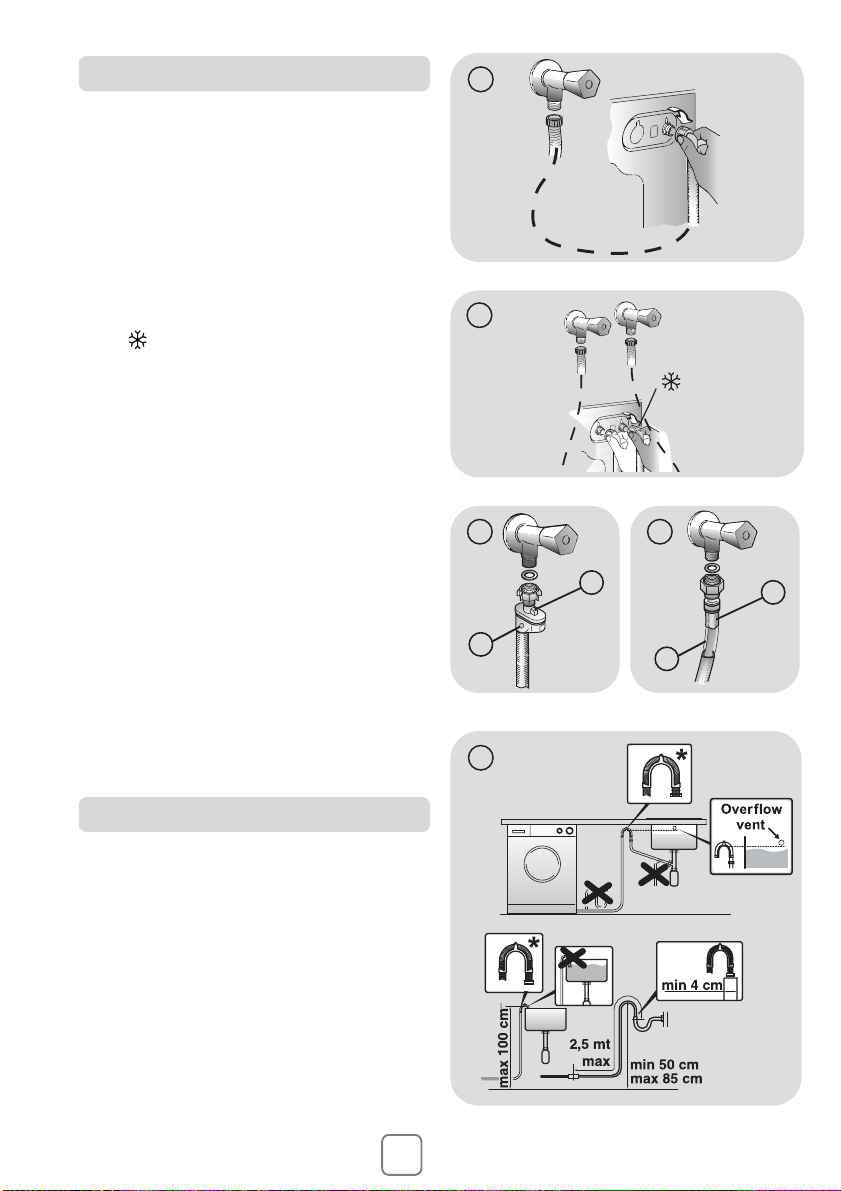

lConnect the water hose to the water
supply tap (fig. 3) only using the hose
supplied with the appliance (do not
reuse old hose-sets).
lSOME MODELS may include one or
more of the following features:
lHOT&COLD (fig. 4):
water mains connection settings with hot
and cold water for higher energy savings.
Connect the grey tube to the cold water
tap and the red one to the hot water
tap. The machine can be connected to
the cold water tap only: in this case, some
programs may start a few minutes later.
lAQUASTOP (fig. 5):
a device located on the supply tube that
stops water flow if the tube deteriorates;
in this case, a red mark will appear in the
window “A” and the tube must be
replaced. To unscrew the nut, press the
one-way lock device "B".
lAQUAPROTECT – SUPPLY TUBE WITH
GUARD (fig. 6):
Should water leak from the primary
internal tube "A", the transparent
containment sheath "B" will contain water
to permit the washing cycle to complete.
At the end of the cycle, contact the
Customer Service Centre to replace the
supply tube.
lThe washing machine should be installed
in its final position such that the water fill
hose is not kinked or trapped. The
corrugated drain hose should be inserted
into suitable drain pipe of between 50 cm
and 85 cm height above the floor using
the curved drain hose support. If an under
sink connection is used the drain hose
must be routed above the sink overfill
opening to prevent back siphoning. Care
must be taken to avoid kinking or trapping
the drain hose (fig. 7). (Note: This
accessory is excluded in some models).
3
1
4
B
A
5
B
A
6
7
Hydraulic connections
Setting

!
EN
9

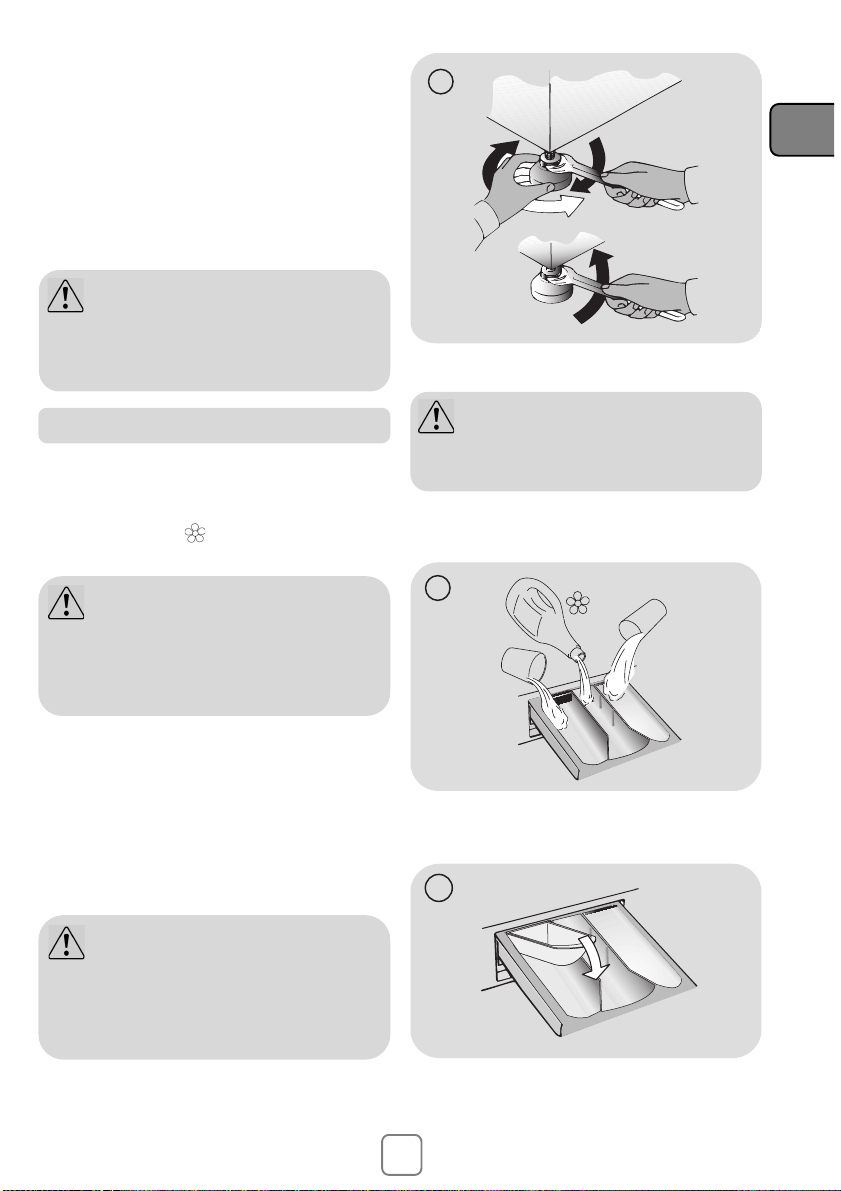

lLevel the appliance using the feet as
illustrated in figure 8:
a. turn the nut clockwise to release the
screw;
b. rotate the foot to raise or lower it until it
touches to the floor;
c. lock the foot, screwing in the nut, until it
tightens against to the bottom of the
washing machine.
lPlug in the appliance.
A
B
C
8
The detergent draw is split into 3
compartments as illustrated in figure 9:
lcompartment "1": for prewash detergent;
lcompartment “ ”: for special additives,
softeners, starch fragrances, etc.;
lcompartment "2": for washing detergent.
A liquid detergent cup is also included IN
SOME MODELS (fig. 10). To use it, place it
in compartment "2". This way, liquid
detergent will only enter the drum at the
right time. The cup can also be used for
bleach when the “Rinse” program is
selected.
2
1
9
10
WARNING:
contact the Customer Service Centre
should the power cord need
replacement.
Detergent drawer
WARNING:
only use liquid products; the washing
machine is set to automatically dose
additives at each cycle during the last
rinse.
WARNING:
some detergents are not designed for
use in the dispenser drawer but are
supplied with their own dispenser that
is placed in the drum directly.
WARNING:
installation faults are not covered by
the manufacturers warranty.

!
10
3. PRACTICAL HINTS
When sorting laundry, make sure:
- have eliminated metallic objects such as
hair clips, pins, coins, from laundry;
- to have buttoned pillow cases, closed
zips, tied loose belts and long robe
ribbons;
- to have removed rollers, hooks or clips
from curtains;
- to have carefully read clothing washing
labels;
- to have removed any persistent stains
using specific detergents.
lWhen washing rugs, bedcovers or other
heavy clothing, we recommend you avoid
the spinning cycle.
lTo wash wool, make sure the item can be
machine washed. Check the fabric label.
A guide environmentally friendly and
economic use of your appliance.
Maximise The Load Size
lAchieve the best use of energy, water,
detergent and time by using the
recommended maximum load size.
Save up to 50% energy by washing a full
load instead of 2 half loads.
Do you need to pre-wash?
lFor heavily soiled laundry only!
SAVE detergent, time, water and
between 5 to 15% energy consumption
by NOT selecting Prewash for slight to
normally soiled laundry.
Is a hot wash required?
lPretreat stains with stain remover or soak
dried in stains in water before washing to
reduce the necessity of a hot wash
programme. Save energy by using a low
temperature wash programme.
Before using a drying programme
(WASHER-DRYERS)
lSAVE energy and time by selecting a
high spin speed to reduce the water
content in laundry before using a drying
programme.
Following is a quick guide with tips and
recommendations on detergent use at the
various temperatures. In any case, always
read the instructions on the detergent for
correct use and doses.
Load tips
Helpful suggestions for the user
When washing heavily soiled whites,
we recommend using cotton
programs of 60°C or above and a
normal washing powder (heavy duty)
that contains bleaching agents that at
medium/high temperatures provide
excellent results.
For washes between 40°C and 60°C
the type of detergent used needs to be
appropriate for the type of fabric and
level of soiling.
Normal powders are suitable for “white”
or colour fast fabrics with high soiling,
while liquid detergents or “colour
protecting” powders are suitable for
coloured fabrics with light levels of
soiling.
For washing at temperatures below
40°C we recommend the use of liquid
detergents or detergents specifically
labeled as suitable for low temperature
washing.
For washing wool or silk, only use
detergents specifically formulated for
these fabrics.

!
EN
11
4. CLEANING AND
MAINTENANCE
To clean the washing machine exterior, use
a damp cloth, avoiding abrasives, alcohol
and/or solvents. To maintain a good wash
performance we recommend that the soap
drawer and pump filters are regularly
cleaned. A monthly service wash, using a
proprietary cleaner is also recommended.
lWe recommend you clean the drawer to
avoid accumulating detergent and
additive residue.
lTo do this, extract the drawer using slight
force, clean it with running water and
reinsert it in its housing.
lEnsure the siphon cap is correctly
refitted.
lThe washing machine comes with a
special filter able to trap large residue,
such as buttons or coins, which could
clog the drain.
l ONLY AVAILABLE ON CERTAIN MODELS:
pull out the corrugated hose, remove the
stopper and drain the water into a
container.
lEnsure all the water has been emptied
from the drum.
lBefore unscrewing the filter, we
recommend you place an absorbent cloth
under it to keep the floor dry. A small
amount of water will come out of the filter
as you remove it - this is normal.
lTurn the filter counter-clockwise to the
limit stop.
lRemove and clean the filter; when
finished, replace it turning it clockwise.
The filter handle will be locked when it is
not possible to turn any further and the
handle is horizontal. Smearing a small
amount of liquid soap on the filter seal will
help refitting.
lRepeat the previous steps in reverse
order to reassemble all parts.
lShould the washing machine be stored in
an unheated room for a long period of
time, drain all water from tubes.
lUnplug the washing machine.
lDetach the tube from the drainage
system and clip on the rear of the
machine and lower it, fully draining water
into a bowl.
lSecure the drain tube with the drainage
system and clip on the rear of the
machine when finished.
lKeep the door glass and gasket clean.
Drawer cleaning
Filter cleaning
Suggestions for moves or
prolonged disuse
The manufacturers warranty only
covers faults within the product of a
mechanical or electrical nature.
Faults caused by handling,
installation or miss use are not
covered and may incur a charge for
any repair visit to resolve.

!
12
5. QUICK USER GUIDE
This washing machine automatically adjusts
the level of the water to the type and
quantity of washing. This system gives a
reduction in energy consumption and a
saving in washing times.
lTurn on the washing machine and select
the required program.
lAdjust the washing temperature if
necessary and press the required "option"
buttons.
lPress the START/PAUSE button to start
washing.
lAt the end of the programme, the
message "End" will appear on the display
or, on some models, all wash stage
indicator lights will turn on.
lTurn off the washing machine.
For any type of wash, see the program
table and follow the operating sequence
as indicated.
Water pressure:
min 0.05 Mpa / max 0.8 Mpa
(0.05 MPa dispenses approximately 1 litre
of water in 10 seconds)
Spin r.p.m.: See rating plate.
Power input / Power current fuse amp /
Supply voltage: See rating label.
6. CONTROLS AND
PROGRAMS
A
HGECDFB
I
L
A
Programme selector with OFF
position
B
START/PAUSE button
C
DELAY START button
D
DRYING SELECTION
E
RAPID / STAIN LEVEL button
F
OPTIONS button
G
TEMPERATURE SELECTION
button
H
SPIN SPEED button
G+H
KEY LOCK
I
Digital display
L
DOOR LOCKED indicator light
Program selection
DRYING
If you would like the drying cycle to
begin automatically after washing,
select the programme required using
the DRYING SELECTION button.
Or you can finish the wash and then
select the drying programme and
load size.
Wait until the DOOR LOCKED light has
gone out before opening the door.
Technical data

!
EN
13
lPress the START/PAUSE button to start
the selected cycle.
lOnce a programme is selected the
programme selector remains stationary on
the selected programme till cycle ends.
l"End" will appear in the display at the
end of the program and the DOOR
LOCKED light will go off, it is now
possible to open the door.
lSwitch off the washing machine by
turning the selector to OFF.
lPress to start the selected cycle.
PAUSING THE MACHINE
lKeep the START/PAUSE button pressed
for about 2seconds (some light indicators
and the residual time display will flash,
showing that the machine is paused).
lPress the START/PAUSE button again to
re-start the programme from the point it
had been paused at.
CANCELLING THE PROGRAMME
lTo cancel the programme, set the
selector to the OFF position.
lWait 2 minutes until the safety device
unlocks the door.
lThis button allows you to pre-programme
the wash cycle to delay the start of the
cycle for up to 24 hours.
WARNING:
Don’t touch the display while inserting
the plug because the machines
calibrates the systems during the first
seconds: touching the display, the
machine couldn’t work property. In
this case, remove the plug and repeat
the operation.
PROGRAMME selector with OFF
position
When the programme selector is turned
the display lights up to show the settings
for the programme selected.
For energy saving, at the end of the
cycle or with an inactivity period, the
display level contrast will decrease.
N.B.: To switch the machine off, turn
the programme selector to the OFF
position.
The programme selector must be
returned to the OFF position at the end
of each cycle or when starting a
subsequent wash cycle prior to the next
programme being selected and started.
START/PAUSE button
Close the door BEFORE selecting the
button START/PAUSE.
When the START/PAUSE button has
been pressed, the appliance can take
few seconds before it starts working.
For safety reasons, in some wash
cycle phases, the door can be opened
only if the level of the water is below
its lower edge and if the temperature
is less than 45°C. If these conditions
are met, wait for the DOOR LOCKED
light to switch off before opening the
door.
DELAY START button

!
14
lTo delay the start use the following
procedure:
- Select the required programme.
- Press the delay start button once to
activate it (h00 appears on the display)
and then press it again to set a 1 hour
delay (h01 appears on the display). The
pre-set delay increases by 1 hour each
time the button is pressed, until h24
appears on the display, at which point
pressing the button again will reset the
delay start to zero.
- Confirm by pressing the START/PAUSE
button. The delay countdown will begin
and when it has finished the programme
will start automatically.
lIt is possible to cancel the delay start by
turning the programme selector to OFF.
If there is a break in the power supply
whilst the machine is operating, when
the power is restored, the machine will
restart from the beginning of the phase it
was in when the power was lost.
lFor automatic washing/drying cycle:
after the selection of washing programme
according to laundry type, select a degree
of dryness by pressing this button. At the
end of the washing programme, the
selected drying cycle will start
automatically.
If a washing programme is not
compatible with automatic drying
selected, this function will not be
activated.
lIf you want delete the selection before
the programme starts, please press
repeatedly the button until the lights go off
or reposition the programme selector to
the OFF position.
lDrying only cycle:
select via the knob the desired drying
programme in conjunction with your
fabrics, by pressing this button it is
possible to select a degree of dryness
that is different to the default one (except
for the wool drying programme).
lTo cancel the cycle during the drying
phase, please press the button for about
3 seconds.
l"End" will appear in the display at the
end of the program and the DOOR
LOCKED light will go off, it is now
possible to open the door.
The option buttons should be
selected before pressing the
START/PAUSE button. If an option is
selected that is not compatible with
the selected programme then the
option indicator light first flashes and
then goes off.
DRYING SELECTION
If you exceed the maximum dryable
load of laundry indicated in the
programme table, the laundry may not
be dried satisfactory.
WARNING:
After cancelling the drying programme,
the cool down phase will begin and
please wait for about 10/20 minutes
before opening the door.
It is also possible to cancel the drying
cycle by turning the programme
selector to the OFF position. It is
necessary to wait for the cooling
phase’s end (10/20 minutes) and the
DOOR LOCKED light to go off before
opening the door.

!
EN
15
This button allows you to choose between
two different options, depending on the
selected programme:
- RAPID
The button becomes active when
you select the RAPID (14-30-44 Min.)
programme on the knob and allows you to
select one of three durations indicated.
- STAIN LEVEL button
lOnce the programme has been selected
the wash time set for that programme will
be automatically shown.
lThis option allows you to choose between
3 levels of wash intensity modifying the
length of the programme, depending on
how much the fabrics are soiled (can only
be used on some programmes as shown
in the table of programmes).
This button allows you to choose between
three different options:
- PREWASHING
lThis option allows you to make a prewash
and it is particularly useful for heavily
soiled loads (can be used only on some
programmes as shown in the table of
programmes).
lWe recommend you adjust the quantities
depends on your need in compare with
the recommended quantities shown on
the detergent pack.
- EXTRA RINSE
lThis option allows you to add one rinse at
the end of the washing cycle and is useful
for people with delicate and sensitive
skin, for which a small amount of
detergent residue can cause irritations or
allergies.
lIt is advisable to also use this function for
the children clothes and for the washing
of heavily soiled items, which requires a
lot of detergent to be used, or for the
washing of toweling items whose fibres
mostly have the tendency to hold the
detergent.
- HYGIENE +
Activated when you set 60°C of
temperature. This option allows deep
cleaning of your clothes by maintaining the
same temperature for the whole wash.
lThis button allows you to change the
temperature of the wash cycles.
lIt is not possible to raise the temperature
over the maximum allowed for the
programme, in order to protect the
fabrics.
lIf you want carry out a cold wash all the
indicators must be off.
lBy pressing this button, it is possible to
reduce the maximum speed, and if you
wish, the spin cycle can be cancelled.
lIf the label does not indicate specific
information, it is possible to use the
maximum spin expected in the program.
lTo reactivate the spin cycle press the
button until you reach the spin speed you
would like to set.
lIt is possible to modify the spin speed
without pausing the machine.
RAPID / STAIN LEVEL button
OPTIONS button
TEMPERATURE SELECTION
button
SPIN SPEED button
To prevent damage to the fabrics, it is
not possible to increase the speed
over the maximum allowed for the
programme.

!
16
lPressing simultaneously the buttons
TEMPERATURE SELECTION and SPIN
SPEED for about 3 seconds, the
machine allows you to lock the keys. In
this way, you can avoid making
accidental or unwanted changes if a
button on the display is pressed
accidently during a cycle.
lThe key lock can be simply cancelled by
pressing the two buttons simultaneously
again or turning off the appliance.
The display’s indicator system allows you to
be constantly informed about the status of
the machine.
1
3 2 45789
6
1) DOOR LOCKED INDICATOR LIGHT
lThe indicator light is illuminated when the
door is fully closed.
lWhen START/PAUSE is pressed on
the machine with the door closed, the
indicator will flash momentarily and then
illuminate.
lWait until the DOOR LOCKED light has
gone out before opening the door.
2) SPIN SPEED
This show the spin speed of the selected
programme that can be changed or omitted
by the relevant button.
3) WASH TEMPERATURE INDICATOR
LIGHTS
This shows the washing temperature of the
selected programme that can be changed
(where allowed) by the relevant button.
If you want carry out a cold wash all the
indicators must be off.
4) CYCLE DURATION
lWhen a programme is selected the
display automatically shows the cycle
duration, which can vary, depending on
the options selected.
lOnce the programme has started you will
be kept informed constantly of the time
remaining to the end of the wash.
lThe appliance calculates the time to the
end of the selected programme based
upon a standard loading, during the cycle,
the appliance corrects the time to that
applicable to the size and composition of
the load.
An over dosing of detergent can
cause excessive foaming. If the
appliance detects the presence of
excessive foam, it may exclude the
spinning phase or extend the duration
of the program and increase water
consumption.
The machine is fitted with a special
electronic device, which prevents the
spin cycle should the load be
unbalanced. This reduces the noise
and vibration in the machine and so
prolongs the life of your machine.
KEY LOCK
Digital Display
Close the door BEFORE selecting the
START/PAUSE button.
If the door is not properly closed,
the light will continue to flash for
about 7 seconds, after which the
start command will be automatically
delete. In this case, close the door
in the proper way and press the
START/PAUSE button.

!
EN
17
5) KEY LOCK INDICATOR LIGHT
The indicator light show that the keys are
locked.
6) STAIN LEVEL INDICATOR LIGHT
The indicator light shows the selection of
the relevant option.
7) Kg MODE (function active only on
certain programmes)
lDuring the first minutes of the cycle, the
"Kg MODE" indicator remain on while the
intelligent sensor will weigh the laundry
and adjust the cycle time, water and
electricity consumption accordingly.
lThrough every wash phase "Kg MODE"
allows to monitor information on the wash
load in the drum and in the first minutes
of the wash it:
- adjusts the amount of water required;
- determines the length of the wash cycle;
- controls rinsing according to the type of
fabric selected to be washed it;
- adjusts the rhythm of drum rotation for
the type of fabric being washed;
- recognizes the presence of lather,
increasing, if necessary, the amount of
water during rinsing;
- adjusts the spin speed according to the
load, thus avoiding any imbalance.
8) DRYING SELECTION INDICATOR LIGHTS
The indicators display the degrees of
dryness that can be selected by the
relevant button:
Automatic drying programmes
EXTRA DRY
(suitable for towels, bathrobes and
bulky loads).
IRON DRY
(that leaves the laundry ready for
ironing).
CUPBOARD DRY
(for items that will be put away
without ironing).
Timed drying programmes
120'
90'
60'
30'
They may be used to select timed
drying programmes.
Cool down phase
Activated during the final cool down
period, in the last 10/20 minutes of
each drying phase.
9) OPTIONS INDICATOR LIGHTS
The indicator lights show the option that
can be selected by the relevant button.

!
18
PROGRAMME
(MAX.) *
1)
2
1
(see control panel)
(MAX.)
2
1
Whites
2)
4)
6
6
7
8
8
9
90°
( )
Cotton**
2)
4)
6
6
7
8
8
9
60°
( )
Jeans
4)
3
3
3
3
3
3
40°
Eco 20°C
4)
6
6
7
8
8
9
20°
Mixed
2)
4)
3
3
3,5
4
4
4,5
60°
( )
Delicates
2
2
2,5
2,5
2,5
2,5
40°
Rinse
-
-
-
-
-
-
-
Spin
-
-
-
-
-
-
-
Drain
-
-
-
-
-
-
-
Rapid
3) 4)
14'
1
1
1
1,5
1,5
1,5
30°
30'
2
2
2,5
2,5
2,5
2,5
30°
44'
3
3
3
3,5
3,5
3,5
40°
Shirts
2)
4)
3
3
3,5
4
4
4,5
30°
( )
Wool
1
1
1
2
2
2
40°
Handwash
1
1
1
2
2
2
30°
3
3
3,5
4
4
4,5
-
4
5
5
5
6
6
-
Table of programmes

!
EN
19
Please read these notes:
*Maximum load capacity of dry clothes,
according to the model used (see control
panel).
(Only for models with liquid
detergent compartment)
When only a limited number of
articles have stains which require
treatment with liquid bleaching
agents, preliminary removal of
stain can be carried out in the
washing machine.
Pour the bleach into the liquid
bleach container, inserted into the
compartment marked "2" in the
detergent drawer, and set the
special programme RINSE.
When this phase has terminated,
turn the programme selector to
the OFF position, add the rest of
the fabrics and proceed with a
normal wash on the most suitable
programme.
( )
Only with PREWASH option
selected (programmes with
PREWASH option available).
1)
When a programme is selected,
on the display is shown the
display shows the recommended
wash temperature that can be
reduced (where allowed) by the
relevant button.
2)
For the programmes shown you
can adjust the duration and
intensity of the wash using the
STAIN LEVEL button.
3)
Selecting the RAPID program on
the knob, it will be possible to
select with the RAPID button, one
of the three rapid programs
available among 14’, 30’ and 44’.
4)
Programmes for automatic drying.
INFORMATION FOR THE TEST
LABORATORIES (Ref. EN 50229
Standards)
Washing
Use the programme ** with the maximum
degree of soiling selected, maximum
spin speed and a temperature of 60°C.
Drying
To select the COTTON drying program,
CUPBOARD DRY.

!
20
To clean different types of fabrics and
various levels of dirt, the washing machine
has specific programs to meet every need
of washing (see table of programmes).
WASHING
Whites
An intensive wash. The final spin at maximum
speed gives more efficient removal.
Cotton
This program is suitable to clean normally
soiled cotton laundry and it is the most
efficient program in terms of combined energy
and water consumptions for washing cotton laundry.
Jeans
This program has been designed to have the
highest quality cleaning of fabrics such as
denim: ideal for removing dirt without affecting
the elasticity of the fibers.
Eco 20°C
This innovative programme, allows you to wash
different fabrics and colours together, such as
cottons, synthetics and mixed fabrics at only
20°C and provides an excellent cleaning
performance. Consumption on this program is
about 40% of a conventional 40°C. cottons wash.
Mixed
The washing and rinsing optimise the speed
and rhythm of the drum action and water
levels. The gentle spin, ensures a reduced
formation of creases in the fabric.
Delicate
This program has reduced periods of drum
rotation during the cycle and is particularly
suitable or washing delicate fabrics. The
wash cycle and rinses are carried out with a
high level of water to ensure the best
performance.
Rinse
This program performs 3 rinses with an
intermediate spin (which can be reduced or
excluded by using the appropriate button) . It
is used for rinsing any type of fabric, for
example after a wash carried out by hand.
Spin
The programme carries out a maximum
spin It is possible to delete or reduce the
spin with the SPIN SPEED button.
Drain
This programme drains out the water.
Rapid (14-30-44 Min.)
Washing cycle suggested for low loads and
slightly dirty. With this program it is
recommended to reduce the quantity of
detergent normally used, in order to avoid
unnecessary waste. Selecting the RAPID
program and acting on the button you can
choose one of three programs available.
Shirts
The washing cycle is optimized to reduce
the creation of creases, keeping an
excellent washing performance. It is also
possible to further reduce the spin speed, to
ensure an easier ironing.
Wool
This program performs a wash cycle
dedicated to the wool fabrics that can be
washed in a washing machine, or the
articles to be washed by hand.
Handwash
Program for hand wash only clothes, the
program ends with 3 rinses and a slow spin.
DRYING
The drum changes direction during the drying
cycle to prevent the laundry from tangling and
producing even more drying. Cool air is used
during the last 10/20 minutes of the drying
cycle to minimize creasing.
Mixed (Low Heat)
Low temperature drying programme
recommended for synthetics and mixed fibres
(always refer to the laundry care label).
Cotton (High Heat)
High temperature drying programme
recommended for cottons and linen items
(always refer to the laundry care label).
Description of programmes
WARNING:
Dispensers used for concentrated powders
and liquid detergents must be removed
from the drum before commencing the
tumble drying programmes.
