Environmental conditions
Contents

!
4
1. GENERAL SAFETY
RULES
This appliance is intended to
be used in household.
A differentuse of this appliance
from household environment
or from typical housekeeping
functions, as commercial use by
expert or trained users, is excluded
even in the above applications. If
the appliance is used in a manner
inconsistent with this it may reduce
the life of the appliance and may
Any damage to the appliance or
other damage or loss arising
through use that is not consistent
with domestic or household use
(even if located in a domestic or
household environment) shall not
be accepted by the manufacturer to
the fullest extent permitted by law.
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not operate with the
appliance inapporpriate. Cleaning
and user maintenance shall not
be made by children without
supervision.
Children of less than 3 years
should be kept away unless
continuously supervised.
If the supply cord is damaged, it
must be replaced by a special
cord or assembly available from
the manufacturer or its service
agent.
Water pressure must be between
0.05 MPa and 0.8 MPa.
Make sure carpets or rugs do
not obstruct the base or any of
the ventilation openings.
The final part of a washer dryer
cycle occurs without heat (cool
down cycle) to ensure that the
items are left at a temperature
that ensures that the items will
not be damaged.

!
5
After installation, the appliance
must be positioned so that the
plug is accessible.
The appliance must not be
installed behind a lockable
door, a sliding door or a door
with a hinge on the opposite
side to that of the washer
dryer, in such way that a full
opening of the washer dryer
door is restricted.
The maximum load capacity of
dry clothes depends on the
model used (see control panel).
The appliance is not to be used
if industrial chemicals have
been used for cleaning.
Do not dry unwashed items in
the washer dryer.
Items that have been soiled with
substances such as cooking oil,
acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes
and wax removers should be
washed in hot water with an extra
amount of detergent before being
dried in the washer dryer.
Items such as foam rubber
(latex foam), shower caps,
waterproof textiles, rubber
backed articles and clothes or
pillows fitted with foam rubber
pads should not be dried in the
washer dryer.
Fabric softeners, or similar
products, should be used as
specified by the fabric softener
instructions.
Oil-affected items can ignite
spontaneously, especially when
exposed to heat sources such
as a washer dryer. The items
become warm, causing an
oxidation reaction in the oil,
Oxidation creates heat. If the
heat cannot escape, items can
become hot enough to catch
fire. Piling, stacking or storing
oil-effected items can prevent
heat from escaping and so
create a fire hazard.
If it is unavoidable that fabrics
contain vegetable or cooking
oil or have been contaminated
by hair care products be
placed in a washer dryer they
should first be washed in hot
water with extra detergent -
this will reduce, but not
eliminate, the hazard.
Remove all objects from pockets
such as lighters and matches.
WARNING:
never stop a washer dryer befor
e
the end of the drying cycl
e
unless all items are quickl
y
removed and spread out so tha
t
theheat isdissipated.

!
6
To consult the product technical
specification please refer to the
website.
The technical details (supply
voltage and power input) are
indicated on the product rating
label.
Make sure that the electrical
system is earthed, complies
with all applicable law and that
the (electricity) socket is
compatible with the plug of the
appliance. Otherwise, seek
qualified professional assistance.
The use of converters, multiple
sockets or extension cords
might cause hazard.
Before cleaning or maintaining
the washing machine, unplug
the appliance and turn off the
water tap.
Do not pull on the power cord
or appliance to unplug the
machine.
Make sure there is no water in
the drum before opening the
door.
Do not expose the washing
machine to rain, direct sunlight
or other weather elements.
Protect from possible freezing.
When moving, do not lift the
washing machine by the knobs
or detergent drawer; during
transport, never rest the door on
the trolley. We recommend two
people lift the washing machine.
In the event of fault and/or
malfunction, turn off the
washing machine, close the
water tap and do not tamper
with the appliance.
Immediately contact the
Customer Service Centre and
only use original spare parts.
Failure to observe these
instruction may jeopardise
appliance safety.
Electrical connections and
safety instructions
WARNING:
the appliance must not
be
supplied through an
external
switching device, such as
a
timer, or connected to a circuit
that is regularly switched
on
and off by a utility.
WARNING:
water may reach very
high
temperatures during
the
wash cycle.

!
7
2. INSTALLATION

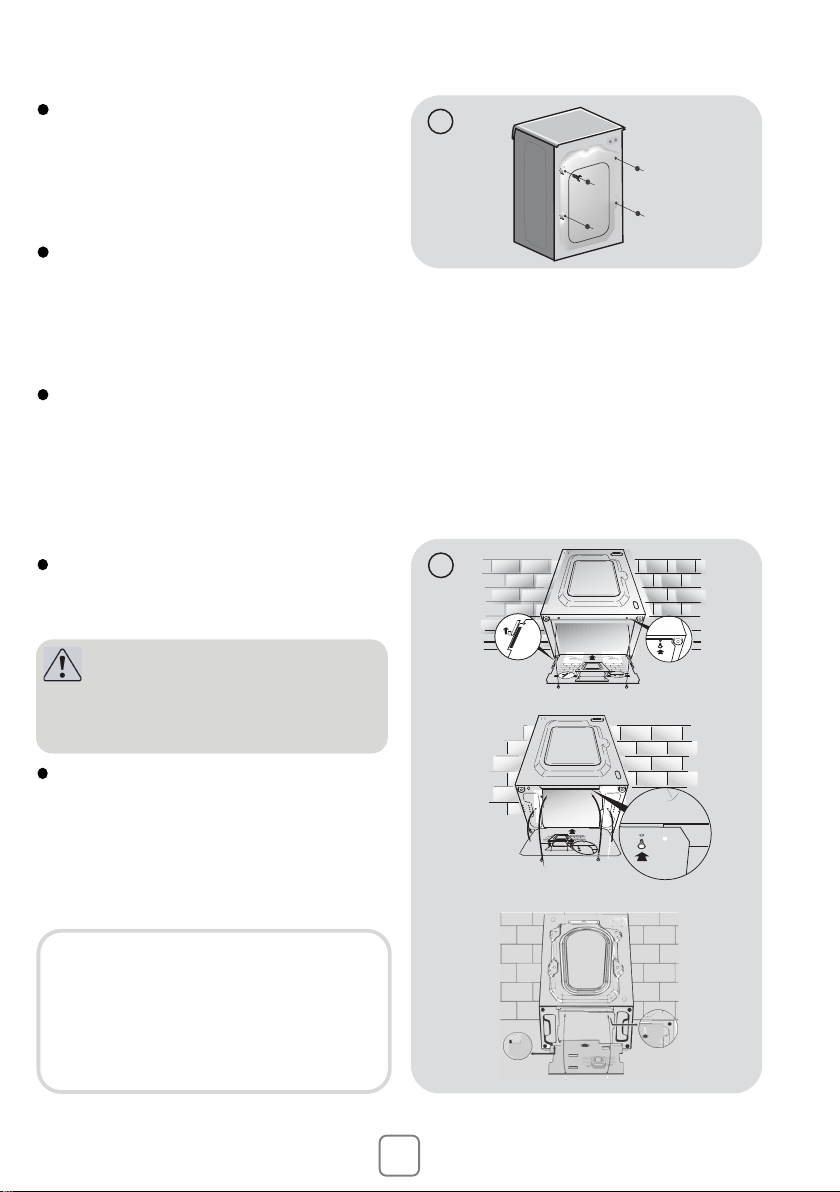

Remove the 2or 4transportation
screws (A) on the back
and
remove the 2or 4flat washers
,
rubber bungs and plastic spac
er
tubes (B)as illustrated in figure 1.
If the washing machine is built-in
,
unscrew the 3or 4transportati
on
screws (A) and remove the 3or
4
flat washers, rubber bungs
and
plastic spacer tubes (B).
During the removal of the screw
s
occasionally spacer tubes f
all
inside the product, these can b
e
remove by tilting the product forwar
d
and recovering them from the floor o
r
inside the base of the machine.
Cover the open transportation
screw
holes with the 2or 4plastic
caps
included in the instruction bag.
Place the corrugated plastic shee
t,
found on top of the appliance
during
the unpacking process, into the bas
e
of the appliance as shown in figure
2
(according to the model, conside
r
version A, Bor C).
A
A
A
A
B
B
B
B
1
3
2
1
3
1
2
A
C
B
2
WARNING:
keep packaging
materials
away from children.
In some models this operation
will not be necessary, because
the corrugated plastic sheet
will be already placed on the
bottom of the appliance.

!
8

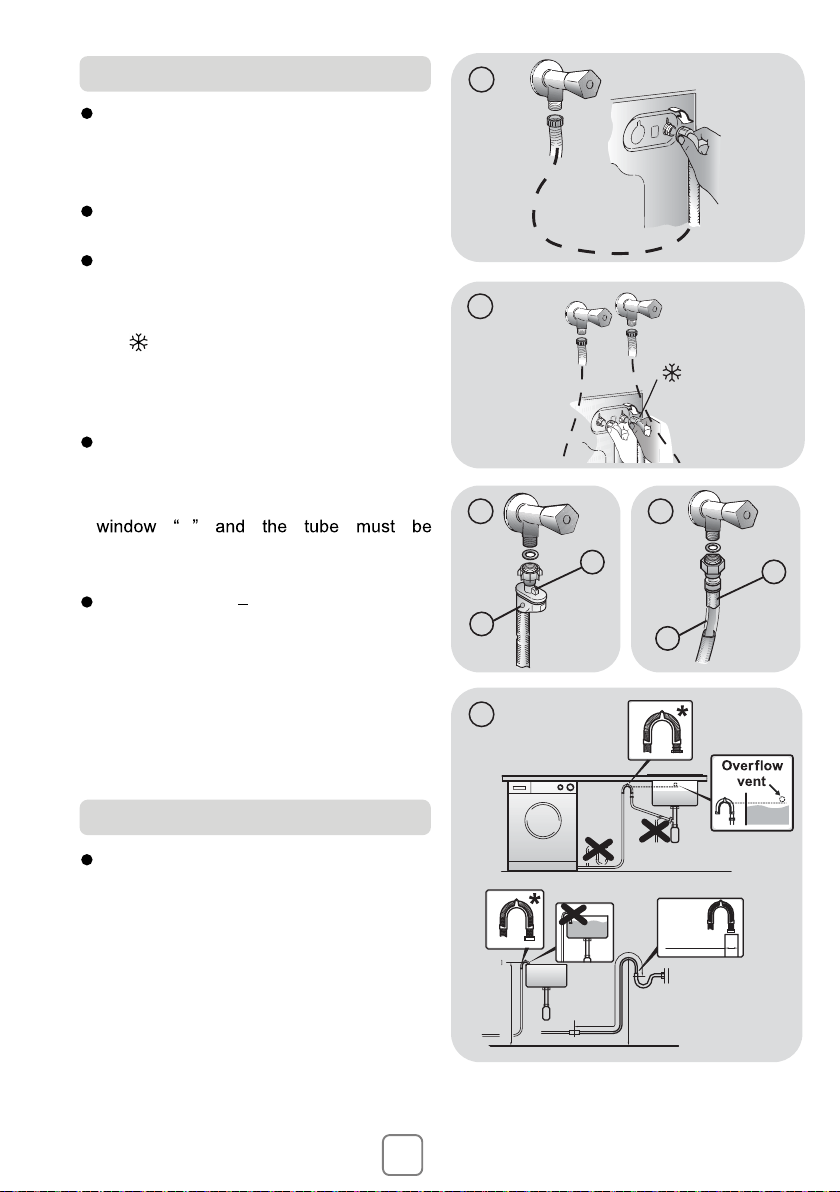

Connect the water hose to the wate
r
supply tap (fig. 3) only using the hos
e
supplied with the appliance (do no
t
reuse old hose-sets).
SOME MODELS may include one o
r
more of the following features:
HOT&COLD (fig. 4):
water mains connection settings with ho
t
and cold water for higher energy savings.
Connect the grey tube to the cold wate
r
tap and the red one to the hot wate
r
tap. The machine can be connected t
o
the cold water tap only: in this case, som
e
programs may start afew minutes later.
AQUASTOP (fig. 5):
a device located on the supply tube tha
t
stops water flow if the tube deteriorates
;
in this case, a red mark will appear in t
he
A
replaced. To unscrew the nut, press t
he
one-way lock device "B".
AQUAPROTECT SUPPLY TUBE WIT
H
GUARD (fig. 6):
Should water leak from the primar
y
internal tube "A", the transparen
t
containment sheath "B" will contain wate
r
to permit the washing cycle to complete
.
At the end of the cycle, contact t
he
Customer Service Centre to replace t
he
supply tube.
The washing machine should be install
ed
in its final position such that the water
fill
hose is not kinked or trapped.
The
corrugated drain hose should be insert
ed
into suitable drain pipe of between 50 c
m
and 85 cm height above the floor usi
ng
the curved drain hose support. If an unde
r
sink connection is used the drain hos
e
must be routed above the sink overf
ill
opening to prevent back siphoning. Car
e
must be taken to avoid kinking or trappi
ng
he drain hos
e (fig. 7). (Note: This accessory
is excluded in some models).
3
1
4
B
A
5
B
A
6
min 50 cm
max 85 cm
+2,6 mt
max
max 100 cm
min 4 cm
7
Hydraulic connections
Setting

!
9
Level the appliance using the feet as
illustrated in figure 8:
a. turn the nut clockwise to release t
he
screw;
b. rotate the foot to raise or lower it until
it
touchestothe floor;
c. lock the foot, screwing in the nut, until
it
tightens against to the bottom of t
he
washing machine.
Plug in the appliance.
A
B
C
8
T
he detergent draw is split into
3
c
ompartments as illustrated in figure 9:
compartment "1": for prewash detergent;
: for special additives
,
softeners, starch fragrances, etc.;
compartment "2": for washing detergent
.
A
liquid detergent cup is also included I
N
S
OME MODELS (fig. 10). To use it, place
it
i
n compartment "2". This way, liqui
d
de
tergent will only enter the drum at t
he
r
ight time. The cup can also be used fo
r
s
elected.
2
1
9
10
WARNING:
contact the Customer Service Centre
should the power cord need
replacement.
Detergent drawer
WARNING:
only use liquid products; the washing
machine is set to automatically dose
additives at each cycle during the last
rinse.
WARNING:
some detergents are not designed for
use in the dispenser drawer but are
supplied with their own dispenser that
is placedin the drum directly.
WARNING:
installation faults are not covered by
the manufacturers warranty.

!
10
3. PRACTICAL HINTS
When sorting laundry, make sure:
- have eliminated metallic objects such as
hair clips, pins, coins, from laundry;
- to have buttoned pillow cases, closed
zips, tied loose belts and long robe
ribbons;
- to have removed rollers, hooks or clips
from curtains;
- to have carefully read clothing washing
labels;
- to have removed any persistent stains
using specific detergents.
When washing rugs, bedcovers or other
heavy clothing, we recommend you avoid
the spinning cycle.
To wash wool, make sure the item can be
machine washed. Check the fabric label.
A guide environmentally friendly and
economic use of your appliance.
Maximise The Load Size
Achieve the best use of energy, water,
detergent and time by using the
recommended maximum load size.
Save up to 50% energy by washing a full
load instead of 2 half loads.
Do you needto pre-wash?
For heavily soiled laundry only!
SAVE detergent, time, water and
between 5 to 15% energy consumption
by NOT selecting Prewash for slight to
normally soiled laundry.
Is a hot wash required?
Pretreat stains with stain remover or soak
dried in stains in water before washing to
reduce the necessity of a hot wash
programme. Save energy by using a low
temperature wash programme.
Before using a drying programme
(WASHER-DRYERS)
SAVE energy and time by selecting a
high spin speed to reduce the water
content in laundry before using a drying
programme.
Following is a quick guide with tips and
recommendations on detergent use at the
various temperatures. In any case, always
read the instructions on the detergent for
correct use and doses.
Load tips
Helpful suggestions for the user
When washing heavily soiled whites,
we recommend using cotton
or above and a
normal washing powder (heavy duty)
that contains bleaching agents that at
medium/high temperatures provide
excellent results.
the type of detergent used needs to be
appropriate for the type of fabric and
level of soiling.
Normal powders ar
or colour fast fabrics with high soiling,
coloured fabrics with light levels of
soiling.
For washing at temperatures below
we recommend the use of liquid
detergents or detergents specifically
labeled as suitable for low temperature
washing.
For washing woolor silk, only use
detergents specifically formulated for
these fabrics.

!
11
4. CLEANING AND
MAINTENANCE
To clean the washing machine exterior, use
a damp cloth, avoiding abrasives, alcohol
and/or solvents. To maintain a good wash
performance we recommend that the soap
drawer and pump filters are regularly
cleaned. A monthly service wash, using a
proprietary cleaner is also recommended.
We recommend you clean the drawer to
avoid accumulating detergent and
additive residue.
To do this, extract the drawer using slight
force, clean it with running water and
reinsert it inits housing.
Ensure the siphon cap is correctly
refitted.

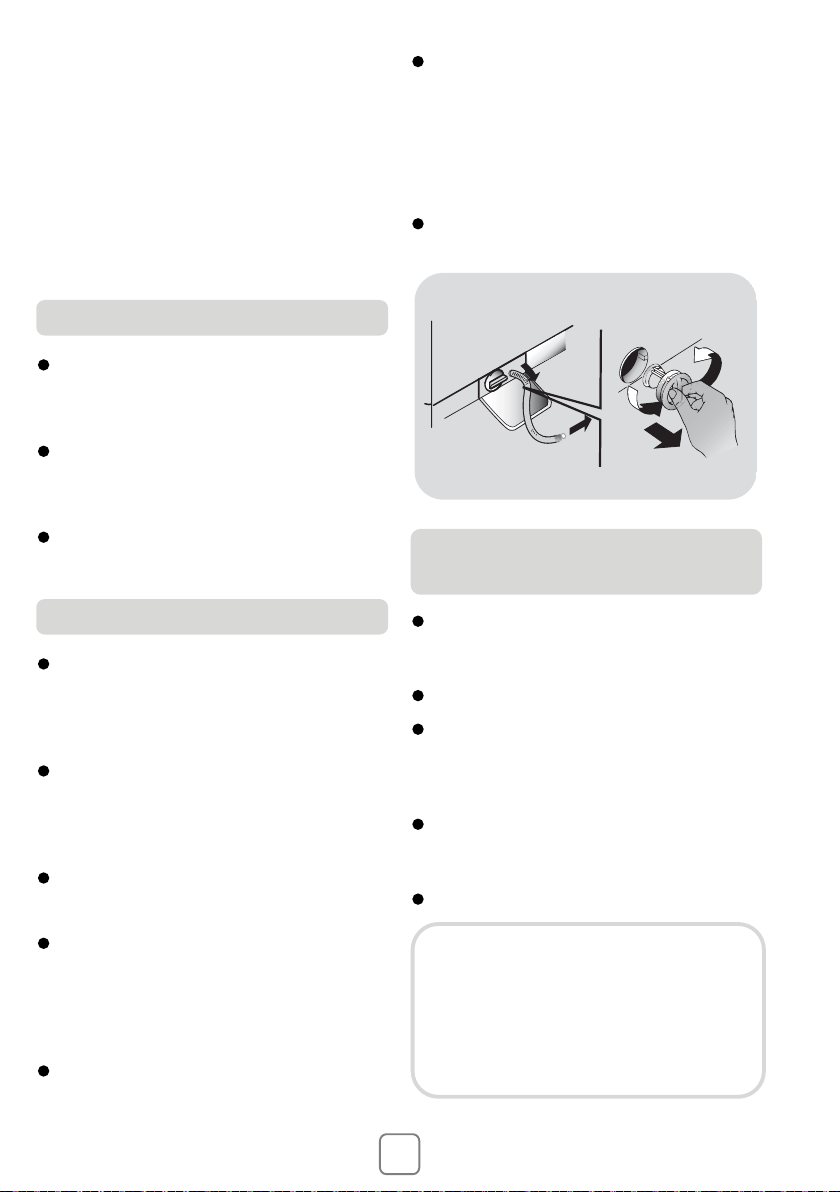

The washing machine comes with a
special filter able to trap large residue,
such as buttons or coins, which could
clog the drain.
ONLY AVAILABLE ON CERTAIN MODELS:
pull out the corrugated hose, remove the
stopper and drain the water into a
container.
Ensure all the water has been emptied
from the drum.
Before unscrewing the filter, we
recommend you place an absorbent cloth
under it to keep the floor dry. A small
amount of water will come out of the filter
as you remove it - this is normal.
Turn the filter counter-clockwise to the
limit stop.
Remove and clean the filter; when
finished, replace it turning it clockwise.
The filter handle will be locked when it is
not possible to turn any further and the
handle is horizontal. Smearing a small
amount of liquid soap on the filter seal will
help refitting.
Repeat the previous steps in reverse
orderto reassemble all parts.
Should the washing machine be stored in
an unheated room for a long period of
time, drain all water from tubes.
Unplug the washing machine.
Detach the tube from the drainage
system and clip on the rear of the
machine and lower it, fully draining water
into a bowl.
Secure the drain tube with the drainage
system and clip on the rear of the
machine when finished.
Keep the door glass and gasket clean.
Drawer cleaning
Filter cleaning
Suggestions for mo v es or
p
rolonged disuse
The manufacturers warranty only
covers faults within the product of a
mechanical or electrical nature.
Faults caused by handling,
installation or miss use are not
covered and may incur a charge for
any repair visit to resolve.

!
12
5. QUICK USER GUIDE
This washing machine automatically adjusts
the level of the water to the type and
quantity of washing. This system gives a
reduction in energy consumption and a
saving in washing times.
Turn on the washing machine and select
the required program.
Adjust the washing temperature if
necessary and press the required "option"
buttons.
Press the START/PAUSEbutton to start
washing.
At the end of the programme, the
message "End" will appear on the display
or, on some models, all wash stage
indicator lights will turn on.
Turn off the washing machine.
For any type of wash, see the program
table and follow the operating sequence
as indicated.
Water pressure:
min 0.05 Mpa / max 0.8 Mpa
(0.05 MPa dispenses approximately 1 litre
of water in 10 seconds)
Spin r.p.m.: See rating label.
Power input / Power current fuse amp /
Supply voltage: See rating label.
6. CONTROLS AND
PROGRAMS
A
HG E C D F B
I
L
A
Programme selector with OFF
po
sition
B
START/PAUSE button
C
DELAY START button
D
DRYING SELECTION
E
RAPID / STAIN LEVEL button
F
OPTIONS button
G
TEMPERATURE SELECTION
bu
tton
H
SPIN SPEED button
G+H
KEY LOCK
I
Digital display
L
DOOR LOCKED indicator light
Program selection
DRYING
If you would like the drying cycle to
begin automatically after washing,
select the programme required using
the DRYING SELECTION button.
Or you can finish the wash and then
select the drying programme and
load size.
Wait until the DOOR LOCKED light has
gone out before opening the door.
Technical data

!
13
Press the START/PAUSE button to start
the selected cycle.
Once a programme is selected the
programme selector remains stationary on
the selected programmetill cycle ends.
"End"will appear in the display at the
end of the program and the DOOR
LOCKED light will go off, it is now
possible to open the door.
Switch off the washing machine by
turning the selector to OFF.
Press to start the selected cycle.
PAUSING THE MACHINE
Keep the START/PAUSEbutton pressed
for about 2seconds (some light indicators
and the residual time display will flash,
showing that the machine is paused).
Press the START/PAUSEbutton again to
re-start the programme from the point it
had been paused at.
CANCELLING THE PROGRAMME
To cancel the programme, set the
selector tothe OFF position.
Wait 2 minutes until the safety device
unlocks the door.
This button allows you to pre-programme
the wash cycle to delay the start of the
cycle for up to 24 hours.
WARNING:
the plug because the machines
calibrates the systems during the first
seconds: touching the display, the
this case, remove the plug and repeat
the operation.
PROGRAMME selector with OFF
position
When the programme selector is turned
the display lights up to show the settings
for the programme selected.
For energy saving, at the end of the
cycle or with an inactivity period, the
display level contrast will decrease.
N.B.: To switch the machine off, turn
the programme selector to the OFF
position.
The programme selector must be
returned to the OFF position at the end
of each cycle or when starting a
subsequent wash cycle prior to the next
programme being selected and started.
START/PAUSE button
Close the door BEFORE selecting the
button START/PAUSE.
When the START/PAUSE button has
been pressed, the appliance can take
few seconds before it starts working.
For safety reasons, in some wash
cycle phases, the door can be opened
only if the level of the water is below
its lower edge and if the temperature
are met, wait for the DOOR LOCKED
light to switch off before opening the
door.
DELAY START button

!
14
To delay the start use the following
procedure:
- Select the required programme.
- Press the delay start button once to
activate it (h00 appears on the display)
and then press it again to set a 1 hour
delay (h01 appears on the display). The
pre-set delay increases by 1 houreach
time the button is pressed, until h24
appears on the display, at which point
pressing the button again will reset the
delay start to zero.
- Confirm by pressing the START/PAUSE
button. The delay countdown will begin
and when it has finished the programme
will start automatically.
It is possible to cancel the delay start by
turning the programme selector to OFF.
If there is a break in the power supply
whilst the machine is operating, when
the power is restored, the machine will
restart from the beginning of the phase it
was in when the power was lost.
For automatic washing/drying cycle:
after the selection of washing programme
according to laundry type, select a degree
of dryness by pressing this button. At the
end of the washing programme, the
selected drying cycle will start
automatically.
If a washing programme is not
compatible with automatic drying
selected, this function will not be
activated.
If you want delete the selection before
the programme starts, please press
repeatedly the button until the lights go off
or reposition the programme selector to
the OFF position.
Drying only cycle:
select via the knob the desired drying
programme in conjunction with your
fabrics, by pressing this button it is
possible to select a degree of dryness
that is different to the default one (except
for the wool drying programme).
To cancel the cycle during the drying
phase, please press the button for about
3 seconds.
"End"will appear in the display at the
end of the program and the DOOR
LOCKED light will go off, it is now
possible to open the door.
The option buttons should be
selected before pressing the
START/PAUSE button. If an option is
selected that is not compatible with
the selected programme then the
option indicator light first flashes and
then goes off.
DRYING SELECTION
If you exceed the maximum dryable
load of laundry indicated in the
programme table, the laundry may not
be dried satisfactory.
WARNING:
After cancelling the drying programme,
the cool down phase will begin and
please wait for about 10/20 minutes
before opening the door.
It is also possible to cancel the drying
cycle by turning the programme
selector to the OFF position. It is
necessary to wait for the cooling
and the
DOOR LOCKED light to go off before
opening the door.

!
15
This button allows you to choose between
two different options, depending on the
selected programme:
- RAPID
The button becomes active when
you select the RAPID (14-30-44 Min.)
programme on the knob and allows you to
select one of three durations indicated.
- STAIN LEVEL button
Once the programme has been selected
the wash time set for that programme will
be automatically shown.
This option allows you to choose between
3 levels of wash intensity modifying the
length of the programme, depending on
how much the fabrics are soiled (can only
be used on some programmes as shown
in the table of programmes).
This button allows you to choose between
three different options:
- PREWASHING
This option allows you to make a prewash
and it is particularly useful for heavily
soiled loads (can be used only on some
programmes as shown in the table of
programmes).
- EXTRA RINSE
This option allows you to add one rinse at
the end of the washing cycle and is useful
for people with delicate and sensitive
skin, for which a small amount of
detergent residue can cause irritations or
allergies.
It is advisable to also use this function for
the children clothes and for the washing
of heavily soiled items, which requires a
lot of detergent to be used, or for the
washing of toweling items whose fibres
mostly have the tendency to hold the
detergent.
- HYGIENE +
temperature. This option allows deep
cleaning of your clothes by maintaining the
same temperature for the whole wash.
This button allows you to change the
temperature of the wash cycles.
It is not possible to raise the temperature
over the maximum allowed for the
programme, in order to protect the
fabrics.
If you want carry out a cold wash all the
indicators must be off.
By pressing this button, it is possible to
reduce the maximum speed, and if you
wish, the spin cycle can be cancelled.
If the label does not indicate specific
information, it is possible to use the
maximum spin expected in the program.
To reactivate the spin cycle press the
button until you reach the spin speed you
would like to set.
It is possible to modify the spin speed
without pausing the machine.
RAPID / STAIN LEVEL button
OPTIONS button
TEMPERATURE SELECTION
button
SPIN SPEED button
To prevent damage to the fabrics, it is
not possible to increase the speed
over the maximum allowed for the
programme.
We recommend you adjust the quantities
depends on your need in compare with the
recommended quantities shown on the
detergent pack.

!
16
Pressing simultaneously the buttons
TEMPERATURE SELECTION and SPIN
SPEED for about 3 seconds, the
machine allows you to lock the keys. In
this way, you can avoid making
accidental or unwanted changes if a
button on the display is pressed
accidently during a cycle.
The key lock can be simply cancelled by
pressing the two buttons simultaneously
again or turning off the appliance.
be constantly informed about the status of
the machine.
13 2 45 7 8 9
6
1) DOOR LOCKED INDICATOR LIGHT
The indicator light is illuminated when the
door is fully closed.
When START/PAUSEis pressed on
the machine withthe doorclosed,the
indicator will flash momentarily and then
illuminate.
Wait until the DOOR LOCKED light has
gone out before opening the door.
2) SPIN SPEED
This show the spin speed of the selected
programme that can be changed or omitted
by the relevant button.
3) WASH TEMPERATURE INDICATOR
LIGHTS
This shows the washing temperature of the
selected programme that can be changed
(where allowed) by the relevant button.
If you want carry out a cold wash all the
indicators must be off.
4) CYCLE DURATION
When a programme is selected the
display automatically shows the cycle
duration, which can vary, depending on
the options selected.
Once the programme has started you will
be kept informed constantly of the time
remaining tothe end of the wash.
The appliance calculates the time to the
end of the selected programme based
upon a standard loading, during the cycle,
the appliance corrects the time to that
applicable to the size and composition of
the load.
An over dosing of detergent can
cause excessive foaming. If the
appliance detects the presence of
excessive foam, it may exclude the
spinning phase or extend the duration
of the program and increase water
consumption.
The machine is fitted with a special
electronic device, which prevents the
spin cycle should the load be
unbalanced. This reduces the noise
and vibration in the machine and so
prolongs the life of your machine.
KEY LOCK
Digital Display
Close the door BEFORE selecting the
START/PAUSE button.
If the door is not properly closed,
the light will continue to flash for
about 7 seconds, after which the
start command will be automatically
delete. In this case, close the door
in the proper way and press the
START/PAUSE button.

!
17
5) KEY LOCK INDICATOR LIGHT
The indicator light show that the keys are
locked.
6) STAIN LEVELINDICATOR LIGHT
The indicator light shows the selection of
the relevant option.
7) Kg MODE (function active only on
certain programmes)
During the first minutes of the cycle, the
"Kg MODE" indicator remain on while the
intelligent sensor will weigh the laundry
and adjust the cycle time, water and
electricity consumption accordingly.
Through every wash phase "Kg MODE"
allows to monitor information on the wash
load in the drum and in the first minutes
of the wash it:
- adjusts the amount of water required;
- determinesthe length of the wash cycle;
- controls rinsing according to the type of
fabric selected to be washed it;
- adjusts the rhythm of drum rotation for
the type of fabric being washed;
- recognizes the presence of lather,
increasing, if necessary, the amount of
water during rinsing;
- adjusts the spin speed according to the
load, thus avoiding anyimbalance.
8)
DRYING SELECTION INDICATOR LIGHTS
The indicators display the degrees of
dryness that can be selected by the
relevant button:
Automatic drying programmes
EXTRA DRY
(
suitable for towels, bathrobes and
bu
lky loads).
IRON DRY
(
that leaves the laundry ready for
i
roning).
CUPBOARD DRY
(
for items thatwill be putaway
without ironing).
Timed drying programmes
120'
90'
60'
30'
T
hey may be used to select tim
ed
d
rying programmes.
Cool down phase
Activated during the final cool down
pe
riod, in the last 10/20 minutes o
f
each drying phase.
9) OPTIONS INDICATOR LIGHTS
The indicator lights show the option that
can be selected by the relevant button.

!
18
PROGRAMME
(MAX.) *
1)
2
1
(see control panel)
(MAX.)
2 1
Whites
2)
4)
6 6 7 8 8 9 ()
Cotton**
2)
4)
6 6 7 8 8 9 ()
Jeans
4)
3 3 3 3 3 3
4)
6 6 7 8 8 9
Mixed
2)
4)
3 3 3,5 4 4 4,5 ()
Delicates 2 2 2,5 2,5 2,5 2,5
Rinse - - - - - - -
Spin - - - - - - -
Drain - - - - - - -
Rapid
3) 4)
14' 1 1 1 1,5 1,5 1,5
30' 2 2 2,5 2,5 2,5 2,5
44' 3 3 3 3,5 3,5 3,5
Shirts
2)
4)
3 3 3,5 4 4 4,5 ()
Wool 1 1 1 2 2 2
Handwash 1 1 1 2 2 2
3 3 3,5 4 4 4,5 -
4 5 5 5 6 6 -

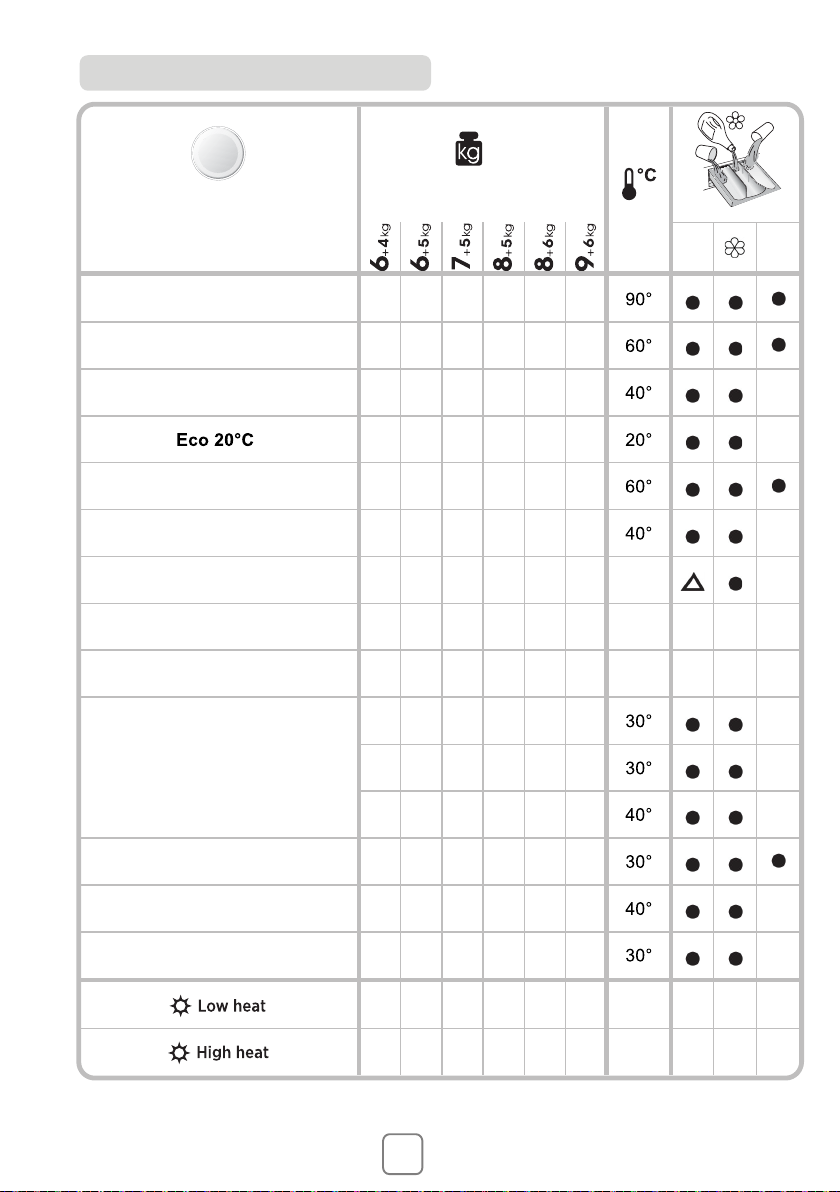

Table of programmes

!
19
Please read these notes:
*
Maximum load capacity of dry clothes,
according to the model used (see control
panel).
(Only for models with liquid
detergent compartment)
When only a limited number of
articles have stains which require
treatment with liquid bleaching
agents, preliminary removal of
stain can be carried out in the
washing machine.
Pour the bleach into the liquid
bleach container, inserted into the
compartment marked "2" in the
detergent drawer, and set the
special programme RINSE.
When this phase has terminated,
turn the programme selector to
the OFF position, add the rest of
the fabrics and proceed with a
normal wash on the most suitable
programme.
( )
Only with PREWASH option
selected (programmes with
PREWASH option available).
1)
When a programme is selected,
on the display is shown the
display shows the recommended
wash temperature that can be
reduced (where allowed) by the
relevant button.
2)
For the programmes shown you
can adjust the duration and
intensity of the wash using the
STAIN LEVEL button.
3)
Selecting the RAPID program on
the knob, it will be possible to
select with the RAPID button, one
of the three rapid programs
available amon
4)
Programmes for automatic drying.
INFORMATION FOR THE TEST
LABORATORIES (Ref. EN 50229
Standards)
Washing
Use the programme ** with the maximum
degree of soiling selected, maximum
Drying
To select the COTTON drying program,
CUPBOARD DRY.

20
T
o clean different types of fabrics
and
va
rious levels of dirt, the washing machi
ne
ha
s specific programs to meet every
need
o
f washing (see table of programmes).
W
ASHING
W
hites
A
n intensive wash. The final spin at maximu
m
s
peed gives more efficient removal.
C
otton
T
his program is suitable to clean normall
y
s
oiled cotton laundry and it is the mos
t
e
fficient program in terms of combined energ
y
and
water consumptions for washing cotton laundry.
Jean
s
Th
is program has been designed to have t
he
h
ighest quality cleaning of fabrics such a
s
den
im: ideal for removing dirt without affecti
ng
t
he elasticity of the fibers.
Th
is innovative programme, allows you to was
h
d
ifferent fabrics and colours together, such a
s
c
ottons, synthetics and mixed fabrics at onl
y
d provides an excellent cleani
ng
pe
rformance. Consumption on this program i
s
M
ixed
T
he washing and rinsing optimise t
he speed
and
rhythm of the drum action and wate
r
l
evels. The gentlespin, ensures a reduc
ed
f
ormation of creases inthe fabric.
D
elicate
T
his program has reduced periods of dru
m
r
otation during the cycle and is particularl
y
s
uitable or washing delicate fabrics. T
he
w
ash cycle and rinses are carried out with
a
h
igh level of water to ensure the bes
t
pe
rformance.
R
inse
Th
is program performs 3 rinses with
an
i
ntermediate spin (which can be reduced o
r
e
xcluded by using the appropriate button) .
It
i
s used for rinsing any type of fabric, fo
r
e
xample after a wash carried out by hand
.
S
pin
T
he programme carries out a maximu
m
s
pin It is possible to delete or reduce t
he
s
pin with the SPIN SPEED button.
Drain
T
his programme drains out the water.
R
apid (14-30-44 Min.)
W
ashing cycle suggested for low loads
and
s
lightly dirty. With this program it i
s
r
ecommended to reduce the quantity o
f
de
tergentnormally used,in order to avoi
d
unne
cessary waste. Selecting the RAPI
D
p
rogram and acting on the button you c
an
c
hoose one of three programs available.
S
hirts
T
he washing cycle is optimized to r
educe
t
he creation of creases, keeping
an
ex
cellent washing performance. It is als
o
po
ssible to further reduce the spin speed, t
o
en
sure an easier ironing.
W
ool
T
his program performs a wash cycl
e
ded
icated to the wool fabrics that can
be
w
ashed in a washing machine, or t
he
a
rticles to be washed by hand.
H
andwash
P
rogram for hand wash only clothes, t
he
p
rogram ends with 3 rinses and a slow spin.
DRY
ING
The
drum changes direction during the dryi
ng
c
ycle to prevent the laundry from tangling
and
p
roducing even more drying. Cool air is us
ed
du
ring the last 10/20 minutes of the dryi
ng
c
ycle to minimize creasing.
M
ixed (Low Heat)
Lo
w temperature drying programm
e
r
ecommended for synthetics and mixed fibre
s
(
alwaysrefer tothe laundry care label).
C
otton (High Heat)
H
igh temperature drying programm
e
r
ecommended for cottons and linen item
s
(
always refer tothe laundry care label).
Description of programmes
WARNING:
Dispensers used for concentrated powders
and liquid detergents must be removed
from the drum before commencing the
tumble drying programmes.

21
7. DRYING CYCLE
Drying guidance advice is general, but
practical experience of using the product
will help you to achieve the best drying
results.
We recommend setting a lower drying
time than indicated, when first using the
appliance in order to establish the degree
of dryness required.
We recommend not drying fabrics that
fray easily, such as rugs or garments with
a deep pile, in order to avoid air duct
clogging.
We recommend that you sort the laundry
by the following methods:
- By drying care symbols, which are
displayed on the clothing labels
Suitable for tumble drying.
Tumble dry at high temperature.
Tumble dry at low temperature only.
DO NOT tumble dry.
- By size and thickness
Whenever the wash load is bigger than
the drying capacity, separate the clothes
according to thickness (e.g. towels from
thin underwear).
- By fabric type
Cottons/linen: towels, cotton jersey, bed
and table linen.
Synthetics: blouses, shirts, overalls, etc.
made of polyester or polyamide, as well
as for cotton/synthetic mixes.
Only dry pre-spun laundry.
Open the door.
Fill with the laundry, not exceeding the
maximum drying load indicated in the
programme table. For large items (e.g.
sheets) or very absorbent items (e.g.
towels or jeans), it is a good idea to
reduce the load.
Close the door.
Turn the programme dial to the more
suitable drying programme for your laundry.
The washer dryer can perform the
following types of drying:
-Low temperature drying programme
recommended for mixed fabrics
(synthetics/cotton) syntheticfabrics.
-High temperature drying programme
recommended for cotton, terry
toweling, linen, hemp fabrics, etc....
Select the degree of dryness that you
require:
EXTRA DRY
(
suitable for towels, bathrobes and
bu
lky loads).
IRON DRY
(
that leaves the laundry ready for
i
roning).
CUPBOARD DRY
(
for items thatwill be putaway
without ironing).
If you wish to select a timed drying
programme, press the DRYING
SELECTION button until the required
time indicator lights up.
If the fabric does not have a care label,
you should assume that it is not
suitable for drying.
The correct way to dry
