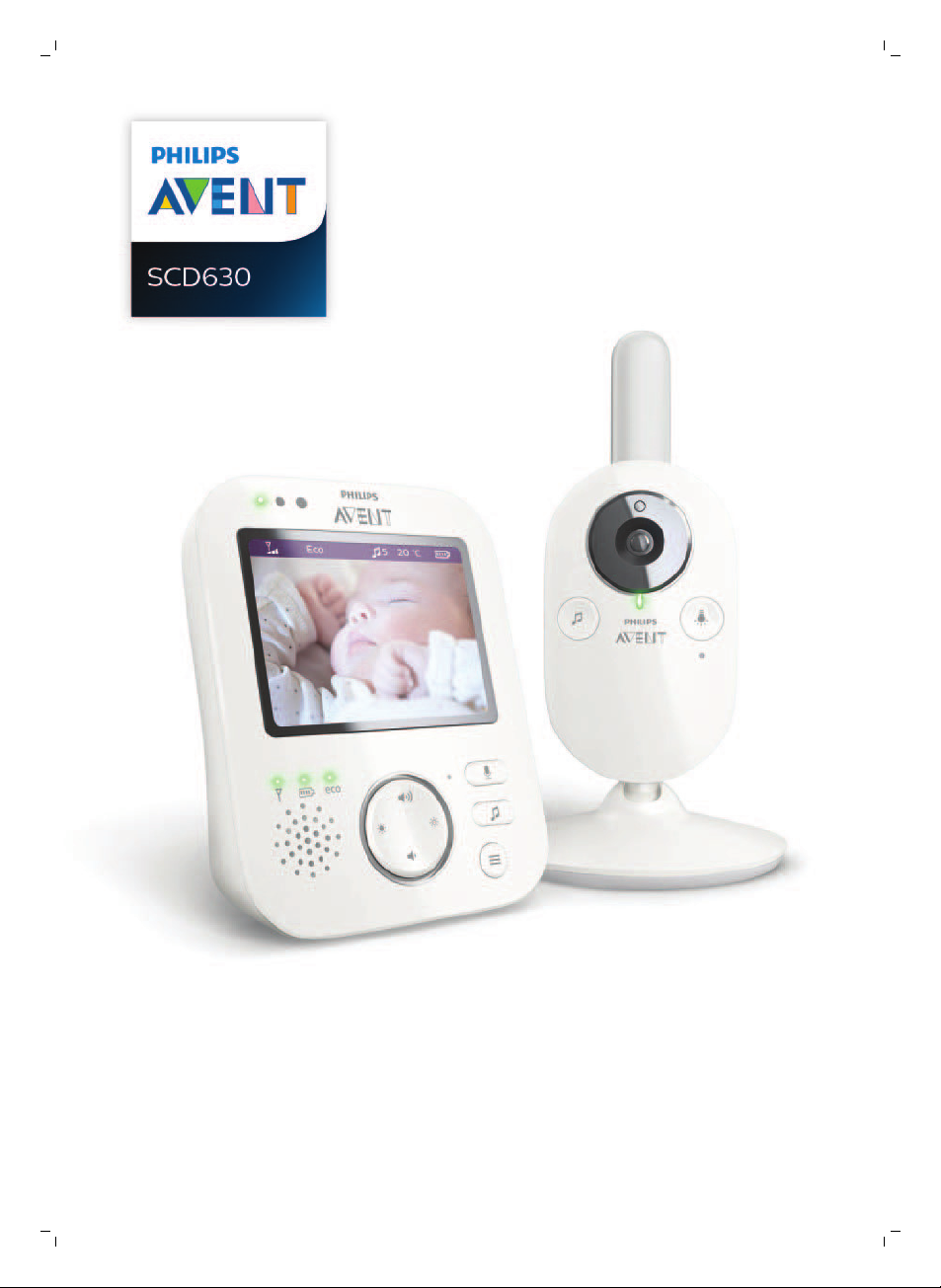

Philips AVENT SCD630 User manual

English 6
Latviešu 35
Lietuviškai 63
Polski 92
Română 121
Slovenščina 151
Slovensky 179
Srpski 208
Ελληνικα 236

English
Introduction
Congratulations on your purchase and welcome to Philips Avent! To fully
benefit from the support that Philips Avent offers, register your product at
www.philips.com/welcome.
The Philips Avent video babymonitor provides you with round-the-clock
support and it allows you to see your baby day and night from anywhere in
the house. The latest digital technology guarantees clear sound and the
clearest image of your baby. This gives you an additional sense of security
without entering your baby’s room and disturbing its sleep.

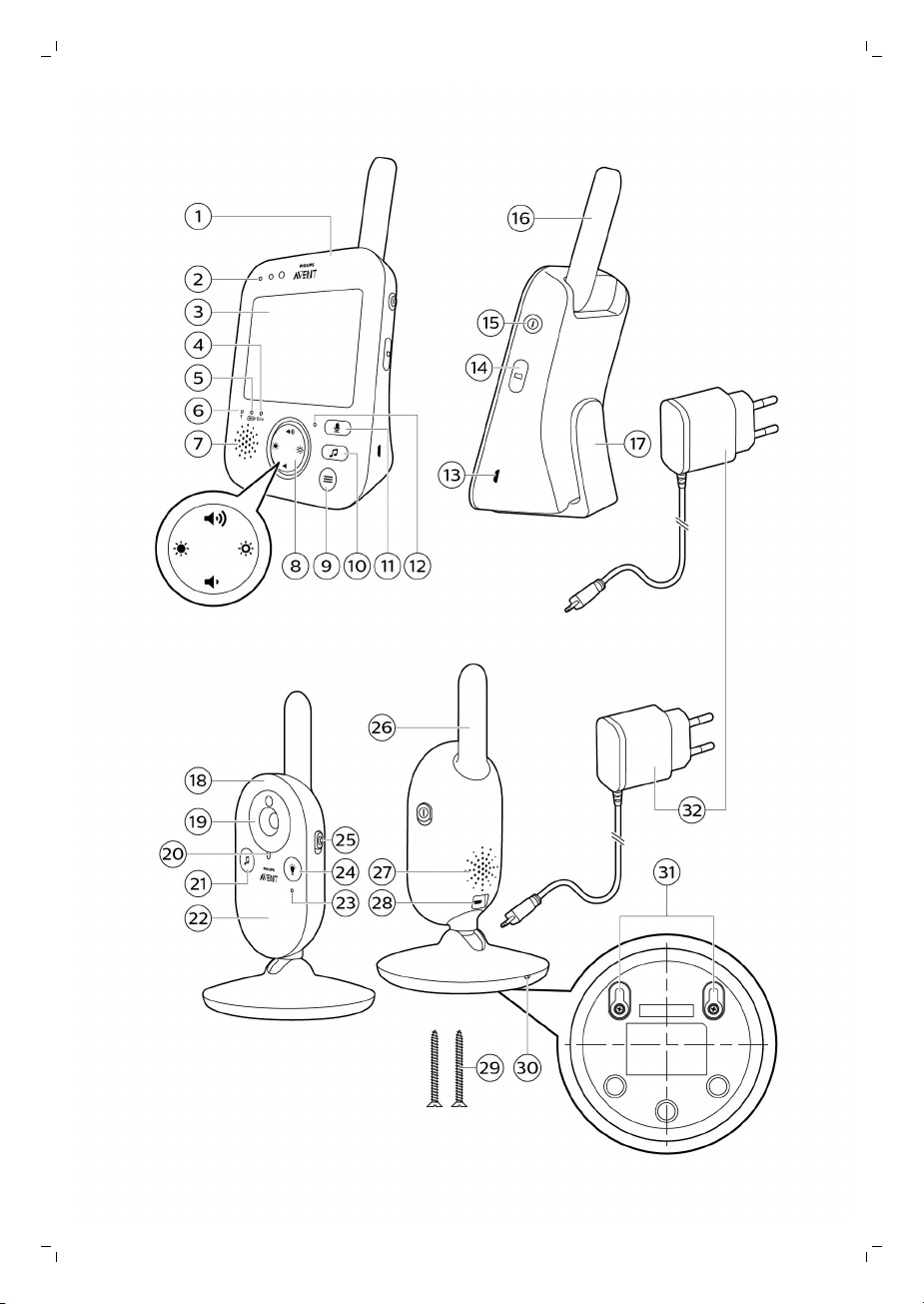

General description
1 Parent unit
2 Sound level lights
3 Display
4 ECO light
5 Battery status light
6 Link light
7 Speaker
8 Control button (menu navigation/volume/brightness)
9 Menu button
10 Lullaby button
11 Talk-back button
12 Microphone
13 Socket for power adapter
14 Mode button
15 On/off button
16 Antenna
17 Belt clip
18 Baby unit
19 Camera
20 Power on light
21 Lullaby on/off button
22 Nightlight
23 Microphone
24 Nightlight on/off button
25 On/off slide
26 Antenna
27 Speaker
28 Socket for small plug
29 Screws
30 Temperature sensor
31 Wall mounting holes
32 Adapter(2x)
Important safety information
Read this important information carefully before you use the appliance and
save it for future reference.
6English

IMPORTANT
This baby monitor is intended as an aid. It is not a substitute for
responsible and proper adult supervision and should not be used as such.
Never leave your baby alone in your home. Always make sure there is
someone present to look after the baby and take care of its needs.
Disclaimer
Please note that you use this baby monitor at your own risk. Koninklijke
Philips N.V. and its subsidiary companies are not responsible for the
operation of this baby monitor or your use of it and therefore do not accept
any liability in connection with your use of this baby monitor.
Danger
-Never immerse any part of the baby monitor in water or any other liquid.
Do not place the appliance where water or any other liquid can drip or
splash onto it. Never use the baby monitor in moist places or close to
water.
-Never put any object on top of the baby monitor and do not cover it. Do
not block any ventilation openings. Install according to the
manufacturer’s instructions.
-Cords present a potential strangulation hazard. Keep cords out of the
reach of children (more than 1 meter/3.5 feet away). Never place the baby
monitor inside the baby’s bed or playpen.
Warning
-Check if the voltage indicated on the adapter corresponds to the local
mains voltage before you connect the appliance.
-Do not modify or cut off any part of the adapter and its cord, as this
causes a hazardous situation.
-Only use the adapter supplied.
-If the adapter is damaged, always have it replaced with one of the
original type in order to avoid a hazard.
-This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
-Protect the mains cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
appliance.
7
English

-Make sure that you place the baby monitor in such a way that its cord
does not obstruct a doorway or passage. If you place the baby monitor
on a table or low cabinet, do not let the mains cord hang over the edge
of the table or cabinet. Make sure the cord does not lie on the floor
where it presents a tripping hazard.
-Keep the packaging materials (plastic bags, cardboard buffers, etc.) out of
the reach of children, as they are not a toy.
-To prevent electric shock, do not open the housing of the baby unit or
parent unit.
Caution
-Use the appliance at a temperature between 0°C (32°F) and 40°C (104°F).
-Do not install the appliance near any heat sources such as radiators, heat
registers, stoves or other apparatus (including amplifiers) that produce
heat.
-Make sure that your hands are dry when you handle adapters, plugs and
the mains cord.
-All required markings on the baby unit, parent unitand power adapter
are located on the bottom of the baby unit, parent unit and power
adapter.
Compliance with standards
-This product complies with the radio interference requirements of the
European Community.
-Philips Consumer Lifestyle hereby declares that this baby monitor is in
compliance with the essential requirements and other relevant provisions
of Directive 2014/53/EU (FHSS: frequency band 2.4GHz, maximum radio-
frequency power: 100 mW EIRP). A copy of the EC Declaration of
Conformity (DoC) is available online at www.philips.com/support.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.
8English

Preparing for use
Baby unit
Put the power adapter in the baby unit and the adapter in the wall socket.
Parent unit
The parent unit runs ona built-in rechargeable Li-ion battery.
Follow the below steps to charge the parent unit:
1Put the power adapter in the parent unit and put the adapter in the wall
socket.
-The battery status light turns orange to indicate that the appliance is
charging.
20°CEco 1
-When the battery is fully charged, the battery status light turns green
continuously.
10 hrs=3 hrs
-When you charge the parent unit for 3 hours, it can be used cordlessly for
approx. 10 hours.
-If the parent unit is switched on during charging, charging takes
approximately twice as long.
9
English

20°CEco 1
-When the rechargeable battery of the parent unit is almost empty, the
battery status light turnsred and the parent unit beeps.
-If the battery is completely empty and the parent unit it not connected to
the mains, the parent unit automatically switches off and loses contact
with the baby unit.
Note: The built in rechargeable battery cannot be removed from the
product.
Note: The battery gradually and very slowly discharges, even when the
parent unit is switched off.
Tip: To save battery, switch off the parent unit when you do not use it.
Note: We advise you to keep the parent unit connected to the mains during
the whole night. If the battery of the parent unit runs low during the night,
the parent unit beeps and this may wake you up.
Using the baby monitor
Linking parent unit and baby unit
1Push the on/off slide on the baby unit upwards to the ON position.
2When the baby unit is on, the power-on light on the baby unit lights up
green.
Note: The power-on light on the baby unit always lights up green, even
when there is no connection with the parent unit.
>2.5m/8.2ft
3Make sure that the parent unit and the baby unit are at least 2.5 meters/
8.2 feet away from each otherto avoid acoustic feedback.
10 English

4Press the on/off button on the parent unit to switch on the parent unit.
20°CEco 1
-The display goes on, the linking image appears on the display and the
link light lights up red. The parent unit starts to search for the baby unit.
20°CEco 1
-When the parent unit and baby unit are linked, the link light lights up
green on the parent unit and one or more bars appear on the display.
20°CEco 1
Note: It takes less than 10 seconds to establish the link between the
parent unit and the baby unit.
-When thebaby unit is turned off, the parent unit will show the out of
range image. Make sure that the baby unit is switched on.
-If no connection has been established, the link light turns red, the parent
unit beeps three short beeps every 20 seconds and the out-of-range
image appears on the display.
Positioning the baby monitor
Warning: The cord of the baby unit presents a
potential strangulation hazard. Make sure that
the baby unit and its cord are at least 1 meter /
3.5 feet away from your baby. Never place the
baby monitor inside the baby’s bed or playpen.
11
English

>1-1.5m/3.5-5ft
1For optimal sound detection, make sure that the baby unit is no further
than 1.5 meter/ 5 feet away from the baby. Make sure that the baby unit
is at least 1 meter/ 3.5 feet away from the baby because of potential
strangulation hazard.
>2.5m/8.2ft
2Place the parent unit within the operating range of the baby unit. Make
sure it is at least 2.5 meters / 8.2 feet away from the baby unit to avoid
acoustic feedback.
Note: If you use a cordless phone, wireless video, Wi-Fi network,
microwave oven or Bluetooth on 2.4GHz and you experience interference
on either the parent unit or baby unit, move the parent unit until there is
no more interference.
3There are two ways to position the baby unit:
a Place the baby unit on a stable, level and horizontal surface.
b Mount the baby unit to the wall with the screws supplied.
Tip: The wall mount template (see 'Wall mount') to mount the baby unit
to the wall can be found at the end of this user manual.
Tip: Use the provided template to mark the exact location of the screw
holes on the wall.
Tip: Position the baby unit at a higher level to get a good overview of the
baby’s bed or playpen.
Adjust the baby unit in a way that ensures the best visibility of your baby.
The baby unit can be rotated to position it in the desired way.
12 English

Operating range
<50m/165ft
<300m/985ft
The operating range is up to 50 meters/ 165 feet indoors and 300
meters/985 feet outdoors. The operating range of the baby monitor varies
depending on the surroundings and factors that cause interference. Wet
and moist materials cause so much interference that the range loss is up to
100%.
Dry materials Material
thickness Loss of range
Wood, plaster, cardboard, glass (without metal,
wires or lead)
< 30cm (12in) 0-10%
Brick, plywood < 30cm (12in) 5-35%
Reinforced concrete < 30cm (12in) 30-100%
Metal grilles or bars < 1cm (0.4in) 90-100%
Metal or aluminium sheets < 1cm (0.4in) 100%
Features and settings
Volume
You can adjust the speaker volume of the parent unit to the level you prefer.
1Press the top or bottom part of the control button to adjust the volume.
20°C
1
Tip: Make sure that the volume is adapted to the current conditions.
Under noisy conditions, the vibration alert can be turned on as well.
The volume bar appears on the display to show the selected volume.
Note: If the volume is set to a high level, the parent unit consumes more
power.
Note: When the volume bar is at its minimum, the volume is muted. The
parent unit shows a mute icon in the status bar and you will only receive
alerts and video from the parent unit.
13
English

Brightness
You can adjust the display brightness of the parent unit to the level you
prefer.
1Press the left or right part of the control button to adjust the brightness
of the display of the parent unit.
20°C
1
The brightness bar appears on the display to show the selected display
brightness.
Note: If the brightness is set to a high level, the parent unit consumes more
power.
Sound level lights
The parent unit continuously monitors the sound level in your baby’s room,
and the sound level lights on the parent unit let you know if there is any
sound picked up in the baby room.
20°C
1
VIDEO
As long as no sound is detected, the sound level lights are out.
20°C
1
VIDEO
When the baby unit picks up a sound, one or more sound level lights on the
parent unit light up green. The number of lights that go on depends on the
loudness of the sound picked up by the baby unit. The louder your baby
cries, more sound level lights light up green.
14 English

Modes
This baby monitor has four different modes that allows you to choose how
you want to look after your baby: VIDEO, AUDIO, VOX and ECO.
With the baby monitor on, you can switch between these 4 different modes
by pressing the mode button on the side of the parent unit.
The display shows the selected mode. The selected mode is also indicated
in the status bar. When turning on the device, the mode that was last used
will be active.
VIDEO mode
VIDEO
VIDEO
Press the mode button on the side of the parent unit to select theVIDEO
mode.
20°C
1
VIDEO
When the VIDEO mode is activated, the screen is always on, so you can see
your baby. All sounds are directly transmitted to the parent unit.
Note: Set the sensitivity level to 'very high' to have continuous sound on the
parent unit. Please see the Sensitivity level chapter for more information.
20°C
1
VOX
If your baby cries, the sound level lights light up green. As long as no sound
is detected, the sound level lights are off.
15
English

AUDIO mode
AUDIO
AUDIO
1Press the mode button on the side of the parent unit to switch to AUDIO
mode.
VOXAUDIO
When the AUDIO mode is activated, the display of the parent unit switches
off. After 3 seconds the display will completely turn off and the status bar
will disappear.
Note: The status bar is not visible when the display is off.
20°C
1
AUDIO
Note: The link light shows that the parent unit is still on and connected to
the baby unit.
Note: When sensitivity level is not set to 'very high', low sounds will be
muted.
Note: Set the sensitivity level to 'very high' to have continuous sound on the
parent unit. Please see the Sensitivity level chapter for more information.
All sounds are constantly transmitted to the parent unit. If your baby cries,
the display of the parent unit is still off, but the sound level lights light up
green and the sounds detected by thebaby unitare transmitted to the
parent unit. As long as no sound is detected, the sound level lights are off.
VOX mode
VOX
VOX
1Press the mode button on the side of the parent unit to switch to VOX
mode.
Note: When the display is on, the selected mode is shown in the status bar.
The status baris not visible when the display is off.
VOX VOX
VOX 20°C
1
VOX
When the VOX mode is activated, the display and sound of the parent unit
switch off, if there is no sound detected for 20 seconds.
16 English

20°C
1
VOX
Whensound is picked up by the baby unit, the displayand sound of the
parent unit switch on immediately.The sounds are transmitted to the parent
unit and the sound level lights light up green. As long as no sound is
detected, the sound level lights are off.
Note: The minimum sound level to activate sound and display is defined by
the sensitivity setting.
ECO mode
ECO
ECO
1Press the mode button on the side of the parent unit to switch to ECO
mode.
Note: When the display is on, the selected mode will be visible in the
status bar. The status bar is not visible when the display is off.
ECO
When the ECO mode is activated the display and sound of the parent unit
switch off when no sound is detected for 20 seconds. TheECO light lights up
green to indicate that the ECO mode is activated. During ECO mode the
display and sound transmissions are turned off.
20°C
1
ECO
Whensound is picked up by the baby unit, the displayand sound of the
parent unit switch on immediately.The sounds are transmitted to the parent
unit and the sound level lights light up green. As long as no sound is
detected, the sound level lights are off.
Note: The minimum sound level to activate sound and display is defined by
the sensitivity setting.
Nightlight
1Press the nightlight on/off button on the baby unit to switch on the
nightlight feature.
17
English

The nightlight of the baby unit goes on.
Note: It is not possible to control the nightlight from the parent unit. You
can only switch the nightlight on or off on the baby unit.
2Press the nightlight on/off button again to switch off the nightlight.
Lullabies
You can activate the lullaby feature either from the parent unit or from the
baby unit.
To activate the lullaby feature from the parent unit, follow the instructions
below:
Lullaby selection
1Press the lullaby button on the parent unit to open the menu for
lullabies.
Note: Pressing the lullaby button while the lullaby menu is already open,
will close the menu.
2Press the right part of the control button to enter the list of lullabies
18 English

20°CVIDEO 1
Lullaby Songs
1 Rock-a-Bye Baby
2 Twinkle, Twinkle
3 Hush, Little Baby
4 Brahm’s Lullaby
5 Golden Slumbers
3Press the top or bottom part of the control button to scroll through the
list of lullabies.
20°CVIDEO 1
Lullaby Songs
1 Rock-a-Bye Baby
2 Twinkle, Twinkle
3 Hush, Little Baby
4 Brahm’s Lullaby
5 Golden Slumbers
4Press the right part of the control button to play a specific lullaby.
If you want to pause the lullaby, press the right side of the control button
again.
5The status barof the parent unit shows the number of lullabies thatare
being played and repeated.
15 min
The lullaby starts to play on the baby unit and it is repeated continuously
for approximately 15 minutes.
Tip: To repeat all songs that are available, select the last option in the list.
20°C
1
Lullaby Songs
1 Rock-a-Bye Baby
2 Twinkle, Twinkle
3 Hush, Little Baby
4 Brahm’s Lullaby
5 Golden Slumbers
VIDEO
6To select another lullaby, scroll up or down with thecontrol button to
select another song from the list.Press the right part of the control
button to start the selected song.
7To stop the lullaby, press the lullaby button on the parent unit and pause
the song that is currently playing by pressing the right part of the control
button one more time.
Lullaby volume
20°C
1
Lullaby Volume
VIDEO
1Press the lullaby button and then press the bottom of the control button
to select the volume options of thelullaby menu. Press the right part of
the control button to access the lullaby volume levels.
19
English

20°C
1
Lullaby Volume
VIDEO
2Press the top or bottom part of the control button to adjust the volume.
To activate the lullaby feature from the baby unit, press the lullaby on/off
button on the baby unit.
15 min
The latest lullaby selected on the parent unit starts to play on the baby unit
and is repeated continuously for approximately 15 minutes.
To stop the lullaby on the baby unit, press the lullaby on/off button on the
baby unit.
Talk-back
You can use the talk-back button on the parent unit to talk to your baby.
1Press and hold the talk-back button on the parent unit.
2Talk clearly into the microphoneat the front of the parent unit from a
distance between 15-30cm /0.5-1ft.
As long as the talk-back button is pressed, there is an open sound
connection to the baby unit. The display of the parent unit shows the
talk-back icon, indicating the active connection.
3Release the talk-back button when you have finished talking..
Note: As long as the talk-back button is pressed, theparent unitcannot
process sounds coming from the baby unit.
20 English
