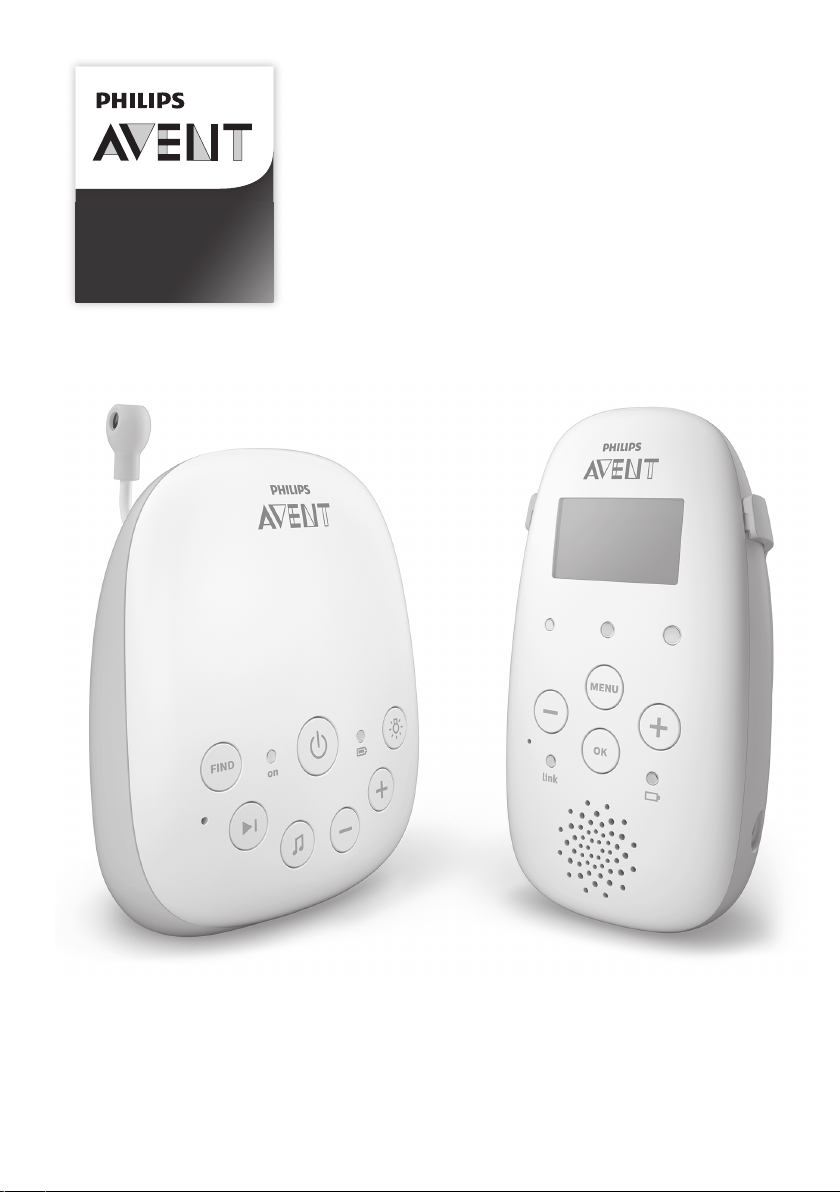

Philips AVENT SCD710 User manual

FR-NL
SCD710/SCD711
SCD713/SCD715

English 6
Deutsch 17
Français 29
Italiano 41

English
1 2 3 4
98765
10
1
6English

Introduction
Go to www.philips.com/welcome to register your product and to read the
detailed user manual.
Display of the parent unit (Fig. 1)
1 Signal strength indicator
2 Eco Max indicator
3 Mute symbol
4 Battery status indicator
5 Microphone sensitivity indicator
6 Lullaby symbol
7 Nightlight symbol
8 Timer symbol
9 Temperature symbol
10 Navigation arrow
Preparing for use
IMPORTANT: Read the safety instructions carefully before you use the
baby monitor and keep them for future reference.
Baby unit
We advise you to use the baby unit connected to the mains. To guarantee
automatic power backup in case of mains failure, you can insert four 1.5V AA
alkaline batteries (not included).
Do not use rechargeable batteries. The baby unit does not have a charging
function and rechargeable batteries discharge slowly when they are not in
use.
Parent unit
The parent unit runs on two rechargeable batteries that are supplied with
the baby monitor. Charge the parent unit before you use it for the first time
and when the batteries are low.
Please note that for the SCD710/SCD711/SCD713, you have to charge the
parent unit for the full 10 hours to have a cordless operating time of 18
hours. (For the SCD715: the charging time is 14 hours and the operating
time is 25 hours.
Note: When you start using the baby monitor, it takes 4 charge and
discharge cycles before the rechargeable batteries reach their full capacity.
7
English

Using the baby monitor
Positioning the baby monitor
Keep the baby unit out of the reach of the baby. Never place the
baby unit inside the baby’s bed or playpen.
-Because the cord of the baby unit presents a potential strangulation
hazard, make sure that the baby unit and its cord are at least 1 metre/3.5
feet away from your baby.
-To prevent a high-pitched sound from one or both units, make sure that
the parent unit is at least 1 metre/3.5 feet away from the baby unit.
Linking parent unit and baby unit
1Press and hold the button on the baby unit for 2 seconds until the
power-on light goes on.
2Press and hold the button on the parent unit for 2 seconds until the
display lights up. The 'link' light on the parent unit starts flashing red and
the message 'LINKING' appears on the display.
When the parent unit and baby unit are linked, the 'link' light turns solid
green. The signal strength indicator and the message 'LINKED' appear on
the display.
If no connection is established, the message 'NOT LINKED' is displayed
and the parent unit starts and the parent unit starts to beep.
What to do if no link is established
-If the parent unit is out of range, place it closer to the baby unit, but not
closer than 1 metre/3.5 feet.
-If the baby or parent unit is too close, <2m/6.5 ft away from another
DECT appliance (e.g. a cordless phone), switch off this appliance or move
the unit away from this appliance.
-If the baby unit is switched off, switch it on.
Operating range
-The operating range is 330 metres/1000 feet outdoors and up to 50
metres/150 feet indoors.
-The operating range of the baby monitor varies depending on the
surroundings and factors that cause interference. Wet and moist
materials cause so much interference that the range loss is up to 100%.
For interference from dry materials, see the table below.
Dry materials Material thickness Loss of range
Wood, plaster, cardboard,
glass (without metal, wires
or lead)
< 30cm (12in) 0-10%
Brick, plywood < 30cm (12in) 5-35%
Reinforced concrete < 30cm (12in) 30-100%
8English

Dry materials Material thickness Loss of range
Metal grilles or bars < 1cm (0.4in) 90-100%
Metal or aluminium sheets < 1cm (0.4in) 100%

Functions and feedback on the baby unit
Nightlight
The nightlight produces a soft glow that comforts your baby.
1Press the button on the baby unit to switch the nightlight on or off.
Lullaby function
1Press the button on the baby unit to play the last selected lullaby. The
selected lullaby repeats for 15 minutes.
2Press the button to select another lullaby from the list.
3To adjust the sound level of the lullaby, press the volume + or the volume
– button the baby unit.
Note: You can only set the loudspeaker volume on the baby unit when a
lullaby is playing. If you set the volume for the lullaby higher, the sound
will also be louder when you use the talk function on the parent unit.
4To stop lullaby playing, press the button on the baby unit.
Paging the parent unit
If you have lost the parent unit, you can use the FIND button on the baby
unit to locate the parent unit. This function only works when the parent unit
is switched on and within range.
9
English

1Press FIND on the baby unit. The parent unit produces a paging alert
tone.
2To stop the paging alert tone, press FIND on the baby unit again or press
any button on the parent unit. The paging alert tone stops automatically
after 2 minutes.
Battery status light
1The battery status light is solid green when the baby unit is operating on
battery power and the batteries contain enough energy.
2The battery status light flashes red quickly when the batteries run low
while the baby unit is operating on battery power. Replace the batteries
when they run low.
Functions and feedback on the parent unit
Volume
The volume can be set if the menu is not active. There are seven volume
levels and a 'volume off' setting.
Setting the volume level
1Press the + button or the - button once.
The current volume level appears on the display.
2Press the + button to increase the volume or press the - button to
decrease the volume.
If no button is pressed for more than 2 seconds, the volume level
indication disappears from the display and the volume setting is saved.
Volume off
Below the lowest volume setting, there is a 'volume off' setting.
1Press the + button or the - button once.
The current volume level appears on the display.
2Press and hold the - button for more than 2 seconds to set the volume to
off.
The message 'MUTE' and the mute symbol appear on the display. Only
the sound level lights show that the baby produces sounds.
10 English

Talk function
1If you want to comfort your baby, press TALK on the parent unit and talk
clearly into the microphone on the front from a distance of 15-30cm
(0.5-1ft).
The 'link' light starts flashing green and 'TALK' appears on the display.
Note: If you have set the volume of the lullaby higher on the baby unit,
the sound will also be louder when you use the talk function on the
parent unit.
2Release TALK when you have finished talking.
Battery status indications
Battery low
When the rechargeable batteries are low, 'BATTERY LOW' appears on the
display, the status indicator is empty and flashes, and the parent unit beeps.
The remaining operating time is at least 30 minutes.
Battery empty
1If the rechargeable batteries are almost empty, the battery status light
flashes red quickly.
2If you do not connect the parent unit to the mains, it switches off.
Menu of the parent unit
Navigating the menu
Note: Some menu functions only work when the baby unit and the parent
unit are linked.
1Press the MENU button to open the menu and to make the first menu
option appear.
11
English

2Use the + button to go to the next option or the - button to go to the
previous option. The arrow on the display indicates in which direction
you can navigate.
3Press OK to confirm your selection.
Note: Press the MENU button if you want to leave the menu without making
any changes. If there is no input in the menu for more than 20 seconds, the
menu closes automatically.
Sensitivity
This option in the parent unit menu allows you to set the microphone
sensitivity of the baby unit.
The microphone sensitivity determines what noise level the baby unit picks
up, e.g. you will want to hear when your baby cries, but you may be less
interested in its babbling.
1Select ‘Sensitivity’ in the menu with the + and - buttons and press OK to
confirm.
2Use the + and - buttons to increase or decrease the microphone
sensitivity. The number of filled segments shows the sensitivity level
selected. Press OK to confirm the setting.
Sensitivity levels and indications
Icon Sensitivity Description
highest Hear everything from your baby.
The speaker of the parent unit is
continuously on.
high Hear all sounds from soft
babbling and louder. If your
baby does not make any sound,
the speaker of the parent unit is
off.
medium Hear sounds from soft cries and
louder. If your baby makes softer
sounds, the speaker of the
parent unit does not go on.
12 English

low The speaker of the parent unit
only goes on if the baby makes
loud sounds, for instance
because it is crying.
Eco Max mode
Smart Eco is a standard feature on this baby monitor. It automatically
reduces the DECT signal from the baby unit to save energy. To save even
more energy, activate the Eco Max mode. In this mode, the DECT signal of
the baby unit is switched off as long as the baby does not make a sound.
Caution: In Eco Max mode, the parent unit receives feedback from the
baby unit with a delay. When your baby makes a sound, the baby unit first
has to reactivate radio transmission before it can send feedback to the
parent unit.
Please note the following:
-In Eco Max mode you do not receive feedback when the parent unit is
out of range of the baby unit. You can check the link by pressing any
button on the parent unit.
-The Eco Max mode cannot be activated if the microphone sensitivity is
set to the highest level.
Activating Eco Max mode
1Select 'Eco Max' in the menu with the + and - buttons and press OK to
confirm.
2When the display shows 'Turn On', press OK to switch on the Eco Max
mode.
3The warning message 'No alert if out of range, OK' appears on the
display. Press OK to confirm.
Note: The warning message scrolls across the display twice. If you do not
press OK, the parent unit leaves the menu and the Eco Max mode
remains off.
4The Eco Max indication flashes on the display. The 'link' light flashes
green slowly when the baby unit does not transmit any signals to the
parent unit.
5When the parent unit receives a signal from the baby unit because radio
transmission has been reactivated, the 'link' light turns solid green.
Deactivating Eco Max mode
1Press the MENU button.
2Use the + and - buttons to select ‘Eco Max’ and press OK to confirm.
3When the display shows ‘Turn Off’, press OK to confirm.
Nightlight
1To switch the nightlight on the baby unit on, select 'Nightlight' in the
menu with the + and - buttons and press OK to confirm.
2Press OK to choose 'Turn On'. The nightlight symbol appears on the
display.
13
