Philips CarStudio CEM3100 User manual

CEM3100
Register your product and get support at
www.philips.com/support
Always there to help you
Question?
Contact
Philips
User manual

3
English
EN
7 Adjust sound 19
Adjust volume 19
Mute 19
Turn Dynamic Bass Boost (DBB) on/off 19
Turn on/off MAX sound 19
Select preset equalizer 20
Switch music listening zone 20
Turn on/off full sound 20
Other sound settings 20
8 Adjust system settings 21
Turn beep sound on/off 21
Select blackout setting 21
Turn demo mode on/off 21
Dimmer 21
Dance 21
Rear Aux 22
LCD Color 22
Audiobook 22
Reset 22
9 Additional information 23
Detach the front panel 23
Replace fuse 23
Remove the unit 23
10 Product information 24
11 Troubleshooting 25
12 Glossary 26
Contents
1 Important 4
Safety 4
Notice 4
2 Your car audio system 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Get started 9
Install the car audio 9
Install remote control battery 12
Turn on 12
Select country/region 12
Set clock 13
4 Listen to radio 13
Tune to a radio station 13
Store radio stations in memory 14
Tune to a preset station 14
5 Play with RDS 14
Turn on RDS 14
Select program type 14
Select alternate frequencies 15
5HFHLYHWUDIÀFDQQRXQFHPHQW 
Set RDS clock 16
 3OD\DXGLRÀOHV 
Play a disc 16
Play from USB 17
Play from iPod/iPhone 17
Play options 18
Connect external sound source 19

4
 The apparatus shall not be exposed to
dripping or splashing.
 Do not place any sources of danger on the
DSSDUDWXVHJOLTXLGÀOOHGREMHFWVOLJKWHG
candles).
Notice
Windows Media and the Windows logo
DUHWUDGHPDUNVRUUHJLVWHUHGWUDGHPDUNVRI
Microsoft Corporation in the United States
and/or other countries.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
GHVLJQHGWRFRQQHFWVSHFLÀFDOO\WRL3RGRU
L3KRQHUHVSHFWLYHO\DQGKDVEHHQFHUWLÀHGE\
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
WKHXVHRIWKLVDFFHVVRU\ZLWKL3RGRUL3KRQH
may affect wireless performance.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
L3RGDQGL3KRQHDUHWUDGHPDUNVRI$SSOH,QF
registered in the U.S. and other countries.
This apparatus includes this label:
1 Important
Safety
 Read and understand all instructions
before you use your apparatus. If damage is
FDXVHGE\IDLOXUHWRIROORZLQVWUXFWLRQVWKH
warranty does not apply.
 This apparatus is designed for negative
ground (earth) 12 V DC operation only.
 7RHQVXUHVDIHGULYLQJDGMXVWWKHYROXPHWR
a safe and comfortable level.
 Improper fuses can cause damage or
ÀUH:KHQ\RXQHHGWRFKDQJHWKHIXVH
consult a professional.
 Use only the supplied mounting hardware
for a safe and secure installation.
 7RDYRLGVKRUWFLUFXLWGRQRWH[SRVHWKH
DSSDUDWXVUHPRWHFRQWURORUUHPRWH
control batteries to rain or water.
 Never insert objects into the ventilation
slots or other openings on the apparatus.
 &OHDQWKHDSSDUDWXVDQGIUDPHZLWKDVRIW
damp cloth. Never use substances such as
DOFRKROFKHPLFDOVRUKRXVHKROGFOHDQHUV
on the apparatus.
 Never place any objects other than discs
into the apparatus.
 1HYHUXVHVROYHQWVVXFKDVEHQ]HQH
WKLQQHUFOHDQHUVDYDLODEOHFRPPHUFLDOO\RU
anti-static sprays intended for discs.
 Visible and invisible laser radiation when
open. Avoid exposure to beam.
 Risk of damage to the apparatus screen!
1HYHUWRXFKSXVKUXERUVWULNHWKHVFUHHQ
with any object.
Caution
Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
EN

5
English
6SHFLÀFDWLRQVDUHVXEMHFWWRFKDQJHZLWKRXW
notice.WOOX reserves the right to change
products at any time without being obliged to
adjust earlier supplies accordingly.
Recycling
Your product is designed and manufactured
ZLWKKLJKTXDOLW\PDWHULDOVDQGFRPSRQHQWV
which can be recycled and reused.
When you see the crossed-out wheel bin
V\PERODWWDFKHGWRDSURGXFWLWPHDQVWKH
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products.The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the
(XURSHDQ'LUHFWLYH(&ZKLFKFDQQRW
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries.The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
VHSDUDWHLQWRWKUHHPDWHULDOVFDUGERDUGER[
polystyrene foam (buffer) and polyethylene
EDJVSURWHFWLYHIRDPVKHHW
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
SDFNDJLQJPDWHULDOVH[KDXVWHGEDWWHULHVDQGROG
equipment.
$Q\FKDQJHVRUPRGLÀFDWLRQVPDGHWRWKLV
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
EN

6
What’s in the box
Check and identify the contents of your
package:
aMain unit (with a sleeve)
bRemote control
cFront panel
dTrim plate
eCarrying case for front panel
fISO male connector
gRubber cushion
hScrew x 1 pc
iDisassembly tools x 2 pcs
jUser manual
kQuick start guide
a
f
c
b
kji
c
ccccc
h
g
c
2 Your car audio
system
&RQJUDWXODWLRQVRQ\RXUSXUFKDVHDQG
ZHOFRPHWR3KLOLSV7RIXOO\EHQHÀWIURPWKH
VXSSRUWWKDW3KLOLSVRIIHUVUHJLVWHU\RXUSURGXFW
at www.philips.com/welcome.
Introduction
:LWKWKHLQFDUDXGLRV\VWHP\RXFDQHQMR\
your drive while listening to:
 FM or AM (MW) radio
 Audio from CD or MP3 disc
 Audio from USB devices
 Audio from iPod/iPhone
 Audio from other external devices
The unit supports the following media format:
EN

7
English
d/
 Turn the unit on or off.
 &RQÀUPVHOHFWLRQ
 Mute or unmute sound.
 Rotate to adjust volume.
e/
 Select tuner band.
 Select MP3/WMA folder.
 Switch music listening zone.
 Turn on or off full sound.
 Enter iPod/iPhone control mode.

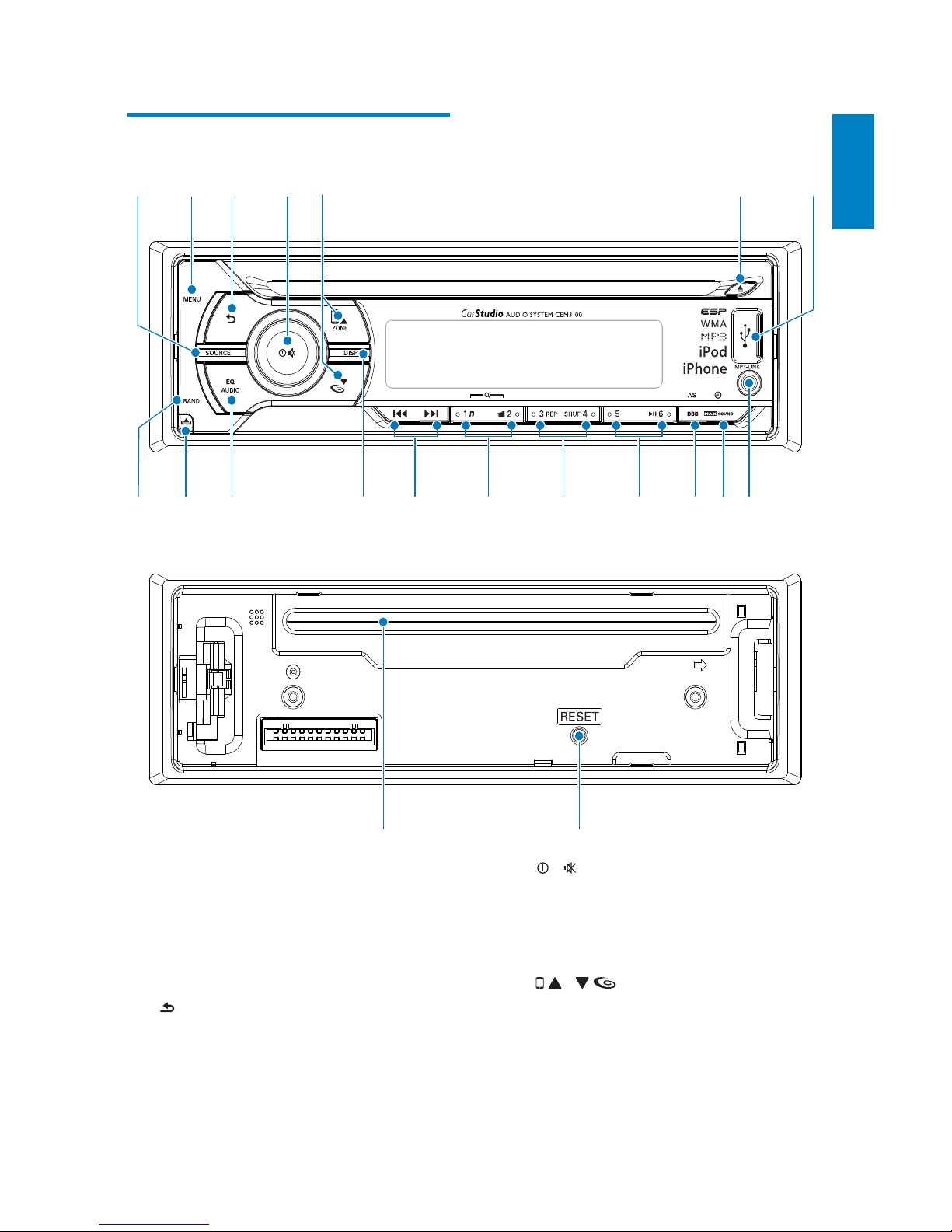

Overview of the main unit
m pnohrq
f
g
adc b
ts
lkji
e
aSOURCE
 Select audio source.
 Display LCD color.
bMENU
 Access system menu.
c
 Return to previous menu.
 Access music search in iPod/iPhone
mode.
EN

8
Overview of the remote
control
aVOL +/-
 Adjust volume.
b/
 Select tuner band.
 Scroll up/down menu.
 Select MP3/WMA folder.
c/
 Tune to a radio station
 Skip track.
 Fast backward/forward playback
dSOURCE
 Select audio source.
eEQ
 Select equalizer (EQ) settings.
fOFF / /
 Turn the unit on or off.
 Mute or restore volume.
a
b
d
c
e
f
f
 Eject disc.
g
 USB socket.
hMP3 LINK
 Connect external audio device.
i
 6281'
 Turn on or off Maximizing volume.
 View clock.
jDBB
 Turn on or off Dynamic Bass Boost
(DBB) sound.
 Access to tuner auto store.
k
 Select preset radio station No.6.
 Start play.
 Pause or resume play.
lREP / SHUF
 Access to repeat play.
 $FFHVVWRVKXIÁHSOD\
 Select preset radio station No.3/4.
m/
 Select preset radio station No.1/2.
 Search for track/folder.
n/
 Tune for radio station.
 Skip/search for track.
 Fast backward/forward playback.
oDISP
 Display current status.
 Select the dimmer high or low.
pEQ / AUDIO
 Select equalizer (EQ) setting.
 Access audio setting menu.
q
 Unlock the panel.
rBAND
 Select tuner band.
sRESET
 Restore default settings.
tDisc slot
EN

9
English
Notes on speaker connection
 Never connect speaker wires to the metal
body or chassis of the car.
 Never connect speaker wires with stripes
to one another.
Connection: for cars with ISO
connectors
Caution
Ensure that all loose leads are insulated with electrical
tape.
Note
Consult a professional to connect CEM3100 as
instructed below.
1Connect the supplied male connector to
the unit.
2Check the car’s wiring carefully and
connect them to the the supplied male
connector.
Note
Risk of danger! Please consult a professional to perform
the below steps!
3 Get started
Caution
Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in
sequence.
Install the car audio
These instructions are for a typical installation.
+RZHYHULI\RXUFDUKDVGLIIHUHQWUHTXLUHPHQWV
make the corresponding adjustment. If you have
DQ\TXHVWLRQVUHJDUGLQJLQVWDOODWLRQNLWVFRQVXOW
your car audio dealer.
Caution
This unit is designed for negative ground (earth) 12 V
DC operation only.
Always install this unit in the car dashboard. Other
locations can be dangerous as the rear of the unit heats
up during use.
7RDYRLGVKRUWFLUFXLWEHIRUH\RXFRQQHFWHQVXUHWKDW
the ignition is off.
Ensure that you connect the yellow and red power
supply leads after all other leads are connected.
Ensure that all loose leads are insulated with electrical
tape.
Ensure that the leads do not get caught under screws
orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to a
common ground (earth) point.
Use only the supplied mounting hardware for a safe
and secure installation.
,PSURSHUIXVHVFDQFDXVHGDPDJHRUÀUH:KHQ\RX
QHHGWRFKDQJHWKHIXVHFRQVXOWDSURIHVVLRQDO
Note on the power supply lead (yellow)
 When you connect other devices to this
DSSDUDWXVHQVXUHWKDWWKHUDWLQJRIWKHFDU
circuit is higher than the total fuse value of
all the connected devices.
EN

10
Connector Connect to
1 ANTENNA Antenna
2 FRONT LINE OUT
R (Socket)
Front right speaker
3 FRONT LINE OUT
L (Socket)
Front left speaker
4 REAR LINE OUT R
(Socket)
Rear right speaker
5 REAR LINE OUT L
(Socket)
Rear left speaker
6 OE REMOTE
(Purple)
OE Remote
7 TEL MUTING (Blue) To cellular phone
system
8 SUBWOOFER (Blue) Subwoofer
9 REAR AUX LINE
OUT R
Rear Aux right
10 REAR AUX LINE
OUT L
Rear Aux left
Tip
The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Be sure to make
proper connections to prevent damage to the unit.

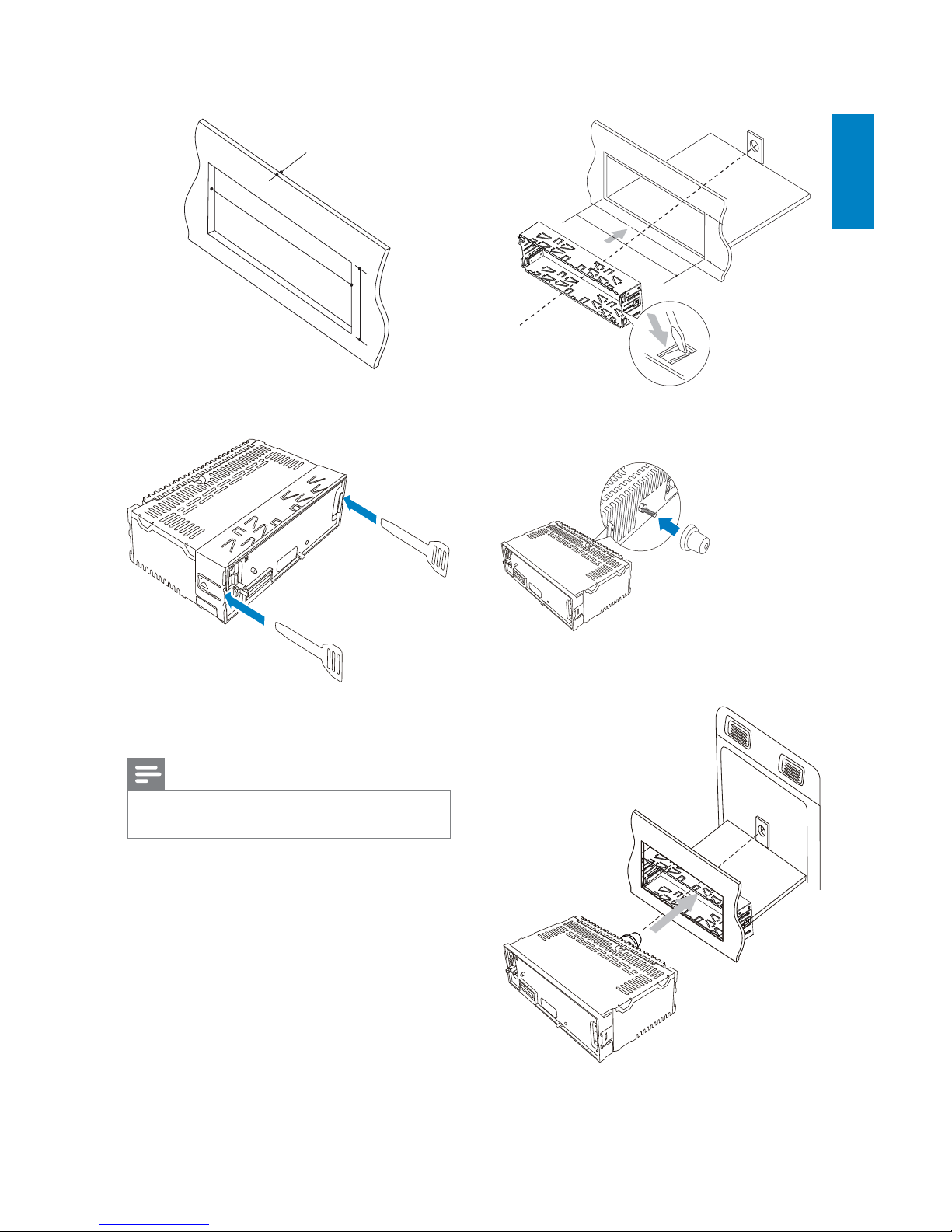

Mount into the dashboard
1If the car does not have an on-board drive
RUQDYLJDWLRQFRPSXWHUGLVFRQQHFWWKH
negative terminal of the car battery.
 If you disconnect the car battery in
a car that has an on-board drive or
QDYLJDWLRQFRPSXWHUWKHFRPSXWHU
may lose its memory.
 ,IWKHFDUEDWWHU\LVQRWGLVFRQQHFWHG
WRDYRLGVKRUWFLUFXLWHQVXUHWKDWWKH
bare wires do not touch each other.
2Ensure that car dashboard opening is
within these measurements:
a Green/black strip Left speaker (Rear)
b White/black strip Left speaker (Front)
c Gray/black strip Right speaker (Front)
d Purple/black strip Right speaker (Rear)
e Red Ignition key +12V DC
when ON/ACC
f Blue Motor/electric antenna
relay control lead
g Blue/white $PSOLÀHUUHOD\FRQWURO
lead
h Black Ground
i Yellow To the +12V car
battery which is
energized at all times
3 &RQQHFWWKHDQWHQQDDQGDPSOLÀHUDV
LOOXVWUDWHGLIDSSOLFDEOH
fg
h
i
5($5 )5217
5
/
5( $5$ 8;
/5
j
EN

11
English
5Place the supplied rubber cushion over the
end of the mounting bolt.
6Slide the unit into the dashboard until you
hear a click sound.
183 mm
53.5 mm
3Remove the mounting sleeve with the
supplied disassembly tools.
4Install the sleeve into the dashboard and
EHQGWKHWDEVRXWZDUGWRÀ[WKHVOHHYH
Note
,IWKHXQLWLVQRWÀ[HGE\VOHHYHEXWE\WKHVXSSOLHG
VFUHZVVNLSWKLVVWHS
183 mm
53mm
5mm
EN

12
)RUÀUVWWLPHXVH
Remove the protective tab to activate the
remote control battery.
To replace the remote control battery:
1Open the battery compartment.
2Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3Close the battery compartment.
Turn on
7RWXUQRQWKHXQLW
 Press .
7RWXUQRIIWKHXQLW
 press and hold until the unit is turned
off.
Select country/region
Note
6HOHFWFRUUHFWFRXQWU\UHJLRQIRUWKLVXQLWRWKHUZLVH
the unit can not work properly.
1Press to turn on the unit.
»[SELECT OPERATING REGION] is
displayed.
7Reconnect the negative terminal of the car
battery.
Attach the front panel
1Attach the trim plate.
2Insert the right side of the panel in the
chassis until it is correctly engaged.
3Press the left side of the panel until the
mechanism locks it into place.
Install remote control battery
Caution
5LVNRIH[SORVLRQ.HHSEDWWHULHVDZD\IURPKHDW
VXQVKLQHRUÀUH1HYHUGLVFDUGEDWWHULHVLQÀUH
Risk of decreased battery life! Never mix different
brands or types of batteries.
Risk of product damage! When the remote control is
QRWXVHGIRUORQJSHULRGVUHPRYHWKHEDWWHULHV
Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
EN

13
English
4 Listen to radio
Tune to a radio station
1Press
SOURCE repeatedly to select radio
mode.
2Press
BAND or / repeatedly to select
band: [FM1][FM2][FM3][AM1]RU
[AM2] .
3Press and hold or until the
IUHTXHQF\GLJLWLVÁDVKHG
4Press or to tune to a radio station
manually.
»The radio station is broadcast.
 To search for a radio station
DXWRPDWLFDOO\SUHVV or .
Select tuner region
You can select suitable country/region of the
radio.
1Press SOURCE to select radio mode.
2Press MENU repeatedly until [AREA] is
displayed..
3Rotate to select:
 [USA] (United States)
 [LATIN] (Latin America)
 [EUROPE] (Western Europe)
 [RUS] (Russia)
 [M-EAST] (Middle East)
 [ASIA]$VLD3DFLÀF
 [JAP] (Japan)
 [AUST] (Australia)
4Press WRFRQÀUP
2Rotate to select an option:
 [USA] (United States)
 [LATIN] (Latin America)
 [EUROPE] (Western Europe)
 [RUS] (Russia)
 [M-EAST] (Middle East)
 [ASIA]$VLD3DFLÀF
 [JAP] (Japan)
 [AUST] (Australia)
3Press WRFRQÀUP
Set clock
1Press MENU repeatedly until current time
LVÁDVKHG
2Rotate to set hour.
3Press WRFRQÀUP
4Rotate to set minute.
5Press WRFRQÀUP
Set clock format
1Press MENU.
2Press or repeatedly until [CLOCK
FORMAT] is displayed.
3Rotate to select a setting:
 [CLOCK 12H]
 [CLOCK 24H]
View clock
,QDQ\PRGHSUHVVDQGKROGMAX SOUND
until the clock is displayed.
 Press any key to cancel the clock display.
EN

14
5 Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
VWDWLRQWKHVWDWLRQQDPHDUHGLVSOD\HG
Turn on RDS
Note
The default setting for RDS is on.
1Press MENU.
2Press or repeatedly until [RDS] is
displayed.
3Rotate to select RDS ON:
»The RDS function is turned on.
Select program type
%HIRUHWXQLQJWR5'6VWDWLRQV\RXFDQVHOHFW
program type and let the unit search only for
programs of the selected category.
1Press MENU.
2Press or repeatedly until [PTY] is
displayed.
3Press WRFRQÀUP
4Rotate WRVHOHFWDW\SHWKHQSUHVV to
FRQÀUP
Select tuner sensitivity
To receive more radio stations or only stations
ZLWKVWURQJVLJQDO\RXFDQDGMXVWWKHWXQHU
sensitivity.
1Press
MENU repeatedly until [LOCAL] is
displayed.
2Rotate to select a setting:
 [LOCAL ON] (local on): Only
stations with strong signal can be
broadcast.
 [LOCAL OFF] (local off): Stations
with strong and weak signals can be
broadcast.
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations automatically
1 ,Q5DGLRPRGHSUHVVDQGKROGDBB until
[STORE - - -] is displayed.
2Press WRFRQÀUP
»The six strongest stations of the
selected band are saved in preset
channel automatically.
Store stations manually
1Tune to a station that you want to store
(see ‘Tune to a radio station’ on page 13 ).
2Press a numeric button for 3 seconds.
»The station is saved in the selected
channel.
Tune to a preset station
1Press BAND to select band.
2Press a numeric key to select a preset
station.
EN

15
English
Select alternate frequencies
,IWKHUDGLRVLJQDOLVSRRUWXUQRQ$)$OWHUQDWH
Frequency) to search for another station with
stronger signal.
1Press
MENU.
2Press or repeatedly until [AF] is
displayed.
3Rotate to select a setting:
 [AF ON]:Turn on the AF mode.
 [AF OFF]:Turn off the AF mode.
Set region for AF tuning
<RXFDQGHÀQH$)WXQLQJUHJLRQ
[REG ON] Only stations in current region
can be tuned to automatically.
[REG OFF] All stations can be tuned to
automatically.
1Press MENU.
2Press or repeatedly until [REG] is
displayed.
3Rotate to select a setting.
5HFHLYHWUDIÀFDQQRXQFHPHQW
,I\RXGRQRWZDQWWRPLVVWUDIÀF
DQQRXQFHPHQWZKHQHQMR\LQJPXVLFWXUQRQ
WKH7$7UDIÀF$QQRXQFHPHQWIXQFWLRQ
1Press MENU.
2Press or repeatedly until [TA] is
displayed.
3Rotate to select a setting:
 [TA ON]:KHQWKHUHLVWUDIÀF
DQQRXQFHPHQWWKHXQLWVZLWFKHV
to the tuner mode (regardless of
the current mode) and begins to
EURDGFDVWWKHWUDIÀFFRQGLWLRQV:KHQ
WKHWUDIÀFDQQRXQFHPHQWLVRYHULW
returns to the previous mode.
 [TA OFF]7UDIÀFDQQRXQFHPHQWGRHV
not cut in.
Item Program type Description
1NEWS News services
2AFFAIRS Politics and current
affairs
3INFO Special information
programs
4SPORT Sports
5EDUCATE Education and
advanced training
6DRAMA Radio plays and
literature
7CULTURE &XOWXUHUHOLJLRQDQG
society
8SCIENCE Science
9VARIED Entertainment
programs
10 POP M Pop music
11 ROCK M Rock music
12 EASY M Light music
13 LIGHT M Light classical music
14 CLASSICS Classical music
15 OTHER M Special music
programs
16 WEATHER Weather
17 FINANCE Finance
18 CHILDREN Children’s programs
19 SOCIAL Social Affairs
20 RELIGION Religion
21 PHONE IN Phone In
22 TRAVEL Tr ave l
23 LEISURE Leisure
24 JAZZ Jazz Music
25 COUNTRY Country Music
26 NATION M National Music
27 OLDIES Oldies Music
28 FOLK M Folk Music
29 DOCUMENT Documentary
30 TEST Alarm Test
31 ALARM Alarm
EN

16
6 Play audio files
Note
(QVXUHWKDWWKHGLVFRUGHYLFHFRQWDLQVSOD\DEOHÀOHV
Play a disc
Note
You cannot play CDs encoded with copyright
protection technologies.
You can play commercially available audio CDs
and these discs:
 CD-Recordables (CD-R)
 CD-Re-writables (CD-RW)
 MP3 CDs
 WMA CDs
Note
Ensure that the disc contains playable content.
Insert a CD with the printed side facing up.
»Play starts automatically.
 7RSDXVH&'SOD\SUHVV .
 7RUHVXPH&'SOD\SUHVV again.
 7RVNLSWRWKHSUHYLRXVQH[WWUDFNSUHVV
or .
 To search backward/forward rapidly within
WKHFXUUHQWWUDFNSUHVV or for 3
seconds.
Remove the CD
7RWDNHRXWWKH&'SUHVV on the front panel.
Tip
,IWKHGLVFLVEORFNHGLQWKHGLVFFRPSDUWPHQWSUHVVDQG
hold until the disc comes out.
Note
If the current received TA signal remains weak for
RYHUVHFRQGVWKHXQLWZLOODFWLYDWH7$6HHNPRGH
automatically.The TA Seek will seek for other station
with good condition of TA signal.
Tip
:KHQDWUDIÀFDQQRXQFHPHQWFXWVLQXVHUFDQVKRUW
press WRWHUPLQDWHWKHWUDIÀFDQQRXQFHPHQWDQGWKH
unit will resume to previous playback mode.
Set RDS clock
You can use time signal that is broadcast
together with the RDS signal to set the clock of
the unit automatically.
1Press MENU.
2Press or repeatedly until [CT] is
displayed.
3Rotate to select a setting:
 [CT ON]:Turn on the RDS clock.
Time shown on the unit synchronizes
with that on the RDS station.
 [CT OFF]:Turn off the RDS clock.
Tip
The accuracy of the transmitted time depends on the
RDS station that transmits the time signal.
EN

17
English
 iPod touch (1st generation)
 iPod touch (2nd generation)
 iPod touch (3rd generation)
 iPod video (30GB & 80GB)
Works with.
 iPhone
 iPhone 3G
 iPhone 3GS
 iPhone 4
Connect iPod/iPhone
1Slide the USB socket cover marked to
the left.
2Insert USB adaptor on one end of iPod/
iPhone cable to the USB socket on the
main unit.
3Insert the other end of the iPod/iPhone
cable to the iPod/iPhone socket.
»The unit starts playing from the USB
device automatically.
Play from USB
Note
Ensure that the USB device contains playable music.
Insert the USB device
1Slide the USB socket cover marked to
the left.
2Insert the USB device into the USB socket.
»The unit starts playing from the USB
device automatically.
Remove the USB device
1Press to turn off the unit.
2Remove the USB device.
Play from iPod/iPhone
You can enjoy audio from iPod/iPhone through
this unit.
Compatible iPod/iPhone
Apple iPod and iPhone models with a 30-pin
dock connector:
Made for.
 iPod nano (2nd generation)
 iPod nano (3rd generation 4GB)
 iPod nano (3rd generation 8GB)
 iPod nano (4th generation)
 iPod nano (5th generation)
 iPod nano (6th generation)
 iPod classic (1st generation)
 iPod classic (2nd generation)
EN

18
Play options
Search for an MP3/WMA track
Search within the current folder
1Press .
»The name of the current track is
displayed.
2Rotate to select anther track in current
folder.
3Press WRFRQÀUP
Search in other folder
1Press .
»The name of the current folder is
displayed.
2Rotate to navigate through all folders.
3Press to access the selected folder.
»7KHXQLWVWDUWVSOD\LQJWKHÀUVWVRQJ
from the selected folder automatically.
Tip
7RJREDFNWRXSSHUOHYHORIDIROGHUSUHVV .
View play information
'XULQJSOD\LQJSUHVVDISP repeatedly to view:
 Track number and elapsed play time
 Folder
 File
 Album
 Artist
 Title
Control music playback on iPod/
iPhone
1Ensure that the iPod/iPhone is connected
correctly.
2Press
SOURCE to select iPod USB mode.
3Press repeatedly to toggle between the
two control modes:
 iPod control mode: Use the buttons/
touch screen on iPod/iPhone to
control the music.
 Audio control mode: Use the control
buttons on car audio to control the
music.
To control playback under audio control
mode:
 7RSDXVHUHVXPHSOD\SUHVV .
 7RVNLSWRDWUDFNSUHVV / .
 7RVHDUFKGXULQJSOD\SUHVVDQGKROG /
WKHQUHOHDVHWRUHVXPHQRUPDOSOD\
 7RQDYLJDWHWKHPHQXSUHVV URWDWH to
VHOHFWWKHQSUHVV WRFRQÀUP
Search for a track
1Press SOURCE repeatedly to select iPod
mode.
2Press to browse iPod/iPhone menu.
3Rotate WRVHOHFWWKH$UWLVWVHDUFKPRGH
and press WRFRQÀUP
4Press DISP to search alphabetically.
5Rotate WRVHOHFWGHVLUHGDUWLVWWKHQ
press WRFRQÀUP
6Rotate to select desired song in current
album.
7Press to start play.
Note
User cannot control the music via iPod/iPhone under
audio control mode.
EN

19
English
7 Adjust sound
Adjust volume
Tur n clockwise/counterclockwise to increase/
decrease volume.
Mute
You can turn off the sound of your audio.
'XULQJSOD\SUHVV .
 7RUHVXPHVRXQGSUHVV again.
Turn Dynamic Bass Boost
(DBB) on/off
1Press DBB and the current setting is
displayed:
»[DBB ON] :The Dynamic Bass Boost
(DBB) function is on.
»[DBB OFF] :The DBB function is off.
2Press DBB again to change the DBB
setting.
Turn on/off MAX sound
1Press
 6281'
.
»The current setting displays
»[MAX ON]:The maximum sound
(MAX sound) function is on.
»[MAX OFF]:The maximum sound
function is off.
2Press
 6281'
again to select an option.
Repeat play
1 'XULQJSOD\SUHVVREP.
»[REPEAT] is displayed.
2Rotate to select a setting.
 [REPEAT TRK] (repeat one track):
play current track repeatedly.
 [REPEAT FLD] (repeat a folder):
play all tracks in the current folder
repeatedly.
 [REPEAT ALL] (repeat all tracks): play
all tracks repeatedly.
6KXIÁHSOD\
You can play the tracks in random order:
1 'XULQJSOD\SUHVVSHUF.
»[SHUFFLE] is displayed.
2Rotate to select a setting:
 [SHUFFLE FLD]: start random play
for all tracks in the current folder.
 [SHUFFLE ALL]: start random play for
all tracks.
 [SHUFFLE OFF]FDQFHOVKXIÁHSOD\
Connect external sound
source
1Connect the external sound source to
MP3 LINK socket with a 3.5 mm cable.
2Press SOURCE repeatedly until [MP3
LINK] is displayed.
3Operate the external component (refer to
the instructions supplied with the external
component).
EN

20
Other sound settings
You can also adjust the preset EQ / AUDIO
settings.
1Press
EQ / AUDIO for 3 seconds.
2Press or repeatedly to select the item
to be adjusted:
 [SUBWOOFER ON/OFF] : Rotate
to turn on or off the subwoofer.
 [SUBWOOFER] range: 0 to 12.
 [SUBWOOFER LPF] (Subwoofer low
SDVVÀOWHUUDQJH
 [BALANCE] range: 12L to 12R.
/ OHIWVSHDNHU5 ULJKWVSHDNHU
 [FADER] range: 12R to 12F. (R=rear
VSHDNHU) IURQWVSHDNHU
 [BASS] range: -7 to +7.
 [BASS CFQ] (bass center frequency)
UDQJH
 [MIDDLE] range: -7 to +7.
 [MIDDLE CFQ] (middle center
IUHTXHQF\UDQJHNNNN
 [TREBLE] range: -7 to +7.
 [TREBLE CFQ] (treble center
IUHTXHQF\UDQJHNNN
17.5k.
 [RESUME] : Resume the preset EQ
value to factory default value.
3Rotate to select a value.
Select preset equalizer
1Press
EQ / AUDIO.
»Current Equalizer setting is displayed.
2Press
EQ / AUDIO again to select a preset
EQ setting:
 [OPTIMAL] (optimal)
 [FLAT]ÁDW
 [POP] (pop)
 [USER] (user)
 [TECHNO] (techno)
 [ROCK] (rock)
 [CLASSIC] (classic)
 [JAZZ] (jazz)
Switch music listening zone
Philips’ innovative Zone technology enables
driver or passengers to enjoy music with the
best speakers balance and experience more
vivid spacial effect as the artist is intended to
create.You can switch the music listening zone
from driver to passengers for the best speaker
sound settings in car.
1Press and hold ZONE.
»The current setting is displayed.
2Press / to select a setting:
 [ALL]
 [FRONT LEFT] (Front left)
 [FRONT RIGHT] (Front right)
 [FRONT]
Turn on/off full sound
1Press and hold .
»The current setting displays:
»[FULL ON] :The full sound function
is on.
»[FULL OFF] :The full sound function
is off.
2Press again to select an option.
EN
