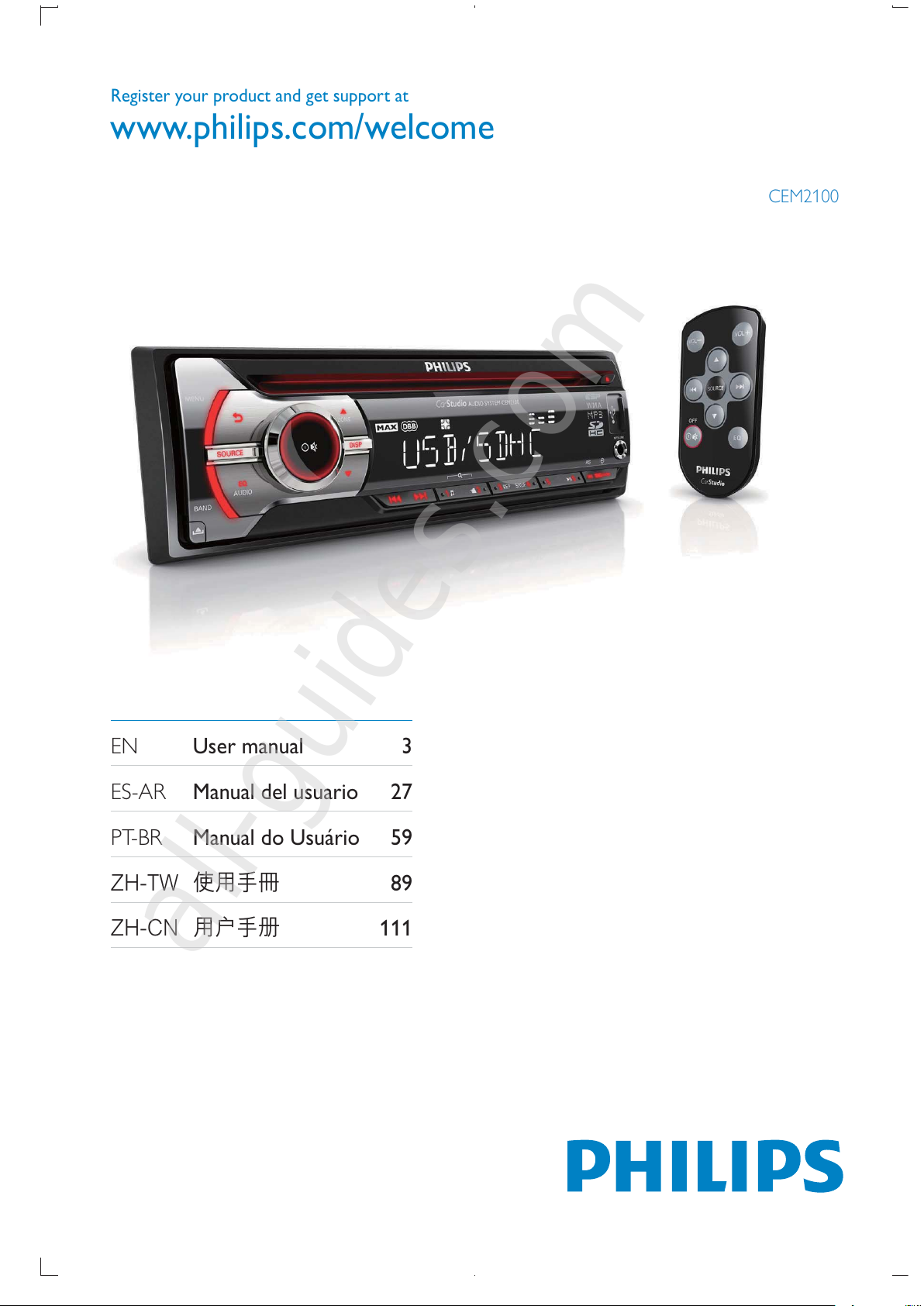

Philips CEM2100 User manual

CEM2100
Register your product and get support at
www.philips.com/welcome
EN User manual 3
ES-AR Manual del usuario 27
PT-BR Manual do Usuário 59
=+7: Ԛʹ˫ 89
=+&1Ⴌ߀൱Ҭ 111
All manuals and user guides at all-guides.com
all-guides.com

3
English
8 Additional information 21
Detach the front panel 21
Replace fuse 21
Remove the unit 21
9 Product information 22
10 Troubleshooting 23
11 Glossary 24

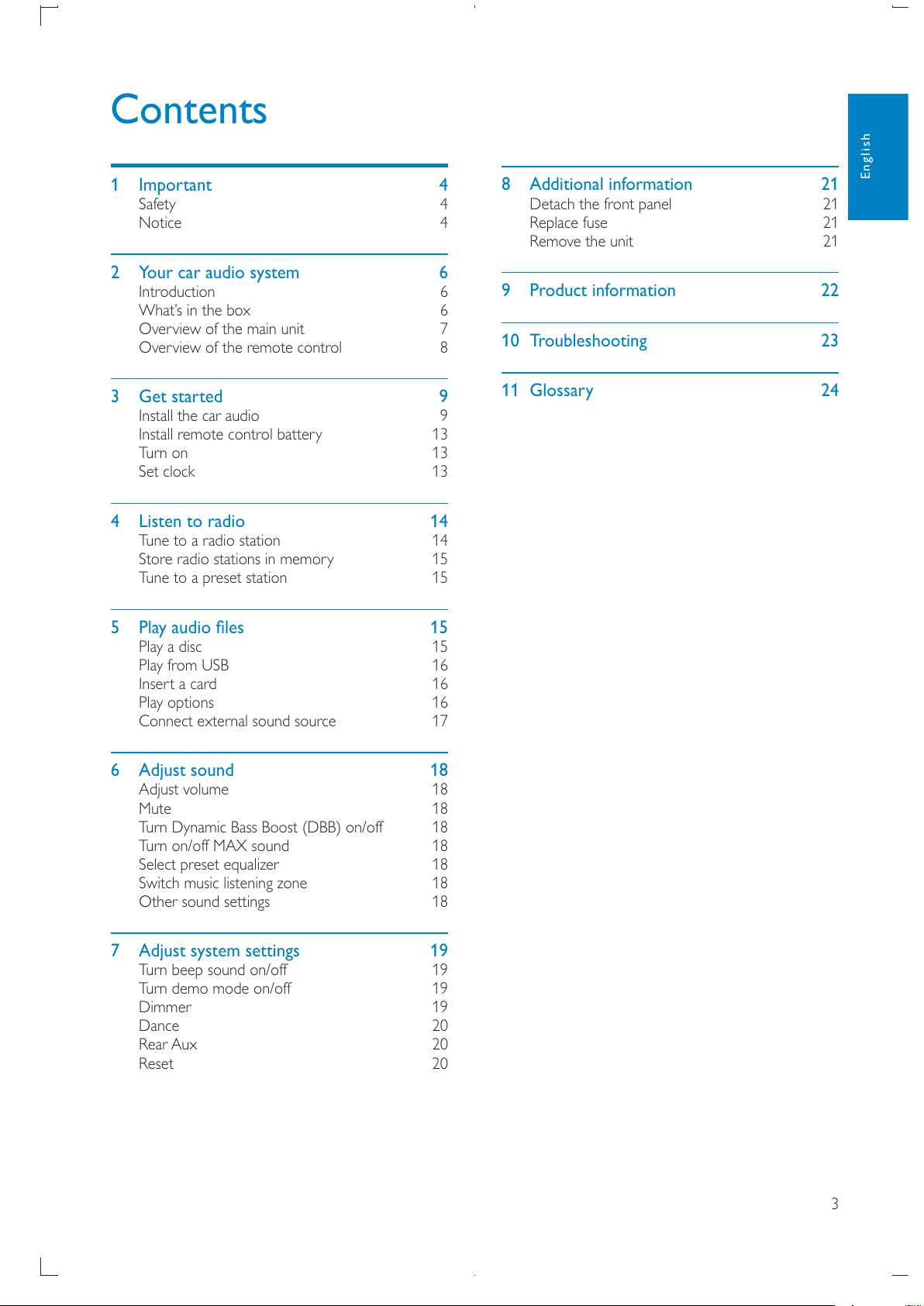

Contents
1 Important 4
Safety 4
Notice 4
2 Your car audio system 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Get started 9
Install the car audio 9
Install remote control battery 13
Turn on 13
Set clock 13

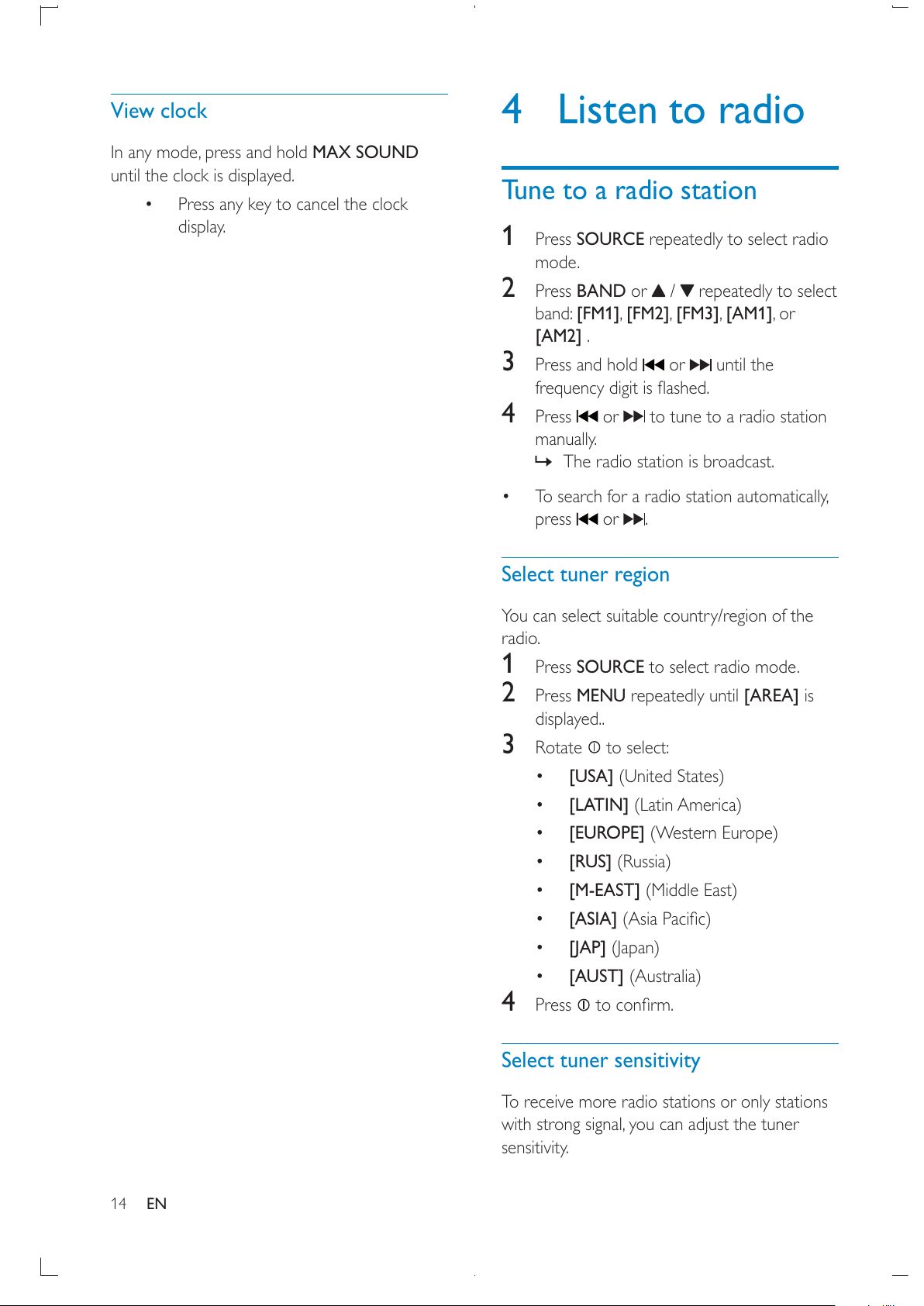

4 Listen to radio 14
Tune to a radio station 14

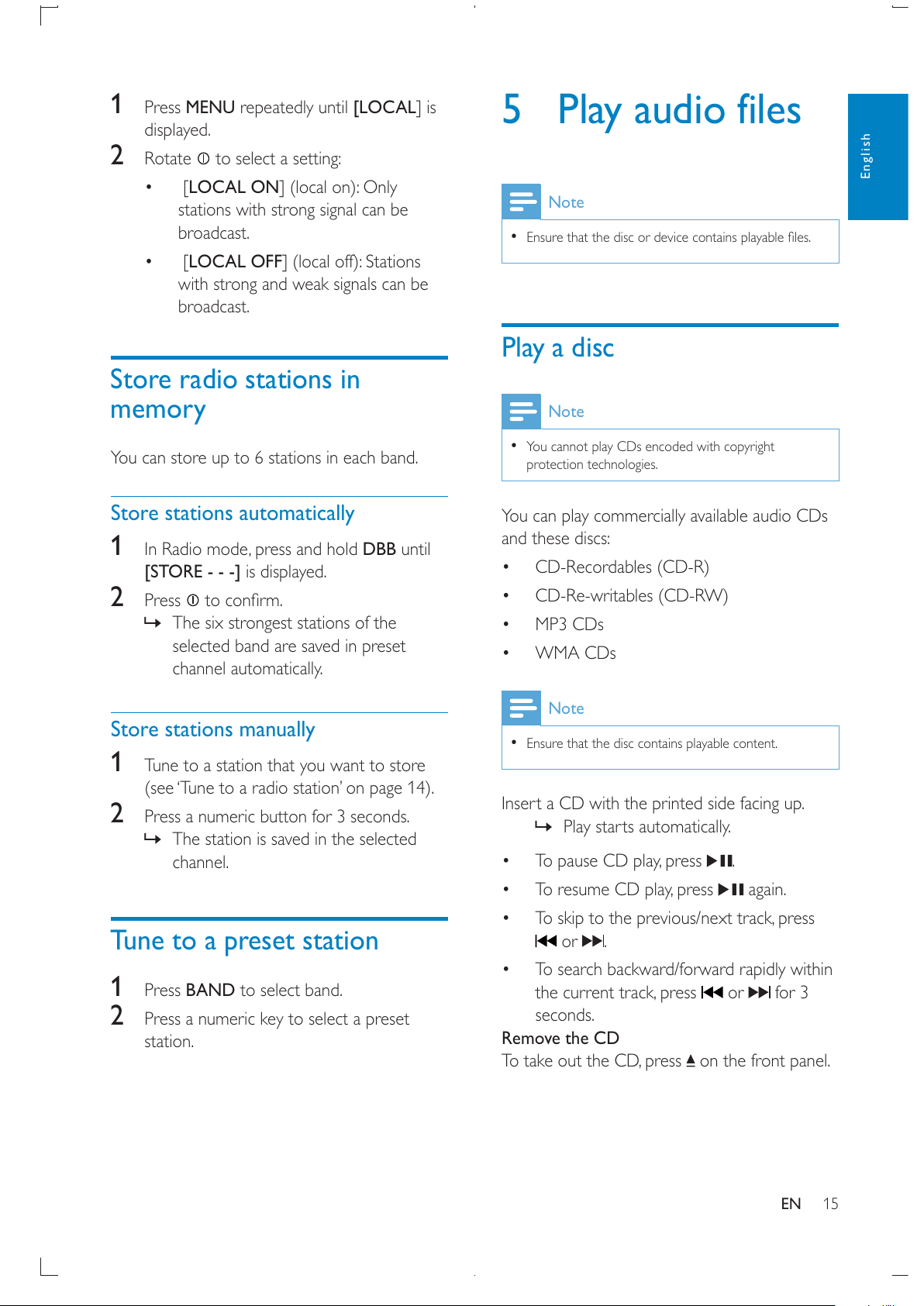

Store radio stations in memory 15
Tune to a preset station 15
  
Play a disc 15
Play from USB 16
Insert a card 16
Play options 16

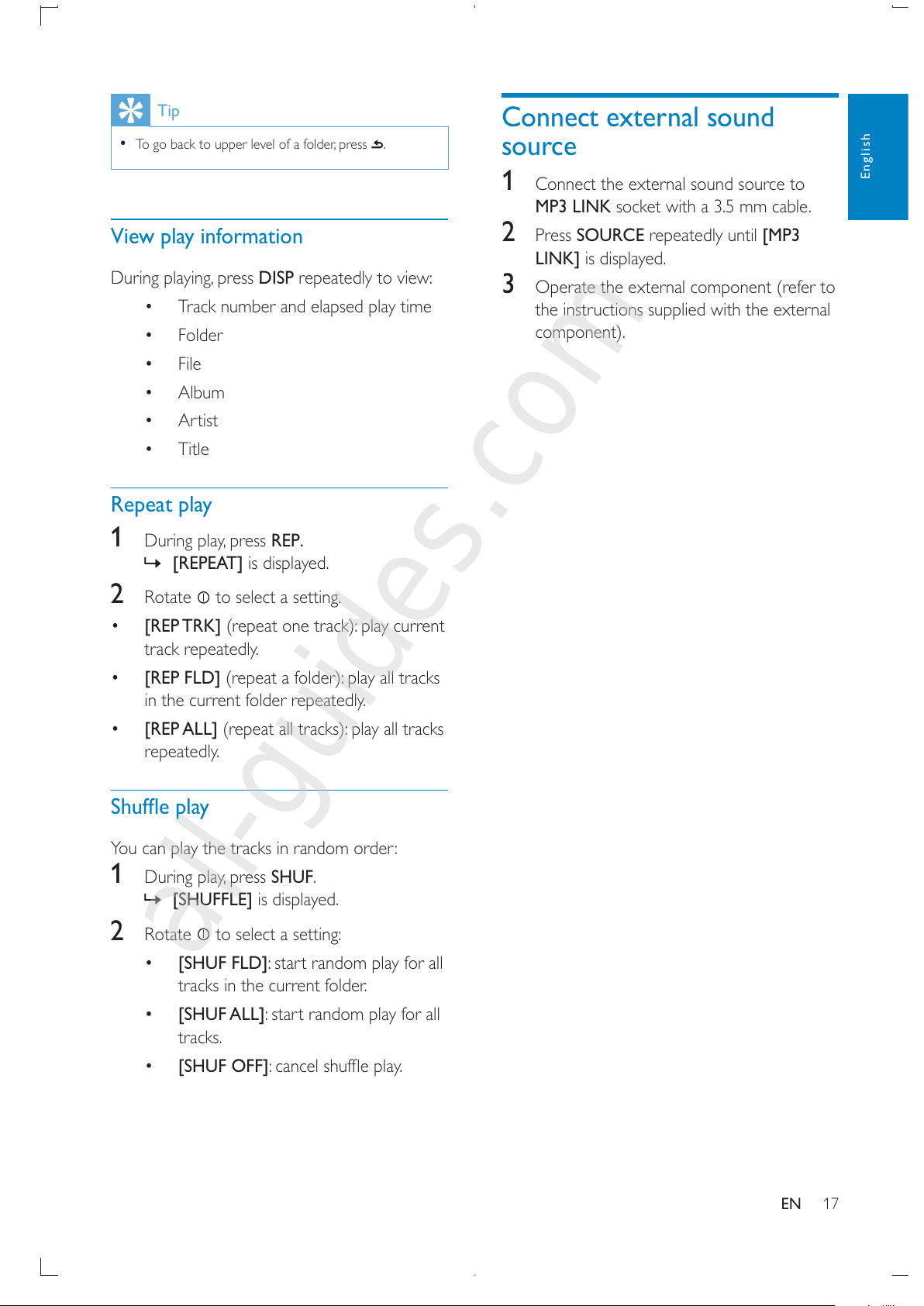

Connect external sound source 17
6 Adjust sound 18
Adjust volume 18
Mute 18
Turn Dynamic Bass Boost (DBB) on/off 18
Turn on/off MAX sound 18
Select preset equalizer 18
Switch music listening zone 18
Other sound settings 18

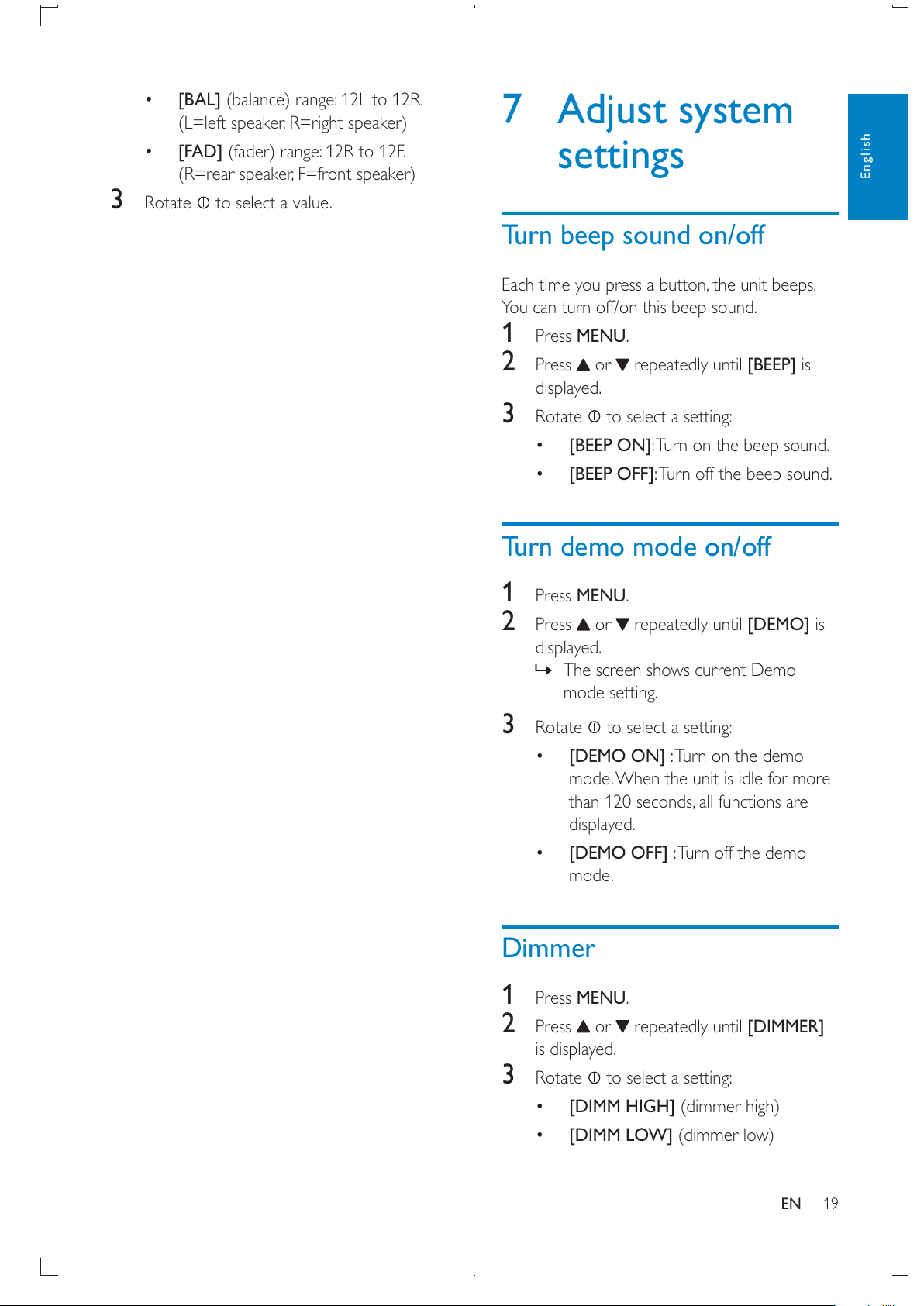

7 Adjust system settings 19
Turn beep sound on/off 19
Turn demo mode on/off 19
Dimmer 19
Dance 20
Rear Aux 20
Reset 20
All manuals and user guides at all-guides.com

4
 The apparatus shall not be exposed to
dripping or splashing.
 Do not place any sources of danger on the

candles).
Notice
The making of unauthorized copies of copy-



copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
Windows Media and the Windows logo

Microsoft Corporation in the United States
and/or other countries.
This apparatus includes this label:
Recycling
Your product is designed and manufactured

which can be recycled and reused.
When you see the crossed-out wheel bin


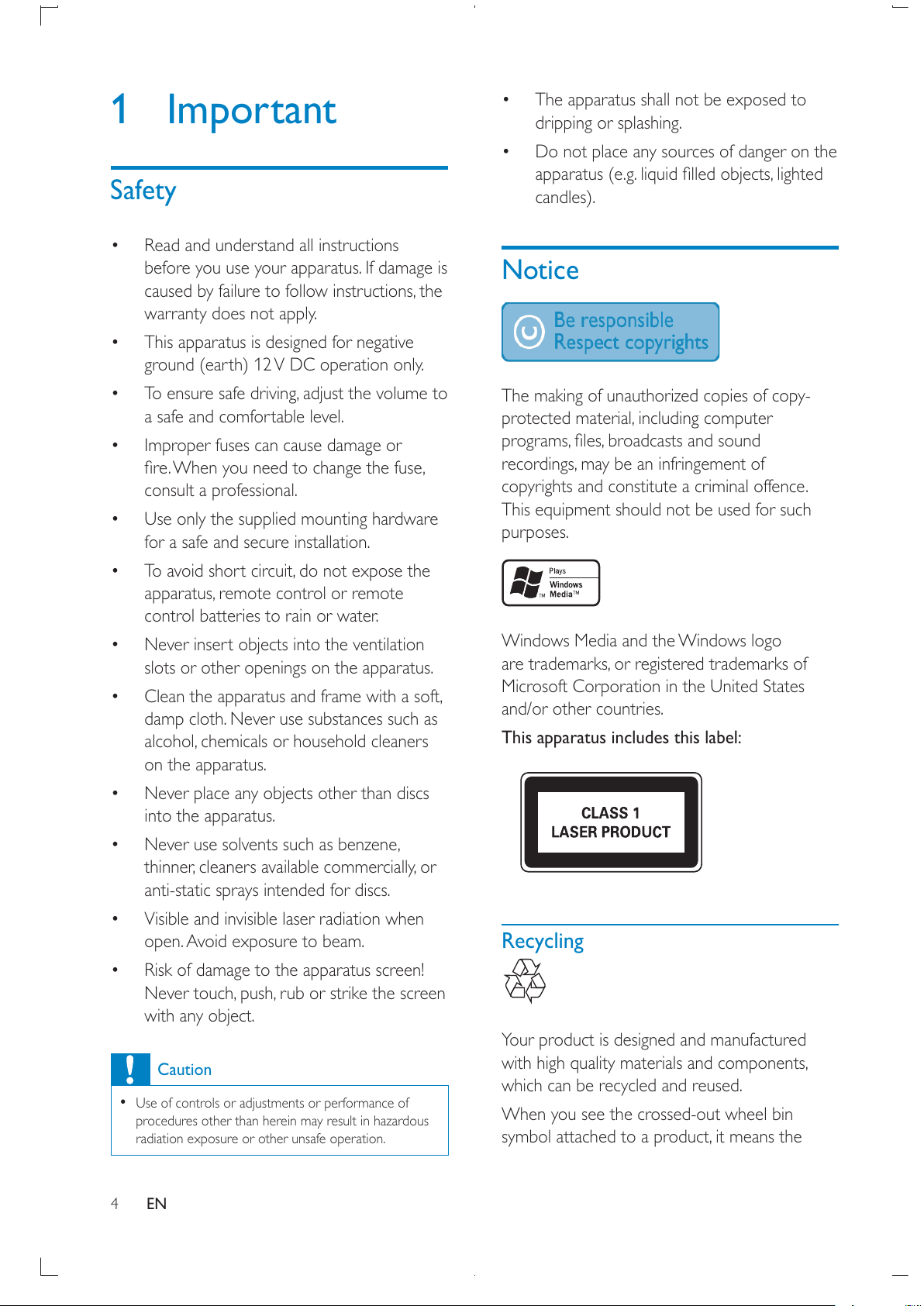

1 Important
Safety
 Read and understand all instructions
before you use your apparatus. If damage is

warranty does not apply.
 This apparatus is designed for negative
ground (earth) 12 V DC operation only.
 
a safe and comfortable level.
 Improper fuses can cause damage or

consult a professional.
 Use only the supplied mounting hardware
for a safe and secure installation.
 

control batteries to rain or water.
 Never insert objects into the ventilation
slots or other openings on the apparatus.
 
damp cloth. Never use substances such as

on the apparatus.
 Never place any objects other than discs
into the apparatus.
 

anti-static sprays intended for discs.
 Visible and invisible laser radiation when
open. Avoid exposure to beam.
 Risk of damage to the apparatus screen!

with any object.
Caution
 Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
EN
All manuals and user guides at all-guides.com

5
English

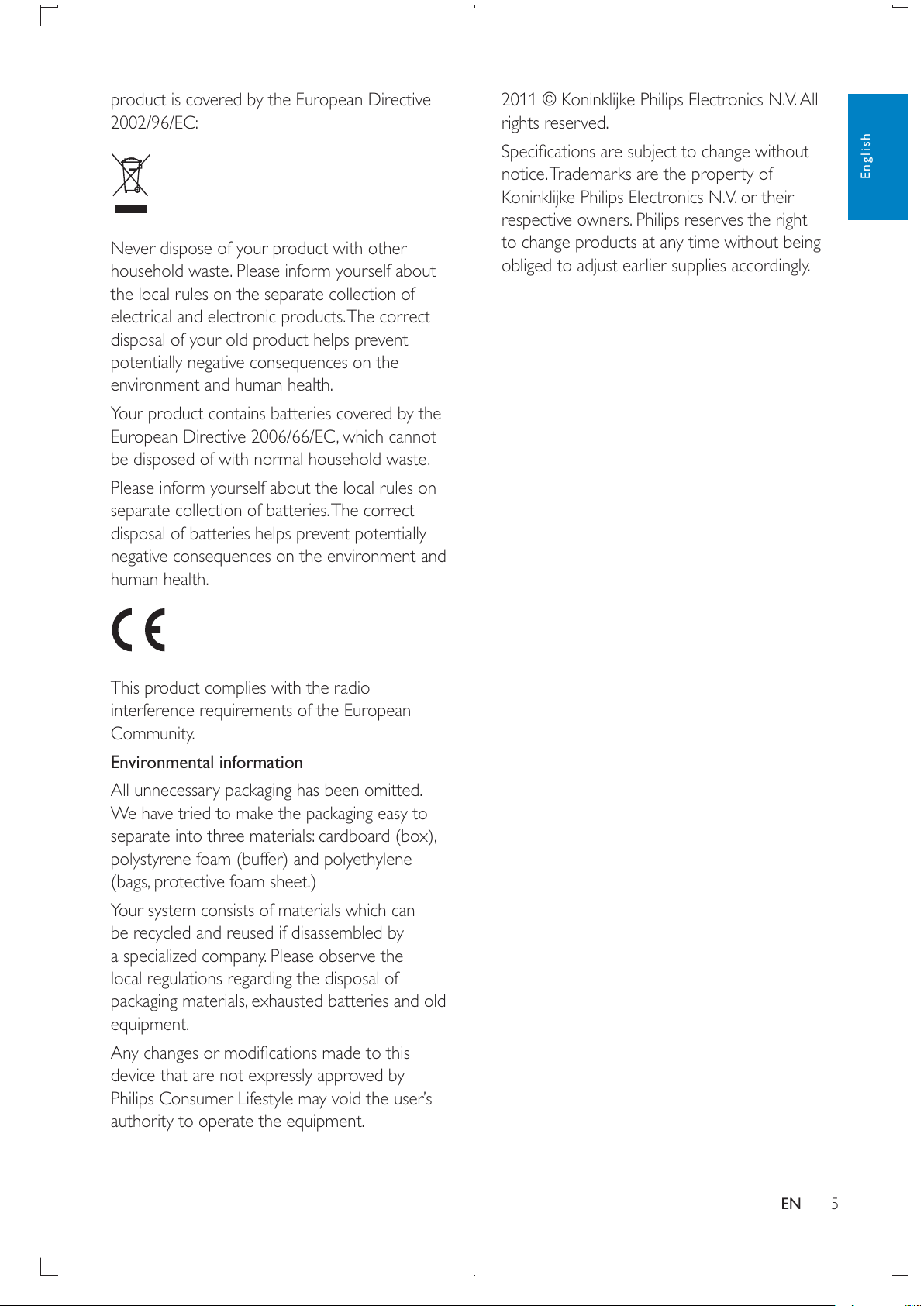

2011 © Koninklijke Philips Electronics N.V. All
rights reserved.

notice.Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products.The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the

be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries.The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
This product complies with the radio
interference requirements of the European
Community.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to

polystyrene foam (buffer) and polyethylene

Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of

equipment.

device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
EN
All manuals and user guides at all-guides.com

6
dTrim plate
eCarrying case for front panel
fISO male connector
gRubber cushion
hScrew x 1 pc
iDisassembly tools x 2 pcs
jUser manual
kQuick start guide
a
f
c
b
kji
c
ccccc
h
g
c
2 Your car audio
system



at www.philips.com/welcome.
Introduction

your drive while listening to:
 FM or AM (MW) radio
 Audio from CD or MP3 disc
 Audio from USB devices
 Audio from SD/SDHC card
 Audio from other external devices
The unit supports the following media format:
What’s in the box
Check and identify the contents of your
package:
aMain unit (with a sleeve)
bRemote control
cFront panel
EN
All manuals and user guides at all-guides.com

7
English
 Turn the unit on or off.
 
 Mute or unmute sound.
 Rotate to adjust volume.
eZONE /
 Select tuner band.
 Select MP3/WMA folder.
 Switch music listening zone.

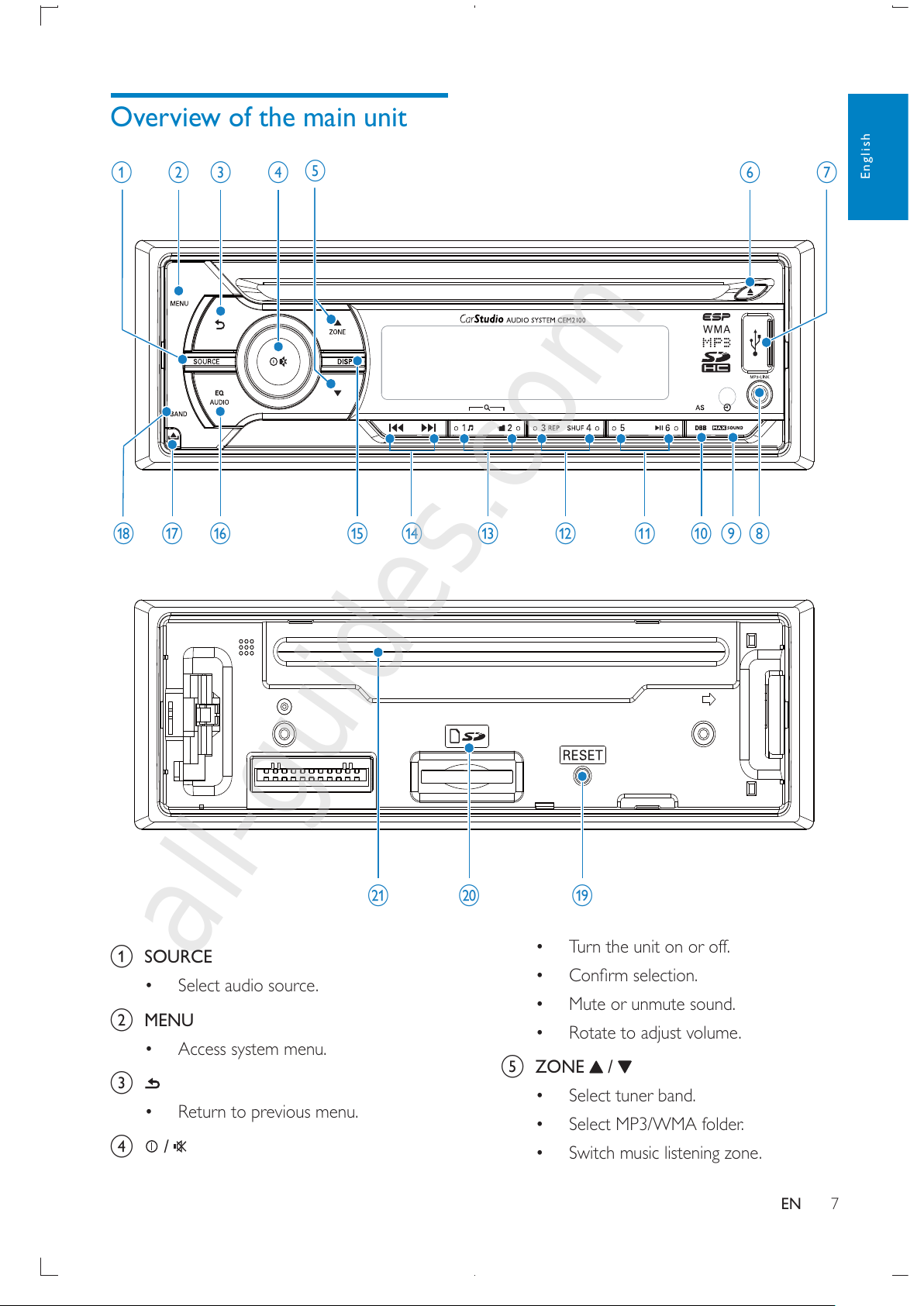

Overview of the main unit
aSOURCE
 Select audio source.
bMENU
 Access system menu.
c
 Return to previous menu.
d/
n pohrq
fg adc b
uts
mlkij
e
EN
All manuals and user guides at all-guides.com
all-guides.com

8
 Unlock the panel.
rBAND
 Select tuner band.
sRESET
 Restore default settings.
tSD card slot
uDisc slot

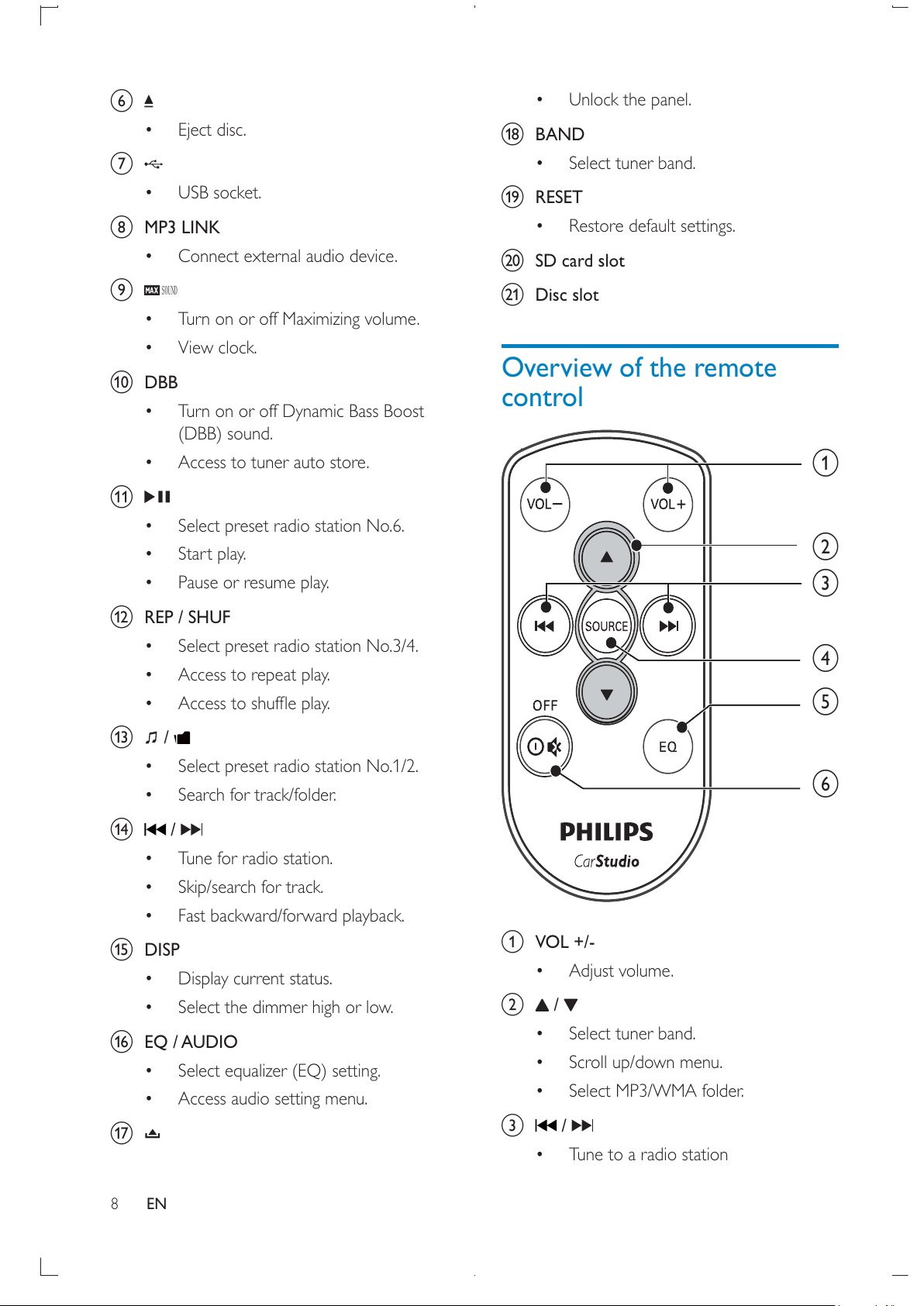

Overview of the remote
control
aVOL +/-
 Adjust volume.
b/
 Select tuner band.
 Scroll up/down menu.
 Select MP3/WMA folder.
c/
 Tune to a radio station
a
b
d
c
e
f
f
 Eject disc.
g
 USB socket.
hMP3 LINK
 Connect external audio device.
i
 6281'
 Turn on or off Maximizing volume.
 View clock.
jDBB
 Turn on or off Dynamic Bass Boost
(DBB) sound.
 Access to tuner auto store.
k
 Select preset radio station No.6.
 Start play.
 Pause or resume play.
lREP / SHUF
 Select preset radio station No.3/4.
 Access to repeat play.
 
m/
 Select preset radio station No.1/2.
 Search for track/folder.
n/
 Tune for radio station.
 Skip/search for track.
 Fast backward/forward playback.
oDISP
 Display current status.
 Select the dimmer high or low.
pEQ / AUDIO
 Select equalizer (EQ) setting.
 Access audio setting menu.
q
EN
All manuals and user guides at all-guides.com

9
English

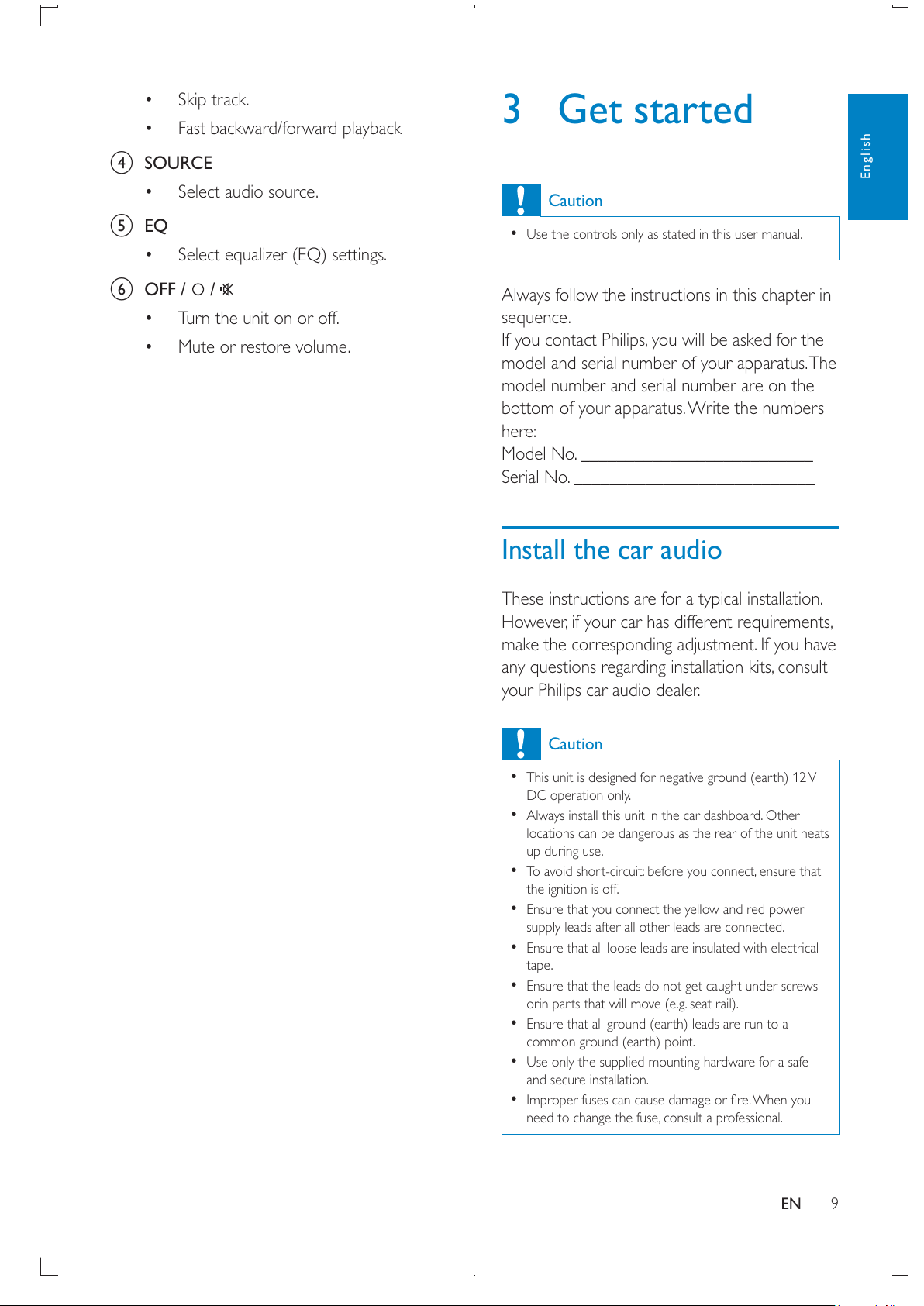

3 Get started
Caution
 Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in
sequence.

model and serial number of your apparatus.The
model number and serial number are on the
bottom of your apparatus.Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Install the car audio
These instructions are for a typical installation.

make the corresponding adjustment. If you have

your Philips car audio dealer.
Caution
 This unit is designed for negative ground (earth) 12 V
DC operation only.
 Always install this unit in the car dashboard. Other
locations can be dangerous as the rear of the unit heats
up during use.
 
the ignition is off.
 Ensure that you connect the yellow and red power
supply leads after all other leads are connected.
 Ensure that all loose leads are insulated with electrical
tape.
 Ensure that the leads do not get caught under screws
orin parts that will move (e.g. seat rail).
 Ensure that all ground (earth) leads are run to a
common ground (earth) point.
 Use only the supplied mounting hardware for a safe
and secure installation.
 

 Skip track.
 Fast backward/forward playback
dSOURCE
 Select audio source.
eEQ
 Select equalizer (EQ) settings.
fOFF / /
 Turn the unit on or off.
 Mute or restore volume.
EN
All manuals and user guides at all-guides.com

10
1 Green/black
strip
Left speaker (Rear)
2 White/black
strip
Left speaker (Front)
3 Gray/black
strip
Right speaker (Front)
4 Purple/black
strip
Right speaker (Rear)
e Red Ignition key +12V DC
when ON/ACC
f Blue Motor/electric antenna
relay control lead
g Blue/white 
lead
h Black Ground
i Yellow To the +12V car
battery which is
energized at all times
3 


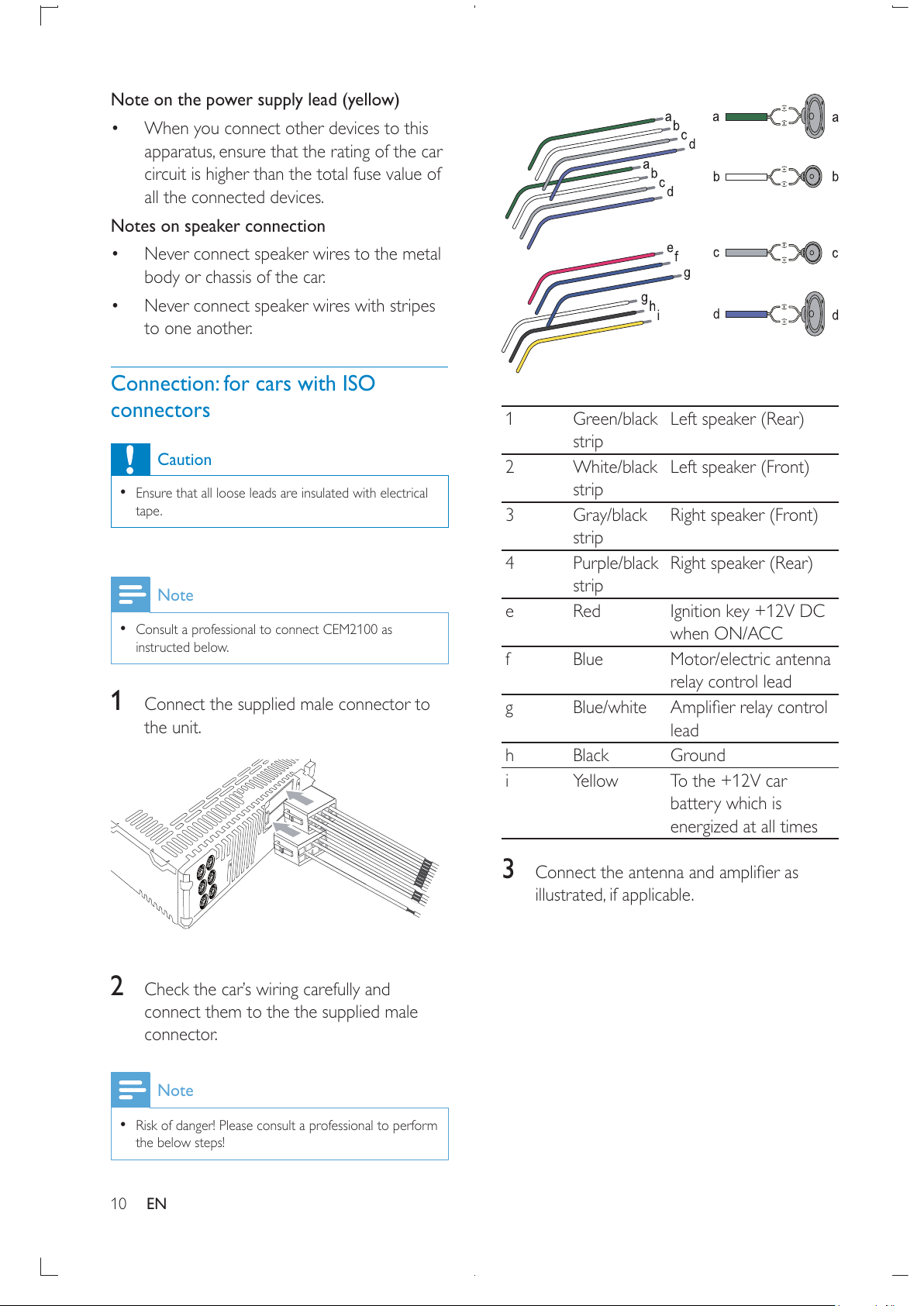

Note on the power supply lead (yellow)
 When you connect other devices to this

circuit is higher than the total fuse value of
all the connected devices.
Notes on speaker connection
 Never connect speaker wires to the metal
body or chassis of the car.
 Never connect speaker wires with stripes
to one another.
Connection: for cars with ISO
connectors
Caution
 Ensure that all loose leads are insulated with electrical
tape.
Note
 Consult a professional to connect CEM2100 as
instructed below.
1Connect the supplied male connector to
the unit.
2Check the car’s wiring carefully and
connect them to the the supplied male
connector.
Note
 Risk of danger! Please consult a professional to perform
the below steps!
EN
All manuals and user guides at all-guides.com

11
English
 If you disconnect the car battery in
a car that has an on-board drive or

may lose its memory.
 

bare wires do not touch each other.
2Ensure that car dashboard opening is
within these measurements:
3Remove the mounting sleeve with the
supplied disassembly tools.
4Install the sleeve into the dashboard and

Note
 

183 mm
53mm
5mm
Connector Connect to
1 ANTENNA Antenna
2 FRONT LINE OUT R
(Socket)
Front right
speaker
3 FRONT LINE OUT L
(Socket)
Front left
speaker
4 REAR LINE OUT R
(Socket)
Rear right
speaker
5 REAR LINE OUT L
(Socket)
Rear left
speaker
6 OE REMOTE (Purple) OE Remote
7 TEL MUTING (Blue) To cellular
phone
system
8 REAR AUX LINE
OUT R (Socket)
Rear Aux
right
9 REAR AUX LINE
OUT L (Socket)
Rear Aux left
Tip
 The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Be sure to make
proper connections to prevent damage to the unit.
Mount into the dashboard
1If the car does not have an on-board drive

negative terminal of the car battery.
5($5  )5217
5
/
5( $5$ 8;
/5
5
/
8
9
7
9
EN
All manuals and user guides at all-guides.com

12
7Reconnect the negative terminal of the car
battery.
Attach the front panel
1Attach the trim plate.
2Insert the right side of the panel in the
chassis until it is correctly engaged.
3Press the left side of the panel until the
mechanism locks it into place.
5Place the supplied rubber cushion over the
end of the mounting bolt.
6Slide the unit into the dashboard until you
hear a click sound.
183 mm
53.5 mm
EN
All manuals and user guides at all-guides.com
all-guides.com

13
English
Select country/region
Note
 
the unit can not work properly.
1Press to turn on the unit.
»[SELECT OPERATING REGION] is
displayed.
2Rotate to select an option:
 [USA] (United States)
 [LATIN] (Latin America)
 [EUROPE] (Western Europe)
 [RUS] (Russia)
 [M-EAST] (Middle East)
 [ASIA]
 [JAP] (Japan)
 [AUST] (Australia)
3Press 
Set clock
1Press MENU repeatedly until current time

2Rotate to set hour.
3Press 
4Rotate to set minute.
5Press 
Set clock format
1Press MENU.
2Press or repeatedly until [CLOCK
FORMAT] is displayed.
3Rotate to select a setting:
 [CLOCK 12H]
 [CLOCK 24H]
Install remote control battery
Caution
 

 Risk of decreased battery life! Never mix different
brands or types of batteries.
 Risk of product damage! When the remote control is

 Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.

Remove the protective tab to activate the
remote control battery.
To replace the remote control battery:
1Open the battery compartment.
2Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3Close the battery compartment.
Turn on

 Press .

 press and hold until the unit is
turned off.
EN
All manuals and user guides at all-guides.com

14
4 Listen to radio
Tune to a radio station
1Press SOURCE repeatedly to select radio
mode.
2Press BAND or / repeatedly to select
band: [FM1][FM2][FM3][AM1]
[AM2] .
3Press and hold or until the

4Press or to tune to a radio station
manually.
»The radio station is broadcast.
 
press or .
Select tuner region
You can select suitable country/region of the
radio.
1Press SOURCE to select radio mode.
2Press MENU repeatedly until [AREA] is
displayed..
3Rotate to select:
 [USA] (United States)
 [LATIN] (Latin America)
 [EUROPE] (Western Europe)
 [RUS] (Russia)
 [M-EAST] (Middle East)
 [ASIA]
 [JAP] (Japan)
 [AUST] (Australia)
4Press 
Select tuner sensitivity
To receive more radio stations or only stations

sensitivity.
View clock
MAX SOUND
until the clock is displayed.
 Press any key to cancel the clock
display.
EN
All manuals and user guides at all-guides.com

15
English
5 Play audio files
Note
 
Play a disc
Note
 You cannot play CDs encoded with copyright
protection technologies.
You can play commercially available audio CDs
and these discs:
 CD-Recordables (CD-R)
 CD-Re-writables (CD-RW)
 MP3 CDs
 WMA CDs
Note
 Ensure that the disc contains playable content.
Insert a CD with the printed side facing up.
»Play starts automatically.
  .
  again.
 
or .
 To search backward/forward rapidly within
 or for 3
seconds.
Remove the CD
 on the front panel.
1Press MENU repeatedly until [LOCAL] is
displayed.
2Rotate to select a setting:
 [LOCAL ON] (local on): Only
stations with strong signal can be
broadcast.
 [LOCAL OFF] (local off): Stations
with strong and weak signals can be
broadcast.
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations automatically
1 DBB until
[STORE - - -] is displayed.
2Press 
»The six strongest stations of the
selected band are saved in preset
channel automatically.
Store stations manually
1Tune to a station that you want to store
(see ‘Tune to a radio station’ on page 14).
2Press a numeric button for 3 seconds.
»The station is saved in the selected
channel.
Tune to a preset station
1Press BAND to select band.
2Press a numeric key to select a preset
station.
EN
All manuals and user guides at all-guides.com

16
»The unit starts playing from the card
automatically.
Remove the card
1Press to turn off the unit.
2Press the card until you hear a click sound.
»The card is now disengaged.
3Remove the card.
Play options
Search for an MP3/WMA track
Search within the current folder
1Press .
»The name of the current track is
displayed.
2Rotate to select anther track in current
folder.
3Press 
Search in other folder
1Press .
»The name of the current folder is
displayed.
2Rotate to navigate through all folders.
3Press to access the selected folder.
»
from the selected folder automatically.
Tip
 
hold until the disc comes out.
Play from USB
Note
 Ensure that the USB device contains playable music.
Insert the USB device
1Slide the USB socket cover marked to
the left.
2Insert the USB device into the USB socket.
»The unit starts playing from the USB
device automatically.
Remove the USB device
1Press to turn off the unit.
2Remove the USB device.
Insert a card
Note
 This unit supports SD and SDHC cards.
1Press to release the panel.
2Insert the card into the card slot.
3Close the front panel.
EN
All manuals and user guides at all-guides.com

17
English
Connect external sound
source
1Connect the external sound source to
MP3 LINK socket with a 3.5 mm cable.
2Press SOURCE repeatedly until [MP3
LINK] is displayed.
3Operate the external component (refer to
the instructions supplied with the external
component).
Tip
  .
View play information
DISP repeatedly to view:
 Track number and elapsed play time
 Folder
 File
 Album
 Artist
 Title
Repeat play
1 REP.
»[REPEAT] is displayed.
2Rotate to select a setting.
 [REP TRK] (repeat one track): play current
track repeatedly.
 [REP FLD] (repeat a folder): play all tracks
in the current folder repeatedly.
 [REP ALL] (repeat all tracks): play all tracks
repeatedly.

You can play the tracks in random order:
1 SHUF.
»[SHUFFLE] is displayed.
2Rotate to select a setting:
 [SHUF FLD]: start random play for all
tracks in the current folder.
 [SHUF ALL]: start random play for all
tracks.
 [SHUF OFF]
EN
All manuals and user guides at all-guides.com
all-guides.com

18
»Current Equalizer setting is displayed.
2Press EQ / AUDIO again to select a preset
EQ setting:
 [OPTIMAL] (optimal)
 [FLAT]
 [POP] (pop)
 [USER] (user)
 [TECHNO] (techno)
 [ROCK] (rock)
 [CLASSIC] (classic)
 [JAZZ] (jazz)
Switch music listening zone
Philips’ innovative Zone technology enables
driver or passengers to enjoy music with the
best speakers balance and experience more
vivid spacial effect as the artist is intended to
create.You can switch the music listening zone
from driver to passengers for the best speaker
sound settings in car.
1Press ZONE.
»The current setting is displayed.
2Rotate / to select a setting:
 [ALL]
 [FRONT-L] (Front left)
 [FRONT-R] (Front right)
 [FRONT]
Other sound settings
You can also adjust the preset EQ / AUDIO
settings.
1Press EQ / AUDIO for 3 seconds.
2Press or repeatedly to select the item
to be adjusted:
 [BAS] (bass) range: -7 to +7.
 [TRE] (treble)range: -7 to +7.
6 Adjust sound
Adjust volume
Tur n clockwise/counterclockwise to increase/
decrease volume.
Mute
You can turn off the sound of your audio.
 .
  again.
Turn Dynamic Bass Boost
(DBB) on/off
1Press DBB and the current setting is
displayed:
»[DBB ON] :The Dynamic Bass Boost
(DBB) function is on.
»[DBB OFF] :The DBB function is off.
2Press DBB again to change the DBB
setting.
Turn on/off MAX sound
1Press
 6281'
.
»The current setting displays
»[MAX ON]:The maximum sound
(MAX sound) function is on.
»[MAX OFF]:The maximum sound
function is off.
2Press
 6281'
again to select an option.
Select preset equalizer
1Press EQ / AUDIO.
EN
All manuals and user guides at all-guides.com

19
English
7 Adjust system
settings
Turn beep sound on/off

You can turn off/on this beep sound.
1Press MENU.
2Press or repeatedly until [BEEP] is
displayed.
3Rotate to select a setting:
 [BEEP ON]:Turn on the beep sound.
 [BEEP OFF]:Turn off the beep sound.
Turn demo mode on/off
1Press MENU.
2Press or repeatedly until [DEMO] is
displayed.
»The screen shows current Demo
mode setting.
3Rotate to select a setting:
 [DEMO ON] :Turn on the demo
mode.When the unit is idle for more

displayed.
 [DEMO OFF] :Turn off the demo
mode.
Dimmer
1Press MENU.
2Press or repeatedly until [DIMMER]
is displayed.
3Rotate to select a setting:
 [DIMM HIGH] (dimmer high)
 [DIMM LOW] (dimmer low)
 [BAL] (balance) range: 12L to 12R.

 [FAD] (fader) range: 12R to 12F.

3Rotate to select a value.
EN
All manuals and user guides at all-guides.com

20
Dance
You can turn on or off the spectrum on the
LCD display.
1Press MENU.
2Press or repeatedly until [DANCE] is
displayed.
3Rotate to select a setting:
 [DANCE ON] :Turn on the spectrum.
 [DANCE OFF] :Turn off the
spectrum.
Rear Aux
1Press MENU.
2Press or repeatedly until [TEL MUTE]
is displayed.
3Rotate to select a setting:
 [NORMAL]
[MUTE] is displayed.
 [REAR AUX]
[PHONE IN] is displayed.
Note
 TEL
MUTING wire to your hands-free kit and audio out
jack to the REAR AUX in jack of the unit.
Reset
You can reset the unit to its default setting.
1Detach the front panel. (see ‘Detach the
front panel’ on page 21)
2Press the reset button by using a ball-point
pen or a similar tool.
»Preset adjustments such as preset
channels and sound adjustments are
erased.
EN
All manuals and user guides at all-guides.com

21
English
3Replace the fuse.
Note
 
internal malfunction. Consult your Philips dealer.
Remove the unit
You can remove the unit from the dashboard.
1Detach the front panel.
2Pull out the unit by using the disassembly
tools.
8 Additional
information
Detach the front panel
You can detach the front panel to deter theft.
1Press to release the panel.
2Pull the panel towards you to disengage it
from the chassis.
3Store the panel in the supplied carrying
case to protect it from dirt or damage.
Replace fuse

1Check the electric connection.
2Buy a fuse that matches the voltage of the
damaged fuse.
EN
All manuals and user guides at all-guides.com
