Philips CarStudio CEM5100 User manual

Register your product and get support at
www.philips.com/welcome
Always there to help you
CEM5100
User manual
Question?
Contact
Philips

2

3
7 Playaudioles 17
Play a disc 17
Play from USB 18
Insert a card 18
Play from iPod/iPhone 18
Play options 19
Connect external sound source 20
8 Adjustsound 21
Adjust volume 21
Mute 21
Turn Dynamic Bass Boost (DBB) on/off 21
Turn MAX sound on/off 21
Select preset equalizer 21
Switch music listening zone 21
Turn on/off full sound 21
Other sound settings 22
9 Adjustsystemsettings 22
Turn beep sound on/off 22
Select blackout setting 22
Turn demo mode on/off 22
Dimmer 23
Dance 23
LCD Color 23
Audiobook 23
Reset 23
10 Additionalinformation 24
Detach the front panel 24
Replace fuse 24
Remove the unit 24
11 Productinformation 25
12 Troubleshooting 26
About Bluetooth device 26
13 Glossary 27
Contents
1 Important 4
Safety 4
Notice 4
2 Yourcaraudiosystem 6
Introduction 6
What's in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Getstarted 9
Install the car audio 9
Install remote control battery 12
Turn on 12
Select country/region 12
Set clock 13
4 Listentoradio 13
Tune to a radio station 13
Store radio stations in memory 14
Tune to a preset station 14
5 Usebluetoothdevices 14
Pairing bluetooth devices 14
Make a call 15
Call transfer 15
Receive call 15
Terminate call 15
Play audio les from bluetooth devices 15
6 PlaywithRDS 16
Turn on RDS 16
Select program type 16
Select alternate frequencies 16
Receive trafc announcement 17
Set RDS clock 17
EN

4EN
1 Important
Safety
• Read and understand all instructions
before you use your apparatus. If damage is
caused by failure to follow instructions, the
warranty does not apply.
• This apparatus is designed for negative
ground (earth) 12 V DC operation only.
• To ensure safe driving, adjust the volume to
a safe and comfortable level.
• Improper fuses can cause damage or
re. When you need to change the fuse,
consult a professional.
• Use only the supplied mounting hardware
for a safe and secure installation.
• To avoid short circuit, do not expose the
apparatus, remote control or remote
control batteries to rain or water.
• Never insert objects into the ventilation
slots or other openings on the apparatus.
• Clean the apparatus and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
• Never place any objects other than discs
into the apparatus.
• Never use solvents such as benzene,
thinner, cleaners available commercially, or
anti-static sprays intended for discs.
• Visible and invisible laser radiation when
open. Avoid exposure to beam.
• Risk of damage to the apparatus screen!
Never touch, push, rub or strike the screen
with any object.
Caution
•Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
• The apparatus shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on the
apparatus (e.g. liquid lled objects, lighted
candles).
• Risk of swallowing coin battery!
• The device may contain a coin/button
type battery, which can potentially
be swallowed. Keep the battery out
of reach of children at all times! If
swallowed, the battery can cause
serious injury or death. Severe internal
burns can occur within two hours of
ingestion.
• If you suspect that a battery has been
swallowed or placed inside any part
of the body, seek immediate medical
attention.
• When you change the batteries, always
keep all new and used batteries out of
reach of children. Make sure that the
battery compartment is completely
secure after you replace the battery.
• If the battery compartment cannot be
completely secured, discontinue use
of the product. Keep out of reach of
children and contact the manufacturer.
Notice
The making of unauthorized copies of copy-
protected material, including computer
programs, les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.

5EN

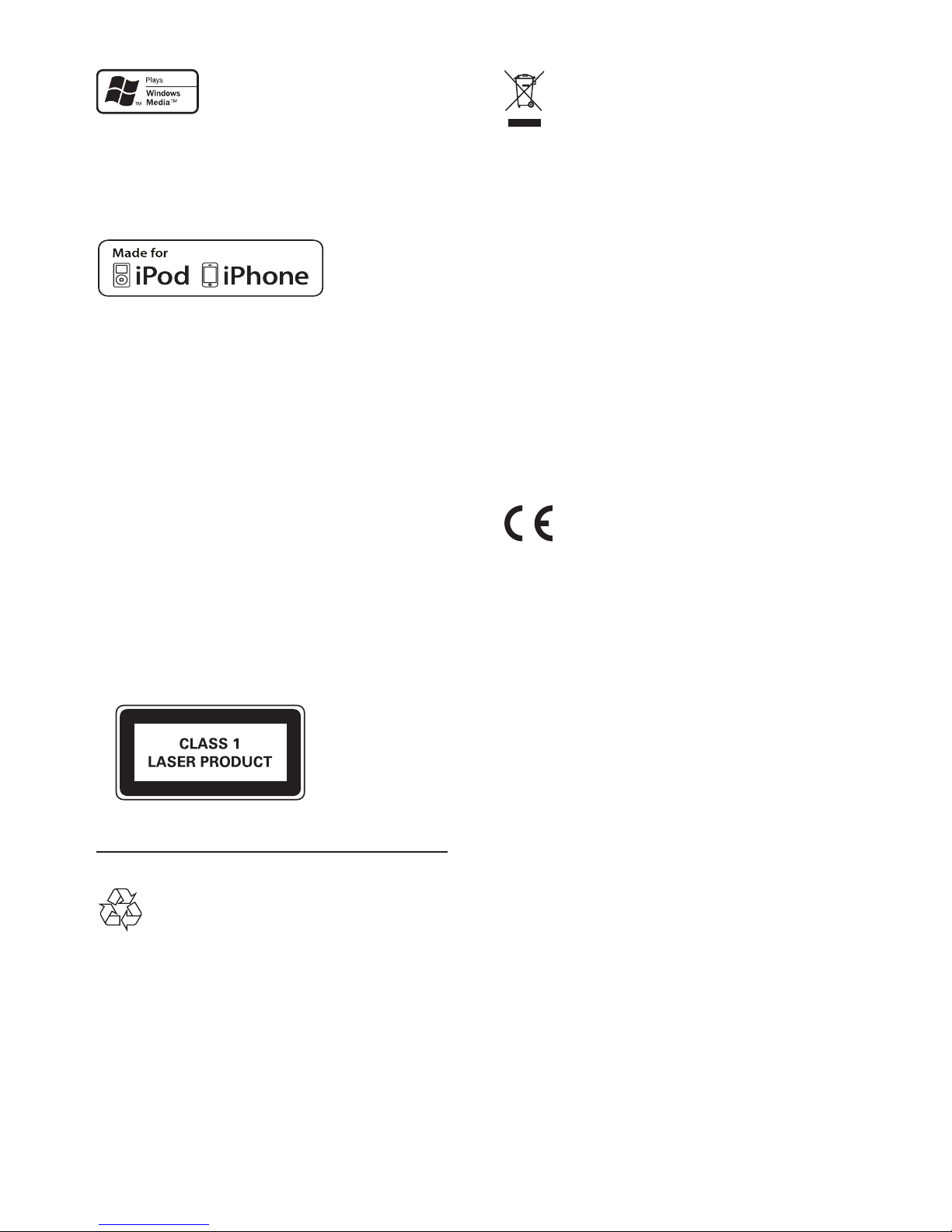

Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
"Made for iPod" and "Made for iPhone"
mean that an electronic accessory has been
designed to connect specically to iPod, or
iPhone respectively, and has been certied by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod, or iPhone
may affect wireless performance.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Thisapparatusincludesthislabel:
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products.The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries.The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
This product complies with the radio
interference requirements of the European
Community.
Environmentalinformation
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Any changes or modications made to this
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
2014 © WOOX Innovations Limited. All rights
reserved.
Specications are subject to change without
notice.WOOX reserves the right to change
products at any time without being obliged to
adjust earlier supplies accordingly.
1177

6EN
2 Yourcaraudio
system
Congratulations on your purchase, and
welcome to Philips! To fully benet from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the in-car audio system, you can enjoy
your drive while you listen to:
• FM or AM (MW) radio
• Audio from CD or MP3 disc
• Audio from your mobile phone
• Audio from a USB drive
• Audio from a SD/SDHC card
• Audio from external devices
Besides, you can make a call, answer and hang
up a call on the audio system.
What'sinthebox
Check and identify the contents of your
package:
a Mainunit(withasleeve)
b Remotecontrol
c Frontpanel
d Trimplate
e Carryingcaseforfrontpanel
f ISOmaleconnector
g Rubbercushion
h Screwx1pc
i Disassemblytoolsx2pcs
j Usermanual
k Quickstartguide
a
f
c
b
kji
c
ccccc
h
g
c

7EN
Overviewofthemainunit
a SOURCE
• Select audio source.
• Display LCD color.
2
• Press to answer or redial a call.
• Press and hold to transfer call.
c MENU
• Press and hold to access system menu.
• Return to previous menu.
• Access music search in iPod/iPhone
mode.

m pno hr q
f g a dc b
us t
lkji
e
d /
• Turn the unit on or off.
• Conrm selection.
• Mute or unmute sound.
• Rotate to adjust volume.
e ZONE/
• Select tuner band.
• Select MP3/WMA folder.
• Switch music listening zone.
• Turn on or off full sound.
• Enter iPod/iPhone control mode.

8EN
f
• Eject disc.
g
• USB socket.
h MP3 LINK
• Connect external audio device.
i
6281'
• Turn maximizing volume on or off.
• View clock.
j DBB
• Turn Dynamic Bass Boost (DBB) sound
on or off.
• Access to tuner auto store.
k
• Select preset radio station No.6.
• Start play.
• Pause or resume play.
l REP/SHUF
• Repeat play.
• Shufe play.
• Select preset radio station No.3/4.
m /
• Select preset radio station No.1/2.
• Search for track/folder.
n /
• Tune for radio station.
• Skip/search for track.
• Fast backward/forward playback.
o DISP
• Display current status.
• Select the dimmer high or low.
p EQ/AUDIO
• Select equalizer (EQ) setting.
• Access audio setting menu.
q
• Unlock the panel.
r
• Press to terminate call.
s RESET
• Restore default settings.
t SDcardslot
u Discslot
Overviewoftheremote
control
a VOL+/-
• Adjust volume.
b /
• Select tuner band.
• Scroll up/down menu.
• Select MP3/WMA folder.
c /
• Tune to a radio station
• Skip track.
• Fast backward/forward playback
d SOURCE
• Select audio source.
e EQ
• Select equalizer (EQ) settings.
f OFF/ /
• Turn the unit on or off.
• Mute or restore volume.
a
b
d
c
e
f

9EN
3 Getstarted
Caution
•Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in
sequence.
If you contact the Consumer Care, you will
be asked for the model and serial number of
this apparatus.The model number and serial
number are on the bottom of your apparatus.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Installthecaraudio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any question regarding installation kits, consult
your local retailer.
Caution
•This unit is designed for negative ground (earth) 12 V
DC operation only.
•Always install this unit in the car dashboard. Other
locations can be dangerous as the rear of the unit heats
up during use.
•To avoid short-circuit: before you connect, ensure that
the ignition is off.
•Ensure that you connect the yellow and red power
supply leads after all other leads are connected.
•Ensure that all loose leads are insulated with electrical
tape.
•Ensure that the leads do not get caught under screws
orin parts that will move (e.g. seat rail).
•Ensure that all ground (earth) leads are run to a
common ground (earth) point.
•Use only the supplied mounting hardware for a safe
and secure installation.
•Improper fuses can cause damage or re. When you
need to change the fuse, consult a professional.
Noteonthepowersupplylead(yellow)
• When you connect other devices to this
apparatus, ensure that the rating of the car
circuit is higher than the total fuse value of
all the connected devices.
Notesonspeakerconnection
• Never connect speaker wires to the metal
body or chassis of the car.
• Never connect speaker wires with stripes
to one another.
Connection:forcarswithISO
connectors
Caution
•Ensure that all loose leads are insulated with electrical
tape.
Note
•Consult a professional to connect CEM5100 as
instructed below.
1 Connect the supplied male connector to
the unit.
2 Check the car's wiring carefully and
connect them to the the supplied male
connector.
Note
•Risk of danger! Please consult a professional to perform
the steps below!

10 EN
1 Green/black
strip
Left speaker (Rear)
2 White/black
strip
Left speaker (Front)
3 Gray/black
strip
Right speaker (Front)
4 Purple/black
strip
Right speaker (Rear)
e Red Ignition key +12V DC when
ON/ACC
f Blue Motor/electric antenna relay
control lead
g White-edged
blue strip
Amplier relay control lead
h Black Ground
i Yellow To the +12V car battery
which is energized at all
times
3 Connect the antenna and amplier as
illustrated, if applicable.
Connector Connectto
1 ANTENNA Antenna
2 FRONT LINE OUT R
(Socket)
Frontright
speaker
3 FRONT LINE OUT L
(Socket)
Frontleft
speaker
4 REAR LINE OUT R
(Socket)
Rearright
speaker
5 REAR LINE OUT L
(Socket)
Rearleftspeaker
6 OE REMOTE (Purple) OERemote
7 SUBWOOFER (Blue) Subwoofer
8 REAR AUX LINE OUT
R
RearAuxright
9REAR AUX LINE
OUT L
RearAuxleft
Tip
•The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Be sure to make
proper connections to prevent damage to the unit.
f
g
h
REAR FRONT
R
L
REAR AUX LR
i

11EN
Mountintothedashboard
1 If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
• If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
• If the car battery is not disconnected,
to avoid short-circuit, ensure that the
bare wires do not touch each other.
2 Ensure that car dashboard opening is
within these measurements:
3 Remove the mounting sleeve with the
supplied disassembly tools.
4 Install the sleeve into the dashboard and
bend the tabs outward to x the sleeve.
Note
•If the unit is not xed by sleeve but by the supplied
screws, skip this step.
183 mm
53mm
5mm
5 Place the supplied rubber cushion over the
end of the mounting bolt.
6 Slide the unit into the dashboard until you
hear a click.
183 mm
53.5 mm

12 EN
7 Reconnect the negative terminal of the car
battery.
Attachthefrontpanel
1 Attach the trim plate.
2 Insert the right side of the panel in the
chassis until it is correctly engaged.
3 Press the left side of the panel until the
mechanism locks it into place.
Installremotecontrolbattery
Caution
•Risk of explosion! Keep batteries away from heat,
sunshine or re. Never discard batteries in re.
•Risk of decreased battery life! Never mix different
brands or types of batteries.
•Risk of product damage! When the remote control is
not used for long periods, remove the batteries.
•Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
Forrst-timeuse:
Remove the protective tab to activate the
remote control battery.
Toreplacetheremotecontrolbattery:
1 Open the battery compartment.
2 Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3 Close the battery compartment.
Turnon
To turn the unit on,
• press .
To turn the unit off,
• press and hold until the unit is
turned off.
Selectcountry/region
Note
•Select correct country/region for this unit, otherwise
the unit can not work properly.
1 Press to turn the unit on.
» [SELECTOPERATINGREGION] is
displayed.
2 Rotate to select an option:
• [USA] (United States)
• [LATIN] (Latin America)
• [EUROPE] (Western Europe)
• [RUS] (Russia)
• [M-EAST] (Middle East)
• [ASIA] (Asia Pacic)
• [JAP] (Japan)
• [AUST] (Australia)
3 Press to conrm.

13EN
Setclock
1 Press MENU repeatedly until current time
is ashed.
2 Rotate to set hour.
3 Press to conrm.
4 Rotate to set minute.
5 Press to conrm.
Setclockformat
1 Press MENU.
2 Press or repeatedly until [CLOCK
FORMAT] is displayed.
3 Rotate to select a setting:
• [CLOCK12H]
• [CLOCK24H]
Viewclock
In any mode, press and hold MAXSOUND
until the clock is displayed.
• Press any key to cancel the clock
display.
4 Listentoradio
Tunetoaradiostation
1 Press SOURCE repeatedly to select radio
mode.
2 Press / repeatedly to select band:
[FM1], [FM2], [FM3], [AM1], or [AM2] .
3 Press and hold or until the
frequency digit is ashed.
4 Press or to tune to a radio station
manually.
» The radio station is broadcast.
• To search for a radio station automatically,
press or .
Selecttunerregion
You can select suitable country/region of the
radio.
1 Press SOURCE to select radio mode.
2 Press and hold MENU repeatedly until
[AREA] is displayed..
3 Rotate to select:
• [USA] (United States)
• [LATIN] (Latin America)
• [EUROPE] (Western Europe)
• [M-EAST] (Middle East)
• [ASIA] (Asia Pacic)
• [JAP] (Japan)
• [AUST] (Australia)
4 Press to conrm.
Selecttunersensitivity
To receive more radio stations or only stations
with strong signal, you can adjust the tuner
sensitivity.
1 Press and hold MENU repeatedly until
[LOCAL] is displayed.

14 EN
2 Rotate to select a setting:
• [LOCALON] (local on): Only
stations with strong signal can be
broadcast.
• [LOCALOFF] (local off): Stations
with strong and weak signals can be
broadcast.
Storeradiostationsin
memory
You can store up to six stations in each band.
Storestationsautomatically
1 In radio mode, press and hold DBB until
[STORE---] is displayed.
2 Press to conrm.
» The six strongest stations of the
selected band are saved in the preset
channel automatically.
Storestationsmanually
1 Tune to a station that you want to store.
(see 'Tune to a radio station' on page 12)
2 Press a numeric button for three seconds.
» The station is saved in the selected
channel.
Tunetoapresetstation
1 In radio mode, press / to select band.
2 Press a numeric key to select a preset
station.
5 Usebluetooth
devices
With this car audio system, you can listen
to audio les from a player or make a call
if bluetooth connection is available on your
phone or player.
Pairingbluetoothdevices
You can pair your bluetooth device with the
unit as follows:
Note
•For pairing operation, make sure to switch on the [BT
MODE]on the unit.
1 Turn on bluetooth function on your device.
2 Search for other bluetooth devices that
can pair with your device.
3 Select "Philips" in the pairing list.
4 Enter default password "0000".
» [PAIROK] is displayed on the panel if
pairing is successful.
» The paired device connect to the car
audio system automatically.
Todisconnectthebluetooth
1 Press and hold MENU.
» [BTDISCONN] is displayed.
2 Press / .
» [DISCONNOK] is displaysedif
disconnection is successful.
Toconnectthebluetooth
1 Press and hold MENU.
» [BTCONNECT] is displayed.

15EN
2 Press / .
» [WAITING] is displayed.
» [CONNECTED] is displayed if
connection is successful.
» [FAILED] is displayed if connection is
failed.
Makeacall
Note
•To make an outgoing call on this unit, the bluetooth
connection between the unit and the phone must be
active.
You can dial number through the mobile phone.
Tomakecallthroughthemobilephone.
1 Use the Mobile Phone to dial and make an
outgoing call.
2 Once completed the dialing, [CALLING]
is displayed.
• Toredialnumber.
1 Press .
» [REDIAL] is displayed.
2 Press / again.
» [CALLING] is displayed and the unit
starts dialing the number dialed last
time.
Calltransfer
You can transfer voice from loudspeaker to
mobile phones during call.
Press and hold until [TRANSFER] is displayed.
» Voice transfers from loudspeaker to
mobile phone.
Receivecall
1 If there is incoming call, the phone number
is displayed.
• if the incoming call has no phone
number, [PHONEIN] is displayed.
2 Press to answer/accept the call.
Terminatecall
Press to terminate call.
Playaudiolesfrom
bluetoothdevices
You can listen to audio from a bluetooth device
and control playback with the unit.
Press SOURCErepeatedly to select [BT
AUDIO].
• To start play, press / .
Note
•Some mobile phone supports auto playback, no need
to start play manually.
•Some mobile phone needs to open the Media Players
for audio les wireless playback.
• To pause, press / again.
• To track up/down, press / .

16 EN
6 PlaywithRDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, the station name are displayed.
TurnonRDS
Note
•The default setting for RDS is on.
1 Press and hold MENU.
2 Press or repeatedly until [RDS] is
displayed.
3 Rotate to select RDSON:
» The RDS function is turned on.
Selectprogramtype
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1 Press and hold MENU.
2 Press or repeatedly until [PTY] is
displayed.
3 Press to conrm.
4 Rotate to select a type, then press to
conrm.
Item Program
type
Description
1NEWS News services
2AFFAIRS Politics and current
affairs
3INFO Special information
programs
4SPORT Sports
5EDUCATE Education and advanced
training
6DRAMA Radio plays and
literature
7CULTURE Culture, religion and
society
8SCIENCE Science
9VARIED Entertainment programs
10 POPM Pop music
11 ROCKM Rock music
12 EASYM Light music
13 LIGHTM Light classical music
14 CLASSICS Classical music
15 OTHERM Special music programs
16 WEATHER Weather
17 FINANCE Finance
18 CHILDREN Children’s programs
19 SOCIAL Social Affairs
20 RELIGION Religion
21 PHONEIN Phone In
22 TRAVEL Tr ave l
23 LEISURE Leisure
24 JAZZ Jazz Music
25 COUNTRY Country Music
26 NATIONM National Music
27 OLDIES Oldies Music
28 FOLKM Folk Music
29 DOCUMENT Documentary
30 TEST Alarm Test
31 ALARM Alarm
Selectalternatefrequencies
The AF (Alternate Frequency) turns on
automatically when you start your car audio.
SetregionforAFtuning
You can dene AF tuning region:
[REG
ON]
Only stations in current region can
be tuned to automatically.
[REG
OFF]
All stations can be tuned to
automatically.

17EN
1 Press MENU.
2 Press or repeatedly until [REG] is
displayed.
3 Rotate to select a setting.
Receivetrafcannouncement
The TA (Trafc Announcement) turns on
automatically when you start your car audio.
Note
•If the current received TA signal remains weak for
over 120 seconds, the unit will activate TA Seek mode
automatically.The TA Seek will seek for other station
with good condition of TA signal.
SetRDSclock
You can use time signal that is broadcast
together with the RDS signal to set the clock of
the unit automatically.
1 Press and hold MENU.
2 Press or repeatedly until [CT] is
displayed.
3 Rotate to select a setting:
• [CTON]: turn the RDS clock on.Time
shown on the unit synchronizes with
that on the RDS station.
• [CTOFF]: turn the RDS clock off.
Tip
•The accuracy of the transmitted time depends on the
RDS station that transmits the time signal.
7 Playaudiofiles
Note
•Ensure that the disc or device contains playable les.
Playadisc
Note
•You cannot play CDs encoded with copyright
protection technologies.
You can play commercially available audio CDs
and these discs:
• CD-Recordables (CD-R)
• CD-Re-writables (CD-RW)
• MP3 CDs
• WMA CDs
Note
•Ensure that the disc contains playable content.
Insert a CD with the printed side facing up.
» Play starts automatically.
• To pause CD play, press .
• To resume CD play, press again.
• To skip to the previous/next track, press
or .
• To search backward/forward rapidly within
the current track, press or for 3
seconds.
RemovetheCD
To take out the CD, press on the front panel.
Tip
•If the disc is blocked in the disc compartment, press and
hold until the disc comes out.

18 EN
PlayfromUSB
Note
•Ensure that the USB device contains playable music.
InserttheUSBdevice
1 Slide the USB socket cover marked to
the left.
2 Insert the USB device into the USB socket.
» The unit starts playing from the USB
device automatically.
RemovetheUSBdevice
1 Press to turn the unit off.
2 Remove the USB device.
Insertacard
Note
•This unit supports SD and SDHC cards.
1 Press to release the panel.
2 Insert the card into the card slot.
3 Close the front panel.
» The unit starts playing from the card
automatically.
Removethecard
1 Press to turn the unit off.
2 Press the card until you hear a click.
» The card is now disengaged.
3 Remove the card.
PlayfromiPod/iPhone
You can enjoy audio from iPod/iPhone through
this unit.
CompatibleiPod/iPhone
Apple iPod and iPhone models with a 30-pin
dock connector:
Made for.
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
Works with.
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone

19EN
ConnectiPod/iPhone
1 Slide the USB socket cover marked to
the left.
2 Insert USB adaptor on one end of iPod/
iPhone cable to the USB socket on the
main unit.
3 Insert the other end of the iPod/iPhone
cable to the iPod/iPhone socket.
» The unit starts playing from the USB
device automatically.
ControlmusicplaybackoniPod/
iPhone
1 Ensure that the iPod/iPhone is connected
correctly.
2 Press SOURCE to select iPod USB mode.
3 Press repeatedly to toggle between the
two control modes:
• iPodcontrolmode: Use the buttons/
touch screen on iPod/iPhone to
control the music.
• Audiocontrolmode: Use the control
buttons on car audio to control the
music.
Tocontrolplaybackunderaudiocontrol
mode:
• To pause/resume play, press .
• To skip to a track, press / .
• To search during play, press and hold
/ , then release to resume
normal play.
• To navigate the menu, press , rotate
to select, then press to conrm.
Searchforatrack
1 Press SOURCE repeatedly to select iPod
mode.
2 Press to browse iPod/iPhone menu.
3 Rotate to select the Artist search mode,
and press to conrm.
4 Press DISP to search alphabetically.
5 Rotate to select desired artist, then
press to conrm.
6 Rotate to select desired song in current
album.
7 Press to start play.
Note
•User cannot control the music via iPod/iPhone under
audio control mode.
Playoptions
SearchforanMP3/WMAtrack
Searchwithinthecurrentfolder
1 Press .
» The name of the current track is
displayed.
2 Rotate to select anther track in current
folder.
3 Press to conrm.
Searchinotherfolder
1 Press .
» The name of the current folder is
displayed.
2 Rotate to navigate through all folders.

20 EN
3 Press to access the selected folder.
» The unit starts playing the rst song
from the selected folder automatically.
Tip
•To go back to upper level of a folder, press .
Viewplayinformation
During playing, press DISP repeatedly to view:
• Track number and elapsed play time
• Folder
• File
• Album
• Artist
• Title
Repeatplay
1 During play, press REP.
» [REPEAT] is displayed.
2 Rotate to select a setting.
• [REPEATTRK] (repeat one track): play
current track repeatedly.
• [REPEATFLD] (repeat a folder): play all
tracks in the current folder repeatedly.
• [REPEATALL] (repeat all tracks): play all
tracks repeatedly.
Shufeplay
You can play the tracks in random order:
1 During play, press SHUF.
» [SHUFFLE]is displayed.
2 Rotate to select a setting:
• [SHUFFLEFLD]: start random play for
all tracks in the current folder.
• [SHUFFLEALL]: start random play for
all tracks.
• [SHUFFLEOFF] : cancel shufe play.
Connectexternalsound
source
1 Connect the external sound source to
MP3 LINK socket with a 3.5 mm cable.
2 Press SOURCE repeatedly until [MP3
LINK] is displayed.
3 Operate the external component (refer to
the instructions supplied with the external
component).
