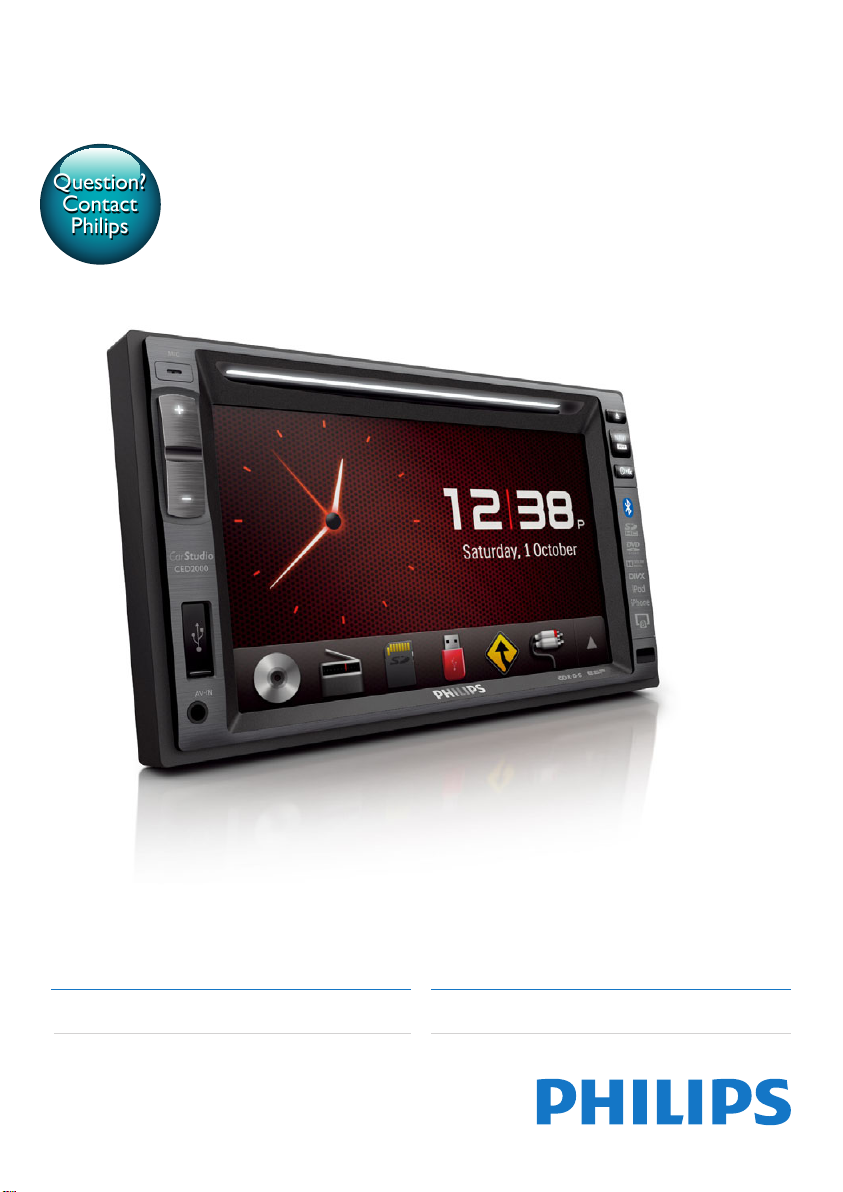

Philips CED2000 User manual

Register your product and get support at
www.philips.com/welcome
Always there to help you
使用手冊 45User manual 1
CED2000
Question?
Contact
Philips

1
English
EN
Contents
1 Safety 3
2 Your car entertainment system 4
Introduction 4
What's in the box 4
Overview of the main unit 5
Overview of the remote control 6
3 Install the car entertainment system 7
Connect wires 8

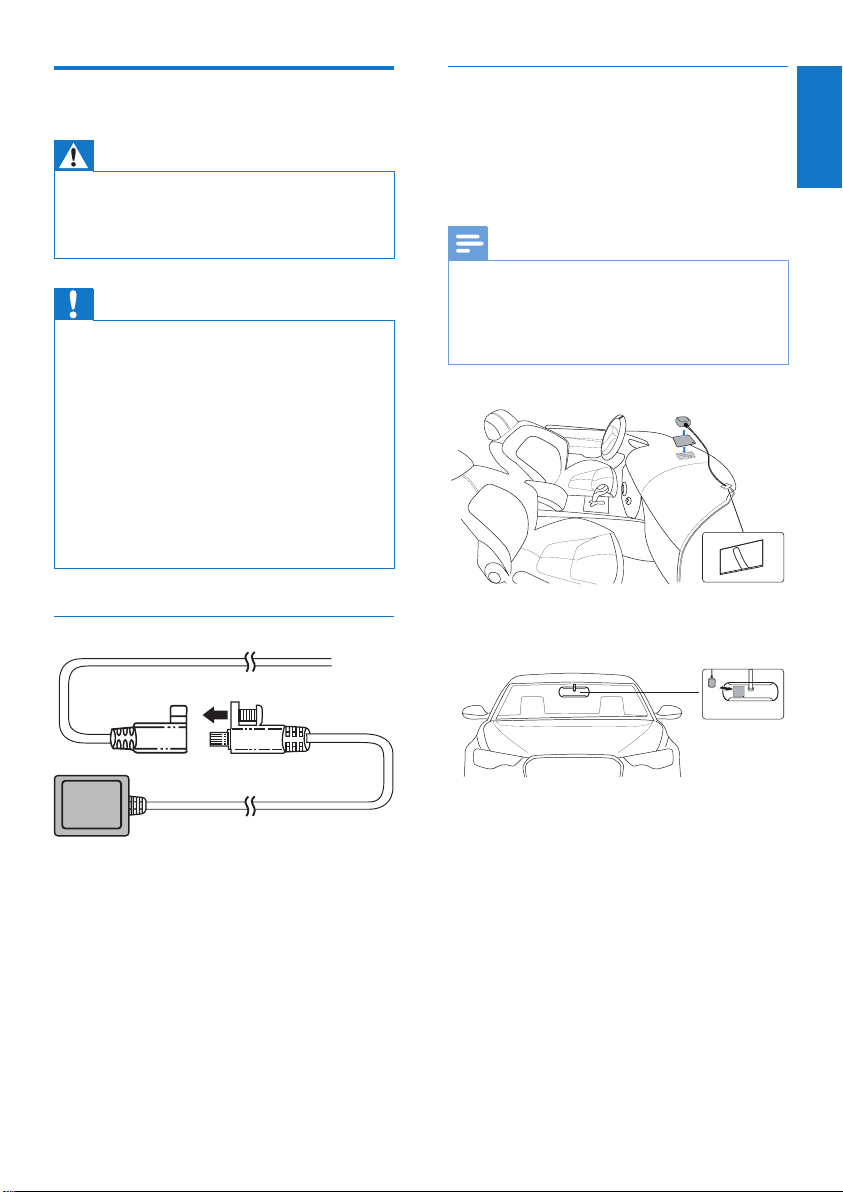

About the GPS antenna 11
Mount into the dashboard 12
4 Get started 13
Prepare the remote control 13
Turn on 13

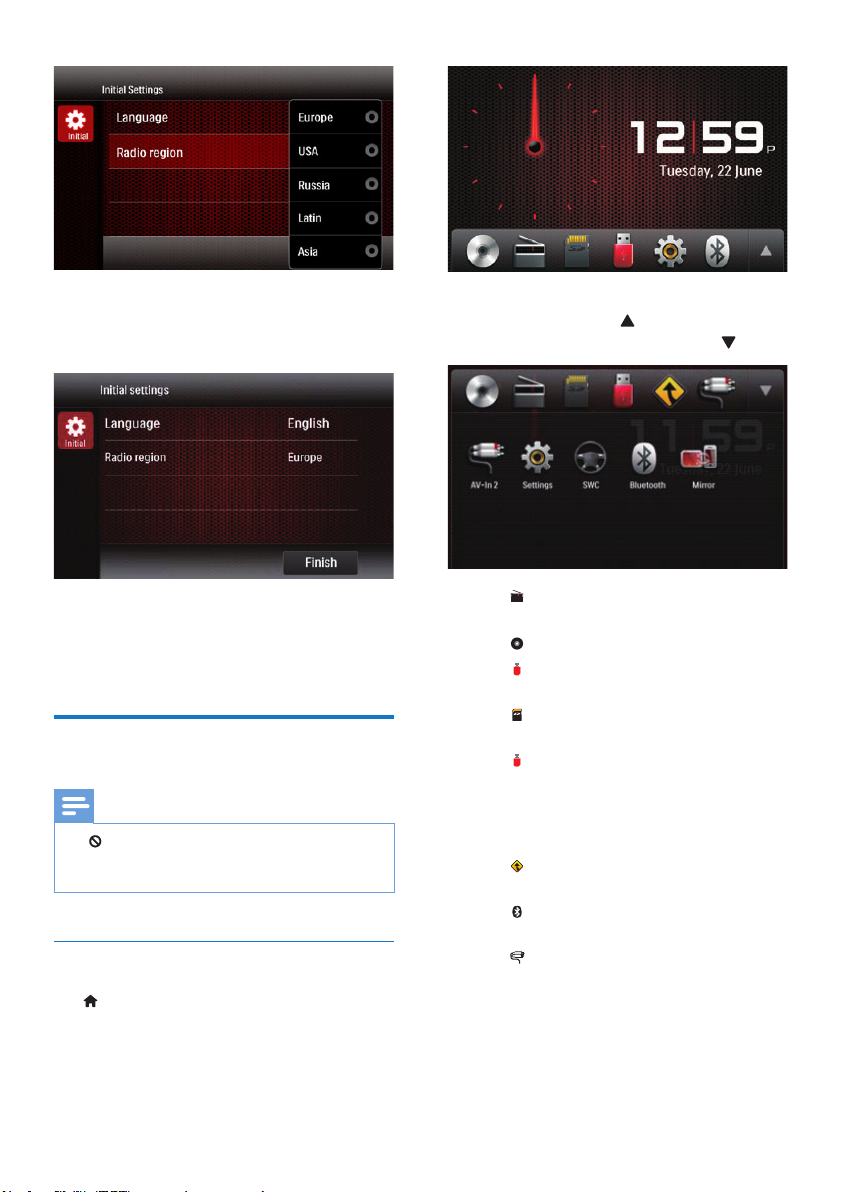

Use the home menu 14
Set the date and time 15

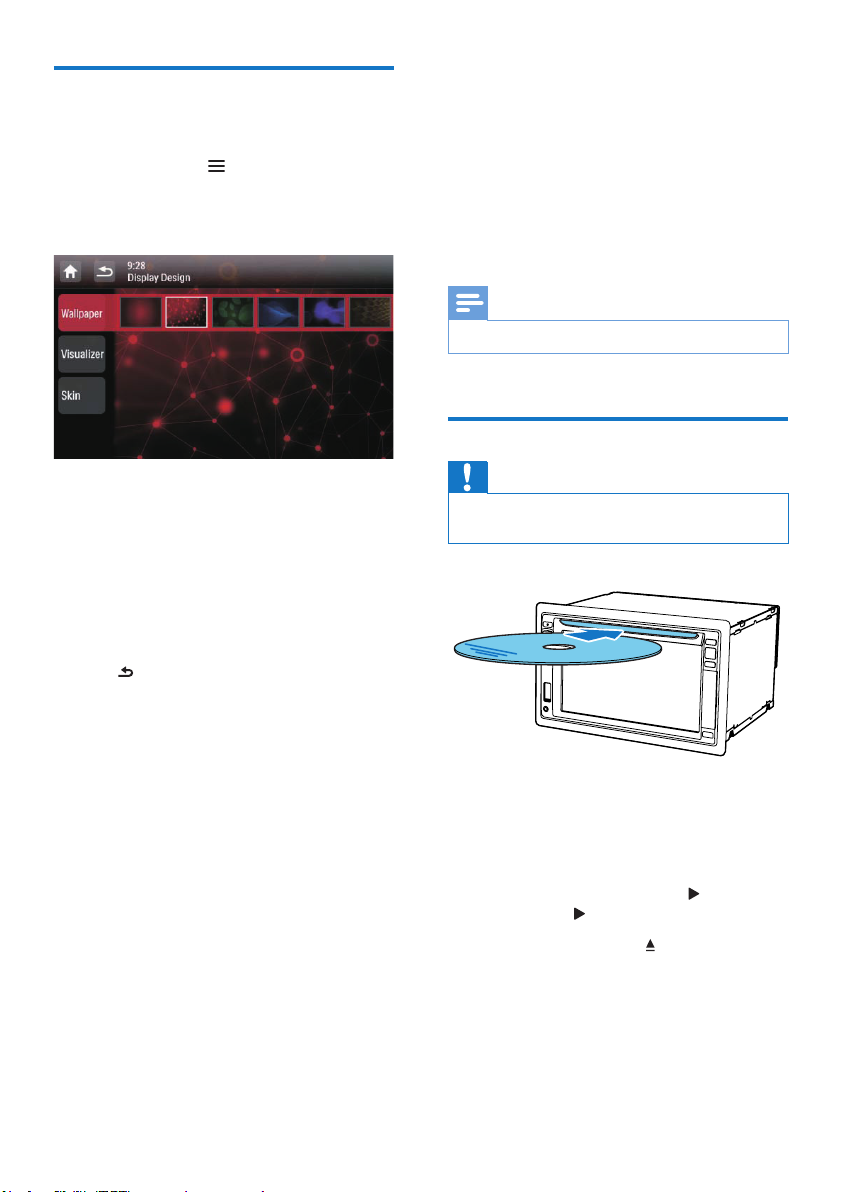

Switch display designs 16
5 Play from hard media 16
Load a disc 16
Connect a USB storage device 17
Insert an SD/SDHC card 17

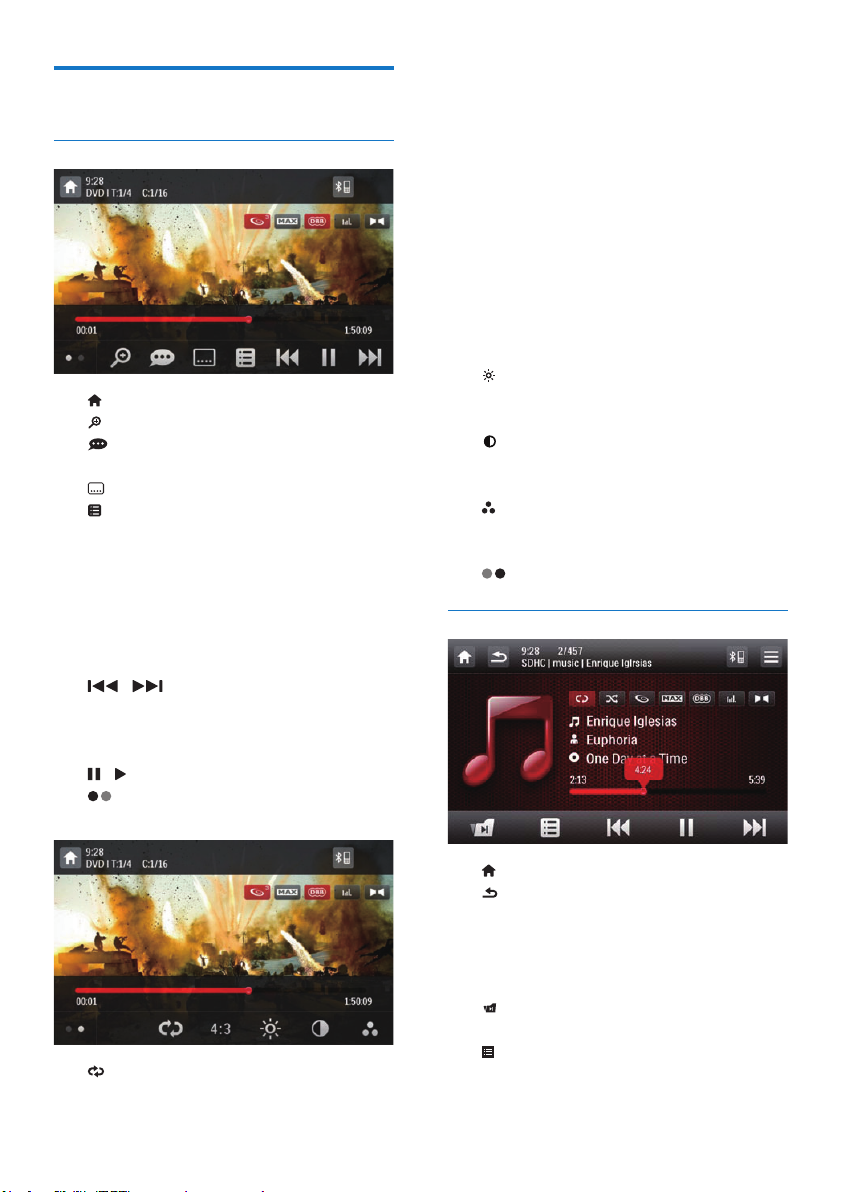

Control play 18
Browse recorded les 19
About DivX® videos 19
6 Listen to radio 21
Switch to radio mode 21
Set up 21
Tune to a radio station 21
Store radio stations in memory 22
Tune to a preset radio station 22
Use RDS related features 22
7 Use the navigation system 24
Insert the map data card 24
Navigate your road trip 24
8 Use Bluetooth devices 25
Activate the Bluetooth function 25
Pair a device 25
Play audio from a connected device 27
Make a call 28
9 Play from an iPod/iPhone 30
Compatible iPod/iPhone models 30
Connect your iPod/iPhone 30
Control play 31
Charge your iPod/iPhone 31
10 Smart Connect Link 32
11 Unisersal USB Charging 32
12 Adjust sound 33
Adjust the volume level 33
Mute sound 33
Enable the MAX Sound effect 33
Enable the DBB sound effect 33
Enable the FullSound effect 33
Select a preset sound equalizer 33
Others 34
13 Adjust settings 35
Access system setup menus 35
Adjust general settings 36
View system information 36
Adjust Navigation settings 37
Adjust Bluetooth settings 37
14 Others 38
Play external audio/video input 38
Use buttons on the steering wheel 38
Reset the system 39
Replace the fuse 39
Upgrade the rmware 39

2EN
15 Product information 40
16 Troubleshooting 42
General 42
About the Bluetooth device 43

3
English
EN
1 Safety
Read and understand all instructions before you
use the device. If damage is caused by failure to
follow instructions, the warranty does not apply.
• Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
• The device is designed for negative ground
(earth) 12 V DC operation only.
• To reduce the risk of trafc accidents, do
not watch video when driving.
• To ensure safe driving, adjust the volume to
a safe and comfortable level.
• Improper fuses can cause damage or
re. When you need to change the fuse,
consult a professional.
• Use only the supplied mounting hardware
for a safe and secure installation.
• To avoid short circuits, do not expose the
device, remote control or remote control
batteries to rain or water.
• The device shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on
the device (e.g. liquid lled objects, lighted
candles).
• Never insert objects into the ventilation
slots or other openings on the device.
• Never place any objects other than discs
into the disc tray/slot.
• To avoid exposure to laser radiation, do
not disassemble the device.
• Risk of damage to the screen! Never touch,
push, rub or strike the screen with any
object.
• Never use solvents such as benzene,
thinner, cleaners available commercially, or
anti-static sprays intended for discs.
• Clean the device with soft, damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners on the
device.
• Risk of swallowing batteries! A coin
type battery is bundled, which can be
swallowed. Keep the battery out of reach
of children at all times!

4EN
2 Your car
entertainment
system
Congratulations on your purchase, and
welcome to Philips! To fully benet from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you can
• listen to music,
• watch videos,
• view pictures,
• listen to FM (RDS included) and AM/MW
radio,
• make phone calls via Bluetooth, and
• navigate your road trip.
What's in the box
Check and identify the contents of the package:
1Main unit 2Remote
control
3ISO male connector
X 2
4Rubber
cushion
5Screw X 4
(M5x8mm)
6Hexagon
head screw
7Remote control
battery
8GPS
antenna
9Use manual
ab
cd
ef g
hi

5
English
EN

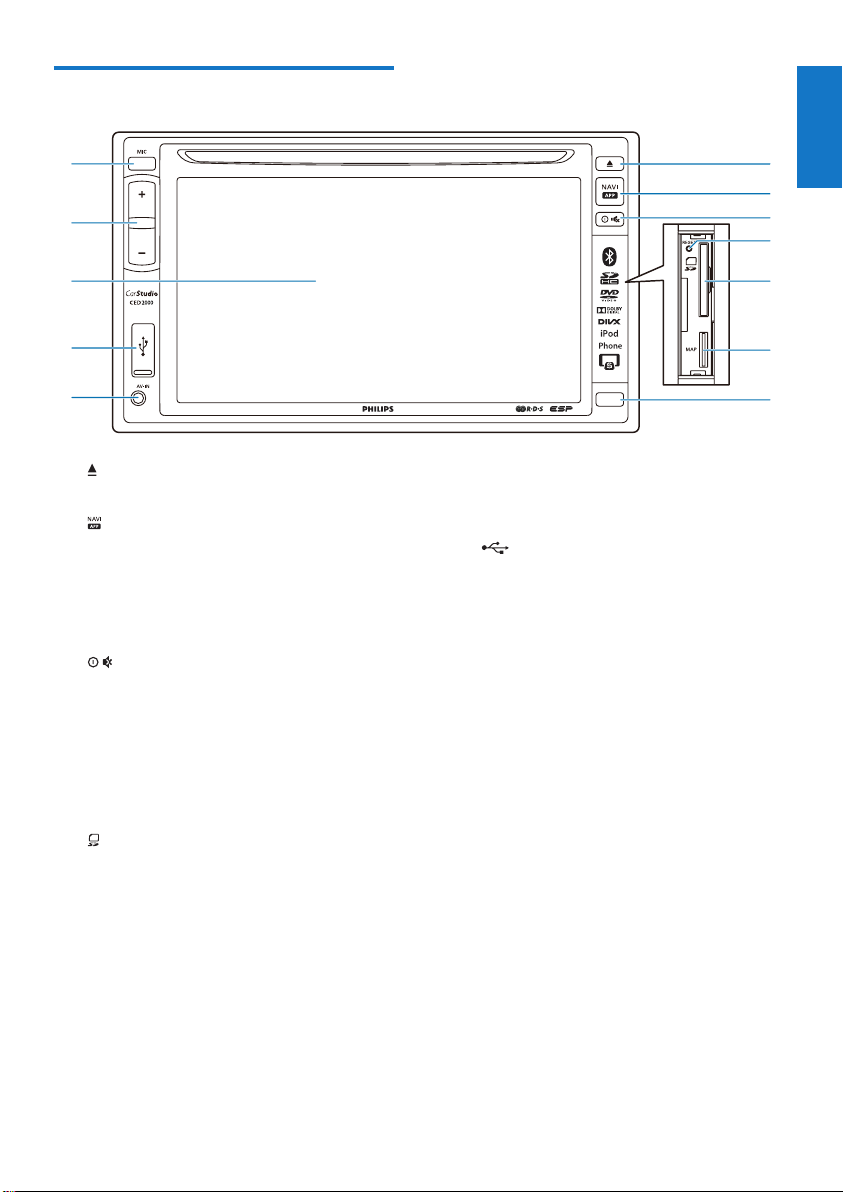

Overview of the main unit
a
• Press to eject the disc.
b
• Press to access the navigation system.
• Press and hold to pop up virtual
control buttons, only available when an
external smart link box(not supplied) is
connected with the system.
c
• Press to turn on the unit.
• Press and hold to turn off the unit.
• Press to mute the speakers or release
them from mute status.
d RESET
• Press to reset the system.
e
• Insert an SD/SDHC card.
f MAP
• Insert a microSD card that stores the
digital map data.
g iR sensor
• The sensor that receives infra-red
signals from the remote control.
i
j
h
a
b
c
e
f
g
d
l
k
h AV-IN
• Connect to the audio and video
output sockets of an external player by
a composite AV cable.
i
• Connect to a USB storage device or
iPod/iPhone.
j LCD screen
k +/-
• Press to increase or decrease the
volume.
l MIC
• The built-in microphone for phone
calls.

6EN

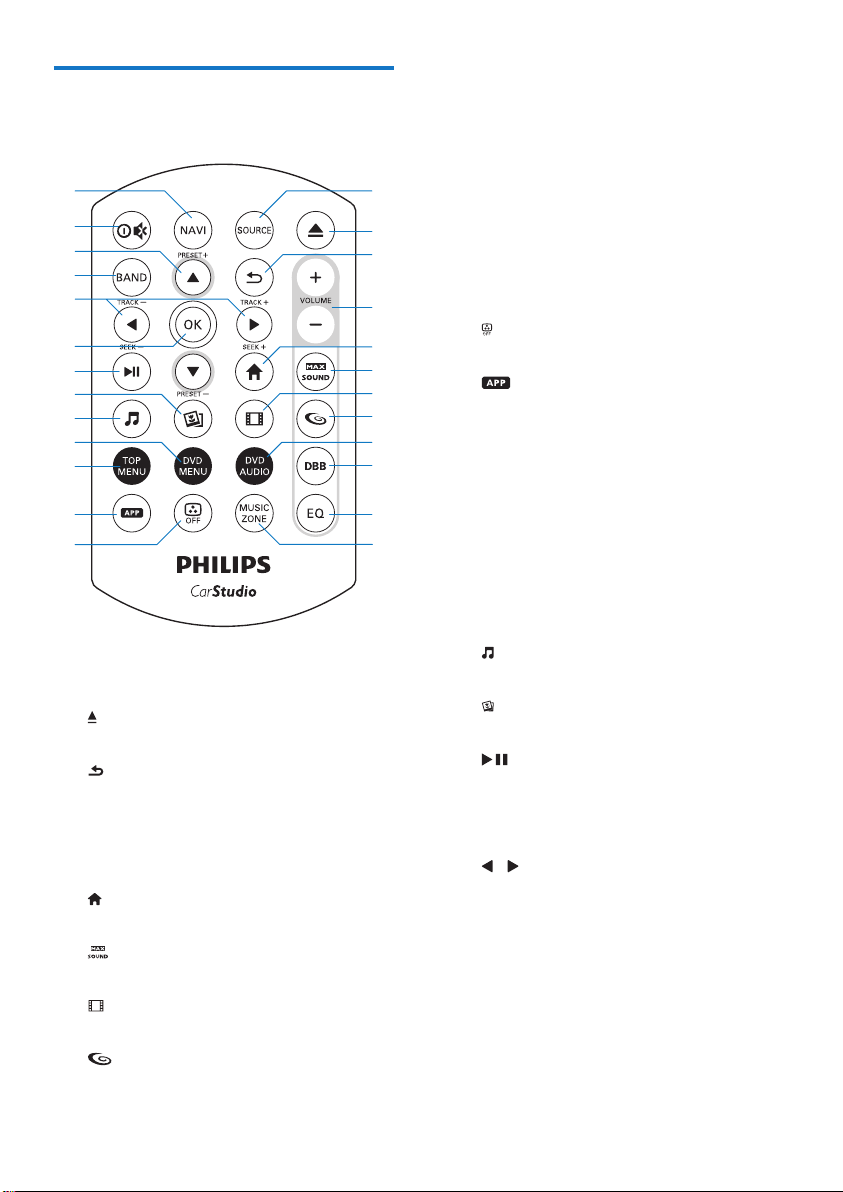

Overview of the remote
control
a SOURCE
• Press repeatedly to select a source.
b
• Press to eject the disc.
c
• Return to the previous menu or mode.
d VOLUME + / -
• Press to increase or decrease the
volume.
e
• Access the home menu.
f
• Enable or disable the maximum sound.
g
• Switch to video playback mode.
h
• Enable or disable the FullSound effect.
b
c
a
d
f
h
g
e
j
i
k
l
x
w
y
v
t
u
s
q
o
p
r
n
m
i DVD AUDIO
• Select an audio language or audio
channel.
j DBB
• Enable or disable the DBB (Dynamic
Bass Boost) sound effect.
k EQ
• Select a preset sound equalizer.
l MUSIC ZONE
• Select a music listening zone.
m
• Turn on or off the screen.
n
• Press and hold to pop up virtual
control buttons, only available when an
external smart link box(not supplied) is
connected with the system. tch to the
control interface for front source or
rear source.
o TOP MENU
• Return to top menu.
p DVD MENU
• Access the DVD menu.
q
• Switch to music playback mode.
r
• Switch to picture slideshow mode.
s
• Start, pause, or resume the play.
t OK
• Conrm an option.
u / /TRACK -/TRACK +
• Skip to the previous or next track,
chapter, or le.
• For DVD, press and hold to select a
speed for fast backward or forward
search.
v BAND
• Select a tuner band.

7
English
EN
w / /PRESET +/PRESET -
• Tune to the previous or next preset
radio station.
• Skip to the previous or next folder.
x
• Press to turn on the system.
• Press and hold to turn off the system.
• Press to mute the speakers or release
them from mute status.
y NAVI
• Press to access the navigation system.
3 Install the car
entertainment
system
Always follow the instructions in this chapter in
sequence.
These instructions are for a typical installation.
However, if your car has different requirements,
make the adjustment accordingly. If you have
any question regarding installation kits, consult
your local retailer.
Note
•This system is designed for negative ground (earth) 12V
DC operation only.
•Always install this system in the car dashboard. Other
locations can be dangerous as the rear of the system
heats up during use.
•To avoid short-circuit: before you connect, make sure
that the ignition is off.
•Make sure that you connect the yellow and red power
supply leads after all other leads are connected.
•Make sure that all loose leads are insulated with
electrical tape.
•Make sure that the leads do not get caught under
screws iron parts that will move (e.g. seat rail).
•Make sure that all ground (earth) leads are run to a
common ground (earth) point.
•Use only the supplied mounting hardware for a safe
and secure installation.
•Improper fuses can cause damage or re. When you
need to change the fuse, consult a professional.
•When you connect other devices to this system, make
sure that the rating of the car circuit is higher than the
total fuse value of all the connected devices.
•Never connect speaker wires to the metal body or
chassis of the car.
•Never connect speaker wires with stripes to one
another.

8EN

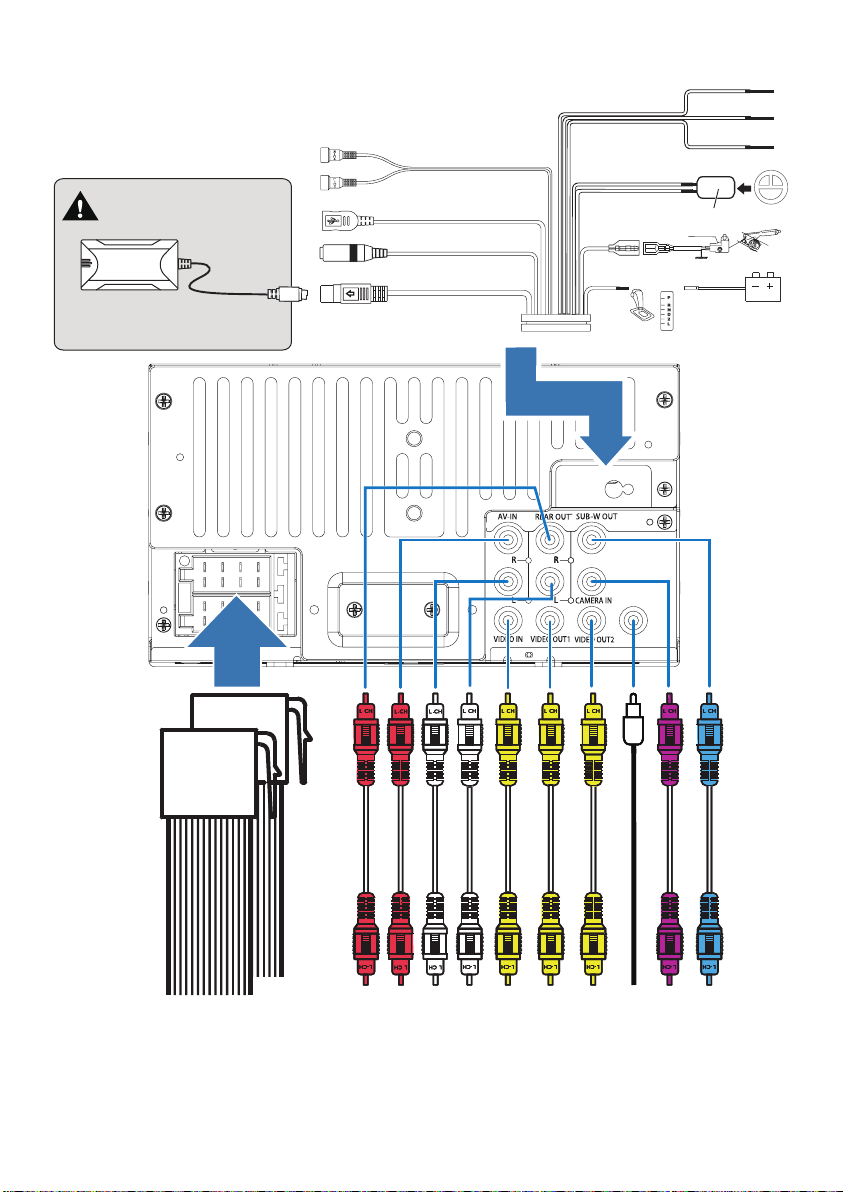

Connect wires
Note
•Make sure that all loose leads are insulated with
electrical tape.
•Consult a professional to connect wires as instructed
below.
•Before connection, check the car's wiring carefully.
1 Connect the ISO male connectors.
ISO male connectors Connect to
1 Green strip, black-
edged green strip
Rear left speaker
2 White strip, black-
edged white strip
Front left speaker
3 Gray strip, black-
edged gray strip
Front right speaker
4 Purple strip, black-
edged purple strip
Rear right speaker
e Red strip Ignition key +12V
DC when ON/ACC
f Blue strip Motor/electric
antenna relay
control lead
g Blue strip, white strip Amplier relay
control lead
h Black strip Ground
i Yellow strip The +12V car
battery which is
energized at all times
2 Connect other wires if necessary.
Caution
•To avoid an accident, the driver must not watch video
while driving. By design, this system disallows watching
video during drive. Park your car in a safe place and
engage the parking brake before watching video.
Note
•When the parking brake of your vehicle is not engaged,
the video blocking system is activated. It blocks the
display of front video source only.
•If the system is not properly connected with the
parking brake control module of your vehicle, video
signals will be blocked by the system, with the below
message displayed on the TFT.
Connectors and
sockets on rear panel
External sockets
or connectors
1 For ISO male
connectors
As indicated
above
2REAR OUT R (Red
socket)
Rear right
speaker
3AV-IN R(Red socket) Right audio
channel output
socket of an
external player
4AV-IN L(White socket) Left audio
channel output
socket of an
external player
5REAR OUT L (White
socket)
Rear left speaker
6VIDEO IN (Yellow
socket)
Video output
socket of an
external player

9
English
EN
Connectors and
sockets on rear panel
External sockets
or connectors
7VIDEO OUT 1 (Yellow
socket)
Video input
socket of an
external display
device
8VIDEO OUT 2 (Yellow
socket)
Video input
socket of an
external display
device
9RADIO ANTENNA
(Green socket)
Radio antenna
10 CAMERA IN (Purple
socket)
Video output
socket of an
external camera
11 SUB-W OUT (Blue
socket)
Sub-woofer
12 REVERSE CAMERA
(Purple wire)
Reverse camera
(B+)
13 PARKING BRAKE
(Pink wire)
Parking brake (-)
14 OE SWC IR REMOTE
IN (Brown wire)
OE SWC
remote in
15 OE SWC IR REMOTE
IN (Black wire)
Ground
16 OE SWC AD LEARN
(White wire)
OE SWC AD
Learn line 1
17 OE SWC AD LEARN
(White wire)
OE SWC AD
Learn line 2
18 OE SWC AD LEARN
(Black wire)
Ground
19 EXTERNAL BOX
CONNECTOR (Black
connector)
External
navigation box
20 External Mic (Black
connector)
External
microphone
21 GPS AERIAL (Black
connector)
GPS smart
antenna
22 FRONT OUT R (Red
connector)
Front right
speaker
23 FRONT OUT L
(White connector)
Front left speaker
Tip
•The pin arrangement for the ISO connectors depends
on the type of your vehicle.To avoid damage to the
system, connect properly.

10 EN
(Not Supplied)
m
n
o
p
q
r
s
t
u
v
w
a
bcde fghijk
l
External box is not supplied
Please contact
connection of External box.
with this unit.
your dealer for details

11
English
EN
About the GPS antenna
Warning
•Risk of injury: Never install the antenna and its
accessories on the airbag cover.
•Risk of swallowing parts: Keep the antenna and
accessories out of the reach of children.
Caution
•Risk of electromagnetic interference: Do not install the
GPS antenna over any sensors or vents.
•Risk of short circuit, malfunction, or damage to your car
navigation system: Do not alter the GPS antenna cable
or dismantle the antenna box.
•Risk of poor reception: Use the supplied metal sheet
only, and never cut or distort it; do not paint the GPS
antenna.
•Risk of damage to the GPS antenna cable: Never pull
the antenna cable when you remove the antenna.
•Risk of scratching your car:The GPS antenna box has
a magnet.When you install or remove it, do not drag it
on any metal surface.
Connect the GPS antenna
1 Connect the GPS antenna to your car
navigation system.
2 Use the supplied screw to fasten the
connectors.
GPS AERIAL
a b
Install the GPS antenna
You can install the signal receptor of GPS
antenna:
• On the dashboard cover
• On the back panel of rear-view mirror
Note
•Make sure that the contact surface that contacts with
the metal sheet is free of moisture, dust, grime, oil, and
any other dirt.
•If you remove the metal sheet, some adhesive may be
left on the contact surface.
1 Remove the protective cover of the metal
sheet, and then afx it.
2 Afx the antenna box onto the metal
sheet.
3 Use clamps to secure the antenna cable.
a
b
c

12 EN
Mount into the dashboard
Note
•Make sure that wires are correctly connected before
you mount the main unit into a car.
•If preset radio stations are lost when the ignition key
is turned OFF and then back ON, reconnect the red
leads crosswise to the yellow ones.
1 If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
• If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
• If the car battery is not disconnected,
to avoid short-circuit, make sure that
bare wires do not touch each other.
2 Make sure that the car dashboard opening
is within these measurements:
• Since the unit cannot be used if the
dashboard opening's slant angle is
above 20 degrees, make sure that the
horizontal slant of the car dashboard
opening is between 0 and 20 degrees.
182 mm
112 mm
5 mm
3 Slide the unit into the dashboard until a
click sound is heard.
4 Reconnect the negative terminal of the car
battery.

13
English
EN
4 Get started
Caution
•Risk of car accidents! Never watch video or operate
this system while driving.
Prepare the remote control
For the rst time use
Pull the protective sheet out.
» The remote control is ready for use.
Replace the battery
Caution
•Risk of explosion! Keep batteries away from heat,
sunshine or re. Never discard batteries in re.
Note
•Remove the battery if it is exhausted or if the remote
control is not to be used for a long time.
•Batteries contain chemical substances, they should be
disposed of properly.
•Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
1 Pull out the battery tray.
2 Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3 Insert the battery tray.
Turn on
Press .
» PHILIPS logo and a progress bar are
displayed while boot-up.
• To turn off the system, press and hold
for 3 seconds.
For the st time use
After successful boot-up, the following interface
is displayed.
1 Tap to select a language for on-screen
display.
» The following interface is displayed.

14 EN
2 Tap to select a radio region that matches
your location.
» The following interface is displayed.
3 Tap [FINISH] to complete the initial setup.
» The device switches to radio mode
automatically.
Use the home menu
Note
•If is displayed when you touch an icon, it indicates
that the selected media or feature is unavailable at the
current time.
Access the home menu
Tap to access the home menu.
» The clock, date, and the bar for
popular icons are displayed.
• To access the full menu with all feature
icons displayed, tap .
• To return to the home menu, tap .
• [Radio]: Switch the source to FM/
AM radio.
• [Disc]: Switch the source to disc.
• [USB]: Switch the source to USB
storage device.
• [SDHC]: Switch the source to SD/
SDHC card.
• : Once your iPod/iPhone is
connected and recognized, this icon is
displayed in the bar of favorite icons.
Tap it to switch the source back to
iPod/iPhone.
• [Navigation]: Access the navigation
system.
• [Bluetooth]: Use the Bluetooth
feature.
• [AV-In 1]/[AV-In 2]: Switch the
source to the audio and video input
that is transferred from an external
video player (Only AV cable with
Apple certicate can be used) .

15
English
EN
• [SWC]: Access the interface to
assign functions to buttons on the
steering wheel.
• [Settings]: Access the system menu.
• [Car Mirror]: Access the CarMirror
system.
Customize the home menu
1 Tap and hold an icon until it is movable.
2 Drag it to the target place, and then
release your nger.
• When you move an icon from the bar
for popular icons to the lower area,
release your nger when the icon's
name is displayed.
• When you move an icon from the
lower area to the bar for popular icons,
release your nger when the icon's
name disappears.
3 Tap to return to the home menu.
» The bar for popular icons is refreshed.

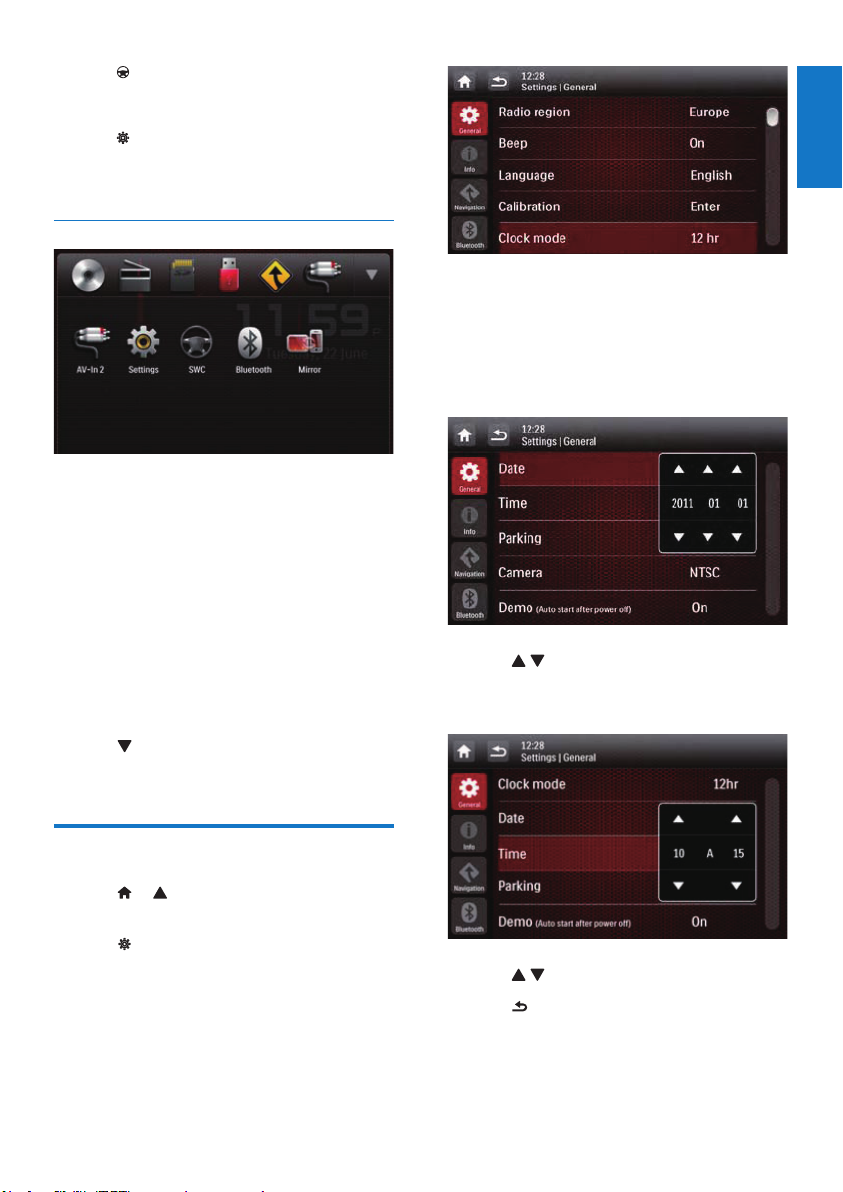

Set the date and time
1 Tap > to access the full menu with all
feature icons displayed.
2 Tap [Settings].
» The [General] menu is displayed.
3 Tap [Clock mode] to select a time format.
• [24hr]: 24-hour time format
• [12hr]: 12-hour time format
4 Tap [Date] to display the interface for
setting the date.
5 Tap to set the year, month, and date.
6 Tap [Time] to display the interface for
setting the time.
7 Tap to set the hour and minute.
8 Tap to return to the home menu.

16 EN
Switch display designs
Select a preset display design.
1 In FM mode, tap , and then [Display
Design].
» The [Display Design] interface is
displayed.
2 Tap a setting to display the options.
• [Wallpaper]: Select a wallpaper.
• [Visualizer]: Select a motional
visualization effect.
• [Skin]: Select a background color for
on-screen icons.
3 Tap an option to select it.
4 Tap to return to the previous mode.
5 Play from hard
media
You can use this system to listen to audio, watch
videos, and view photos that are stored on a
disc, USB storage device, or SD/SDHC card.
Note
•Before use, check for compatible media.
Load a disc
Caution
•Never insert any object other than a disc of 12-cm
diameter into the disc slot.
1 Insert the disc into the disc slot with the
label side facing up.
» Play starts automatically.
• If play does not start automatically, tap
the screen to display the icon, and
then tap to start play.
2 To eject the disc, press .
» When the disc is ejected, the system
switches to the previous source or
radio mode.

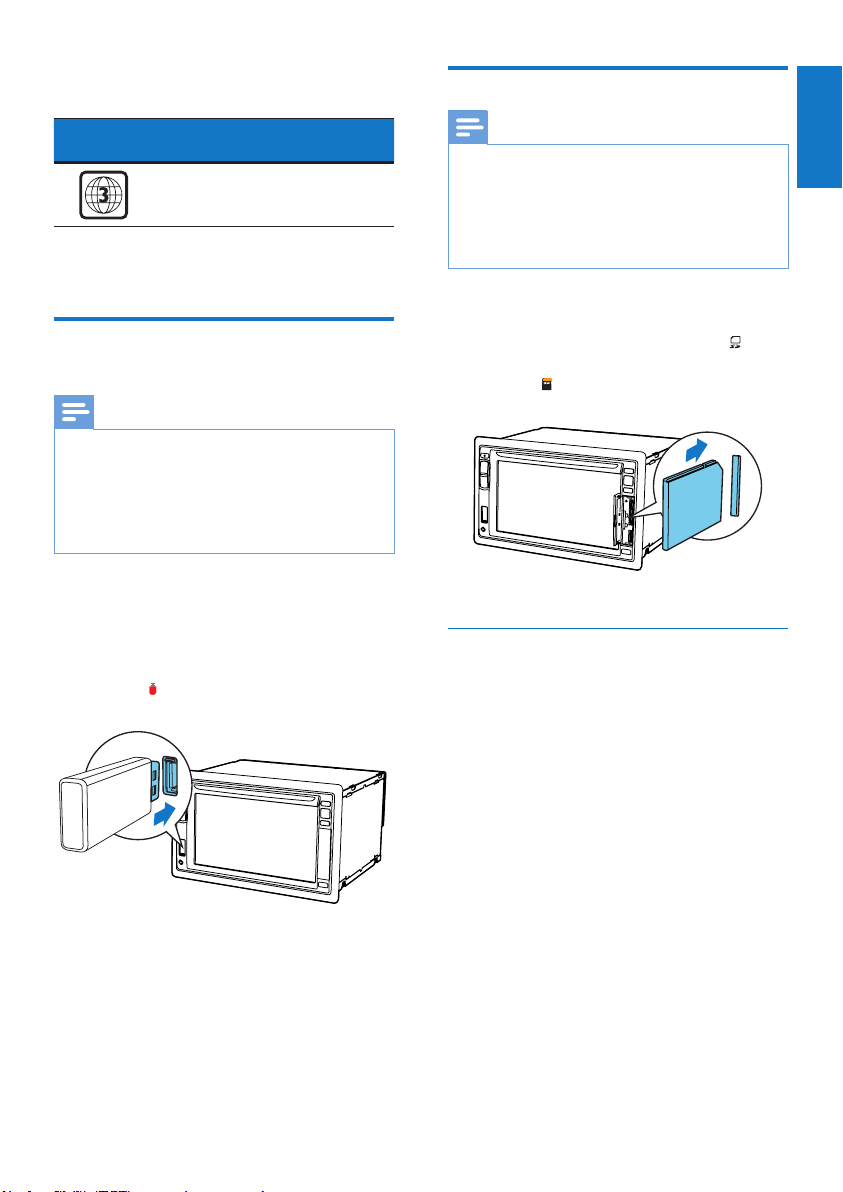

Region code

17
English
EN
This system can play DVD discs marked with
the following region code.
DVD region
code
Countries and regions
Asia Pacic, Taiwan, Korea
Connect a USB storage
device
Note
•Make sure that the USB storage device contains
compatible les.
•NTFS (New Technology File System) le system is not
supported.
•The car audio system can support USB device with
capacity from 512MB to 32GB.
1 Push the USB socket cover upwards to
open it.
2 Connect the USB storage device to the
USB socket.
» Tap to start playback of the source.
• To remove the USB storage device,
switch the system to another source
rst.
Insert an SD/SDHC card
Note
•Make sure that the SD/SDHC card contains compatible
les.
•NTFS (New Technology File System) le system is not
supported.
•The car audio system can support SD/SDHC card with
capacity from 512MB to 32GB.
1 Flip up the protective cover.
2 Insert the SD/SDHC card into the slot
until you hear a "click".
» Tap to start playback of the source.
Remove the SD/SDHC card
1 Switch system to another source.
2 Press the card inwards until you hear a
"click".
» The card is disengaged.
3 Pull out the SD/SDHC card.

18 EN
Control play
Videos
• : Return to the home menu.
• : Zoom in or out of the image.
• : Select an available audio channel or
audio language.
• : Select an available subtitle.
•
• For DVD, return to the disc menu or
root menu.
• For recorded les, return to the list of
les or folders (see 'Browse recorded
les' on page 21).
• PBC: For VCD/SVCD only, enable or
disable the PBC (Playback Control) feature.
• / : Skip to the previous or next
title, chapter, track, or le.
• To search forward fast or rewind the
track, tap on the progress bar.
• / : Start, pause, or resume play.
• : Display control icons on the second
page.
• : Select a repeat mode.
• DVD: [Repeat chapter] (repeat the
current chapter), [Repeat title] (repeat
the current title), [Repeat all] (repeat
all chapters and titles), or [Repeat off]
(cancel repeat play).
• VCD/SVCD: [Repeat one] (repeat the
current track) or [Repeat all] (repeat
all tracks).
• Recorded les: [Repeat one] (repeat
the current video le), [Repeat folder]
(repeat all video les in the current
folder), or [Repeat all] (repeat all video
les).
• [16:9]/[4:3]: Select an aspect ratio.
• :Tap to display the brightness bar, and
then tap on the bar to adjust the screen
brightness.
• :Tap to display the contrast bar, and
then tap on the bar to adjust the image
contrast.
• :Tap to display the saturation bar, and
then tap on the bar to adjust the image
saturation.
• : Display control icons on the rst page.
Audios
• : Return to the home menu.
•
• Press once to access the track list.
• Press twice to access the folder list.
• Press repeatedly to return to the
playback interface.
• : For recorded les only, skip to the next
audio folder.
• : Return to the list of tracks or folders
(see 'Browse recorded les' on page 21).
