Philips CEM3000 User manual

CEM3000B
Register your product and get support at
www.philips.com/welcome
EN User manual

3
English
EN
Contents
1 Important 4
Safety 4
Notice 4
2 Your car audio system 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Get started 10
Install the car audio 10
Attach the front panel 10
Place the DAB antenna 10
Install remote control battery 11
Turn on 11
Set clock 11
4 Listen to radio 12
Tune to a radio station 12
Store radio stations in memory 12
Tune to a preset station 12
Play with RDS 13
5 Listen to Digital Audio Broadcasts
(DAB) 15
Tune to DAB radio station manually 15
Scan for new DAB stations 15
Store DAB stations automatically 15
Program DAB radio stations manually 15
Tune to a preset station 16
Display DAB information 16
Weak DAB signal 16
DAB Dynamic Range Control 17
DAB Antenna 17
DAB sorting 17
6 Play audio files 18
Play a disc 18
Play from USB 18
Search for an MP3/WMA track 19
View play information 19
Repeat play 19
Shuffle play 19
Intro play 19
Play from iPod/iPhone 20
Connect iPod/iPhone 20
Control music playback on iPod/iPhone 20
Search for a track on iPod/iPhone 21
Connect external sound source 21
7 Adjust sound 21
Adjust volume 21
Mute 21
Turn DBB and subwoofer on/off 21
Select preset equalizer 22
Turn on/off max sound 22
Other sound settings 22
8 Adjust system settings 23
Turn beep sound on/off 23
Select blackout setting 23
Turn demo mode on/off 23
LCD Color 23
Dimmer 24
Reset 24
9 Additional information 24
Detach the front panel 24
Replace fuse 24
Remove the unit 25
10 Product information 25
11 Troubleshooting 26
12 Glossary 27

4
The apparatus shall not be exposed to•
dripping or splashing.
Do not place any sources of danger on•
the apparatus (e.g. liquid filled objects,
lighted candles).
Notice
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
designed to connect specifically to iPod, or
iPhone respectively, and has been certified by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note
that the use of this accessory with iPod, or
iPhone may affect wireless performance.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
1 Important
Safety
Read and understand all instructions•
before you use your apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
This apparatus is designed for negative•
ground (earth) 12 V DC operation only.
To ensure safe driving, adjust the volume•
to a safe and comfortable level.
Improper fuses can cause damage or•
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware•
for a safe and secure installation.
To avoid short circuit, do not expose the•
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation•
slots or other openings on the apparatus.
Clean the apparatus and frame with a•
soft, damp cloth. Never use substances
such as alcohol, chemicals or household
cleaners on the apparatus.
Never place any objects other than discs•
into the apparatus.
Never use solvents such as benzene,•
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Visible and invisible laser radiation when•
open. Avoid exposure to beam.
Risk of damage to the apparatus screen!•
Never touch, push, rub or strike the
screen with any object.
Caution
Use of controls or adjustments or performance•
of procedures other than herein may result in
hazardous radiation exposure or other unsafe
operation.
EN

5
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2010 © Koninklijke Philips Electronics N.V.
All rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
This apparatus includes this label:
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
This product complies with the radio
interference requirements of the European
Community.
English
EN

6
iISO male connectors
jDisassembly tools x 2 pcs
kUser manual
lQuick start guide
mDAB Antenna
a
f
dec
b
lki
j
h
g
2 Your car audio
system
Congratulations on your purchase, and
welcome to Philips!To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the in-car audio system, you can enjoy
your drive while listening to:
FM or AM (MW) radio•
DAB radio•
Audio from CD or MP3 disc•
Audio from USB devices•
Audio from iPod/iPhone•
Audio from other external devices•
The unit supports the following media format:
What’s in the box
Check and identify the contents of your package:
aMain unit
bRemote control
cFront panel
dTrim plate
eCarrying case for front panel
fSleeve
gRubber cushion
hScrews x 4 pcs
EN

7
cBAND/
Select tuner band.•
Return to previous menu.•
d/
Turn the unit on or off.•
Confirm selection.•
Mute or unmute sound.•
Rotate to adjust settings.•

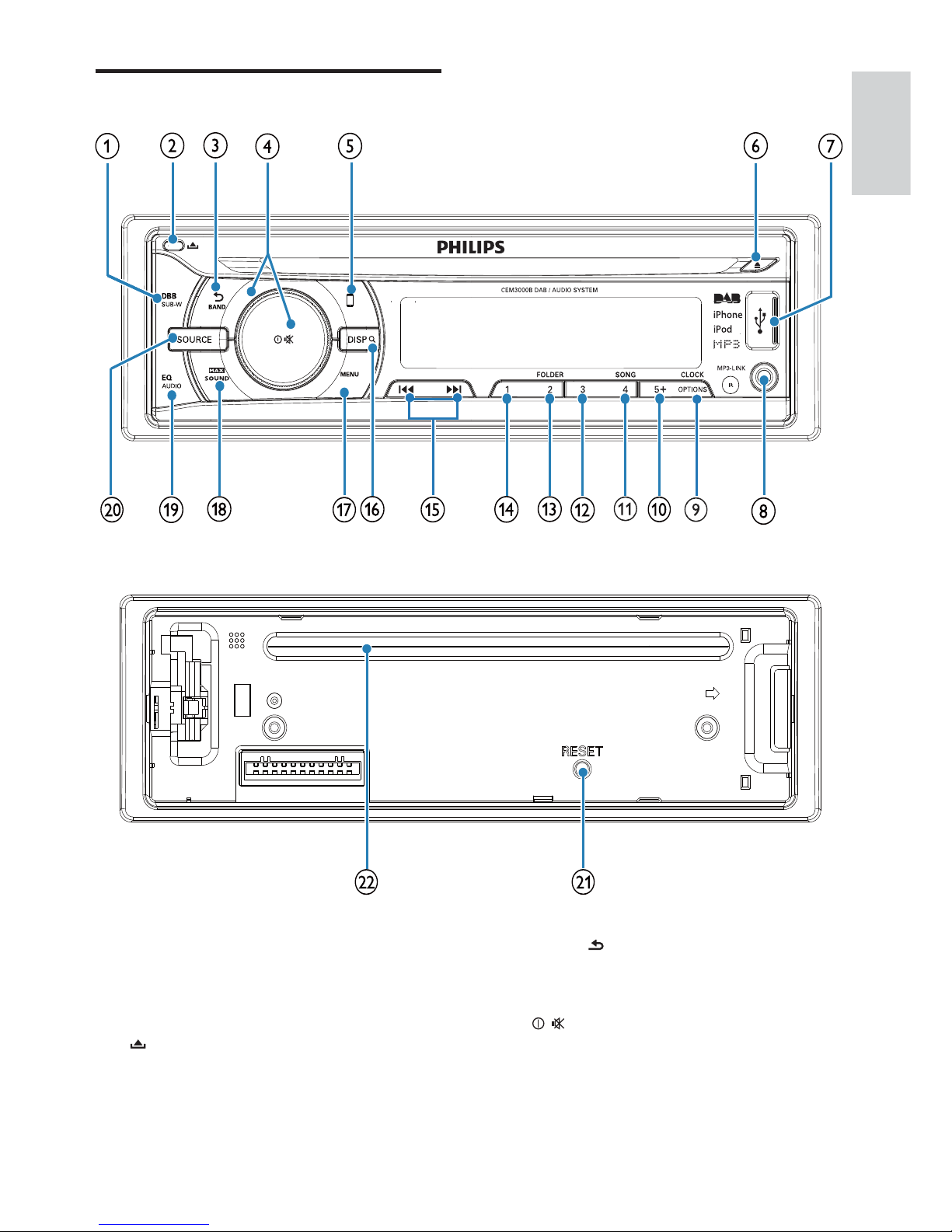

Overview of the main unit
aDBB/SUB-W
Switch on or off Dynamic Bass Boost•
(DBB) sound.
Switch on or off subwoofer.•
b
Unlock the panel.•
English
EN

8
qMENU
Access system menu.•
r
 6281'
Select MAX Sound audio setting.•
sEQ AUDIO
Select equalizer (EQ) setting.•
Access audio setting menu.•
tSOURCE
Select audio source.•
uRESET
Restore default settings.•
vDisc slot
Overview of the remote
control
aPRESET +/-
Select preset radio station.•
Access manual store.•
bOPTIONS
Access option menu.•
h
g
e
f
c
b
d
o
p
q
r
s
l
n
m
k
j
i
a
e
Enter iPod/iPhone control mode.•
f
Eject disc.•
g
Connector for USB and iPod/iPhone.•
hMP3 LINK
Connect external audio device.•
iOPTIONS/CLOCK
Access option menu.•
Display the DAB related information.•
View clock.•
j5+
Select or store preset radio stations•
1 to 10.
Select or store preset DAB radio•
stations 1 to 20.
kSONG/4
Search for track.•
Select or store preset station 4.•
l3
Select or store preset station 3.•
mFOLDER/2
Search for folder.•
Select or store preset station 2.•
n1
Select or store preset station 1.•
o/
Tune to radio/DAB stations.•
Skip/search for tracks.•
Fast forward/backward play.•
pDISP/
In FM/DAB/USB mode, press and•
hold to select LCD color
In DAB mode , press briefly to•
display DAB radio station list
In tuner or iPod/iPhone mode, press•
briefly to display station info or iPod/
iPhone info
In iPod/iPhone mode, press and hold•
to access music search mode
EN

9
rDISP/
In FM/DAB/USB mode, press and•
hold to select LCD color
In DAB mode , press briefly to•
display DAB radio station list
In tuner or iPod/iPhone mode, press•
briefly to display station info or iPod/
iPhone info
In iPod/iPhone mode, press and hold•
to access music search mode
sCLOCK
View clock.•
c
Start play.•
Pause or resume play.•
dAUDIO
Access audio setting menu.•
e/
Tune to radio/DAB station.•
Skip track.•
Fast backward/forward play.•
fOK
Confirm selection.•
gMENU
Access system menu.•
h/PWR/
Turn the unit on or off.•
Mute or restore volume.•
iVOL+/-
Adjust volume.•
jBAND/
Select tuner band.•
Return to previous/top menu.•
kSOURCE
Select audio source.•
l
Enter iPod/iPhone control mode.•
m
 6281'
Select MAX Sound audio setting.•
nEQ
Select equalizer (EQ) setting.•
oDBB
Turn on or off Dynamic Bass Boost•
(DBB) sound.
pSONG
Search for tracks.•
qFOLDER
Search for folders.•
English
EN

10
Place the DAB antenna
Note
The magnetic based antenna is designed•
for the reception of DAB broadcasts. It is
unsuitable for any other purpose.
1Place the magnetic steel base gently to
adhere to steel surfaces that are almost
flat, such as a car roof or boot lid.
%"#%"#"OUFOOB
Note
The magnetic steel base will adhere to flat•
steel surfaces and will remain secure at
normal road vehicle speed in still air. In windy
conditions or on non-steel/curved surfaces,
the antenna may become detached at much
lower speed.
3 Get started
Caution
Use the controls only as stated in this user•
manual.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of your apparatus.The
model number and serial number are on the
bottom of your apparatus.Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Install the car audio
Please refer to the “Installation guide” in quick
start guide.
Attach the front panel
1Attach the trim plate.
2Insert the right side of the panel in the
chassis until it is correctly engaged.
3Press the left side of the panel until the
mechanism locks it into place.
EN

11
To replace the remote control battery:
1Open the battery compartment.
2Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3Close the battery compartment.
Turn on
1Press to turn on the unit.
To turn off the unit, press and hold•
for a few seconds.
Set clock
1Press MENU.
2Press / repeatedly until [CLK SET]
displays.
3Rotate to set hour.
4Press to confirm.
5Rotate set minute.
6Press to confirm.
View clock
1Press and hold CLOCK until the clock is
displayed.
Tip
Make sure mounting location is clean and free•
of dirt, ice, or snow etc.
To minimize moisture being forced into the
•
base of the antenna, make sure the cable on
the base mount is facing the rear of the vehicle.
For best reception, the ideal position is the
•
center of the roof.
Positioning the antenna next to an existing
•
antenna can affect the reception of both
antennas. Similarly, roof racks will have a
detrimental effect on reception.
Ideally tuck the cable behind the rubber door seal.
•
Avoid sharp kinks or edges that cut insulation•
in the cable and make sure that hinges or other
fittings do not crush the cable.
Warning
Make sure that installation does not interfere•
with the safe operation of vehicle controls,
airbags and seatbelts etc.
Run the cable through the passenger doorway
•
or tailgate. Do not use the driver’s door.
Do not slide or rotate the antenna, which may
•
damage surface paintwork.
Remove antenna before entering low overhangs
•
or car washes etc.
Keep magnetic base well away from items that
•
are sensitive to magnetic fields. Eg, a pacemaker,
chip cards, cassettes, hard drives etc.
Damage by incorrect installation is not covered
•
by warranty.
Install remote control battery
Caution
Risk of explosion! Keep batteries away from heat,•
sunshine or fire. Never discard batteries in fire.
Risk of decreased battery life! Never mix
•
different brands or types of batteries.
Risk of product damage! When the remote
•
control is not used for long periods, remove
the batteries.
Perchlorate Material - special handling may
•
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
For first-time use:
1Remove the protective tab to activate the
remote control battery.
English
EN

12
• [LOCAL SEEK OFF]: Stations with
strong and weak signals can be
broadcast.
Store radio stations in
memory
You can store up to 10 stations in each band.
Store stations automatically
1Press OPTIONS repeatedly until
[AUTO-STORE] displays.
2Press to confirm.
The 10 strongest stations of the»
selected band are saved in preset
channel automatically.
Store stations manually
1Tune to a station that you want to store.
2
For preset 1 to preset 4, press and•
hold button 1to 4to store the
corresponding station.
For preset 5 to 10, press and hold•
button 5+ and rotate to select a
number (1-10) for the preset.
3Press to confirm.
The station is saved in the selected»
channel.
The preset number lights up on the»
LCD screen.
Tune to a preset station
1Press BAND/ to select band.
2Press 5+ and rotate to select the preset
number.
3Press to confirm the selection.
4 Listen to radio
Tune to a radio station
1Press SOURCE repeatedly to select radio
mode.
2Press BAND/ to select band: [FM1],
[FM2], [FM3], [AW1] or [AW2].
3Press or to tune to a radio station
manually.
The radio station is broadcast.»
To search for a radio station»
automatically, press and hold or
for a few seconds.
Select tuner region
You can select suitable country/region of the
radio.
1Press SOURCE to select Radio mode.
2Press MENU.
3Press /repeatedly until [AREA] is
displayed.
4Rotate to select:
• [USA]
• [LATIN]
• [Europe]
• [ASIA]
• [M-EAST]
• [RUSSIA]
Select tuner sensitivity
To receive more radio stations or only
stations with strong signal, you can adjust the
tuner sensitivity.
1Press OPTIONS repeatedly to select
[LOCAL SEEK].
2Rotate to select a setting:
• [LOCAL SEEK ON]: Only stations
with strong signal can be broadcast.
EN

13
Item Program type Description
1NEWS News services
2AFFAIRS Politics and current
affairs
3INFO Special information
programs
4SPORT Sports
5EDUCATE Education and
advanced training
6DRAMA Radio plays and
literature
7CULTURE Culture, religion and
society
8SCIENCE Science
9VARIED Entertainment
programs
10 POP M Pop music
11 ROCK M Rock music
12 EASY M Light music
13 LIGHT M Light classical music
14 CLASSICS Classical music
15 OTHER M Special music
programs
16 WEATHER Weather
17 FINANCE Finance
18 CHILDREN Children’s programs
19 SOCIAL Social Affairs
20 RELIGION Religion
21 PHONE IN Phone In
22 TRAVEL Travel
23 LEISURE Leisure
24 JAZZ Jazz Music
25 COUNTRY Country Music
26 NATION M National Music
27 OLDIES Oldies Music
28 FOLK M Folk Music
29 DOCUMENT Documentary
30 TEST Alarm Test
31 ALARM Alarm
Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, an RDS icon and information about the
presenter, station or program is displayed.
Turn on RDS
Note
The default setting for RDS is on.•
1Press MENU.
2Press / repeatedly until [RDS] is
displayed.
3Rotate to select option:
• [RDS ON]: The RDS function is on.
• [RDS OFF]: The RDS function is off.
Select program type
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1Press OPTIONS until [PTY] displays.
2Press to confirm.
3Rotate to select a type, then press
to confirm.
English
EN

14
Set RDS clock
You can use time signal that is broadcast
together with the RDS signal to set the clock
of the unit automatically.
1Press MENU.
2Press / repeatedly until [CT]
displays.
3Rotate to select a setting:
• [CT ON]: Turn on the RDS clock.
Time shown on the unit synchronizes
with that on the RDS station.
• [CT OFF]: Turn off the RDS clock.
Tip
The accuracy of the transmitted time depends•
on the RDS station that transmits the time
signal.
Select alternate frequencies
If the radio signal is poor, turn on AF
(Alternate Frequency) to search for another
station with stronger signal.
1Press OPTIONS.
2Press /repeatedly until [AF] displays.
3Rotate to select a setting:
• [AF ON]: Turn on the AF mode.
• [AF OFF]: Turn off the AF mode.
Set region for AF tuning
You can define AF tuning region:
[REG ON] Only stations in current region
can be tuned to automatically.
[REG OFF] All stations can be tuned to
automatically.
1Press MENU.
2Press / repeatedly until [REG]
displays.
3Rotate to select a setting.
Receive traffic announcement
If you do not want to miss traffic
announcement when enjoying music, turn on
the TA (Traffic Announcement) function.
1Press OPTIONS.
2Press / repeatedly until [TA]
displays.
3Rotate to select a setting:
• [TA ON]: When there is traffic
announcement, the unit switches
to the tuner mode (regardless of
the current mode) and begins to
broadcast the traffic conditions.
When the traffic announcement
is over, it returns to the previous
mode.
• [TA OFF]: Traffic announcement
does not cut in.
EN

15
Scan for new DAB stations
1Under DAB mode, press MENU
repeatedly until [DAB SCAN] is displayed.
2Press to confirm.
The system scans for all available DAB»
radio stations and broadcasts the first
station.
Tip
New stations and services will be added in the•
DAB broadcast. To make new DAB stations
and services available on your car audio, scan
on a regular base.
Store DAB stations
automatically
1In DAB mode, press MENU to enter the
menu options.
2Press / repeatedly until [DAB
STORE] displays.
3Press to confirm.
The 20 strongest stations of the»
selected band are saved in preset
channel automatically.
Program DAB radio stations
manually
You can program a maximum of 20 preset DAB
radio stations.
1Tune to a DAB station.
2
For preset 1 to preset 4, press and•
hold button 1to 4to store the
corresponding station.
For preset 5 to 10, press and hold•
button 5+ and rotate to select a
number (1-20) for the preset.
5 Listen to
Digital Audio
Broadcasts
(DAB)
Digital Audio Broadcasting (DAB), is a way
of broadcasting radio digitally through a
network of transmitters. It provides you with
more choice, better sound quality, and more
information.
For the first time when DAB mode is
switched on.
1Press SOURCE on the main unit
repeatedly to select DAB/DAB+.
The system performs auto scan.»
All the available DAB stations are»
stored.
The radio tunes to the first available»
station
Tip
The display shows a rectangle. The position•
of the rectangle indicates the degree of signal
strength. (The further towards the right, the
greater the signal strength.)
If there is no DAB coverage currently available,
•
or DAB signal is too weak in your area, no
DAB station will be found, and message like
“No Station Found, Scan Again” displays.
Tune to DAB radio station
manually
1Under DAB mode, press and hold /
to enter manual seek mode.
“MANUAL” blinks on LCD screen.»
2Press / repeatedly until the the
desired channel/frequency appears.
English
EN

16
Program type: Describes the content•
of the current DAB station.
Scrolling text: Information broadcast•
by most DAB stations (may include
song titles, news, etc)
Signal Strength: Displays a meter•
illustrating the strength of the DAB
signal 0-100.
Signal Quality: Display DAB signal•
quality, from 0 to 100.
Tip
If any information above is selected, when•
you tune to another DAB station, you can
press OPTIONS/CLOCK once to display the
selected information, no need to scroll through
the list.
Weak DAB signal
Select the switch over option when DAB signal
is weak.
1In the DAB mode, press MENU to enter
the menu options.
2Press / repeatedly until [WEAK
DAB] is displayed.
3Rotate to select an option.
• [WEAK MUTE]: When the DAB
signal is weak, fade out the DAB
audio and mute it until the DAB
signal is strong, then the audio will
fade in to the original volume level.
• [WEAK TO FM]: When the DAB
signal is weak, switch to the last
listened FM station. Switch back to
DAB when signal is strong.
3Press to confirm.
The station is saved in the selected»
channel.
The preset number is displayed on the»
LCD screen.
Note
If a DAB station is already stored under a•
preset location, new DAB station assigned to
this location will overwrite the old DAB station.
DAB station presets will not overwrite FM
•
presets.
Tune to a preset station
1Press 5+ and rotate to select the preset
number.
2Press to confirm the selection.
Note
If the Scanned/Preset DAB station signal is•
not available at particular time/region, [No] is
displayed.
Display DAB information
On the display of DAB broadcasting, the first
line shows station name, and the second line
shows the service information for the current
station. 6 types of service information are
available.
1Tune to a DAB station.
2Press OPTIONS/CLOCK repeatedly to
scroll through the display information
(if available).
Multiplex name: Displays the name•
of the DAB multiplex in which the
current station is broadcast.
Multiplex info: Displays the channel•
and frequency of the current DAB
multiplex.
EN

17
DAB sorting
With this option, you can select the way that
the station list is arranged.
1In DAB mode, press MENU to enter the
menu options.
2Press / repeatedly until [DAB
SORTING] is displayed.
3Rotate to select an option.
• [SORT ACTIVE]: Lists active stations
first on the station list.
• [SORT A-Z]: Lists all stations in
alphanumeric order (0-9, A-Z).
[SORT MULTIPLEX]• : Lists stations
in groups according to their multiplex
(a group of stations broadcast by the
same operator).
You can tune to a DAB station through the
sorted DAB station list.
1Under DAB mode, press DISP once to
display the DAB station list.
2Rotate to scroll through the DAB
station list in the order set above.
3Press to switch to the selected DAB
station.
DAB Dynamic Range Control
DRC adds or removes a degree of
compensation for the differences in the dynamic
range between radio stations.
1In DAB mode, press MENU to enter the
menu options.
2Press / repeatedly until [DAB DRC]
is displayed.
3Rotate to select an option.
• [DRC Off]: No compensation
applied. (the default)
• [DRC Low]: Medium compensation
applied.
• [DRC High]: Maximum compensation
applied.
Note
The best way to determine which of these DRC•
value settings suits you best is to experiment
with them on various source material.
DAB Antenna
1In DAB mode, press MENU to enter the
menu options.
2Press /repeatedly until DAB antenna
option is displayed.
3Rotate to select an option.
• [ANTENNA OFF]: Select when using
the DAB aerial without the booster.
• [ANTENNA 12V]: Select when using
the DAB aerial with the booster (12V).
English
EN

18
Play from USB
Note
Ensure that the USB device contains playable•
music.
Insert the USB device
1Slide the USB connector cover marked
to the left.
2Insert the USB storage device into the
USB connector.
The unit starts playing from the USB»
storage device automatically.
Remove the USB device
1Press to turn off the unit.
2Remove the USB storage device.
6 Play audio files
Note
Ensure that the disc or device contains playable•
files.
Play a disc
Note
You cannot play CDs encoded with copyright•
protection technologies.
You can play commercially available audio CDs
and these discs:
CD-Recordables (CD-R)•
CD-Rewritables (CD-RW)•
MP3 CDs•
WMA CDs•
Note
Ensure that the disc contains playable content.•
1Insert a CD with the printed side facing up.
Play starts automatically.»
To pause CD play, press• .
To resume CD play, press• again.
To skip to the previous/next track, press•
or .
To search backward/forward rapidly in•
the current track, press and hold or
for a few seconds.
Remove the CD
To take out the CD, press on the front panel.
Tip
If the disc is blocked in the disc compartment,•
press and hold until the disc comes out.
EN

19
Repeat play
1During play, press OPTIONS repeatedly
until [REPEAT] is displayed.
2Rotate to select a setting.
• [REPEAT ALL]: Play all tracks repeatedly.
• [REPEAT TRK]: Play current track
repeatedly.
• [REPEAT FLD]: Play all tracks in the
current folder repeatedly.
Shuffle play
You can play the tracks in random order:
1During play, press OPTIONS repeatedly
until [RANDOM] displays.
2Rotate to select a setting:
• [RANDOM OFF]: Turn off random
play.
• [RANDOM FLD]: start random play
for all tracks in the current folder.
• [RANDOM ALL]: start random play
for all tracks.
Intro play
You can play the first 10 seconds of each track.
1During play, press OPTIONS repeatedly
until [INTRO] displays.
2Rotate to select a setting:
• [INTRO OFF]: Cancel intro play and
start normal play.
• [INTRO FLD]: Start introl play in the
current folder.
• [INTRO ALL]: Play the first
10 seconds of each track.
Search for an MP3/WMA
track
Search within the current folder
1Press SONG.
The name of the current track is»
displayed.
2Rotate to select another track in
current folder
3Press to confirm.
Search in other folder
1Press FOLDER.
The name of the current folder is»
displayed.
2Rotate to navigate through all folders.
3Press to access the selected folder.
4Rotate to select a track in the folder.
5Press to start play.
Tip
To go back to upper level of a folder, press• .
View play information
1During playing, press DISP repeatedly to
view:
Track number and elapsed play time•
Artist•
Album•
Title•
Folder•
File•
English
EN

20
Control music playback on iPod/
iPhone
1Make sure that the iPod/iPhone is
connected correctly.
2Press SOURCE to select iPod USB mode.
3Press repeatedly to toggle between the
two control modes:
• iPod control mode: Use the buttons/
touch screen on iPod/iPhone to
control the music.
• Audio control mode: Use the
control buttons on car audio to
control the music.
To control playback under audio control
mode:
To pause/resume play, press• .
To skip to a track, press• / .
To search during play, press and•
hold / , then release to resume
normal play.
To navigate the menu, press• ,
rotate to select, then press to
confirm.
Play from iPod/iPhone
You can enjoy audio from iPod/iPhone through
this unit.
Compatible iPod/iPhone
Apple iPod and iPhone models with a 30-pin
dock connector:
Made for.
iPod nano (2nd generation)•
iPod nano (3rd generation, 4GB only)•
iPod nano (3rd generation, 8GB only)•
iPod nano (4th generation)•
iPod nano (5th generation)•
iPod classic (1st generation)•
iPod classic (2nd generation)•
iPod touch (1st generation)•
iPod touch (2nd generation)•
iPod touch (3rd generation)•
iPod video (30GB, 80GB only)•
Works with
iPhone•
iPhone 3G•
iPhone 3GS•
iPhone 4•
Connect iPod/iPhone
1Slide the USB connector cover marked
to the left.
2Insert USB adaptor on one end of iPod/
iPhone cable to the USB connector on
the main unit.
3Insert the other end of the iPod/iPhone
cable to the iPod/iPhone connector.
The unit starts playing from the USB»
storage device automatically.
EN

21
7 Adjust sound
Adjust volume
1Rotate clockwise/anticlockwise to
increase/decrease volume.
Mute
You can turn off the sound of your audio.
1During play, press .
To resume sound, press• again.
Turn DBB and subwoofer
on/off
1Press DBB, then the current setting is
displayed:
»[DBB ON] :The Dynamic Bass Boost
(DBB) function is on.
»[DBB OFF] :The DBB function is off.
2Press DBB again to change the DBB
setting.
3Press and hold DBB to access subwoofer
settings:
»[SUBWOOFER ON]:The subwoofer
function is on.
»[SUBWOOFER OFF]:The subwoofer
function is off.
Search for a track on iPod/iPhone
1Press SOURCE repeatedly to select iPod
mode.
2Press BAND/to browse iPod/iPhone
menu.
3Rotate to select the artist search
mode, and press to confirm.
4Press DISP/to search alphabetically.
5Rotate to select artist, then press to
confirm.
6Rotate to select song in current album.
7Press to start play.
Note
You cannot control the music via iPod/iPhone•
under audio control mode.
Connect external sound
source
1Connect the external sound source to
MP3 LINK connector with a 3.5 mm
cable.
2Press SOURCE repeatedly until [MP3
LINK] is displayed.
3Operate the external component
(See the instructions supplied with the
external component).
English
EN
