Philips CED320/51 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual
RU ǝȀǷǻǯǻDZǾǿǯǻ ǼǻǸȉǴǻǯǭǿDzǸȌ
CED320

3
English
EN
Contents
1 Important 4
Safety 4
Notice 4
2 Your car audio system 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Get started 10
Install the car audio 10

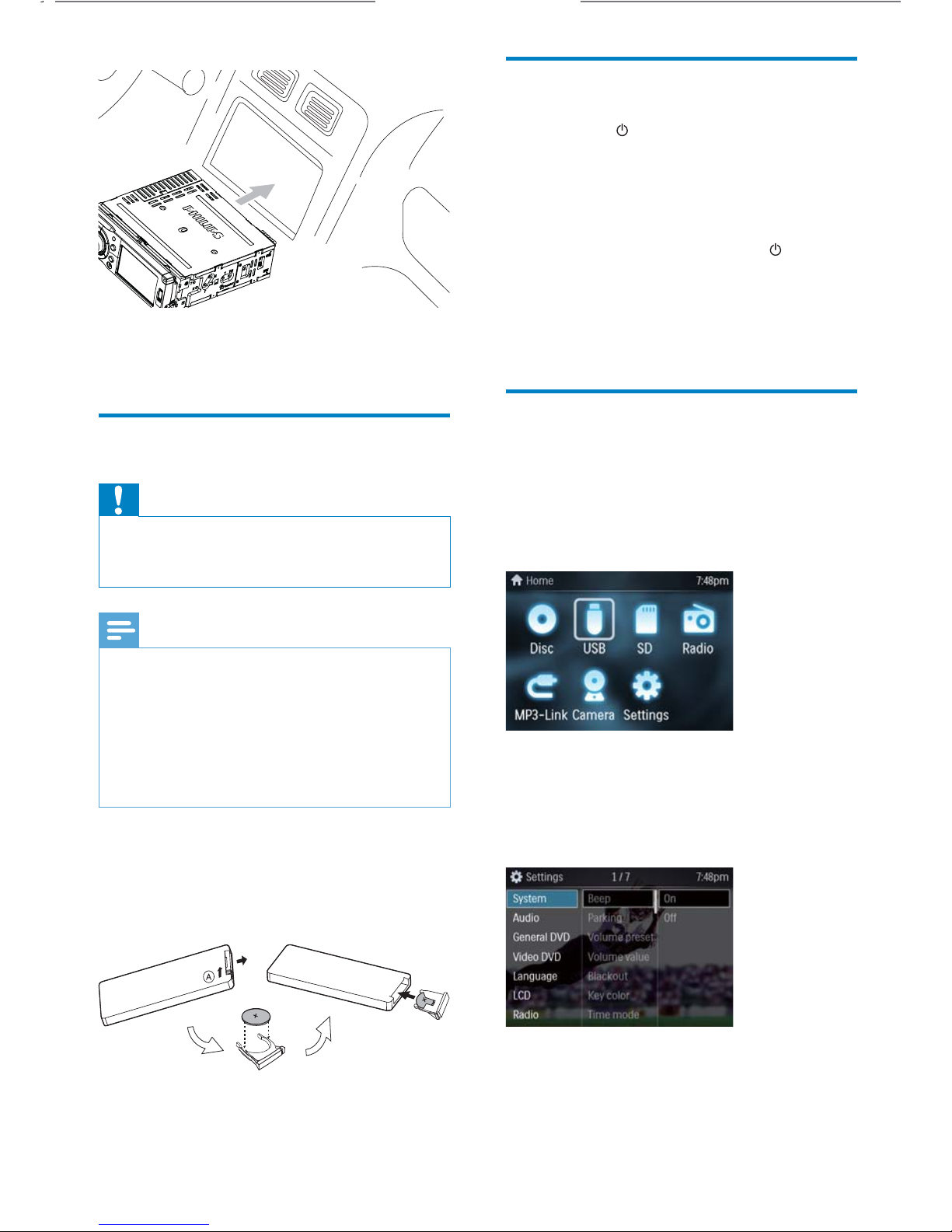

Install remote control battery 16
Turn on 16
Select display language 16
Set clock 17
4 Play 18

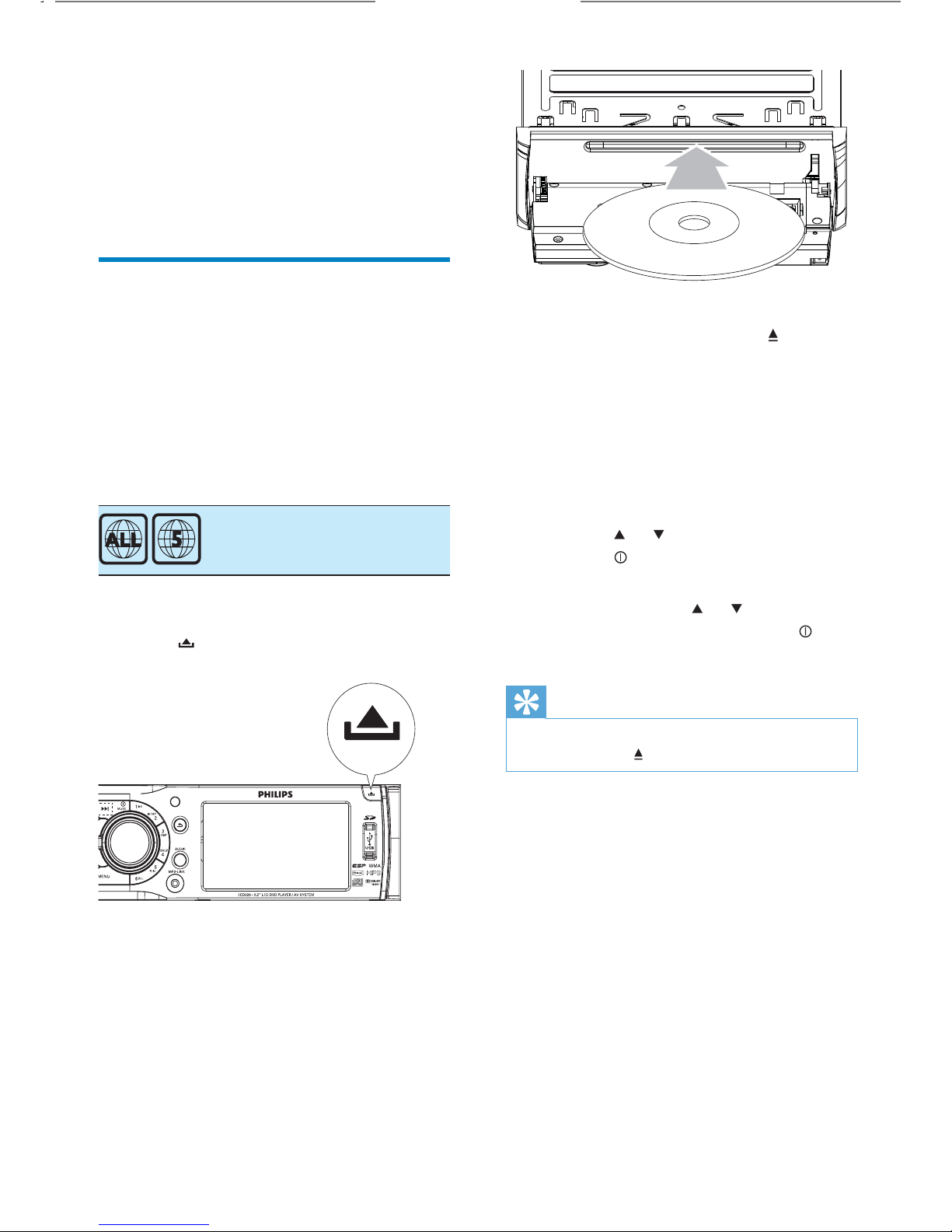

Load discs 18
Insert USB device 19

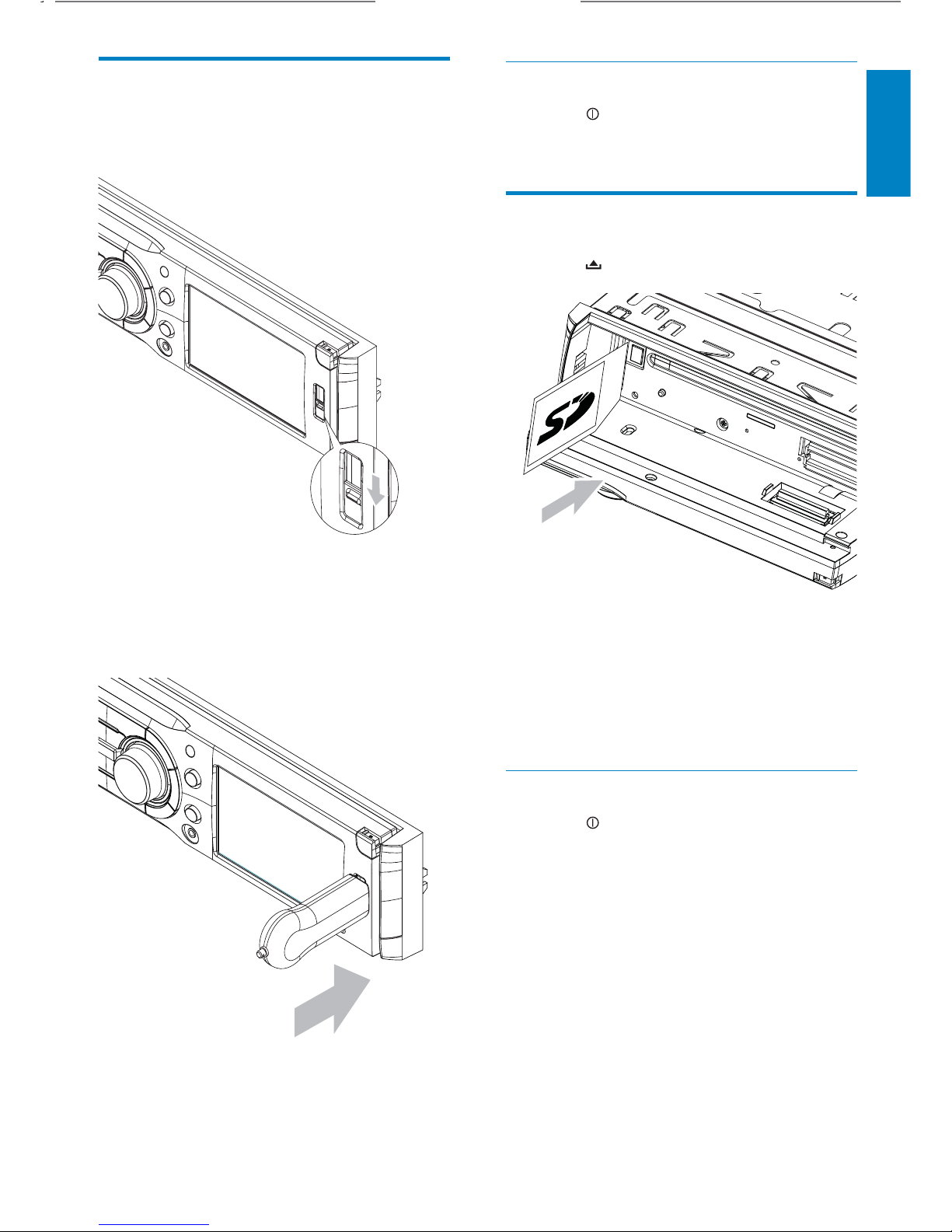

Insert SD/MMC card 19
Skip/search 20
Intro play 20
Repeat play 20
Random play 20
Select subtitle language 21
Select audio language 21
Select audio mode 21
Select video output format 21
Zoom 21
5 Listen to radio 22
Tune to a radio station 22
Store radio stations in memory 22
Tune to a preset station 22
Play with RDS 22
6 Adjust settings 24
Adjust sound 24
Adjust system settings 25
Adjust general DVD settings 26
Adjust video DVD settings 27
Select language 27
Adjust display settings 28
Select tuner sensitivity 28
7 Others 30
Listen to other devices 30

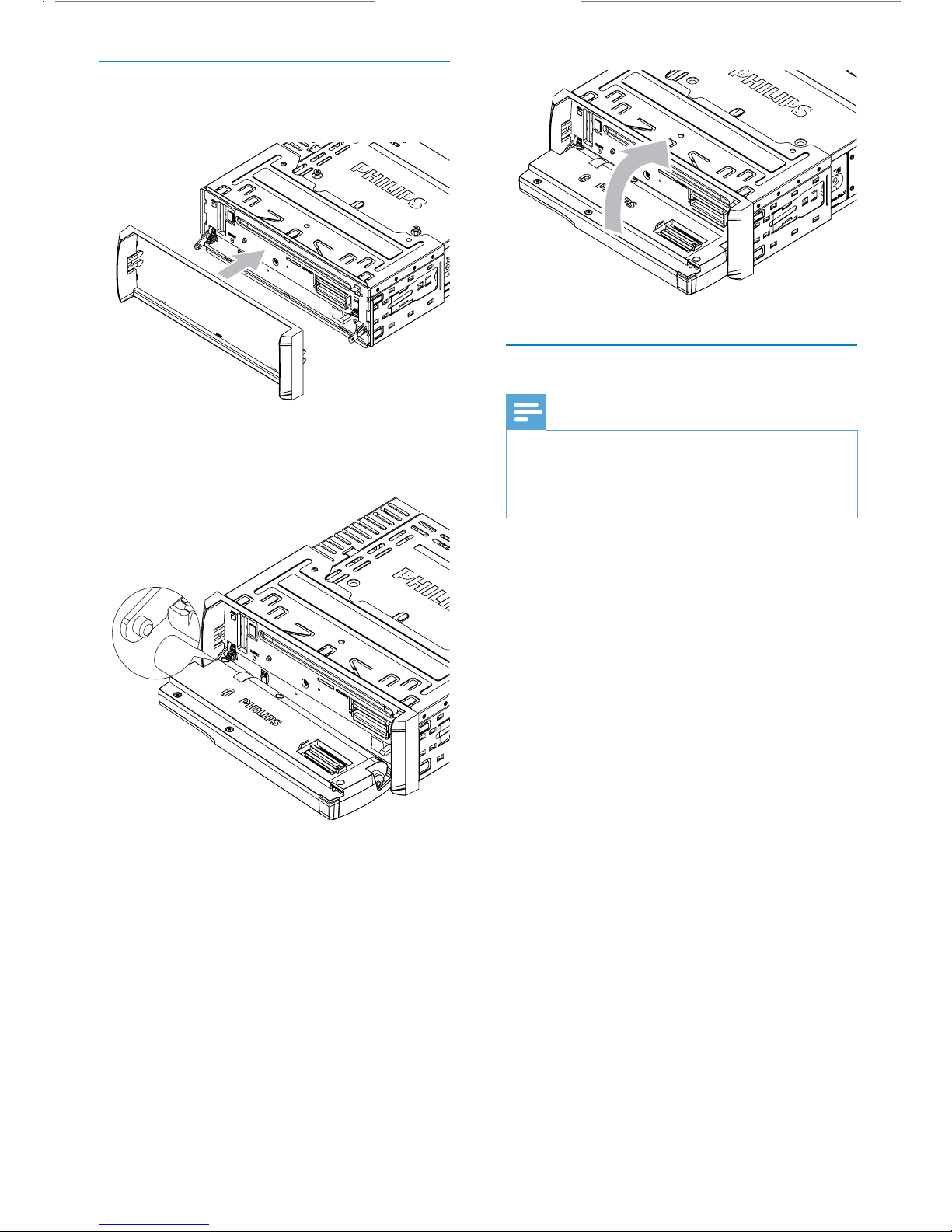

Detach the front panel 30
Reset 30
Remove the unit 31
Replace fuse 31
8 Product information 32
9 Troubleshooting 34
10 Glossary 35

4
Notice
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
Offical DivX®Certified product. Plays all
versions of DivX®video (including DivX®6)
with standard playback of DivX®media files.
“DivX, DivX” Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
This apparatus includes this label:
1 Important
Safety
Read and understand all instructions•
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
Use of controls or adjustments or•
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground•
(earth) 12 V DC operation only.
To reduce the risk of traffic accident, do•
no watch video during driving.
To ensure safe driving, adjust the volume•
to a safe and comfortable level.
Improper fuses can cause damage or•
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware•
for a safe and secure installation.
To avoid short circuit, do not expose the•
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation•
slots or other openings on the apparatus.
Never place any objects other than discs•
into the disc tray/slot.
Visible and invisible laser radiation when•
open. Avoid exposure to beam.
Risk of damage to the screen! Never•
touch, push, rub or strike the screen with
any object.
Never use solvents such as benzene,•
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Clean the apparatus with soft, damp•
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
EN

5
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
2009 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
2004/108/EC + 2006/95/EC
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
English
EN

6
aFront panel carry case (includes front
panel)
bCar audio system
cTrim plate
dRemote control
eRubber cushion
fStandard connector
gRemoval keys x 2 pcs
hScrews M5x6 mm x 4 pcs
iUser manual
jInstallation guide
kMP3-link cable
2 Your car audio
system
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the in-car audio system, you and your
passengers can enjoy:
DVD, VCD or DivX video•
Music CDs•
FM or AM (MW) radio•
MP3/WMA audio from discs, USB devices•
and SD/MMC cards
Audio from external devices•

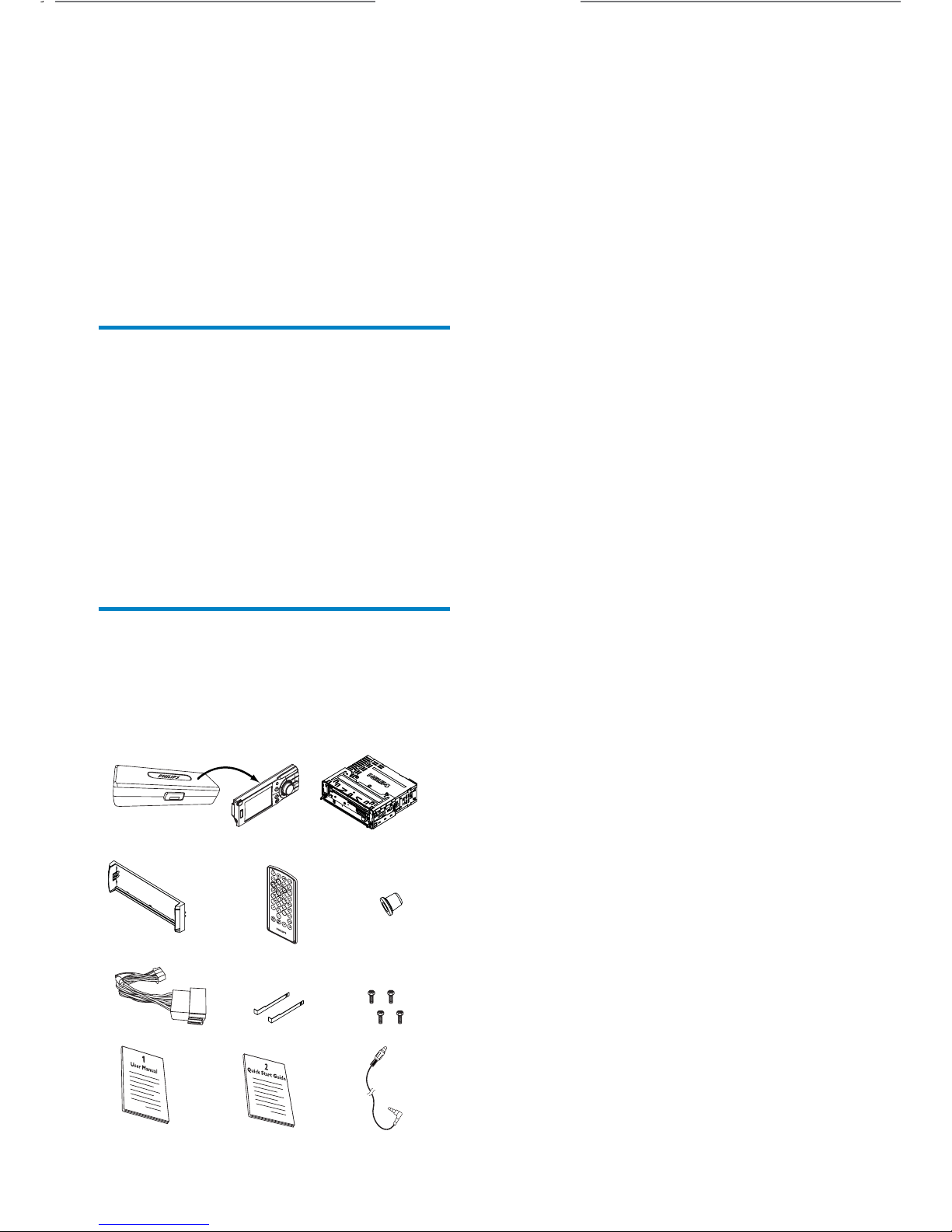

What’s in the box
Check and identify the contents of your
package:
a
c
g
jk
h
i
de
f
b
EN

7
cMUTE
Turn the unit on or off.•
Turn mute on or off.•
Adjust volume.•
Confirm selection.•
Overview of the main unit
aDBB
Select tuner band.•
Select folder.•
Turn on or off Dynamic Bass Boost•
(DBB) sound.
b/
Tune for radio station.•
Skip/search for track.•
srn o p qml
j de ci fgh b a
k
xw
v u t
English
EN

8
sSOURCE
Select audio source.•
tSD/MMC card slot
u
Eject disc.•
vDisc slot
wPanel status indicator
Lights up when the panel is open.•
xRESET
Restore default settings.•
Overview of the remote
control
o
q
r
t
v
w
n
x
s
b
a
f
h
i
d
c
g
e
j
k
l
m
p
u
d1,
Start play•
Pause or resume play.•
Select preset station no. 1•
eINTRO, 2
Turn scan play on or off.•
Select preset station no. 2•
f3, REP
Set repeat play mode.•
Select preset station no. 3•
gRemote sensor
h
Return to previous menu.•
Stop searching.•
Disable screen saver.•
iScreen
j
Unlock the front panel.•
kUSB socket
lEQ/AUDIO
Select equalizer (EQ) setting.•
Access audio setting menu.•
mExternal equipment audio-in socket
nSHUF, 4
Turn random play on or off.•
Select preset station no. 4•
o5, P/N
Select preset station no. 5•
Select video output format.•
p6 , R/L
Select preset station no. 6.•
Select audio channel.•
qMENU
Access system menu.•
rSEARCH
Select tuner band.•
Store radio station automatically.•
Select RDS program type.•
Select folder.•
EN

9
qSHUF, 4
Turn random play on or off.•
Select preset station no. 4.•
r1,
Start play.•
Pause or resume play.•
Select preset station no. 1•
sINTRO, 2
Turn intro play on or off.•
Select preset station no. 2•
tAUDIO
Access audio setting menu.•
uNavigation buttons
•/
Tune for radio station.
Skip/search for track.
•/
Select tuner band.
Select folder.
•SEL
Confirm selection.
vMENU
Access system menu.•
wPWR
Turn the unit on or off.•
x
Mute or unmute audio.•
aTITLE
Access or exit DVD title menu.•
bSOURCE
Select connected device.•
c
Return to previous menu.•
Disable screen saver.•
dVOLUME +/-
Adjust volume.•
eEQ
Select equalizer (EQ) setting.•
fDBB
Turn on or off Dynamic Bass Boost•
(DBB) sound.
g3, REP
Select repeat play mode.•
Select preset station no. 3•
hSEARCH
Store radio station automatically.•
iDISP
Display play information.•
jZOOM
Enlarge or reduce picture or active•
image size.
kANGLE
Select a difference angle/version of•
the current DVD scene.
lR/L
Select audio channel.•
mP/N
Select video output format.•
nSUBTITLE
Select DVD or DivX subtitle•
language.
oDISC MENU
Return to DVD main menu.•
p5/6/7/8/9/0
Select track or preset radio station.•
English
EN

10
Note on the power supply lead (yellow)
When you connect other devices to this•
apparatus, ensure that the rating of the
car circuit is higher than the total fuse
value of all the connected devices.
Notes on speaker connection
Never connect speaker wires to the•
metal body or chassis of the car.
Never connect speaker wires with stripes•
to one another.

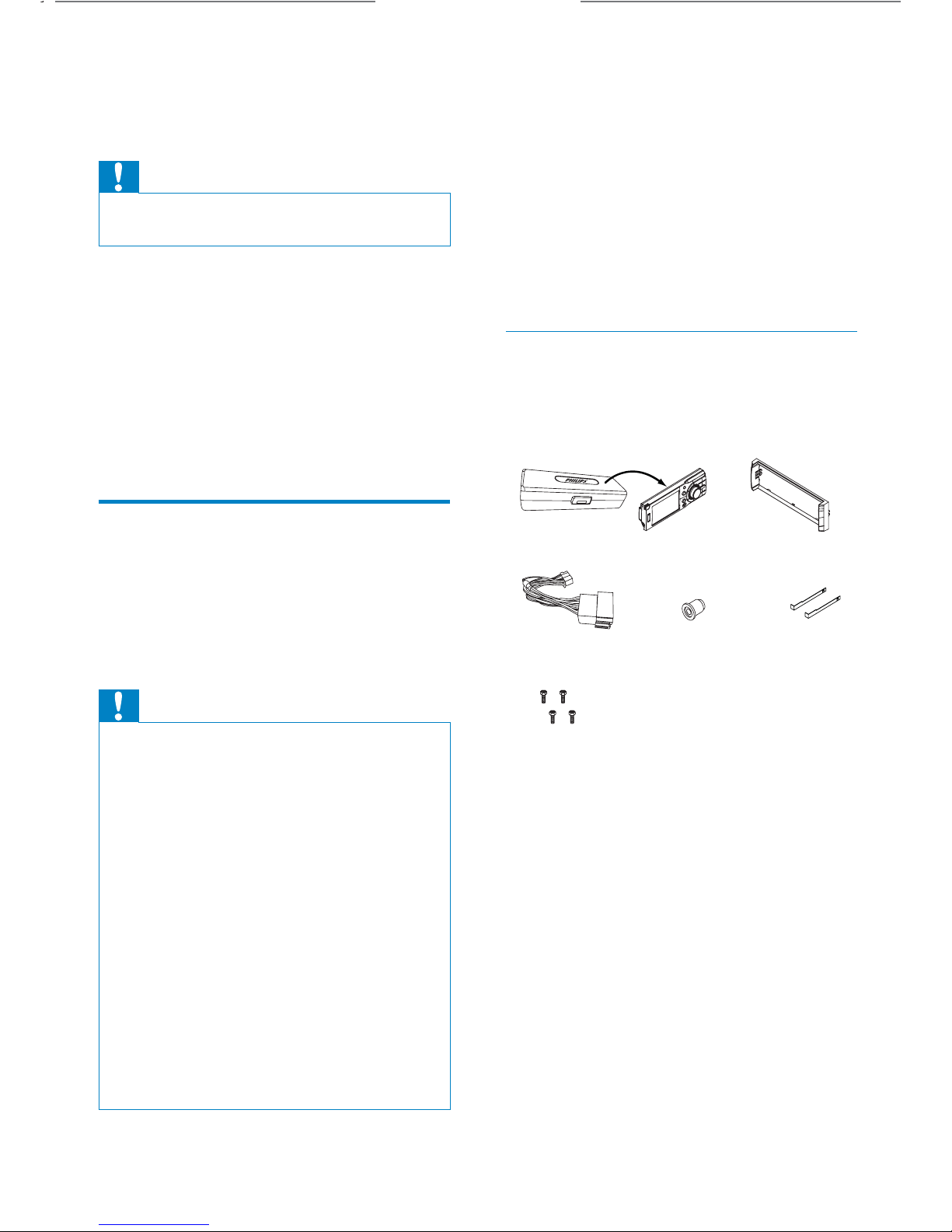

Overview of parts
These are the supplied parts needed to
connect and install this unit.
aCarry case with front panel stored
inside
bTrim plate
cStandard connector
dRubber cushion
eRemoval keys x 2 pcs
fScrew x 4 pcs
a
c
f
de
b
3 Get started
Caution
Use the controls only as stated in this user•
manual.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for
the model and serial number of your unit.The
model number and serial number are on the
back or side of your unit.Write the numbers
here:
Model No. __________________________
Serial No. ___________________________

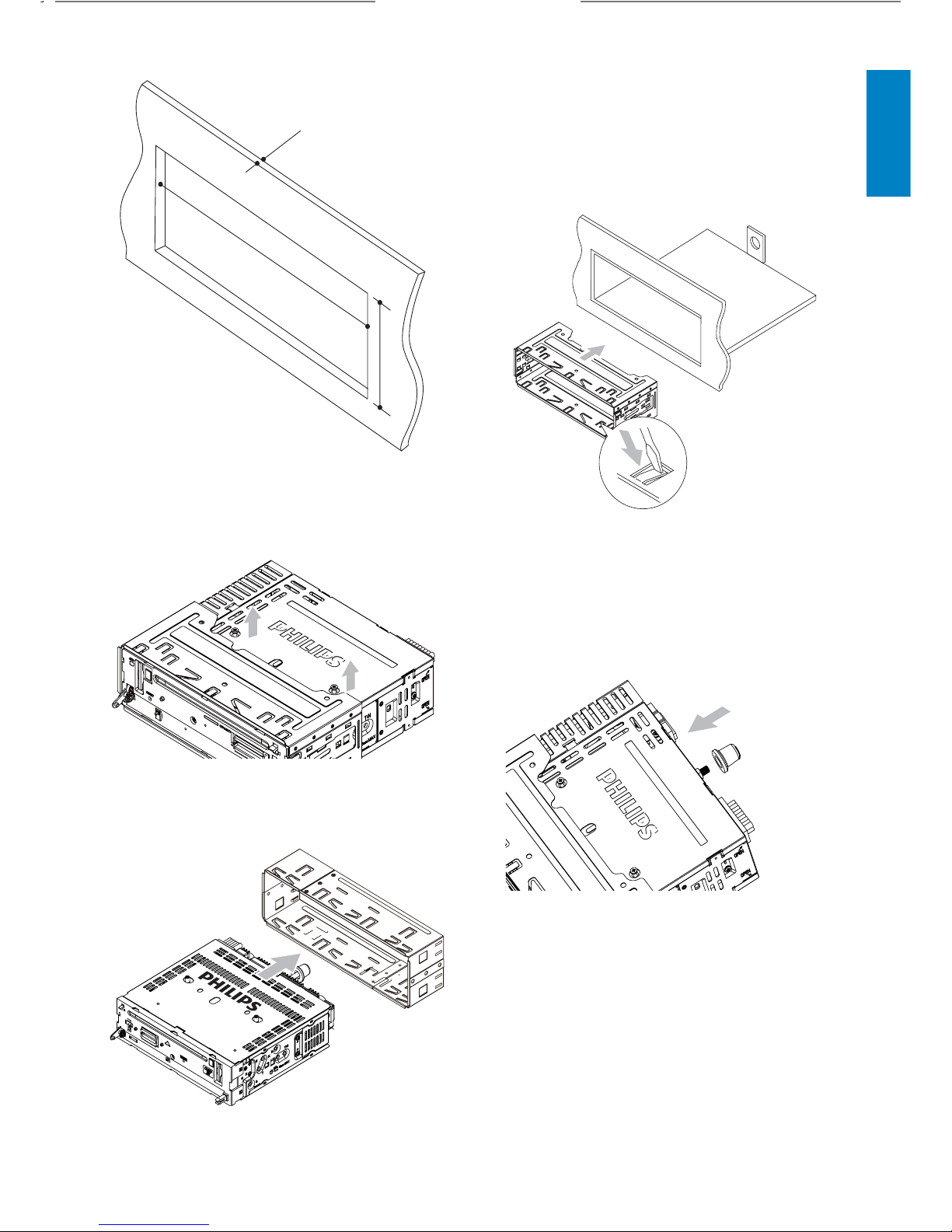

Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground•
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.
•
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,
•
ensure that the ignition is off.
Ensure that you connect the yellow and red
•
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with
•
electrical tape.
Ensure that the leads do not get caught under
•
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to
•
a common ground (earth) point.
Use only the supplied mounting hardware for a
•
safe and secure installation.
Improper fuses can cause damage or fire.
•
When you need to change the fuse, consult a
professional.
EN

11
Connect wires: without ISO
connectors
Caution
Ensure that all loose leads are insulated with•
electrical tape.
1Cut off the bigger end of the supplied
standard connector.
2Check the car’s wiring carefully, then
connect them to the standard connector.
FRONT LINE OUT L
FRONT LINE OUT R
REAR LINE OUT L
REAR LINE OUT R
PARKING
SUB OUT
ANTENNA
CAMERA
VIDEO OUT 1
VIDEO OUT 2
CAMERA IN
Connect wires: ISO connectors
Caution
Ensure that all loose leads are insulated with•
electrical tape.
1Pull out the ISO connectors from the
car dashboard and connect them to
the bigger end of the supplied standard
connector.
2Connect the other end of supplied
standard connector to the unit.
3Do the other connections, if applicable.
English
EN

12
7 Gray and
gray/black
wires
Right speaker (Front)
8 Purple and
purple/
black wires
Right speaker (Rear)
3Connect the supplied standard connector
to the unit.
4Do the other connections, if applicable.
FRONT LINE OUT L
FRONT LINE OUT R
REAR LINE OUT L
REAR LINE OUT R
PARKING
SUB OUT
ANTENNA
CAMERA
VIDEO OUT 1
VIDEO OUT 2
CAMERA IN
Connector Connect to
1BlackwireA metal surface of the
car
First connect the black
ground (earth) lead,
then connect the
yellow and red power
supply leads.
2Yellow
wire
The +12V car battery
which is live at all
times.
3Orange/
white wire
Illumination switch
4RedwireThe +12V power
terminal which is
live in the accessory
(ACC) position of the
ignition switch
If there is no accessory
position, connect to
the +12V car battery
terminal that is always
live. Be sure to connect
the black ground
(earth) lead to a metal
surface of the car first.
5 Green and
green/
black wires
Left speaker (Rear)
6 White and
white/black
wires
Left speaker (Front)
1
2
3
4
5
6
7
8
EN

13

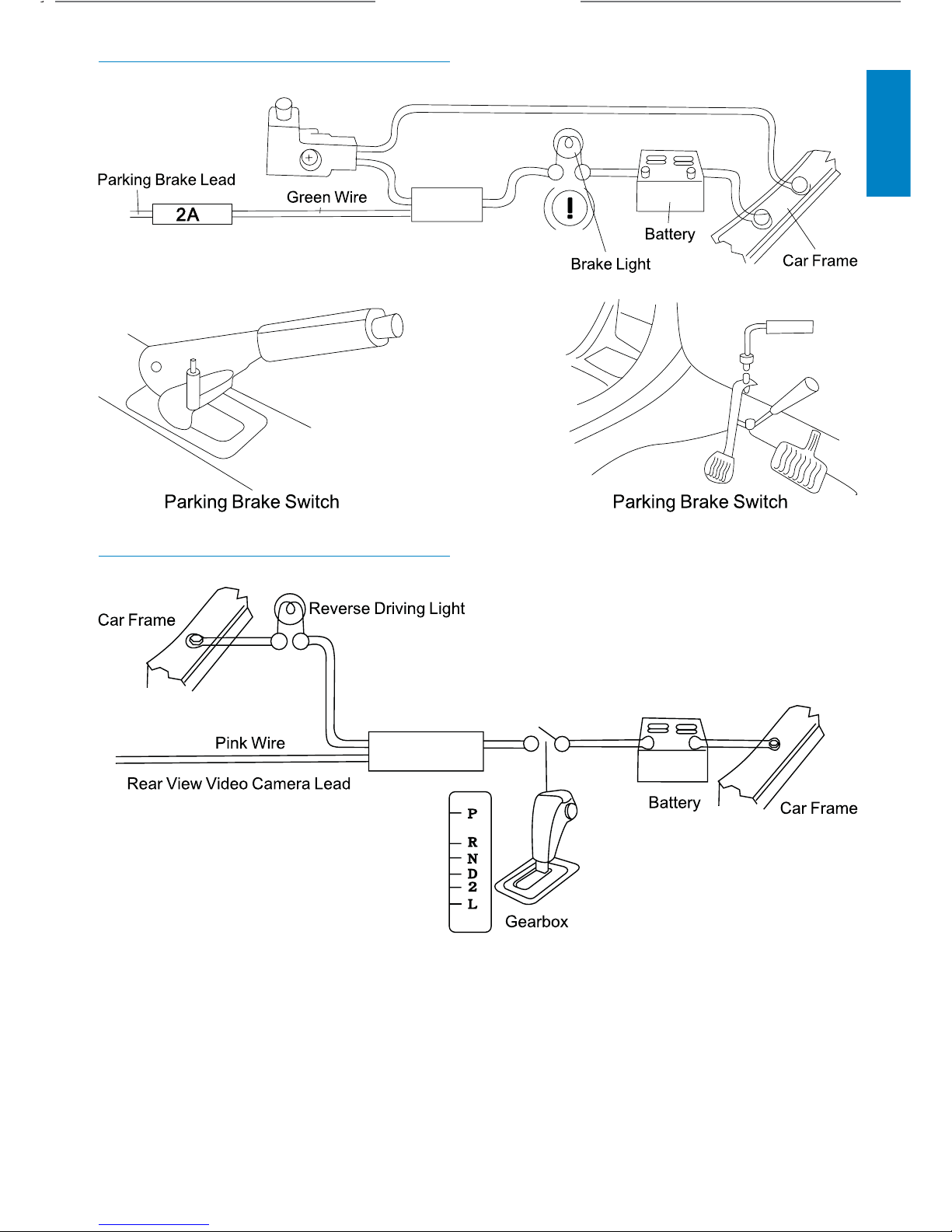

Connect parking brake cable
Connect reverse driving cable
English
EN

14
Mount in the dashboard
Note
For proper operation of the DVD player, the•
chassis must be mounted within 20 degree
horizontal. Ensure that the unit is mounted
within this limitation.
1If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car attery.
If you disconnect the car battery in•
a car that has an on-board drive or
navigation computer, the computer
may lost its memory.
If the car battery is not disconnected,•
to avoid short-circuit, ensure that
bare wires do not touch each other.
2Ensure that car dashboard opening is
within these measurements:
Attach the front panel
1Attach the trim plate.
2Insert the left side of the panel in the
chassis until it is correctly engaged.
3Press the right side of the panel until the
mechanism locks it into place.
4Close the front panel.
EN

15
5Install the sleeve into the dashboard and
bend the tabs outward to fix the sleeve.
If the unit is not fixed by sleeve but•
by the supplied screws, skip this step.
6Place the rubber cushion over the end of
the bolt.
7Slide the unit into the dashboard until a
click sound is heard.
3Remove the two transport screws on the
top of the unit.
4Remove the mounting sleeve with the
removal keys.
183 mm
53.5mm
5mm
English
EN

16
Turn on
1Press the knob to turn on the unit.
The unit plays the last listened»
program: DVD,Tuner, USB or SD/MMC
Card (if there is USB device or SD/
MMC card connected).
To turn off the unit, press the• knob for
more than 2 seconds.
When the unit is idle for over 5 minutes,•
it goes to standby mode and displays
screen saver.
Select display language
Russian is the default language for screen display.
You can change the display language.
1Press MENU.
The main menu is displayed.»
2On the remote control, press the
navigation buttons to select [SETTINGS],
then press SEL to confirm.
The setting menu is displayed.»
3Press the navigation buttons to select
[Language] > [OSD Language].
8Reconnect the negative terminal of the
car battery.
Install remote control battery
Caution
Risk of explosion! Keep batteries away from•
heat, sunshine or fire. Never discard batteries
in fire.
Note
Remove batteries if they are exhausted or if•
the remote control is not to be used for a long
time.
Batteries contain chemical substances, they
•
should be disposed of properly.
Perchlorate Material - special handling may
•
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
1Open the battery compartment.
2Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3Close the battery compartment.
EN

17
4Press the navigation buttons to select a
language, then press SEL.
5Press to exit.
Set clock
1Press MENU.
2Press the navigation buttons to select
[SETTINGS], then press SEL on the
remote control.
3Select [System], then press .
4Select [Time mode], then press .
The time mode options are displayed:»
»[12 hour mode]
»[24 hour mode]
5Sselect a mode, then press SEL.
6Press to return to previous menu and
select [Time adjust], then press .
7Press or to enter clock, then
press SEL.
English
EN

18
3To remove the disc, press the button.
When the disc is ejected, the»
unit switches to TUNER mode
automatically.
4Close the front panel.
After a few seconds, the screen turns»
on.
For video discs, if a menu appears:»
press or to select an item, then
press to start play.
For discs that contain MP3s,WMAs,»
or JPEGs: , press or to select a
folder/track/picture, then press to
start play.
Tip
If the disc is blocked in the disc compartment,•
press and hold until the disc comes out.
P
r
i
n
t
i
n
g
i
n
C
h
i
n
a
4 Play
Ensure that the device contains playable
content.
The unit supports SDHC card.
Load discs
You can play video, audio or images stored on
the following discs:
DVD video, DVD-R, DVD-RW•
VCD•
Audio CD, CD-R, CD-RW•
You can play DVD discs with the
following region codes:
Russia, India
1Press to open the front panel.
2Insert the disc into the disc slot with label
side facing up.
Play resumes from the point where it»
was last stopped.
EN

19
Remove the USB device
1Press to turn off the unit.
2Remove the USB device.
Insert SD/MMC card
1Press to open the front panel.
2Insert the SD or MMC card into the card
slot.
The unit starts playing from the SD/»
MMC card automatically.
Remove the SD/MMC card
1Press to turn off the unit.
2Press the card until you hear a click
sound.
The card is now disengaged.»
3Remove the SD or MMC card.
Insert USB device
1Slide down the USB socket cover.
2Insert the USB device into the USB
socket.
The unit starts playing from the USB»
device automatically.
English
EN

20
•[Intro][On] : After the first 10
seconds of each track have been
played, play stops.
•[Intro][Off]: Cancel intro play and
start normal play.
Repeat play
For video play
During play, press 3, REP repeatedly to select:
•[Rep 1] : play the current chapter
repeatedly.
•[Rep all] :play all chapters in the title
repeatedly.
•[Rep off] : cancel repeat play.
For audio disc play
During play, press 3, REP repeatedly to select:
•[Rep 1]: play the current track repeatedly.
•[Rep all]: play all tracks repeatedly.
•[Rep off]: cancel repeat play.
For MP3/WMA play
During play, press 3, REP repeatedly to select:
•[Rep 1] : play the current track
repeatedly.
•[Rep dir] : play all tracks in the current
folder repeatedly.
•[Rep all]: play all tracks repeatedly.
•[Rep off] : cancel repeat play.
Random play
You can play audio tracks in random order.
1During play, press SHUF, 4 to select:
•[Shuffle all] : starts random play for
all tracks.
Skip/search
During video disc play
To skip to a specified chapter, press the•
number buttons on the remote control.
To skip to the previous/next chapter,•
press or .
To search backward/forward rapidly,•
press or for 3 seconds.
»[Backward] or [Forward] is displayed.
To change search spead, repeatedly
press or for 3 seconds
To resume normal play, press .
During audio disc play
To skip to a specified track, press the•
number buttons on the remote control.
To skip to track number over 9,•
press 0first, then press the number
button.
To skip to the previous/next track, press•
or .
To search backward/forward rapidly•
within the current track, press or
for 3 seconds .
DuringMP3/WMA play
To select a track, press• or to select a
folder, then press or to skip to the
previous/next track. Or press the number
buttons on the remote control to skip to
a specified track.
To search backward/forward rapidly•
within the current track, press or
for 3 seconds
For picture disc
To skip to the previous/next picture,•
press or .
Intro play
For audio tracks, you can play the first 10
seconds of each track.
1During play, press INTRO, 2 to select:
EN

21
•[PAL]: used in most of the Western
European countries (except France),
Australia, and some other countries.
•[Auto]: The correct format is set
automatically. Select this option
if you are not sure which format
should be selected.
Zoom
For DVDs,VCDs and picture CDs, you can
zoom in and out for video images or pictures.
1Press ZOOM on the remote control
repeatedly to select rate.
•[Zoom] is displayed.
2When the video image or picture is
enlarged, press the navigation buttons to
pan through it.
•[Shuffle dir]: starts random play in
current folder.
•[Shuffle off] : cancel random play.
Select subtitle language
For DVD or DivX discs that contain two or
more subtitle languages.
1During play, press SUBTITLE on the
remote control repeatedly until the
language is selected.
Select audio language
For video discs that contain two or more audio
channels.
1During play, press R/L on the remote
control repeatedly until the language is
selected.
Select audio mode
When you play VCDs/CDs, you can select an
audio mode (R/L/Stereo).
1Press R/L repeatedly until the audio
mode is selected.
Select video output format
The default video output format has been
chosen according to format that is broadcast
in your country. If the picture looks unusual,
change the video output.
1Press P/N repeatedly to select:
•[NTSC]: used in the United
States, Canada, Japan, Mexico, the
Philippines, South Korea, Taiwan, and
some other countries.
English
EN
