Philips CID2680 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual 3
ES Manual del usuario 41
PT-BR Manual do Usuário 83
=++. Ԛʹ˫ 125
=+&1 Ⴌ߀൱Ҭ 159
CID2680

3
English
EN
Contents
1 Important 4
Safety 4
Notice 4
2 Your in-car entertainment system 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Get started 9
Install the car audio 9
Install remote control battery 14
Turn on 14
Set date and time 14
4 Use map 16
Upgrade the map 16

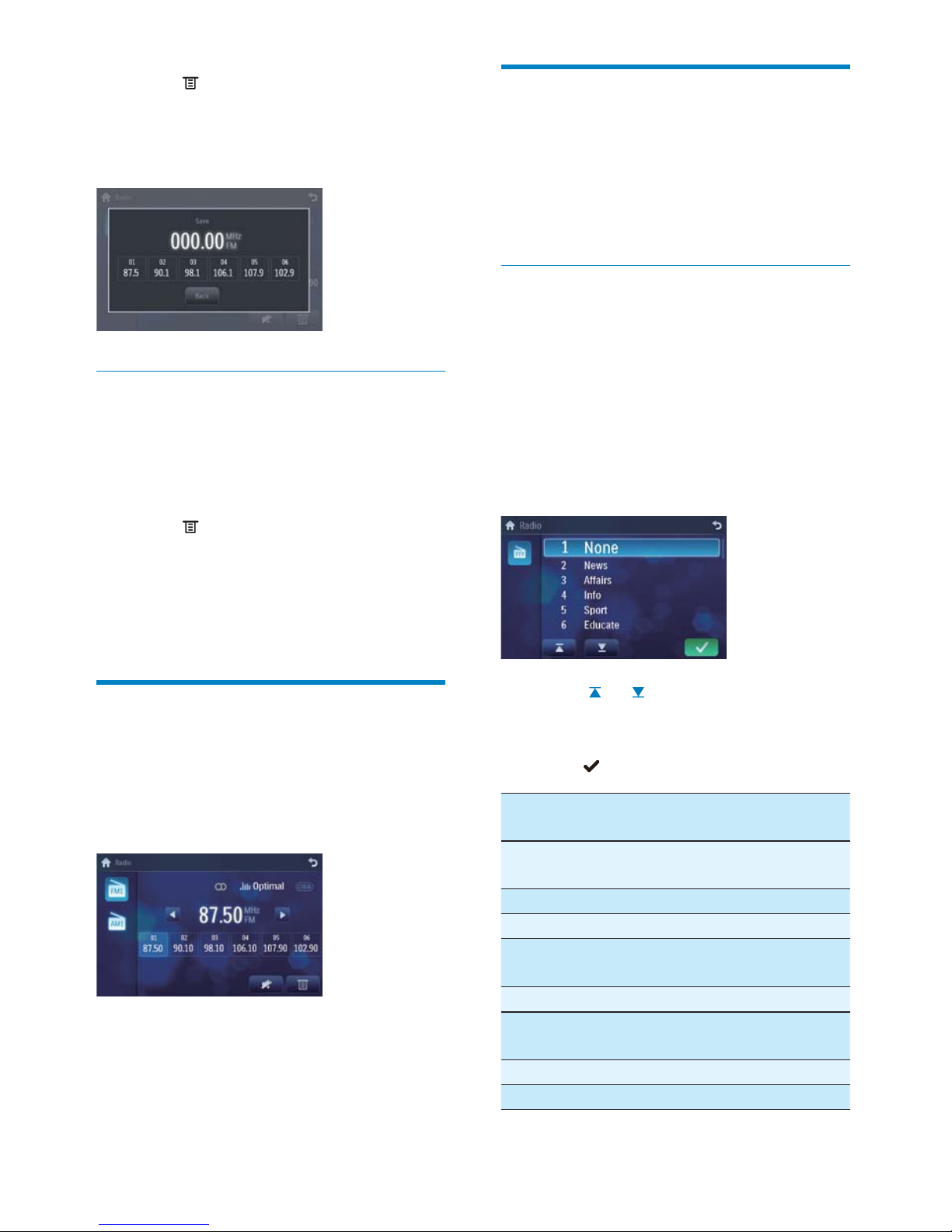

5 Listen to radio 17
Tune to a radio station 17
Store radio stations in memory 17
Tune to a preset station 18
Play with RDS (Optional) 18
6 Play 21
Load discs 21
Connect USB device 21
Insert USB or SD/MMC card 22
Play/Pause 22
Search for a folder 22
Search within a title/folder 23
Repeat 23
Repeat a section 24
Random play 24
Select audio language 24
Select audio mode 24
Select subtitle language 24
Change view angle 25
Rotate pictures 25
Zoom 25
Select slide show duration 25
7 Play with Bluetooth device 26
Pair the Bluetooth-enabled devices 26
Make a call 26
Receive call 27
Listen to music from Bluetooth device 27
Adjust Bluetooth settings 27
8 Adjust sound 28
Adjust volume 28
Mute 28
Select preset equalizer 28
Adjut fader/balance 29
Set Dynamic Bass Boost (DBB) 29
9 Adjust settings 30
Display system setup menu 30
Adjust general settings 30
Adjust sound settings 31
Adjust video settings 31
Adjust Bluetooth settings 32
Adjust language settings 32
Adjust volume settings 33
Adjust DVD rating 33
10 Others 34
Listen to other devices 34
Reset 35
Remove the unit 35
Replace fuse 35
11 Product information 36
12 Troubleshooting 37
About Bluetooth device 38
13 Glossary 39

4
The apparatus shall not be exposed to•
dripping or splashing.
Do not place any sources of danger on•
the apparatus (e.g. liquid filled objects,
lighted candles).
Notice
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
“DivX, DivX” Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
Offical DivX® Certified product. Plays all
versions of DivX® video (including DivX® 6)
with standard playback of DivX® media files.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license.
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
1 Important
Safety
Read and understand all instructions•
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
Use of controls or adjustments or•
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground•
(earth) 12 V DC operation only.
To reduce the risk of traffic accident, do•
no watch video during driving.
To ensure safe driving, adjust the volume•
to a safe and comfortable level.
Improper fuses can cause damage or•
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware•
for a safe and secure installation.
To avoid short circuit, do not expose the•
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation•
slots or other openings on the apparatus.
Never place any objects other than discs•
into the disc tray/slot.
Visible and invisible laser radiation when•
open. Avoid exposure to beam.
Risk of damage to the screen! Never•
touch, push, rub or strike the screen with
any object.
Never use solvents such as benzene,•
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Clean the apparatus with soft, damp•
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
EN

5
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
This product complies with the radio
interference requirements of the European
Community.
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2010 © Koninklijke Philips Electronics N.V.
All rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
This apparatus includes this label:
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
English
EN

6
aMain unit
bTrim plate
cRemote control
dAV out cable
eControl/Camera wire
fUSB cable
gAV in cable
hMZ-TFT/Video out 2 cable
iGPS antenna
jISO connectors (x2)
kScrews
- M5x6mm x 8 pcs
- M5x7mm x 8 pcs
- M5x15 x 1pc
Screw nut (4x25.4) x 1 pc
lRemote control battery
mScreen cleaning cloth
nPrinting material (include User manual,
Quick start guide)
2 Your in-car
entertainment
system
Congratulations on your purchase, and
welcome to Philips!To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you can
Quickly found routine through the•
navigation system
And you can also enjoy:
Audio/video/JPEG pictures from•
DVD, VCD or CD•
USB devices•
SD/SDHC/MMC cards•
External devices•
FM or AM (MW) radio•
Audio from Bluetooth-enabled devices•
Besides, you can make/receive phone calls with
Bluetooth-enabled devices.

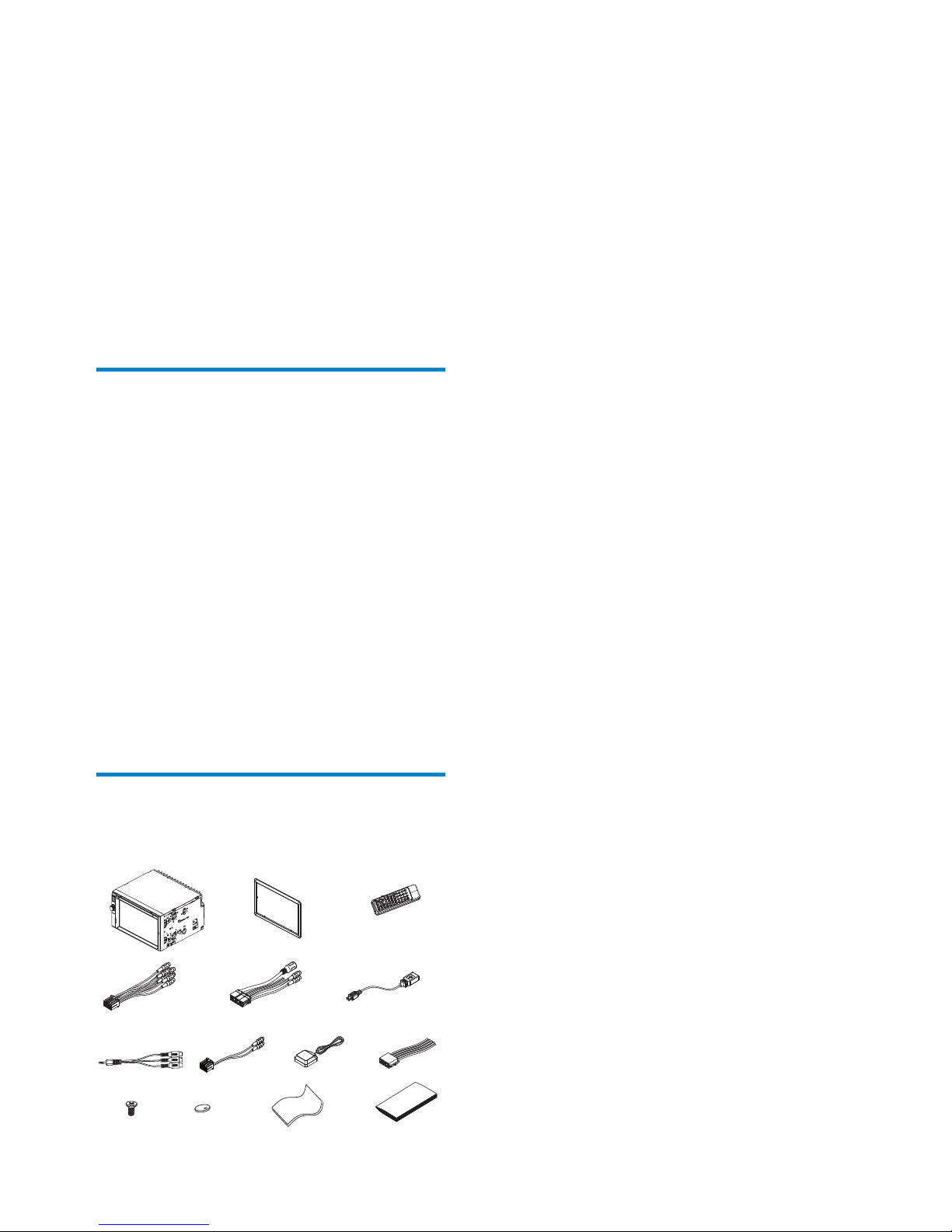

What’s in the box
Check and identify the contents of your package:
abc
def
gihj
klm n
EN

7
fAV IN
External equipment audio/video in•
socket.
g
USB socket•
hRESET
Reset the unit when it hangs up.•
iSD/SDHC/MMC card slot
jDisc slot
kMAP
Open the cover and insert/remove•
the GPS map card.

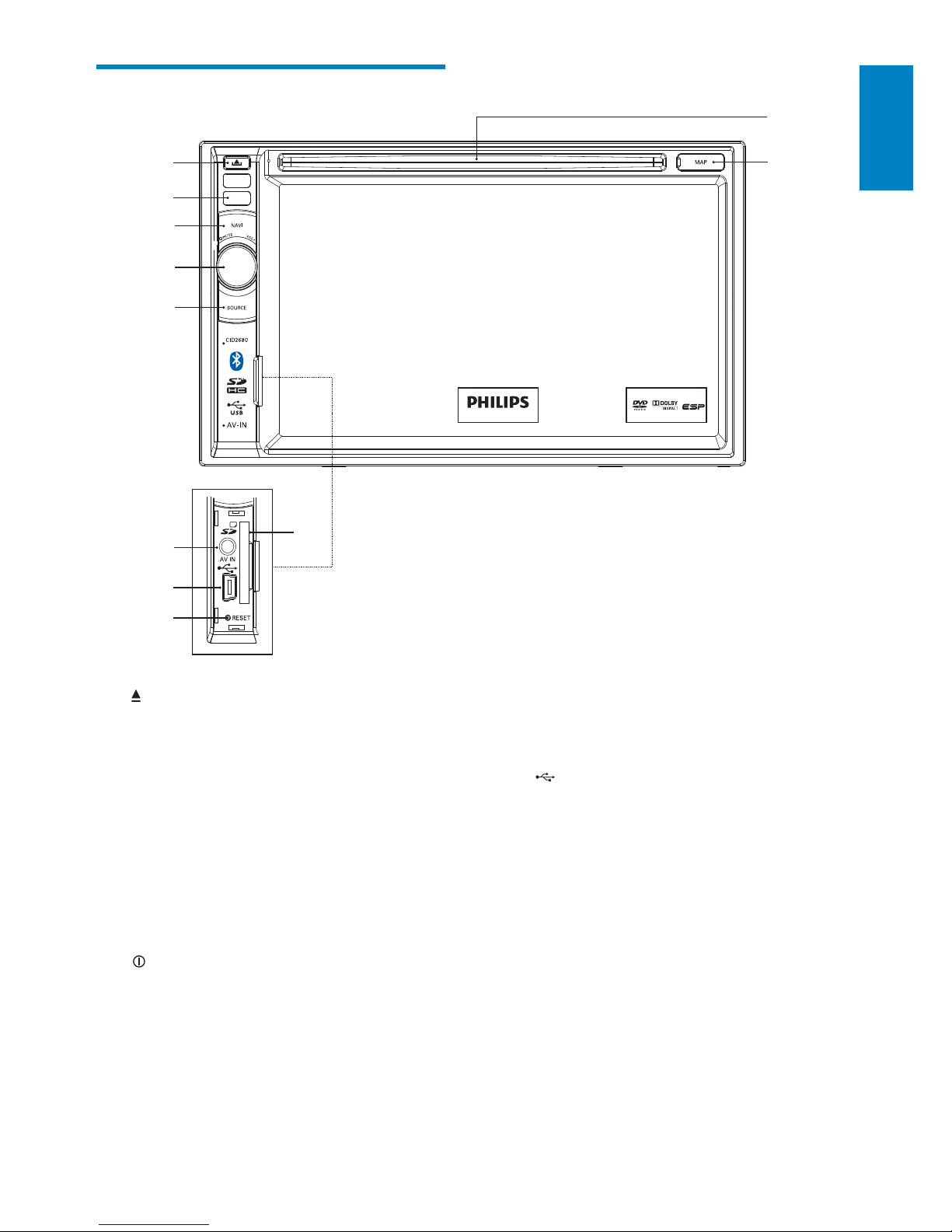

Overview of the main unit
a
Eject disc.•
bRemote control sensor
Detects signals from the remote•
control. When using the remote
control, point it directly at the IR
sensor.
cNAVI
Enter the GPS navigation system or•
exit.
d/MUTE/VOL -/+
Turn the unit on or off.•
Turn mute on or off.•
Adjust volume.•
eSOURCE
Select source.•
a
b
c
k
j
d
e
fi
g
h
English
EN

8
f
Mute or unmute audio.•
gAUDIO
Select audio language or audio•
channel.
hBAND
Select AM or FM band.•
iMUSIC
Switch to music playing mode.•
jGOTO
Select track/chapter.•
k(green)
Answer phone.•
Dial number.•
lDVD MENU
Return to DVD main menu.•
mNumeric keypad
nSHUFF
Turn random play on or off.•
oREPEAT
Select repeat play mode.•
pSUBTITLE
Select DVD or DivX subtitle•
language.
q
Delete entered numbers/characters.•
r#/ *
Symbols for making phone call.•
s(red)
Terminate call.•
tENTER
Confirm the character/number•
inputs.
u/
Skip to previous/next track/chapter.•
Tune for radio station.•

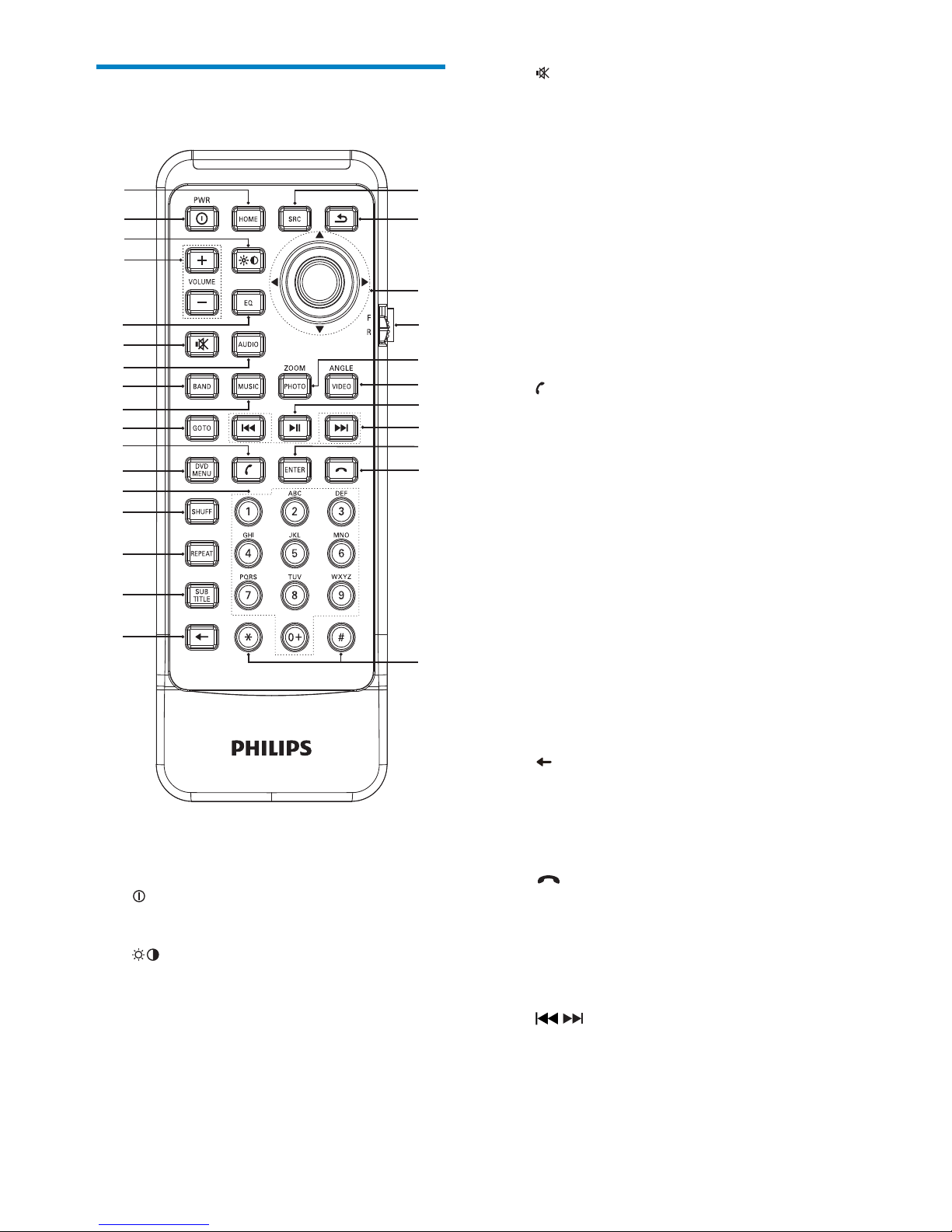

Overview of the remote
control
aHOME
Toggles the home menu on or off.•
bPWR
Turn the unit on or off.•
c
Adjust screen brightness/contrast.•
dVOLUME +/-
Adjust volume.•
eEQ
Access audio setting menu.•
a|
{
z
y
x
w
u
s
r
v
t
b
d
f
g
m
h
i
j
k
l
n
o
p
q
c
e
EN

9
3 Get started
Caution
Use of controls or adjustments or performance• of procedures other than herein may result in
hazardous radiation exposure or other unsafe
operation.
Always follow the instructions in this chapter in
sequence.

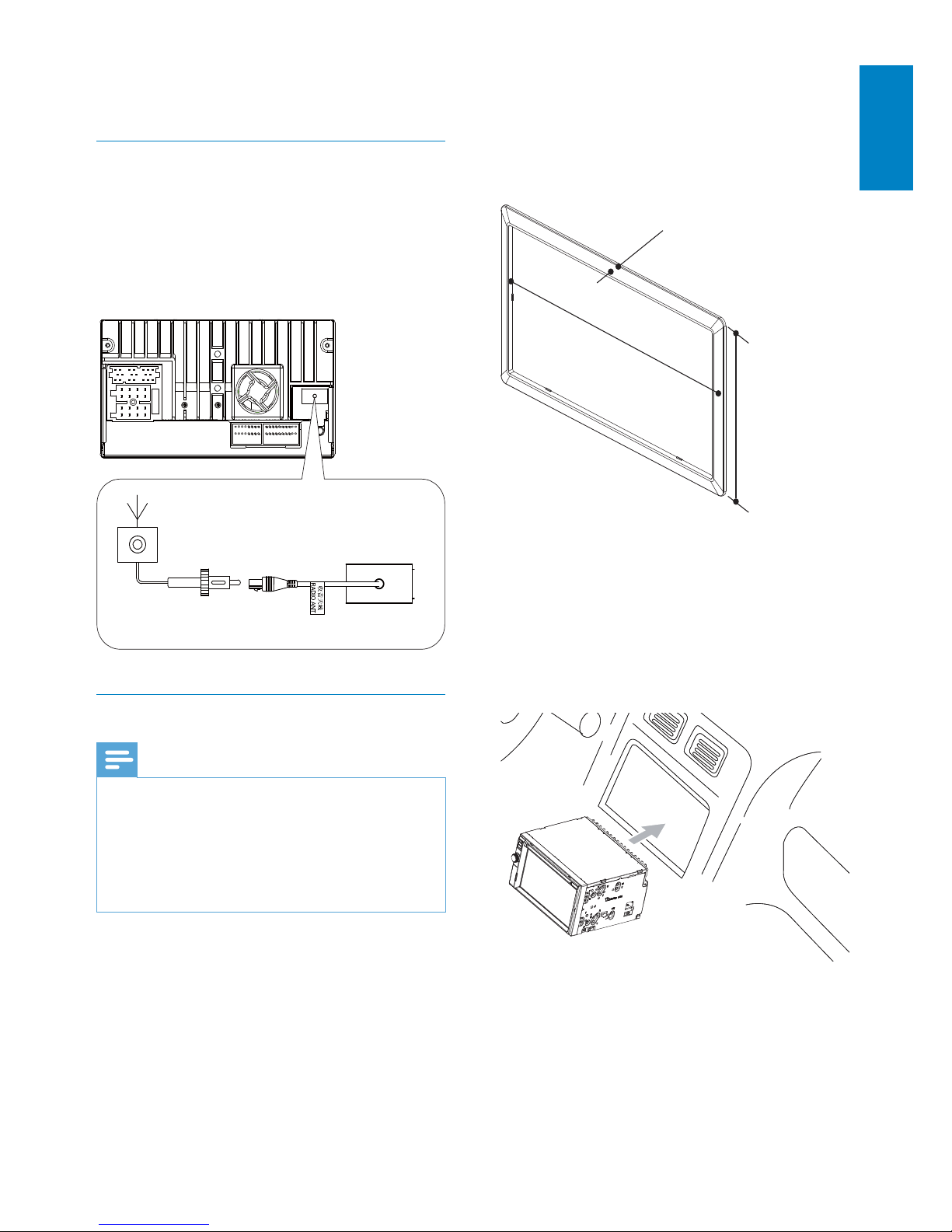

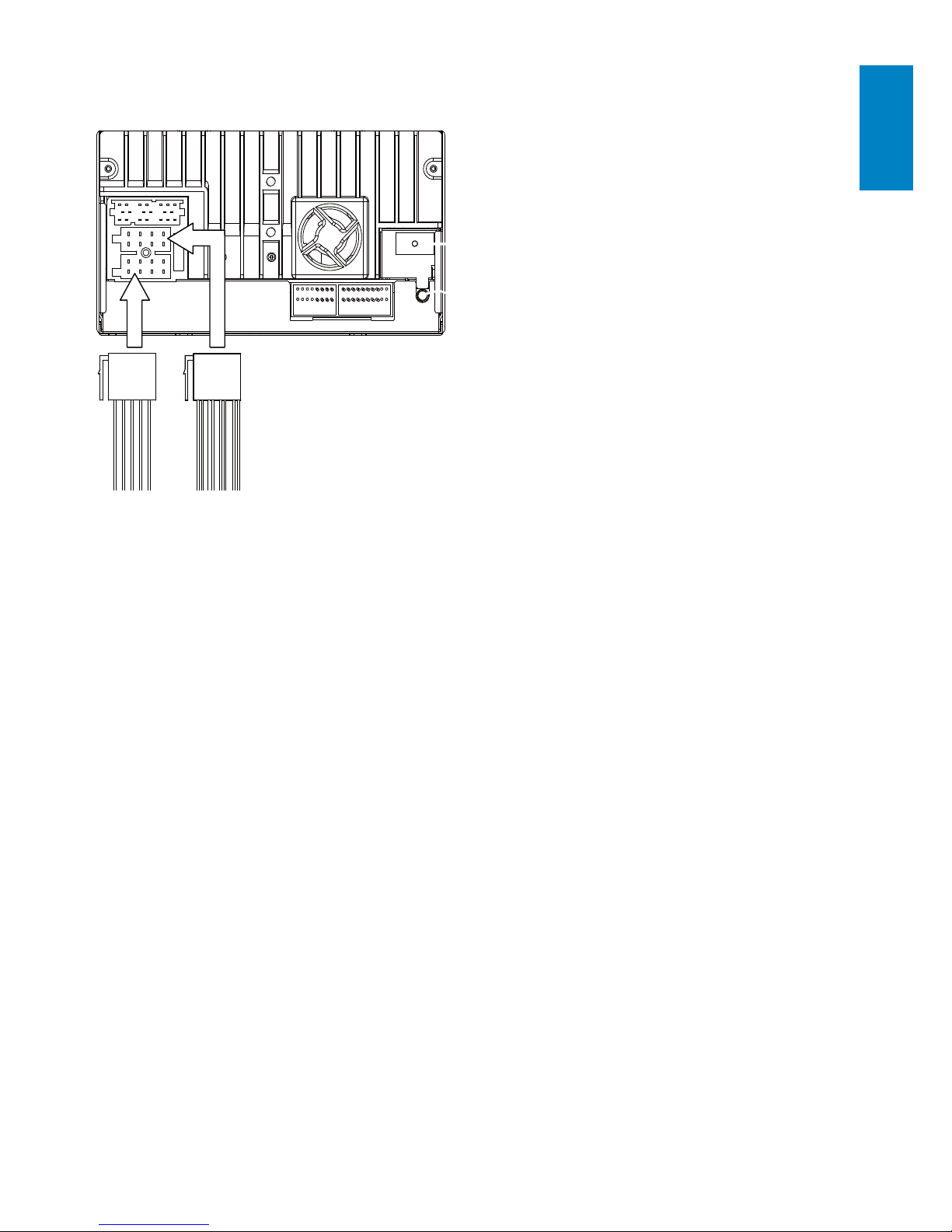

Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground•
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.
•
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,
•
ensure that the ignition is off.
Ensure that you connect the yellow and red
•
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with
•
electrical tape.
Ensure that the leads do not get caught under
•
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to
•
a common ground (earth) point.
Use only the supplied mounting hardware for a
•
safe and secure installation.
Improper fuses can cause damage or fire.
•
When you need to change the fuse, consult a
professional.
v
Start play or pause.•
Confirm selection.•
wVIDEOANGLE
Select a difference angle/version of•
the current DVD scene.
xPHOTOZOOM
Zoom in or out a picture/video image.•
yF/R
Switch to front/rear control mode.•
zNavigation buttons
• /
Skip to the previous/next preset
station.
Skip to the previous/next folder.
Search backward/forward for DVD
video.
Move cursor up/down.
• 
Skip to the previous/next track.
Move cursor to left/right.
Press the navigation button down•
Start play or pause.
Confirm selection.
{
Return to previous menu or exit.•
|SOURCE
Select source.•
English
EN

10

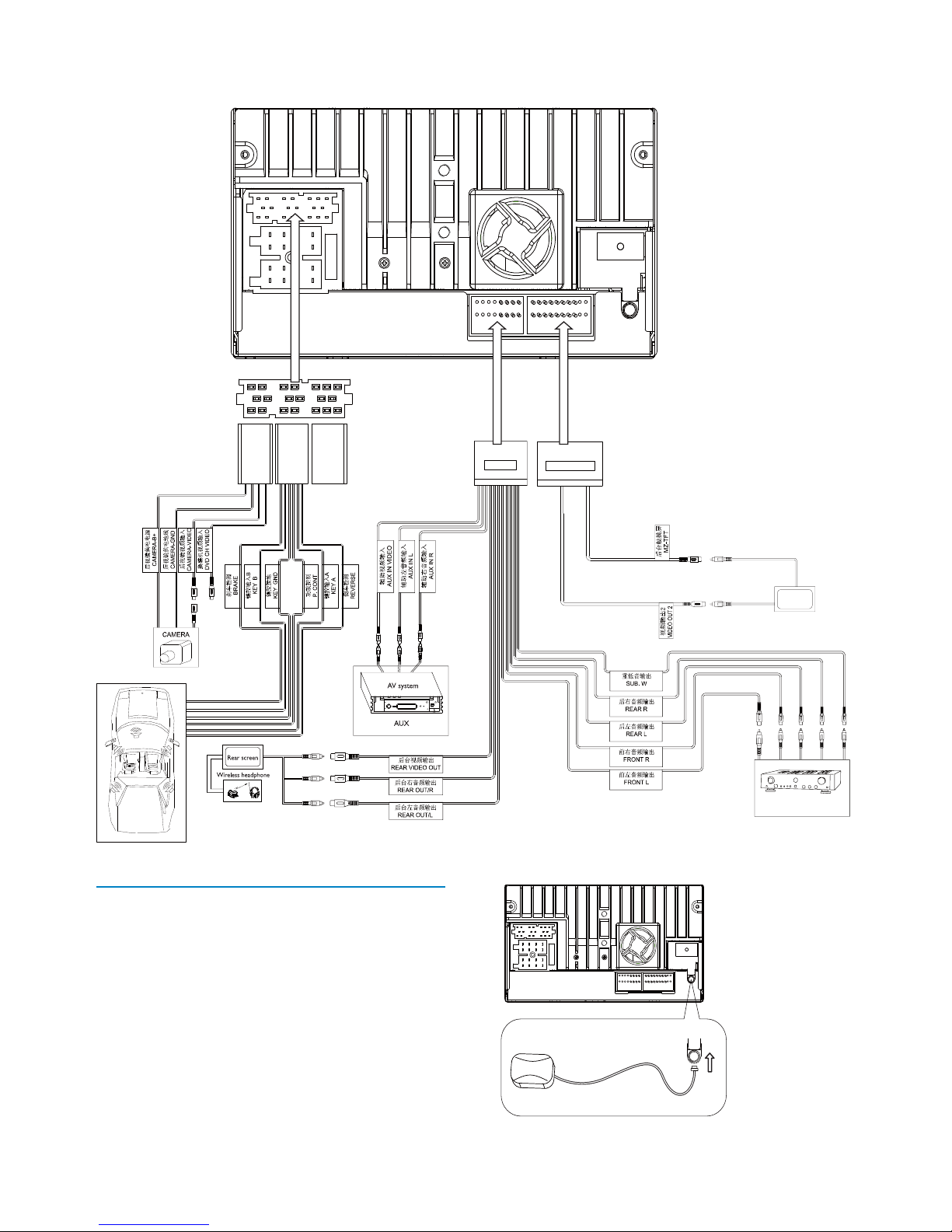

Connector Connect to
1 Brown wire Telephone mute
2Redwire The +12V power terminal
which is live in the
accessory (ACC) position
of the ignition switch
If there is no accessory
position, connect to the
+12V car battery terminal
that is always live. Be sure
to connect the black ground
(earth) lead to a metal
surface of the car first.
3 Orange wire Illumination switch
4Blackwire A metal surface of the car
First connect the black
ground (earth) lead, then
connect the yellow and red
power supply leads.
5YellowwireThe +12V car battery
which is live at all times.
6Bluewire The electric antenna
control lead or power
supply lead of the antenna
booster
If there is no electric
antenna or antenna
booster, or it is manually
operated telescopic
antenna, it is not necessary
to connect this lead.
7 Green and
green/black
wires
Left speaker (Rear)
8 White and
white/black
wires
Left speaker (Front)
9 Gray and
gray/black
wires
Right speaker (Front)
10 Purple and
purple/black
wires
Right speaker (Rear)
Note on the power supply lead (yellow)
When you connect other devices to this•
system, ensure that the rating of the car
circuit is higher than the total fuse value
of all the connected devices.
Notes on speaker connection
Never connect speaker wires to the•
metal body or chassis of the car.
Never connect speaker wires with stripes•
to one another.
Connect wires
Caution
Ensure that all loose leads are insulated with• electrical tape.
1Check the car’s wiring carefully, then
connect them to the two supplied ISO
wires.
a
g
h
i
j
b
c
d
e
f
EN

11
2Connect the other end of the two ISO
connectors to the car audio system.
English
EN

12
3If necessary, do the other connections:
Connect GPS antenna
To receive signal from satellites, connect the
supplied GPS antenna to your car and the
system.
1Connect the supplier GPS antenna to the
system first.
Red
White
Yellow
Red
Red White Yellow
Black
Yellow
Yellow Green Blue
Yellow
White
Black
Touch controller
Rear screen
Amplifier
Yellow
White
Brown
Red Red
EN

13
If the car battery is not disconnected,•
to avoid short-circuit, ensure that
bare wires do not touch each other.
2Ensure that car dashboard opening is
within these measurements:
Since the unit cannot be used if the•
dashboard opening’s slant angle is
above 20 degrees: Ensure that the
horizontal slant of the car dashboard
opening is between 0 and 20 degrees.
3Slide the unit into the dashboard until a
click sound is heard.
3.5mm
116 mm
187 mm
2Stick the other end of the GPS antenna to
a metal surface of the car.
Connect Radio antenna
If your car has built-in radio antenna, connect
it to the radio antenna of the system for
better radio signal.
1Connect the radio antenna to the car
antenna.
Mount in the dashboard
Note
Check wire connection before you mount the•
unit into a car.
If preset radio stations are lost when the
•
ignition key is turned OFF and then back ON,
reconnect the red leads crosswise to the
yellow ones.
1If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car battery.
If you disconnect the car battery in•
a car that has an on-board drive or
navigation computer, the computer
may lost its memory.
English
EN

14
Turn on
Caution
Risk of road accidents! Never watch video or• adjust settings while you drive.
1Press to turn on the unit.
The available OSD (On-Screen»
Display) languages are displayed.
2Touch a language to select.
The OSD language is changed to the»
selected language immediately.
To adjust screen brightness/contrast,•
press /on the remote control, then
press , , or .
To turn off the unit, press• for 3 seconds.
Set date and time
1Touch the upper left corner to display
main menu.
4Attach the trim plate.
5Reconnect the negative terminal of the
car battery.
Install remote control battery
Caution
Risk of explosion! Keep batteries away from• heat, sunshine or fire. Never discard batteries
in fire.
Note
Remove batteries if they are exhausted or if•
the remote control is not to be used for a long
time.
Batteries contain chemical substances, they
•
should be disposed of properly.
Perchlorate Material - special handling may
•
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
1Open the battery compartment.
2Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3Close the battery compartment.
EN

15
2Touch on [12Hr] or [24Hr] to select
clock mode.
Set time
1Touch [Time].
2Touch on the displayed time.
A submenu is displayed.»
3Touch or to set hour and minute.
Tip
When date/time is set, touch• first and then
touch to return to main menu.
2Touch in the middle right side of the
screen.
The second main menu is displayed.»
3Touch [Settings].
4Touch [Time].
The date/time setup menu is displayed.»
Set date
1Touch [Date].
2Touch on the displayed date information.
A submenu is displayed.»
3Touch or to set year, month and day.
Set clock mode
1Touch [Clock mode].
English
EN

16
4Insert the upgraded map card back into
the map card slot.
5Turn on the car audio.
The map upgrades in a few minutes.»
4 Use map
Note
You may need to upgrade the map (sold•
separately) before using it (see “Upgrade the
map” section)
1Touch the upper left corner to display
home menu.
2Touch [Navigation].
The navigation menu is displayed in a»
few seconds.
3Refer to the map manual to operate the
navigation tool.
Tip
You can press• NAVI to enter/exit the navigation
system.
Upgrade the map
1Turn off the car audio system.
2Press the map card (sold separately) until
you hear a click sound.
3Take out the card and bring it to the
authorized service center for upgrade.
EN

17
3Touch [Goto].
4Touch the numbers to enter frequency.
Touch• to clear the last entered
number.
Touch• to clear all the entered
numbers.
5Touch to confirm.
The radio station is broadcast.»
Select radio range
Before you start to search for radio stations,
you can select radio range.
1Touch .
2Touch [Radio range] to toggle tuner
sensitivity from normal to high sensitivity.
• [Distance]: Only stations with strong
signals can be broadcast.
• [Local]: Stations with strong and
weak signals can be broadcast.
Store radio stations in memory
You can store up to 6 stations in each band.
Store stations manually
1Tune to the station.
5 Listen to radio
Tune to a radio station
1Touch the upper left corner to display
home menu.
2Touch [Radio].
Band and frequency information is»
displayed.
3Touch on FM or AM to select band:
FM band options:• FM1, FM2, FM3
AM band options:• AM1, AM2
4Briefly touch or to tune to a radio
station by step.
Touch• or for over 1 seconds to
tune to a radio station automatically.
Note
If simplified Chinese is selected as OSD•
(on-screen-display) language, the RDS
functions (see ‘Play with RDS (Optional)’)
are not available. The tuner screen displays
as below:
Tune by frequency
1Touch FM or AM to select band.
2Touch .
English
EN

18
Play with RDS (Optional)
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, an RDS icon and information about the
presenter, station or program is displayed.
Select program type
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1Touch on FM band to select FM1, FM2,
or FM3.
2Touch [PTY].
List of available program type is»
displayed.
3Touch or to display the next/
previous screen.
4Touch on the selected program and then
touch to activate searching.
Item Program
type
Description
1None No program type or
undefined
2News News services
3Affairs Politics and current affairs
4Info Special information
programs
5Sport Sports
6Educate Education and advanced
training
7Drama Radio plays and literature
8Culture Culture, religion and society
2Touch .
3Touch [Save].
4Touch one of the channels 01 to 06 to
save the select band.
Store stations automatically
You can search for a station with intro search,
which broadcasts a 10-second preview of each
detected radio station.
1Select band.
2Touch .
3Touch [Search].
Auto search starts.The six strongest»
stations of the selected band are saved
in preset channels 1-6 automatically.
Tune to a preset station
1Touch [Radio].
2Select band.
3Touch one of the preset channels (01 to
06) to select a preset station.
EN

19
[TA] (Traffic
Announcement)
If you do not want to miss
traffic announcement
during enjoying music,
you can turn on the [TA]
function. When there is
traffic announcement,
the unit switches to tuner
mode (regardless of
the current mode) and
begins to broadcast the
announcement on traffic
conditions. When the traffic
announcement is over, it
returns to the previous
mode.
[REG] (Regional
radio)
When [REG] is turned on,
only stations in the current
region can be tuned to.
[EON]
(Enhanced
Other
Networks)
When [EON] is turned on,
local stations ‘break into’ a
national station’s broadcast
for the duration of a Traffic
Announcement.
1Touch on [AF], [TA] , [REG], or [EON]
to turn it on or off.
When the icon is highlighted with»
blue background color, the function is
turned on.
Item Program
type
Description
9Science Science
10 Varied Entertainment programs
11 Pop M Pop music
12 Rock M Rock music
13 Easy M Light music
14 Light M Light classical music
15 Classics Classical music
16 Other M Special music programs
17 Weather Weather
18 Finance Finance
19 Children Children’s programs
20 Social Social Affairs
21 Religion Religion
22 Phone In Phone In
23 Travel Travel
24 Leisure Leisure
25 Jazz Jazz Music
26 Country Country Music
27 Nation M National Music
28 Oldies Oldies Music
29 Folk M Folk Music
30 Document Documentary
31 Test Alarm Test
32 Alarm Alarm
Select alternate frequencies
You can turn on or off below RDS functions:
[AF] (Alternate
Frequency)
If the radio signal come
from the current station is
poor, you can turn on the
[AF] function to let the
unit searches for another
station with stronger signal
but with the same program
identification.
English
EN

20

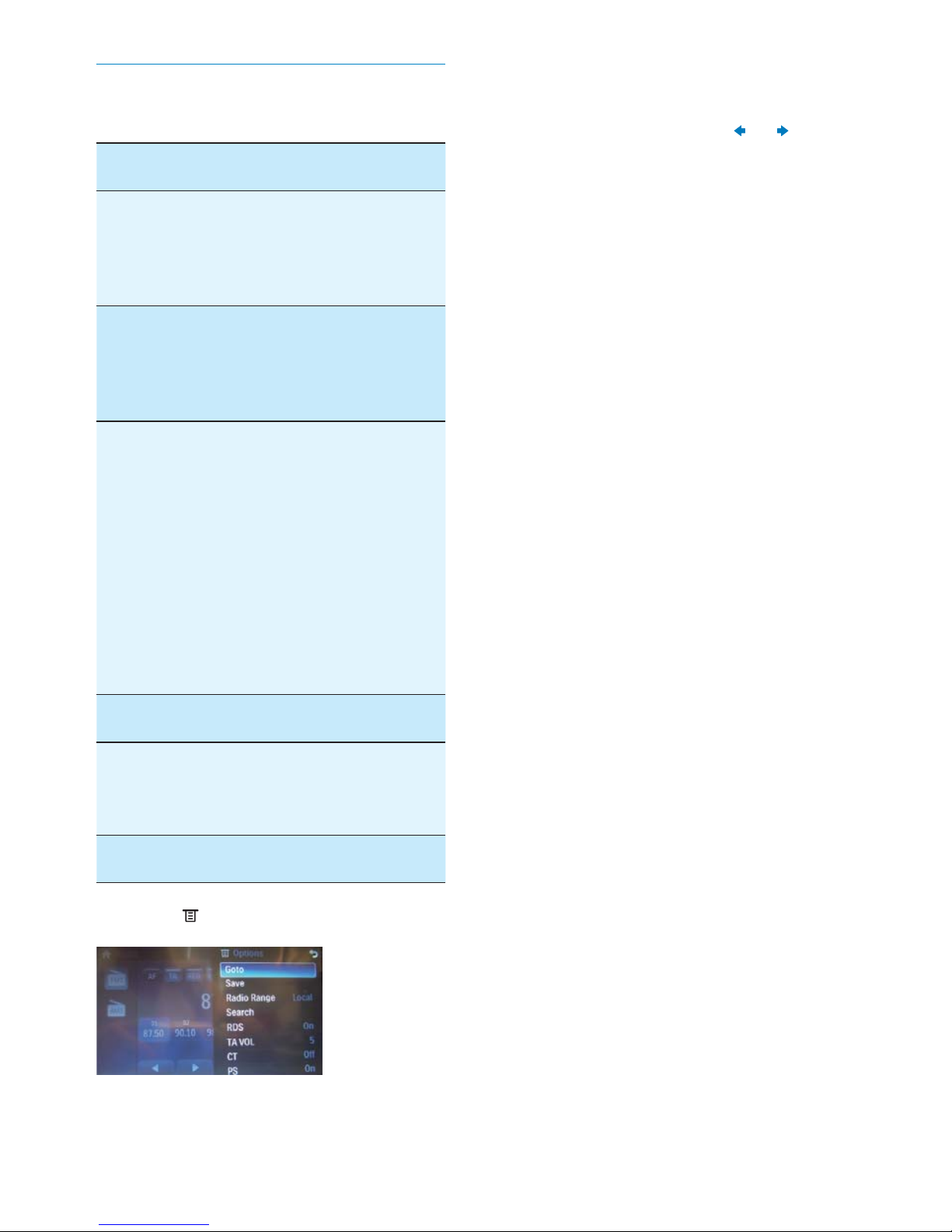

2Touch on [RDS], [TA VOL], [CT] or [PS].
3Touch on it again to select on or off.
For• [TA VOL], touch or to
select volume.
Turn on RDS
You can select below RDS functions:
[RDS] [On] Turn on RDS
functions.
[Off] When RDS is
turned off, all the
RDS related icons
(e.g. PTY, TA)
disappear.
[TA VOL]
(Traffic
announcement
Volume)
0 to 10 When TA signal is
cut in, the volume
can be increased
for a certain level:
0 to 10.
[CT] (clock
time)
[On] Turn on the
RDS clock. Time
shown on the unit
synchronize with
that on the RDS
station.
Note: The accuracy
of the transmitted
time depends on
the RDS station
that transmits the
time signal.
[Off] Turn off the RDS
clock
[PS] (Program
Service)
[On] Displays
information such
as RDS station
identity name etc.
[Off] Turn off the PS
function.
1Touch .
EN

21
Note
Depends on where you bought the unit, you•
can play DVD discs with one of the following
region codes:
Countries where you
bought the unit
Supported DVD
region code
China
Asia Pacific, Taiwan,
Korea
Latin America
Russia, India
Connect USB device
Note
Ensure that the device contains playable content.•
1Open the USB door.
6 Play
Load discs
You can play video, audio or images stored on
the following discs:
DVD video, DVD-R, DVD-RW•
VCD•
Audio CD, CD-R, CD-RW•
Note
Ensure that the disc contains playable content.•
1Insert the disc into the disc slot with label
side facing up.
Play starts automatically.»
To remove the disc, press the»button.
When the disc is ejected, the unit»
switches to the previous source,
if connected. Otherwise, the
unit switches to [Radio] mode
automatically.
P
r
i
n
t
i
n
g
i
n
C
h
i
n
a
P
r
i
n
t
i
n
g
i
n
C
h
i
n
a
English
EN
