Philips AW7150 User manual

PHILIPS
AW
7150/AW
7250
Radio
Cassette
Recorder
A
88000
Instructions for use
Mode d'emploi
Instrucciones de manejo
E RETA
PHILIPS
7 — ——- + —— —— e [T T V.= h e aa RT —

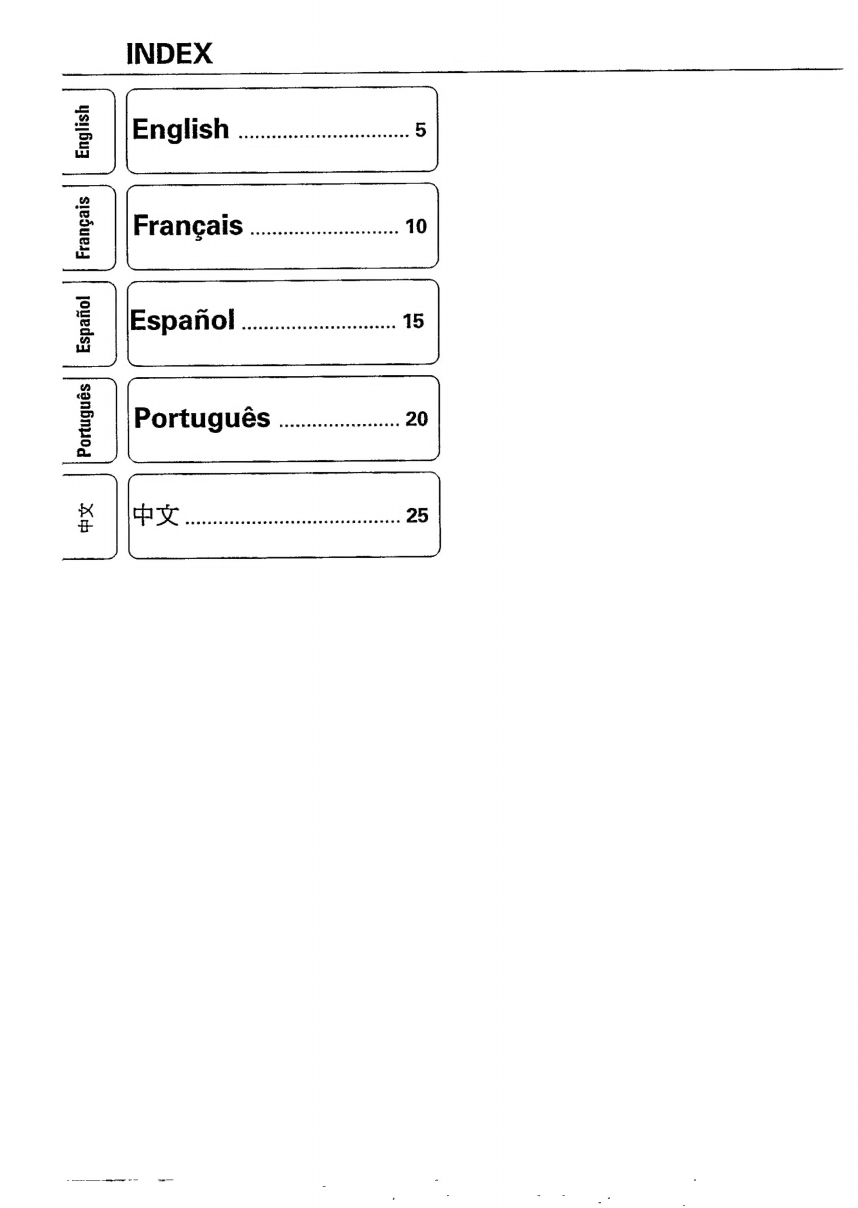

INDEX
LL.
|
ysijbug
|
|
sie5ue14
|
LLI
|
¡oueds3
|
A.
| saninyog |
E
ry

Australia
GUARANTEE FOR AUSTRALIA
The benefits given to the purchaser by this
warranty are in addition to all other rights and
remedies, which, under the Trade Practices
Act or other Commonwealth or State law, the
purchaser or owner has in respect of the
product.
The Philips product carries the following
warranties:
— C-series HiFi-systems 12 months.
— Compact Disc Players: 12 months.
— Home Audio Systems: 6 months.
~ Clock radios, portable radios, cassette
recorders, cassette players and radio
recorders: 90 days.
Any defect in materials or workmanship
occurring within the specified period from the
date of delivery, will be rectified free of charge
by the retailer from whom this product was
purchased.
Note: Please retain your purchase docket to
assist prompt service.
Conditions of this warranty
1. All claims for warranty service must be
made to the retailer from whom this product
was purchased. All transport charges in-
curred in connection with warranty service
or replacement will be paid by the
purchaser.
2. These warranties do not cover batteries and
extend only to defects in materials or
workmanship occurring under normal use of
the product where operated in accordance
with our instructions.
Philips
Consumer Products Division
Technology Park
Figtree Drive, Australia Centre
Homebush 2140
New South Wales
QZ New Zealand
GUARANTEE FOR NEW ZEALAND
Thank-you for purchasing this quality Philips
product.
Philips New Zealand Ltd guarantees this
product against defective components and
faulty workmanship for a period of 12 months.
Any defect in materials or workmanship
occurring within 12 months from the date of
purchase subject to the following conditions
will be rectified free of charge by the retailer
from whom this product was purchased.
Conditions
1.The product must have been purchased in
New Zealand. As proof of purchase, retain
the original sales docket indicating the date
of purchase.
2. The guarantee applies only to faults caused
by defective components, or faulty
workmanship on the part of the
manufacturer.
3. The guarantee does not cover failures
caused by misuse, neglect, normal wear and
tear, accidental breakage, use on the
incorrect voltage, use contrary to operating
instructions, or unauthorised modification to
the product or repair by an unauthorised
technician.
4. Reasonable evidence (in the form of a sales
docket) must be supplied to indicate that the
product was purchased no more than
12 months prior to the date of your claim.
5. In the event of a failure, Philips shall be
under no liability for any injury, or any loss or
damage caused to property or products
other than the product under guarantee.
This guarantee does not prejudice your rights
under common law and statute, and is in
addition to the normal responsibilities of the
retailer and Philips.
How to claim
Should your Philips product fail within the
guarantee period, please return it to the
retailer from whom it was purchased. In most
cases the retailer will be able to satisfactorily
repair or replace the product.
However, should the retailer not be able to
conclude the matter satisfactorily, or if you
have other difficulties claiming under this
guarantee, please contact.
The Guarantee Controller
Philips New Zealand Ltd.
E9 P.O. Box 41.021
Auckland
= (09) 84 94 160
fax @ (09) 84 97 858

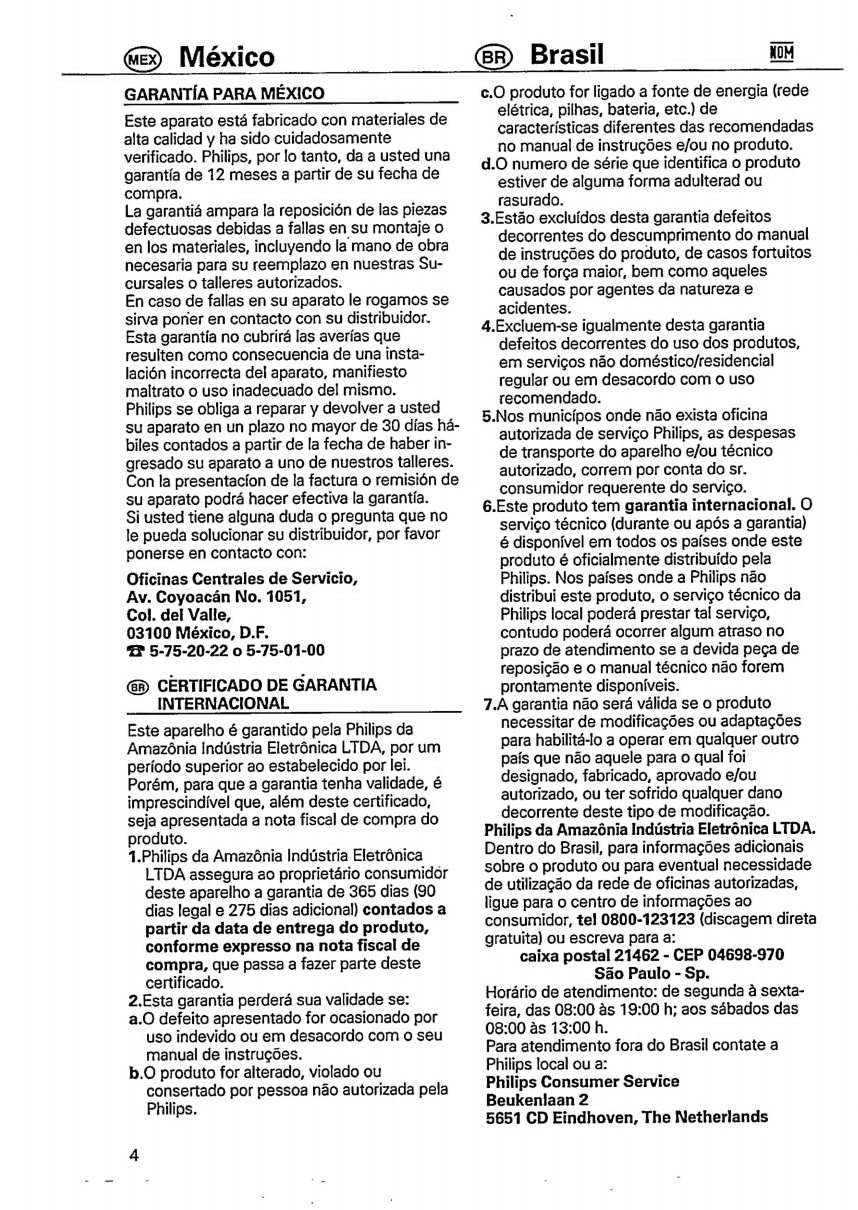

ey México
GARANTIA PARA MÉXICO
Este aparato esta fabricado con materiales de
alta calidad y ha sido cuidadosamente
verificado. Philips, por lo tanto, da a usted una
garantia de 12 meses a partir de su fecha de
compra.
La garantiá ampara la reposición de las piezas
defectuosas debidas a fallas en su montaje o
en los materiales, incluyendo la mano de obra
necesaria para su reemplazo en nuestras Su-
cursales o talleres autorizados.
En caso de fallas en su aparato le rogamos se
sirva poner en contacto con su distribuidor.
Esta garantia no cubrirá las averías que
resulten como consecuencia de una insta-
lación incorrecta del aparato, manifiesto
maltrato o uso inadecuado del mismo.
Philips se obliga a reparar y devolver a usted
su aparato en un plazo no mayor de 30 dias há-
biles contados a partir de la fecha de haber in-
gresado su aparato a uno de nuestros talleres.
Con la presentacíon de la factura o remisión de
su aparato podrá hacer efectiva la garantia.
Si usted tiene alguna duda o pregunta que no
le pueda solucionar su distribuidor, por favor
ponerse en contacto con:
Oficinas Centrales de Servicio,
Av. Coyoacán No. 1051,
Col. del Valle,
03100 México, D.F.
T 5-75-20-22 o 5-75-01-00
CERTIFICADO DE GARANTIA
INTERNACIONAL
Este aparelho é garantido pela Philips da
Amazônia Indústria Eletrônica LTDA, por um
período superior ao estabelecido por lei.
Porém, para que a garantia tenha validade, é
imprescindível que, além deste certificado,
seja apresentada a nota fiscal de compra do
produto.
1.Philips da Amazônia Indústria Eletrônica
LTDA assegura ao proprietário consumidor
deste aparelho a garantia de 365 dias (90
dias legal e 275 dias adicional) contados a
partir da data de entrega do produto,
conforme expresso na nota fiscal de
compra, que passa a fazer parte deste
certificado.
2.Esta garantia perderá sua validade se:
a.O defeito apresentado for ocasionado por
uso indevido ou em desacordo com o seu
manual de instruções.
b.O produto for alterado, violado ou
consertado por pessoa não autorizada pela
Philips.
Brasil NOM
c.O produto for ligado a fonte de energia (rede
elétrica, pilhas, bateria, etc.) de
características diferentes das recomendadas
no manual de instruções e/ou no produto.
d.O numero de série que identifica o produto
estiver de alguma forma adulterad ou
rasurado.
3.Estão excluídos desta garantia defeitos
decorrentes do descumprimento do manual
de instruções do produto, de casos fortuitos
ou de força maior, bem como aqueles
causados por agentes da natureza e
acidentes.
4.Excluem-se igualmente desta garantia
defeitos decorrentes do uso dos produtos,
em serviços não doméstico/residencial
regular ou em desacordo com o uso
recomendado.
5.Nos municípos onde não exista oficina
autorizada de serviço Philips, as despesas
de transporte do aparelho e/ou técnico
autorizado, correm por conta do sr.
consumidor requerente do serviço.
6.Este produto tem garantia internacional. O
serviço técnico (durante ou após a garantia)
é disponível em todos os países onde este
produto é oficialmente distribuído pela
Philips. Nos países onde a Philips não
distribui este produto, o serviço técnico da
Philips local poderá prestar tal serviço,
contudo poderá ocorrer algum atraso no
prazo de atendimento se a devida peça de
reposição e o manual técnico não forem
prontamente disponíveis.
7.A garantia não será válida se o produto
necessitar de modificações ou adaptações
para habilitá-lo a operar em qualquer outro
país que não aquele para o qual foi
designado, fabricado, aprovado e/ou
autorizado, ou ter sofrido qualquer dano
decorrente deste tipo de modificação.
Philips da Amazônia Indústria Eletrônica LTDA.
Dentro do Brasil, para informações adicionais
sobre o produto ou para eventual necessidade
de utilização da rede de oficinas autorizadas,
ligue para o centro de informações ao
consumidor, tel [phone] (discagem direta
gratuita) ou escreva para a:
caixa postal 21462 - CEP 04698-970
São Paulo - Sp.
Horário de atendimento: de segunda à sexta-
feira, das 08:00 às 19:00 h; aos sábados das
08:00 às 13:00 h.
Para atendimento fora do Brasil contate a
Philips local ou a:
Philips Consumer Service
Beukenlaan 2
5651 CD Eindhoven, The Netherlands

- ~ um — a < ar aa ee <
Controls
TONE
VOLUME
PHONES à
DECK 1
CASS. KNOB
DIRECTION
INDICATORS
{AW 7250 only}
SUPPLY
Battery supply
e Whenever convenient, use the mains supply
if you want to conserve battery life.
e Open the battery compartment and insert
six batteries as indicated , type R20, UM1 or
D-cells.
6 x D-cells - R20 - UM1
—S—H—SS,
A
e Remove the batteries if they are exhausted °
or if they will not be used again for a long
time.
The battery supply is switched off when the e
set is connected to the mains supply. To
change over to battery supply, pull out the
plug from the MAINS socket.
een e —=— -. — — — — (000 eee --— — =
vë e = + e Ln ` -
TAPE/HI-SPEED
DUBBING/RADIO
MIC
English
DECK 2
CASS. KNOB
mains supply ;
e Make sure if the power voltage as shown on
the type plate (on the base of the set)
corresponds to your local mains voltage. If it
does not, consult your dealer or service
organization.
If the set is equiped with a voltage selector,
set this selector to the local mains voltage.
VOLTAGE
SELECTOR
a
Connect the mains lead to the mains socket
(and plug the wall outlet). The mains supply
is switched on.
To disconnect the set from the mains
completely, withdraw the mains plug from
the wall socket.

Cassette Playback
ys1¡6u3
DECK 1
AW 7150 only
STOP F.FWD REWIND
EJECT
DIRECTION STOP F.FWD REWIND PLAY REVERSE
EJECT
CASSETTE PLAYBACK
NOS ON DECK 1 OR 2
e Set the TAPE/RADIO selector to TAPE.
Press EJECT A and insert a recorded
cassette
For playback, any cassette
type can be inserted.
Adjust the sound with the
VOLUME and TONE controls.
You may connect stereo headphones with
3.5 mm plug to socket 4? PHONES. The
loudspeakers will then be muted.
Press PLAY «4 and playback will start.
Press STOP @ if you want to stop the
playback before the end off the tape. The
set is then switched off. On pressing again,
the cassette holder will open (EJECT).
When the end of the tape is reached, the
recorder buttons are released.
FOR AW 7250 ONLY
For playback on deck 1, set the REVERSE
button C7 to:
— A. 2 single reverse, to play both cassette
sides once. At the end of the first cassette
side, the tape direction is reversed and the
recorder stops at the end of the second
cassette side.
— — C continuous reverse for non-stop
playback. The recorder reverses the tape
direction whenever reaching the end of the
cassette. To stop, STOP E must be
pressed.
Select the tape direction to start with using
the DIRECTION button <». The DIRECTION
indicators <1 P> show the actual tape
direction.
During playback you can reverse the tape
direction at any moment using the
DIRECTION button ©.

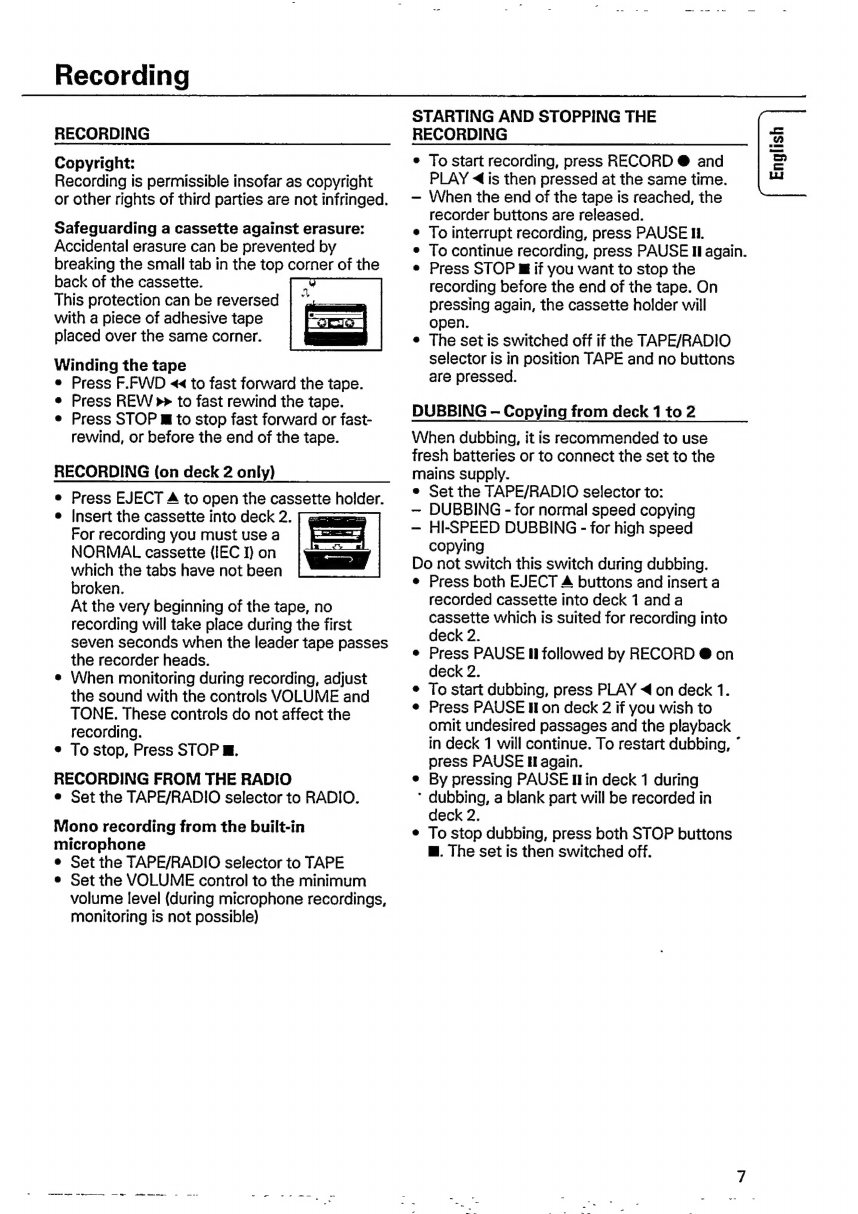

Recording
PAUSE STOP F.FWD REWIND PLAY RECORD
EJECT
CONTINUOUS PLAY - deck 2 followed by
deck 1
e Set the TAPE/RADIO selector to TAPE.
e Press both EJECT A buttons and insert a
recorded cassette into both decks.
e On deck 1, set the REVERSE button C7 to
JL — and select the tape direction using the
DIRECTION button e. For AW 7250 only.
e Press PLAY > on deck 1 and PAUSE Il and
PLAY > on deck 2 : deck 1 will play and
deck 2 stands still.
As soon as deck 1 stops (at the end of the
cassette or when its STOP E button is
pressed), PAUSE Il is released and deck 2
will start playing back.
e To stop, press STOP E; the set is then
switched off.

Recording
RECORDING
Copyright:
Recording is permissible insofar as copyright
or other rights of third parties are not infringed.
Safeguarding a cassette against erasure:
Accidental erasure can be prevented by
breaking the small tab in the top cone of the
back of the cassette.
This protection can be reversed
with a piece of adhesive tape
placed over the same corner.
Winding the tape
e Press F.FWD << to fast forward the tape.
e Press REW pr to fast rewind the tape.
e Press STOP I to stop fast forward or fast-
rewind, or before the end of the tape.
RECORDING (on deck 2 only)
Press EJECT A to open the cassette holder.
Insert the cassette into deck 2.
For recording you must use a ==
NORMAL cassette (IEC 1) on
which the tabs have not been y
broken.
At the very beginning of the tape, no
recording will take place during the first
seven seconds when the leader tape passes
the recorder heads.
When monitoring during recording, adjust
the sound with the controls VOLUME and
TONE. These controls do not affect the
recording.
e To stop, Press STOP E.
RECORDING FROM THE RADIO
e Set the TAPE/RADIO selector to RADIO.
Mono recording from the built-in
microphone
e Set the TAPE/RADIO selector to TAPE
e Set the VOLUME control to the minimum
volume level (during microphone recordings,
monitoring is not possible)
——— aq e ON ar ma - as ir Se o quim
STARTING AND STOPPING THE
RECORDING
e To start recording, press RECORD @ and
PLAY « is then pressed at the same time.
— When the end of the tape is reached, the
recorder buttons are released.
To interrupt recording, press PAUSE Il.
To continue recording, press PAUSE Il again.
Press STOP E if you want to stop the
recording before the end of the tape. On
pressing again, the cassette holder will
open.
The set is switched off if the TAPE/RADIO
selector is in position TAPE and no buttons
are pressed.
English
DUBBING — Copying from deck 1 to 2
When dubbing, it is recommended to use
fresh batteries or to connect the set to the
mains supply.
e Set the TAPE/RADIO selector to:
— DUBBING - for normal speed copying
— HI-SPEED DUBBING - for high speed
copying
Do not switch this switch during dubbing.
e Press both EJECT A buttons and insert a
recorded cassette into deck 1 and a
cassette which is suited for recording into
deck 2.
Press PAUSE Il followed by RECORD @ on
deck 2.
To start dubbing, press PLAY 4 on deck 1.
Press PAUSE Hon deck 2 if you wish to
omit undesired passages and the playback
in deck 1 will continue. To restart dubbing, *
press PAUSE H again.
By pressing PAUSE II in deck 1 during
` dubbing, a blank part will be recorded in
deck 2.
To stop dubbing, press both STOP buttons
R. The set is then switched off.
° ©.

Radio
RADIO RECEPTION
ysij6uq
Set the TAPE/RADIO selector to RADIO.
e Adjust the sound with VOLUME and TONE.
You may connect stereo headphones with
3.5 mm plug to the socket @ PHONES. The
loudspeakers will then be muted.
e Select the wave band using BAND selector.
Tune to a radio station using the TUNING
knob. (SW and LW not all versions).
For FM, pull out the telescopic aerial. To
improve FM reception, incline and turn the
aerial. Reduce its length if the FM signal is
too strong (usually occurs when very close
to a transmitter).
For MW/AM or LW, the set is provided with
a built-in aerial, so there is no need to use
the telescopic aerial. The aerial can be
directed by turning the whole set.
For short wave (SW), the telescopic aerial
must be pulled out and placed in the vertical
position. To improve SW-reception, vary the
lenght of the aerial.
The set is switched off if the TAPE/RADIO
selector is in position TAPE and no buttons
are pressed.
General
Recycling
MAINTENANCE
To ensure good recording and playback quality,
clean the parts (4) ® O © © indicated after
every 50 hours of operation or, on average,
once a month.
AW 7250
Deck 1
AW 7150
Deck 1 +2
AW 7250
Deck 2
e Open the cassette holder by pressing
EJECTA.
e Use a cottonball slightly moistened with
alcohol or a special head cleaning fluid.
e Press PLAY < and clean the rubber pressure
roller ©.
e Then press PAUSE U and clean the capstan
(8), and recording/playback head @) and
erase head €). After cleaning, press STOP E
Cleaning of the heads (A) and ©) can also be
done by playing a cleaning cassette through
once.
Remarks
Fingerprints, dust and dirt on the set can be
removed by using a soft, clean and slightly
damp leather cloth. Do not use any cleaning
agents, since they may damage the cabinet.
Do not expose the set, batteries and cassettes
to rain, moisture, sand, or to excessive heat
e.g. from heating equipment or in motor cars
parked in the sun.
RECYCLING
Please observe the local regulations regarding
the disposal of packing materials, exhausted
batteries and old equipment.
e All redundant packaging material has been
omitted. We have done our utmost to make
the packaging easy separable into three
mono-materials:
— cardboard (box),
— expandable polystyrene (buffer)
— polyethylene (bags, protective foam
sheet)
e Your set consists of materials which can be
recycled if disassembled by a specialized
company.
e Do not dispose of exhausted batteries with
your household waste.
ae ew tee

A mama ——— - — —— sr n n - n ema — -r- —:

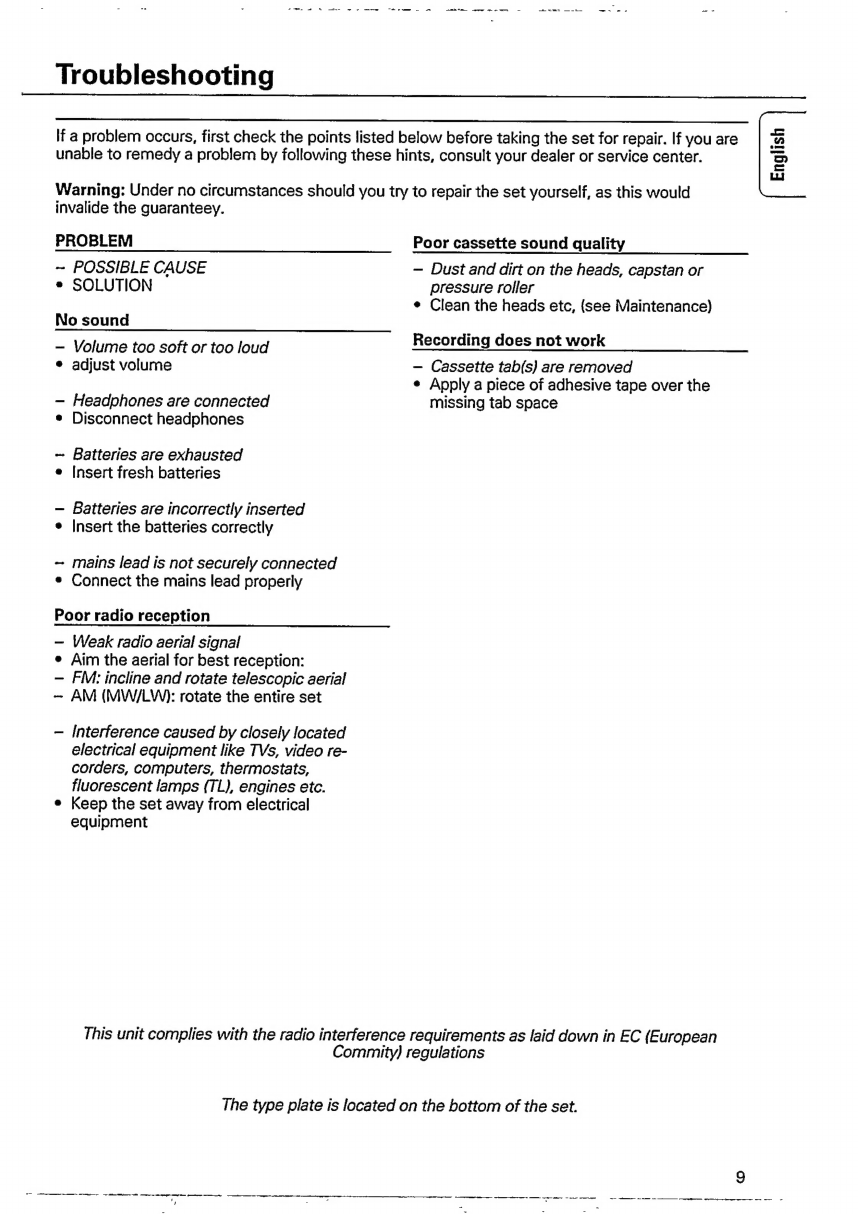

Troubleshooting
— ——— — A —[ — — —— — F - —-
U
If a problem occurs, first check the points listed below before taking the set for repair. If you are
unable to remedy a problem by following these hints, consult your dealer or service center.
English
Warning: Under no circumstances should you try to repair the set yourself, as this would
invalide the guaranteey.
PROBLEM Poor cassette sound quality
~ POSSIBLE CAUSE — Dust and dirt on the heads, capstan or
e SOLUTION pressure roller
e Clean the heads etc, (see Maintenance)
No sound
— Volume too soft or too loud Recording does not work
e adjust volume — Cassette tab(s) are removed
e Apply a piece of adhesive tape over the
— Headphones are connected missing tab space
e Disconnect headphones
~ Batteries are exhausted
e Insert fresh batteries
— Batteries are incorrectly inserted
e Insert the batteries correctly
— mains lead is not securely connected
e Connect the mains lead properly
Poor radio reception
— Weak radio aerial signal
e Aim the aerial for best reception:
— FM: incline and rotate telescopic aerial
- AM (MW/LW): rotate the entire set
— Interference caused by closely located
electrical equipment like TVs, video re-
corders, computers, thermostats,
fluorescent lamps (TL), engines etc.
e Keep the set away from electrical
equipment
This unit complies with the radio interference requirements as laid down in EC (European
Commity) regulations
The type plate is located on the bottom of the set.

| —— — —— ——
— — ~ ——-— A um

se ec mr rrn -

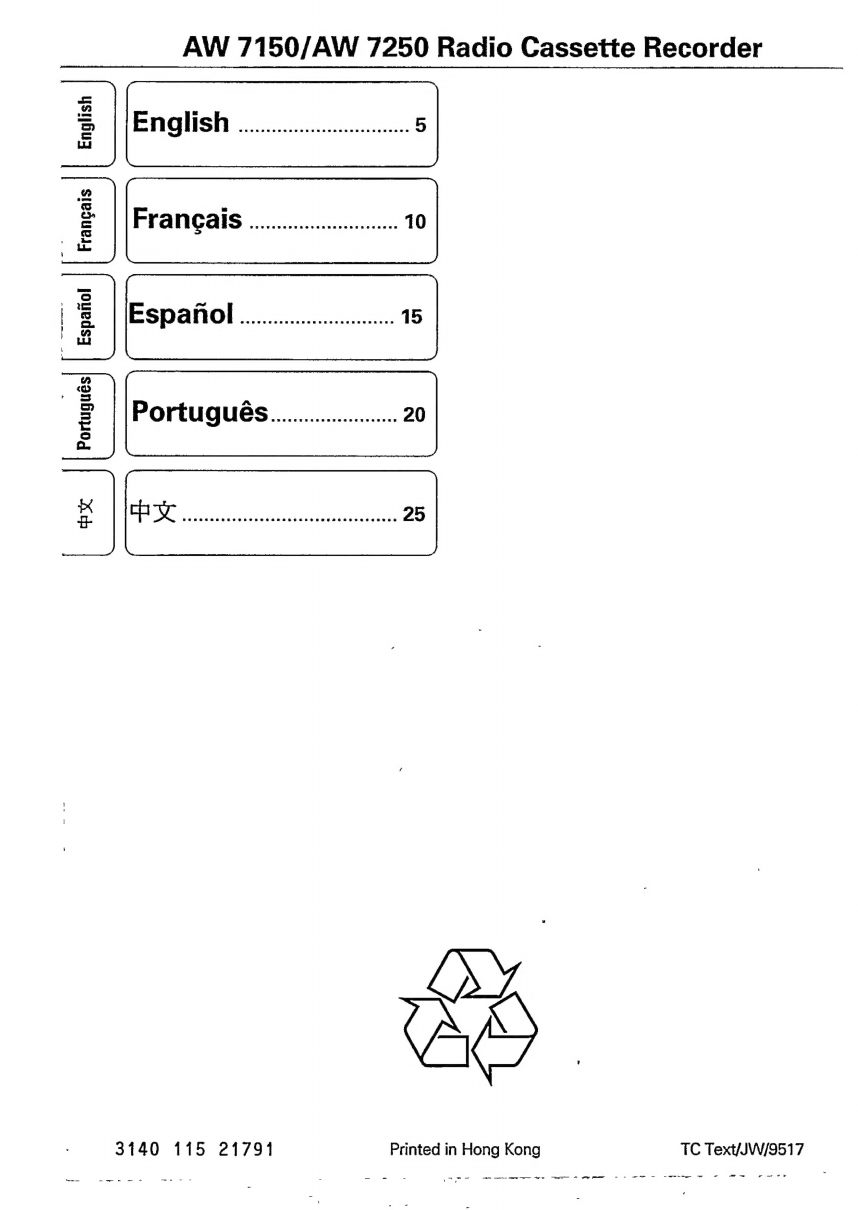

Francais English
Español
Portugués
thx:
AW 7150/AW 7250 Radio Cassette Recorder
ae
3140 115 21791 Printed in Hong Kong TC Text/JW/9517
— - - >= a — ——— —r — > — — ss —— - -—-— = e
'
