Philips AZ2000/01 User manual

black film width 138 mm
Instructions for use
Mode d’emploi
Instrucciones de manejo
Manual de instruções
√
AZ 2000 Portable CD Radio Cassette Recorder
VOLUME
INCREDIBLE
SURROUND
ULTRABASS
DYNAMICBASSBOOST
VOLUME
INCREDIBLE
SURROUND
ULTRABASS
DYNAMICBASSBOOST
CDSYNCHROSTARTRECORDING
AZ2000CDRADIOCASSETTERECORDER
OPEN
OPEN
TUNING
TUNING
108
104
100
96
92
88
FM
MHz
108
104
100
96
92
88
FM
MHz
1600
1300
1000
800
630
530
MW
MHz
1600
1300
1000
800
630
530
MW
MHz
SEARCH
PLAY•PAUSE;
STOP
CD MODE
SEARCH
PLAY•PAUSE;
STOP
CD MODE
PROGR
PROGR
BASS REFLEX SPEAKER SYSTEM
BASS REFLEX SPEAKER SYSTEM
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
XP AZ 2000/01.1 19-04-2000 16:48 Pagina 1

INDEX
2
English
Français
Español
English ........................................... 4
Français...................................... 12
Español ....................................... 20
Português
Português .................................. 28
∑
∑................................................. 36
åAustralia
Guarantee.........................................Page 44
∫Brasil
Garantia.........................................Página 45
µMéxico 2
Garantia.........................................Página 46
ˆNew Zealand
Guarantee.........................................Page 48
Es necesario que lea cuidadosamente su instructivo de manejo.
Descripción: Tocadiscos de CD portatíl
Modelo: AZ 2000/01
Alimentación: 110–127/220–240 V; ~50–60 Hz
Consumo: 22 W
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Norte 45, # 669, Col. Industrial Vallejo
Localidad y Telefono: C.P. 02300 México D.F., Tel. [phone]
Exportador: Philips HK, Ltd.
País de Origen: China
Nº de Serie: ______________________________
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO ANTES DE USAR SU APARATO.
No abrir, riesgo de choque eléctrico
Verifique que el voltaje de alimentación
sea el requerido para su aparato
ATENCIÓN
Para evitar el riesgo de choque eléctrico, no quite la tapa.
En caso de requerir servicio, dirijase al personal calificado.
PRECAUCIÓN - ADVERTENCIA
México n
XP AZ 2000/01.1 19-04-2000 16:48 Pagina 2

3
CDSYNCHROSTARTRECORDING
AZ2000 CD RADIO CASSETTE RECORDER
SEARCH
OPEN
VOLUME
INCREDIBLE
SURROUND
ULTRABASS
DYNAMIC BASSBOOST
TUNING
PROGR
PLAY•PAUSE ;
STOP
CD MODE
BASSREFLEXSPEAKERSYSTEM
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
108
104
100
96
92
88
FM
MHz
1600
1300
1000
800
630
530
MW
MHz
54321
6
7
89
0! @
MAINS V~
$#%
^
1
2
XP AZ 2000/01.1 19-04-2000 16:48 Pagina 3

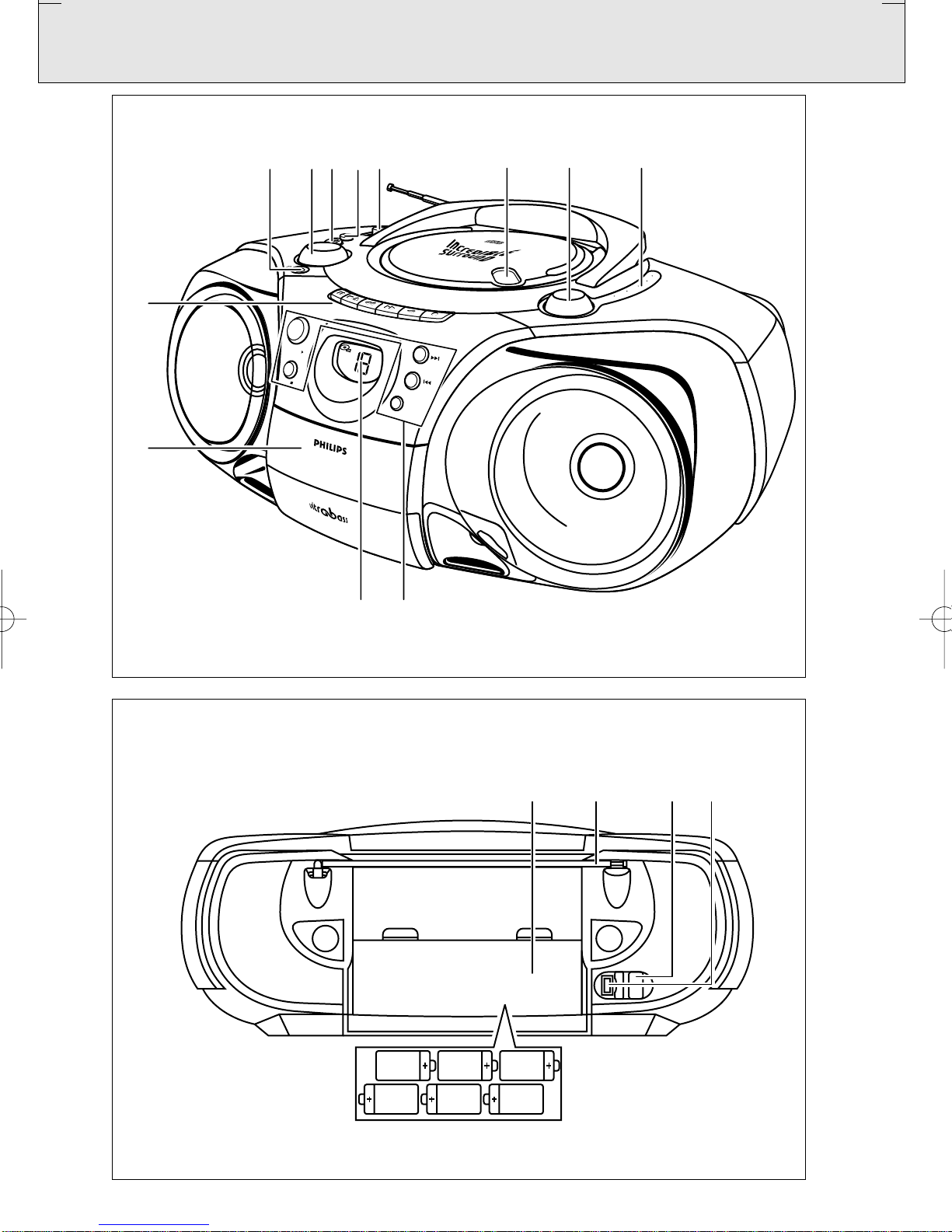

1Source selector:
BAND (MW/FM), CD, TAPE/OFF- to select
source of sound/radio waveband, and also
the power OFF` switch
2INCREDIBLE SURROUND - To create a
phenomenal surround sound stereo effect
3Bass control - To select a more vivid bass
response: ULTRA BASS, DYNAMIC BASS
BOOST, OFF
4VOLUME - To adjust volume level
5p3.5 mm stereo headphone socket
Note: – Connecting headphones will switch off
the speakers
CASSETTE RECORDER:
6PAUSE ;- To interrupt recording or playback.
STOP•OPEN 9/- To stop the tape and to
open the cassette holder
SEARCH 5or 6- To fast wind/rewind the
tape.
PLAY 1- To start playback.
RECORD 0- To start recording.
7Cassette compartment
CD PLAYER
8CD Display - To show the CD functions
9PLAY/PAUSE 2; - To start or interrupt CD
play
STOP 9- To stop playback or erase a
programme
CD MODE - To select a different play mode
e.g. SHUFLE/REPEAT; to programme and review
programmed track numbers
SEARCH ∞or §- To skip or search a
passage/ track backwards or forward
0OPEN - To open/ close the CD door
RADIO
!- TUNING - To tune to radio stations.
@- Tuning dail pointer
#Battery door - To open the battery
compartment
$Telescopic aerial - To improve FM
reception.
%AC MAINS - Socket for mains lead.
^Voltage selector
BACK PANEL
TOP AND FRONT PANEL
CONTROLS POWER SUPPLY
4
English
Whenever convenient, use the mains supply if you want to
conserve battery life. The battery supply will be switched off when
the set is connected to the mains.
Batteries (optional)
1. Open the battery compartment and insert six batteries, type R20,
UM1 or D-cells (preferably alkaline) with the correct polarity as
indicated by the (+)and (-)symbols inside the compartment.
2. Replace the compartment door, making sure the batteries are
firmly and correctly in place. The set is now ready to operate.
3. Remove the batteries if the set is not to be used for a long time.
– Incorrect use of batteries can cause electrolyte leakage and will
corrode the compartment or cause the batteries to burst.
Therefore:
– Do not mix battery types, e.g. alkaline with carbon zinc.
Only use batteries of the same type for the set.
– When inserting new batteries, do not try to mix old batteries
with the new ones.
Batteries contain chemical substances, so they should be
disposed of properly
Batteries
XP AZ 2000/01.1 19-04-2000 16:48 Pagina 4

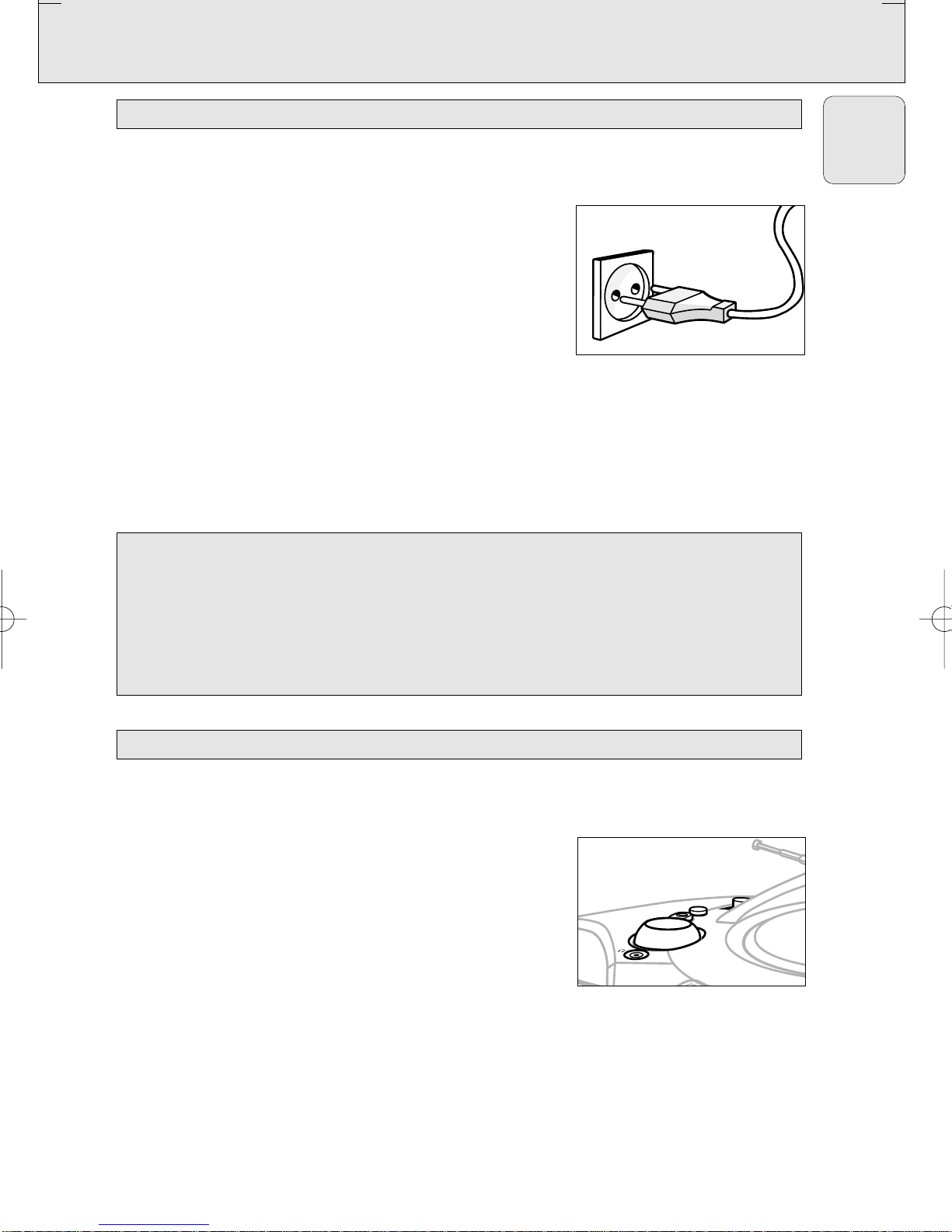

POWER SUPPLY RADIO
1. Check if the mains voltage as shown on the type plate on the
base of the set, corresponds to your local mains voltage. If it
does not, consult your dealer or service organisation.
2. If your set is equipped with a voltage selector, adjust it so
that it matches with the local mains.
3. Connect the mains lead to the MAINS socket and the wall
socket.
™The mains supply is now connected and ready for use.
4. To switch off completely, withdraw the mains lead from the
wall socket.
•Disconnect the mains lead from the wall socket to protect
your set during heavy thunderstorms.
• To avoid overheating of the set a safety circuit has been built
in. Therefore your set may disconnect under extreme
conditions. If this happens, switch the set off and let it cool
down before reusing it.
1. To select the desired station waveband, set the source selector to (MW/FM).
2. Tune to a radio station using the tuning knob.
– For FM, pull out the telescopic aerial.
Incline and turn the aerial. Reduce its length if the signal
is too strong (very close to a transmitter).
– For MW, (AM) the set is provided with a built-in aerial so
the telescopic aerial is not needed. Direct the aerial by
turning the whole set.
3. Adjust the sound using the VOLUME, INCREDIBLE
SURROUND and BASS controls.
4. To switch off the radio, adjust the source selector to the
TAPE/OFF position (with the cassette keys released)
RADIO RECEPTION
Environmental information
All unnecessary packaging material has been omitted. We have done our utmost to make the
packaging easily separable into three mono materials: cardboard, polystyrene and plastic.
Your set consists of materials which can be recycled if disassembled by a specialized
company. Please observe the local regulations regarding the disposal of packaging
materials, exhausted batteries and old equipment.
AC MAINS
5
English
VOLUME
INCREDIBLE
SURROUND
ULTRABASS
DYNAMICBASSBOOST
STOP
PAUSE
XP AZ 2000/01.1 19-04-2000 16:48 Pagina 5

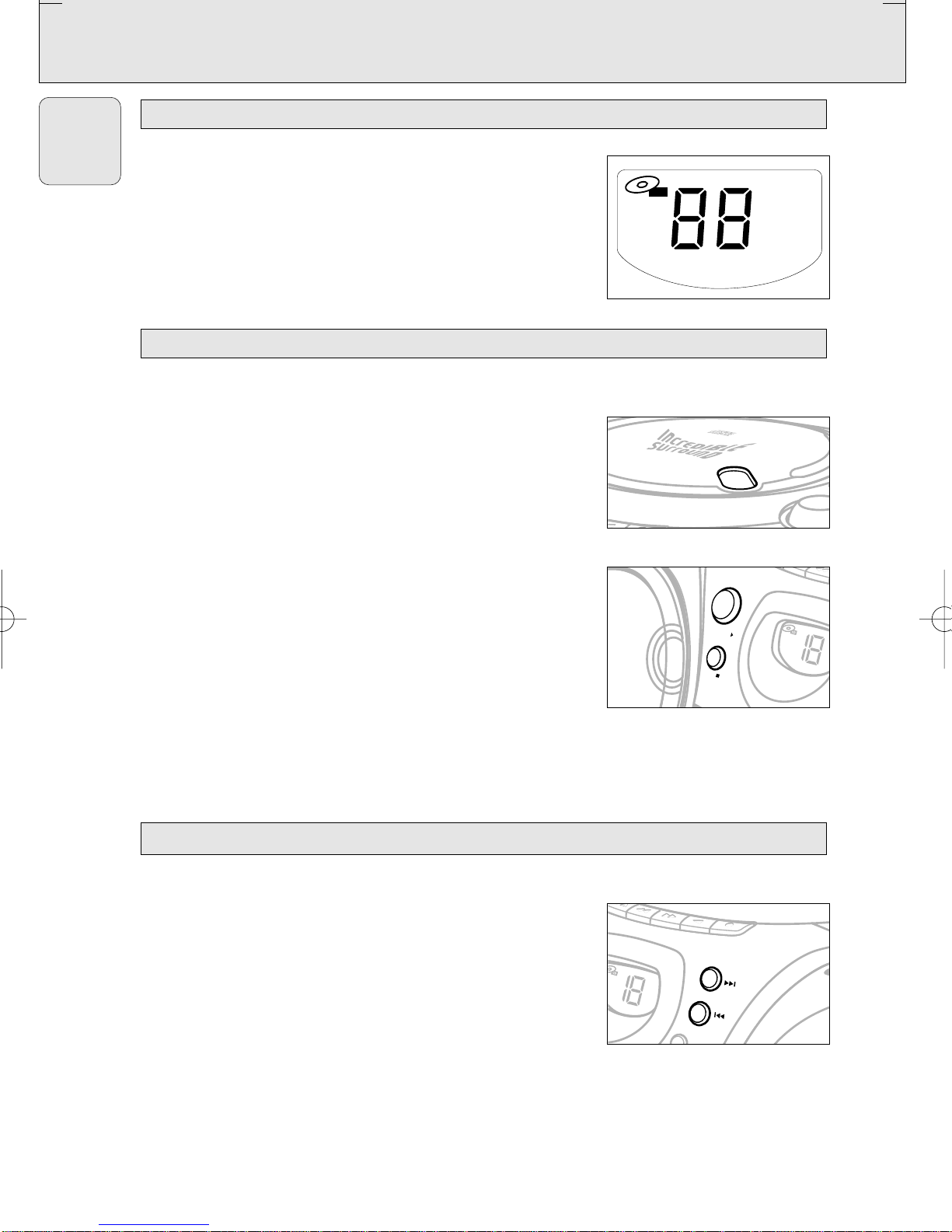

CD PLAYER
–Total track number: in stop mode
–Current track number: during CD play.
–SHUFFLE/REPEAT modes: when the respective mode is activated
–PROGRAM:When active. P also appears briefly when you store a
track
–NO:no disc
–E:error in CD operation or with the CD (see Troubleshooting)
–F:program memory full
1. Set the source selector to CD
2. To open the CD door, press OPEN on the CD door.
3. Insert a CD with the printed side facing up and press the CD
door gently to close.
™The CD player scans the contents of the CD and the total
number of tracks is displayed.
4. Press PLAY/PAUSE 2; to start playback.
5. Adjust the sound using the VOLUME, INCREDIBLE
SURROUND and BASS controls.
6. To interrupt playback press PLAY/PAUSE 2;. To resume,
press PLAY 2again
™The current track number flashes in the display
7. To stop CD play, press STOP 9.
8. To switch off the set, adjust the source selector to TAPE/OFF
position (with the cassette keys released)
Note: CD playback will also stop when:
– the CD door is opened;
– the source selector is in MW/FM or TAPE/OFF position;
– the CD has reached to the end;
During playback, you can use the SEARCH keys to select a
particular track.
1. Press SEARCH §once for the next track, or press repeatedly
until the desired track number appears in the display.
Press SEARCH ∞ once to return to the beginning of a
current track.
Press SEARCH ∞ more than once for a previous track.
2. If you have selected a track number in the stop or pause position,
you will need to press PLAY/PAUSE 2; to start playback.
Finding a passage within a track
1. Press and hold down SEARCH ∞or §.
™The CD is played at high speed and low volume.
2. When you recognize the passage you want, release the
SEARCH button.
SELECTING A DIFFERENT TRACK
PLAYING A CD
CD DISPLAY INDICATION
6
English
CDSYNCHROSTARTRECORDING
AZ2000CDRADIOCASSETTERECORDER
OPEN
RECORD
PLAY
PROGRAM
SHUFFLE
REPEAT
ALL
CD
P
R
STOP
PLAY•PAUSE
;
SEARCH
PROGR
RECORD
PLAY
SEARCH
XP AZ 2000/01.1 19-04-2000 16:48 Pagina 6

CD PLAYER
The CD MODE button allows you to select 4 different play
modes. The modes can be selected or changed during playback.
1. During playback, select your play mode by pressing CD
MODE once or more until the desired play mode appears in
the display.
SHUFFLE - All tracks ore programme are played in random
order.
SHUFFLE REPEAT ALL - Repeats the entire CD or programme
in random order.
REPEAT - Plays the current track continuously.
REPEAT ALL - repeats the entire CD or programme
™You can use SEARCH ∞or §to skip tracks during CD
MODE playback.
2. To return to normal playback press CD MODE until the various
SHUFFLE/ REPEAT modes are no longer shown in the display.
™You can also press STOP 9to quit the play mode.
You may store up to 20 tracks in the desired sequence. If you
like, store any track more than once.
1. In the STOP position, press SEARCH ∞or § for your
desired track.
2. As soon as your chosen track number is displayed, press CD
MODE once to store the track.
™The display will show ‘P’ briefly and ‘PROGRAM’, followed
by your selected track number.
3. Select and store all desired tracks in this way.
To review your set programme
• In the stop position, press and hold down CD MODE for one
second or more.
™The display will show in sequence all your stored track
numbers.
• Start playback of your program by pressing PLAY/PAUSE 2;.
Erasing a program
You can erase the contents of the memory by:
– pressing the CD door open;
– moving the source selector position;
– pressing STOP 9twice during playback / in stop position
• The display will show ‘no’ briefly and PROGRAM, which
disappear when the programme is cancelled.
PROGRAMMING TRACK NUMBERS
Different play modes: SHUFFLE/REPEAT
7
English
PROGRAM
CD
PROGRAM
CD
SEARCH
PROGR
STOP
CDMODE
PLAY•PAUSE
;
XP AZ 2000/01.1 19-04-2000 16:48 Pagina 7

CASSETTE RECORDER
1. Set the source selector to TAPE/OFF.
2. Press STOP•OPEN 9/to open the cassette holder and
insert a cassette.
3. Close the cassette holder.
4. Press PLAY 1to start playback.
5. Adjust the sound using the VOLUME, INCREDIBLE
SURROUND and BASS controls
6. To interrupt playback press PAUSE ;. To resume, press the
key again.
7. By pressing 5or 6,fast winding of the tape is possible in
both directions.To stop fast winding, press STOP•OPEN 9/.
8. To stop the tape, press STOP•OPEN 9/.
™The keys are automatically released at the end of the tape,
except if PAUSE ;has been activated.
9. With the source selector in TAPE/OFF position, the set is
switched off when all the cassette keys are released.
• Recording is permissible insofar as copyright or other rights of
third parties are not infringed.
• This deck is not suitable for recording on CHROME (IEC II) or
METAL (IEC IV) type cassettes. For recording you should use
NORMAL type cassettes (IEC I) on which the tabs have not
been broken.
• The recording level is set automatically. Altering the VOLUME,
INCREDIBLE SURROUND and bass controls will not affect the
recording in progress.
• At the very beginning and end of the tape, no recording will
take place during the 7 seconds, when the leader tape passes
the recorder heads.
• To protect a tape from accidental erasure have the tape in
front of you and break out the left tab. Recording on this side
is no longer possible. To record over this side again, cover the
tabs with a piece of adhesive tape.
General information on cassette recording
PLAYING A CASSETTE
8
English
UM
E
ULTRA
BASS
NAMI
CBASSBOOST
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
1
XP AZ 2000/01.1 19-04-2000 16:48 Pagina 8

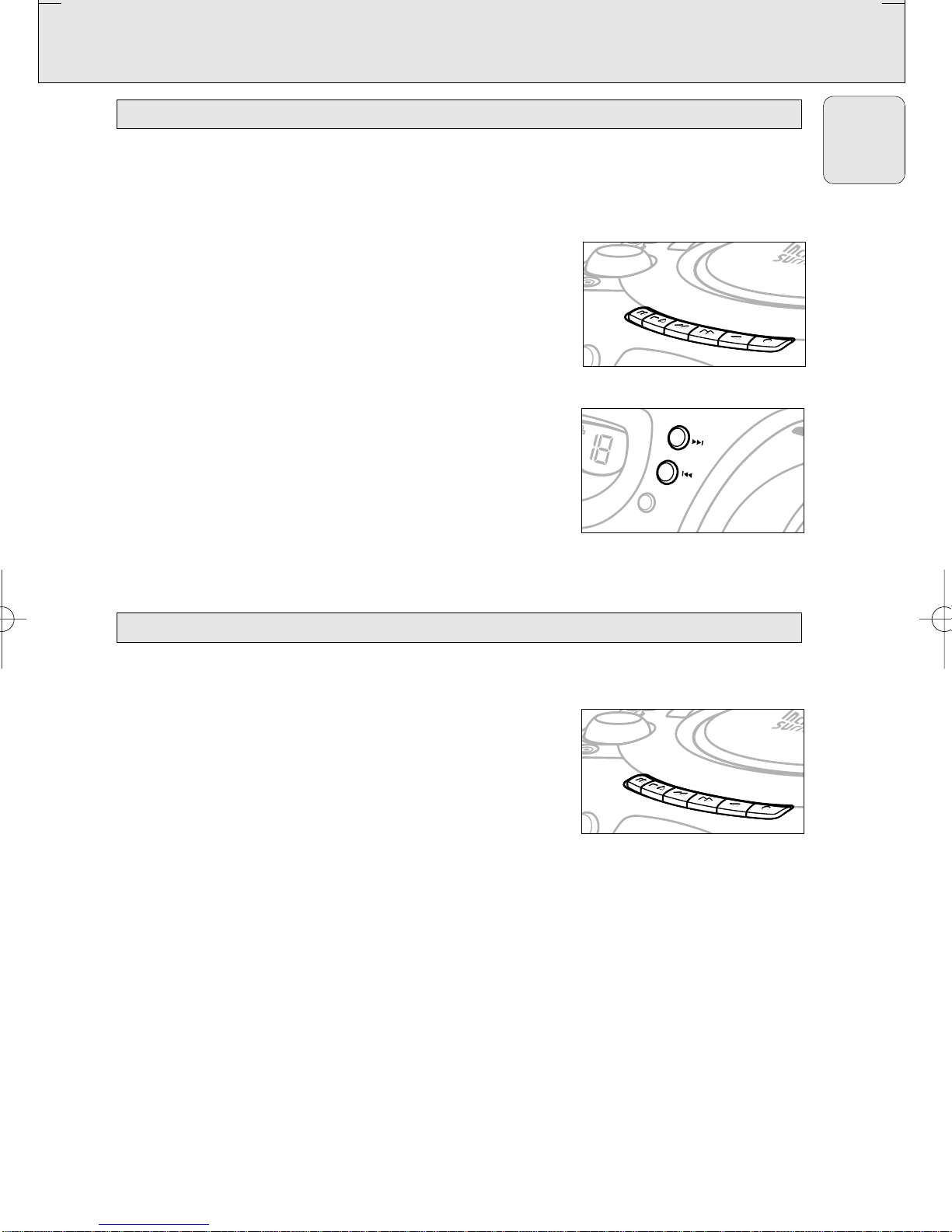

CASSETTE RECORDER
1. Set the source selector to CD.
2. Insert a CD and if desired, program track numbers.
3. Press STOP•OPEN 9/to open the cassettte holder.
4. Insert a blank tape.
4. Close the cassette holder.
5. Press RECORD 0to start recording.
™Playing of the CD programme starts automatically from the
beginning of the programme. It is not necessary to start the
CD player separately.
6. For brief interruptions, press PAUSE ;. To resume recording,
press PAUSE ;again.
7. To stop recording press STOP•OPEN 9/.
To select and record a particular passage within a track
1. During playback, press and hold down the SEARCH button ∞
or §to find your passage.
2. Press PLAY•PAUSE 2; to put the CD player on pause at the
selected passage.
™Recording will begin from this exact point in the track when
you press RECORD 0.
1. Set the source selector to MW/FM
2. Tune to the desired radio station using (See RADIO
RECEPTION).
3. Press STOP•OPEN 9/to open the cassettte holder and
insert a blank tape
4. Close the cassette holder.
5. Press RECORD 0to start recording.
6. For brief interruptions, press PAUSE ;. To resume recording,
press PAUSE ;again.
7. To stop recording, press STOP•OPEN 9/.
RECORDING FROM THE RADIO
SYNCHRO START CD RECORDING
9
English
UM
E
ULTRA
BASS
NAMI
CBASSBOOST
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
SEARCH
PROGR
CDMODE
UM
E
ULTR
ABASS
NAMI
CBASSBOOST
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
XP AZ 2000/01.1 19-04-2000 16:48 Pagina 9

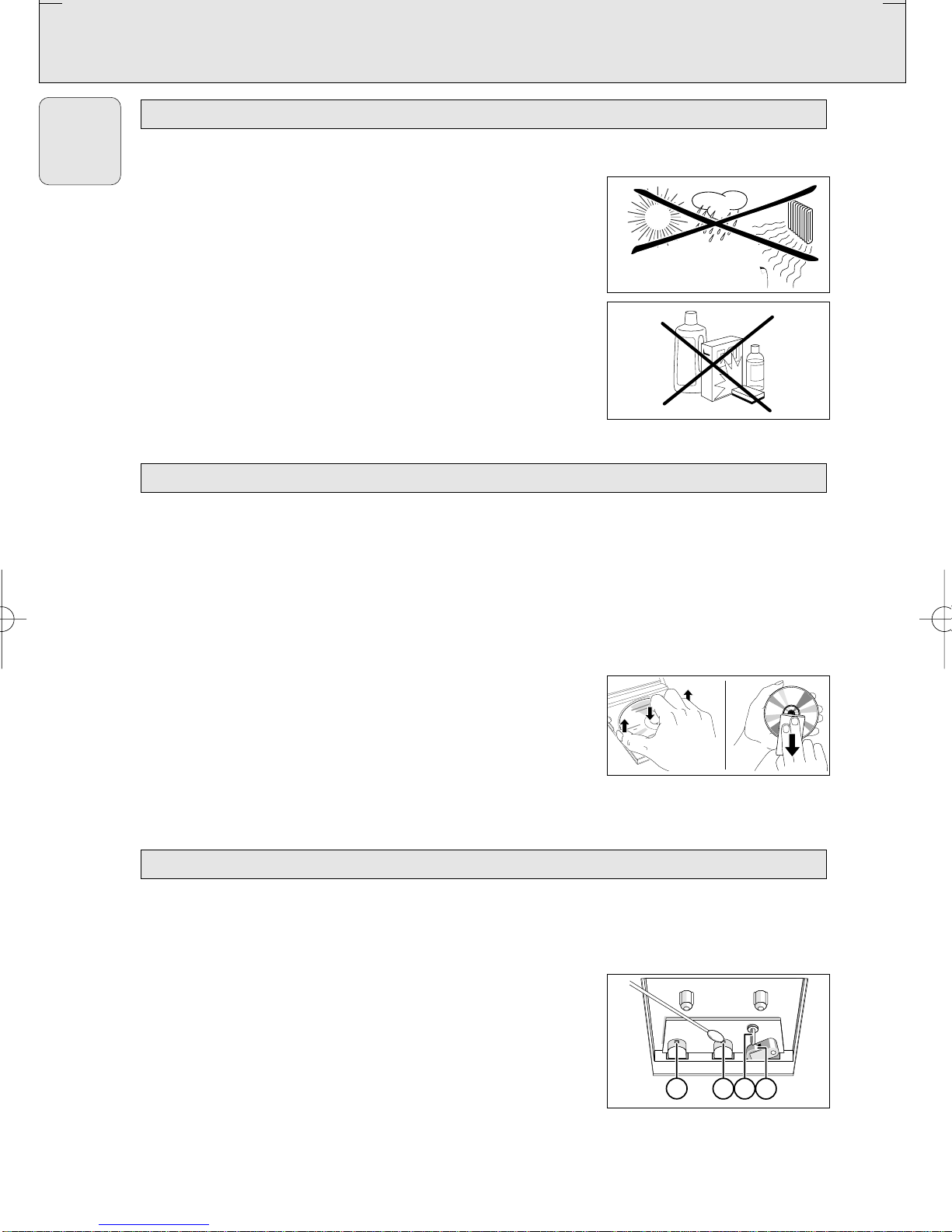

MAINTENANCE
• Place the set on a hard, flat surface so that the system does not tilt.
• Do not expose the set, CDs, batteries or cassettes to humidity,
rain, sand or excessive heat caused by heating equipment or
direct sunlight.
• Do not cover the set. Adequate ventilation with a minimum
gap of 15 cms between the ventilation holes and surrounding
surfaces is necessary to prevent heat build-up.
• The mechanical parts of the set contain self-lubricating
bearings and must not be oiled or lubricated.
• To clean the set, use a soft, slightly dampened chamois
leather. Do not use any cleaning agents containing alcohol,
ammonia, benzene or abrasives as these may harm the
housing.
• The lens of the CD player should never be touched.
• Sudden changes in the surrounding temperature can cause
condensation to form and the lens of your CD player to cloud
over. Playing a CD is then not possible. Do not attempt to
clean the lens but leave the set in a warm environment until
the moisture evaporates.
• Use only Digital Audio CDs
• To take a CD out of its box, press the centre spindle while
lifting the CD. Always pick up the CD by the edge and replace
the CD back in its box after use to avoid scratching and dust.
• To clean the CD, wipe in a straight line from the centre
towards the edge using a soft, lint-free cloth. Do not use
cleaning agents as they may damage the disc.
•Never write on a CD or attach stickers to it.
To ensure a good recording and playback of the tape deck, clean
parts A,Band Cshow in the diagram below, after approx.
50 hours of operation, or on average once a month. Use a cotton
bud slightly moistened with alcohol or a special head cleaning
fluid to clean both decks.
• Open the cassette holder by pressing STOP•OPEN 9/.
• Press PLAY 1and clean the rubber pressure rollers C.
• Press PAUSE ;and clean the magnetic heads Aand also
the capstans B.
• After cleaning, press STOP•OPEN 9/.
Cleaning of the heads can also be done by playing a cleaning
cassette through once.
TAPE DECK MAINTENANCE
CD PLAYER AND CD HANDLING
PRECAUTIONS & GENERAL MAINTENANCE
10
English
A A B C
INCREDIBLESURROUND
INCREDIBLESURROUND
DSC
DSC
PLAY
SEARCH
SHUFFLE
REPEATPROGRAM
STOP
PAUSE
PLAY
SEARCH
SHUFFLE
REPEATPROGRAM
STOP
PAUSE
AZ2407
AZ2407
PROGRAMBAND
PRESET
TUNING
PROGRAMBAND
PRESET
TUNING
DIGITAL
SOUND
CONTROL
DIGITAL
TUNER
CD
TUNER
TAPE
POWER
DBBJAZZPOP
VOLUME
IOIOOIOIOOIIOOIIIOIIOIOIOIOIOIOIOIIIOIOIOOIOIOIO
CDSYNCHROSTARTRECORDING
CD
REMOTE
SENSOR
REMOTE
SENSOR
XP AZ 2000/01.1 19-04-2000 16:48 Pagina 10

TROUBLESHOOTING
If a fault occurs, first check the points listed below before taking the set for repair. If you are
unable to remedy a problem by following these hints, consult your dealer or service centre.
WARNING: Do not open the set as there is a risk of electric shock. Under no circumstances
should you try to repair the set yourself, as this would invalidate the guarantee
11
English
PROBLEM
– POSSIBLE CAUSE
• REMEDY
No sound/power
– VOLUME is not adjusted
• Adjust the VOLUME
– Headphones are connected
• Disconnect headphones
– Mains lead not securely connected
• Connect the AC mains lead properly
– Batteries exhausted/ incorrectly inserted
• Insert fresh batteries/ batteries correctly
CD playback sounds distorted at maximum
level
– Original CD pre-recorded at very high sound
level
• Reduce volume and/or deactivate any added
sound features e.g. bass control
Display does not function properly/ No
reaction to operation of any of the controls
– Electrostatic discharge
• Switch off set, disconnect the mains plug and
reconnect after a few seconds
CD playback does not work
– CD is badly scratched or dirty.
• Replace or clean the CD, see Maintenance.
– Laser lens steamed up
• Wait until lens has acclimatized
The CD skips tracks
– CD is damaged or dirty.
• Replace or clean the CD
– SHUFFLE or a programme is active.
• Quit SHUFFLE/PROGRAM mode(s)
Poor cassette sound quality
– Dust and dirt on the heads, etc.
• Clean deck parts etc., see Maintenance
– Use of incompatible cassette types (METAL
or CHROME)
• Only use NORMAL (IEC I) for recording
Recording does not work
– Cassette tab(s) may be broken out
• Apply a piece of adhesive tape over the
missing tab space
The type plate is located on the bottom of the set.
XP AZ 2000/01.1 19-04-2000 16:48 Pagina 11
