Philips AJ3275DZ/93 User manual

www.philips.com/support
User manual
Always there to help you
Register your product and get support at
AJ3275DZ
Question?
Contact
Philips

1EN
Contents
1 Important 2
Risk of swallowing batteries 2
2 Your clock radio 3
Introduction 3
What's in the box 3
Overview of the clock radio 4
3 Get started 5
Install battery 5
Connect power 5
Set clock 5
4 Play from iPod/iPhone 7
Compatible iPod/iPhone 7
Listen to audio from iPod/iPhone 7
Charge the iPod/iPhone 7
Adjust volume 7
5 Listen to FM radio 8
Tune to FM radio stations 8
Store FM radio stations automatically 8
Store FM radio stations manually 8
Select a preset radio station 8
6 Other features 9
Set alarm timer 9
Set sleep timer 9
Adjust display brightness 10
7 Product information 11
Specications 11
8 Troubleshooting 12
9 Notice 13

2EN
1 Important
Warning
•Never remove the casing of this clock radio.
•Never lubricate any part of this clock radio.
•Never place this clock radio on other electrical
equipment.
•Keep this clock radio away from direct sunlight, naked
amesorheat.
•Make sure that you always have easy access to the
power cord, plug or adaptor to disconnect the clock
radio from the power.
• Make sure that there is enough free space
around the product for ventilation.
• Onlyuseattachments/accessoriesspecied
by the manufacturer.
• Use only power supplies listed in the user
manual.
• The clock radio shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on the
clockradio(e.g.liquidlledobjects,lighted
candles).
• Where the plug of the Direct Plug-in
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.
Risk of swallowing batteries
• The product or remote control may
contain a button cell battery, which is
possible to be swallowed. Keep the battery
out of reach of children at all times! If
swallowed, the battery can cause serious
injury or death. Severe internal burns can
occur within two hours of ingestion.
• If you suspect that a battery has been
swallowed or placed inside any part of the
body, seek immediate medical attention.
• When you change the batteries, always
keep all new and used batteries out of
reach of children. Ensure that the battery
compartment is completely secure after
you replace the battery.
• If the battery compartment cannot be
completely secured, discontinue use of the
product. Keep out of reach of children and
contact the manufacturer.

3EN
2 Your clock radio
Congratulations on your purchase, and
welcometoPhilips!Tofullybenetfromthe
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this clock radio, you can
• Enjoy audio from your Apple devices
• Listen to FM radio stations
• Set alarm timer and sleep timer
What's in the box
Check and identify the contents of your
package:
• The clock radio
• AC/DC adaptor
• Short user manual
www.philips.com/welcome
User Manual

4EN
Overview of the clock radio
a iPod/iPhone dock
b iPhone
• Select iPod/iPhone source.
c SCAN/PROG/SET TIME
• Scan FM radio stations automatically.
• Program radio stations.
• Set time.
d SLEEP
• Set sleep timer.
e - VOL/VOL +
• Adjust volume.
f AL1/AL2
• Enable or disable alarm 1 or alarm 2.
g SNOOZE/BRIGHTNESS
• Snooze the alarm when it rings.
• Adjust the LCD display brightness.
h LCD display panel
i RADIO
• Select FM radio source.
j - MIN/MIN +/PRESET
• Adjust minute.
• Select preset radio stations.
k - HR/HR +/TUNING
• Adjust hour.
• Tune to FM radio stations.
l DC IN 5V
a
b
c
d
e
f
g
i
h
j
k
l
m
n
o
m AL1/AL2
• Select alarm sound.
n FM ANT
o Battery compartment

5EN
3 Get started
Always follow the instructions in this chapter in
sequence.
Install battery
Warning
•Risk of explosion! Keep the battery away from heat,
sunshineorre.Neverdiscardthebatteryinre.
•Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
•The battery contains chemical substances, so it should
be disposed of properly.
Note
•You can only use AC power as power supply.The
lithium CR2032 battery can only back up time and
alarm settings.
•When power is disconnected, the display backlight
turns off.
For rst-time use
Remove the protective tab to activate the
battery.
To replace the battery
Connect power
Caution
•Risk of product damage! Make sure that the power
voltage corresponds to the voltage printed on the back
or underside of the clock radio.
•Risk of electric shock! When you unplug the AC
adapter, always pull the plug from the socket. Never
pull the cord.

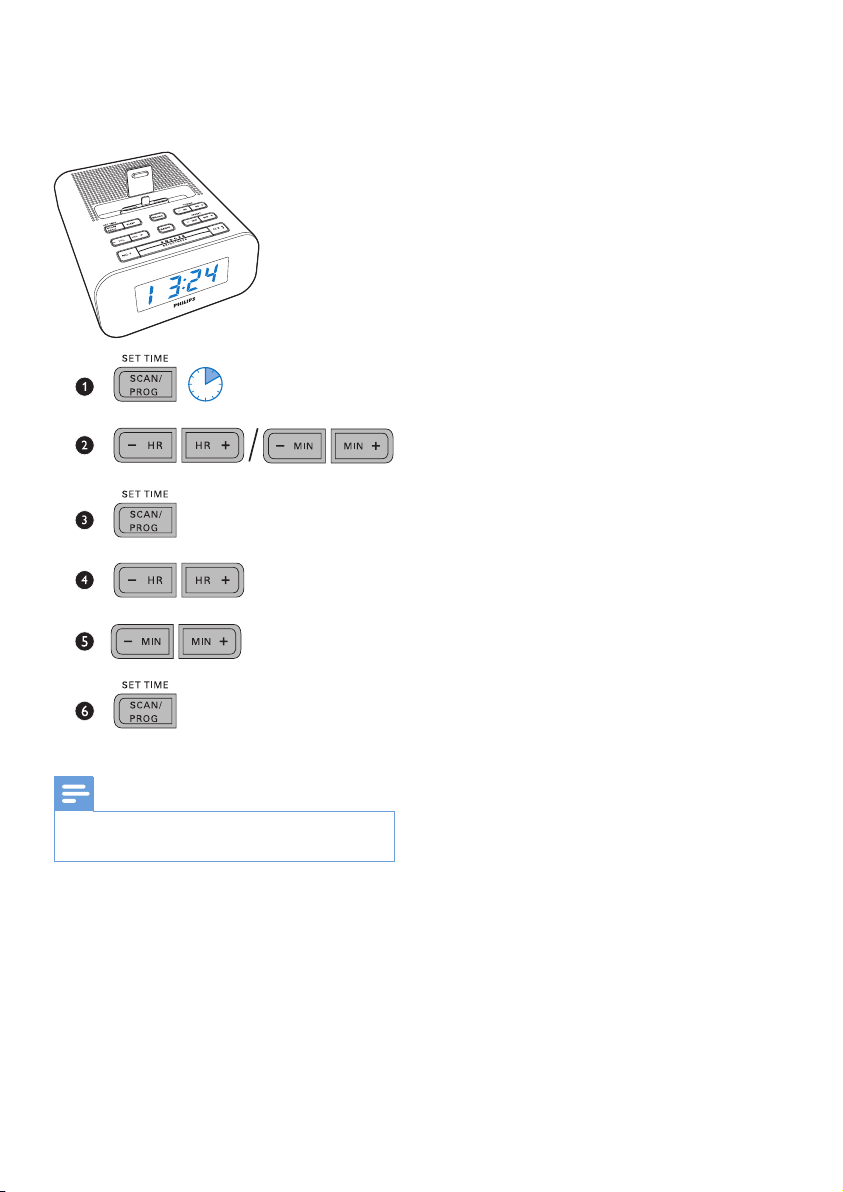

Set clock
1 In standby mode, press and hold SET TIME
for two seconds.
2 Press - HR/HR + (or - MIN/MIN +) to
select 12/24 hour format.
3 Press SET TIMEtoconrm.
» The hour and minute digits blink.

6EN
4 Press - HR/HR + and - MIN/MIN + to set
the hour and minute respectively.
5 Press SET TIMEagaintoconrm.
Note
•When iPod/iPhone is connected, the clock radio
synchronizes time with the iPod/iPhone automatically.
2 sec

7EN
4 Play from iPod/
iPhone
You can enjoy audio from iPod/iPhone through
this clock radio.
Compatible iPod/iPhone
The clock radio supports these iPod and iPhone
models:
Made for.
• iPod touch (5th generation)
• iPod nano (7th generation)
• iPhone 6 Plus
• iPhone 6
• iPhone 5
• iPhone 5s
• iPhone 5c
Listen to audio from iPod/
iPhone
1 Place the iPod/iPhone in the dock.
2 Press iPhone to enter iPod/iPhone mode.
3 Play audio on the iPod/iPhone.
• To skip to a track, press - HR/HR + (or
- MIN/MIN +).
• To search during play, press and hold
- HR/HR + (or - MIN/MIN +), then
release to resume normal play.
Tip
•Press iPhone again to switch to standby mode.
To remove the iPod/iPhone:
Pull the iPod/iPhone out of the dock.
Charge the iPod/iPhone
When the clock radio is connected to power,
the docked iPod/iPhone starts charging.
Adjust volume
Press - VOL/VOL + to adjust the volume.

8EN
5 Listen to FM
radio
Tune to FM radio stations
Tip
•Position the antenna as far as possible from TV, or other
radiation source.
•For better reception, fully extend and adjust the
position of the antenna.
Note
•To turn the radio on or off, press RADIO.
Store FM radio stations
automatically
You can store a maximum of 20 FM radio
stations.
1 Press RADIO to turn on the radio.
2 Press and hold SCAN/PROG for two
seconds.
TUNING +/-
RADIO
HR HR
TUNING
» The clock radio stores all the available
FM radio stations, and then broadcasts
therstavailablestationautomatically.
Store FM radio stations
manually
1 Tune to an FM radio station.
2 Press SCAN/PROG.
» The preset number begins to blink.
3 Press PRESET +/- repeatedly to select a
number.
4 Press SCAN/PROGagaintoconrm.
5 Repeat steps 1-4 to store other stations.
Note
•To remove a pre-stored station, store another station
in its place.
Select a preset radio station
In tuner mode, press PRESET +/- to select a
preset radio station.

9EN
6 Other features
Set alarm timer
You can set two alarms to ring at different time.
Note
•Make sure that you have set the clock correctly.
1 Press and hold AL1/AL2 for 2 seconds to
enter alarm setting mode.
» The hour and minute digits blink.
» or is displayed accordingly.
2 Press - HR/HR + and - MIN/MIN + to set
hour and minute respectively.
3 Press AL1/AL2againtoconrm.
Select alarm sound
For the alarm sound, you can select buzzer, your
last heard radio or played track on the iPod/
iPhone.
Tip
•When alarm time arrives and you are listening to radio
or audio from the iPod/iPhone, buzzer can only be
activated as alarm sound.
•If you have selected iPod/iPhone as the alarm source,
yet no iPod/iPhone is connected, buzzer will sound
when alarm time comes.
Activate/deactivate alarm timer
1 Press AL1/AL2 to view alarm settings.
2 Press AL1/AL2 again to activate or
deactivate the alarm timer.
» or appears if alarm timer is on and
disappears if it is off.
• To stop alarm, press the corresponding
AL1/AL2.
» The alarm repeats ringing for the next
day.
Snooze the alarm
When alarm sounds, press SNOOZE.
» The alarm snoozes and repeats ringing
nine minutes later.
Set sleep timer
This clock radio can switch to standby mode
automatically after a preset period.
• Press SLEEP repeatedly to select the sleep
timer period (in minutes).
» When the sleep timer is activated,
appears.
To deactivate the sleep timer:
• Press SLEEP repeatedly until [OFF] (off)
appears.
15 30 60 90 120
OFF

10 EN
Adjust display brightness
Press SNOOZE/BRIGHTNESS repeatedly to
adjust the display brightness.

11EN
7 Product
information
Note
•Product information is subject to change without prior
notice.
Specications
Amplier
Rated Output Power 2W RMS
Tuner
Tuning Range FM: 87.5 - 108
MHz
Tuning Grid FM: 50 KHz
Sensitivity
- Mono, 26dB S/N Ratio FM: <22 dBf
Total Harmonic Distortion FM: <3%
Signal to Noise Ratio FM: >50 dBA
General information
AC Power Model: AS100-050-
AB200; Input: 100-
240 V ~, 50/60Hz,
0.5A;Output: 5 V
2 A
Operation Power
Consumption
<10 W
Standby Power
Consumption
<2 W
Max. Load for iPod/
iPhone
5 V 1 A
Dimensions - Main Unit
(W x H x D)
130 x 76 x 145 mm
Weight - Main Unit 0.6 kg

12 EN
8 Troubleshooting
Warning
•Never remove the casing of this device.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support).When you contact Philips,
make sure that the device is nearby and the
model number and serial number are available.
No response from the unit
•Disconnect and reconnect the AC power
plug, then turn on the unit again.
Poor radio reception
•Increase the distance between the unit and
yourTV or other radiation sources.
•Fully extend the FM antenna.

13EN
9 Notice
Anychangesormodicationsmadetothis
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
designedtoconnectspecicallytoiPodor
iPhonerespectively,andhasbeencertiedby
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Disposal of your old product
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Do not throw away the product with the
normal household waste at the end of its life,
buthanditinatanofcialcollectionpointor
recycling. By doing this, you help to preserve the
environment.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
This is CLASS II apparatus with double
insulation, and no protective earth provided.
Note
•The type plate is located on the bottom of the
apparatus.

2014 © WOOX Innovations Limited.All rights reserved.
Philips and the Philips’ Shield Emblem are registered
trademarks of Koninklijke Philips N.V. and are used
by WOOX Innovations Limited under license from
Koninklijke Philips N.V.
AJ3275DZ_93_UM_V1.0
