Philips AJ7000/12 User manual

Register your product and get support at AJ7000
EN User manual

a
b
c
d
e
f
g
h
i
j
k
l
A

m
n

2
3
1
B
C

D
E

EN
1 Important
Safety
 Read these instructions.
 Heed all warnings.
 Follow all instructions.
 Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
 Do not install near any heat sources such as radiators, heat

that produce heat.
 Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the clock radio.
 
manufacturer.
 Unplug this clock radio during lightning storms or when
unused for long periods of time.
 
is required when the clock radio has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the clock radio,
the clock radio has been exposed to rain or moisture, does
not operate normally, or has been dropped.
 This clock radio shall not be exposed to dripping or
splashing.

 Do not place any sources of danger on the clock radio (e.g.

 Where the plug of the Direct Plug-in Adapter is used as
the disconnect device, the disconnect device shall remain
readily operable.
2 Your clock radio
Congratulations on your purchase, and welcome to Philips! To fully

www.philips.com/welcome.
Introduction
With this clock radio, you can:
 listen to FM/MW radio;
 set two alarms; and
 wake up to buzzer or radio.
What’s in the box
Check and identify the contents of your package:
 
 Adapter
 User manual

Overview of the main unit A
aSLEEP
 
bMain knob
 Adjust volume.
 
 Adjust settings.
cTIME ZONE
 
dFM/MW
 
eSET TIME/PROG
 
 Program radio stations.
fAL1/AL2
 
 View alarm settings.
 Activate/deactivate alarm timer.
gSNOOZE/BRIGHTNESS
 
 Adjust display brightness
hTUNING MODE
 
iPRESET
 
jDST
 

kAC 6V ~ 450mA
 Connect power.
lFM ANT
 Improve FM reception.
mBattery tray
nDisplay panel
 
3 Get started
Always follow the instructions in this chapter in sequence.
Install battery B
Caution
 Risk of explosion! Keep batteries away from heat, sunshine or

 Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type.
 The battery contains chemical substances, so it should be
disposed of properly.
 Keep children away from the battery.
Note
 You can only use AC power as power supply. The pre-installed
lithium CR2032 battery can only back up clock and alarm settings.
When the low battery indicator is displayed, replace the battery as
indicated.

Connect power C
Caution
 Risk of product damage! Ensure that the power voltage
corresponds to the voltage printed on the back or underside of
the clock radio.
 Risk of electric shock! When you unplug the AC adapter, always
pull the plug from the socket. Never pull the cord.
Warning
 
clock radio to rain or moisture.
Plug and set
Time has been preset at the factory.When power is connected, the
set time is displayed automatically.
The built-in lithium battery can maintain clock setting despite power
interruption.

Select time zone
You can adjust time zone setting according to your location.
1In standby mode, press TIME ZONE.
»The current time zone number blinks on the display.
2Rotate the main knob to set time zone (-1 to +12

3 
For Europe:
 +0
 
 +2
 +3

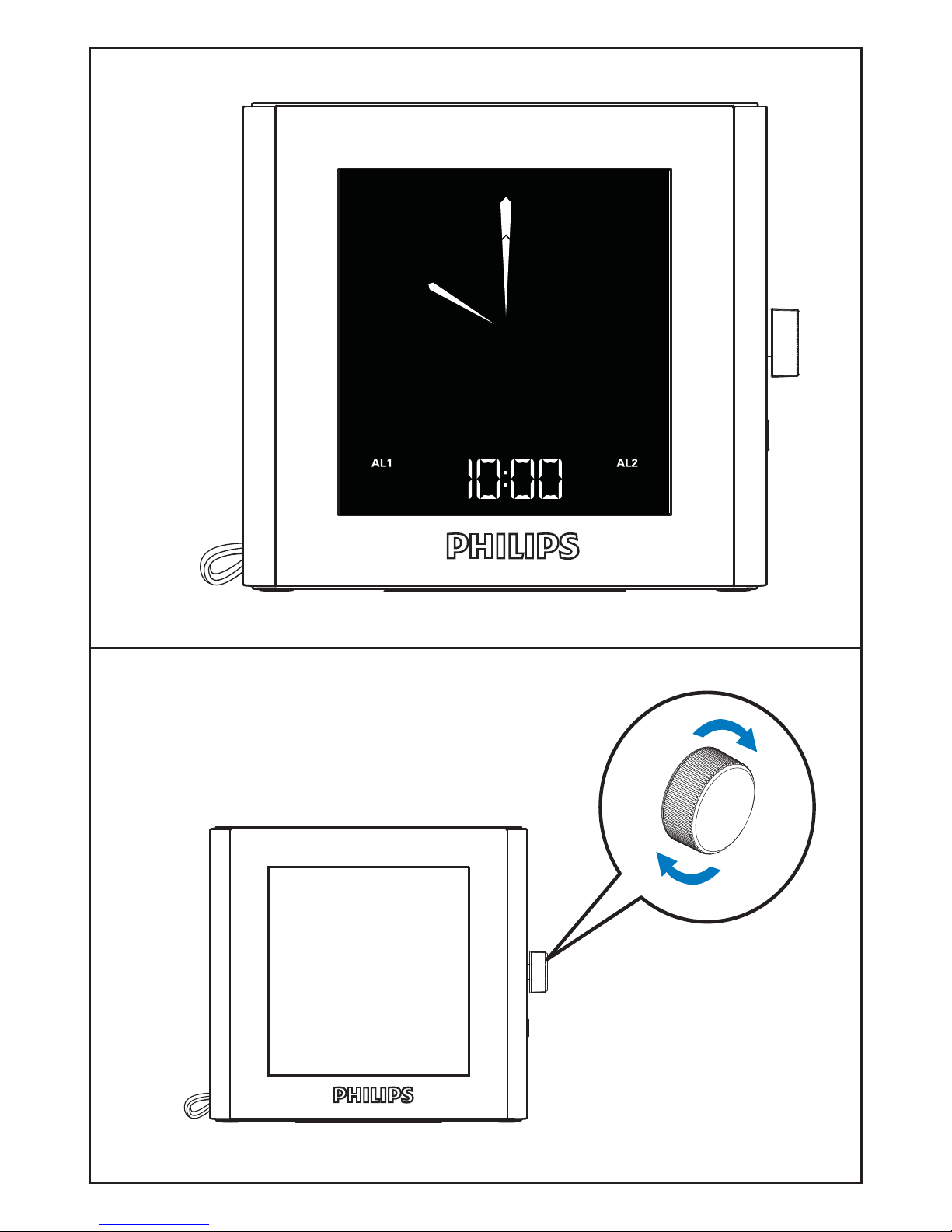

Set clock D
If the preset time is inaccurate, you can set clock manually.
1In standby mode, press SET TIME to activate clock setting
mode.
»The hour digits begin to blink.
2Rotate the main knob to adjust hour.
3 
»The minute digits begin to blink.
4 

4 Listen to FM/MW radio
Tune to radio stations
Tip
 Position the antenna as far as possible from TV, VCR, or other
radiation source.
 For better reception, fully extend and adjust the position of the
antenna.
1Press FM/MW to select FM or MW tuner source.
2Press TUNING MODE repeatedly until [FIND]
blinks.
3Rotate the main knob slowly.
»The clock radio tunes to a station with strong reception
automatically.
4 
5 
To tune to a station manually:
1In tuner mode, press TUNING MODE repeatedly until
[STEP]
2Rotate the knob slowly to select a frequency.
Store radio stations automatically
You can store a maximum of 20 FM radio stations and 10 MW
radio stations.

1In tuner mode, press TUNING MODE repeatedly until
[AUTO]
2Rotate the main knob slowly.
»The clock radio stores all the available FM/MW radio

automatically.
Store radio stations manually
1Tune to a radio station.
2Press PROG.
»The preset number begins to blink.
3Rotate the main knob to select a number.
4 
»[DONE]
5 
Note
 To remove a pre-stored station, store another station in its place.
Select a preset radio station
In tuner mode, press PRESET, then rotate the main knob to select
a preset number.
Adjust volume E

5 Set alarm timer
Set alarm
You can set two alarms to ring at different time.
Note
 Make sure that the clock is set correctly.
1In standby mode, press and hold AL1/AL2 for two seconds
to activate alarm setting mode.
»The hour digits and [AL1]/[AL2] begin to blink.
2Rotate the main knob to adjust hour.
3 
»The minute digits and [AL1]/[AL2] begin to blink.
4 
your last listened channel.
Activate/deactivate alarm timer
1Press AL1/AL2 to view alarm settings.
2Press AL1/AL2 again to activate or deactivate the alarm
timer.
»[AL1]/[AL2] appears if alarm timer is on and disappears
if it is off.
 To stop the ringing alarm, press the corresponding
AL1/AL2.
 The alarm repeats ringing for the next day.

Snooze alarm
When alarm sounds, press SNOOZE.
»The alarm snoozes and repeats ringing nine minutes later.
6 Other features
Set sleep timer
This clock radio can switch to standby mode automatically after a
preset period.
1Press SLEEP.
2Rotate the main knob to select the sleep timer period (in

3 
»When the sleep timer is activated, appears.
To deactivate the sleep timer:
In sleep timer setting mode, rotate the knob until [OFF] 
appears, then press the knob.
15 30 60 90 120
off

Select DST (daylight saving time) mode


In standby mode, press and hold DST for 3 seconds.
»The clock advances by one hour and [DST] is displayed.
Adjust display brightness
Press BRIGHTNESS repeatedly to select different brightness levels:
[HI][MID][LOW]
7 Product information
Note
 Product information is subject to change without prior notice.


Rated Output Power 

Tuner
Tuning Range FM: 87.5 - 108 MHz
MW: 531-1602 KHz


FM: <22 dBu
MW: <92 dBuV/M
 FM: <28 dBf
MW:<98 dBuV/M
Total Harmonic Distortion FM: <3%
MW:<5%
 

General information
AC Power 


Operation Power
Consumption
<5 W
 <1 W
Dimensions
 
Weight
- With Packing
- Main Unit
0.82 kg
0.38 kg

8 Troubleshooting
Warning
 Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains

When you contact Philips, ensure that the apparatus is nearby and
the model number and serial number are available.
No power
Ensure that the AC power plug of the clock radio is
connected properly.
Ensure that there is power at the AC outlet.
No response from the clock radio
Disconnect and reconnect the AC power plug, then turn on
the clock radio again.
Poor radio reception
Keep the clock radio away from other electronic devices to
avoid radio interference.
Fully extend and adjust the position of the FM antenna.
Alarm does not work


9 Notice
This product complies with the radio interference requirements of
the European Community.

expressly approved by Philips Consumer Lifestyle may void the
user’s authority to operate the equipment.
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a
product it means that the product is covered by the European
Directive 2002/96/EC.
Please inform yourself about the local separate collection system
for electrical and electronic products.
Please act according to your local rules and do not dispose of
your old products with your normal household waste. Correct
disposal of your old product helps to prevent potential negative
consequences for the environment and human health.

Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed with normal household
waste.Please inform yourself about the local rules on separate
collection of batteries because correct disposal helps to prevent
negative consequences for the environmental and human health.
Environmental information
All unnecessary packaging has been omitted.We have tried to
make the packaging easy to separate into three materials: cardboard


Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Note
 The type plate is located on the bottom of the apparatus.
2011 © Koninklijke Philips Electronics N.V. All rights reserved.

are the property of Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right to change products at
any time without being obliged to adjust earlier supplies accordingly.
