Philips AJ7010 User manual

Register your product and get support at AJ7010
EN User manual

a
f
e
d
ck
l
j
i
n
m
o
g
h
b
A

g
f
e
d
a
c
b
g
f
e
d
a
c
b
B

C
D

E
F

EN
1 Important
• Read these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat
registers,stoves,orotherapparatus(includingampliers)that
produce heat.
• Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the clock radio.
• Onlyuseattachments/accessoriesspeciedbythe
manufacturer.
• Unplug this clock radio during lightning storms or when unused
for long periods of time.
• Referallservicingtoqualiedservicepersonnel.Servicingis
required when the clock radio has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the clock radio, the clock
radio has been exposed to rain or moisture, does not operate
normally, or has been dropped.
• The main unit of the clock radio shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on the main unit of the
clockradio(e.g.liquidlledobjects,lightedcandles).
• Where the plug of the Direct Plug-in Adapter is used as the
disconnect device, the disconnect device shall remain readily
operable.

2 Your clock radio
Congratulations on your purchase, and welcome to Philips! To fully
benetfromthesupportthatPhilipsoffers,registeryourproductat
www.philips.com/welcome.
Introduction
With this clock radio, you can:
• listen to FM/MW radio;
• set two alarms;
• view time, date, and indoor/outdoor temperature;
• adjust time zone and daylight saving time; and
• be waken up by buzzer, radio, or stored nature sounds.
What’s in the box
Check and identify the contents of your package:
• Mainunit(withbuttoncellbattery)
• Outdoor temperature sensor
• Power adapter
• User manual
• Quick start guide
Overview of the main unit A
aAL1/AL2
• Setalarm.
• View alarm settings.
• Activate/deactivate alarm timer.

bDisplay panel
• Showcurrentinformation.
cDST
• Selectdaylightsavingtime(DST)mode.
dTIME ZONE
• Settimezone.
eDISPLAY
• Activate temperature display setting mode.
fNATURE SOUND
• Activate nature sound setting mode.
gAC 6V ~ 450mA
• Connect power.
hFM ANT
• Improve FM reception.
iTUNING MODE
• Selecttuningmode.
jPRESET
• Selectapresetradiostation.
kFM/MW
• Selecttunersource.
lSET TIME/PROG
• Settime.
• Program radio stations.
mSLEEP
• Setsleeptimer.

nMain knob
• Adjust volume.
• Conrmselection.
• Adjust settings.
• Deactivate nature sound.
oSNOOZE/BRIGHTNESS
• Snoozealarm.
• Adjust display brightness.
Overview of the outdoor sensor B
aDisplay panel
• ShowoutdoortemperatureandRFchannel.
bLED light
• Blink when transmitting data to the main unit.
cSensor support
d°C/°F slide
• SwitchbetweenCentigrade(°C)orFahrenheit(°F)
temperature display.
eCHANNEL1/2/3
• SelectRFchanneltotransmitsignals.
fLock for battery compartment (with screw)
gRESET
• Reset to restart transmission.

3 Get started
Always follow the instructions in this chapter in sequence.
Install battery
Caution
•Riskofexplosion!Keepbatteriesawayfromheat,sunshineorre.
Neverdiscardbatteriesinre.
•Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
•The battery contains chemical substances, so it should be disposed
of properly.
•Keep children away from the battery.

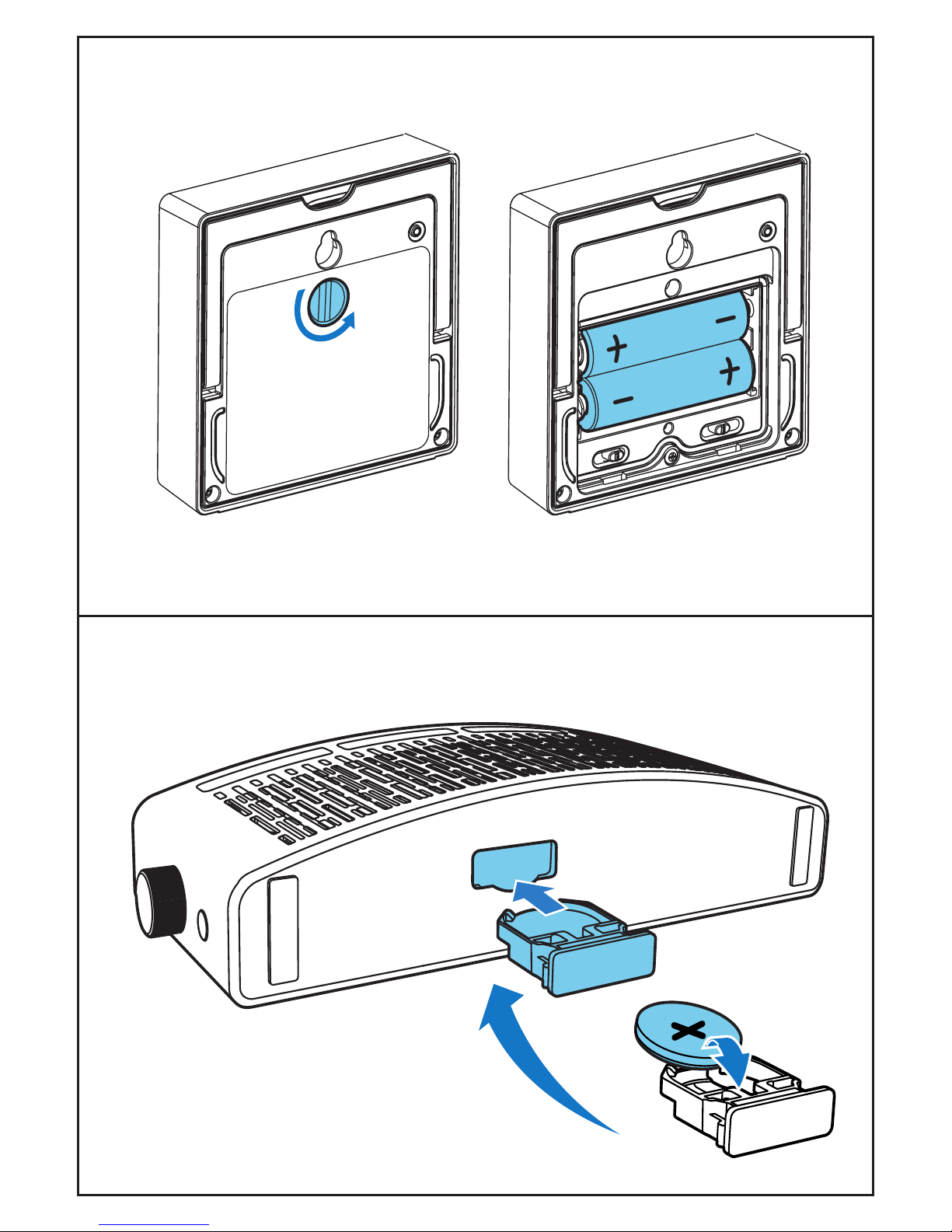

Insert batteries into the sensor C
Note
•Donotmixbatteries(oldandneworcarbonandalkaline,etc.).
Before using the sensor,
1turn the screw anticlockwise to unlock the battery
compartment.
2 insert2AAbatteries(notsupplied)withcorrectpolarity(+/-)
as indicated.
3turn the screw clockwise to lock the battery compartment.

Replace battery of the main unit D
Note
•You can only use AC power as power supply. The pre-installed
CR2032 battery can only back up clock and alarm settings.
When the low battery icon is displayed, replace the battery as
indicated.
Connect power E
Caution
•Risk of product damage! Ensure that the power voltage corresponds
to the voltage printed on the back or underside of the clock radio.
•Risk of electric shock! When you unplug the AC adapter, always pull
the plug from the socket. Never pull the cord.
Warning
•Toreducetheriskofreorelectricshock,donotexposethisclock
radio to rain or moisture.
Plug and set
Time has been preset at the factory.When power is connected, the set
time is displayed automatically.
The built-in lithium battery can maintain clock setting despite power
interruption.

Select time zone
You can adjust time zone setting according to your location.
1 In standby mode, press TIME ZONE.
»The current time zone number blinks on the display.
2 Rotatethemainknobtosettimezone(-1to+12adjustable).
3 Presstheknobtoconrm.
For Europe:
WesternEuropeanTime(WET) +0
CentralEuropeanTime(CET) +1(Default)
EasternEuropeanTime(EET) +2
MoscowStandardTime(MST) +3
Set clock
If the preset time is inaccurate, you can set time and date manually.
1In standby mode, press SET TIME to activate clock setting
mode.
»The hour digits begin to blink.
2Rotate the main knob to adjust hour.
3 Presstheknobtoconrm.
»The minute digits begin to blink.
4Repeat steps 2-3 to set the minute, 12/24 hour format, year,
month, day, and month-day display mode in sequence.

Tip
•In time and date setting mode, if you press and hold the knob for
3 seconds, the clock radio will save the change and quit the setting
mode.
4 Listen to FM/MW radio
Tune to radio stations
Tip
•Position the antenna as far as possible from TV, VCR, or other
radiation source.
•For better reception, fully extend and adjust the position of the
antenna.
1 Press FM/MW to select FM or MW tuner source.
2 Press TUNING MODE repeatedly until [FIND](nd)blinks.
3Rotate the main knob slowly.
»The clock radio tunes to a station with strong reception
automatically.
4 Presstheknobtoconrm.
5Repeat steps 2-4 to tune to more radio stations.
To tune to a station manually:
1 In tuner mode, press TUNING MODErepeatedlyuntil[STEP]
(step)blinks.

2Rotate the knob slowly to select a frequency.
Store radio stations automatically
You can store a maximum of 20 FM radio stations and 10 MW radio
stations.
1 In tuner mode, press TUNING MODE repeatedly until [AUTO]
(auto)blinks.
2 Rotate the main knob slowly.
»The clock radio stores all the available FM/MW radio stations
andbroadcaststherstavailablestationautomatically.
Store radio stations manually
1 Tune to a radio station.
2 Press PROG.
»The preset number begins to blink.
3 Rotate the main knob to select a number.
4 Presstheknobtoconrm.
»[DONE](done)isdisplayed.
5 Repeat steps 1 to 4 to store other stations.
Note
•To remove a pre-stored station, store another station in its place.

Select a preset radio station
In tuner mode, press PRESET, then rotate the main knob to select a
preset number.
Adjust volume F
5 Other features
Display indoor/outdoor temperature
Adjust temperature display
1Press DISPLAY.
2Rotate the knob to select a temperature display mode for the
main unit:
• Display indoor temperature;
• Display outdoor temperature detected from channel
1/2/3; or
• Display indoor and outdoor temperature alternatively.
3 Presstheknobtoconrm.

Tip
•ToconvertbetweenCentigrade(°C)andFahrenheit(°F)
temperature display, adjust °C/°F slide inside the battery
compartment of the sensor.
•If the main unit fails to receive signal from the sensor, only indoor
temperature can be displayed.
Improve sensor reception
When battery is correctly installed in the sensor, the sensor starts to
transmit RF signal to the main unit through Channel 1/2/3.
To improve the sensor reception,
• adjust the CHANNEL control inside the battery compartment
of the sensor.
• reduce the distance between the main unit and the sensor.
• press RESET on the sensor to restart transmission, in case of
sudden error or abnormal state.
To change to Channel 2 or 3to transmit RF signal,
1 Press DISPLAY.
2 Rotate the knob until the corresponding icon appears.
3 Presstheknobtoconrm.
4 SwitchtheCHANNEL control to 2or 3.
»The main unit and sensor begin to detect signal from Channel
2or 3 and then display the outdoor temperature.
Enjoy nature sound
This clock radio provides realistic nature sounds of rooster, forest, sea,
rain, bell, and bird.

1 Press NATURE SOUND.
2 Rotate the knob to select a nature sound.
3 Presstheknobtoconrm.
4 Rotate the knob to adjust the volume level of the nature sound
(0-8).
Tip
•To deactivate the nature sound, press the knob again.
Set alarm timer
Set alarm
You can set two alarms to ring at different time.
Note
•Make sure that the clock is set correctly.
1 In standby mode, press and hold AL1/AL2 for two seconds to
activate alarm setting mode.
»The hour digits and [AL1]/[AL2] begin to blink.
2 Rotate the main knob to adjust hour.
3 Pressthemainknobtoconrm.
»The minute digits and [AL1]/[AL2] begin to blink.
4 RepeatStep2-3tosetminute.

5 RepeatStep2-3toselectwhethertoringalarmforthewhole
week,onweekdays(MondaytoFriday),orontheweekend
(SaturdayandSunday).
6 Repeat steps 2-3 to select an alarm source: radio, buzzer, or a
nature sound.
7Repeat steps 2-3 to set the alarm volume.
Activate/deactivate alarm timer
1 Press AL1/AL2 to view alarm settings.
2 Press AL1/AL2 again to activate or deactivate the alarm timer.
»[AL1]/[AL2] appears if alarm timer is on and disappears if it
is off.
• To stop the ringing alarm, press the corresponding
AL1/AL2.
• The alarm repeats ringing for the next day.
Snooze alarm
When alarm sounds, press SNOOZE.
»The alarm snoozes and repeats ringing nine minutes later.
Set sleep timer
This clock radio can switch to standby mode automatically after a preset
period.
1 Press SLEEP.
2 Rotatethemainknobtoselectthesleeptimerperiod(inminutes).
3 Presstheknobtoconrm.
»When the sleep timer is activated, appears.

To deactivate the sleep timer:
In sleep timer setting mode, rotate the knob until [OFF] (off)appears,
then press the knob.
Select DST (daylight saving time) mode
Forcountrieswithdaylightsavingtime(DST),theclockradiooffersyou
DSToptiontoadjustsummertime.
In standby mode, press and hold DST for 3 seconds.
»The clock advances by one hour and [DST] is displayed.
Adjust display brightness
Press BRIGHTNESS repeatedly to select different brightness levels: [HI]
(high),[MID](mid),and[LOW](low).
6 Product information
Note
•Product information is subject to change without prior notice.
15 30 60 90 120
OFF

Specications
Amplier
Rated Output Power 0.6WRMS
Tuner
Tuning Range FM: 87.5 - 108 MHz
MW: 531-1602 KHz
Sensitivity
-Mono,26dBS/NRatio
FM: <22 dBu
MW: <92 dBuV/M
SearchSelectivity FM: <28 dBf
MW:<98 dBuV/M
Total Harmonic Distortion FM: <3%
MW:<5%
SignaltoNoiseRatio FM: >45 dB
MW:>40 dB
General information
AC Power Model : AGC060V0450T; Input :
220-240V ~, 50/60Hz; Output :
AC6V 450MA
Operation Power
Consumption
<5 W
StandbyPowerConsumption <2 W
