Introduction
Congratulations on buying this fully automatic Philips Xsmall espresso
machine! To fully benet from the support that Philips offers, please register
your product at www.philips.com/welcome.This user manual applies
to HD8651. The machine is suitable for preparing espresso coffee using
whole coffee beans. It can also dispense steam and hot water. In this user
manual you nd all the information you need to install, use and maintain
your machine.
ENGLISH

General description (Fig. 1)
1 Control panel
2 Steam icon
3 Control dial
4 Coffee bean icon
5 Espresso button
6 Regular coffee button
7 Hot water icon
8 Descaling light
9 Warning light
10 2-cup light
11 ’Water tank empty’ light
12 On/off button with light
13 Hot water/steam wand
14 Protective handle
15 classic milk frother (specic types only)
16 Water tank
17 Coffee spout
18 Drip tray cover
19 ’Drip tray full’ indicator
20 Drip tray
21 Coffee grounds container
22 Brewing unit
23 Maintenance door
24 Grinding degree adjustment knob
25 Ceramic coffee grinder
26 Coffee bean container
27 Grinding degree adjustment tool
28 Lid of coffee bean container
Important
Read and follow the safety instructions carefully and only use the machine
as described in this user manual to avoid accidental injury or damage
due to improper use of the machine. Keep this user manual for future
reference.
Danger
-Never immerse the machine in water or any other liquid.
- Never direct the steam wand at the body as this causes scalding.
- Never insert body parts or objects into the coffee grinder.
Warning
- Check if the voltage indicated on the machine corresponds to the local
mains voltage before you connect the machine.
- Connect the machine to an earthed wall socket.
- This machine is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the machine by a person responsible for
their safety.
- Children should be supervised to ensure that they do not play with the
machine.
-Keep the machine and its cord out of the reach of children.
ENGLISH 7

- This machine is designed to grind beans and brew coffee.
Use it correctly and with care to avoid scalding by hot water and steam.
-Do not pour liquids on the mains cord connector.
- Do not use the machine if the plug, the mains cord or the machine
itself is damaged.
- If the mains cord is damaged, you must have it replaced by Philips,
a service centre authorised by Philips or similarly qualied persons in
order to avoid a hazard.
Caution
- Always return the machine to a service centre authorised by Philips for
examination or repair. Do not attempt to repair the machine yourself,
otherwise your guarantee becomes invalid.
- Always put the machine on a at and stable surface. Keep it in upright
position, also during transport.
- Do not place the machine on a hotplate or directly next to a hot oven,
heater or similar source of heat.
- Unplug the machine if problems occur during grinding or brewing and
before you clean it.
- Let the machine cool down before inserting or removing any parts.
The heating element surface is subject to residual heat after use.
-Descale the machine regularly.
- If you do not clean and descale the machine, you run the risk that the
machine stops working and that your guarantee becomes invalid.
- Never ll the water tank with warm, hot or sparkling water,
as this may cause damage to the water tank and the machine.
- Do not use aggressive cleaning agents, solvents or chemicals to clean
the machine.
- Do not keep the machine at temperatures below 0°C.
Water left in the heating system may freeze and cause damage.
-This machine is intended for normal household use only. It is not
intended for use in environments such as staff kitchens of shops,
ofces, farms or other work environments.
Electromagnetic elds (EMF)
This machine complies with all applicable standards and regulations
regarding exposure to electromagnetic elds.
Before rst use
Installing the machine

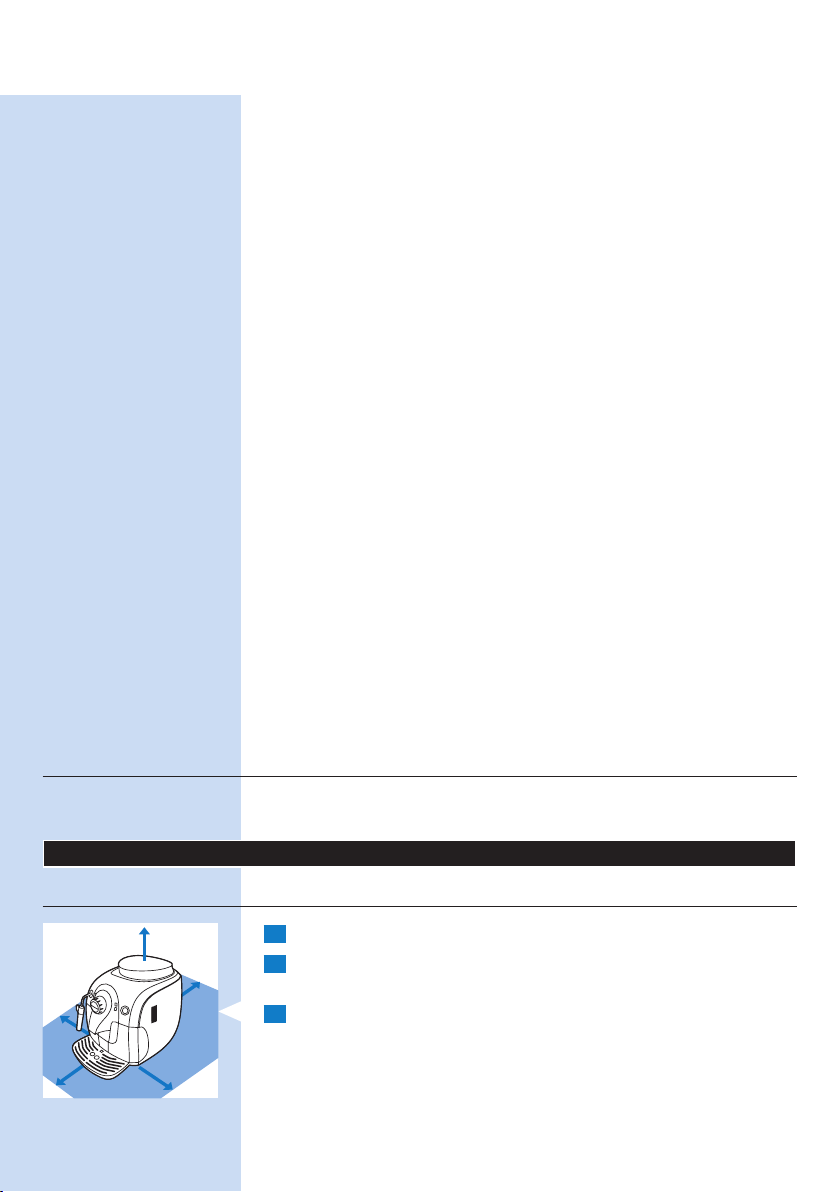

1 Remove all packaging material from the machine.
2 Place the machine on a table or worktop away from the tap,
the sink and heat sources.
3 Leave at least 15cm of free space above, behind and on both sides of
the machine.
15cm
15cm
15cm
15cm
15cm
ENGLISH8

4 Insert the small plug into the socket located on the back of
the machine.
5 Insert the plug into the wall socket.
6 Remove the protective sticker from the drip tray and slide the drip
tray into the guiding grooves in the front of the machine.
Note: Make sure the drip tray is fully inserted.
Preparing for use
Filling the water tank
1 Remove the water tank from the machine.
2 Rinse the water tank under the tap.
3 Fill the water tank with cold tap water up to the MAX indication.
Never ll the water tank with warm, hot or sparkling water,
as this may cause damage to the water tank and the machine.
4 Slide the water tank back into the machine.
ENGLISH 9

Filling the coffee bean container

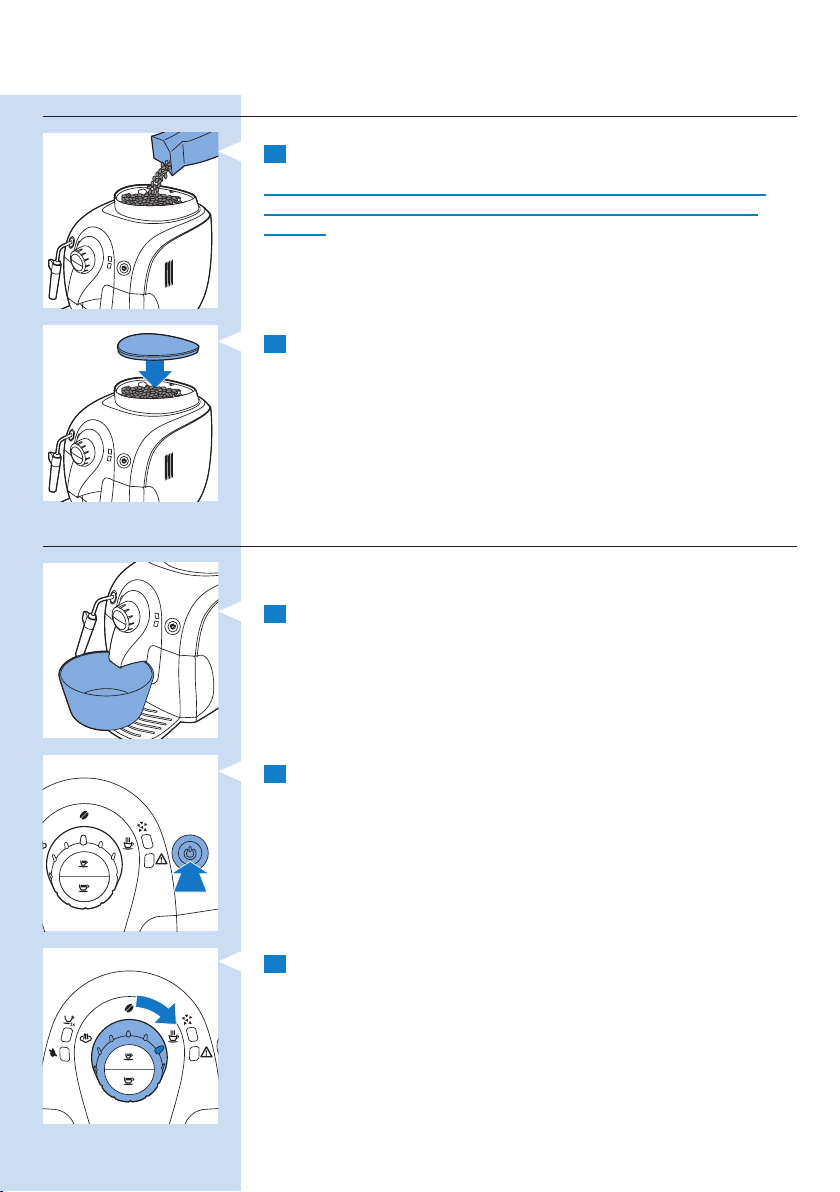

1 Fill the coffee bean container with espresso beans.
Only use espresso beans. Never use ground coffee, unroasted coffee
beans or caramelised coffee beans, as this may cause damage to the
machine.
2 Put the lid on the coffee bean container.
Heating up the machine
During the initial heat-up process, fresh water ows through the internal
circuit to heat up the machine. This takes a few seconds.
1 Place a bowl under the hot water/steam wand or classic milk frother
and the coffee spout. Make sure the control dial points to the coffee
bean icon.
2 Press the on/off button.
3 When the warning light ashes quickly, turn the control dial to the
hot water icon and wait a few seconds.
,The warning light goes out and some water comes out of the hot
water/steam wand or classic milk frother.
ENGLISH10

4 After a few seconds, when hot water stops coming out of the hot
water/steam wand and the warning light ashes slowly, turn the
control dial back to the coffee bean icon.
,The machine is heating up and the on/off button ashes slowly.
,When the machine has heated up, it performs an automatic rinsing
cycle to clean the internal circuit with fresh water. Water ows from
the coffee spout.
,When the on/off button lights up continuously, the machine is ready
for the manual rinsing cycle.
Note:You can stop the automatic rinsing cycle by pressing the espresso button
or the regular coffee button.
Note:The automatic rinsing cycle also takes place 15 minutes after the
appliance switches to standby mode or switches off.
Manual rinsing cycle
During the manual rinsing cycle, the machine brews one cup of coffee to
prepare the inner circuit for use.
1 Place a bowl under the coffee spout.
2 Make sure the on/off button lights up continuously.
3 Press the regular coffee button.
,The machine starts to brew a cup of coffee to prepare the inner
circuit for use.This coffee is not drinkable.
4 Empty the bowl after the brewing cycle is nished.
5 Place a bowl under the hot water/steam wand or classic milk frother.
ENGLISH 11

6 Turn the control dial to the hot water icon.
7 Let the water ow until the water tank is empty.
,The ‘water tank empty’ light lights up continuously.
8 Turn the control dial back to the coffee bean icon.
9 Fill the water tank with fresh water up to the MAX indication.
,The machine is ready for use.
Note: The rst cups of coffee may be a bit watery, this is normal.
The machine needs to complete a few brewing cycles to optimise its settings.
Installing the Intenza+ water lter
We advise you to install the Intenza+ water lter as this prevents scale
build-up in your machine. You can buy the Intenza+ water lter separately.
For more details, see chapter ‘Guarantee and support’, section ‘Ordering
maintenance products’.

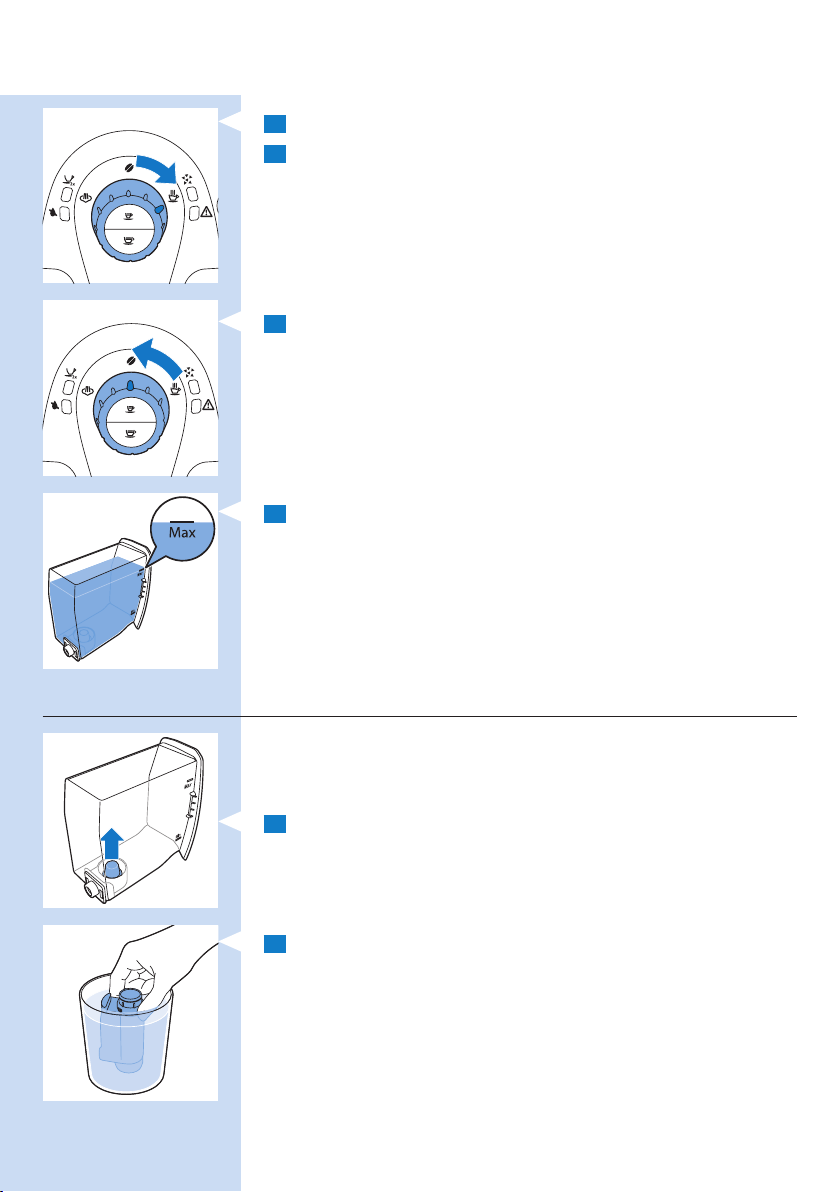

1 Remove the small white lter from the water tank and store it in
a dry place.
Note: Please keep the small white lter for future use. You will need it for
the descaling process.
2 Remove the lter from its packaging and immerse it in cold water
with the opening pointing upwards. Press the sides of the lter gently
to let out the air bubbles.
ENGLISH12

3 Turn the knob of the lter to the setting that corresponds to the
water hardness of the area you live in.
A Soft water
B Hard water (default)
C Very hard water
Note:You can test the water hardness with a water hardness test strip.
4 Place the lter in the empty water tank. Press it down until it cannot
move any further.
5 Fill the water tank with fresh water up to the MAX indication and
slide it into the machine.
6 Let the machine brew hot water until the water tank is empty
(see chapter ‘Using the machine’, section ‘Hot water’).
7 Rell the water tank with fresh water up to the MAX indication and
slide it back into the machine.
,The on/off button lights up continuously.
The machine is ready for use.
Using the machine
To guarantee perfect espresso, the machine regularly rinses its inner circuit
with water. This automatic rinsing cycle takes place 15 minutes after the
appliance switches to standby mode or switches off. During the automatic
rinsing cycle, some of the water ows through the inner circuit directly into
the drip tray. Empty the drip tray regularly.
Brewing 1 or 2 cups of espresso or regular coffee
1 Make sure the on/off button lights up green continuously and
the control dial points to the coffee bean icon.
2 Place 1 or 2 cups on the drip tray cover.
3 Press the espresso button or regular coffee button.
Note: You can interrupt the brewing cycle at any time. To do this, press the
same button (for espresso or regular coffee) that you pressed to start brewing
coffee.
ENGLISH 13

- Press the espresso button or regular coffee button once to brew
1 cup of coffee.
,The machine grinds the required amount of coffee beans for one cup
and then brews one cup of coffee.
- Press the espresso button or regular coffee button twice to brew
2 cups of coffee.
,The 2-cup light lights up. The machine grinds the required amount
of coffee beans for one cup and then lls both cups half. Then the
machine grinds coffee beans for one cup again and lls both cups
fully.
4 Press the on/off button to switch off the machine.
,If you only brewed one cup of coffee, the machine briey rinses the
inner circuit before it switches off.
Note: When the machine is left in standby mode, it switches off automatically
after 30 minutes.
Frothing milk
If you want to froth milk after switching on the machine or after brewing
a cup of coffee, there may still be some water in the internal circuit.
You need to let this water ow out of the machine rst.
1 P
lace a big cup under the hot water/steam wand or classic milk frother.
2 Turn the control dial to the steam icon.
,The on/off button ashes while the water heats up.
,Hot water comes out of the hot water/steam wand or classic milk
frother.
3 When only steam comes out of the hot water/steam wand or classic
milk frother, turn the control dial back to the coffee bean icon.
ENGLISH14

4 Fill a jug up to 1/3 with cold milk.
Note: Use cold milk (at a temperature of approximately 5°C/41°F) with a
protein content of at least 3% to ensure an optimal frothing result.
You can use whole milk or semi-skimmed milk, depending on your preference.
5 Immerse the hot water/steam wand or classic milk frother in the
milk and turn the control dial to the steam icon. Froth the milk by
gently swirling the jug and moving it up and down.
6 When the milk froth has the desired consistency, turn the control
dial back to the coffee bean icon.
After frothing milk, the machine needs to cool down before you can brew
coffee. Follow the next steps.
1 Press the espresso button or regular coffee button.
,The on/off button ashes rapidly to indicate that the machine is
overheated and cannot brew coffee.
2 Place a bowl under the hot water/steam wand or classic milk frother
and turn the control dial to the hot water icon.
3 Hot water comes out of the hot water/steam wand or classic
milk frother.
4 Wait until the water ow stops and the on/off button lights up
continuously.
5 Turn the control dial back to the coffee bean icon.
,The machine is ready to brew coffee.
Hot water
1 Make sure the on/off button lights up continuously.
If the on/off button ashes slowly, the machine is heating up.
2 Place a cup under the hot water/steam wand or classic milk frother.
ENGLISH 15

3 Turn the control dial to the hot water icon.
,Water comes out of the hot water/steam wand or classic milk
frother.
4 Turn the control dial back to the coffee bean icon when the cup
contains the preferred amount of hot water.
Adjusting the machine
You can adjust the grinding degree and coffee volume to obtain coffee that
is perfectly customised to your taste.
Adjusting the grinding degree
You can adjust the grinding degree of the machine. At each grinding degree
selected, the ceramic coffee grinder guarantees a perfectly even grind
for every cup of coffee you brew. It preserves the full coffee aroma and
delivers the perfect taste to every cup.
1 Press the grinding degree adjustment knob rmly (1) and then turn it
one notch at a time (2).There are 5 different grinding degree settings
you can choose from.The smaller the dot, the stronger the coffee.
The difference becomes noticeable after you have brewed 2-3 cups
of coffee at the new setting.
Do not turn the grinding degree adjustment knob more than one
notch at a time to prevent damage to the grinder.
Adjusting the coffee volume
You can adjust the coffee volume to your taste and the size of your cups.
Both the regular coffee button and espresso button can be programmed.
1 Place a cup on the drip tray cover.
2
1
ENGLISH16

2 Press and hold the button of the coffee type you want to adjust.
Release the button when the machine starts to grind coffee beans.
,The 2-cup light and the on/off button ash slowly.
3 Press the same button again when the cup contains the desired
amount of coffee.
The machine automatically saves the new setting.
Cleaning and maintenance
Regular cleaning and descaling prolongs the lifetime of your machine
and ensures optimum quality and taste of your coffee.
Do not immerse the machine in water or any other liquid.
Never use scouring pads, abrasive cleaning agents or aggressive liquids
to clean the machine.
Always unplug the machine and let it cool down before you clean it.
Note: None of the detachable parts are dishwasher-proof. Rinse them under
the tap.
Cleaning the hot water/steam wand or classic milk frother
Clean the hot water/steam wand or classic milk frother with a wet cloth
after each use. Clean the hot water/steam wand or classic milk frother
thoroughly once a week.
1 Remove the protective handle from the hot water/steam wand
by pulling it downwards.
The hot water/steam wand or classic milk frother may be hot.
-I
f your machine has a classic milk frother, remove the tube and upper part.
2 Rinse the tube and upper part with fresh water and dry them with
a dry cloth.
3 Clean the hot water/steam wand with a wet cloth to remove milk
residues.
4 Put the protective handle and classic milk frother (if present) back
onto the hot water/steam wand.They are correctly positioned when
you hear a click.
ENGLISH 17

Cleaning the brewing unit
Do not clean the brewing unit in the dishwasher and do not use
washing-up liquid or a cleaning agent to clean it.
Clean the brewing unit once a week.
1 Switch off the machine and unplug it.
2 Remove the coffee grounds container from the machine.
3 Open the maintenance door.
4 Press the PUSH button (1) and pull at the grip of the brewing unit
(2) to remove it from the machine.
5 Clean the coffee exit duct thoroughly with a spoon handle
or another round-tipped kitchen utensil.
6 Rinse the outside of the brewing unit under a lukewarm tap.
Never use any washing-up liquid or other cleaning agent to clean
the brewing unit.
Do not dry the brewing unit with a cloth to prevent bres from
collecting inside the brewing unit.After rinsing, just shake excess water
off the brewing unit or let it air-dry.
1
2
ENGLISH18

7 Before you slide the brewing unit back into the machine, make sure
the two reference signs on the side match. If they do not match,
perform the following step:
- Make sure the lever is in contact with the base of the brewing unit.
8 Make sure the locking hook of the brewing unit is in the correct
position.
- To position the hook correctly, push it upwards until it is in uppermost
position.
Note:The hook is not correctly positioned if it is still in bottommost position.
9 Slide the brewing unit back into the machine along the guiding rails
on the sides until it clicks into position.
Do not press the PUSH button.
10 Close the maintenance door.
ENGLISH 19

11 Slide the coffee grounds container back into the machine.
Lubrication
For optimal performance of the machine, lubricate the brewing unit
after it has brewed 500 cups of coffee or once every 3 months.
Contact the Philips Saeco hotline to buy lubricant.
1 Switch off the machine and unplug it.
2 Follow steps 2 to 4 in section ‘Cleaning the brewing unit’ to remove
the brewing unit from the machine.
3 Apply some lubricant around the shaft in the bottom of the
brewing unit.
4 Apply some lubricant to both sides of the part shown in the
illustration.
5 Follow steps 7 to 11 in section ‘Cleaning the brewing unit’ to place
the brewing unit and the coffee grounds container back into the
machine.
ENGLISH20
