Philips DVDR 3360H User manual

Hard Disk/ DVD Recorder DVDR 3360H
Quick Start Guide
Connect
Set up
Enjoy
1
2
3
What’s in the box?
Hard Disk/ DVD Recorder
RF Coaxial Cable
Remote Control
and 2 batteries
SCART Cable
2006 © Koninklijke Philips N.V.
All rights reserved.
12 NC 3139 245 22651
www.philips.com
Need help?
Onscreen Helptext
Press INFO on the remote control for onscreen helptext when using your Philips recorder.
User Manual
See the user manual that came with your Philips recorder.
Online
Go to www.philips.com/support.
3Enjoy 3Enjoy
Copying to a recordable
DVD disc Types of discs used on
this recorder
You can copy the contents in your hard disk to a
recordable DVD disc.
AInsert a recordable DVD disc.
BPress HDD to view the titles on the
hard disk.
CUse up / down to select the title.
DPress SELECT to mark the titles you
wish to copy.
EOnce you finish your selection, press
HDD to start copying to the recordable
DVD disc.
Note When copying is in progress, the icon
will be shown on the screen.
FDuring copying, you can continue watching
TV programmes in tuner mode or select
another HDD title for playback.
GOnce the copying process completes, the icon
will no longer be shown.
SELECT
User Manual
C
Record to a recordable DVD
APress TUNER to switch to tuner mode.
BPress CH or to go to the TV
programme channel you wish to record.
CInsert a recordable DVD disc.
Press DVD REC to switch to direct
record mode and display the information bar.
System State: Stop
Record to Optical Disc As Standard Play Plus
Elapsed Time: 00:00:00 Remaining Time: 00:00:00
Note To record from a connected external device,
press SOURCE repeatedly
OR press DV to record from a DV camcorder
connected via the DV IN socket on the recorder.
DPress SELECT repeatedly to select the preferred
mode of recording quality.
Hours of Recording
that can be stored
Types of discs for recording
Record Quality
1
2
2.5
3
4
6
8
High Quality HQ
Standard Play SP
Standard Play Plus SPP
Long Play LP
Extended Play EP
Super Long Play SLP
Super Extended Play SEP
4.7 GB
DVD±R/±RW disc
EPress REC to start recording.
FTo stop the recording, press STOP .
Start playback
A
Playback from hard disk
HDD 10 Titles
Forotheroptions, press [DVD], [DV],
[TUNER] keys. Press [RIGHT] to go to edit
menu.
1. Press [SELECT] to
mark orunmark
recordings.
2. Press [HDD] to
copy selected
recordings to DVD.
Press [SHUFFLE] to
sort by title.
00:20:20
SP PAL
001 CH001
CH003
CH009
CH008
CH002
CH008
002
003
004
005
006
Date Time
No
Ch.
Title
14/02/06
10/02/06
25/02/06
28/02/06
28/03/06
12/04/06
14.00
14.00
Travel
Nature
News
News
Drama
Title 3
03.30
16.30
08.30
11.00
CH002
007
07/05/06
News
09.30
CH011
008
23/05/06
Discover
22.30
APress HDD to view the titles on the hard
disk.
BUse up /down to select the title.
CHighlight the title you want and press PLAY
to start playback.
Note To access the edit menu, highlight the title
and press right .
DPress HDD to go back to the disc menu
anytime.
B
Playback from a disc
AInsert a CD or DVD disc.
If the disc menu does not show, press DVD
to view the list of titles on the disc.
3. My movie
15 / 03 / 2006
09 : 31 : 53 AM
SP 00 : 06 : 45
2. Nature
09 / 03 / 2006
15 : 30 : 45 PM
SPP 00 : 05 : 59
1. Sports
11 / 02 / 2006
12 : 31 : 53 PM
SP 00 : 03 : 00
Empty
BUse up / down to scroll through the
list of options and/or titles.
CHighlight the title you want and press PLAY
to start playback.
DTo stop, press STOP .
EPress DVD to go back to the disc menu
anytime.
For more recording and playback options, see
the accompanying User Manual.

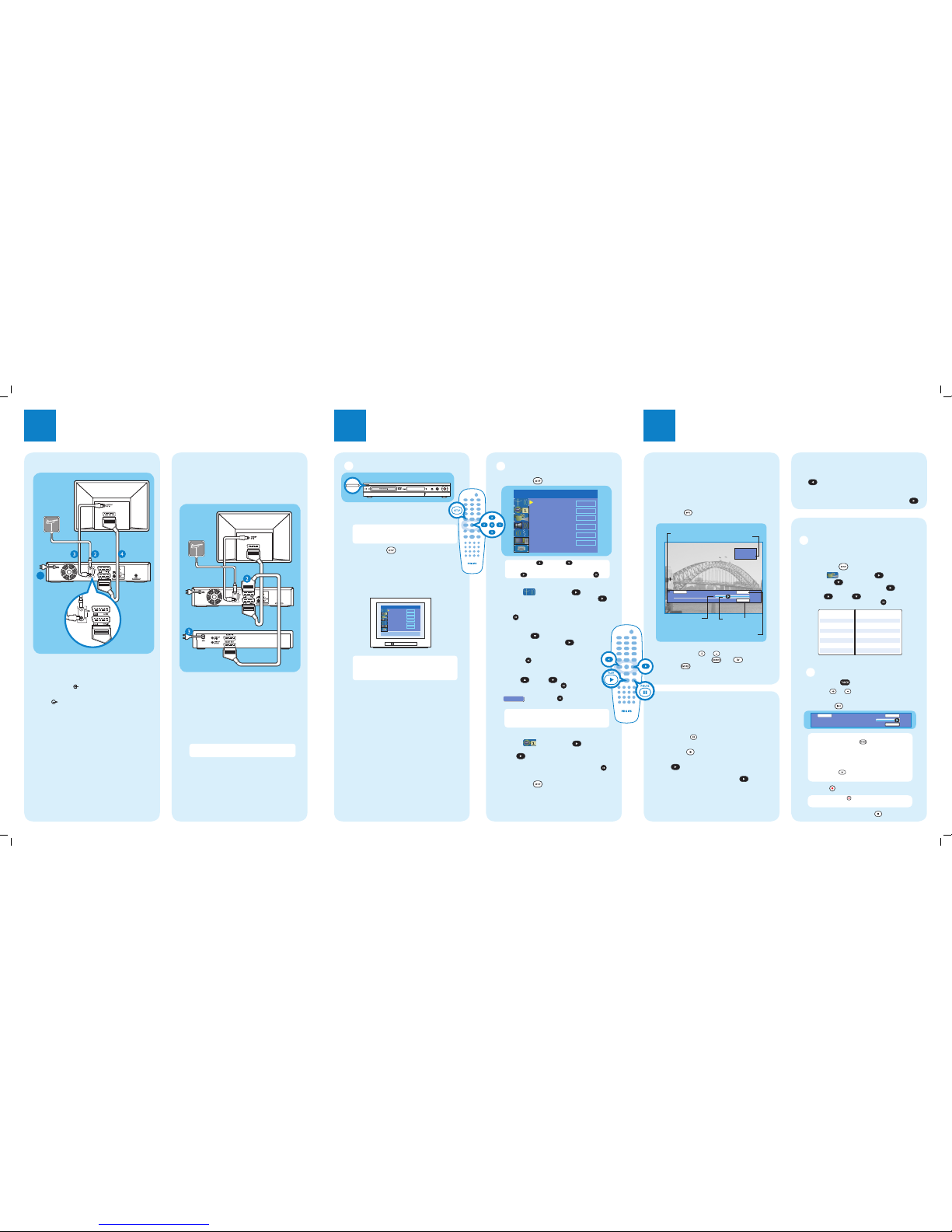

1Connect 2Set up
Start with the ‘Basic Connection.’
If you have a VCR, follow the instructions for ‘Connection with a VCR or similar device’.
To exit, press [SETUP].
TV Shape
Auto Program
Manual Program
4:3 LB
Search
Edit
Sort
OK
Menu Language
English
SETUP MENU - SETUP
Country Selection
Austria
Your Philips recorder is now ready for use!
Philips recorder (front panel)
3Enjoy
(The TSB in playback mode)
About the Time Shift Buffer
(TSB)
Once you switch on this recorder, the currently
selected TV programme will be stored in a temporary
storage called the ‘TSB’ (Time Shift Buffer). The TSB
can store up to 6 hours of recordings temporarily.
Press INFO once to display the Time Shift
video bar.
09:15:36
08:30:45
03:15:36
CH003/P3
The contents on the time shift buffer will be erased
once you press CH or or if you switch to
another mode: SOURCE , DV ,
DVD REC .
Start time
of programme
Programme
stored in TSB
Shows TV channel or
video input source
TSB
status icon
in playback
Time of current
screen playback
Instant Replay
While watching a live TV programme, you can press
left to jump back 10 seconds upon every single
press for instant replay.
To return to live broadcast, press and hold right .
Pause ‘live’ TV
At times, you may be interrupted while watching
your favourite programme. Now you can pause
it, as if you were in control of the broadcast.
APress PAUSE while watching any live TV
programme to suspend it.
BPress PLAY to continue.
CTo return to live broadcast, press and hold
right .
To jump forward playback, press right once
for every 30 seconds.
Current
time
AUDIO/ VIDEO OUT DIGITALAUDIOOUT
SCART IN
5
Television (rear)
To antenna or
set-top box
Philips recorder
(rear)
To AC
power
Basic Connection
ABefore connecting, unplug the antenna cable that
is currently connected to your TV.
BConnect the antenna cable to the
ANTENNA socket on the recorder.
CUse the supplied RF coaxial cable to connect the
TV socket on this recorder to the Antenna In
socket on the TV.
DUse the SCART cable to connect the EXT1 TO
TV-I/O scart socket on this recorder to the
corresponding SCART input socket on the TV.
EConnect the power cable from the recorder to
an AC power outlet.
AFollow the steps under ‘Basic Connections’ before
you proceed to step Bbelow.
BUse another SCART cable (not supplied) to
connect the EXT2 AUX-I/O scart socket on
this recorder to the SCART OUT socket on the
VCR.
CConnect the power cable from your VCR to an
AC power outlet.
Note In this setup, the VCR cannot record TV
programmes.
For additional connection diagrams, see
the accompanying User Manual.
Connection with a VCR or
similar device
Your new Philips recorder replaces the VCR for your
recording needs. First, unplug all the connections from
your VCR.
AUDIO/ VIDEO OUT DIGITALAUDIOOUT
SCART IN
Television (rear)
To antenna or
set-top box
Philips recorder
(rear)
To AC
power
VCR or similar
device (rear)
To
AC power
AFinding the viewing channel
STANDBY-ON
APress STANDBY-ON on the recorder.
BSwitch on the TV set.
Note If connected to your VCR, make sure
it is switched off or in standby mode before
proceeding.
CPress SETUP .
DIf your TV does not switch to the correct
viewing channel, press ‘0’ on the TV’s remote
control, then press the Channel Down button
repeatedly until you see the { SETUP MENU
– SETUP } page. This is the correct viewing
channel for the recorder.
Note You may press the AV or SELECT button
on the TV’s remote control (if available) to select
the correct viewing channel. See your TV’s user
manual.
B
Initial Installation
APress SETUP on the remote control.
TV Shape
Auto Program
Manual Program
4:3 LB
Search
Edit
Sort
OK
Menu Language
English
SETUP MENU - SETUP
Country Selection
Austria
Note Use up and down keys to toggle
through the options. Select an item by pressing
right . To conrm a setting, press OK .
BSelect the OSD language.
 Highlight and press right .
Select { Menu Language } and press right
to access the options.
Select the desired language option and press
OK to confirm your selection.
CSelect the country of your residence
 Press down key to select { Country
Selection } and press right to access the
options.
Select the country of your residence and
press OK to confirm your selection.
DSetup and install TV channels.
Use up / down to select { Auto
Program } and press OK .
A warning message will appear. Select
OK
CONTINUE
and press OK to start automatic
TV channel search.
Note If no channels were found, check the
antenna connection and start the channel search
again.
ESet the date and time
 Highlight and press right .
Select { Date-Time Programme } and press
right to access the options.
Select the desired broadcast channel to
automatically set the date/time and press OK
to confirm.
FPress SETUP to nish installation.
Start Recording
ABefore recording to hard disk
You can preset the recording quality for content
recorded to the time shift buffer.
APress SETUP on the remote control.
BHighlight and press right .
Press down repeatedly until you highlight
{ Record Quality } and press right .
CUse up / down to select the preferred mode
of recording quality and press OK to confirm.
Hours of Recording that can be stored
Record QualityRecord Quality
34
68
85
102
134
200
270
HQ High Quality
SP Standard Play
SPP Standard Play Plus
LP Long Play
EP Extended Play
SLP Super Long Play
SEP Super Extended Play
160GB Hard Disk
Values are estimates only. Part of the HDD storage will be
reserved for the operations of this recorder and time shifting.
BRecord to hard disk
APress TUNER to switch to tuner mode.
BPress CH or to go to the TV programme
channel you wish to record.
CPress INFO to display the time shift video bar.
09:15:36
LIVE
03:15:36
Note To record from a connected external
device, press SOURCE repeatedly to cycle
through video input sources from:
{ CAM 1 } : VIDEO socket on the front
{ CAM 2 } : S-VIDEO socket on the front
{ EXT 1 } : EXT 1 scart socket on the back
OR Press DV to record from a DV camcorder
connected via the DV IN socket on the recorder.
DPress REC to start recording.
Note Press REC repeatedly to extend 30
minutes increments per single press.
ETo stop recording, press STOP .
