Philips DVDR3375 User manual

.Technical Specifications…………………………………………....…1-2
. Mechanical and Dismantling Instructions…………………...........…2-1
. Region Code, SoftwareVersion & Upgrades……...………………..3-1
. Trouble Shooting Chart………………………………………………..4-1
. Block and Wiring Diagram…………………………………….…...….5-1
. Electrical Diagrams and Print-layouts……………………….……….6-1
. Set Mechanical Exploded view……………………………………….7-1
. Revision List…………………………………………………..........…..8-1
DVDRecorder DVDR3375
Service
TABLE OF CONTENTS
Page
3139 785 31730
Version 1.0
Service Manual
PHILIPS
GB
Copyright 2006 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in aretrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.
CLASS 1
LASER PRODUCT
Published by TCL-KC 0603Service Audio Printed in The Netherlands Subject to modification
C
DVDR3375/93
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Technical Specifications
Tuner/ Reception/ Transmission
TV system: PAL
Aerial Input: 75Ohm coaxial (IEC75)
Picture / Display
Aspect ratio: 4:3, 16:9
D/A converter: 10bit, 54 MHz
A/D converter: 10bit, 27MHz
Picture enhancement: Progressive Scan
Sound
D/A converter: 24bit, 96kHz
A/D converter: 24bit, 96kHz
Signal to noise ratio: 90 dB
Crosstalk (1 kHz): 80 dB
Dynamic Range (1k Hz): 80 dB
Video Recording
Recording system: PAL, NTSC
Compression formats: MPEG2
Recording modes:
1 hours (high quality)
2 hours (DVD quality)
4 hours (VHS quality)
6 hours(VHS quality)
Video Playback
Disc playback media: CD, CD-R/-RW, DVD, DVD-Video,
DVD+R/+RW, DVD-R/-RW ,SVCD, Video CD
Compression formats: MPEG1, MPEG2, DivX
Video disc playback system: PAL, NTSC
Audio Playback
Disc playback media: CD, CD-R/-RW, MP3-CD, MP3-DVD
Compression formats: Dolby Digital, MP3, MPEG2 Multichannel,
PCM, DTS
MP3 bit rates: 32~256 kbps and VBR
Still Picture Playback
Disc formats: DVD+R/+RW, DVD-R/-RW ,Picture CD
Picture Compression formats: JPEG
Picture enhancement:: Rotate, Zoom and Pan
Storage Media
Recording speed: 2.4x
Recording media: DVD+R/+RW, DVD-R/-RW
Front Connections:
I-link DV in (IEEE 1394-4pin)
Video In
Audio left / right In
USB
Karaoke mic. in
Rear Connections:
S-Video Out
Videl (CVBS) Out
Audio left / right Out
Digital audio out (coaxial)
RF antenna in
RF TB out
Y, Pb, Pr out
S-Video in
Video (CVBX) in
Y, Pb , Pr in
Audio left / right / in
Convenience
Programming / Timer Enhancements:
Daily / Weekly, Repeat Program, Manual Timer,
One Touch Recording
Timer recording events: 20
Power consumption
Power supply : 110
︱
240 V; 50-60 Hz
Consumption: 28 W (typical)
Standby power consumption: <4W
Cabinet
Dimensions (w X h X d) 435 X 53 X 300mm
Net Weight : < 4 kg
1-2
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Dismantling Instruction
The following guidelines show how to dismantle the
recorder.

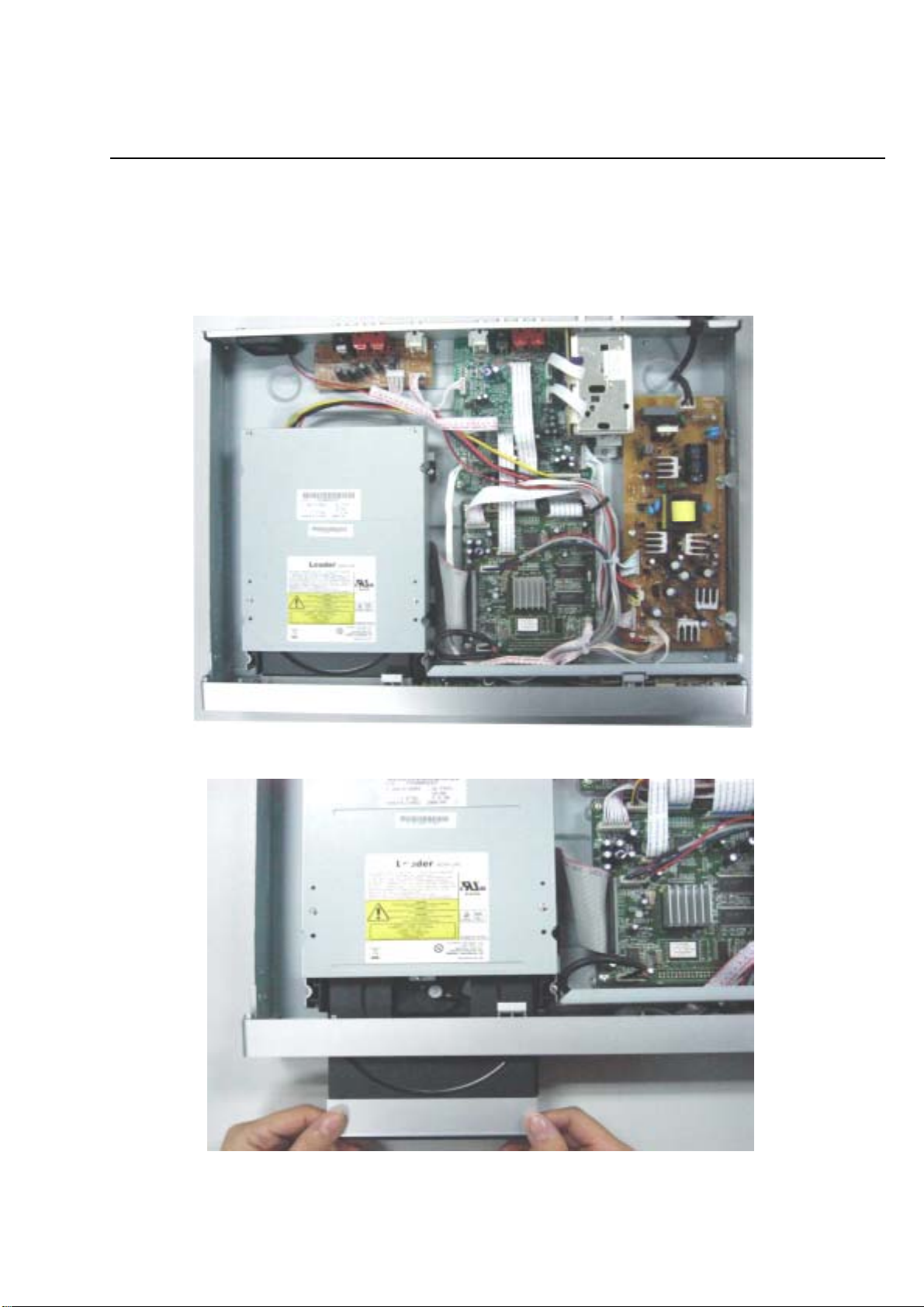

Step1: Remove the 8pcs of screw around the Top Cover.
And remove it (Figure 1)
Step2: If it is necessary to dismantle Loader or Front Panel, It
should be remove the front door assembly first. (Figure 2)
If the tray can’t open innormal way, you can make it through
the instruction as figure 3 & 4 & 5
Note: Make sure to operate gently otherwise it would be
damaged.
Mechanical and Dismantlin
g
Instructions
2-1
Figure 1
Figure 2
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Dismantling Instruction
Mechanical and Dismantlin
g
Instructions
Figure 3 Figure 4
Figure 5
Remove the screws on
both side of loade
r
Uplift the bottom of loader
The door will fall off automatically
Push it gently, and the tray
will flick out automatically
2-2
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Dismantling Instruction

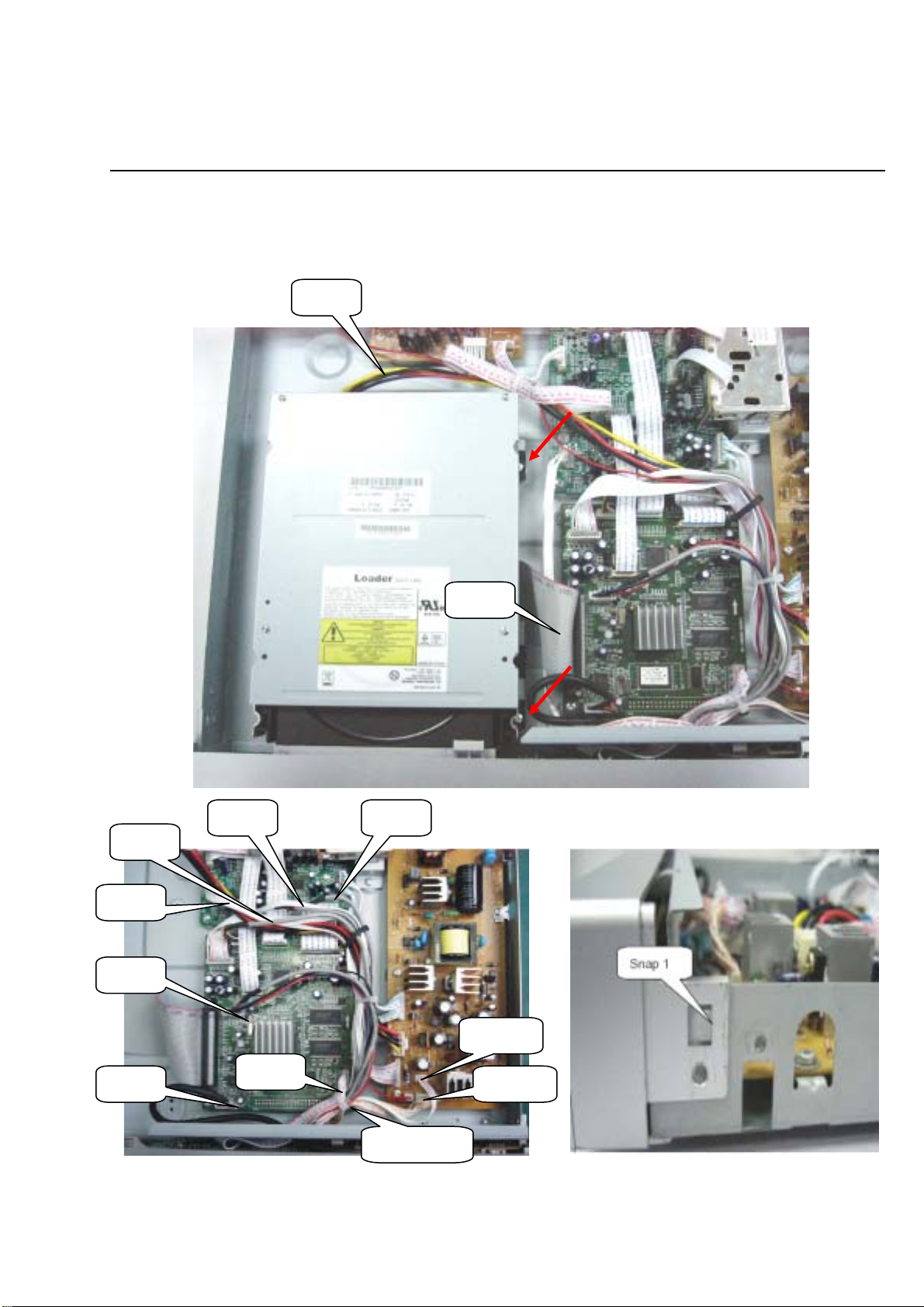

Step3: Dismantling Loader, First, disconnect the 2
connectors aiming in the figure, and then remove the 4
screws at both sides of the loader, (Figure 6)
Step4: Dismantling Front Panel: disconnect the 9
connectors ,1 GND cable aiming in the figure then Release
the snaps on the both sides of Front Panel and the relative
screws on the cabinet, finally gently pull the panel out from
the set. (Figure 7& 8)
2-3
Figure 6
Figure 8
CON3
CON10
CON11
CON6
CON9
CON7
CON4
CON5
GND Cable
CON8
CON1
CON2
Mechanical and Dismantlin
g
Instructions
Figure 7
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Dismantling Instruction
Step5: Dismantling MPEG Board, first disconnect the
4 connectors ,then remove the relative screws
(Figure9)
Step6: Dismantling Tuner Board, first disconnect the 2
connectors ,then remove the relative screws(Figure10)
Mechanical and Dismantlin
g
Instructions
2-4
Figure 9
CON 13
CON 12
CON 14
CON 15
GND Cable
Figure 10
CON 16
CON 17
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Dismantling Instruction

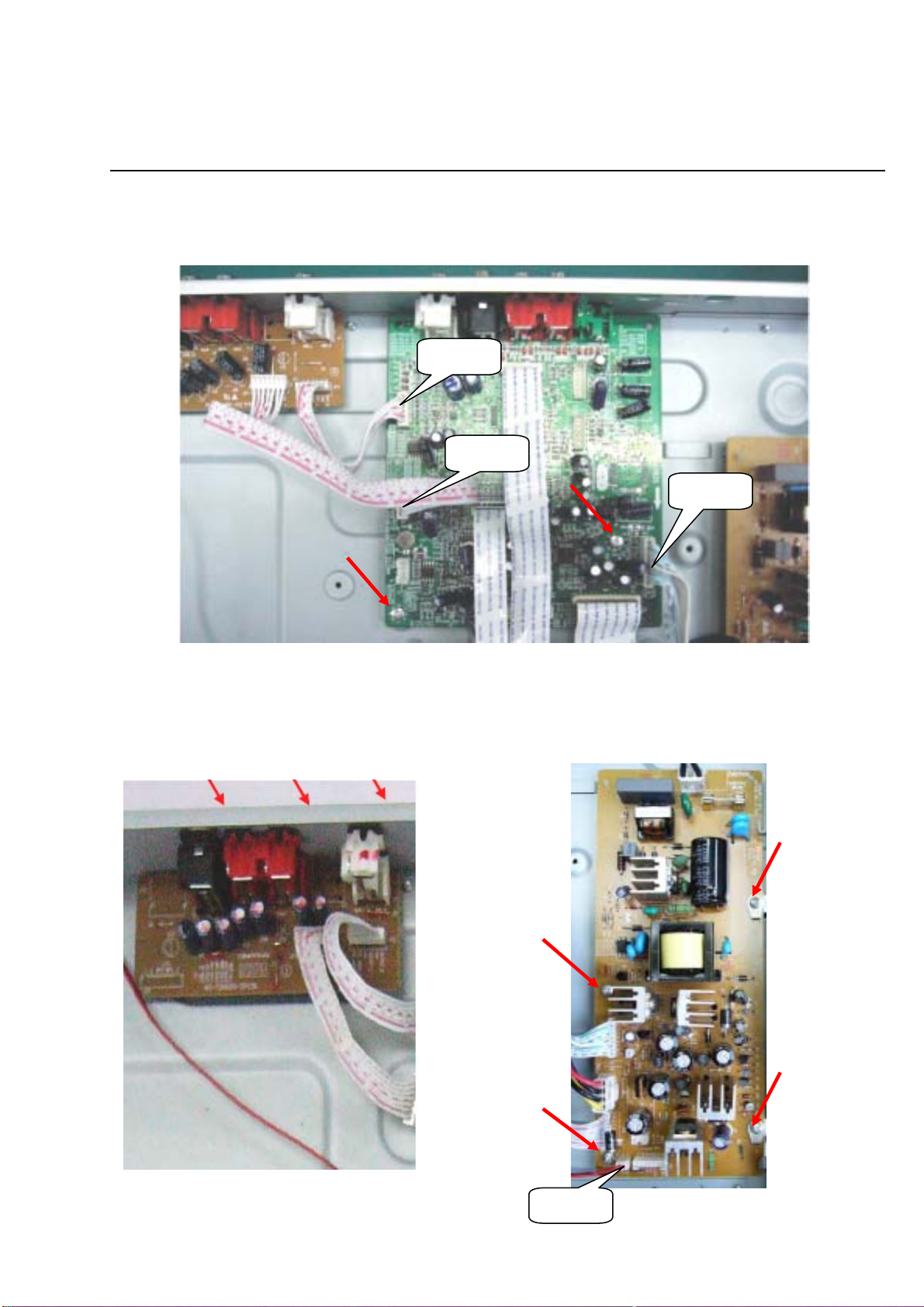

Step7: Dismantling AV Board, first disconnect the 3
connectors, and then remove the relative screws,
(Figure 11)
Step8: Remove the 3 screws on the back of the
cabinet, then dismantling the IO Board. (Figure 12)
Step9: Dismantling Power Board, first
disconnect the connector, then remove the relative
screws.(Figure 13)
Mechanical and Dismantlin
g
Instructions
2-5
Figure 11
Figure 13
CON 21
Figure 12
CON 20
CON 18
CON 19
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Software upgrade
A. Preparation to upgrade software
1) Start the CD Burning software and create a new CD
project (Data Disc) with the following setting:
Label: _____ (No need the label name)
File System: ISO9660
File Name: DMN8600.CUB (For DVDR3375/93)
Note: It is required capital letter for the Label name
& the File System name.
2) Burn the data onto a blank CDR
B. Procedure for software upgrade:
1) Power up the set and insert the prepared Upgrade
CDR.
2) The set will start reading disc & response with the
following display on TV screen:
Software upgrade disc DETECTED, select OK
start upgrading or CANCEL to exit.
Press OK to start.
3) After press <OK> button to confirm, then screen will
display:
Upgrading software, please wait. Do not switch off
the power…….
4) The upgraded disc will automatically out when the
upgrading complete, then take out the disc and
power off the set.
C. Read out the software versions to confirm upgrading
1) Power up the set and press <system menu> button on the
remote control.
2) Press <0><0><0><9> <OK> button.
The software version and other information are display on
the TV screen as follows:
Build: XXX XXX XXX XXX XXX
C ware: XXXX
Nav: XXXX (Software version of decoder)
XX XX XX XX XX:XX:XX (Updated date)
Ver: XXXX (Software version of Servo)
Code: XXX ( Region code )
Region Code, Software Version& Upgrades
Caution: The set must not be power off during
upgrading, in that case the decoder board will
be damaged entirely.
3-1
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

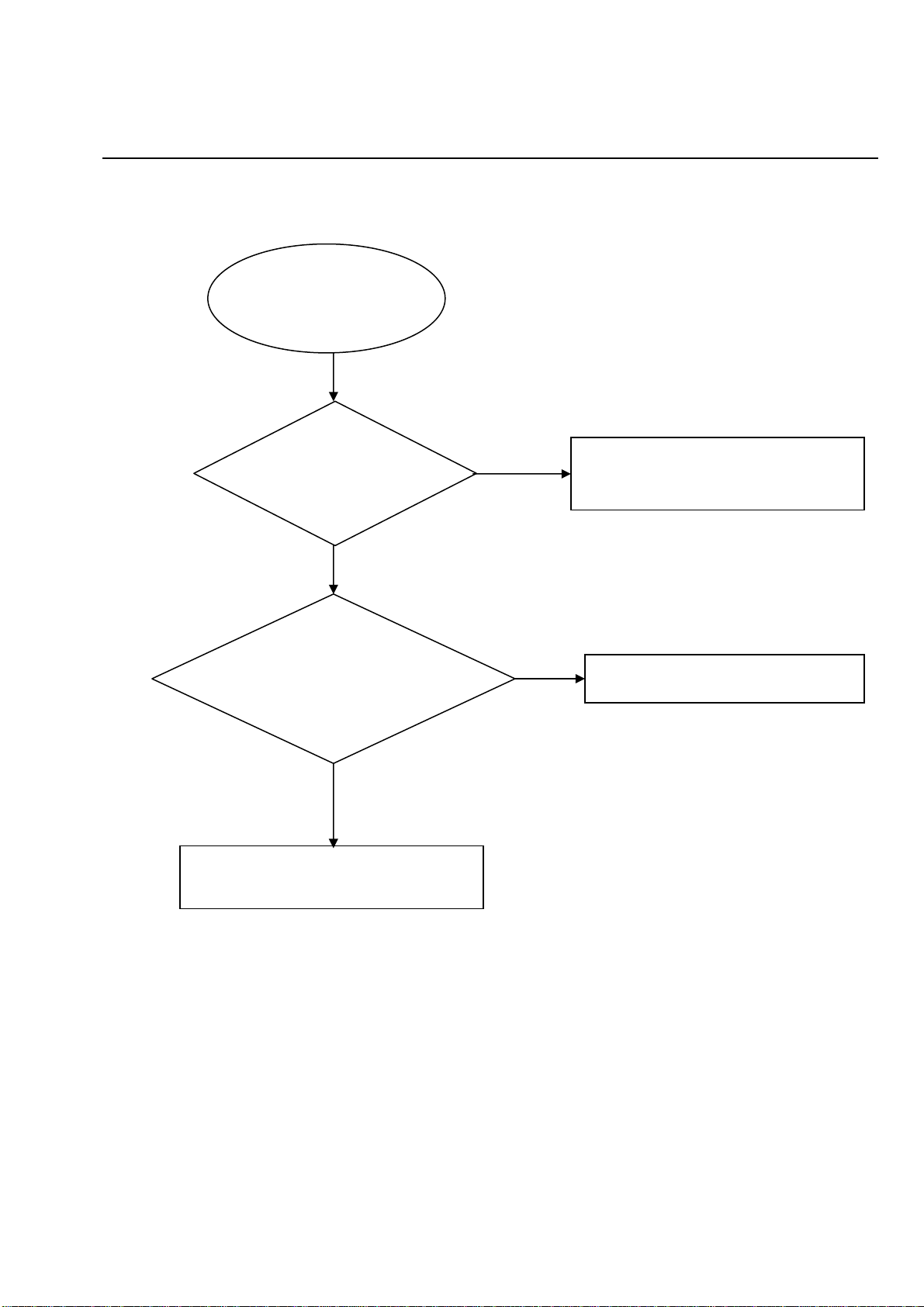

Trouble Shooting Chart
No display on VFD, and buttons do not work
4-1
No
No
No
Yes
Yes
No display on VFD, and
buttons do not work
Check every supply
voltage on main board is
normal Refer to Power supply board part
Check the U3’s pin 2,4, 7 arrive the
U3’s pin 6,8,9 connect condition
Correct connection
Replace U2 or VFD
Yes
Yes
Yes
No
Check-24V+12V, VCC
(+5v) voltage on the
power and front board
Check the front board
signals on R24, R25,
R26. (SCK,SDA,STB)
1. Check whether bad solder exists
on U2 and pins of VFD,
2. Check whether the circuit
connected to K2, K3, K4, K5 and
K6 is broken.
Fix the connection JP1 on front board
and CN1 on power board
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Trouble Shooting Chart
No digital audio output
Yes
Yes
No
No
Yes
Fix the connection JP8 on AV board
and JP2 on OP board
Check / Replace R131、C133.
Check the R130
(digital audio) on the
AV board is normal.
Check the P14 of U10 on
the AV board is +5v
Check the +5v power
supply on the AV board
Check the P1 of U10 (digital
audio) on the AV board is
normal.
Check P26 of JP2 on Main board
signals is normal
Fix the connection JP8 on AV
board and JP2 on Main board
Yes
Yes
No
Go
Check the FB8 (digital audio)
on the OP board is normal.
No digital audio output
No
4-2
Yes
Yes
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Trouble Shooting Chart
Remote control does not work
Go
Yes No
No
Remote control
does not work
Yes
Replace U2 on the power board
Check whether keys on
the front board work or
not.
Replace U4 on the power board
Replace U1.
Yes
Check the front board
whether P1 of U4 has
signal when pressing key
on the remote
4-3
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Trouble Shooting Chart
Can’t read disc or can’t open the disk door
Yes
Check the connection of the 4PIN cable
from CN5 on the Power Board.
Can’t read disc or can’t
open the disk door
Check 40pin cable from
main board connection to
the loader is normal
Check the peripheral components near the
J3 on the main board
No
Go
Check whether the
DVD loader running is
normal
Fix the connection the 40pin cable
No
Yes
4-4
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Trouble Shooting Chart
No VFD display
Check whether the
voltage between VFD
F1&VFD F2 is AC3V
Go
No
No
No VFD display
Yes
Fix the connection power board
CN1& front board JP1
Check whether the
voltage +12V/+5V on the
front board is normal
Check DC12V to AC 3V switch circuit
Replace U2&VFD.
Yes
Check whether the
voltage -24V is normal
No Check the FB1 on the front board
4-5
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Trouble Shooting Chart
Fan don’t work
Check the cable
connection fan to Power
board CN3
Go
No
No
Fan don’t work
Yes
Check R9 on Power board
Check on Power board
whether P1 of CN3 is
+12v
Replace the cable
Replace Fan
Yes
4-6
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

Trouble Shooting Chart
Can’t read disc or can’t open the disk door
Yes
Check the connection of the 4PIN cable
from CN5 on the Power Board.
Can’t read disc or can’t
open the disk door
Check 40pin cable from
main board connection to
the loader is normal
Check the peripheral components near the
J3 on the main board
No
Go
Check whether the
DVD loader running is
normal
Fix the connection the 40pin cable
No
Yes
4-7
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

A
A
B
B
C
C
D
D
E
E
4 4
3 3
2 2
1 1
FLASH
LOAD ATAPI
CVBS
VIDEO
DECODER
AUDIO IN 3
C
FORNT
PANEL KEY
IR & VFD
AUDIO IN 2
C
WM8776
POWER
Pr
Pb
BUFFER
AUDIO IN 1
Y
AUDIO RCH
Pb
WM8776
AUDIO ADC
1394
PHY
TUNER
EEROM
Pr
AUDIO LCH
DMN8602
TUNER
SDRAM
Y
1EEE1394
S/PDIF
BUFFER
CVBS
Y
AUDIO
DAC
Y
DVDR3375 Block Diagram
5-1 5-1
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

A
A
B
B
C
C
D
D
E
E
4 4
3 3
2 2
1 1
40-DR3375-AVC2G
40-DR3375-FBA2G
40-DR3345-PWA1X
40-DR3375-SWA1X
40-TDK600-MAB4X
40-DR3345-OPA1X
40-DR3375-INE1X
40-TDK600-TUC1X
05-BDRL06-000
DVDR3375 WIRING DIAGRAM
GND A_M
SDA
LOUT
AO_D0
+5VSTB
GND
Pr/R_OUT
VCC
PW_SW
GND
GND
VTUN_STB
GND
G
RST_AUD
GND
+12V
GND
AO_SCLK
AO_IEC958 GND
AI_FSYNC
C
Pr/R_IN
D_FM
TV_AFT
GND
F_C_IN
MIC_DELAYA
AIN_L_F
Y_OUT
VCC
TV_IF
+5V
S_G
P_C
TV_SCL
GND AI_MCLKO
R
+3.3V
CLK
CTPA+
CTPB+
INT_FB
IDS_SDA
Pb/B_IN
GND
TV_V5
CVBS_OUT
GND
F_Y_IN
R/Y_IN
GND
MIC_DELAYB GND
+5V
TV_AO
GND
GND
+3.3V
AI_D0
GND
F_CVBS_IN
TV_V32
AC220V
GND
TV_SDA
CVBS
E5_SPI_CLK C_OUT
Y/G_IN
+2.5V
IR
AO_MCLK
GND
Y
GND
Pb/B_OUT
+12V
AIN_R_F
GND
MUTE
LED2
R_M
+2.5V
GND
GND
GND
GND
CVBS_IN
+12V
TV_CVBS_IN
GND
32V
CTPB-
E5_SPI_MOSI AO_FSYNC
GND
B
GND Y/G_OUT
GND
CTPA-
GND
GND
+3.3V
GND
GND GND
LED1
GND
RS_G
IDS_SCL
ROUT
+5V
GND
TV_CVBSO
GND
PW_SW1
D_T
GND
AI_SCLK R/C_IN
-12V
IEC_AUDIO
GND
AC220V
CE
E5_SPI_MISO
VCC
USB_BDMO
USB_OC0
GND
GND
USB_PO0
USB_BDP0
MIC
GND
GND
GND
GND
V12
V12-
GND
V33
VCC
FAN+
GND
J9
PH7/2MM
1
2
3
4
5
6
7
JP6
CON6/2MM
1
2
3
4
5
6
1 2 3 4
JP5
FMN11/1.0mm
1 2 3 4 5 6 7 8 9
10 11
JP6
CON6/2MM
1
2
3
4
5
6
J1
CON9/2MM
1
2
3
4
5
6
7
8
9
CN6
CON9/2MM
1
2
3
4
5
6
7
8
9
J10
CON-05/2.0mm
1
2
3
4
5
J5
HEADER 20X2
12
34
56
78
910
1112
1314
1516
1718
1920
2122
2324
2526
2728
2930
3132
3334
3536
3738
3940
JP2
FMN32/1.0mm
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
XP5
PICH=2.0
1
2
3
4
5
CN4
CON9/2MM
1 2 3 4 5 6 7 8 9
JP1
PH7/2MM
1
2
3
4
5
6
7
CN1
PH7/2MM
1
2
3
4
5
6
7CN3
1
2
J4
PH8/2MM
1 2 3 4 5 6 7 8
XP7
CON7/2MM
1
2
3
4
5
6
7
XP1
CON3/2MM
1
2
3
4
XS2
PH7/2MM
1
2
3
4
5
6
7
JP4
CON3/2MM
1
2
3
4
XS1
PH7/2MM
1
2
3
4
5
6
7
JP1
CON7/2MM
1
2
3
4
5
6
7
XP8
FMN14/1.0mm
1 2 3 4 5 6 7 8 9 10 11 12 13 14
J1
PICH=2.0
1
2
3
4
5
JP2
PH8/2MM
1 2 3 4 5 6 7 8
JP2
CON6/2MM
1
2
3
4
5
6
XS6
PICH=2.0
1 2 3 4 5
XS5
PH7/2MM
1
2
3
4
5
6
7
XP5
CON6/2MM
1
2
3
4
5
6
XP6
CON6/2MM
1
2
3
4
5
6
XP9
FMN11/1.0mm
1 2 3 4 5 6 7 8 9 10 11
XS3
1
2
3
CN2
1
2
XP4
FMN32/1.0mm
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
CN7
1
2
3
XP2
CON9/2MM
1 2 3 4 5 6 7 8 9
JP3
PICH=2.0
1
2
3
4
5
J3
HEADER 20X2
12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
XP11
1
2
3
J2
PH7/2MM
1
2
3
4
5
6
7
XP10
CON6/2MM
1
2
3
4
5
6
JP4
FMN14/1.0mm
1 2 3 4 5 6 7 8 9
10 11 12 13 14
CN5
1 2 3 4
5-1
5-2 5-2
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
DVDR3375 Front Board Electrical Diagram
To Main Board
To Power Board
TO SWITCH BOARD
C1 B2
C1 B2
C2 B2
C3 B4
C4 B4
C5 B4
C6 B2
C7 B3
C8 C7
C9 C3
C17 D4
C16 C4
C11 C5
C15 C4
C12 C3
C14 C4
C20 D5
C19 D5
C26 E6
C21 D5
C28 E3
C24 D3
C27 E3
C18 D5
C31 C3
C30 B6
C34 B4
C32 D6
C36 E1
C33 B4
C35 B4
C29 B5
D7 D7
D1 B3
D2 B2
D5 C2
D9 E1
D8 C3
D6 D6
FB3 B4
FB11 C4
FB2 B4
FB1 C4
C10 C4
JP3 E5
JP1 B3
J1 E4
JP2 E3
K3 D6
K2 D6
K5 D6
K4 D6
K6 E6
LD1 E4
Q2 B1
Q3 B3
Q4 B2
Q5 B2
Q8 D2
Q7 D2
Q9 E1
R2 B2
R4 B2
R5 B2
R6 B3
R12 B3
R13 B2
R14 B2
R17 E6
R18 C4
R19 D5
R20 D6
R21 D4
R22 D4
R23 D5
R27 D2
R28 E2
R25 D4
R24 D4
R26 D4
R31 E6
R29 E2
R30 E6
R32 E6
R33 E6
R34 E2
R35 D4
R36 E1
R37 E2
R39 C2
R38 E2
R40 C2
R41 C2
R42 E5
R43 C4
R44 C4
R47 E2
R49 E1
R48 E1
S1 E4
U1 B5
U2 C5
U3 C3
U4 D3
Y1 C4
LED1
FAN_CTL
P_CON
IR
OSC_1
CS
D_HOST
RST_MPEG
POW_SW
OSC_1
POW_SW
OSC_2
-24VV
D_FM
RESET
LED1
D_FM
+12V
VCC
RDY_FM
DATA
D_HOST
SCK_MPEG
RDY_FM
POW_SW1
CLK
P_CON
CS
ATN_FM
OSC_2
IR
ATN_FM
SCK_MPEG
DATA
POW_SW
RST_TIME RST_MPEG
LED2
P_CON
IR
+12V
LED2
FAN_CTL
FAN_CTL
FAN_CTLP_CON
INT_FP
CLK
IDC_SDA
-24VV
+F2
+F2
+F1
+F1
VCC
-24VV
VCC
VCC
VCC
VCC VCC
VCC
VCC
Y1
12MHz
U1
VFD Display
35 34 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 33
F2 F2 6G 5G 4G 3G 2G 1G NC NC NC NC NC NC NC P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 NP F1 F1 NC
K4
JP1
PITCH=2.0
1
2
3
4
5
6
7
D6
1N4148
R83 1
R28
4K7
K5
C32
NC
S1
R38
10K(OPEN)
R29
1K
R36
NC
+
C4
47uF/16V
D1
1N4148/SMT
FB2
J1
PICH=2.0
1
2
3
4
5
R40
10K(OPEN)
JP4
PITCH=2.0
1
2
3
4
D8
1N4148/SMT
R14
680
R82 1
FB3
R34 330
JP3
PICH=2.0
1
2
3
4
5
R12
1
C16
0.1u
R27
330
R24 100
C27 NC
+
C7
10UF/50V
R39
10K(OPEN)
C35
100P
R25 100
C28 NC
K2
R26 100
R18
10K
R44
100
C29
0.1u
R41
10K(OPEN) C17
0.1
D5
5.6V/DIP
C24
0.1u
R42
0(OPEN)
C33
100P
R17
0
U2
PT6312
1 2 3 4 5 6 7 8 9 10 11
12
13
14
15
16
17
18
19
20
21
22
23 24 25 26 27 28 29 30 31 32 33
34
35
36
37
38
39
40
41
42
43
44
SW1 SW2 SW3 SW4 SDout SDin GND SCLK /CS KEY1 KEY2
KEY3
KEY4
VDD
SEG1/K1
SEG2/K2
SEG3/K3
SEG4/K4
SEG5/K5
SEG6/K6
SEG7
SEG8
SEG9
SEG10 SEG11 SEG12
VEE
SEG13 SEG14 SEG15 SEG16
G6 G5
G4
G3
G2
G1
VDD
LED4
LED3
LED2
LED1
GND
OSC
C9
22P
C8
0.1u
R22
10K
D7 1N4148
R35
4K7
+
C5
10uF/50V
R43
1M
R20
0
R19
51K
R4
3.3k
R37
1K
R40
0
R33
10K
+ C3
47uF/16V
R5
3.3k
C30
0.1u
R41
0
+ C25
47uF/16V
R6
680/DIP
R21
10K
C26 100P
R32
10K
C1
104
K6
R31
10K
Q2
2n2222
U3
LH316S
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
24
23
22
21
20
19
P_CON
DATA
NC
CS
NC
VSS
VSS
CLK
SCL
SDA
DATA_T
RST_TRST_M
IR
D_HOST
D_FM
SCK
VDD
RDY
ATN
OSC2
OSC1
RESET
VDD
R48
33K
K3
C10
22P
C2
104
C11
0.1u
R47
6.8K
C31
100P
C15
0.1u
R49
10K
C19
47P
R16
10K
+
C12
47uF/16V
+
C6
10UF/50V
C20
47P
+
C36
47uF/16V
C21
47P
Q3
2n2222/DIP
D9 1N4148
Q8
3906/SMT
R11
1
Q4
2n2222/DIP
FB11
D2
1N4148/SMT
R23
10K
JP2
PITCH=2.0MM
1
2
3
4
5
6
7
8
C34
100P
Q5
2n2222/DIP
Q9
3904/SMT
R84 1
Q7
3906/SMT
LD1
1
3
2
R30
10K
R2
680/DIP
+
C14
47uF/16V
FB1
C18
NC
U4
REM
1
2
3
IR
GND
VCC
R13
680
6-36-3 6-36-36-3
6-1
6
-1
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

DVDR3375 Front Board Print-layout (Bottom Side)
DVDR3375 Front Board Print-layout (Top Side)
DVDR3375 Switch Board Print-layout
6-2 6-2
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
VIDEO IN
USB INPUT
1394 INPUT
AUDIO IN
DVDR3375 Input Board Electrical Diagram
C1 B3
C2 B3
C4 B5
C3 C2
C9 D7
C7 B2
C8 C2
C10 D6
C11 D6
C13 A4
C12 A4
C15 A5
C14 A5
C16 B5
C18 A6
C17 B5
C20 E4
C21 E2
CON1 B1
C6 B2
CON2 E1
CON4 A3
CON3 C3
D1 A2
D2 C4
D3 B2
D4 C5
D5 C2
D6 C2
D7 B2
D8 B2
D9 C1
D10 C5
D11 C6
FB1 A2
FB2 C2
FB5 B2
FB6 C4
FB7 E2
R1 B2
R2 B2
R3 C2
R4 C7
R5 C6
R6 C7
R7 A4
R8 A4
R9 A4
R11 B5
R12 B5
R13 B5
R14 A6
R15 B7
R16 B7
R17 B7
R18 B6
R21 A1
R22 B1
R23 E4
U1 C6
U2AA A5
U2BB A6
U3 E2
XS1 C3
XS2 E4
XS3 E5
XS4 E5
XS5 C5
XS6 A8
AIN_L_F
cTPA-
F_CVBS
CVBS_IN
USB_BDMO
-12VA
AIN_R_1
+12VA
USB_BDP0
AIN_R_F
USB_BDP0
USB_BDMO
cTPB+
-12VA
cTPA+
+12VA
AIN_L_1
cTPB-
USB_GND
USB_GND
GND_PHY_A
USB_GND
GND_VIN
GND_PHY_A
VCC
GND_VIN
USB_GND
USB_GND
USB_GND
VCC
GND_VIN
CHASSIS_GNDGND_AV
GND_PHY_A
CHASSIS_GND
USB_GND
USB_GND
GND_AIN
VCC
VCC
GND_AIN
V33
GND_PHY_A
V33
CHASSIS_GND
USB_GND
XS1
PH7/2MM
1
2
3
4
5
6
7
R13
10K
U3
CM1213
1 CH1
2 VN
3 CH2CH3 4
VP 5
CH4 6
D4
BAT54S
1
3
2
D6
1N4148
1 2
D2
BAT54S
1
3
2
R9
1K
D5
1N4148
1 2
CON4
MIC
1
2
3
4
5
6
+
-
U2BB
NJM4580E
5
6
7
84
R11 47K
C9
0.1UF
D7
LVS
C10
0.1UF
R18
22K
C4
100P
FB1
BK1608HM601-T
R19
10K
R14
1.5K
D8
LVS
XS5
PH7/2MM
1
2
3
4
5
6
7
C15
100U
D9
LVS
R4
10K
R21
470
FB5
BK1608HM601-T
R5 DNS-0
R22
470
C21
0.22
D10
LVS
U1
TPS2041AD
6
1
8
7 3
2
5
4
OUT
GND
OUT
OUT IN
IN
OC
EN
C18
1UF
R23
10K
FB6
BK1608HM601-T
R15
10K
+
C1
10UF/16V
C17
100U
C16
104
XS2
PH7/2MM
2MM/PH7/TH
1
2
3
4
5
6
7
+
C20
47UF/25V
CON3
USB PORT
1
2
3
4
5
6
XS6
CON5
1
2
3
4
5
FB2 BK1608HM601-T
R17 100
R7
47K
R6
10K
C13
102
+
-
U2AA
NJM4580E
3
2
1
84
R2
47K
D1
1N4148
1 2
D11
LVS
C12
104
CON2
1394 INTERFACE
1
2
3
4
5
6
7
R3
75
R8
2.2K
+
C3
47UF/25V
R1
47K
FB7
BK1608HM601-T
+
C11
100UF/16V
R12
1.2K
XS3
CON3
1
2
3
C6
100P
+
C2
10UF/16V
C7
100P
CON1
6PIN
1
2
3
4
5
6
XS4
CON1
1
C8
100P
R16 100
C14
104
6-3 6-3
http://www.jdwxzlw.com/?fromuser=华盛维修
家电维修资料网，免费下载各种维修资料
