Philips NORELCO 7700 Series User manual

S7720
Rechargeable Cordless
Tripleheader Shaver
SHAVER 77007700
SERIES 700 0SERIES 700 0
SHAVER 75007500
SERIES 700 0SERIES 700 0
Always here to help you Question?
Contact
Philips
Norelco
Question?
Contact
Philips
Norelco
Register your product and get support at
www.norelco.com/register

2

S7720
ENGLISH 4
ESPAÑOL 42
Congratulations on your purchase and
welcome to Philips Norelco!
To fully benefit from the support that Philips
Norelco offers, register your product at
www.norelco.com/register
¡Bienvenido a Philips Norelco y felicitaciones
por su compra!
Para utilizar los servicios de asistencia técnica
de Philips Norelco, registre su producto en
www.norelco.com/register

IMPORTANT SAFETY
INSTRUCTIONS
When using an electric appliance, basic precautions should always
be followed, including the following:
Read all instructions before using this appliance.
DANGER
To reduce the risk of electric shock:
1. Do not reach for a corded shaver/SmartClean System that has
fallen into water. Unplug immediately.
2. Power plug and the accessories connected to it are not for
immersion or for use in shower.
3. Do not use an extension cord with this appliance.
4. Do not place or store a SmartClean System where it can
fall or be pulled into a tub or sink. Do not place or drop a
SmartClean System into water or other liquid.
5. Always unplug this shaver/SmartClean System from the
electrical outlet immediately after use, except when shaver/
SmartClean System is (re)charging.
6. Unplug and remove power supply cord from shaver
before cleaning.
7. The batteries used in this device may present a fire or chemical
burn hazard if mistreated. Do not disassemble, heat above
100ºC (212°F) or incinerate.
WARNING
To reduce the risk of burns, fire, electric shock, or injury
to persons:
1. Close supervision is necessary when this shaver/SmartClean
System is used by, on, or near children or invalids.
2. Use this shaver/SmartClean System for its intended household
use as described in this manual. Do not use attachments or
a cleaning cartridge not recommended by Philips Electronics
ENGLISH
4

North America Corporation.
3. Never operate this shaver/SmartClean System if it has a
damaged cord or charging plug, if it is not working properly, if
it has been dropped or damaged, or dropped into water while
plugged in. For assistance call 1-800-243-3050.
4. Keep the shaver/SmartClean System,cord and charging plug
away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not use the adapter in or near a power outlet that contains
an electric air freshener to prevent damage to the adapter.
7. Do not clean, charge or plug in shaver/SmartClean System
outdoors or operate where aerosol (spray) products are being
used or where oxygen is being administered.
8. Do not use this shaver with a damaged or broken comb, as
facial injury may occur.
9. Always attach plug to shaver/SmartClean System first, then plug
into outlet and then put shaver in SmartClean System. Be
certain plug is inserted firmly into shaver/SmartClean System,
up to mark indicated on plug. To disconnect, turn SmartClean
System off, remove charging plug from outlet.
10.Never put the shaver/SmartClean System in direct sunlight or
store at a temperature above 140°F (60°C).
11.Keep the cord dry at all times. Do not handle with wet hands.
12.To prevent possible damage to the cord, do not wrap cord
around the shaver/SmartClean System.
13.Do not attempt to open the appliance to replace the battery.
14.Only use the power plug and other accessories supplied with
the appliance.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a transformer. Do not
cut off the power plug to replace it with another plug, as this will
cause a hazardous condition.
ENGLISH 5

6ENGLISH
45 - DAY MONEY-BACK GUARANTEE
To enjoy the closest and most comfortable shave from your new Philips Norelco
Men’s Shaver, the shaver should be used exclusively for 3 weeks.This allows your
hair and skin enough time to adapt to the Philips Norelco Shaving System. If, after
that period of time, you are not fully satisfied with your Philips Norelco Men’s
Shaver, send the product back along with dated sales receipt and we’ll refund
you the full purchase price. The shaver must be shipped prepaid by insured
mail, insurance prepaid, have the original sales receipt, indicating pur-
chase price, the date of purchase, and the money-back guarantee return
authorization form enclosed.We cannot be responsible for lost mail.
The shaver must be postmarked no later than 45 days from the date of purchase.
Philips Norelco reserves the right to verify the purchase price of the shaver and
limit refunds not to exceed suggested retail price.
To obtain money-back guarantee return authorization form,
call 1-800-243-3050 for assistance. Delivery of refund check will
occur 6–8 weeks AFTER receipt of returned product.

7
Table of Contents
Features...................................................... 8-10
LED Display.............................................12-14
Charge Meter ...............................................14
Before First Use .....................................14-15
Charging ...................................................15-17
Recharging .....................................................17
Quick Charge ...............................................17
Put It To The Test & Shaving Tips..............18
How to Shave
With An Electric Shaver.......................18-20
Using the SmartClick Trimmer...........21-22
Using the SmartClick Styler................22-25
Travel Lock ..............................................25-26
Cleaning....................................................26-34
Replacing the Shaving Heads...............35-38
Maintenance ..................................................38
Storage......................................................38-39
Assistance ......................................................39
Disposal....................................................39-40
Accessories ...................................................40
Warranty........................................................41
ENGLISH

8ENGLISH

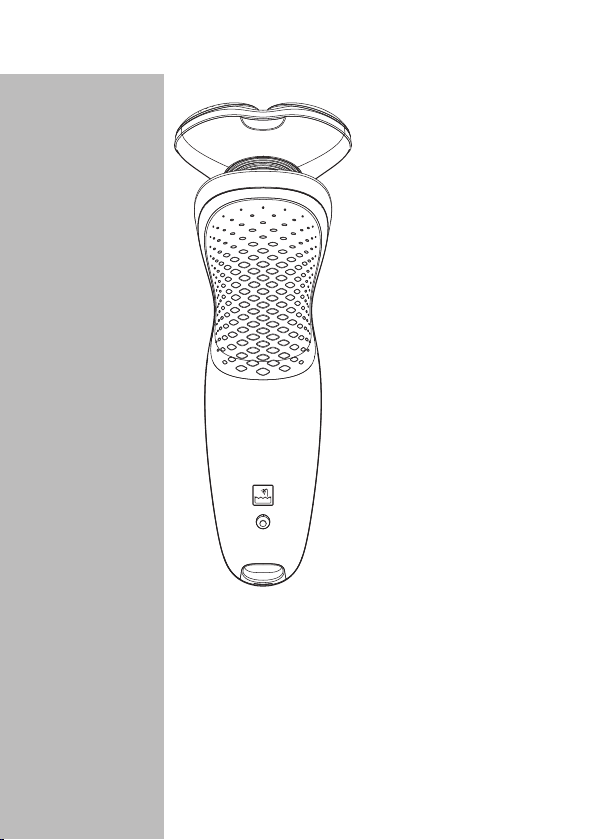

Features
DynamicFlex Technology
Shaving Unit
• Hair Chamber
captures shaven
hair
Comfort
Rings
Electronic
On/Off Button
Cleaning
Indicator
Replacement
Shaving Heads
Indicator
Travel Lock
'Unplug for use'
Indicator
3-Level
Battery Display
• Shows
remaining
power level
of battery
• Battery Charge,
Full & Low
Indicators

9
SmartClick Precision
Trimmer or Styler*
Automatic Worldwide
Voltage 100V to 240V AC
Travel Case
Rechargeable 1-hour full
charge for up to 50 min.
of cordless shaving time
Quick Charge - For
one shave
Cordless - To shave
without a cord
Full 2-Year Warranty
45-Day Money-Back
Guarantee
ENGLISH
*Depending on which shaver you purchased.

10 ENGLISH
Features
SmartClean System
SmartClean System Cap
Shaver Holder
On/Off Button
Cleaning
Cartridge
Replacement
Indicator
Cleaning
Indicator
Cleaning
Cartridge
Release
Button
Ready Indicator
Charging
Indicator
Cleaning Cartridge

11

12 ENGLISH
LED Display
◗Remove any sticker or protective foil from
the display before using shaver.
◗The display provides the following
information:
◗Charging Indicator
C -When the shaver is charging, the bottom
charging light blinks and then lights up
continuously. As charging continues, each charging
light will blink and then light up continuously until
the shaver is fully charged.
-Quick charge:When the shaver contains enough
energy for one shave, the bottom charging light
blinks slowly.
◗ Full Charge Indicator
C -When the battery has been fully charged,
all charging lights light up continuously.
After approximately 30 minutes the display
automatically switches off again.
- If the on/off button is pressed during or after
charging, the 'unplug for use' symbol will blink
indicating the shaver is still connected to the
electrical outlet.
◗Remaining Battery Capacity
-The remaining battery capacity is indicated by
the number of charging lights that are on.

13
ENGLISH
◗Low Battery Indicator
C -When the battery is almost empty (5 or less
shaving minutes left), the bottom charging light
blinks orange.
C◗'Unplug For Use' Indicator
The 'unplug for use' symbol will blink to remind
you the shaver is connected to the outlet.
C◗Replacement Shaving Heads Indicator
Every year, depending on your shaving behavior,
the replacement shaving heads indicator lights up
white continuously. See 'Replacing the Shaving
Heads' section for instructions to reset the
shaver.This reminds you that with new shaving
heads you will guarantee yourself optimal shaving
performance.
C◗Cleaning Indicator
For optimal shaving performance, we
recommend cleaning the shaver after EACH use.
The blinking faucet will remind you the
shaving unit needs to be cleaned. This happens
after each shave.

14 ENGLISH
C◗Travel Lock
The shaver is equipped with a travel lock function.
You can use the travel lock function when you are
going to store the shaver for a longer period or if
you are going to take the shaver with you when
traveling. See ‘Travel Lock’ section for instructions
on how to use this function.
Charge Meter
◗Charge Meter monitors amount of remaining
battery power available. Remaining battery
capacity is based on the amount of power
consumed shaving per minute and is
dependent upon your skin and beard type,
whether you use pre-shave lotion, and how
often the styler is used.
◗Initially your shaver may need to go through 2
or 3 full charge/recharge cycles before
remaining battery capacity indicators begin to
display your accurate battery power left.
Before First Use
◗Charge the shaver before you start using it
(see ‘Charging’). Make sure the shaver is
switched off before you start charging it.
◗Remove any sticker or protective foil from
the display before using shaver.

15
ENGLISH
Important
◗Only use the power cord or SmartClean
System provided to charge the shaver.
◗The power plug transforms 100-240V AC to
less than 24V DC.
Charging
 ◗ Charging, recharging or storing at
temperatures below 40ºF/4,5ºC or higher
than 95ºF/35ºC adversely affects lifetime of
batteries.
◗Charging or recharging requires one full hour.
◗A fully charged shaver has a shaving time of up
to 50 minutes.
◗You may recharge when the display indicates
the battery is almost empty.
◗This shaver will not operate corded directly
from the electrical outlet.
◗Do not charge the shaver in a pouch or travel
case.
C1Connect cord directly to shaver (1) and
connect the power plug into any 100V to
240V AC outlet (2). Use only the power
cord provided.
◗An adaptor plug may be necessary for power
cord usage in some foreign countries. Use
an attachment plug adaptor of the proper
configuration for the power outlet.
1
2

16 ENGLISH
The power cord will automatically convert to
work on 100V to 240V AC systems.
2The display on the shaver will indicate
shaver is charging.
3Charging requires one full hour. A fully
charged shaver has a cordless shaving time
of up to 50 minutes.
Charging Shaver with SmartClean
System
1Connect the small plug to the SmartClean
System. Connect the power plug into any
100V to 240V AC outlet. Use only the
power cord provided.
C 2Press the top cap down to open the
SmartClean System.
C 3Hold the shaver head side down above the
shaver holder.

17
ENGLISH
C4Place the shaver into the holder (1), push
shaver back (2) and press down the top
cap to connect the shaver (3) (click).
The shaver will only fit in the SmartClean System
in one direction.
5The battery indicator lights up to indicate
the shaver is charging.
6Charging requires one full hour. A fully
charged shaver has a cordless shaving time
of up to 50 minutes.
C 7Press the top cap down (1), pull the shaver
forward (2) and lift shaver from holder (3).
Recharging
1Recharging requires one full hour.
Recharge when the display indicates the
battery is almost empty.
Quick Charge
When batteries are empty, recharging the shaver
for 5 minutes gives enough energy for one
cordless shave.
1
2
3
1
2
3

18 ENGLISH
Put ItToThe Test & ShavingTips
◗21 Day Trial and Conversion Process.It is a fact
that your skin and beard need time to adjust to
a new shaving system.
◗Use your new shaver exclusively for 3 weeks to
fully enjoy the closeness of a Philips Norelco
shave.
◗At first you may not get as close a shave as you
expect, or your face may even become slightly
irritated.This is normal since your beard and
skin will need time to adjust. Invest 3 weeks
and you’ll soon experience the full joy of your
new shaver.
◗Stick with it! If you alternate shaving methods
during the adjustment period, it may make it
more difficult to adapt to the Philips Norelco
shaving system.
◗If you are still not convinced after 21 days,
Philips Norelco will refund you the full
purchase price as long as the request is
received within 45 days of purchase.
HowTo ShaveWith An Electric Shaver
C◗ This symbol on the shaver indicates that the
shaver can be used in the bath or shower.
◗Make sure the SmartClean System does not
get wet or near water.
◗For hygienic reasons, the shaver should only
be used by one person.
◗Use this shaver for its intended household use
as described in this manual.

19
ENGLISH
Shaving
◗For best results on skin comfort, pre-trim
your beard if you have not shaved for 3 days
or longer.
C1Turn shaver ON by pressing the on/off
button once. Shave against the direction
of beard growth using only circular
movements.
The shaver display shows the remaining battery
capacity.
2Stretch your skin with your free hand so
blades can lift and cut whiskers. Gently
press shaver to skin so the floating heads
can follow the contours of your face.
DO NOT press too hard.Too much
pressure can pinch the skin into the combs.
3Turn shaver OFF by pressing the on/off
button once.
The shaver display shows the remaining battery
capacity.
4Clean the shaver after each use (see
chapter ‘Cleaning’).
C5Place the shaver in the SmartClean System
to protect shaver heads.
Wet Shaving
You can also use the shaver on a wet face with
shaving foam or gel.

ENGLISH
C1Apply some water to your skin.
C2Apply shaving foam or gel to your skin.
3Rinse the shaving unit under the tap
to ensure that the shaving unit glides
smoothly over your skin.
4Press the on/off button once to switch on
the shaver.
C5Move the shaving heads in circular
movements over your skin.
NOTE: Rinse the shaver under the tap regularly
to ensure that it continues to glide smoothly over
your skin.
6Dry your face and thoroughly clean
the shaver after each use (see chapter
‘Cleaning’).
NOTE: Make sure you rinse all foam or gel off the
shaver.
C7Place the shaver in the SmartClean System
to protect heads.
20
