English
Introduction
Congratulations on your purchase and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Please read this user manual, as it contains information about the
features of this shaver as well as some tips to make shaving easier
and more enjoyable.
General description (Fig.1)
1 Comb for beard styler attachment
2 Click-on beard styler attachment
3 Click-on trimmer attachment
4 Click-on shaving unit
5 On/off button
6 Socket for small plug
7 Exclamation mark
8 Replacement reminder
9 Battery charge indicator
10 Travel lock symbol
11 Cleaning reminder
12 SmartClean system
13 Cap of SmartClean system
14 On/off button
15 Replacement symbol
16 Cleaning symbol
17 Drying symbol
18 Ready symbol
19 Charge symbol
20 Cleaning cartridge for SmartClean system
21 Supply unit
22 Small plug
23 Retaining ring holder
24 Pouch
The accessories supplied may vary for different products. The box
shows the accessories that have been supplied with your appliance.
6English

Important safety information
Read this important information carefully before you use the
appliance and its accessories and save it for future reference. The
accessories supplied may vary for different products.
Danger

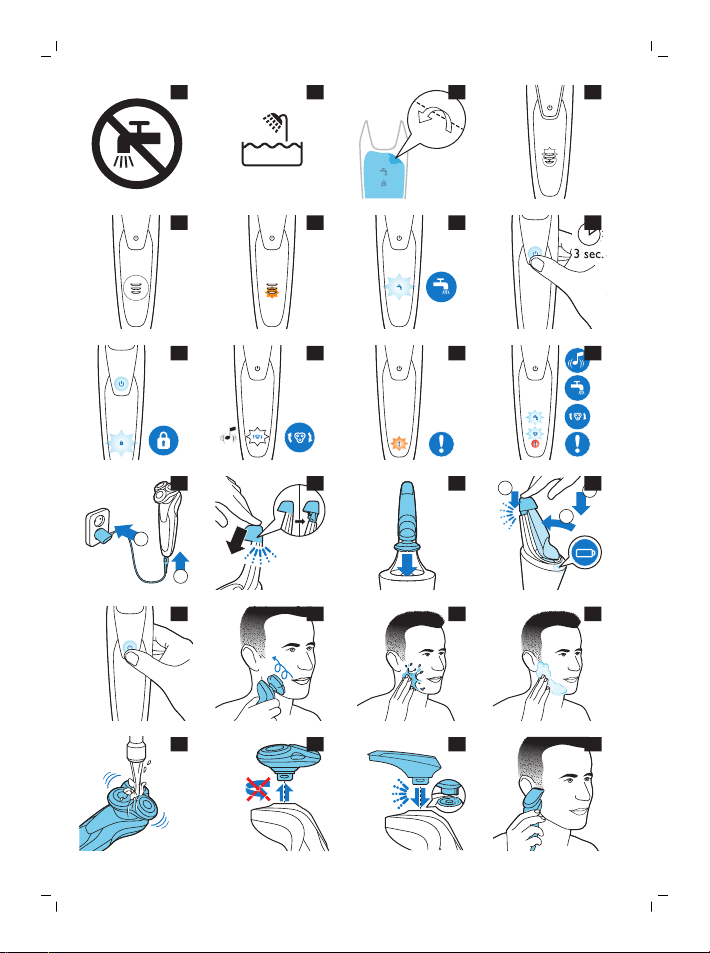

-Keep the supply unit dry (Fig. 2).
Warning
-To charge the battery, only use the
detachable supply unit (type HQ8505)
provided with the appliance.
-The supply unit contains a transformer. Do
not cut off the supply unit to replace it with
another plug, as this causes a hazardous
situation.
7
English

-This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not play
with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
-Always unplug the shaver before you clean
it under the tap.
-Always check the appliance before you use
it. Do not use the appliance if it is damaged,
as this may cause injury. Always replace a
damaged part with one of the original type.
-Do not open the appliance to replace the
rechargeable battery.
Caution
-Never immerse the cleaning system or the
charging stand in water and do not rinse it
under the tap (Fig. 2).
8English

-Never use water hotter than 80°C to rinse
the shaver.
-Only use this appliance for its intended
purpose as shown in the user manual.
-For hygienic reasons, the appliance should
only be used by one person.
-Never use compressed air, scouring pads,
abrasive cleaning agents or aggressive
liquids such as petrol or acetone to clean
the appliance.
-If your shaver comes with a cleaning system,
always use the original Philips cleaning fluid
(cartridge or bottle, depending on the type
of cleaning system).
-Always place the cleaning system on a
stable, level and horizontal surface to
prevent leakage.
-If your cleaning system uses a cleaning
cartridge, always make sure the cartridge
compartment is closed before you use the
cleaning system to clean or charge the
shaver.
9
English

-When the cleaning system is ready for use,
do not move it to prevent leakage of
cleaning fluid.
-Water may drip from the socket at the
bottom of the shaver when you rinse it. This
is normal and not dangerous because all
electronics are enclosed in a sealed power
unit inside the shaver.
-Do not use the supply unit in or near wall
sockets that contain an electric air freshener
to prevent irreparable damage to the supply
unit.
Electromagnetic fields (EMF)
- This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.
General
- This shaver is waterproof (Fig. 3). It is suitable for use in the bath or
shower and for cleaning under the tap. For safety reasons, the
shaver can therefore only be used without cord.
- The appliance is suitable for mains voltages ranging from 100 to
240 volts.
- The supply unit transforms 100-240 volts to a safe low voltage of
less than 24 volts.
The display
Note: Before you use the shaver for the first time, remove the
protective foil from the display (Fig. 4).
10 English

Charging
Quick charge: When you connect the shaver to the wall socket, the
lights of the battery charge indicator light up one after another
repeatedly. When the shaver contains enough energy for one shave,
the bottom light of the battery charge indicator starts to flash slowly.
While the shaver continues to charge, first the bottom light of the
battery charge indicator flashes and then lights up continuously (Fig.
5). Then the second light flashes and lights up continuously, and so
on until the shaver is fully charged.
Battery fully charged
When the battery is fully charged, all lights of the battery charge
indicator light up white continuously (Fig. 6).
Note: This appliance can only be used without cord. When you press
the on/off button during or after charging, you hear a sound to
indicate that the shaver is still connected to the wall socket.
Note: When the battery is full, the display switches off automatically
after 30 minutes.
Battery low
When the battery is almost empty, the bottom light of the battery
charge indicator flashes orange and you hear a sound (Fig. 7).
Remaining battery charge
The remaining battery charge is shown by the lights of the battery
charge indicator that light up continuously.
Cleaning reminder
Clean the shaver after every shave for optimal performance. When
you switch off the appliance, the cleaning reminder flashes to remind
you to clean the appliance (Fig. 8).
Travel lock
You can lock the appliance when you are going to travel. The travel
lock prevents the appliance from being switched on by accident.
11
English

Activating the travel lock
1Press the on/off button for 3 seconds to enter the travel lock
mode (Fig. 9).
While you activate the travel lock, the travel lock symbol lights up
white continuously. When the travel lock is activated, the
appliance produces a sound and the travel lock symbol flashes
(Fig. 10).
Deactivating the travel lock
1Press the on/off button for 3 seconds.
The travel lock symbol flashes and then lights up continuously
(Fig. 10). The appliance is now ready for use again.
Note: You can also deactivate the travel lock by connecting the
appliance to the wall socket.
Replacement reminder
For maximum shaving performance, we advise you to replace the
shaving heads every two years (Fig. 51).
The appliance is equipped with a replacement reminder which
reminds you to replace the shaving heads. The shaving unit symbol
lights up white continuously, the arrows flash white and the appliance
beeps to indicate that you have to replace the shaving heads (Fig. 11).
Note: After replacing the shaving heads, you need to reset the
replacement reminder by pressing the on/off button for 7 seconds.
Exclamation mark
Overheating
If the appliance overheats during charging, the exclamation mark
flashes orange (Fig. 12). When this happens, the shaver switches off
automatically. Charging continues once the temperature of the
appliance has decreased to the normal level.
Blocked shaving heads
If the shaving heads are blocked, the exclamation mark lights up
orange continuously (Fig. 13). The replacement reminder and the
cleaning reminder flash white alternately and you hear a sound. In
12 English

this case, the motor cannot run because the shaving heads are soiled
or damaged.
If the shaving heads are soiled, you have to clean them. If the shaving
heads are damaged, you have to replace them.
Charging
Charge the shaver before you use it for the first time and when the
display indicates that the battery is almost empty. The battery charge
is indicated by the lights of the battery charge indicator on the
display.
When you connect the shaver to the wall socket, you hear a sound.
Charging takes approx. 1 hour. A fully charged shaver has a shaving
time of up to 50 minutes.
Note: You cannot use the appliance while it is charging.
Charging with the supply unit
1Make sure the appliance is switched off.
2Put the supply unit in the wall socket and put the small plug in the
appliance (Fig. 14).
3After charging, remove the supply unit from the wall socket and
pull the small plug out of the appliance.
Charging in the SmartClean system (specific types
only)
1Put the small plug in the back of the SmartClean system.
2Put the supply unit in the wall socket.
3Press the top cap to be able to place the shaver in the holder
('click') (Fig. 15).
4Hold the shaver upside down above the holder. Make sure the
front of the shaver points towards the SmartClean system (Fig. 16).
5Place the shaver in the holder (1), tilt the shaver backwards (2) and
press down the top cap to connect the shaver (‘click’) (3) (Fig. 17).
Note: The battery symbol starts to flash to indicate that the appliance
is charging. When the battery is fully charged, the battery symbol
lights up continuously.
13
English

Using the appliance
Note: This appliance can only be used without cord.
Switching the appliance on and off
- To switch on the appliance, press the on/off button once (Fig. 18).
The display lights up for a few seconds.
- To switch off the appliance, press the on/off button once.
The display lights up for a few seconds and shows the remaining
battery charge.
Shaving
Skin adaptation period
Your first shaves may not bring you the result you expect and your
skin may even become slightly irritated. This is normal. Your skin and
beard need time to adapt to any new shaving system. To allow your
skin to adapt to this new appliance, we advise you to shave regularly
(at least 3 times a week) and exclusively with this appliance for a
period of 3 weeks.
Shaving tips
- To ensure the best result, we advise you to pre-trim your beard if
you have not shaved for 3 days or longer.
- Move the shaving heads over your skin in circular movements.
Dry shaving
1Switch on the appliance.
2Move the shaving heads over your skin in circular movements (Fig.
19).
Note: Circular movements provide better shaving results than
straight movements.
3Clean the appliance after use (see 'Cleaning and maintenance').
Wet shaving
You can also use this appliance on a wet face with shaving foam or
shaving gel.
To shave with shaving foam or shaving gel, follow the steps below:
14 English

1Apply some water to your skin (Fig. 20).
2Apply shaving foam or shaving gel to your skin (Fig. 21).
3Rinse the shaving unit under the tap to ensure that the shaving
unit glides smoothly over your skin (Fig. 22).
4Switch on the appliance.
5Move the shaving heads over your skin in circular movements (Fig.
19).
Note: Rinse the shaving unit regularly to ensure that it continues to
glide smoothly over your skin.
6Dry your face.
7Clean the appliance after use (see 'Cleaning and maintenance').
Note: Make sure you rinse all foam or shaving gel off the
appliance.
Using the click-on attachments
Note: The accessories supplied may vary for different products. The
box shows the accessories that have been supplied with your
appliance.
Removing or attaching the click-on attachments
1Make sure the appliance is switched off.
2Pull the attachment straight off the appliance (Fig. 23).
Note: Do not twist the attachment while you pull it off the
appliance.
3Insert the lug of the attachment into the slot in the top of the
appliance. Then press down the attachment to attach it to the
appliance (‘click’) (Fig. 24).
Using the trimmer attachment
You can use the trimmer attachment to groom your sideburns and
moustache.
1Attach the attachment to the appliance (‘click’) (Fig. 24).
2Switch on the appliance.
The display lights up for a few seconds.
3Hold the trimmer attachment perpendicular to the skin and move
the appliance downwards while you exert gentle pressure (Fig. 25).
15
English

4Clean the attachment after use (see 'Cleaning and maintenance').
Using the beard styler attachment with comb
You can use the beard styler attachment with the comb attached to
style your beard at one fixed setting, but also at different length
settings. You can also use it to pre-trim any long hairs before shaving
for a more comfortable shave.
The length settings on the beard styler attachment correspond to the
remaining hair length after cutting and range from 1 to 5mm.
1Attach the attachment to the appliance ('click') (Fig. 26).
2Slide the comb straight into the guiding grooves on both sides of
the beard styler attachment (‘click’) (Fig. 27).
3Press the length selector and then push it to the left or right to
select the desired hair length setting (Fig. 28).
4Switch on the appliance.
5Move the appliance upwards while you exert gentle pressure.
Make sure the front of the comb is in full contact with the skin (Fig.
29).
6Clean the attachment after use (see 'Cleaning and maintenance').
Using the beard styler attachment without comb
You can use the beard styler attachment without the comb to contour
your beard, moustache, sideburns or neckline to a length of 0.5mm.
1Pull the comb off the beard styler attachment.
Note: Grab the comb in the center to pull it off the beard styler
attachment. Do not pull at the sides of the comb (Fig. 30).
2Switch on the appliance.
3Hold the beard styler attachment perpendicular to the skin and
move the appliance downwards while you exert gentle pressure
(Fig. 31).
4Clean the attachment after use (see 'Cleaning and maintenance').
Cleaning and maintenance
The accessories supplied may vary for different products. The box
shows the accessories that have been supplied with your appliance.
16 English
