Introduction
With your new Satinelle ICE PREMIUM you can remove unwanted hairs
quickly, easily and effectively.The combination of the ceramic epilating
system with the contour-following skin cooler and the new
sonic massaging system constitutes a revolution in epilation.Thanks to the
natural numbing effect of ice and massaging, the new Satinelle ICE
PREMIUM makes epilation more comfortable and less painful than ever.
The result is a silky-smooth skin and a hair growth reduction of up to
50%, assuming you use the appliance regularly (every 4 weeks).
The Satinelle ICE PREMIUM is suitable for all body parts and comes with
a skin cooler that has been specially developed for epilating sensitive
areas (underarms, bikini line).These areas can be particularly sensitive to
pain, which this special skin cooler helps to diminish.
The rapidly rotating epilating discs catch even the shortest hairs (down to
0.5 millimetre!) and pull them out by the roots.As a result, your skin stays
smooth for up to four weeks and regrowth is soft and downy.

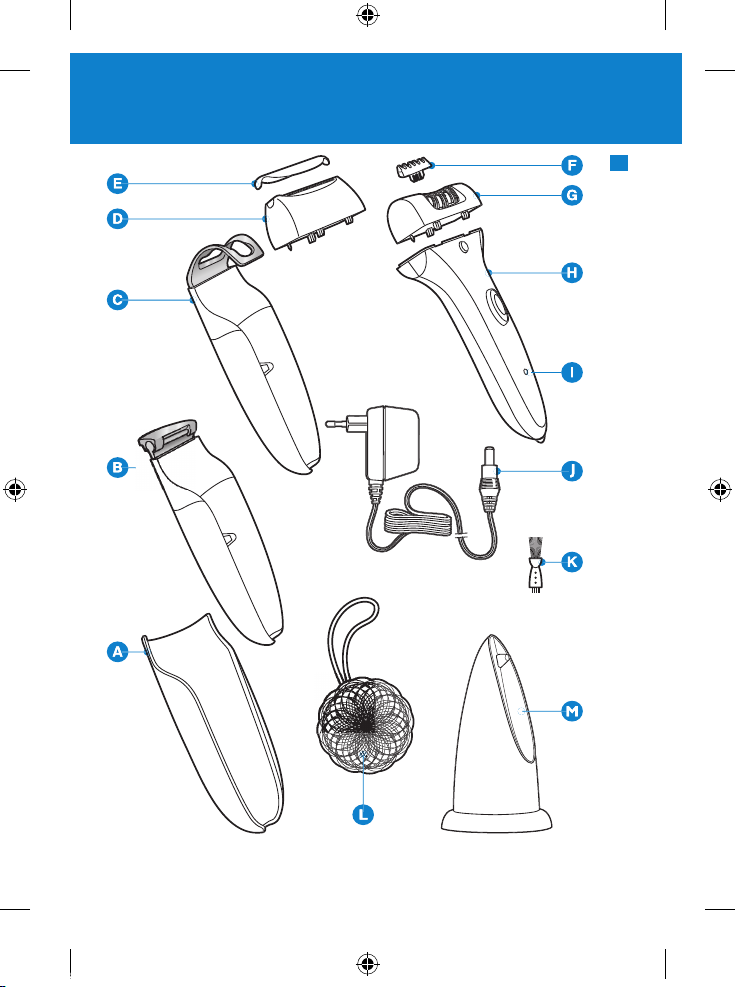

General description (Fig. 1)
AInsulating sleeve for skin cooler
BLeg skin cooler with pivoting cooling head
CSkin cooler for underarms and bikini line
DShaving head
EProtective cap of shaving head
FMassaging element
GEpilating head
HAppliance
ICharging light
JAdapter
KCleaning brush
LExfoliating body puff
MStand
Important
Read this user manual carefully before you use the appliance and save it
for future reference.
ENGLISH
4203.000.3665.1.indd 6 23-10-2006 10:48:04

Check if the voltage indicated on the adapter corresponds to the
local mains voltage before you connect the appliance.
Only use the appliance in combination with the adapter supplied.
Do not use the appliance if the adapter or the appliance itself is
damaged.
If the adapter is damaged, always have it replaced with one of the
original type in order to avoid a hazard.
The adapter contains a transformer. Do not cut off the adapter to
replace it with another plug, as this causes a hazardous situation.
Keep the appliance and the adapter dry.
Keep the appliance out of the reach of children.
Do not expose the appliance to temperatures lower than 5°C or
higher than 35°C.
To prevent damage and injuries, keep the running appliance away
from your scalp hair, eyebrows, eyelashes, clothes, threads, cords,
brushes etc.
This appliance contains two NiMh rechargeable batteries that may
harm the environment if not disposed of properly.
Do not use the appliance on irritated skin or skin with varicose
veins, rashes, spots, moles (with hairs) or wounds without
consulting your doctor rst. People with a reduced immune
response or people who suffer from diabetes mellitus, Raynaud’s
disease or immunodeciency should contact their doctor rst.

This Philips appliance complies with all standards regarding
electromagnetic elds (EMF). If handled properly and according to
the instructions in this user manual, the appliance is safe to use based on
scientic evidence available today.
Charging
You can run the appliance directly from the mains or you can use it
without the cord when the batteries have been charged.
Charge the batteries at least 16 hours before you use the appliance for a
cordless operating time of up to 20 minutes.
,
,
,
,
,
,
,
,
,
,
,
ENGLISH 7
4203.000.3665.1.indd 7 23-10-2006 10:48:04

Do not charge the appliance for more than 24 hours.
1 Make sure the appliance is switched off while charging.
2 Insert the appliance plug into the bottom of the appliance and put
the adapter in the wall socket.
The charging light goes on and stays on to indicate that the
appliance is charging.
The charging light does not go out or change colour when the
appliance is fully charged.
3 For more convenient charging, you can put the appliance in
the stand (‘click’) (Fig. 2).
Optimising the lifetime of the batteries
After you have charged the appliance for the rst time, do not
recharge it between epilating or shaving sessions. Continue to use it
and only recharge it when the battery is (almost) empty.
Discharge the batteries completely twice a year by letting the motor
run until it stops.
Do not keep the appliance plugged into a wall socket all the time.
If the appliance has not been used for a long time, it must be
recharged for 16 hours.
Preparing for use
Freezing the skin cooler
1 Put the skin cooler WITHOUT the insulating sleeve in the freezer
or freezing compartment (***) at least 4 hours before you start to
epilate. When the uid has turned completely blue, the skin cooler
is ready for use.
Make sure the outside of the skin cooler is completely dry before you
freeze it.
Tip: You can store the skin cooler in the freezer permanently.
,
-
-
-
-
ENGLISH8
4203.000.3665.1.indd 8 23-10-2006 10:48:04

Using the appliance
General information about epilation
Epilation is easier just after a bath or shower. Make sure your skin
is completely dry when you start to epilate.
When you use the appliance for the rst time, we advise you to try
it out on an area with only light hair growth.This helps you get
accustomed to the epilation process.
For optimal epilating results, the hairs should not be longer than
10 millimetres (Fig. 3)
To epilate longer hairs: (Fig. 3)
shorten the hairs to a maximum length of 10mm with a trimmer. In
this case, you can start to epilate right away.
shave the hairs completely. In this case you can start to epilate after a
few days (the hairs must be at least 0.5mm long).
Your skin may become a little red and irritated the rst few times
you use the epilator.This phenomenon is absolutely normal
and quickly disappears.As you use the appliance more often, your
skin gets used to epilation, skin irritation decreases and
regrowth becomes thinner and softer. If the irritation has not
disappeared within three days, we advise you to consult a doctor.
We advise you to epilate before you go to bed at night, as
this allows any skin irritation that may develop to diminish
overnight.
Corded use
Do not run the appliance from the mains when the battery is fully
charged.
1 To run the appliance from the mains, switch off the appliance and
connect it to the mains.Wait a few seconds before you switch on
the appliance.
Epilating with the leg skin cooler
Make sure your skin is clean, entirely dry and free from grease. Do not
use any cream before you start to epilate.
,
,
,
,
-
-
,
,
ENGLISH 9
4203.000.3665.1.indd 9 23-10-2006 10:48:05

1 Slide the insulating sleeve onto the skin cooler. (Fig. 4)
The insulating sleeve prevents an unpleasant sensation of coldness in your
hand while you use the appliance. It also keeps the skin cooler cold as
long as possible.
Sometimes the pivoting cooling head freezes onto the skin cooler and
does not move when you take the skin cooler from the freezer.The
pivoting cooling head starts to pivot again after you have passed it over
your leg a few times.
2 Snap the appliance onto the skin cooler (Fig. 5).
3 Insert the appliance plug into the bottom of the appliance and put
the adapter in the wall socket.
4 Select the desired speed to switch on the appliance (Fig. 6).
Select speed I for areas with little hair growth and for areas where bones
are located directly beneath the skin, such as knees and ankles.
Select speed II for larger areas with stronger hair growth.
5 Stretch your skin with your free hand to make the hairs stand
upright.
6 Place the appliance perpendicularly onto the skin with the epilating
head pointing forward. Move the appliance against the direction of
hair growth at a moderate speed. (Fig. 7)
Make sure both the epilating discs and the skin cooler are in proper
contact with the skin.
Press the appliance lightly onto the skin.
If you are not completely satised with the epilation result, try
moving the epilator more slowly over your skin.
7 Use the tab on the bottom end of the appliance to remove the
appliance from the skin cooler (Fig. 8).
Epilating with the skin cooler for underarms and bikini line
The special skin cooler for the underarms and the bikini line reduces the
number of active epilating discs. Combined with the large cooling surface,
this skin cooler makes epilating sensitive areas less painful.You get the best
results when the hairs are not too long (max. 1cm).
,
ENGLISH10
4203.000.3665.1.indd 10 23-10-2006 10:48:05

1 Slide the insulating sleeve onto the skin cooler. (Fig. 9)
2 Snap the appliance onto the skin cooler (Fig. 10).
3 Switch on the appliance by selecting the desired speed. (Fig. 6)
We advise you to use speed I.
4 To epilate the underarm area, place one arm behind your head to
stretch the skin.Then place the appliance perpendicularly onto the
skin with the hand of the other arm (Fig. 11).
5 To epilate the bikini line, stretch the skin with your free hand and
place the appliance perpendicularly onto your skin. Do not exert
any pressure (Fig. 12).
6 Move the appliance slowly across the skin against the direction of
hair growth.
7 Use the tab on the bottom end of the appliance to remove the
appliance from the skin cooler for underarms and bikini
line (Fig. 13).
Epilating without skin cooler
If you do not want to use the skin cooler, for instance because you
have grown accustomed to the sensation of epilation, you can also
use the appliance without the skin cooler.
Make sure that you place the epilator perpendicularly onto your
skin and that you move it against the direction of hair growth.
Using the exfoliating body puff
Use the exfoliating body puff in the shower.
Regular massages with the puff may help to prevent ingrown hairs. Do
not use the puff immediately before or after epilation.
Shaving
You can use the shaving head to shave sensitive body parts, such as your
underarms and bikini line.With the shaving head, you obtain a smooth
result in a comfortable and gentle way.
1 Make sure the appliance is switched off.
,
,
ENGLISH 11
4203.000.3665.1.indd 11 23-10-2006 10:48:06

2 Remove the skin cooler (Fig. 8).
3 Remove the epilating head (Fig. 14).
Press the release button (1) and move the epilating head in the direction
of the arrow (2).
4 Place the shaving head on the appliance and press it onto the
appliance until it snaps home (‘click’) (Fig. 15).
5 Switch on the appliance by selecting speed II.
6 Place the shaving head onto your skin and move the appliance
slowly and smoothly against the direction of hair growth. Press the
appliance lightly (Fig. 16).
Cleaning and maintenance
Never rinse the adapter or the appliance itself with water.
Do not use any corrosive detergents, scouring pads or cloths, petrol,
acetone etc. to clean the appliance.
1 Make sure the appliance is switched off and unplugged.
2 Remove the skin cooler from the appliance and slide the insulating
sleeve off the skin cooler.
3 Clean the pivoting cooling head of the leg skin cooler with the
brush supplied or with a moist cloth after each use.
Make sure the outside of the skin cooler is completely dry before
you freeze it again.
Cleaning the epilating head
Clean the epilating head after every use.
1 Make sure the appliance is switched off and unplugged.
2 Remove the epilating head (Fig. 14).
Press the release button (1) and move the epilating head in the direction
of the arrow (2).
3 Remove the massaging element (Fig. 17).
ENGLISH12
4203.000.3665.1.indd 12 23-10-2006 10:48:06

4 Clean all accessible parts, including the bottom of the epilating head
and the epilating discs, with the brush (Fig. 18).
5 You can also rinse the epilating head (not the appliance!) under the
tap to clean it more thoroughly (Fig. 19).
Never try to detach the epilating discs from the epilating head.
6 Reattach the massaging element to the epilating head.Then place
the epilating head on the appliance and press it until it snaps home
(‘click’) (Fig. 20).
The epilating head only ts onto the appliance in one way.
Cleaning the shaving head
Clean the shaving head after every use.
1 Make sure the appliance is switched off and unplugged.
2 Remove the shaving head.
3 Pull the cutter unit out of the shaving head. (Fig. 21)
4 Brush the hairs off the cutter unit and the shaving head. Make sure
that you also brush away any hairs that have collected under the
trimmers (Fig. 22).
5 You can also rinse the cutter unit and the rest of the shaving head
(not the appliance!) under the tap (Fig. 23).
6 Put the cutter unit back into the shaving head and snap the shaving
head back onto the appliance (‘click’) (Fig. 24).
Do not exert pressure on the shaving foil to avoid damage.
7 Rub a drop of sewing machine oil onto the trimmers and shaving
foil of the shaving unit twice a year.
Storage
1 Put the protective cap on the shaving head (‘click’). (Fig. 25)
2 Store the appliance and the accessories in the pouch.
3 You can also store the appliance in the stand (Fig. 2).
ENGLISH 13
4203.000.3665.1.indd 13 23-10-2006 10:48:06

Replacement
If you use the shaving head several times a week, replace the cutter unit
(type HP6193) after one or two years of use or if it is damaged.
Environment
Do not throw away the appliance with the normal household waste
at the end of its life, but hand it in at an ofcial collection point for
recycling. By doing this, you help to preserve the
environment (Fig. 26).
The built-in rechargeable batteries contain substances that may
pollute the environment.Always remove the batteries before you
discard and hand in the appliance at an ofcial collection point.
Dispose of the batteries at an ofcial collection point for batteries. If
you have trouble removing the batteries, you can also take the
appliance to a Philips service centre.The staff of this centre will
remove the batteries for you and will dispose of them in an
environmentally safe way.
1 Remove the adapter from the wall socket and let the appliance run
until the batteries are empty.
2 Remove the epilating head (Fig. 14).
3 Hold the appliance in your hand and open it with a
screwdriver (Fig. 27).
4 Pull the two housings halves apart with you thumbs until the snap
connections break (Fig. 28).
5 Remove all components (motor unit and the printed circuit board
unit) from the housing halves.
6 Insert a screwdriver between the plastic battery holder and the
batteries (Fig. 29).
7 Remove the batteries from the plastic battery holder and the
printed circuit board (Fig. 30).
-
-
ENGLISH14
4203.000.3665.1.indd 14 23-10-2006 10:48:07

Do not try to reassemble the appliance in order to run it from the
mains.This is dangerous (Fig. 3).
Guarantee & service
If you need information or if you have a problem, please visit the Philips
website at www.philips.com or contact the Philips Customer Care
Centre in your country (you nd its phone number in the worldwide
guarantee leaet). If there is no Customer Care Centre in your country,
go to your local Philips dealer or contact the Service Department of
Philips Domestic Appliances and Personal Care BV.
Troubleshooting
Problem Possible cause Solution
Reduced
epilating
performance.
You moved the
epilator in the
wrong direction.
Move the appliance against the
direction of hair growth.
You placed the
epilating head on
the skin at the
wrong angle.
Make sure you place the appliance
perpendicularly onto the skin.
The epilating
head did not
touch the skin.
Make sure both the epilating head
and the skin cooler are in proper
contact with your skin during
epilation.
You moistened
your skin with
water or a
cream or other
skincare product
prior to epilation.
Make sure your skin is entirely dry
and free from grease. Do not put
any cream, body milk or other
skincare product on your skin
before you start to epilate.
ENGLISH 15
4203.000.3665.1.indd 15 23-10-2006 10:48:07

Problem Possible cause Solution
The skin cooler
for underarms
and bikini line
was on the
appliance when
you epilated
your legs.
Only use the leg skin cooler to
epilate your legs.
Appliance have
been moved too
fast over the skin
Move the appliance at moderate
speed over the skin
The appliance
does not work. The batteries are empty. Charge the batteries.
The socket to
which the
appliance is
connected is not
live.
Make sure the socket you use is
live. If you use a socket in a
bathroom cabinet, you may need
to switch on the light to activate
the socket.
The appliance is
not switched on. Switch on the appliance.
You did not
attach the
epilating
head correctly.
Place the epilating head on the
appliance and press it onto the
appliance until it snaps home
(‘click’).
Skin irritation
occurs. You used the epilator for the
rst time or after
a long period of
disuse.
Some skin irritation may occur the
rst few times you use the
appliance.This is absolutely normal
and usually disappears quickly. For
tips to reduce skin irritation, see
the rst section of chapter ‘Using
the appliance’.Also make sure you
keep the epilating head clean.
ENGLISH16
4203.000.3665.1.indd 16 23-10-2006 10:48:08

Problem Possible cause Solution
You have applied
too much
pressure to the
appliance
Do not use any pressure when
moving the appliance over skin
The skin cooler
is not cold
enough.
You did not
freeze the skin
cooler long
enough.
Put the skin cooler without the
insulating sleeve in the freezer or
freezing compartment (***) for at
least 4 hours.When the colour of
the uid has changed from white
to completely blue, the skin cooler
is ready for use.
You did not put
the skin cooler in
the freezer or
freezing
compartment.
Put the skin cooler without the
insulating sleeve in the freezer or
freezing compartment (***) for at
least 4 hours. Do not store the
skin cooler in the refrigerator.
The skin cooler
did not touch
the skin.
Make sure the skin cooler is
always in proper contact with
your skin during epilation.
The pivoting
cooling head of
the leg skin
cooler does
not move.
The pivoting
cooling head is
frozen.
Pass the skin cooler over your leg
a few times to make it pivot again.
Always make sure the outside of
the skin cooler is completely dry
before you freeze it.
It is not
possible to
remove the
epilating head.
You did not
move the
epilating head in
the right
direction.
Press the release button and
move the epilating head in the
direction of the arrow (g. 14) to
remove it.
ENGLISH 17
4203.000.3665.1.indd 17 23-10-2006 10:48:08

Problem Possible cause Solution
It is not
possible to
remove the
shaving head.
You did move
the shaving head
in the right
direction.
Press the release button and
move the shaving head in the
direction of the arrow (g. 14) to
remove it.
Reduced
shaving
performance.
The shaving
head is dirty. Switch off the appliance, unplug it and remove the shaving head.
Then clean the cutter unit and the
shaving head with the cleaning
brush supplied. Remove any hairs
that are stuck under the trimmers.
The cutter unit is
damaged or
worn.
Replace the cutter unit.
Stronger skin
irritation than
usual after
shaving.
The cutter unit is
damaged or
worn.
Replace the cutter unit.
ENGLISH18
4203.000.3665.1.indd 18 23-10-2006 10:48:08

19
Einführung
Mit Ihrem neuen Epiliergerät Satinelle ICE PREMIUM werden lästige
Haare schnell, einfach und gründlich entfernt. Die Kombination des neuen
Keramik-Pinzettensystems mit dem Skin Cooler, der sich perfekt allen
Konturen anpasst, und dem Massagesystem stellt eine wahre Revolution
auf dem Gebiet der Epilation dar. Die schmerzlindernde Wirkung von Eis
und Massage macht das Epilieren mit dem neuen Satinelle ICE PREMIUM
angenehmer und schmerzfreier denn je. Das Ergebnis ist seidenglatte
Haut. Bei regelmäßiger Anwendung (alle 4 Wochen) reduziert sich der
Haarwuchs um bis zu 50 %.
Satinelle ICE PREMIUM eignet sich für alle Körperpartien und ist mit
einem Skin Cooler ausgestattet, der speziell für die Enthaarung
empndlicher Partien (Achseln, Bikinizone) entwickelt wurde. Diese
Bereiche sind besonders schmerzempndlich, was mithilfe des speziellen
Skin Cooler gelindert wird.
Die schnell rotierenden Pinzetten erfassen selbst die kürzesten Härchen
von nur einem halben Millimeter Länge und entfernen sie an der Wurzel.
Anschließend bleibt Ihre Haut bis zu 4 Wochen glatt. Die
nachwachsenden Härchen sind weich und fein.
Allgemeine Beschreibung (Abb. 1)
AIso-Hülle für Skin Cooler
BSkin Cooler mit beweglichem Kopf
CSkin Cooler für Achselhöhlen und Bikinizone
DLadyshave-Aufsatz
ESchutzkappe für Ladyshave-Aufsatz
FMassage-Element
GEpilierkopf
HDas Gerät
ILadeanzeige
JAdapter
KReinigungsbürste
L Körperpeeling-Pegeschwamm
MLadestation
DEUTSCH
4203.000.3665.1.indd 19 23-10-2006 10:48:09

Wichtig
Lesen Sie diese Bedienungsanleitung vor dem Gebrauch des Geräts
aufmerksam durch und bewahren Sie sie für eine spätere Verwendung auf.
Überprüfen Sie vor dem ersten Gebrauch, ob die Spannungsangabe
auf dem Adapter mit der örtlichen Netzspannung übereinstimmt.
Benutzen Sie das Gerät nur mit dem mitgelieferten Adapter.
Benutzen Sie das Gerät nicht, wenn der Adapter oder das Gerät
selbst beschädigt oder defekt ist.
Wenn der Adapter defekt oder beschädigt ist, darf er nur durch ein
Original-Ersatzteil ausgetauscht werden, um Gefährdungen zu
vermeiden.
Der Adapter enthält einen Transformator. Ersetzen Sie den Adapter
keinesfalls durch einen anderen Stecker, da dies möglicherweise den
Benutzer gefährden kann.
Gerät und Adapter dürfen nicht mit Flüssigkeiten in Berührung
kommen.
Halten Sie das Gerät außerhalb der Reichweite von Kindern.
Setzen Sie das Gerät keinen Temperaturen unter 5 °C oder über
35 °C aus.
Halten Sie das eingeschaltete Gerät fern von Kopfhaar,Wimpern
und Augenbrauen, sowie von Kleidung, Borsten, Fäden und Drähten,
umVerletzungen und Beschädigungen zu vermeiden.
Das Gerät enthält zwei NiMH-Akkus, die vorschriftsmäßig entsorgt
werden müssen, um Umweltschäden zu vermeiden.
Bei Hautreizungen, Krampfadern,Ausschlag, Pickeln, (behaarten)
Muttermalen oder Wunden sollte das Gerät nicht verwendet
werden, ohne vorher einen Arzt zu konsultieren. Gleiches gilt bei
Patienten mit geschwächter Immunabwehr, Diabetes, dem Raynaud-
Syndrom oder einer Immunschwächekrankheit. In diesen Fällen
sollten Sie unbedingt zunächst ein Arzt konsultieren.
Elektromagnetische Felder
Dieses Philips Gerät erfüllt sämtliche Normen bezüglich
elektromagnetischer Felder (EMF). Nach aktuellen wissenschaftlichen
Erkenntnissen ist das Gerät sicher im Gebrauch, sofern es ordnungsgemäß
,
,
,
,
,
,
,
,
,
,
,
DEUTSCH20
4203.000.3665.1.indd 20 23-10-2006 10:48:09
