Philips Satinelle Ice Premium HP6517 Manual

HP6517
Satinelle Ice Premium

2

3
1

4

HP6517
ENGLISH 6
FRANÇAIS 20
한국어 35
ภาษาไทย 48
繁體中文 58
简体中文 70

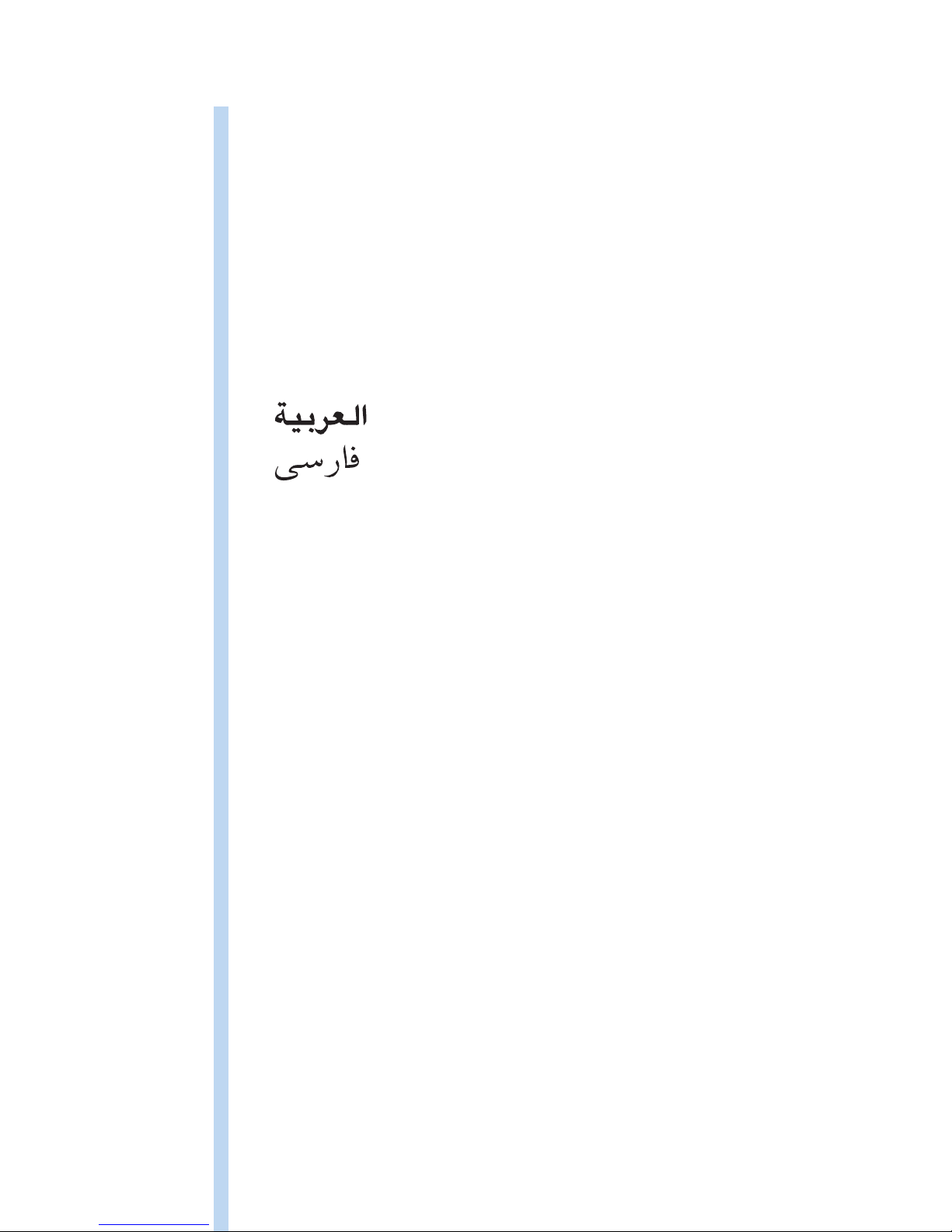

92
104

6
Introduction
With your new Satinelle ICE PREMIUM you can remove unwanted hairs
quickly, easily and effectively.The combination of the ceramic epilating
system with the contour-following skin cooler and the new
sonic massaging system constitutes a revolution in epilation.Thanks to the
natural numbing effect of ice and massaging, the new Satinelle ICE
PREMIUM makes epilation more comfortable and less painful than ever.
The result is a silky-smooth skin and a hair growth reduction of up to
50%, assuming you use the appliance regularly (every 4 weeks).
The Satinelle ICE PREMIUM is suitable for all body parts and comes with
a sensitive area cap that has been specially developed for epilating
sensitive areas (underarms, bikini line).
The rapidly rotating epilating discs catch even the shortest hairs (down to
0.5 millimetre!) and pull them out by the roots.As a result, your skin stays
smooth for up to four weeks and regrowth is soft and downy.
General description (Fig. 1)
ASensitive area cap
BMassaging element
CEpilating head
DRelease button
EAppliance
FOn/off slide
GProtective cap of shaving head
HShaving head
ILeg skin cooler with pivoting cooling head
JInsulating sleeve for leg skin cooler
KAdapter
LPeeling glove
MCleaning brush
Important
Read this user manual carefully before you use the appliance and save it
for future reference.
ENGLISH

Danger
Keep the appliance and the adapter dry.
Do not use the appliance near or over a washbasin or bath lled with
water
Do not use the appliance in the bath or in the shower.
If you use the appliance in the bathroom, do not use an extension
cord.
Warning
Check if the mains voltage indicated on the appliance corresponds to
the local mains voltage before you connect the appliance.
Only use the appliance in combination with the adapter supplied.
Do not use the appliance if the adapter or the appliance itself is
damaged.
If the adapter is damaged, always have it replaced with one of the
original type in order to avoid a hazard.
The adapter contains a transformer. Do not cut off the adapter to
replace it with another plug, as this causes a hazardous situation.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
Caution
Only epilate the underarms and bikini line with the sensitive area cap
attached.
To prevent damage and injuries, keep the running appliance away
from scalp hair, eyebrows, eyelashes, clothes, threads, cords, brushes
etc.
Do not use the appliance on irritated skin or skin with varicose veins,
rashes, spots, moles (with hairs) or wounds without consulting your
doctor rst. People with a reduced immune response or people who
suffer from diabetes mellitus, haemophilia or immunodeciency
should also consult their doctor rst.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
ENGLISH 7

Your skin may become a little red and irritated the rst few times you
use the epilator.This phenomenon is absolutely normal and quickly
disappears. As you use the appliance more often, your skin gets used
to epilation, skin irritation decreases and regrowth becomes thinner
and softer. If the irritation has not disappeared within three days, we
advise you to consult a doctor.
Always check the shaving head before you use the appliance. Do not
use the shaving head if the foil is damaged, as this may cause injury.
Do not use the peeling glove immediately before or after epilation.
The appliance contains two NiMH rechargeable batteries that may
harm the environment if not disposed of properly. See chapter
‘Environment’.
Do not expose the appliance to temperatures lower than 5°C or
higher than 35°C.
General
Regular massages with the peeling glove may help to prevent
ingrowing hairs.
Regular cleaning and proper maintenance ensure optimal results and
a long life for the appliance.
Electromagnetic elds (EMF)
This Philips appliance complies with all standards regarding
electromagnetic elds (EMF). If handled properly and according to the
instructions in this user manual, the appliance is safe to use based on
scientic evidence available today.
Charging
You can run the appliance directly from the mains or you can use it
without the cord when the batteries have been charged.
Charge the batteries at least 16 hours before you use the appliance for a
cordless operating time of up to 20 minutes.
Do not charge the appliance for more than 24 hours.
1 Make sure the appliance is switched off while charging.
-
-
-
-
-
-
-
ENGLISH8

2 Insert the appliance plug into the bottom of the appliance and put
the adapter in the wall socket.
The charging light goes on and stays on to indicate that the
appliance is charging.
The charging light does not go out or change colour when the
appliance is fully charged.
Optimising the lifetime of the batteries
After you have charged the appliance for the rst time, do not
recharge it between epilating or shaving sessions. Continue to use it
and only recharge it when the battery is (almost) empty.
Discharge the batteries completely twice a year by letting the motor
run until it stops.
Do not keep the appliance plugged into a wall socket all the time.
If the appliance has not been used for a long time, it must be
recharged for 16 hours.
Preparing for use
Freezing the leg skin cooler
1 Put the skin cooler WITHOUT the insulating sleeve in the freezer
or freezing compartment (***) at least 4 hours before you start to
epilate. When the uid has turned completely blue, the skin cooler
is ready for use.
Make sure the outside of the skin cooler is completely dry before you
freeze it.
Tip:You can store the skin cooler in the freezer permanently.
Using the appliance
General information about epilation
Epilation is easier just after a bath or shower. Make sure your skin
is completely dry when you start to epilate.
,
-
-
-
-
,
ENGLISH 9

When you use the appliance for the rst time, we advise you to try
it out on an area with only light hair growth.This helps you get
accustomed to the epilation process.
For optimal epilating results, the hairs should not be longer than 10
millimetres (Fig. 2)
To epilate longer hairs: (Fig. 2)
shorten the hairs to a maximum length of 10mm with a trimmer. In
this case, you can start to epilate right away.
shave the hairs completely. In this case you can start to epilate after a
few days (the hairs must be at least 0.5mm long).
Your skin may become a little red and irritated the rst few times
you use the epilator.This phenomenon is absolutely normal
and quickly disappears. As you use the appliance more often, your
skin gets used to epilation, skin irritation decreases and
regrowth becomes thinner and softer. If the irritation has not
disappeared within three days, we advise you to consult a doctor.
We advise you to epilate before you go to bed at night, as
this allows any skin irritation that may develop to diminish
overnight.
Corded use
You can also use the appliance from the mains. However, to avoid
damage to the batteries, only use the appliance from the mains when
the batteries are empty.
1 To run the appliance from the mains when the batteries are empty,
switch off the appliance and connect it to the mains.Wait a few
seconds before you switch on the appliance.
Epilating with the leg skin cooler
Only use the leg skin cooler to epilate your legs.
Make sure your skin is clean, entirely dry and free from grease. Do not
use any cream before you start to epilate.
1 Slide the insulating sleeve onto the skin cooler. (Fig. 3)
,
,
,
-
-
,
,
ENGLISH10

The insulating sleeve prevents an unpleasant sensation of coldness in your
hand while you use the appliance. It also keeps the skin cooler cold as
long as possible.
Sometimes the pivoting cooling head freezes onto the skin cooler and
does not move when you take the skin cooler from the freezer.The
pivoting cooling head starts to pivot again after you have passed it over
your leg a few times.
2 Snap the appliance onto the skin cooler (Fig. 4).
3 Select the desired speed to switch on the appliance (Fig. 5).
Select speed I for areas with little hair growth and for areas where bones
are located directly beneath the skin, such as knees and ankles.
Select speed II for larger areas with stronger hair growth.
4 Stretch your skin with your free hand to make the hairs stand
upright.
5 Place the appliance perpendicularly onto the skin with the epilating
head pointing forward. Move the appliance against the direction of
hair growth at a moderate speed. (Fig. 6)
Make sure both the epilating discs and the skin cooler are in proper
contact with the skin.
Press the appliance lightly onto the skin.
If you are not completely satised with the epilation result, try
moving the epilator more slowly over your skin.
6 Use the tab on the bottom end of the appliance to remove the
appliance from the skin cooler (Fig. 7).
Epilating without the leg skin cooler
If you do not want to use the skin cooler, for instance because you
have grown accustomed to the sensation of epilation, you can also
use the appliance without the skin cooler.
Make sure that you place the epilator perpendicularly onto your
skin and that you move it against the direction of hair growth.
,
,
,
ENGLISH 11

Epilating the underarms and bikini line
Your epilator comes with a sensitive area cap that reduces the number of
active epilating discs.This makes the appliance ideal for epilating the more
delicate areas of the body, such as the underarms and bikini line.
Note:You get the best results when the hairs are not too long (max.1cm).
Do not use the leg skin cooler to epilate your underarms and bikini
line.
1 Put the sensitive area cap on the epilating head (Fig. 8).
The sensitive area cap can only be tted onto the appliance in one way.
2 Switch on the appliance by selecting the desired speed. (Fig. 5)
We advise you to use speed II.
3 Stretch the skin with your free hand.
4 Place the appliance perpendicularly onto your skin, with the on/off
slide pointing in the direction in which you are going to move the
appliance.
5 Move the appliance slowly over the skin, against the direction of
the hair growth.
Epilate your bikini line as shown in the gure (Fig. 9).
Epilate your underarms as shown in the gure (Fig. 10).
6 For a cool sensation, you can dab the area you have just epilated
with a cloth soaked in cold water.
7 Remove the sensitive area cap from the epilator after use (Fig. 11).
Shaving
You can use the shaving head to shave sensitive body parts, such as your
underarms and bikini line.With the shaving head, you obtain a smooth
result in a comfortable and gentle way.
1 Make sure the appliance is switched off.
2 Remove the skin cooler (Fig. 7).
-
-
ENGLISH12

3 Press the release button (1) and pull the epilating head off the
appliance (2) (Fig. 12).
4 Place the shaving head on the appliance and press it onto the
appliance until it snaps home (‘click’) (Fig. 13).
5 Switch on the appliance by selecting speed II.
6 Place the shaving head onto your skin and move the appliance
slowly and smoothly against the direction of hair growth. Press the
appliance lightly (Fig. 14).
Using the peeling glove
Use the peeling glove in the shower.
Regular massages with the peeling glove may help to prevent ingrown
hairs. Do not use the peeling glove immediately before or after epilation.
Cleaning and maintenance
Never rinse the adapter or the appliance itself with water.
Do not use any corrosive detergents, scouring pads or cloths, petrol,
acetone etc. to clean the appliance.
1 Make sure the appliance is switched off and disconnected from the
mains.
2 Remove the leg skin cooler from the appliance and slide the
insulating sleeve off the skin cooler.
3 Clean the pivoting cooling head of the leg skin cooler with the
brush supplied or with a moist cloth after each use.
Make sure the outside of the skin cooler is completely dry before
you freeze it again.
Cleaning the epilating head
Clean the epilating head after every use.
1 Make sure the appliance is switched off and disconnected from the
mains.
ENGLISH 13

2 Remove the epilating head (Fig. 12).
Press the release button (1) and pull the epilating head off the appliance
(2).
3 Remove the massaging element (Fig. 15).
4 Clean all accessible parts, including the bottom of the epilating head
and the epilating discs, with the brush (Fig. 16).
5 You can also rinse the epilating head (not the appliance!) under the
tap to clean it more thoroughly (Fig. 17).
Never try to detach the epilating discs from the epilating head.
6 Reattach the massaging element to the epilating head.Then place
the epilating head on the appliance and press it until it snaps home
(‘click’) (Fig. 18).
The epilating head only ts onto the appliance in one way.
Cleaning the shaving head
Clean the shaving head after every use.
1 Make sure the appliance is switched off and disconnected from the
mains.
2 Remove the shaving head.
3 Pull the cutter unit out of the shaving head. (Fig. 19)
4 Brush the hairs off the cutter unit and the shaving head. Make sure
that you also brush away any hairs that have collected under the
trimmers (Fig. 20).
5 You can also rinse the cutter unit and the rest of the shaving head
(not the appliance!) under the tap (Fig. 21).
6 Put the cutter unit back into the shaving head and snap the shaving
head back onto the appliance (‘click’) (Fig. 22).
Do not exert pressure on the shaving foil to avoid damage.
7 Rub a drop of sewing machine oil onto the trimmers and shaving
foil of the cutter unit twice a year.
ENGLISH14

Storage
1 Put the protective cap on the shaving head (‘click’). (Fig. 23)
2 Store the appliance and the accessories in the pouch.
Replacement
If you use the shaving head several times a week, replace the cutter unit
(type HP6193) after one or two years of use or if it is damaged.
Environment
Do not throw away the appliance with the normal household waste
at the end of its life, but hand it in at an ofcial collection point for
recycling. By doing this, you help to preserve the
environment (Fig. 24).
The built-in rechargeable batteries contain substances that may
pollute the environment.Always remove the batteries before you
discard and hand in the appliance at an ofcial collection point.
Dispose of the batteries at an ofcial collection point for batteries. If
you have trouble removing the batteries, you can also take the
appliance to a Philips service centre.The staff of this centre will
remove the batteries for you and will dispose of them in an
environmentally safe way.
1 Remove the adapter from the wall socket and let the appliance run
until the batteries are empty.
2 Remove the epilating head (Fig. 12).
3 Hold the appliance in your hand and open it with a
screwdriver (Fig. 25).
4 Pull the two housing halves apart with your thumbs until the snap
connections break (Fig. 26).
5 Remove all components (motor unit and the printed circuit board
unit) from the housing halves.
-
-
ENGLISH 15

6 Insert a screwdriver between the plastic battery holder and the
batteries (Fig. 27).
7 Remove the batteries from the plastic battery holder and the
printed circuit board (Fig. 28).
Do not try to reassemble the appliance in order to run it from the
mains.This is dangerous (Fig. 2).
Guarantee & service
If you need information or if you have a problem, please visit the Philips
website at www.philips.com or contact the Philips Customer Care
Centre in your country (you nd its phone number in the worldwide
guarantee leaet). If there is no Customer Care Centre in your country,
go to your local Philips dealer or contact the Service Department of
Philips Domestic Appliances and Personal Care BV.
Troubleshooting
Problem Possible cause Solution
Reduced
epilating
performance.
You moved the
epilator in the
wrong
direction.
Move the appliance against the
direction of hair growth.
You placed the
epilating
head on the
skin at the
wrong angle.
Make sure you place the appliance
perpendicularly onto the skin.
The epilating
head did not
touch the skin.
Make sure the epilating head (and
the leg skin cooler, if present) are in
proper contact with your skin
during epilation.
ENGLISH16

Problem Possible cause Solution
You moistened
your skin with
water or a
cream or other
skincare
product prior
to epilation.
Make sure your skin is entirely dry
and free from grease. Do not put
any cream, body milk or other
skincare product on your skin
before you start to epilate.
You moved the
appliance over
the skin too
fast.
Move the appliance over the skin
at moderate speed.
The appliance
does not work. The batteries are empty. Charge the batteries.
The socket to
which the
appliance is
connected is
not live.
Make sure the socket you use is
live. If you use a socket in a
bathroom cabinet, you may need
to switch on the light to activate
the socket.
The appliance
is not switched
on.
Switch on the appliance.
You did not
attach the
epilating
head correctly.
Place the epilating head on the
appliance and press it onto the
appliance until it snaps home
(‘click’).
ENGLISH 17

Problem Possible cause Solution
Skin irritation
occurs. You used the epilator for the
rst time or
after a long
period of
disuse.
Some skin irritation may occur the
rst few times you use the
appliance.This is absolutely normal
and usually disappears quickly. For
tips to reduce skin irritation, see
the rst section of chapter ‘Using
the appliance’.Also make sure you
keep the epilating head clean.
You have
applied too
much pressure
to the
appliance
Do not use any pressure when you
move the appliance over skin
The leg skin
cooler is not
cold enough.
You did not
freeze the leg
skin cooler long
enough.
Put the skin cooler without the
insulating sleeve in the freezer or
freezing compartment (***) for at
least 4 hours.When the colour of
the uid has changed from white
to completely blue, the skin cooler
is ready for use.
You did not put
the leg skin
cooler in the
freezer or
freezing
compartment.
Put the skin cooler without the
insulating sleeve in the freezer or
freezing compartment (***) for at
least 4 hours. Do not store the skin
cooler in the refrigerator.
The leg skin
cooler did not
touch the skin.
Make sure the skin cooler is always
in proper contact with your skin
during epilation. Only use the leg
skin cooler to epilate your legs.
ENGLISH18

Problem Possible cause Solution
The pivoting
cooling head of
the leg skin
cooler does
not move.
The pivoting
cooling head is
frozen.
Pass the skin cooler over your leg a
few times to make it pivot again.
Always make sure the outside of
the skin cooler is completely dry
before you freeze it.
It is not
possible to
remove the
epilating head.
You did not
press the
release button.
Press the release button and pull
the epilating head off the appliance.
It is not
possible to
remove the
shaving head.
You did not
press the
release button.
Press the release button and pull
the shaving head off the appliance.
Reduced
shaving
performance.
The shaving
head is dirty. Switch off the appliance, unplug it and remove the shaving head.Then
clean the cutter unit and the
shaving head with the cleaning
brush supplied. Remove any hairs
that are stuck under the trimmers.
The cutter unit
is damaged or
worn.
Replace the cutter unit.
Stronger skin
irritation than
usual after
shaving.
The cutter unit
is damaged or
worn.
Replace the cutter unit.
ENGLISH 19

20
Introduction
Le nouvel épilateur Satinelle ICE PREMIUM permet une épilation rapide,
facile et efcace. Avec son nouveau système céramique, son applicateur
de froid épousant chaque contour du corps et son nouveau système de
massage Sonic, il révolutionne l’épilation. En effet, la sensation de massage
et l’effet naturellement anesthésiant de la glace garantissent une épilation
plus douce et moins douloureuse. Résultat : une peau douce comme de
la soie et une diminution de la repousse jusqu’à 50 %, à condition de vous
épiler régulièrement (toutes les 4 semaines).
L’épilateur Satinelle ICE PREMIUM est adapté à l’épilation de toutes les
parties du corps et est doté d’un adaptateur spécial zones sensibles
spécialement conçu pour l’épilation des zones sensibles (aisselles et
maillot).
Les disques rotatifs attrapent même les poils les plus courts (jusqu’à un
demi-millimètre !) et les éliminent à la racine, laissant votre peau douce
pendant quatre semaines environ. Le poil repousse doux et plus n.
Description générale (g. 1)
AAdaptateur spécial zones sensibles
B Système de massage
CTête d’épilation
DBouton de déverrouillage
EAppareil
FBouton coulissant marche/arrêt
GCapot de protection pour la tête de rasage
HTête de rasage
IApplicateur de froid avec tête pivotante pour l’épilation des jambes
JManchon pour applicateur de froid pour jambes
KAdaptateur
LGant exfoliant
MBrossette de nettoyage
Important
Lisez attentivement ce mode d’emploi avant d’utiliser l’appareil et
conservez-le pour un usage ultérieur.
FRANÇAIS
