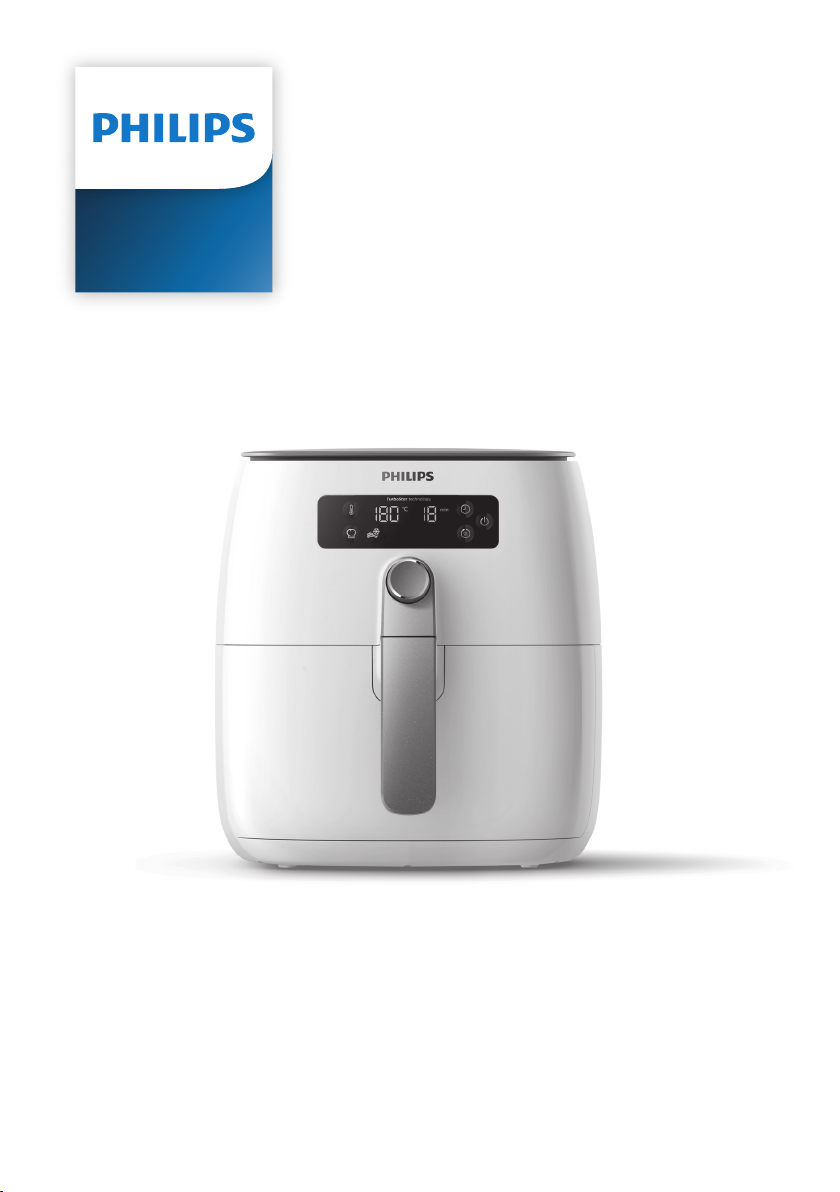

Philips HD9643 User manual

User manual
Always here to help you
Register your product and get support at
www.philips.com/welcome
HD9640, HD9641
HD9642, HD9643
HD9645, HD9646
HD9647

2ENGLISH
HD9640, HD9641, HD9642, HD9643, HD9645, HD9646, HD9647
TABLE OF CONTENTS
Important 3
Electromagnetic elds (EMF) 5
Introduction 6
General description 6
Airfryer and accessories 8
Before rst use 9
Preparing for use 9
Placing the removable mesh bottom 9
Placing the EasyClick handle 10
Food table 11
Cooking table for presets 12
Using the appliance 13
Airfrying 13
Changing the cooking temperature during cooking
17
Changing the cooking time during cooking 17
Choosing the preset modes 18
Choosing the keep warm mode 19
Making home-made fries 19
Using the double-layer rack 20
Using the non-stick grill pan 21
Using the splatter-proof lid 21
Using the baking pan 22
Cleaning 23
Cleaning table 24
Storage 24
Recycling 25
Guarantee and support 25
Troubleshooting 25

3ENGLISH
Important
Read this important information carefully before you use the
appliance and save it for future reference.
Danger
-Always put the ingredients to be fried in
the basket, to prevent them from coming
into contact with the heating elements.
-Do not cover the air inlet and the air outlet
openings while the appliance is operating.
-Do not ll the pan with oil as this may
cause a re hazard.
-Never immerse the appliance in water or
any other liquid, nor rinse it under the tap.
Warning
-Check if the voltage indicated on the
appliance corresponds to the local mains
voltage before you connect the appliance.
-Do not use the appliance if the plug,
the mains cord or the appliance itself is
damaged.
-If the mains cord is damaged, you must
have it replaced by Philips, a service center
authorised by Philips or similarly qualied
persons in order to avoid a hazard.
-This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
unless they are older than 8 years and
supervised.
-Keep the appliance and its cord out of
reach of children less than 8 years.
-Keep the mains cord away from hot
surfaces.

4ENGLISH
-Only connect the appliance to an earthed
wall outlet. Always make sure that the plug
is inserted into the wall outlet properly.
-Always place and use the appliance on a
dry, stable, level and horizontal surface.
-This appliance is not intended to be
operated by means of an external timer or
a separate remote-control system.
-Do not place the appliance against a wall
or against other appliances. Leave at least
10cm free space on the back and sides
and 10cm free space above the appliance.
Do not place anything on top of the
appliance.
-Do not use the appliance for any other
purpose than described in the user
manual.
-During hot air frying, hot steam is released
through the air outlet openings. Keep
your hands and face at a safe distance
from the steam and from the air outlet
openings. Also be careful of hot steam
and air when you remove the pan from the
appliance.
-The accessible surfaces may become hot
during use.
-The Airfryer accessories become hot when
you use them in the Airfryer. Be careful
when you handle them.
Caution
-This appliance is intended for normal
household use only. It is not intended
for use in environments such as sta
kitchens of shops, oces, farms or other
work environments. Nor is it intended
to be used by clients in hotels, motels,
bed and breakfasts and other residential
environments.
-Always return the appliance to a
service centre authorised by Philips for

5ENGLISH
examination or repair. Do not attempt to
repair the appliance yourself, otherwise
the guarantee becomes invalid.
-Let the basket and non-stick grill pan cool
down before you exchange or remove the
EasyClick handle.
-This appliance is designed to be used at
ambient temperatures between 5°C and
40°C.
-Always unplug the appliance after use.
-Let the appliance cool down for approx.
30 minutes before you handle or clean it.
-Do not overll the basket. Only ll the
basket to the MAX indication.
-Make sure the ingredients prepared in this
appliance come out golden-yellow instead
of dark or brown. Remove burnt remnants.
Do not fry fresh potatoes at a temperature
above 180°C (to minimise the production
of acrylamide).
-After having removed the pan with the
basket from the appliance, please put the
pan with the basket on a suitable surface
and let it rest for at least 30 seconds
before removing the basket from the pan.
-Be careful when cleaning the upper area
of the cooking chamber: Hot heating
element, edge of Metal parts.
-Do not use the appliance for any other
purpose than described in the user manual
and use only original accessories.
Electromagnetic elds (EMF)
This Philips appliance complies with all applicable standards
and regulations regarding electromagnetic elds.

6ENGLISH
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benet from the support that Philips
oers, register your product at www.philips.com/welcome.
Your new Airfryer allows you to prepare your favorite
ingredients and snacks in a healthier way. The Airfryer
uses hot air in combination with high-speed air
circulation (TurboStar rapid air technology) and a top
grill to prepare a variety of tasty dishes in a healthy, fast
and easy way. Your ingredients are heated from all sides
at once and there is no need to add oil to most of the
ingredients. For more inspiration, recipes and information
about the Airfryer, visit www.philips.com/kitchen or
download the free Airfryer App for IOS® or Android™.
General description
1 Control Panel
A. Temperature button
B. Temperature indication
C. Time indication
D. Timer button
E. Power On/O button
F. Keep warm button
G. Keep warm indication
H. Presets: frozen French fries, chicken drumstick,
sh, chop/cutlet
I. Preset button
2 Air inlet
3 QuickControl dial
4 Pan
5 Basket release button
6 EasyClick handle
7 Air outlets
8 Cord storage wrap
9 Mains cord
10 Removable mesh bottom
11 Basket with removable mesh bottom
12 MAX indication
13 Basket with xed mesh bottom
14 Double-layer rack
15 Splatter-proof lid
16 Non-stick grill pan
17 Baking pan

7ENGLISH
MAX
MAX
5
3
4
6
7
1
8
9
10
15
16
13
11
1
2
12
14
17
AB CD
EFGHI

8ENGLISH
Airfryer and accessories
Refer to below table and see the by-packed accessories for
your Airfryer. The type number of your Airfryer starts with
“HD96XX”. You can nd the type number on the packaging or
on the bottom of the device.
HD9640
HD9641/45
HD9641/56
HD9641/66
HD9642
HD9643
HD9645
HD9646
HD9647
Please keep in mind that some Airfryers may not be available
in your country.
Also some accessories may not be available in your country. To
purchase, see the Philips Airfryer app or visit www.philips.com.
Refer to below table and see the type number of the
accessories that could t in your Airfryer.
HD9925 HD9940 HD9904 HD9909

9ENGLISH
Before rst use
1 Remove all packing material.
2 Remove any stickers or labels from the appliance.
3 Thoroughly clean the appliance before rst use, as
indicated in the cleaning table.
Preparing for use
Placing the removable mesh bottom
1 Remove the pan from the appliance.
2 Put the pan with the basket on a suitable surface, press
the basket release button and lift the basket out of the
pan.
3 Insert the hook of the mesh bottom into the slot on the
right bottom side of the basket. Push the mesh bottom
down until it locks into position (‘click’ on both sides).
4 Put the basket back into the pan.
Note
•Never use the pan without the basket in it.
1
2
2
1

10 ENGLISH
5 Slide the pan back into the appliance.
Placing the EasyClick handle
Warning
•Always make sure the basket and the handle have cooled down
before you attach or detach the EasyClick handle.
Note
•The EasyClick handle also ts to the non-stick grill pan. It helps
you clean and store the appliance in an easy way.
To attach the EasyClick handle:
1 Hold the basket with one hand and hold the handle with
the other hand.
2 Slide the handle into the opening on the basket from
below until it locks into place (‘click’).
To detach the EasyClick handle:
1 Hold the basket with one hand and hold the handle with
the other hand.
2 Pull gently with your nger on the red release tab while
pulling the handle straight down.
2
1

11ENGLISH
Food table
The table below helps you select the basic settings for the
types of food you want to prepare.
Note
•Keep in mind that these settings are suggestions. As ingredients
dier in origin, size, shape as well as brand, we cannot guarantee
the best setting for your ingredients.
Ingredients
Min.- max.
amount
(grams)
Time
(minutes)
Temperature
(°C)
Shake/
Turn
Additional
information
Frozen fries 200-800 11-25 180 Shake
halfway
Home-made
fries (1/2 cm /
1/4 in thick)
200-800 12-25 180 Shake
halfway
Soak 30 min. in
water, dry then
add 1/2 tbsp of oil.
Potato wedges 200-800 15-27 180 Shake
halfway
Soak 30 min. in
water, dry then
add 1/2 tbsp of oil.
Frozen snacks
(e.g. spring
rolls, chicken
nuggets)
100-400 6-10 200 Turn or
shake
halfway
For the cooking
times, refer to the
instructions on
the packaging of
the snack. Time
compared to oven
should be halved.
Pork chops 100-500 8-14 200
Hamburger 100-500 7-14 160
Sausages 100-500 3-15 160
Drumsticks 100-500 15-22 180
Chicken breast 100-500 10-15 180
Quiche 300 20-25 160 Use a baking tray
or oven dish.
Muns 80-300 8-13 180 Use heat-proof
silicone mun
cups.
Cake 200-400 15-25 160 Use a baking pan.
Mixed veggies 100-500 8-12 180
Pre-baked
toast/bread
rolls
50-200 3-6 200
Fresh bread
rolls/bread
100-500 12-25 180

12 ENGLISH
Ingredients
Min.- max.
amount
(grams)
Time
(minutes)
Temperature
(°C)
Shake/
Turn
Additional
information
Fish 150-400 10-18 200
Shellsh 100-400 7-15 180
Chicken bread
crumbed
100-300 8-15 180 Add oil to the
breadcrumbs.
Cooking table for presets
The grams in bold represent the amount of food for which
the preset is designed for. If you cook with a dierent amount,
adapt the cooking time accordingly. You can also adapt the
cooking time according to your personal preference in regards to
doneness and browning level.
The minutes in bold represent the preset cooking time on the
appliance.
Presets Amount (grams) Time (minutes) Additional information
Frozen French fries
(thin)
200
400
500
600
800
11
15
18
19
23
Shake after half of the
cooking time. If you use
thicker french fries or
homemade french fries,
please consider a slightly
longer cooking time.
Chops, cutlet (about
2.5 cm/0.1 in thick)
100
250
500
11
14
18
The cooking time also
depends on the thickness
of your chops. Thicker
chops take a slightly longer
cooking time.
Chicken drumsticks
(lower part)
300
450
600
750
17
20
23
26
If you cook more than one
layer, you need to turn the
chicken drumsticks after
half of the cooking time. A
whole chicken leg takes a
longer cooking time .
Whole at sh
200
400
600
800
13
16
19
22
Use the Airfryer non-stick
grill pan. Please consider
a slightly longer cooking
time for thicker shes.

13ENGLISH
Using the appliance
Airfrying
Caution
•This is an Airfryer that works on hot air. Do not ll the pan with
oil or frying fat.
•Do not touch hot surfaces. Use handles or knobs. Only hold the
pan by the basket handle.
•This product is for household use only.
•The appliance may produce some smoke when you use it for the
rst time. This is normal.
•Preheating of the appliance is not necessary.
1 Place the appliance on a stable, horizontal, level and
heat-resistant surface.
Note
•Do not put anything on top or on the sides of the appliance. This
could disrupt the airow and inuence the frying result.
Caution
•Do not place the appliance on non-heat-resistant surfaces.
2 Unwind the power cord from the cord storage wrap.
3 Put the plug in the wall outlet.
4 Remove the pan from the appliance.
5 Put the ingredients in the basket.

14 ENGLISH
Note
•The Airfryer can prepare a large range of ingredients. Consult the
‘Food table’ for the right quantities and approximate cooking
times.
•Do not exceed the amount indicated in the ‘Food table’ section or
overll the basket beyond the ‘MAX’ indication as this could aect
the quality of the end result.
•If you want to prepare dierent ingredients at the same time,
make sure you check the suggested cooking time required for the
dierent ingredients before you start to cook them simultaneously.
Home-made fries and drumsticks, for example, can be cooked
simultaneously because they require the same settings.
6 If the basket or non-stick grill pan is placed back into
the pan, slide the pan back into the appliance. Press the
“Power On/O” button to switch on the appliance.
7 The temperature indication blinks and is set to 180°C by
default.
»To change the temperature, turn the QuickControl dial.
»To conrm the temperature, push the QuickControl dial.

15ENGLISH
8 After the temperature is conrmed, the time indication
“- -“starts blinking.
»To change the cooking time, turn the QuickControl dial.
»To conrm the cooking time, push the QuickControl dial.
9 The appliance starts cooking after the cooking time has
been conrmed.
Tip
•To pause the cooking process, push the QuickControl dial. To
resume the cooking process, push the QuickControl dial again.
Note
•Some ingredients require shaking or turning halfway through the
cooking time (see ‘Food table’). To shake the ingredients, remove
the pan from the appliance and shake it over the sink. Then slide
the pan back into the appliance. To reduce the weight, you can
also remove the basket from the pan.
•Be careful not to press the basket release button while shaking.
10 When you hear the timer bell, the set preparation time has
elapsed.

16 ENGLISH
Note
•Excess oil from the ingredients is collected on the bottom of the
pan.
•If you prepare several batches of fatty ingredients (e.g. drumsticks,
sausages or hamburgers), carefully pour o any excess oil or
rendered fat from pan after each batch or before shaking or
replacing basket in pan.
11 Remove the pan from the appliance and place it on a
heat-resistant surface.
12 Check if the ingredients are ready.
Note
•If the ingredients are not ready yet, simply slide the pan back into
the appliance and set the timer for a few extra minutes.
•After hot air frying, the pan, basket, accessories, housing and
ingredients are hot. Depending on the type of ingredients in the
basket, steam may escape from the pan.
13 Press the basket release button and lift the basket out of
the pan.
14 Empty the basket contents into a bowl or onto a plate.
Always remove the basket with ingredients from the pan
to serve as hot oil or rendered fat may be in the bottom of
the pan.
Tip
•To remove large or fragile ingredients, use a pair of tongs to lift the
ingredients out of the basket.
Note
•When a batch of ingredients is ready, the Airfryer is instantly ready
for preparing another batch.
1
2

17ENGLISH
Changing the cooking temperature during cooking
1 During cooking, press the temperature button.
»To change the cooking temperature, turn the
QuickControl dial.
»To conrm the cooking temperature or time, push the
QuickControl dial.
Changing the cooking time during cooking
1 During cooking, press the timer button.
»To change the cooking time, turn the QuickControl dial.

18 ENGLISH
»To conrm the cooking time, push the QuickControl dial.
Choosing the preset modes
1 After the appliance is switched on, press the preset
button.
»The preset indication for frozen French fries starts
blinking.
2 Turn the QuickControl dial to select the preset you need.
3 Push the QuickControl dial to conrm the preset.
»The cooking temperature displays on the screen and
the recommended cooking time blinks.
»To change the cooking time, turn the QuickControl dial.
Note
•Changing the temperature is not possible when using a preset
mode. If you press the temperature button when selecting the
preset mode the appliance will exit the preset mode.

19ENGLISH
4 Push the QuickControl dial again to conrm the cooking
time, and the appliance starts cooking.
Tip
•Refer to the “Cooking table for presets” to nd the suitable
cooking time and more information.
Choosing the keep warm mode
1 Press the keep warm button (you can activate the keep
warm mode at each time).
»The keep warm indication goes on.
»The keep warm timer is set to 30 minutes. You cannot
adjust the keep warm time. To cease the keep warm
mode, simply switch o the appliance.
Tip
•If food like French fries loses too much crispness during the
keep warm mode, please either shorten the keep warm time by
switching o the appliance earlier or crisp them up for 2-3 minutes
at the temperature of 180°C.
Note
•If you activate the keep warm mode during cooking, the appliance
will keep your food warm for 30 minutes after the cooking time
has elapsed.
•During the keep warm mode, the fan and heater inside of the
appliance is on from time to time.
•The keep warm mode is designed to keep your dish warm
immediately after it is cooked in the Airfryer. It is not meant for
reheating.
Making home-made fries
To make great home-made fries in the Airfryer:
- Choose a potato variety suitable for making fries, e.g. fresh,
slightly oury potatoes.
- It is best to air fry the fries in portions of up to 500 grams
for an even result. Larger fries tend to be less crispy than
smaller fries.
- Shake the basket 2-3 times during the air frying process.
1 Peel the potatoes and cut into sticks (1/2cm / 1/4 in thick).
2 Soak the potato sticks in a bowl of water for at least 30
minutes.

20 ENGLISH
3 Empty the bowl and dry the potato sticks with a dish towel
or paper towel.
4 Pour a half tablespoon of cooking oil in the bowl, put the
sticks in the bowl and mix until the sticks are coated with
oil.
5 Remove the sticks from the bowl with your ngers or a
slotted kitchen utensil so excess oil remains in the bowl.
Note
•Do not tilt the bowl to pour all the sticks in the basket at once to
prevent excess oil from going into the pan.
6 Put the sticks in the basket.
7 Fry the potato sticks and shake the basket halfway through
the air frying process. Shake 2-3 times if you prepare more
than 400g of fries.
Note
•Consult the “Food table” for the right quantities and cooking times.
Using the double-layer rack
Use the double-layer rack to maximize your cooking space.
Note
•If cooking dierent ingredients at the same time, make sure that
the cooking temperature and time is the same for each type of
ingredient.
•Always position meats on lower level and vegetables above to
avoid cross contamination of food or unsafe transfer of meat
juices or partially cooked foods.
1 Follow steps 1 to 4 of section ‘Airfrying’.
2 Put one half of the ingredients in the basket.
3 Place the double-layer rack in the basket.
