Philips LX-3500D User manual

"ALL-IN-ONE" DVD-Digital Surround
Sound Receiver Package
LX 3500D
LX 3500D
• Upgrade yourTV into a complete Digital Home Entertainment System
• 200 Watts Total System Power
• 6 Speaker Package with active subwoofer & 5 satellite speakers
• Dolby Digital 5.1, DTS channel decoder and matrix surround
• 75 watts active subwoofer for deeper bass
• Progressive Scan Digital Video processing
• Digital tuning with 40 presets
• CVBS, S-Video output & Component (R/G/B) video output
• DVD, DVD+RW, CD, CD-R, CD-RW and CD-MP3 playback
• Parental control with child lock
• Full function remote control, also controls Philips TV's
• Easy to set-up, color coded connections
• Cables for TV hook-up and quick installation card included
• 2 colors detachable speaker grilles
200
Digital Home Cinema
Digital Home Cinema
with Progressive Scan
with Progressive Scan
2 colors detachable speaker grilles
LX 3500D
LX 3500D
Sound Enhancement
Dolby Digital Surround Sound - Available on DVD,
Laserdisc*, satellite broadcasts, Cable and as the standard for
HDTV, Dolby Digital® offers the ultimate experience in
home theater surround with six discrete channels of digital
CD sound. Discrete means that each channel carries its own
sound and depending on what happens on screen each
speaker plays its own unique role in providing the right
sound. Front left, center and right join two surround
speakers to reproduce highs, mid and bass frequencies in
five full-range channels of surround. Bass rumble, explosions
and low frequency effects you feel are delivered through a
dedicated sixth, subwoofer channel. Also known as AC-3
and Dolby 5.1, Dolby Digital® delivers the expanded sense
of depth, localization and overall realism which was formerly
only known from digital surround sound equipped cinemas.
DTS - DTS surround sound is a cinema surround sound
audio format that offers superior digital audio performance
than other available surround sound formats. DTS offer
more clarity and definition especially for higher tones. The
better sound quality is a direct result of the limited sound
compression (3:1 instead of 11:1 for Dolby Digital) and the
20-bit resolution. DTS movie and music software is available
on various DVD and CD titles.
MP3-CD Playback - Download MP3 songs from the
internet on a PC and record them on a CD. This special
"MP3-CD" can now be played on the Philips FW-M355 Mini
System. One MP3-CD can carry up to 12 hours of music.
As the CD changer can be loaded with 3 CD's, one can
enjoy 36 hours of uninterupted music listening!
6-speaker package - No less then 5 compact satellite
loudspeakers to build your personal cinema on a stand or
wall-mounted with the enclosed wall-brackets. The five
speakers are acoustically specially designed to match the
tonal characteristics of the receiver. Front left, right and
center speaker are magnetically protected to prevent any
interference with television picture tube purity. The sixth
speaker is a 75 watt powered subwoofer with ?" side-firing
woofer.
200W surround power output - The five, 3x25W (left,
right, center) and 2x25W (rear), receiver amplifiers together
with the 75W subwoofer amplifier deliver 200 Watts of
home theater power (6 Ohm, 1 kHz, 10% THD).
75 W powered subwoofer - Subwoofers add dynamism
to normal music and motion pictures. It sets the stage for a
more intense sensation.The 75W Philips subwoofer features
a down-firing 61/2" woofer to reflect sound waves off the
floor, thereby adding impact. In all, the subwoofer is
sufficiently power packed to generate that cinema essential
sonic sound boom.
Video Enhancement
Digital Progressive Scan - Films are shot at a frame rate
of 24 frames per second. When transferred to a DVD,
which uses NTSC system of 60 frames per second, each of
the film's 24 frames must be shown either twice or three
times in an alternating sequence.
To accurately reproduce the film in progressive form, Philips
DVD analyze and detects the 3, 2, 3, 2, 3, 2 sequence
encoded in the DVD and re-interlace (combining the
complementary adjacent frames) them accurately into
progressive image. By using the 3:2 pull down technology,
pictures are noticeably sharper with film based material.
Even on large screens, the progressive scan lines are barely
noticeable and picture flickering is greatly reduced, so you
can extend viewing without eye fatigue.
Convenience
Digital outputs - 2 Digital outputs connections (coax and
optical) are foreseen to enable digital recordings from any of
the sources.
Night mode - Establishes dynamic range compression of
digital sound to reduce the volume differences between the
loud and soft passages in source material with digital
surround sound where sound level differences can be so
dramatic. This feature is especially useful at night when you
don't want to disturb the neighbors or wake up the kids!
Video Connections - 3 outputs (incl. monitor) are
foreseen to hook up video sources.
Easy hook up - With color coded speaker connections for
quick and easy connection of all loudspeakers. By using
distinct colors for each of the speaker connection terminal
on the speaker and on the set, and using the same color for
the cable, the chance of faulty connection (and customer
complaints) are practically zero!
40 tuner presets - The available tuner presets can be
randomly used to store AM and FM stations (40 in total).
Display brightness adjustment - Conveniently adjusts
the brightness of the display in 3 steps.
Standby power <1W - To help save energy consumption,
the standby transformers of this set and the powered
subwoofer have been designed not to consume more than1
watt in standby mode.
DVD Playback - The DVD drive plays DVD, DVD+RW
and Video CD discs as well as CD, CD-MP3, CDR and
CDRW discs recorded on a CD recorder. The system has a
full on screen display for easy set-up and operation. Other
video features are zoom, multi-angle and parental lock..
UPC Code : 0 3784992 0923
Product Dimensions:
17.1" W x 3.1" H x 14.2" D (receiver)
3.5" W x 3.5" H x 3.5" D (l/r, center + surround)
3.5" W x 3.5" H x 3.5" D (center speaker)
5.3" W x 13.4" H x 14.8" D (subwoofer)
DVD/Receiver weight : t.b.c.
Package Dimension: 20.6" W x 16.1" H x 17.9" D
Total package weight: 44.1 lbs
Container loading: 520 pcs (40' container)
Country of orgin: China
Carton contains: DVD/Receiver LX3500D, remote
control, batteries, instruction for use, AM + FM antenna,
quick installation card, warrantee information, 6
loudspeakers (incl. subwoofer), loudspeaker cable (L/R:
2x9ft, C: 1x9ft, S: 2x33ft.), subwoofer + connection cable,
digital audio cable, video cable
Printed in Singapore
Date printed : Mar 2002
©2002 Royal Philips Electronics N.V.
All rights reserved.
A Division of Philips Electronics North America Corp.
Specifications subject to change without notice.
Dolby, Dolby Digital®, Dolby ProLogic® and the
double-D symbol are trademarks of Dolby
Laboratories
Connections
• Audio inputs/outputs 2 analogue input sources,
1 analogue output connection
- TV : in
- VCR : in
- CDR : out
- Headphone : 3.5 mm
• Digital audio in/output : 2 digital output connection
(coax, optical)
• Video outputs : 3 output connections (1 S-Video)
- TV : out
- VCR : out
- Monitor : out
• Speaker Connections suitable for speakers ≥6 Ohm
- left, right, center : click-fit connection
- rear left, right : click-fit connection
• Miscellaneous connections
- TV center speakers pre-out : 1
- Subwoofer pre-out : 1
- AM antenna : loop type
- FM antenna : coax
As an ENERGY STAR® Partner, Philips has determined
that this product meets the ENERGY STAR® guidelines
for energy efficiency.
* Dolby Digital laserdisc use requires optional AC-3 RF
demodulator
http://www.philipsusa.com

Other manuals for LX-3500D

2

This manual suits for next models

2

Other Philips Home Theater System manuals

Philips Immersive 3000 series User manual

Philips

Philips Immersive 3000 series User manual

Philips HTS3378/98 User manual

Philips

Philips HTS3378/98 User manual

Philips HTS3276/98 User manual

Philips

Philips HTS3276/98 User manual

Philips MCD170/98 User manual

Philips

Philips MCD170/98 User manual

Philips HTS5543/12 User manual

Philips

Philips HTS5543/12 User manual

Philips HTS5590 User manual

Philips

Philips HTS5590 User manual

Philips MCD710/93 User manual

Philips

Philips MCD710/93 User manual

Philips HTB3510X User manual

Philips

Philips HTB3510X User manual

Philips HTS5553/98 User manual

Philips

Philips HTS5553/98 User manual

Philips CTS4000/12 Manual

Philips

Philips CTS4000/12 Manual

Philips MCD772/93 User manual

Philips

Philips MCD772/93 User manual

Philips MCD139 User manual

Philips

Philips MCD139 User manual

Philips HTS3355 User manual

Philips

Philips HTS3355 User manual

Philips HTS9800W User manual

Philips

Philips HTS9800W User manual

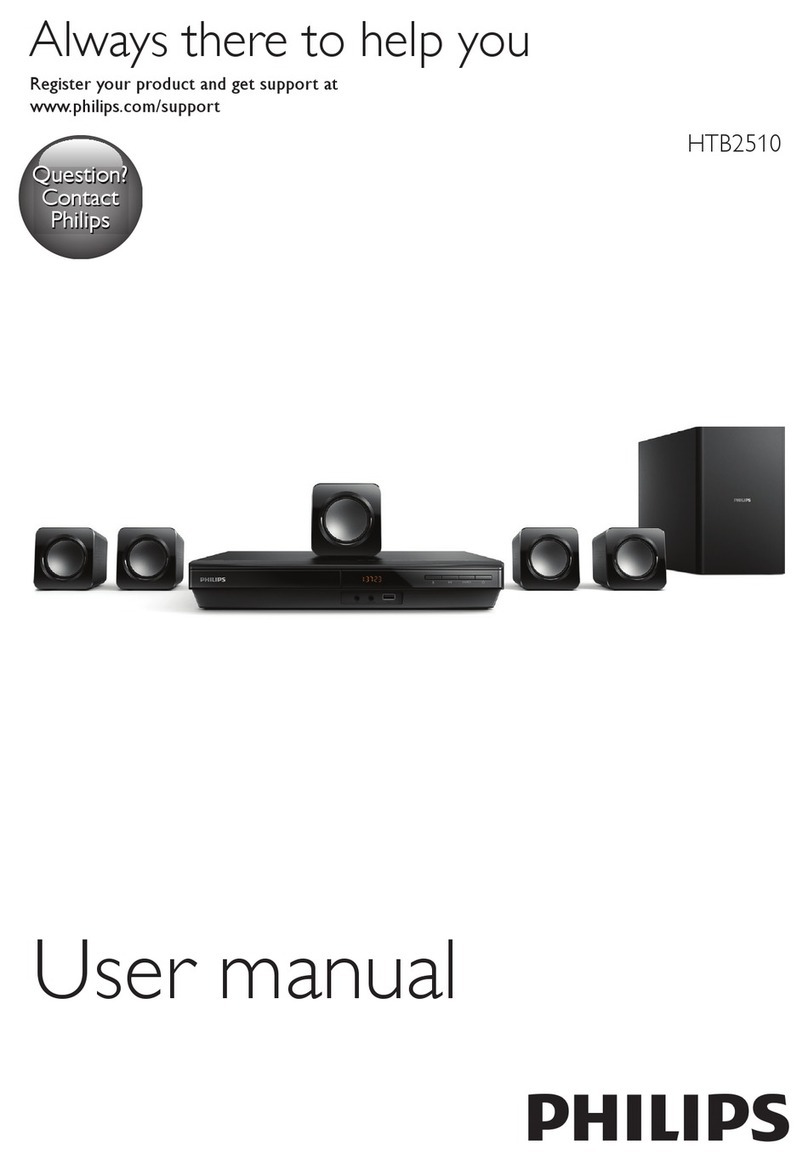

Philips HTB2510 User manual
