Philips GC7422 User manual

ServiceManual
Philips Consumer Lifestyle
Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification
Steam Generator
GC7422
11/01
PRODUCT INFORMATION
Features
Iron
- Steam Glide soleplate
- Steam rate (Max): 120 g/min
- Steam trigger with lock
- Steam hose length: 1.65 m
Stand
- Inox boiler
- Boiler pressure: 4.5 bar
- Fixed water tank volume: 1.0 L
- Cord length: 2.0 m
- Flex & hose-cord storage hook
- Easy rinse
- Anti Calc cartridge in water tank
Safety Information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down as this moment.
TECHNICAL INFORMATION
Voltage : 220 - 240 V
Frequency : 50 - 60 Hz
Power - Iron : 800 W
- Boiler : 1370 W
Dimension (F-box) : 350 x 350 x 250 mm (L x W x H)
Weight : 6.4 kg
Water advice
If the tap water in your area is very hard, it is advisable to mix
the tap water with an equal amount of demineralised water.
Easy to rinse
The new design of the rinse cap makes it very easy to rinse
the boiler regularly. Simply unscrew the cap and pour out the
“dirty” water into the sink.
No hassle with coins, extra tubes or anything of this sort.
Fixed water tank
The fixed water tank that is incorporated into the stand allows
re-filling anytime during ironing. Since water is not re-filled
directly into the boiler, there is no waiting time for boiler to
cool down.

GC7422
2-8
BACKPLATE 21
INLAY
SOS KNOB 10
LAMP ASSY
MICROSWITCH ASSY 4
HOSE CORD CABLE
ASSY 13
THERMOSTAT DIAL 20
HOUSING PRINTED 6
SUB-HOUSING
STEAM DEVIATOR ASSY 12
COVER SOS MOLDED 3
SOS SEAL 11
SOLEPLATE
MOUNTED ASSY 1
Remove Screw A
Disassemble BACKPLATE 21
Disassemble INLAY
Disassemble SOS KNOB 10
Disengage Ribs of light ring
Disassemble LAMP ASSY
Remove Screw B
Disassemble Switch holder
Disassemble MICROSWITCH ASSY 4
Remove Screws C1, C2, C3
Disassemble HOSE CORD CABLE ASSY 13
Disassemble THERMOSTAT DIAL 20
Remove Screws D1, D2, D3, D4
Disassemble HOUSING PRINTED 6
Remove Screw E
Disassemble SUB-HOUSING
Disassemble STEAM DEVIATOR ASSY 12
Remove Screws F1, F2, F3
Disassemble COVER SOS MOLDED 3
DISASSEMBLY ADVICE - IRON

GC7422
3-8
PARTS LIST - IRON & ELECTRICAL DIAGRAM
STAND IRON
L
NBoiler Electronics
Thermal
Fuse
Thermal
Fuse
Pump
Thermistor 1
L
N
L
S
N
M
Boiler
Heating
Element
Electro-
valve
Ther-
mostat
Trigger
Switch
Heating
Element
Pos Service code Description
1
2
3
4
5
6
10
11
12
13
18
19
20
21
4239 021 51301
4239 015 70150
4239 026 38621
4239 021 44410
4239 026 13220
4239 021 56061
4239 026 38671
4239 015 57400
4239 021 31780
4239 021 56081
4239 026 38681
4239 014 54690
4239 021 56091
4239 026 38701
Soleplate mounted assy
Ryton ring
Cover SOS molded
Microswitch assy
Thermostat bush
Housing printed
SOS knob
SOS seal
Steam deviator assy
Hose cord mounted assy
Trigger
Trigger spring
Thermostat dial printed
Backplate

GC7422
4-8
EXPLODED VIEW - IRON
10
20
18
6
3
1
11
Light ring
Switch holder
12
5
4
21
2
13
19
F2
F1
F3
E
D3
D4
D1
C1
C2
C3
A
D2
B
Screw Dimension
A,C,E Ø 3.5 mm x 13 mm
B,D Ø 2.6 mm x 9.6 mm
F1 M4.0 mm x 10 mm
F2,F3 M4.0 mm x 16 mm

GC7422
5-8
DISASSEMBLY ADVICE - STAND
TRAY RUBBER CAP 30
TRAY ASSY 33
DOOR ASSY
Remove TRAY RUBBER CAP 30 (3x)
Remove Screw F1, F2, F3
Disassemble TRAY ASSY 33
Remove Screw G
Disassemble DOOR ASSY
FRONT PANEL PRINTED 37
POWER BOARD
LIGHT SWITCH 44
Remove TRAY RUBBER CAP 30 (3x)
Remove Screw F1, F2, F3
Disassemble TRAY ASSY 33
Remove Screw H1, H2
Disassemble FRONT PANEL 37
Disassemble LIGHT SWITCH 44
Disassemble POWER BOARD
WATER TANK ASSY 34
HOSE CORD CAP 36
BOILER ASSY 38
BRAIDED RUBBER HOSE -
BOILER
PUMP ASSY 45
INLET TUBE - PUMP
DE-AIR TUBE
RINSE RUBBER COUPLING 50
RINSE BUSH
RINSE CAP ASSY 52
Remove TRAY RUBBER CAP 30 (3x)
Remove Screw F1, F2, F3
Disassemble TRAY ASSY 33
Remove Screw H1, H2
Disassemble FRONT PANEL 37
Disassemble HOSE CORD CAP 36
Disassemble RINSE CAP ASSY 52
Disassemble RINSE BUSH
Disassemble RINSE RUBBER COUPLING 50
Remove Screws K1, K2, K3, K4
Disconnect INLET TUBE - PUMP
Disconnect DE-AIR TUBE
Disassemble WATER TANK ASSY 34
Disassemble BRAIDED RUBBER HOSE - BOILER
Disassemble PUMP ASSY 45
Remove Torx screws L1, L2, L3
Disassemble TOP SPACER
Disassemble BOILER ASSY 38
PARTS LIST - STAND
Note: For Pos 45, please replace both components together when either one is faulty.
The 2 components come as a service kit.
Pos Service code Description
30
33
34
36
37
38
40
42
44
45
4239 015 58741
4239 021 56181
4239 021 56141
4239 026 38811
4239 021 56131
4239 021 39540
4239 017 09890
4239 010 10260
4239 017 11911
4239 022 62991
Tray rubber cap
Tray B assy
Water tank assy
Hose cord cap
Front panel A printed
Boiler assy - High End
Electrovalve
Inox clamp
Light switch
Control board-Pump assy kit
Pos Service code Description
50
52
55
56
58
65
67
4239 015 56760
4239 021 56111
4239 000 10100
4239 021 56101
4239 026 05990
4239 026 42081
4239 021 48540
Rinse rubber coupling
Rinse cap assy
Cord set EU
Stand bottom assy
Filling cup
De-air valve
Iron mat assy
= changed

GC7422
6-8
EXPLODED VIEW - STAND
F1
K1
H1
H2
K2
K4
K3
F2
G
F3
40
56
38
42
34
36
52
50
65
55
44
45
Cord
clamp
Clamping
plate
37
L2 L3
L1
30
33
58
67

GC7422
7-8
REPAIR INSTRUCTIONS
- Due to the high wattage of the iron, only the specified cord set must be used.
- Should damage be observed on the HOSE-CORD ASSY 3 or CORDSET 55, they must be replaced.
Continued usage is not allowed.
- When replacing the MICROSWITCH ASSY, please dress the 2 attached wires such that they are free of tension. Pulling force on
the wires may affect the steam triggering.
- To avoid damage to the sealing & components of the BOILER ASSY 38, NEVER clean the boiler assy with vinegar, descaling
agent or other corrosive chemicals.
- When replacing ELECTROVALVE 40 or PUMP ASSY 45, please be reminded to apply loctite at the joints for good sealing.
- After the product has been repaired, it should function properly and has to meet the safety requirements & legal regulations as
laid down & officially established at this moment.
- The following tests are common checks that are conducted on a repaired product before it is returned to the consumer.
1. Soleplate temperature
Check that soleplate temperature is within IEC requirement.
Measure the temperature of the soleplate after the iron has reached steady state i.e connected to the mains for at least 15 minutes.

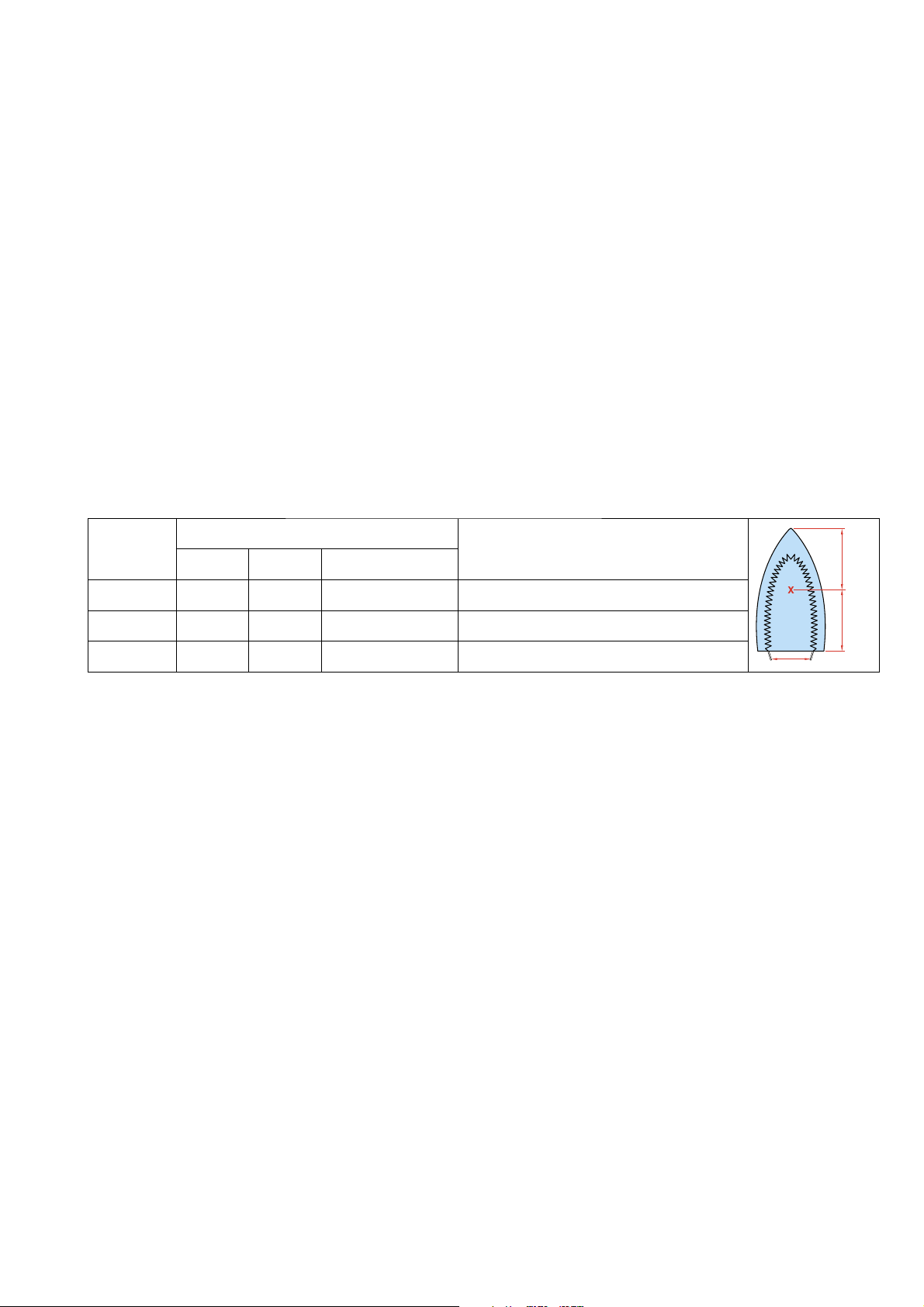

The table below shows the temperature requirement.
Marking
Soleplate temperature (Deg C)
Material, for example
Test-
point
==
Minimum Maximum Nominal + Tolerance
•(1 dot) 70 120 95 ± 25 Acetate, elastane, polyamide, polyproylene
•• (2 dots) 100 160 130 ± 30 Cupro, polyester, silk, triacetate, viscose, wool
••• (3 dots) 140 210 175 ± 35 Cotton, linen
2. Leakage current
Check that leakage current is within IEC requirement.
Measure leakage current between LIVE/NEUTRAL & EARTH.
IEC requirement is that at 230 V supply, the EARTH leakage current must be less than 0.75 mA.
3. Water leakage / Functionality
Check that there is no water leakage from any part of the product during operation.
Check that the functionality of the product (product dependent) eg. steaming, variable steam, SOS, ASO etc is working properly.
4. Loose part
Check that there are no loose parts eg. extra screw in the product that can cause short-circuit or product malfunction.

GC7422
8-8
REPAIR INSTRUCTIONS
Pump Assy Wire connections
Connector positions in DOTTED circle cannot be interchanged
Single-wire
connector
BLACK
BLACK
A
LIGHT GREY
Dual-wire
connector
