Philips GC9610 User manual

Published by Philips Consumer Lifestyle Page 1of 32 For internal use only
Document No. : CSW-07-081-18028
PerfectCare Elite
Philips Consumer Lifestyle
Version 25
Product Information
Fast & Powerful Crease Removal
OptimalTEMP technology
Safe rest
Soleplate: T-ionicGlide
Steam output control • Steam tip
Variable steam settings
Vertical steaming
Easy to Use
Cord freedom (swivel): 180cord freedom
Cord storage: Cord storage compartment
Hose storage: Hose storage compartment
Low water alarm
Open handle
Refill any time
Safe for all fabrics: Even for delicates like silks
Ultra light and comfortable
Filling and emptying water: Detachable water
tank, Extra large filling hole
Sustainability
ECO setting
Energy saving: 50% energy reduction
Safety Information
This product meets the requirements regarding
interference suppression on radio and TV.
Calc Management
Suitable for tap water
Calc clean reminder
Calc clean solution: Easy De-Calc Plus
Technical Information
Voltage
Frequency
Dimensions (W x H x L)
Packaging
Product
Weight
Iron
Iron + Base
220 - 240 V
50 - 60 Hz
31 x 35 x 51 cm
23.3 x 28.5 x 45.3 cm
0.8 kg
5.1 kg
GC9610
GC9611
GC9612
GC9614
GC9615
GC9620
GC9622
GC9625
GC9630
GC9635
GC9640
GC9641
GC9642
GC9644
GC9646
GC9647
GC9648
GC9650

Published by Philips Consumer Lifestyle Page 2of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650

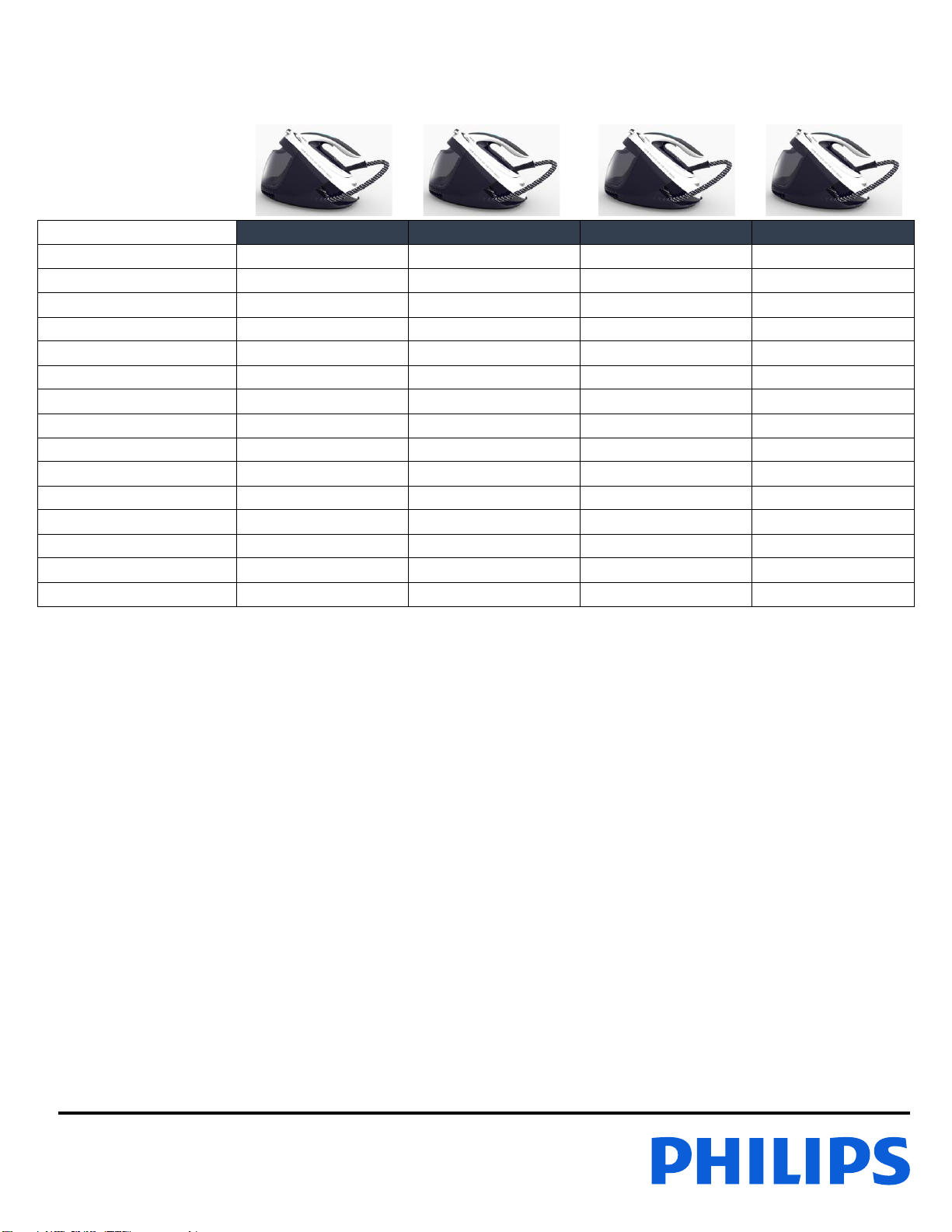

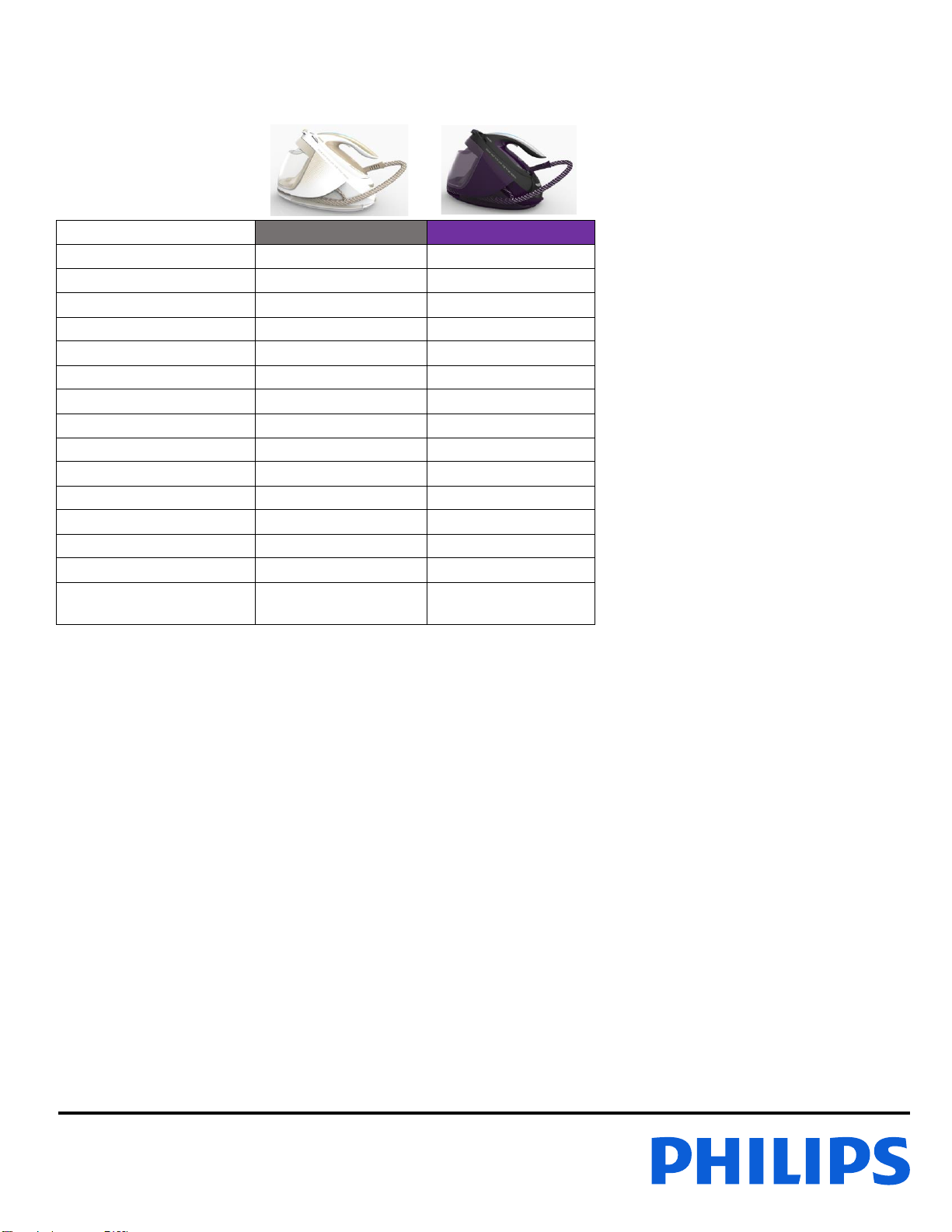

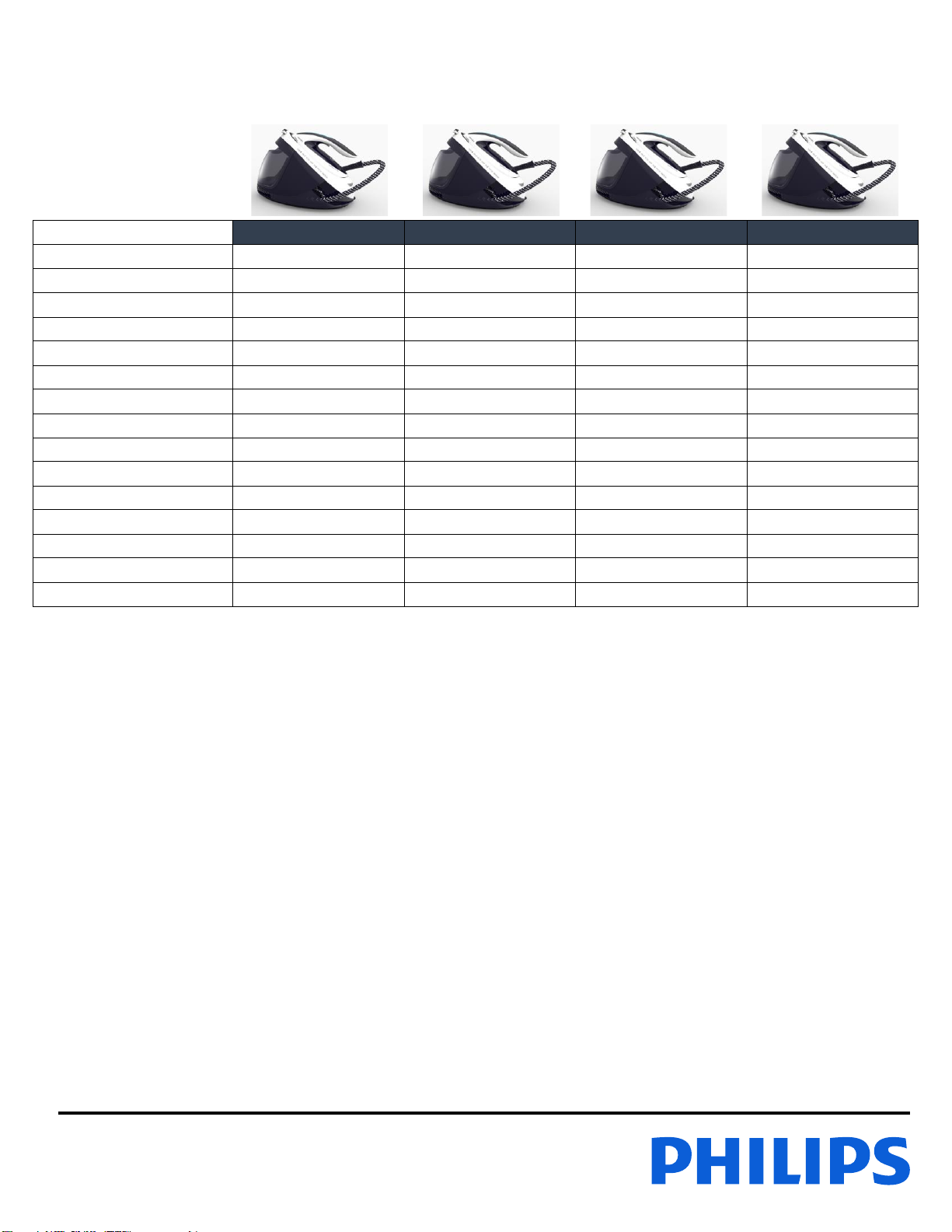

Product Matrix
Model
GC9610
GC9611
GC9612
GC9614
Power
2000-2400W
2000-2400W
2000-2400W
2000-2400W
Heat - up Time
2 minutes
2 minutes
2 minutes
2 minutes
Steam Pressure
7.0 Bar
7.0 Bar
7.0 Bar
7.5 Bar
Continuous Steam
135 g/min
135 g/min
135 g/min
150 g/min
Steam Boost
490 g
500 g
500 g
500 g
Vertical Steam
Yes
Yes
Yes
Yes
Soleplate
T-ionicGLIDE
T-ionicGLIDE
T-ionicGLIDE
T-ionicGLIDE
ECO Mode
Yes
Yes
Yes
Yes
Silent Steam Technology
No
No
No
No
Water Tank
1800 ml
1800 ml
1800 ml
1800 ml
Storage Solution
Carry Lock
Carry Lock
Carry Lock
Carry Lock
Safety Auto-Off
No
No
No
No
Power cord length
1.65 m
1.65 m
1.65 m
1.65 m
Hosecord length
1.6 m
1.6 m
1.6 m
1.6 m
Accessories
No
No
No
No

Published by Philips Consumer Lifestyle Page 3of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 ~ GC9650
Product Matrix
Model
GC9615
GC9620
GC9622
GC9625
Power
2000-2400W
2000-2400W
2000-2400W
2000-2400W
Heat - up Time
2 minutes
2 minutes
2 minutes
2 minutes
Steam Pressure
7.5 Bar
6.5 Bar
6.5 Bar
6.7 Bar
Continuous Steam
150 g/min
130 g/min
135 g/min
135 g/min
Steam Boost
510 g
450 g
450 g
470 g
Vertical Steam
Yes
Yes
Yes
Yes
Soleplate
T-ionicGLIDE
T-ionicGLIDE
T-ionicGLIDE
T-ionicGLIDE
ECO Mode
Yes
Yes
Yes
Yes
Silent Steam Technology
No
No
No
No
Water Tank
1800 ml
1800 ml
1800 ml
1800 ml
Storage Solution
Carry Lock
Carry Lock
Carry Lock
Carry Lock
Safety Auto-Off
No
No
Yes
Yes
Power cord length(m)
1.65 m
1.8 m
1.8 m
1.8 m
Hosecord length(m)
1.6 m
1.6 m
1.6 m
1.6 m
Accessories
No
No
No
No

Published by Philips Consumer Lifestyle Page 4of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Product Matrix
Model
GC9630
GC9635
GC9640
GC9641
Power
2000-2400W
2000-2400W
2000-2400W
2000-2400W
Heat - up Time
2 minutes
2 minutes
2 minutes
2 minutes
Steam Pressure
6.7 Bar
7.5 Bar
7.0 Bar
7.0 Bar
Continuous Steam
135 g/min
155 g/min
140 g/min
135 g/min
Steam Boost
470 g
520 g
480 g
480 g
Vertical Steam
Yes
Yes
Yes
Yes
Soleplate
T-ionicGLIDE
T-ionicGLIDE
T-ionicGLIDE
T-ionicGLIDE
ECO Mode
Yes
Yes
Yes
Yes
Silent Steam Technology
No
No
Yes
Yes
Water Tank
1800 ml
1800 ml
1800 ml
1800 ml
Storage Solution
Carry Lock
Carry Lock
Carry Lock
Carry Lock
Safety Auto-Off
Yes
Yes
Yes
Yes
Power cord length
1.8 m
1.8 m
1.8 m
1.8 m
Hosecord length
1.6 m
1.6 m
1.6 m
1.6 m
Accessories
No
No
Non-Woven Bag
Non-Woven Bag

Published by Philips Consumer Lifestyle Page 5of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Product Matrix
Model
GC9642
GC9644
GC9646
GC9647
Power
2000-2400W
2000-2400W
2000-2400W
2000-2400W
Heat - up Time
2 minutes
2 minutes
2 minutes
2 minutes
Steam Pressure
7.2 Bar
7.2 Bar
7.3 Bar
7.3 Bar
Continuous Steam
145 g/min
145 g/min
150 g/min
150 g/min
Steam Boost
490 g
490 g
500 g
510 g
Vertical Steam
Yes
Yes
Yes
Yes
Soleplate
T-ionicGLIDE
T-ionicGLIDE
T-ionicGLIDE
T-ionicGLIDE
ECO Mode
Yes
Yes
Yes
Yes
Silent Steam Technology
Yes
Yes
Yes
Yes
Water Tank
1800 ml
1800 ml
1800 ml
1800 ml
Storage Solution
Carry Lock
Carry Lock
Carry Lock
Carry Lock
Safety Auto-Off
Yes
Yes
Yes
Yes
Power cord length
1.8 m
1.8 m
1.8 m
1.8 m
Hosecord length
1.6 m
1.6 m
1.6 m
1.6 m
Accessories
Non-Woven Bag
Non-Woven Bag
–
–

Published by Philips Consumer Lifestyle Page 6of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Product Matrix
Model
GC9648
GC9650
Power
2000-2400W
2000-2400W
Heat - up Time
2 minutes
2 minutes
Steam Pressure
7.7 Bar
7.5 Bar
Continuous Steam
160 g/min
150 g/min
Steam Boost
540 g
500 g
Vertical Steam
Yes
Yes
Soleplate
T-ionicGLIDE
T-ionicGLIDE
ECO Mode
Yes
Yes
Silent Steam Technology
Yes
Yes
Water Tank
1800 ml
1800 ml
Storage Solution
Carry Lock
Carry Lock
Safety Auto-Off
Yes
Yes
Power cord length
1.8 m
1.8 m
Hosecord length
1.6 m
1.6 m
Accessories
–
Non-Woven Bag,
Glove

Published by Philips Consumer Lifestyle Page 7of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Part List
GC9610/20
GC9611/20
GC9611/21
GC9612/20
POS
DESCRIPTION
889961020290
889961120290
889961121160
889961220290
FRANCE
FRANCE
SWITZERLAND
FRANCE
1
INLAY & LIGHT STRIP MOLDED
423902661883
423902661883
423902661883
423902661883
2
REFLECTOR 2K MOLDED
423902661311
423902661311
423902661311
423902661311
3
WA3 STELLAR MS-LED WIRE
423902187003
423902187003
423902187003
423902187003
5
TRIGGER MOLDED
423902661341
423902661341
423902661341
423902661341
8
HOUSING & DECO PLATE 2K PRINTED
423902188523
423902188523
423902188523
423902188523
10
CHASSIS MOLDED
423902661292
423902661292
423902661292
423902661292
13
SOLEPLATE ASSY
423902269631
423902269631
423902269631
423902269631
14
HOSE CORD MTD ASSY
423902186966
423902186966
423902186966
423902186966
15*
WATER TANK PRTED ASSY
423902187892
423902187892
423902187892
423902187892
19
STAND TOP ASSY
423903011771
423903011841
423903011841
423903011861
20
STELLAR POWER BOARD PCBA
423903012562
423903012562
423903012562
423903012562
21
PCBA HOLDER MOLDED
423902661593
423902661593
423902661593
423902661593
22
STELLAR HALL SENSOR PCBA
423902187392
423902187392
423902187392
423902187392
23
STELLAR UI BOARD PCBA
423902187385
423902187385
423902187385
423902187385
24
BUTTON FRAME PRTED
423901455391
423903011791
423903011791
423903011791
25
POWER BUTTON PRTED
423903011801
423903011801
423903011801
423903011801
26
PUMP JIAYIN JYPC302 MOUNTED ASSY
423902187361
423902187361
423902187361
423902187361
30
INLET SUPPORT SEAL
423901561571
423901561571
423901561571
423901561571
31
INLET COUPLING PLATE WELDED
423902188461
423902188461
423902188461
423902188461
32
INLET COUPLING SUPPORT MOLDED
423902661601
423902661601
423902661601
423902661601
34
HOSE CLIP-BRAIDED RUBBER HOSE
423901010281
423901010281
423901010281
423901010281
35
INOX CLAMP
423901010261
423901010261
423901010261
423901010261
36
STELLAR BOILER
423903014431
423903014431
423903014431
423903014431
37
E-VALVE 7 BAR
423901013832
423901013832
423901013832
423901013832
38A
SAFETY VALVE 8 BAR
423901013822
423901013822
423901013822
423901013822
38B
SAFETY CAP NAT
423901559211
423901559211
423901559211
423901559211
39
WATER PROBE ASSY
423902186972
423902186972
423902186972
423902186972
42
RINSE CAP PRINTED ASSY#
423903011811
423903011811
423903011811
423903011811
43
MAINSCORD EU
423900012951
423900012951
423900013491
423900012951
50
STAND BOTTOM ASSY
423902188504
423902188504
423902188504
423902188504
Notes: * Option for CRP

Published by Philips Consumer Lifestyle Page 8of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Part List
GC9612/21
GC9614/20
GC9614/20
GC9614/20
POS
DESCRIPTION
889961221160
889961420010
889961420290
889961420380
FRANCE
FRANCE
SWITZERLAND
FRANCE
1
INLAY & LIGHT STRIP MOLDED
423902661883
423902661883
423902661883
423902661883
2
REFLECTOR 2K MOLDED
423902661311
423902661311
423902661311
423902661311
3
WA3 STELLAR MS-LED WIRE
423902187003
423902187003
423902187003
423902187003
5
TRIGGER MOLDED
423902661341
423902661341
423902661341
423902661341
8
HOUSING & DECO PLATE 2K PRINTED
423902188523
423902188523
423902188523
423902188523
10
CHASSIS MOLDED
423902661292
423902661292
423902661292
423902661292
13
SOLEPLATE ASSY
423902269631
423902269631
423902269631
423902269631
14
HOSE CORD MTD ASSY
423902186966
423902186966
423902186966
423902186966
15*
WATER TANK PRTED ASSY
423902187892
423902187892
423902187892
423902187892
19
STAND TOP ASSY
423903011861
423903014791
423903014791
423903014791
20
STELLAR POWER BOARD PCBA
423903012562
423903012562
423903012562
423903012562
21
PCBA HOLDER MOLDED
423902661593
423902661593
423902661593
423902661593
22
STELLAR HALL SENSOR PCBA
423902187392
423902187392
423902187392
423902187392
23
STELLAR UI BOARD PCBA
423902187385
423902187385
423902187385
423902187385
24
BUTTON FRAME PRTED
423903011791
423903011791
423903011791
423903011791
25
POWER BUTTON PRTED
423903011801
423903011801
423903011801
423903011801
26
PUMP JIAYIN JYPC302 MOUNTED ASSY
423902187361
423902187361
423902186522
423902187361
30
INLET SUPPORT SEAL
423901561571
423901561571
423901561571
423901561571
31
INLET COUPLING PLATE WELDED
423902188461
423902188461
423902188461
423902188461
32
INLET COUPLING SUPPORT MOLDED
423902661601
423902661601
423902661601
423902661601
34
HOSE CLIP-BRAIDED RUBBER HOSE
423901010281
423901010281
423901010281
423901010281
35
INOX CLAMP
423901010261
423901010261
423901010261
423901010261
36
STELLAR BOILER
423903014431
423903014431
423903014431
423903014431
37
E-VALVE 7 BAR
423901013832
423901013832
423901013832
423901013832
38A
SAFETY VALVE 8 BAR
423901013822
423901013822
423901013822
423901013822
38B
SAFETY CAP NAT
423901559211
423901559211
423901559211
423901559211
39
WATER PROBE ASSY
423902186972
423902186972
423902186972
423902186972
42
RINSE CAP PRINTED ASSY#
423903011811
423903011811
423903011811
423903011811
43
MAINSCORD EU
423900013491
423900012951
423900012951
423900012951
50
STAND BOTTOM ASSY
423902188504
423902188504
423902188504
423902188504
Notes: * Option for CRP

Published by Philips Consumer Lifestyle Page 9of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Part List
GC9614/21
GC9615/20
GC9615/20
GC9620/20
POS
DESCRIPTION
889961421160
889961520010
889961520290
889962020010
SWITZERLAN
D
WEU
FRANCE
WEU
1
INLAY & LIGHT STRIP MOLDED
423902661883
423902661883
423902661883
423902661883
2
REFLECTOR 2K MOLDED
423902661311
423902661311
423902661311
423902661311
3
WA3 STELLAR MS-LED WIRE
423902187003
423902187003
423902187003
423902187003
5
TRIGGER MOLDED
423902661341
423902661341
423902661341
423902661341
8
HOUSING & DECO PLATE 2K PRINTED
423902188523
423902188523
423902188523
423902188523
10
CHASSIS MOLDED
423902661292
423902661292
423902661292
423902670973
13
SOLEPLATE ASSY
423902269631
423902269631
423902269631
423902269631
14
HOSE CORD MTD ASSY
423902186966
423902186966
423902186966
423903007293
15*
WATER TANK PRTED ASSY
423902187892
423902187892
423902187892
423902187892
19
STAND TOP ASSY
423903014791
423903014811
423903014811
423902188534
20
STELLAR POWER BOARD PCBA
423903012562
423903012562
423903012562
423902187379
21
PCBA HOLDER MOLDED
423902661593
423902661593
423902661593
423902661593
22
STELLAR HALL SENSOR PCBA
423902187392
423902187392
423902187392
423902187392
23
STELLAR UI BOARD PCBA
423902187385
423902187385
423902187385
423902187385
24
BUTTON FRAME PRTED
423903011791
423903011791
423903011791
423902187841
25
POWER BUTTON PRTED
423903011801
423903011801
423903011801
423902187851
26
PUMP JIAYIN JYPC302 MOUNTED ASSY
423902187361
423902187361
423902187361
423902187361
30
INLET SUPPORT SEAL
423901561571
423901561571
423901561571
423901561571
31
INLET COUPLING PLATE WELDED
423902188461
423902188461
423902188461
423902188461
32
INLET COUPLING SUPPORT MOLDED
423902661601
423902661601
423902661601
423902661601
34
HOSE CLIP-BRAIDED RUBBER HOSE
423901010281
423901010281
423901010281
423901010281
35
INOX CLAMP
423901010261
423901010261
423901010261
423901010261
36
STELLAR BOILER
423903014431
423903014431
423903014431
423903014421
37
E-VALVE 7 BAR
423901013832
423901013832
423901013832
423901013832
38A
SAFETY VALVE 8 BAR
423901013822
423901013822
423901013822
423901013822
38B
SAFETY CAP NAT
423901559211
423901559211
423901559211
423901559211
39
WATER PROBE ASSY
423902186972
423902186972
423902186972
423902186972
42
RINSE CAP PRINTED ASSY#
423903011811
423903011811
423903011811
423902187871
43
MAINSCORD EU
423900013491
423900012951
423900012951
242207098596
50
STAND BOTTOM ASSY
423902188504
423902188504
423902188504
423903007281
Notes: * Option for CRP

Published by Philips Consumer Lifestyle Page 10 of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Part List
GC9622/20
GC9622/20
GC9625/20
GC9630/20
POS
DESCRIPTION
889962220010
889962220500
889962520290
889963020010
WEU
SINGAPORE
FRANCE
WEU
1
INLAY & LIGHT STRIP MOLDED
423902188443
423902188443
423902188443
423902188453
2
REFLECTOR 2K MOLDED
423902661311
423902661311
423902661311
423902661311
3
WA3 STELLAR MS-LED WIRE
423902187003
423902187003
423902187003
423902187003
5
TRIGGER MOLDED
423902661341
423902661341
423902661341
423902661341
8
HOUSING & DECO PLATE 2K PRINTED
423902188523
423902188523
423902188523
423902188523
10
CHASSIS MOLDED
423902670973
423902670973
423902661292
423902670973
13
SOLEPLATE ASSY
423902269631
423902269631
423902269631
423902269631
14
HOSE CORD MTD ASSY
423903007293
423903007293
423902186966
423903007293
15*
WATER TANK PRTED ASSY
423902187892
423902187892
423902187892
423902187892
19
STAND TOP ASSY
423902188554
423902188554
423902188515
423902188515
20
STELLAR POWER BOARD PCBA
423902187379
423902187379
423902187379
423902187379
21
PCBA HOLDER MOLDED
423902661593
423902661593
423902661593
423902661593
22
STELLAR HALL SENSOR PCBA
423902187392
423902187392
423902187392
423902187392
23
STELLAR UI BOARD PCBA
423902187385
423902187385
423902187385
423902187385
24
BUTTON FRAME PRTED
423902187841
423902187841
423902187841
423902187841
25
POWER BUTTON PRTED
423902187851
423902187851
423902187851
423902187851
26
PUMP JIAYIN JYPC302 MOUNTED ASSY
423902187361
423902187361
423902187361
423902187361
30
INLET SUPPORT SEAL
423901561571
423901561571
423901561571
423901561571
31
INLET COUPLING PLATE WELDED
423902188461
423902188461
423902188461
423902188461
32
INLET COUPLING SUPPORT MOLDED
423902661601
423902661601
423902661601
423902661601
34
HOSE CLIP-BRAIDED RUBBER HOSE
423901010281
423901010281
423901010281
423901010281
35
INOX CLAMP
423901010261
423901010261
423901010261
423901010261
36
STELLAR BOILER
423903014421
423903014421
423903014431
423903014421
37
E-VALVE 7 BAR
423901013832
423901013832
423901013832
423901013832
38A
SAFETY VALVE 8 BAR
423901013822
423901013822
423901013822
423901013822
38B
SAFETY CAP NAT
423901559211
423901559211
423901559211
423901559211
39
WATER PROBE ASSY
423902186972
423902186972
423902186972
423902186972
42
RINSE CAP PRINTED ASSY#
423902187871
423902187871
423902187871
423902187871
43
MAINSCORD EU
242207098596
242207098618
242207098596
242207098596
50
STAND BOTTOM ASSY
423903007281
423903007281
423902188504
423903007281
Notes: * Option for CRP

Published by Philips Consumer Lifestyle Page 11 of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Part List
GC9630/20
GC9630/25
GC9635/20
GC9635/20
POS
DESCRIPTION
889963020450
889963025040
889963520010
889963520180
HONG KONG
TURKEY
WEU
IBERIA
1
INLAY & LIGHT STRIP MOLDED
423902188453
423902188453
423902188453
423902188453
2
REFLECTOR 2K MOLDED
423902661311
423902661311
423902661311
423902661311
3
WA3 STELLAR MS-LED WIRE
423902187003
423902187003
423902187003
423902187003
5
TRIGGER MOLDED
423902661341
423902661341
423902661341
423902661341
8
HOUSING & DECO PLATE 2K PRINTED
423902188523
423902188523
423902188523
423902188523
10
CHASSIS MOLDED
423902661292
423902661292
423902670973
423902670973
13
SOLEPLATE ASSY
423902269631
423902269631
423902269631
423902269631
14
HOSE CORD MTD ASSY
423902186966
423902186966
423903007293
423903007293
15*
WATER TANK PRTED ASSY
423902187892
423902187892
423902187892
423902187892
19
STAND TOP ASSY
423902188515
423902188515
423903014831
423903014831
20
STELLAR POWER BOARD PCBA
423902187379
423902187379
423902187379
423902187379
21
PCBA HOLDER MOLDED
423902661593
423902661593
423902661593
423902661593
22
STELLAR HALL SENSOR PCBA
423902187392
423902187392
423902187392
423902187392
23
STELLAR UI BOARD PCBA
423902187385
423902187385
423902187385
423902187385
24
BUTTON FRAME PRTED
423902187841
423902187841
423902187841
423902187841
25
POWER BUTTON PRTED
423902187851
423902187851
423902187851
423902187851
26
PUMP JIAYIN JYPC302 MOUNTED ASSY
423902187361
423902187361
423902187361
423902187361
30
INLET SUPPORT SEAL
423901561571
423901561571
423901561571
423901561571
31
INLET COUPLING PLATE WELDED
423902188461
423902188461
423902188461
423902188461
32
INLET COUPLING SUPPORT MOLDED
423902661601
423902661601
423902661601
423902661601
34
HOSE CLIP-BRAIDED RUBBER HOSE
423901010281
423901010281
423901010281
423901010281
35
INOX CLAMP
423901010261
423901010261
423901010261
423901010261
36
STELLAR BOILER
423903014431
423903014431
423903014421
423903014421
37
E-VALVE 7 BAR
423901013832
423901013832
423901013832
423901013832
38A
SAFETY VALVE 8 BAR
423901013822
423901013822
423901013822
423901013822
38B
SAFETY CAP NAT
423901559211
423901559211
423901559211
423901559211
39
WATER PROBE ASSY
423902186972
423902186972
423902186972
423902186972
42
RINSE CAP PRINTED ASSY#
423902187871
423902187871
423902187871
423902187871
43
MAINSCORD EU
242207098618
242207098596
242207098596
242207098596
50
STAND BOTTOM ASSY
423902188504
423902188504
423903007281
423903007281
Notes: * Option for CRP

Published by Philips Consumer Lifestyle Page 12 of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Part List
GC9635/20
GC9635/26
GC9640/60
GC9640/65
POS
DESCRIPTION
889963520300
889963526150
889964060010
889964065040
RUSSIA
UK
WEU
TURKEY
1
INLAY & LIGHT STRIP MOLDED
423902188453
423902188453
423902188453
423902188453
2
REFLECTOR 2K MOLDED
423902661311
423902661311
423902661311
423902661311
3
WA3 STELLAR MS-LED WIRE
423902187003
423902187003
423902187003
423902187003
5
TRIGGER MOLDED
423902661341
423902661341
423902661911
423902661911
8
HOUSING & DECO PLATE 2K PRINTED
423902188523
423902188523
423902188583
423902188583
10
CHASSIS MOLDED
423902670973
423902670973
423902670973
423902661292
13
SOLEPLATE ASSY
423902269631
423902269631
423902276031
423902276031
14
HOSE CORD MTD ASSY
423903007293
423903007293
423903007263
423902188596
15*
WATER TANK PRTED ASSY
423902187892
423902187892
423902188632
423902188632
19
STAND TOP ASSY
423902921901
423903014831
423902188624
423902188624
20
STELLAR POWER BOARD PCBA
423902187379
423902187379
423902187379
423902187379
21
PCBA HOLDER MOLDED
423902661593
423902661593
423902661593
423902661593
22
STELLAR HALL SENSOR PCBA
423902187392
423902187392
423902187392
423902187392
23
STELLAR UI BOARD PCBA
423902187385
423902187385
423902187385
423902187385
24
BUTTON FRAME PRTED
423902187841
423902187841
423902188481
423902188481
25
POWER BUTTON PRTED
423902187851
423902187851
423902188491
423902188491
26
PUMP JIAYIN JYPC302 MOUNTED ASSY
423902187361
423902187361
423902188821
423902188821
30
INLET SUPPORT SEAL
423901561571
423901561571
423901561571
423901561571
31
INLET COUPLING PLATE WELDED
423902188461
423902188461
423902188461
423902188461
32
INLET COUPLING SUPPORT MOLDED
423902661601
423902661601
423902661601
423902661601
34
HOSE CLIP-BRAIDED RUBBER HOSE
423901010281
423901010281
423901010281
423901010281
35
INOX CLAMP
423901010261
423901010261
423901010261
423901010261
36
STELLAR BOILER
423903014421
423903014421
423903014421
423903014431
37
E-VALVE 7 BAR
423901013832
423901013832
423901013832
423901013832
38A
SAFETY VALVE 8 BAR
423901013822
423901013822
423901013822
423901013822
38B
SAFETY CAP NAT
423901559211
423901559211
423901559211
423901559211
39
WATER PROBE ASSY
423902186972
423902186972
423902186972
423902186972
42
RINSE CAP PRINTED ASSY#
423902187871
423902187871
423902188391
423902188391
43
MAINSCORD EU
242207098596
242207098618
242207098595
242207098595
50
STAND BOTTOM ASSY
423903007281
423903007281
423903007271
423902188614
Notes: * Option for CRP

Published by Philips Consumer Lifestyle Page 13 of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Part List
GC9641/60
GC9642/60
GC9642/60
GC9642/66
POS
DESCRIPTION
889964160290
889964260010
889964260600
889964266600
FRANCE
WEU
DUBAI
DUBAI
1
INLAY & LIGHT STRIP MOLDED
423902188453
423902188453
423902188453
423902188453
2
REFLECTOR 2K MOLDED
423902661311
423902661311
423902661311
423902661311
3
WA3 STELLAR MS-LED WIRE
423902187003
423902187003
423902187003
423902187003
5
TRIGGER MOLDED
423902661911
423902661911
423902661911
423902661911
8
HOUSING & DECO PLATE 2K PRINTED
423902188583
423902188583
423902188583
423902188583
10
CHASSIS MOLDED
423902661292
423902670973
423902661292
423902661292
13
SOLEPLATE ASSY
423902276031
423902276031
423902276031
423902276031
14
HOSE CORD MTD ASSY
423902188596
423903007263
423902188596
423902188596
15*
WATER TANK PRTED ASSY
423902188632
423902188632
423902188632
423902188632
19
STAND TOP ASSY
423903002551
423902188854
423902188854
423902188854
20
STELLAR POWER BOARD PCBA
423902187379
423902187379
423902187379
423902187379
21
PCBA HOLDER MOLDED
423902661593
423902661593
423902661593
423902661593
22
STELLAR HALL SENSOR PCBA
423902187392
423902187392
423902187392
423902187392
23
STELLAR UI BOARD PCBA
423902187385
423902187385
423902187385
423902187385
24
BUTTON FRAME PRTED
423902188481
423902188481
423902188481
423902188481
25
POWER BUTTON PRTED
423902188491
423902188491
423902188491
423902188491
26
PUMP JIAYIN JYPC302 MOUNTED ASSY
423902188821
423902188821
423902188821
423902188821
30
INLET SUPPORT SEAL
423901561571
423901561741
423901561571
423901561571
31
INLET COUPLING PLATE WELDED
423902188461
423902188461
423902188461
423902188461
32
INLET COUPLING SUPPORT MOLDED
423902661601
423902661601
423902661601
423902661601
34
HOSE CLIP-BRAIDED RUBBER HOSE
423901010281
423901010281
423901010281
423901010281
35
INOX CLAMP
423901010261
423901010261
423901010261
423901010261
36
STELLAR BOILER
423903014431
423903014421
423903014431
423903014431
37
E-VALVE 7 BAR
423901013832
423901013832
423901013832
423901013832
38A
SAFETY VALVE 8 BAR
423901013822
423901013822
423901013822
423901013822
38B
SAFETY CAP NAT
423901559211
423901559211
423901559211
423901559211
39
WATER PROBE ASSY
423902186972
423902186972
423902186972
423902186972
42
RINSE CAP PRINTED ASSY#
423902188391
423902188391
423902188391
423902188391
43
MAINSCORD EU
242207098595
242207098595
242207098595
242207098619
50
STAND BOTTOM ASSY
423902188614
423903007271
423902188614
423902188614
Notes: * Option for CRP

Published by Philips Consumer Lifestyle Page 14 of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Part List
GC9642/69
GC9644/20
GC9646/60
GC9647/60
POS
DESCRIPTION
889964269050
889964420220
889964660290
889964760290
SINGAPORE
GERMANY
FRANCE
FRANCE
1
INLAY & LIGHT STRIP MOLDED
423902188453
423902188453
423902188453
423902188453
2
REFLECTOR 2K MOLDED
423902661311
423902661311
423902661311
423902661311
3
WA3 STELLAR MS-LED WIRE
423902187003
423902187003
423902187003
423902187003
5
TRIGGER MOLDED
423902661911
423902661341
423902661911
423902661911
8
HOUSING & DECO PLATE 2K PRINTED
423902188583
423903009221
423902188583
423902188583
10
CHASSIS MOLDED
423902661292
423902661292
423902670973
423902670973
13
SOLEPLATE ASSY
423902276031
423902269641
423902276031
423902276031
14
HOSE CORD MTD ASSY
423902188596
423902186966
423903007263
423903007263
15*
WATER TANK PRTED ASSY
423902188632
423902187892
423902188632
423902188632
19
STAND TOP ASSY
423902188854
423903008251
423903011591
423903011611
20
STELLAR POWER BOARD PCBA
423902187379
423902187379
423902187379
423902187379
21
PCBA HOLDER MOLDED
423902661593
423902661593
423902661593
423902661593
22
STELLAR HALL SENSOR PCBA
423902187392
423902187392
423902187392
423902187392
23
STELLAR UI BOARD PCBA
423902187385
423902187385
423902187385
423902187385
24
BUTTON FRAME PRTED
423902188481
423902187841
423902188481
423902188481
25
POWER BUTTON PRTED
423902188491
423902187851
423902188491
423902188491
26
PUMP JIAYIN JYPC302 MOUNTED ASSY
423902188821
423902188821
423902188821
423902188821
30
INLET SUPPORT SEAL
423901561571
423901561571
423901561571
423901561571
31
INLET COUPLING PLATE WELDED
423902188461
423902188461
423902188461
423902188461
32
INLET COUPLING SUPPORT MOLDED
423902661601
423902661601
423902661601
423902661601
34
HOSE CLIP-BRAIDED RUBBER HOSE
423901010281
423901010281
423901010281
423901010281
35
INOX CLAMP
423901010261
423901010261
423901010261
423901010261
36
STELLAR BOILER
423903014431
423903014431
423903014421
423903014421
37
E-VALVE 7 BAR
423901013832
423901013832
423901013832
423901013832
38A
SAFETY VALVE 8 BAR
423901013822
423901013822
423901013822
423901013822
38B
SAFETY CAP NAT
423901559211
423901559211
423901559211
423901559211
39
WATER PROBE ASSY
423902186972
423902186972
423902186972
423902186972
42
RINSE CAP PRINTED ASSY#
423902188391
423902187871
423902188391
423902188391
43
MAINSCORD EU
242207098595
242207098751
242207098595
242207098595
50
STAND BOTTOM ASSY
423902188614
423902188504
423903007271
423903007271
Notes: * Option for CRP

Published by Philips Consumer Lifestyle Page 15 of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Part List
GC9648/60
GC9650/80
GC9650/80
GC9650/80
POS
DESCRIPTION
889964860290
889965080150
889965080640
889965080040
FRANCE
UK
THAILAND
TURKEY
1
INLAY & LIGHT STRIP MOLDED
423902188453
423902188443
423902188443
423902188443
2
REFLECTOR 2K MOLDED
423902661311
423902661311
423902661311
423902661311
3
WA3 STELLAR MS-LED WIRE
423902187003
423902187003
423902187003
423902187003
5
TRIGGER MOLDED
423902661911
423902661921
423902661921
423902661921
8
HOUSING & DECO PLATE 2K PRINTED
423902188583
423902188903
423902188903
423902188903
10
CHASSIS MOLDED
423902670973
423902669933
423902669933
423902669933
13
SOLEPLATE ASSY
423902276031
423902276031
423902276031
423902276031
14
HOSE CORD MTD ASSY
423903007263
423903006543
423903006543
423903006543
15*
WATER TANK PRTED ASSY
423902188632
423902188942
423902188942
423902188942
19
STAND TOP ASSY
423903014851
423902188934
423902188934
423902188934
20
STELLAR POWER BOARD PCBA
423902187379
423902187379
423902187379
423902187379
21
PCBA HOLDER MOLDED
423902661593
423902661593
423902661593
423902661593
22
STELLAR HALL SENSOR PCBA
423902187392
423902187392
423902187392
423902187392
23
STELLAR UI BOARD PCBA
423902187385
423902187385
423902187385
423902187385
24
BUTTON FRAME PRTED
423902188481
423902189731
423902189731
423902189731
25
POWER BUTTON PRTED
423902188491
423902189741
423902189741
423902189741
26
PUMP JIAYIN JYPC302 MOUNTED ASSY
423902188821
423902186522
423902186522
423902188821
30
INLET SUPPORT SEAL
423901561571
423901561571
423901561571
423901561571
31
INLET COUPLING PLATE WELDED
423902188461
423902188471
423902188471
423902188471
32
INLET COUPLING SUPPORT MOLDED
423902661601
423902661601
423902661601
423902661601
34
HOSE CLIP-BRAIDED RUBBER HOSE
423901010281
423901010281
423901010281
423901010281
35
INOX CLAMP
423901010261
423901010261
423901010261
423901010261
36
STELLAR BOILER
423903014421
423903014421
423903014421
423903014421
37
E-VALVE 7 BAR
423901013832
423901013832
423901013832
423901013832
38A
SAFETY VALVE 8 BAR
423901013822
423901013822
423901013822
423901013822
38B
SAFETY CAP NAT
423901559211
423901559211
423901559211
423901559211
39
WATER PROBE ASSY
423902186972
423902186972
423902186972
423902186972
42
RINSE CAP PRINTED ASSY#
423902188391
423902188421
423902188421
423902188421
43
MAINSCORD EU
242207098595
242207098727
242207098627
242207098597
50
STAND BOTTOM ASSY
423903007271
423903007241
423903007241
423903007241
52*
GLOVE
-
423901715611
423901715611
423901715611
Notes: * Option for CRP

Published by Philips Consumer Lifestyle Page 16 of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Part List
GC9650/80
GC9650/80
GC9650/80
GC9650/80
PO
S
DESCRIPTION
889965080300
889965080380
889965080290
889965080220
EEU
ITALY
FRANCE
GERMANY
1
INLAY & LIGHT STRIP MOLDED
423902188443
423902188443
423902188443
423902188443
2
REFLECTOR 2K MOLDED
423902661311
423902661311
423902661311
423902661311
3
WA3 STELLAR MS-LED WIRE
423902187003
423902187003
423902187003
423902187003
5
TRIGGER MOLDED
423902661921
423902661921
423902661921
423902661921
8
HOUSING & DECO PLATE 2K PRINTED
423902188903
423902188903
423902188903
423902188903
10
CHASSIS MOLDED
423902669933
423902669933
423902669933
423902669933
13
SOLEPLATE ASSY
423902276031
423902276031
423902276031
423902276031
14
HOSE CORD MTD ASSY
423903006543
423903006543
423903006543
423903006543
15*
WATER TANK PRTED ASSY
423902188942
423902188942
423902188942
423902188942
19
STAND TOP ASSY
423902188934
423902188934
423902188934
423902188934
20
STELLAR POWER BOARD PCBA
423902187379
423902187379
423902187379
423902187379
21
PCBA HOLDER MOLDED
423902661593
423902661593
423902661593
423902661593
22
STELLAR HALL SENSOR PCBA
423902187392
423902187392
423902187392
423902187392
23
STELLAR UI BOARD PCBA
423902187385
423902187385
423902187385
423902187385
24
BUTTON FRAME PRTED
423902189731
423902189731
423902189731
423902189731
25
POWER BUTTON PRTED
423902189741
423902189741
423902189741
423902189741
26
PUMP JIAYIN JYPC302 MOUNTED
ASSY
423902188821
423902188821
423902188821
423902188821
30
INLET SUPPORT SEAL
423901561571
423901561571
423901561571
423901561571
31
INLET COUPLING PLATE WELDED
423902188471
423902188471
423902188471
423902188471
32
INLET COUPLING SUPPORT MOLDED
423902661601
423902661601
423902661601
423902661601
34
HOSE CLIP-BRAIDED RUBBER HOSE
423901010281
423901010281
423901010281
423901010281
35
INOX CLAMP
423901010261
423901010261
423901010261
423901010261
36
STELLAR BOILER
423903014421
423903014421
423903014421
423903014421
37
E-VALVE 7 BAR
423901013832
423901013832
423901013832
423901013832
38A
SAFETY VALVE 8 BAR
423901013822
423901013822
423901013822
423901013822
38B
SAFETY CAP NAT
423901559211
423901559211
423901559211
423901559211
39
WATER PROBE ASSY
423902186972
423902186972
423902186972
423902186972
42
RINSE CAP PRINTED ASSY#
423902188421
423902188421
423902188421
423902188421
43
MAINSCORD EU
242207098597
242207098597
242207098597
242207098597
50
STAND BOTTOM ASSY
423903007241
423903007241
423903007241
423903007241
52*
GLOVE
423901715611
423901715611
423901715611
423901715611
Notes: * Option for CRP

Published by Philips Consumer Lifestyle Page 17 of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Part List
GC9650/80
GC9650/80
GC9650/80
GC9650/80
POS
DESCRIPTION
889965080300
889965080380
889965080290
889965080220
EEU
ITALY
FRANCE
GERMANY
1
INLAY & LIGHT STRIP MOLDED
423902188443
423902188443
423902188443
423902188443
2
REFLECTOR 2K MOLDED
423902661311
423902661311
423902661311
423902661311
3
WA3 STELLAR MS-LED WIRE
423902187003
423902187003
423902187003
423902187003
5
TRIGGER MOLDED
423902661921
423902661921
423902661921
423902661921
8
HOUSING & DECO PLATE 2K PRINTED
423902188903
423902188903
423902188903
423902188903
10
CHASSIS MOLDED
423902669933
423902669933
423902669933
423902669933
13
SOLEPLATE ASSY
423902276031
423902276031
423902276031
423902276031
14
HOSE CORD MTD ASSY
423903006543
423903006543
423903006543
423903006543
15*
WATER TANK PRTED ASSY
423902188942
423902188942
423902188942
423902188942
19
STAND TOP ASSY
423902188934
423902188934
423902188934
423902188934
20
STELLAR POWER BOARD PCBA
423902187379
423902187379
423902187379
423902187379
21
PCBA HOLDER MOLDED
423902661593
423902661593
423902661593
423902661593
22
STELLAR HALL SENSOR PCBA
423902187392
423902187392
423902187392
423902187392
23
STELLAR UI BOARD PCBA
423902187385
423902187385
423902187385
423902187385
24
BUTTON FRAME PRTED
423902189731
423902189731
423902189731
423902189731
25
POWER BUTTON PRTED
423902189741
423902189741
423902189741
423902189741
26
PUMP JIAYIN JYPC302 MOUNTED ASSY
423902188821
423902188821
423902188821
423902188821
30
INLET SUPPORT SEAL
423901561571
423901561571
423901561571
423901561571
31
INLET COUPLING PLATE WELDED
423902188471
423902188471
423902188471
423902188471
32
INLET COUPLING SUPPORT MOLDED
423902661601
423902661601
423902661601
423902661601
34
HOSE CLIP-BRAIDED RUBBER HOSE
423901010281
423901010281
423901010281
423901010281
35
INOX CLAMP
423901010261
423901010261
423901010261
423901010261
36
STELLAR BOILER
423903014421
423903014421
423903014421
423903014421
37
E-VALVE 7 BAR
423901013832
423901013832
423901013832
423901013832
38A
SAFETY VALVE 8 BAR
423901013822
423901013822
423901013822
423901013822
38B
SAFETY CAP NAT
423901559211
423901559211
423901559211
423901559211
39
WATER PROBE ASSY
423902186972
423902186972
423902186972
423902186972
42
RINSE CAP PRINTED ASSY#
423902188421
423902188421
423902188421
423902188421
43
MAINSCORD EU
242207098597
242207098597
242207098597
242207098597
50
STAND BOTTOM ASSY
423903007241
423903007241
423903007241
423903007241
52*
GLOVE
423901715611
423901715611
423901715611
423901715611
Notes: * Option for CRP

Published by Philips Consumer Lifestyle Page 18 of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Part List
GC9650/80
GC9636/20
POS
DESCRIPTION
889965080060
889963620220
TURKEY
GERMANY
1
INLAY & LIGHT STRIP MOLDED
423902188443
423902188453
2
REFLECTOR 2K MOLDED
423902661311
423902661311
3
WA3 STELLAR MS-LED WIRE
423902187003
423902187003
5
TRIGGER MOLDED
423902661921
423902661341
8
HOUSING & DECO PLATE 2K PRINTED
423902188903
423902188523
10
CHASSIS MOLDED
423902669933
423902670973
13
SOLEPLATE ASSY
423902276031
423902269631
14
HOSE CORD MTD ASSY
423903006543
423903007293
15*
WATER TANK PRTED ASSY
423902188942
423902187892
19
STAND TOP ASSY
423902188934
423903019661
20
STELLAR POWER BOARD PCBA
423902187379
423902187379
21
PCBA HOLDER MOLDED
423902661593
423902661593
22
STELLAR HALL SENSOR PCBA
423902187392
423902187392
23
STELLAR UI BOARD PCBA
423902187385
423902187385
24
BUTTON FRAME PRTED
423902189731
423902187841
25
POWER BUTTON PRTED
423902189741
423902187851
26
PUMP JIAYIN JYPC302 MOUNTED ASSY
423902188821
423902187361
30
INLET SUPPORT SEAL
423901561571
423901561571
31
INLET COUPLING PLATE WELDED
423902188471
423902188461
32
INLET COUPLING SUPPORT MOLDED
423902661601
423902661601
34
HOSE CLIP-BRAIDED RUBBER HOSE
423901010281
423901010281
35
INOX CLAMP
423901010261
423901010261
36
STELLAR BOILER
423903014421
423903014421
37
E-VALVE 7 BAR
423901013832
423901013832
38A
SAFETY VALVE 8 BAR
423901013822
423901013822
38B
SAFETY CAP NAT
423901559211
423901559211
39
WATER PROBE ASSY
423902186972
423902186972
42
RINSE CAP PRINTED ASSY#
423902188421
423902187871
43
MAINSCORD EU
242207098597
242207098596
50
STAND BOTTOM ASSY
423903007241
423903007281
52*
GLOVE
423901715611
-
Notes: * Option for CRP

Published by Philips Consumer Lifestyle Page 19 of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Exploded View –Iron
Parts without pos. number are not service item and can’t be ordered.
Scale: Not to scale
8

Published by Philips Consumer Lifestyle Page 20 of 32 For internal use only
Document No. : CSW-07-081-18028
GC9610 –GC9650
Exploded View –Stand
Parts without pos. number are not service item and can’t be ordered.
Scale: Not to scale
